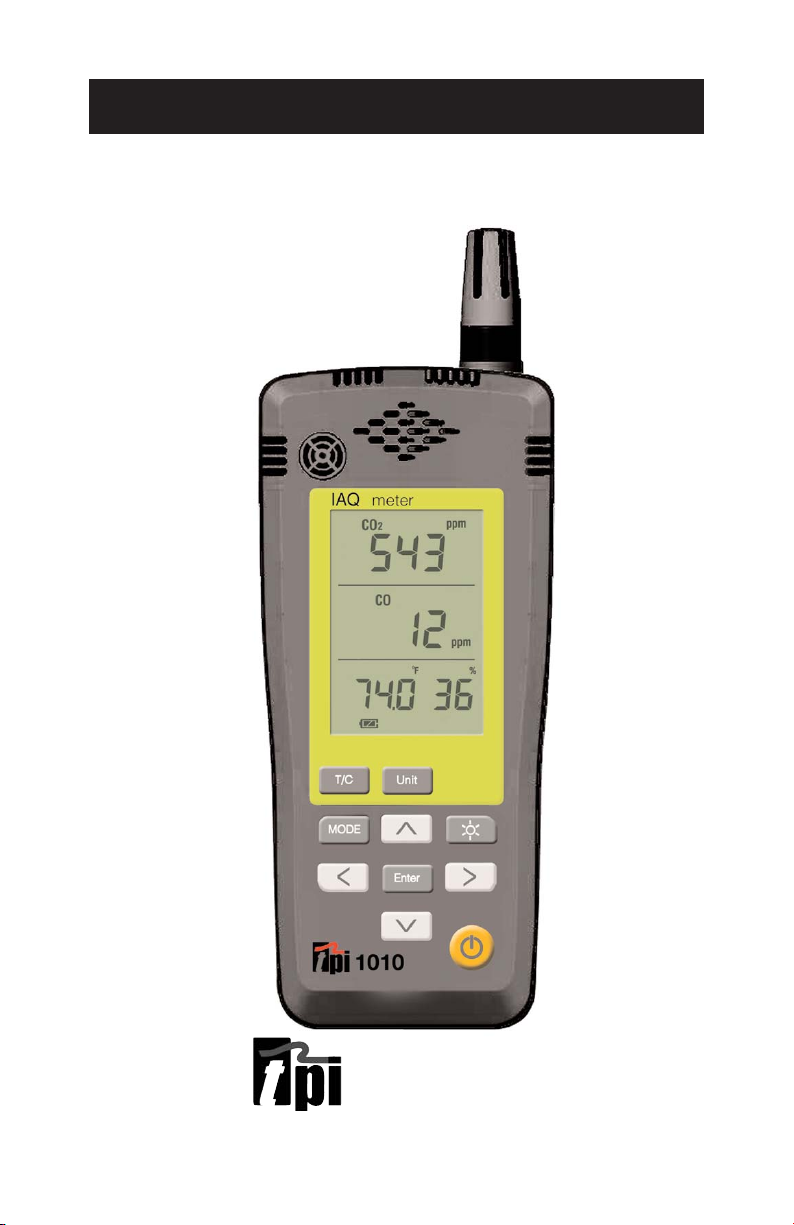

TPI 1010 Manuel utilisateur

1010

Rev. 2.x / 3.x Meters

Indoor Air Quality Meter

The Value LeaderTM

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

1. Introduction

Thank you for purchasing TPI brand products. The TPI 1010 Indoor Air

Quality (IAQ) Meter is a state of the art, easy to use tester designed to

provide you with the necessary measurements to monitor and make

adjustments to air handling devices. The instrument is ruggedly con-

structed and comes with a 3 Year unit and 2 Year sensor Guarantee.

2. General Overview

The 1010 IAQ meter uses state of the art sensors to measure humidity,

carbon monoxide (CO), carbon dioxide (CO2), and temperature. The

CO and CO2 sensors in your meter will need to be replaced periodically

and calibration is recommended once every year.

The CO sensor is electrochemical and this type of sensor is always

active once installed in the unit. Therefore the time the unit is off and

not being used must be taken into account when determining sensor

life. The sensors in your analyzer are warranted for two years. This

warranty does not cover sensors damaged through misuse of the

meter.

You should keep battery power applied to your sensors at all times.

The following guidelines will help prevent damage to your sensors:

Always store your unit in a place where the temperature does not get

down to or below freezing.

Always maintain battery power to the sensors. When the batteries get

low replace them as soon as possible.

Never allow foreign objects or material to enter the sensor holes, dam-

age to the sensor may result.

Never over saturate your sensors by performing tests on equipment

with gas levels beyond the capability of you analyzer.

Contents

1. Introduction

2. General Overview

3. Familiarization

3.1 Front View

3.2 Soft Keys

3.3 Back View

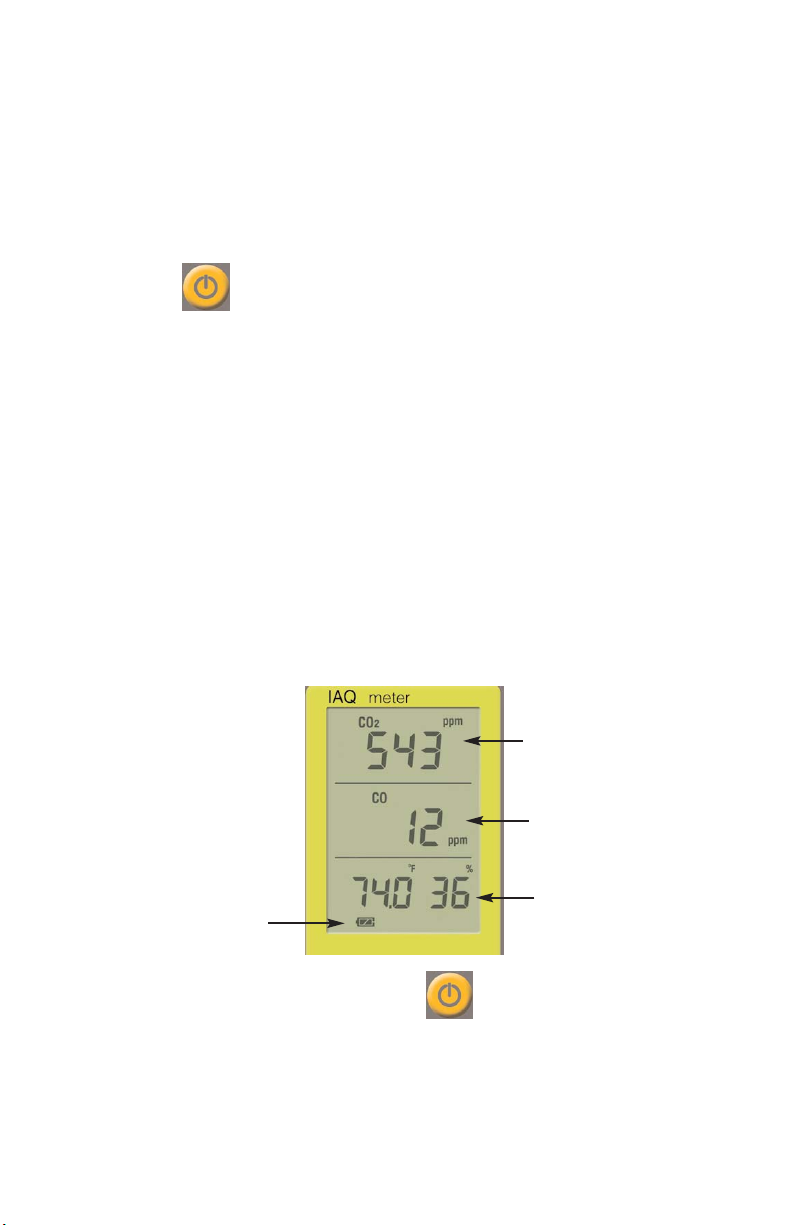

4. Operation

4.1 Turning On & Off / Performing a Test / Main Display

4.2 Selecting Temperature Units

4.3 Ambient / Dew Point / Wet Bulb Temperature Display

4.4 Temperature / Clock Display Modes

4.5 Activating the Backlight

4.6 Setting Date and Time

4.7 Setting CO Alarm Level

5. Calculating % Outside Air

5.1 % Outside Air (Temperature)

5.2 % Outside Air (Carbon Dioxide)

6. Data Logging

7. Retrieving Logged Data

8. Technical Specifications

9. Maintenance

9.1 Battery Replacement

9.2 Service

10. Technical Information

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

1. Introduction

Thank you for purchasing TPI brand products. The TPI 1010 Indoor Air

Quality (IAQ) Meter is a state of the art, easy to use tester designed to

provide you with the necessary measurements to monitor and make

adjustments to air handling devices. The instrument is ruggedly con-

structed and comes with a 3 Year unit and 2 Year sensor Guarantee.

2. General Overview

The 1010 IAQ meter uses state of the art sensors to measure humidity,

carbon monoxide (CO), carbon dioxide (CO2), and temperature. The

CO and CO2 sensors in your meter will need to be replaced periodically

and calibration is recommended once every year.

The CO sensor is electrochemical and this type of sensor is always

active once installed in the unit. Therefore the time the unit is off and

not being used must be taken into account when determining sensor

life. The sensors in your analyzer are warranted for two years. This

warranty does not cover sensors damaged through misuse of the

meter.

You should keep battery power applied to your sensors at all times.

The following guidelines will help prevent damage to your sensors:

Always store your unit in a place where the temperature does not get

down to or below freezing.

Always maintain battery power to the sensors. When the batteries get

low replace them as soon as possible.

Never allow foreign objects or material to enter the sensor holes, dam-

age to the sensor may result.

Never over saturate your sensors by performing tests on equipment

with gas levels beyond the capability of you analyzer.

Contents

1. Introduction

2. General Overview

3. Familiarization

3.1 Front View

3.2 Soft Keys

3.3 Back View

4. Operation

4.1 Turning On & Off / Performing a Test / Main Display

4.2 Selecting Temperature Units

4.3 Ambient / Dew Point / Wet Bulb Temperature Display

4.4 Temperature / Clock Display Modes

4.5 Activating the Backlight

4.6 Setting Date and Time

4.7 Setting CO Alarm Level

5. Calculating % Outside Air

5.1 % Outside Air (Temperature)

5.2 % Outside Air (Carbon Dioxide)

6. Data Logging

7. Retrieving Logged Data

8. Technical Specifications

9. Maintenance

9.1 Battery Replacement

9.2 Service

10. Technical Information

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

3. Familiarization

3.1 Front View

Sensor Locations: Places where the CO, CO2, and Humidity sensors

are located and protected.

Display : Large 4 Parameter Backlit LCD Display.

Protective Rubber Boot Provides protection to meter housing and sensors.

Keypad Selects all available functions

USB Port Location for connection of USB cable for PC com

munication.

Power Adapter Socket Location to connect power adapter.

General Overview (Continued)

This manual will guide you through the functions of the TPI 1010

which will give you many years of reliable service.

Your TPI 1010 Indoor Air Quality meter comes complete with the

following standard accessories:

• TPI 1010 Instrument

• Protective Rubber Boot (A800)

• Soft Carrying Case (A921)

• USB Cable & Software (A803)

• Instruction Manual

Your TPI 1010 Indoor Air Quality meter has the following optional

accessories available:

• Power adapter / Battery eliminator (A804)

• Magnetic strap kit to hang meter (A127)

• Boot hook to hang meter (A103)

• Replacement Software only (A802)

• Replacement USB cable only (A801)

( ) Denotes part number

Humidity &

Temperature

Sensor Location

Display

Keypad

CO2 Sensor

Location

CO Sensor

Location

USB Port Power Adapter

Protective

Rubber Boot

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

3. Familiarization

3.1 Front View

Sensor Locations: Places where the CO, CO2, and Humidity sensors

are located and protected.

Display : Large 4 Parameter Backlit LCD Display.

Protective Rubber Boot Provides protection to meter housing and sensors.

Keypad Selects all available functions

USB Port Location for connection of USB cable for PC com

munication.

Power Adapter Socket Location to connect power adapter.

General Overview (Continued)

This manual will guide you through the functions of the TPI 1010

which will give you many years of reliable service.

Your TPI 1010 Indoor Air Quality meter comes complete with the

following standard accessories:

• TPI 1010 Instrument

• Protective Rubber Boot (A800)

• Soft Carrying Case (A921)

• USB Cable & Software (A803)

• Instruction Manual

Your TPI 1010 Indoor Air Quality meter has the following optional

accessories available:

• Power adapter / Battery eliminator (A804)

• Magnetic strap kit to hang meter (A127)

• Boot hook to hang meter (A103)

• Replacement Software only (A802)

• Replacement USB cable only (A801)

( ) Denotes part number

Humidity &

Temperature

Sensor Location

Display

Keypad

CO2 Sensor

Location

CO Sensor

Location

USB Port Power Adapter

Protective

Rubber Boot

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

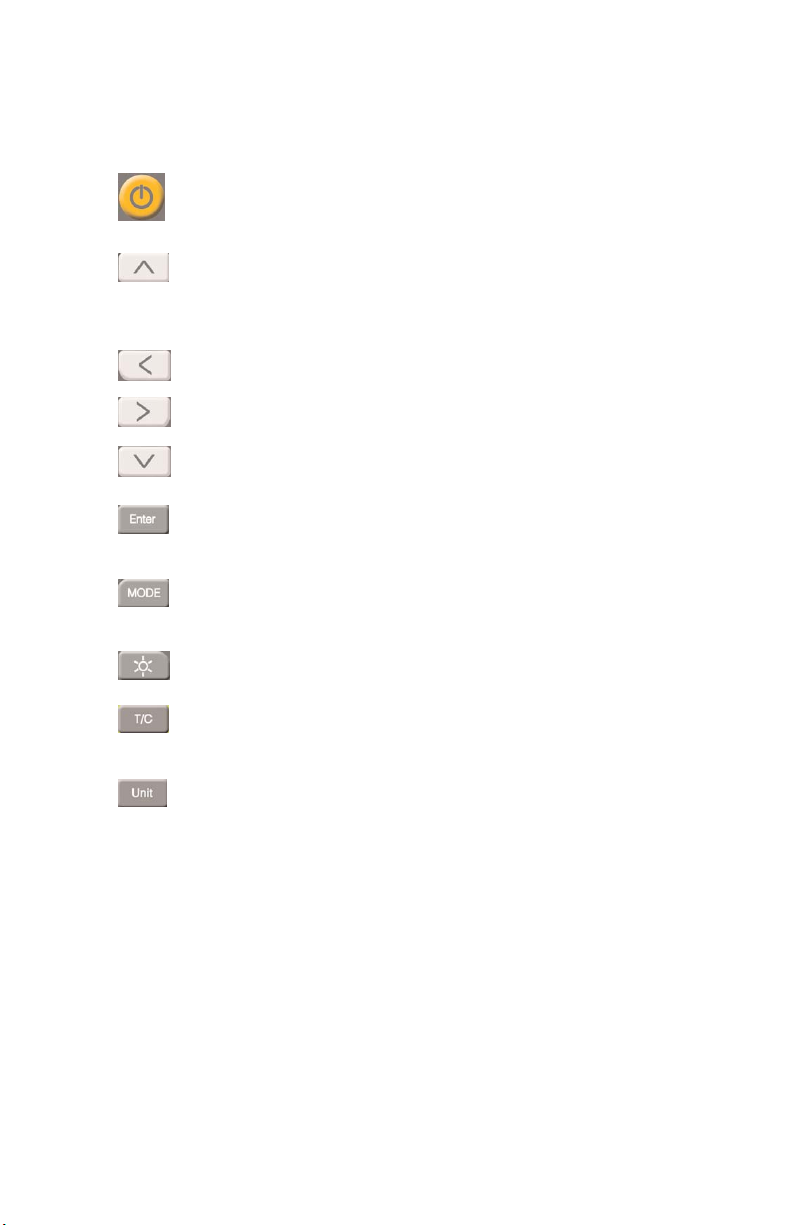

3.3 Back View3.2 Soft Keys

On / Off key - Used to turn the IAQ meter on or off. Press to turn on,

press and hold to turn off.

Up Arrow key - Used to select and change parameters. Also used to

cycle through dew point and wet bulb temperatures from the main

display.

Left Arrow key - Used to select and change parameters.

Right Arrow key - Used to select and change parameters.

Down Arrow key - Used to select and change parameters.

Enter key - Used to activate % outside air mode. Also used to accept

parameter changes.

Mode key - Used to activate and deactivate data logging mode. Press

and hold to activate or deactivate logging.

Backlight key - Used to turn the display backlight on and off.

T/C key - Used to switch the bottom display between temperature /

humidity and time display modes.

Unit key - Used switch the bottom temperature display between

Fahrenheit and Celsius modes.

Tilt Stand

Battery Cover Screw

Hanger Hole

Hanger Hole: Use to hang instrument for hands free operation. Can

be used with A127 magnetic strap kit or A103 hook.

Tilt Stand: Use to stand instrument on a table.

Batter Cover Loosen this screw and open cover to access batteries.

Screw:

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

3.3 Back View3.2 Soft Keys

On / Off key - Used to turn the IAQ meter on or off. Press to turn on,

press and hold to turn off.

Up Arrow key - Used to select and change parameters. Also used to

cycle through dew point and wet bulb temperatures from the main

display.

Left Arrow key - Used to select and change parameters.

Right Arrow key - Used to select and change parameters.

Down Arrow key - Used to select and change parameters.

Enter key - Used to activate % outside air mode. Also used to accept

parameter changes.

Mode key - Used to activate and deactivate data logging mode. Press

and hold to activate or deactivate logging.

Backlight key - Used to turn the display backlight on and off.

T/C key - Used to switch the bottom display between temperature /

humidity and time display modes.

Unit key - Used switch the bottom temperature display between

Fahrenheit and Celsius modes.

Tilt Stand

Battery Cover Screw

Hanger Hole

Hanger Hole: Use to hang instrument for hands free operation. Can

be used with A127 magnetic strap kit or A103 hook.

Tilt Stand: Use to stand instrument on a table.

Batter Cover Loosen this screw and open cover to access batteries.

Screw:

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

4. Operation

4.1 Turning On & Off / Performing a Test / Main Display

Always: - Turn the 1010 on outside of the area to be tested. Make sure the

unit is in fresh air (no carbon monoxide present) prior to turning on. This will

allow the CO sensor to set to zero properly.

Carbon dioxide (CO2) in parts per million (ppm) is displayed at the top, car-

bon monoxide (CO) in parts per million (ppm) is displayed in the middle,

temperature in °F or °C (selectable), and humidity in percent are displayed at

the bottom of the main display.

The battery indicator is located at the bottom left of the display. When the

batteries become low they must be replaced to maintain proper operation.

If 30ppm or more CO is measured the 1010 will beep and the display will

flash red as a warning. This alarm point is adjustable. Additional functions

can be activated during testing. Please see next sections.

4.2 Selecting Temperature Units

4.3 Ambient / Dew Point / Wet Bulb Temperature Display

4.4 Temperature / Clock Display Modes

4.5 Activating the Backlight

Carbon dioxide (CO2)

Carbon monoxide (CO)

Temperature

Humidity

Battery indicator

Ambient Temperature Dew Point Temperature

Indicated by “DP” in the

display

Wet Bulb Temperature

Indicated by “WB” in

the display

Repeatedly pressing the key from the main display cycles through dew

point temperature, wet bulb temperature, and ambient temperature displays.

Pressing the key switches the temperature display between °F and °C.

Press the key and the 1010 will begin a 30 second countdown. During

this time the 1010 performs a self diagnostic and sets the CO sensor to zero.

Once the countdown ends the 1010 will display CO2, CO, Temperature, and

Humidity.

Enter the area to be tested, the measured values will be displayed.

To turn the 1010 off, press and hold the key down until the 1010 turns off.

Pressing the key from the main display cycles between temperature

and clock display. To set the clock please refer to section 4.6.

Pressing the key turns the display backlight on and off. Power

consumption is much higher when the backlight is activated. The backlight

will automatically turn off 30 seconds after it is activated. To conserve bat-

tery life the backlight should only be used when necessary.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

4. Operation

4.1 Turning On & Off / Performing a Test / Main Display

Always: - Turn the 1010 on outside of the area to be tested. Make sure the

unit is in fresh air (no carbon monoxide present) prior to turning on. This will

allow the CO sensor to set to zero properly.

Carbon dioxide (CO2) in parts per million (ppm) is displayed at the top, car-

bon monoxide (CO) in parts per million (ppm) is displayed in the middle,

temperature in °F or °C (selectable), and humidity in percent are displayed at

the bottom of the main display.

The battery indicator is located at the bottom left of the display. When the

batteries become low they must be replaced to maintain proper operation.

If 30ppm or more CO is measured the 1010 will beep and the display will

flash red as a warning. This alarm point is adjustable. Additional functions

can be activated during testing. Please see next sections.

4.2 Selecting Temperature Units

4.3 Ambient / Dew Point / Wet Bulb Temperature Display

4.4 Temperature / Clock Display Modes

4.5 Activating the Backlight

Carbon dioxide (CO2)

Carbon monoxide (CO)

Temperature

Humidity

Battery indicator

Ambient Temperature Dew Point Temperature

Indicated by “DP” in the

display

Wet Bulb Temperature

Indicated by “WB” in

the display

Repeatedly pressing the key from the main display cycles through dew

point temperature, wet bulb temperature, and ambient temperature displays.

Pressing the key switches the temperature display between °F and °C.

Press the key and the 1010 will begin a 30 second countdown. During

this time the 1010 performs a self diagnostic and sets the CO sensor to zero.

Once the countdown ends the 1010 will display CO2, CO, Temperature, and

Humidity.

Enter the area to be tested, the measured values will be displayed.

To turn the 1010 off, press and hold the key down until the 1010 turns off.

Pressing the key from the main display cycles between temperature

and clock display. To set the clock please refer to section 4.6.

Pressing the key turns the display backlight on and off. Power

consumption is much higher when the backlight is activated. The backlight

will automatically turn off 30 seconds after it is activated. To conserve bat-

tery life the backlight should only be used when necessary.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

1) Starting with the 1010 turned off, press and hold down the

2) Using the Arrow keys, set the year. Once the year is set, press

3) Using the Arrow keys, set the month. Once the month is set, press

4) Using the Arrow keys, set the day. Once the day is set, press

5) Using the Arrow keys, set the hour. Once the hour is set press

6) Using the Arrow keys set the minutes. Once minutes is set, press

The 1010 will return to normal operation.

key then

press and hold down the key until two beeps are heard and the time / date

screen is displayed.

Year

Month / Day

Hour / Minutes

(24 hour clock, HH:MM)

4.6 Setting Date and Time

The 1010 is equipped with an audible and visual alarm for carbon monoxide. The

alarm level is factory set at 30ppm. When CO above this level is measured, the

1010 will beep and the display will flash red.

The alarm level is adjustable and can be set from 10ppm to 500ppm.

Using the Arrow keys set the alarm point to the desired level. The

keys select the digit and the keys increase or decrease the value.

Once the desired alarm point is set, press the key to return to normal

operation.

1) With the 1010 turned on, press and hold down the

CO alarm level in ppm

4.7 Setting CO Alarm Level

and keys

until the CO alarm screen is displayed.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Table des matières

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
