StarTech.com IDECASE35F Manuel

3.5” External IDE Drive Case

IDECASE35F

IDECASE35U2 Instruction Guide

The Professionals’ Source For Hard-to-Find Computer Parts

EEXXTTEERRNNAALLDDRRIIVVEECCAASSEE

* Actual product may vary from photo

* IDECASE35U2 shown

FCC COMPLIANCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting Your External Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using Your External Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Introduction

Thank you for purchasing a StarTech.com 3.5” external storage device. Designed for 3.5”

hard drives, this device allows you to quickly connect and disconnect your hard drives,

making data storage, backup, and sharing easier than ever before. The IDECASE35U2

features USB 2.0 capabilities, meaning you’ll experience super-fast data transfer speeds

of up to 480 Mbits/sec. The IDECASE35F uses FireWire technology to reach data transfer

speeds of up to 400 Mbits/sec. With full Plug and Play capabilities, each device is a snap

to install and use.

Features

•IDECASE35U2 transfers data at speeds up to 480 Mbits/sec and is compatible with

most PC computers

•IDECASE35F transfers data at speeds up to 480 Mbits/sec and is compatible with

most PC and Mac computers

•Uses compact, lightweight aluminum design for easy storage and portability

•Complies with Plug and Play specifications

•Backed by StarTech.com’s one-year warranty

Before You Begin

To ensure a quick and easy device installation, please read through this section carefully

before attempting to install the device.

WARNING! Hard drives require careful handling, especially when being transported. If

you are not careful with your hard disk, lost data may result. Always handle your hard

drive and the storage device with caution. Hard drives, like all computer equipment, can

be severely damaged by static electricity. StarTech.com recommends that you wear an

anti-static strap when installing any computer component. If an anti-static strap is

unavailable, discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds. Do not bump,

jar, or drop the device. Do not set any liquids near the product: if spilled they could

damage the internal electronics. Do not disconnect any cables or power sources while the

hard drive is active: this can result in data loss and possible damage to the hard drive.

Always make sure that your hard drive is fully spun down before removing the device.

System Requirements

•IDECASE35U2: An IBM-compatible computer running Windows XP/2000/Me/98

with an open USB 2.0 port

•IDECASE35F: An IBM-compatible computer running Windows XP/2000/Me/98 or a

Mac computer running OS 8.6 or higher with an open FireWire port

•A3.5” IDE hard disk drive

Contents

•1x external storage device

•1x cable (USB 2.0 or FireWire)

•1x power adapter

•1x assorted screws/replacement parts

NOTE: Notebook users may need to purchase a separate 4-to-6 pin FireWire cable in

order to connect the IDECASE35F. Check your computer’s user manual for more details.

StarTech.com carries a wide range of FireWire cables to suit your needs. Visit

www.startech.com and click on the “Cables & Wiring” tab at the top of the screen.

Installation

This section will guide you through the installation of your external drive case. Please

read through the instructions carefully and complete each step in the order listed.

Installing the Hard Drive

NOTE: Before installing the hard disk in the case, make sure that you have properly

configured your hard disk according to your hard disk manufacturer’s specifications.

1. Make sure that the external case is not plugged in and that you are grounded.

2. Using a mini Phillips screwdriver, remove the two screws from the back of the

external case. Slide the caddy free of the aluminum case by pulling on the clear

plastic tab until the caddy is free from the case.

3. Connect the caddy’s power connector to your hard drive’s power port.

4. Plug the caddy’s IDE ribbon to your hard drive’s IDE port, making sure the red stripe

is on pin 1. If you are unsure of the location of pin 1, consult your hard drive

manufacturer.

5. Gently place the hard drive in the caddy, making sure that the screwholes in the hard

drive are aligned with the screw holes in the caddy. Secure the hard drive in place

using the provided screws.

6. Gently slide the caddy back into the aluminum case and re-attach the caddy to the

case using the screws you removed in Step 2.

Connecting Your External Case

1. Make sure that your system is turned off.

2. Plug one end of the USB/FireWire cable into an open port on your computer. Plug

the other end into the port on the case.

3. Plug the power adapter into the case and plug the other end into an available power

source.

4. Power the device by flicking the small button on the back to the ON position.

5. Turn your computer on.

Driver Installation

IDECASE35U2

The most up-to-date drivers for this device are available as a free download from our

website. Go to www.startech.com and click on the Downloads link for more information.

NOTE: Depending on your OS and the configuration of your system, the instructions

below may not be identical to the instructions you see on your screen.

1. Windows will automatically detect the new hardware. Click Next.

2. Select the default “Recommended” option and click Next.

3. Insert your driver disk into the disk drive. Make sure that the correct location is

checked and click Next.

4. When Windows finds the appropriate driver, click Next then Finish to complete the

driver installation process.

IDECASE35F

PC Users

While there are no software drivers required for most versions of Windows, Windows

98SE users should download the “1394 Storage Supplement” from the Microsoft website.

Go to www.microsoft.com/windows98/downloads and click on the “Windows 98

Downloads” link. Under “Recommended Updates”, click on “Windows 98 Second

Edition 1394 Storage Supplement” and follow the instructions provided by Microsoft to

complete the update.

Mac Users

Make sure that you have downloaded the appropriate FireWire extension from Apple

before attempting to install this product. Visit www.apple.com and click on the Support

tab or contact Apple for details.

Using Your External Case

IDECASE35U2

When the new drive is connected, it will appear as an icon on the bottom right of your

screen. You can double-click the icon for information on the drive. The device will also

appear under your “My Computer” window. You can now use the drive as your would

any other drive on your system.

When you want to remove your external case, first make sure that there is no activity on

the hard drive contained in the case. Do not remove or shut down the case if the green

activity LED is on. When you are certain the hard drive has “spun down,” right-click the

drive icon and click on “Safely remove device.” When the icon is removed from your

screen, turn off the power to the external drive by flicking the power button on the back

to the OFF position and disconnect the USB V2.0 cable.

IDECASE35F

Windows Users

When the new drive is connected, it will appear as an icon on the bottom right of your

screen. You can double-click the icon for information on the drive. The device will also

appear under your “My Computer” window.

When you want to remove your external case, first make sure that there is no activity on

the hard drive contained in the case. Do not remove or shut down the case if the green

LED is on. When you are certain the hard drive has “spun down,” right-click the drive

icon and click on “Safely remove device.” When the icon is removed from your screen,

turn off the power to the external drive by flicking the power button on the back to the

OFF position and disconnect the FireWire cable.

Mac Users

When the new drive is connected, it will appear as an icon on your desktop. You can

double-click or right-click on the icon for information about the drive.

When you want to remove your external case, first make sure that there is no activity on

the hard drive contained in the case. Do not remove or shut down the case if the green

LED is on. When you are certain the hard drive has “spun down,” unmount the drive by

dragging the icon into your Trash folder. When the icon is removed from your screen,

turn off the power to the external drive by flicking the power button on the back to the

OFF position and disconnect the FireWire cable.

NOTE: The green LED on the front of the case indicates that there is activity on the hard

drive.

Technical Support

The following technical resources are available for this StarTech.com product:

On-line help:

We are constantly adding new information to the Tech Support section of our web site. To

access this page, click the Tech Support link on our homepage, www.startech.com. In the

tech support section there are a number of options that can provide assistance with this

card.

Knowledge Base - This tool allows you to search for answers to common issues using

key words that describe the product and your issue.

FAQ - This tool provides quick answers to the top questions asked by our customers.

Downloads - This selection takes you to our driver download page where you can

find the latest drivers for this product.

Call StarTech.com tech support for help: 1-519-455-4931 or 00-800-7827-8324.

Support hours: Monday to Friday 9:00AM to 5:00PM EST (except holidays)

Warranty Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted below,

following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not warrant its products

from defects or damages arising from misuse, abuse, alteration, or normal wear and

tear.

Limitation of Liability

In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive incidental,

consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss,

arising out of related to the use of the product exceed the actual price paid for

the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Revised: April 14, 2003

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels StarTech.com Enceinte

StarTech.com

StarTech.com S251SMU33EP Manuel utilisateur

StarTech.com

StarTech.com 2TBT3-PCIE-ENCLOSURE Manuel utilisateur

StarTech.com

StarTech.com SAT2510U2REM Manuel utilisateur

StarTech.com

StarTech.com S3510BMU33ET Manuel du système

StarTech.com

StarTech.com RK830WALVS Manuel utilisateur

StarTech.com

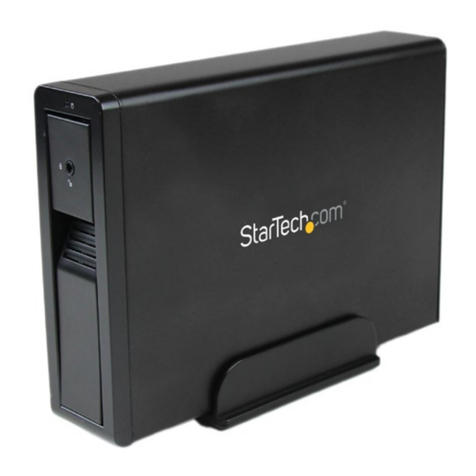

StarTech.com S3510BMU33ET Manuel utilisateur

StarTech.com

StarTech.com SAT3520U3SR Manuel du système

StarTech.com

StarTech.com S3510BMU33T Manuel du système

StarTech.com

StarTech.com InfoSafe S252U2ERR Manuel utilisateur

StarTech.com

StarTech.com SAT3540ER2 Manuel utilisateur

StarTech.com

StarTech.com INFOSAFE IDE2510U2 Manuel utilisateur

StarTech.com

StarTech.com MADE EASY HSB110SATBK Manuel utilisateur

StarTech.com

StarTech.com INFOSAFE SAT3540ER Manuel utilisateur

StarTech.com

StarTech.com S351BMU33ETG Manuel utilisateur

StarTech.com

StarTech.com S352U2RER Manuel utilisateur

StarTech.com

StarTech.com SAT2510U2F Manuel utilisateur

StarTech.com

StarTech.com S2510BU3PW Manuel utilisateur

StarTech.com

StarTech.com InfoSafe SAT3510U2B Manuel utilisateur

StarTech.com

StarTech.com HSB320SATBK Manuel utilisateur

StarTech.com

StarTech.com IDECASE35NAS Manuel utilisateur

StarTech.com

StarTech.com SM2NGFFMBU33 Manuel utilisateur

StarTech.com

StarTech.com UNI3510U2 Manuel utilisateur

StarTech.com

StarTech.com RK2536BKF Manuel utilisateur

StarTech.com

StarTech.com SAT2520U2ER Manuel utilisateur

Manuels Enceinte populaires d'autres marques

SilentiumPC

SilentiumPC Armis AR5 Manuel

Pulsar

Pulsar 17/TRP80/DSPR Manuel utilisateur

Thermaltake

Thermaltake V150 TG Manuel utilisateur

MSI

MSI MPG SEKIRA 500X Manuel utilisateur

Antec

Antec Dark fleet DF-10 Manuel utilisateur

Nexans

Nexans WTC05 Manuel utilisateur

Peavey

Peavey DS 1502 Manuel utilisateur

D-Link

D-Link ShareCenter Pro DNS-1550-04 Manuel utilisateur

Rosewill

Rosewill RX82-U(JBOD) Manuel utilisateur

QNAP

QNAP SAS JBOD CLI 1.0 Manuel utilisateur

GAMDIAS

GAMDIAS Talos P1 Manuel utilisateur

Auvs

Auvs KR615 Manuel utilisateur

Digitus

Digitus DA-71114 Manuel utilisateur

CommScope

CommScope FDH 3000 Manuel utilisateur

FS FHD-FWME4 Manuel utilisateur

JBL

JBL CS1215T Manuel utilisateur

Pulsar

Pulsar ARAD-S4 Manuel utilisateur

Pulsar

Pulsar AWO454 Manuel utilisateur
