Introduction

StarTech.com’s S354UFER External Multi Bay Enclosure is a high-performance 4-drive

SATA enclosure that connects to host systems through eSATA or USB or FireWire.

Packaging Contents

• 1 x S354UFER enclosure

• 1 x Screw driver and screw kit

• 4 x Hard Drive Handles

• 1 x Univeral Power Adapter with 3 Power Cords (NA/UK/EU)

• 1 x eSATA cable

• 1 x USB cable

• 1 x 6-pin FireWire cable

• 1 x 9-pin FireWire cable

• 1 x Instruction Manual

System Requirements

• USB or eSATA* or FireWire enabled computer system

• Microsoft Windows® 2000/XP/Server 2003/Vista/7,

Mac OS® 10.3 and later or Linux®

*If connecting the enclosure to a host computer using the eSATA port, please note that

in order to use some of the RAID modes of the enclosure, the eSATA port on the host

computer system must provide Port Multiplier support. If the eSATA port does not

oer Port Multiplier support, only one of the installed drives will be accessible.

Instruction Manual

Installation

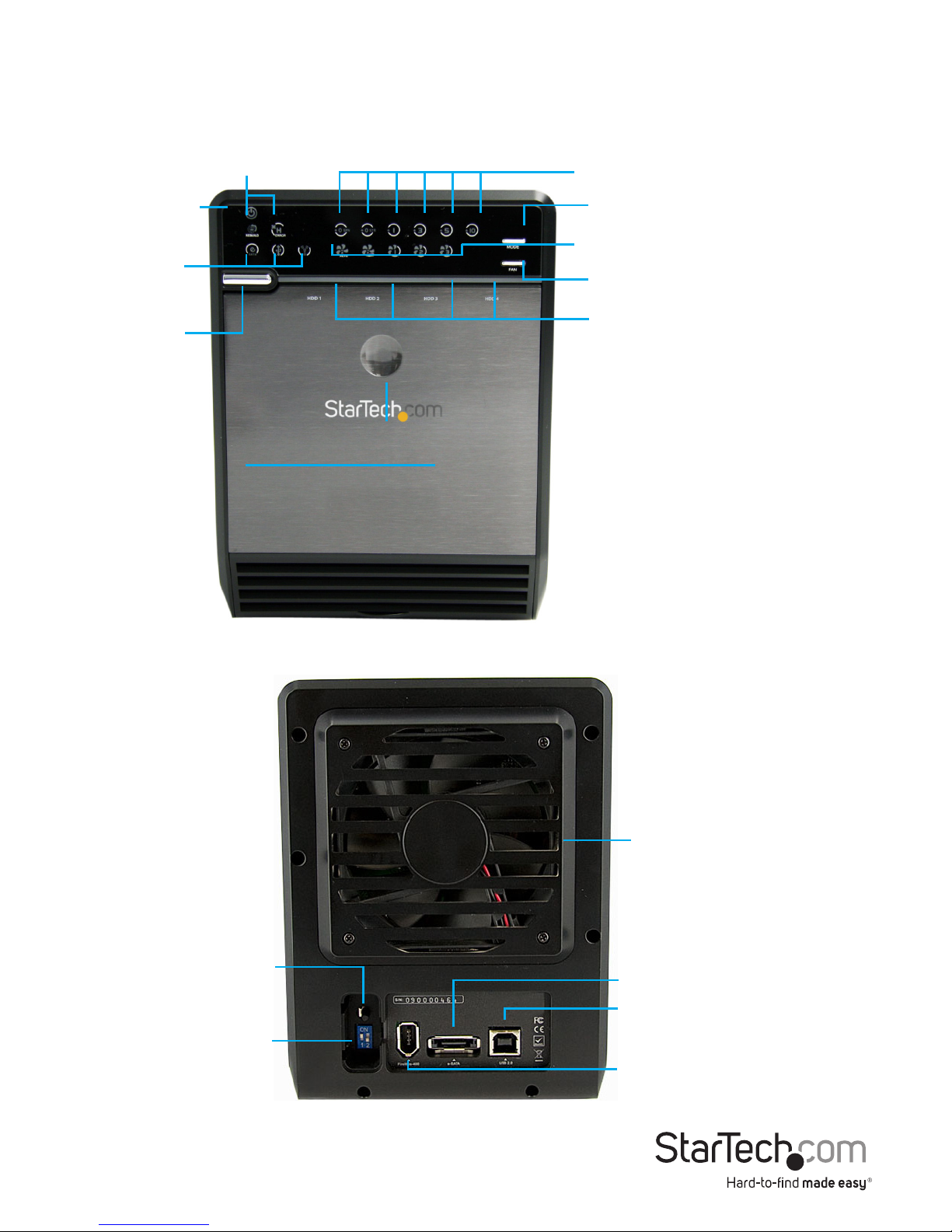

Front View

Rear View

USB port

eSATA port

DIP Switch

Conrmation

button

6-pin FireWire

Cooling Fan

(removable)

RAID Mode LEDs

Mode switch

Fan switch

Drive Power/

Activity LEDs

Interface

LEDs

Power

button

Drive Status LEDs

Front Door

release

Fan Mode/Speed LEDs

Power LED

Instruction Manual

9-pin FireWire

ports

DIN power

connector

Side View

Instruction Manual

Hardware Installation

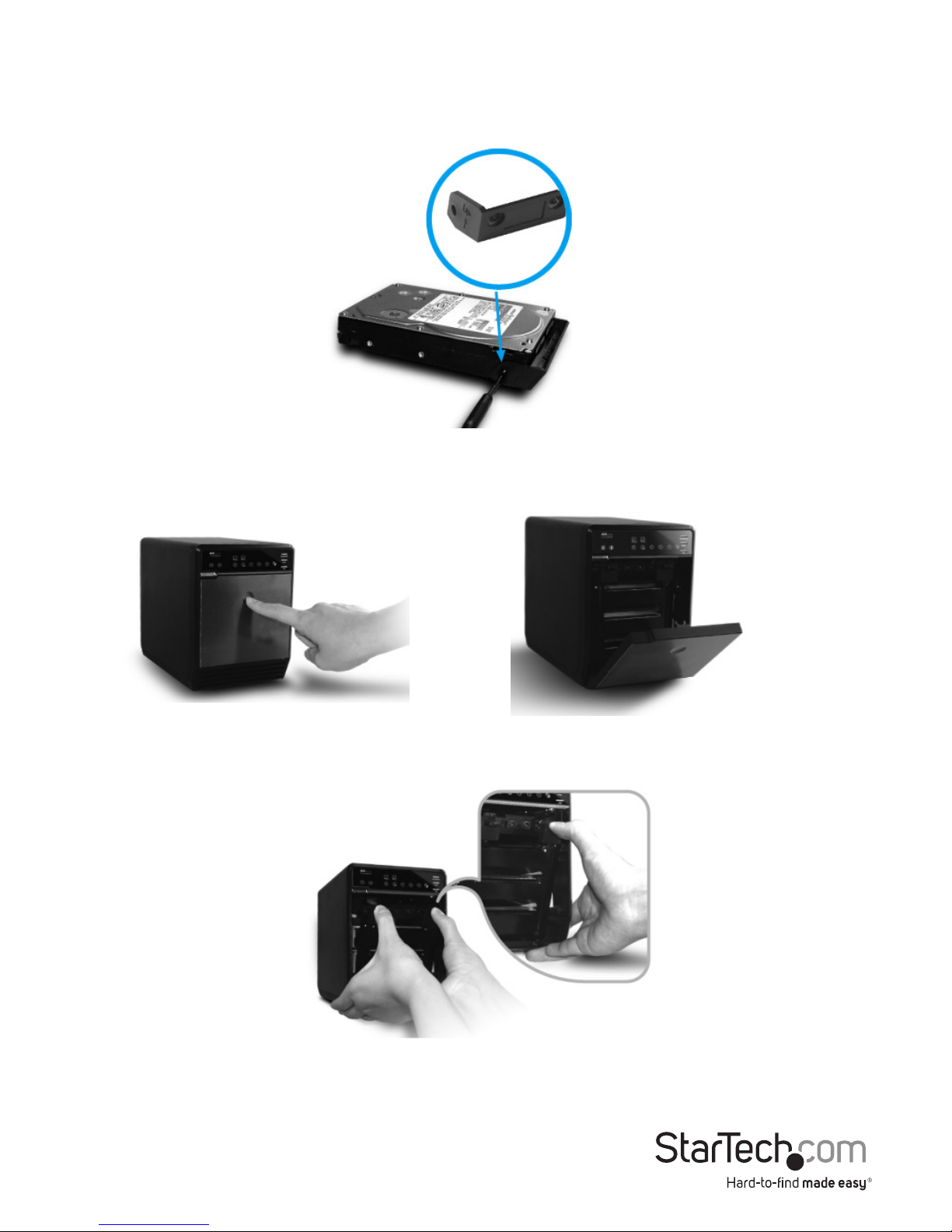

1. Secure the included Hard Drive Handles to the hard drives with the supplied screws

and screw driver.

2. Press the front door in to release the latch and open the door. The door is also

removable for easier access.

3. Inside will be a metal drive cage in front of the drive bays. Along the top of the

drive cage are two small tabs. Press them down to release the cage and remove it.

Instruction Manual

4. Remove the cardboard inserts (if rst time setup) and then insert the hard drives

into the slots. If installing less than 4 drives, ensure a drive is installed in the bottom

slot. This will help when reinstalling the metal cage. Hard drives can be removed

from the enclosure by pressing down on the handles, then pulling them out.

5. Once all of the hard drives are installed, reinstall the metal cage and front door.

Make sure the bottom of the cage stays inside of the track before closing the cover.

6. Connect the power adapter DIN connector into the side of the enclosure and power

up the enclosure.

Driver Installation

Windows 2000/XP/Server 2003/Vista/7, Mac OS X, Linux

No driver installation is required for these operating systems, as this enclosure is

natively supported, so the drivers are already installed.

Instruction Manual

How to Use

Hard Drive DIP Switch

The DIP switches on the rear of the hard drive enclosure rst needs to be set,

depending on the number of installed hard drives in the enclosure. The number of

hard drives aects the available RAID modes that can be selected.

Number of

Drives DIP Switch Available RAID Modes

2RAID0 (Span), RAID0 (Stripe), RAID1

(Mirror)

3 RAID3, RAID5

RAID0 (Span), RAID0 (Stripe), RAID3,

RAID5,

RAID10 (Stripe+Mirror)

RAID Mode

While the enclosure is powered on, press and hold the ‘Mode’ button for three (3)

seconds until one of the RAID LED’s start to ash. Pressing the ‘Mode’ button will now

switch between available RAID modes. Once set, press the ‘Conrmation’button in the

back of the enclosure. The enclosure will power o. Once powered back on, it will be

set for the desired RAID mode.

Instruction Manual

LED Status Description

ON SPAN: Spanning concatenates multiple hard drives

into a single large disk. Provides no performance or

redundancy benets.

OFF

ON RAID 0 (Stripe): Striping combines multiple disk into

a single large disk array. The data is split evenly across

each disk simultaneously. Read/write performance

is increased as a result, but failure of any one disk will

make the entire array unusable.

OFF

ON RAID 1 (Mirror): Mirroring writes the same data across

multiple disk, creating a mirror copy. This provides

redundancy in case one drive fails.

OFF

ON RAID 3: Uses striping to write data to multiple disks

like RAID 0, but reserves one disk for parity. The single

parity disk is a bottle-neck for writing since every write

requires updating the parity data. Failure of any one

disk will still allow access to the data, until the disk is

replaced.

OFF

ON RAID 5: Uses striping to write data to multiple disks

simultaneously and distribute parity across multiple

disks. Failure of any one disk will still allow access to the

data, until the disk is replaced.

OFF

ON RAID 01 (0+1): Creates a mirrored array, then stripes

each mirrored disk. Combines the performance of RAID

0 with the redundancy of RAID 1.

OFF
