Stanley STHT77611 Manuel utilisateur

STHT77611

Self-Leveling Cross-line Laser

Please read these instructions before operating the product.

www.2helpU.com

DOC100270398

FIN

> 4

± 4

1 2 3

Figures

1/4-20

≥ 30 ft. (9m)

GB NOTICE: Indicates a practice not related to

personal injury which, if not avoided, may

result in property damage.

If you have any questions or comments

about this or any STANLEY®tool, go to

www.2helpU.com.

WARNING:

Read and understand all

instructions. Failure to follow the

warnings and instructions in this

manual may result in serious personal

injury.

SAVE THESE INSTRUCTIONS

WARNING:

Laser Radiation Exposure. Do not

disassemble or modify the laser

level. There are no user serviceable

parts inside. Serious eye injury

could result.

WARNING:

Hazardous Radiation. Use

of controls or adjustments, or

performance of procedures, other

than those specied herein may result

in hazardous radiation exposure.

The label on your laser may include the follow-

ing symbols.

Symbol Meaning

V Volts

mW Milliwatts

Laser Warning

nm Wavelength in

nanometers

2 Class 2 Laser

Contents

• Laser Information

• User Safety

• Battery Safety

• Installing AA Batteries

• Turning the Laser On

• Checking Laser Accuracy

• Using the Laser

• Maintenance

• Troubleshooting

• Service and Repairs

• Specications

Laser Information

The STHT77611 lasers is a Class 2 laser

product. The lasers are self-levelling laser

tools that can be used for horizontal (level) and

vertical (plumb) alignment projects.

User Safety

Safety Guidelines

The denitions below describe the level of

severity for each signal word. Please read the

manual and pay attention to these symbols.

DANGER: Indicates an imminently

hazardous situation which, if not

avoided, will result in death or serious

injury.

WARNING: Indicates a potentially

hazardous situation which, if not

avoided, could result in death or

serious injury.

CAUTION: Indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

• Do not place the laser in a position which

may cause anyone to intentionally or

unintentionally stare into the laser beam.

Serious eye injury could result.

• Do not position the laser near a reective

surface which may reect the laser beam

toward anyone’s eyes. Serious eye injury

could result.

• Turn the laser off when it is not in use.

Leaving the laser on increases the risk of

staring into the laser beam.

• Do not modify the laser in any way.

Modifying the tool may result in hazardous

laser radiation exposure.

• Do not operate the laser around children

or allow children to operate the laser.

Serious eye injury may result.

• Do not remove or deface warning labels.

If labels are removed, the user or others

may inadvertently expose themselves to

radiation.

• Position the laser securely on a level

surface. If the laser falls, damage to the

laser or serious injury could result.

Personal Safety

• Stay alert, watch what you are doing, and

use common sense when operating the

laser. Do not use the laser when you are

tired or under the inuence of drugs, alcohol,

or medication. A moment of inattention while

operating the laser may result in serious

personal injury.

• Use personal protective equipment. Always

wear eye protection. Depending on the work

conditions, wearing protective equipment

such as a dust mask, non-skid safety shoes,

hard hat, and hearing protection will reduce

personal injury.

Warning Labels

For your convenience and safety, the

following labels are on your laser.

WARNING: To reduce the risk of

injury, user must read instruction

manual.

WARNING: LASER RADIATION.

DO NOT STARE INTO BEAM.

Class 2 Laser Product.

www.STANLEYTOOLS.eu

STHT77611

TYPE 1: 3VDC

Made in China

• If the equipment is used in a manner

not specied by the manufacturer, the

protection provided by the equipment

may be impaired.

• Do not operate the laser in explosive

atmospheres, such as in the presence of

ammable liquids, gases, or dust. This

tool may create sparks which may ignite the

dust or fumes.

• Store an idle laser out of reach of

children and other untrained persons.

Lasers are dangerous in the hands of

untrained users.

• Tool service MUST be performed by

qualied repair personnel. Service or

maintenance performed by unqualied

personnel may result in injury. To locate

your nearest Stanley service centre go to

www.2helpU.com.

• Do not use optical tools such as

a telescope or transit to view the laser

beam. Serious eye injury could result.

GB Tool Use and Care

• Do not use the laser if the Power/Transport

Lock switch does not turn the laser on or off.

Any tool that cannot be controlled with the

switch is dangerous and must be repaired.

• Follow instructions in the Maintenance

section of this manual. Use of unauthorized

parts or failure to follow Maintenance

instructions may create a risk of electric

shock or injury.

Battery Safety

WARNING:

Batteries can explode, or leak, and

can cause injury or re. To reduce

this risk:

• Carefully follow all instructions and warnings

on the battery label and package.

• Always insert batteries correctly with regard

to polarity (+ and –), as marked on the

battery and the equipment.

• Do not short battery terminals.

• Do not charge disposable batteries.

• Do not mix old and new batteries. Replace

all batteries at the same time with new

batteries of the same brand and type.

• Remove dead batteries immediately and

dispose of per local codes.

• Do not dispose of batteries in re.

• Keep batteries out of reach of children.

• Remove batteries when the device is not

in use.

Installing AA Batteries

Load new AA batteries in the STHT77611

laser.

1. Turn the laser upside down.

2. On the bottom of the laser, lift up the latch

to open the battery compartment cover

(Figure B1).

3. Insert two new, high-quality, name brand

AA batteries, making sure to position the -

and + ends of each battery as noted inside

the battery compartment (Figure B2).

4. Push the battery compartment cover

closed until it snaps in place (Figure

B3).

When the laser is not in use, keep the Power/

Transport Lock switch in the centre (OFF)

position (Figure A2) to save battery power.

Turning the Laser On

1. Place the laser on a smooth, flat, level

surface, with the laser facing straight

ahead toward the opposing wall.

2. Turn the laser ON to display the horizontal

and vertical laser beams. Either:

• Move the Power/Transport Lock switch

to the left to keep the pendulum locked

and display the cross beams in manual

mode (Figure A1).

• Move the Power/Transport Lock switch

to the right to unlock the pendulum and

display the cross beams in self-levelling

mode (Figure A3).

Autres manuels pour STHT77611

Table des matières

Langues :

Autres manuels Stanley Instrument de mesure

Stanley

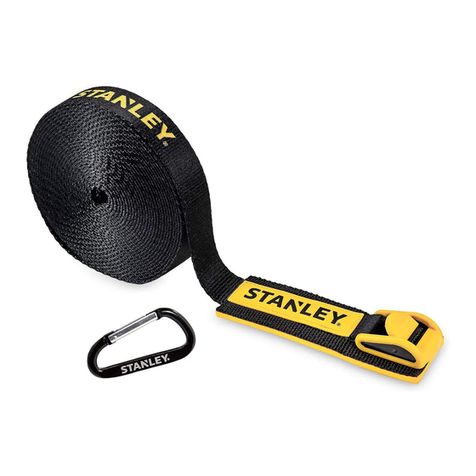

Stanley S4002 Manuel utilisateur
