Slinex ML-20CR Manuel utilisateur

{ Design. Uniqueness. Innovations }

ML-20CR video door panel

with wireless

ID card reader

User manual

ACCESSORIES

SERIES

Thank you for

choosing our equipment

{ Design. Uniqueness. Innovations }

Rev. 2.0

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –40 ˚C to +50 ˚C, always keep it within that

temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and

ovens.

The device can be installed near other electronic equipment in case if the

temperature of the environment does not exceed previously mentioned

range.

The device should be protected from the direct inuence of the natural

phenomena, such as direct sunlight, rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Attention!

As a result of continuous upgrades and functionality

improvements, technical characteristics of the device can

be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint.

The owner reserves the right to make corrections to the information described

in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Nature protection

Don’t throw away the device with other industrial or

nutritive trash if you see that symbol. Some regions have

separation and recycling systems for the electronic

equipment.

Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

form, translated into other languages or reproduced in any way including

electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

ACCESSORIES

SERIES

{ Design. Uniqueness. Innovations }

Table of contents

1. Package ..................................................................................................................................4

2. Specication ......................................................................................................................... 4

3. Description............................................................................................................................6

4. Installation............................................................................................................................7

5. Schematic diagram ............................................................................................................9

6. ID card reader settings................................................................................................... 10

7. Video camera settings.................................................................................................... 12

8. Limited Warranty.............................................................................................................. 13

1. Package

ML-20CR door panel − 1 pc.

Wall mounting bracket − 1 pc.

Angle bracket − 1 pc.

Rainshield − 1 pc.

Flush mounting box − 1 pc. (optional)

ID key − 3 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

Sensor type

Resolution

View angle

Night backlight

Voltage

Lock relay continuous current

Power consumption

ID cards

Installation type

Dimensions

Working temperature

1/4” CMOS

960 ТV-lines

120˚

Infrared LED’s. 1,5 m distance

+12V from power supply

3 W in working mode

EM-Marin, 248pcs. memory

Surface or ush mount

45×130×24 mm

–40 ... +50 ˚C

ACCESSORIES

SERIES

{ Design. Uniqueness. Innovations }

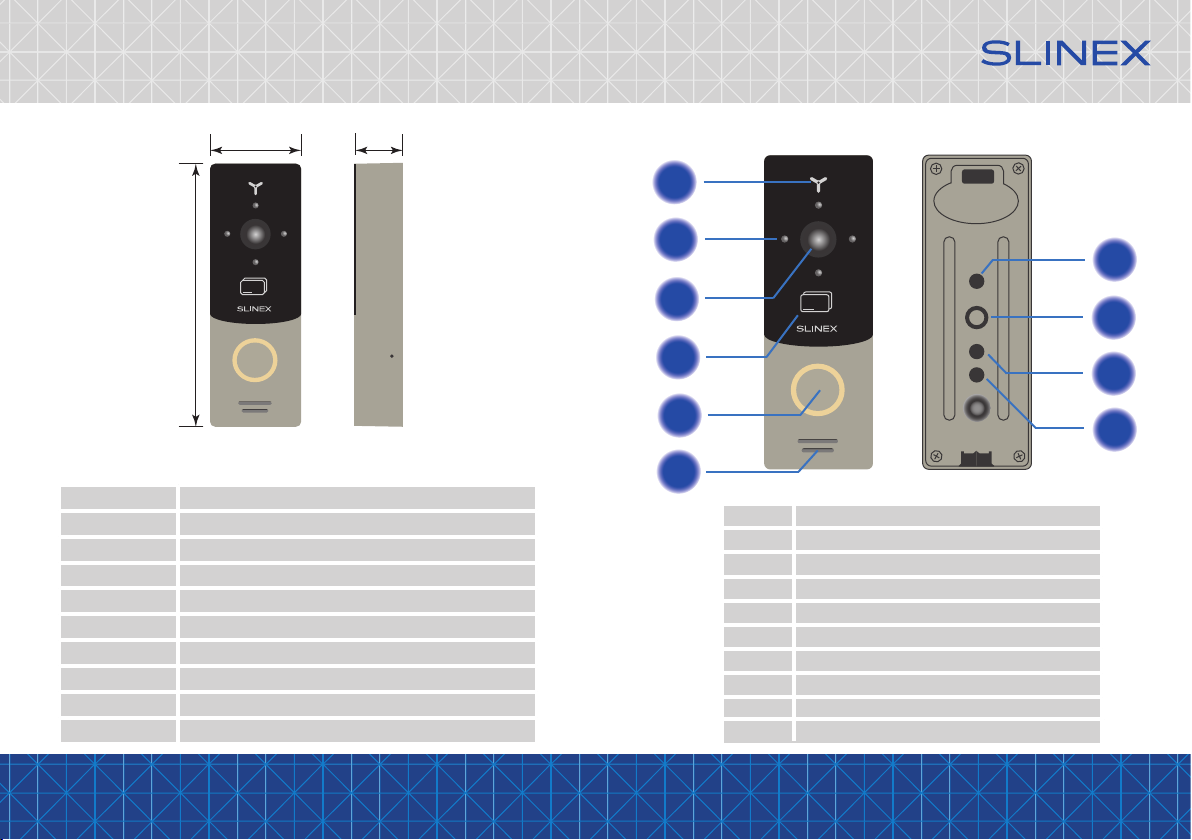

Microphone

Night infrared backlight

Video camera

ID card reader

Call button

Speaker

Video camera mode button

Communication cable

ID card reader reset buttton

Speaker volume potentiometer

Red

Black

Yellow

White

Brown

Blue

Violet

Green

Orange

Grey

ML-20CR connection cable colors

Power (to the monitor)

Ground (to the monitor)

Video (to the monitor)

Audio (to the monitor)

COM. (Common) relay terminal

N.O. (Normaly opened) relay terminal

Weigand D0 wire

Weigand D1 wire

Door panel power supply, +12V

Ground (for power supply)

130 mm

45 mm 24 mm

3. Description

ACCESSORIES

SERIES

{ Design. Uniqueness. Innovations }

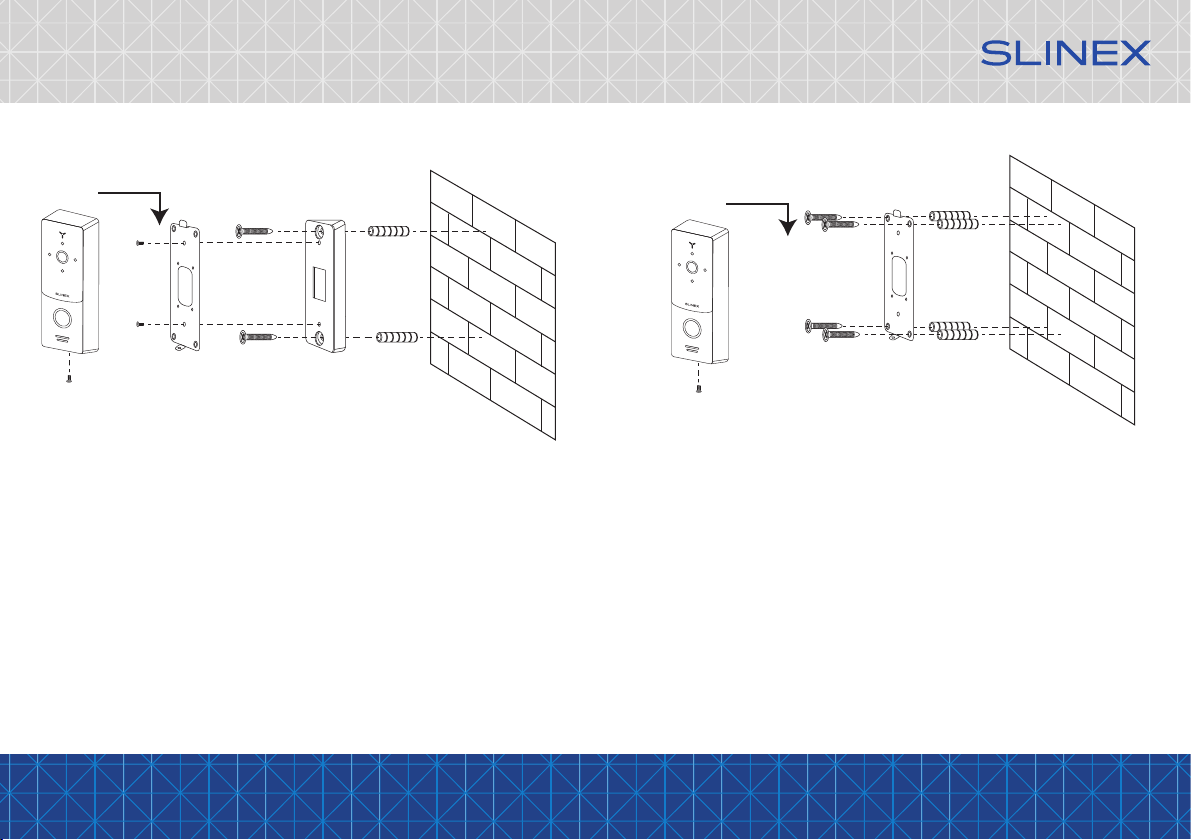

Flat mounting:

1) Take the wall mounting bracket from the kit and situate it 150-160 cm from

the oor line;

2) Mark and drill four halls inside the wall;

3) Take four nuts from the kit and hammer them into the drilled halls;

4) Fix the wall mounting bracket on the wall by the screws from the kit;

5) Connect all communication wires and x the door panel on the wall

mounting bracket by the screw from the down side.

Angle mounting:

1) Take the angle bracket from the kit and situate it 150-160 cm from the oor

line;

2) Mark and drill two halls inside the wall;

3) Take two nuts from the kit and hammer them into the drilled halls;

4) Fix angle bracket on the wall by two screws from the kit;

5) Fix wall mounting bracket on the angle bracket by two screws from the kit;

6) Connect all communication wires and x the door panel on the wall

mounting bracket by the screw from the down side.

5. Installation

ACCESSORIES

SERIES

{ Design. Uniqueness. Innovations }

910

6. ID card reader settings

Connect +12V power supply through the orange (+) and grey (–) wires of the

door panel communication cable.

Memory reset

Press and hold «ID card reader reset button»during 5 seconds (button situated

on the back side and signed as 9 on page 6), until repeatable sound will be

heard. It means that ID card reader memry was formatted.

Manager ID card setup

1) Press «ID card reader reset button» shortly to enter manager ID card setup

mode. User will hear a short sound and door panel backlight becomes

blue;

2) Take the ID card that should be used as manager card and touch it near

card reader zone on the front of the door panel. If manager card setup was

succesfull then user will hear long sound. (If user doesn’t touch ID card

near card reader during 10 seconds then door panel will be automatically

switched into standby mode). Only one manager ID card can be added to

the card reader memory.

SL-10M

ML-20CR

Lock Lock power

supply

Orange (+)

Grey(–)

Brown

Blue

ID card reader

power supply

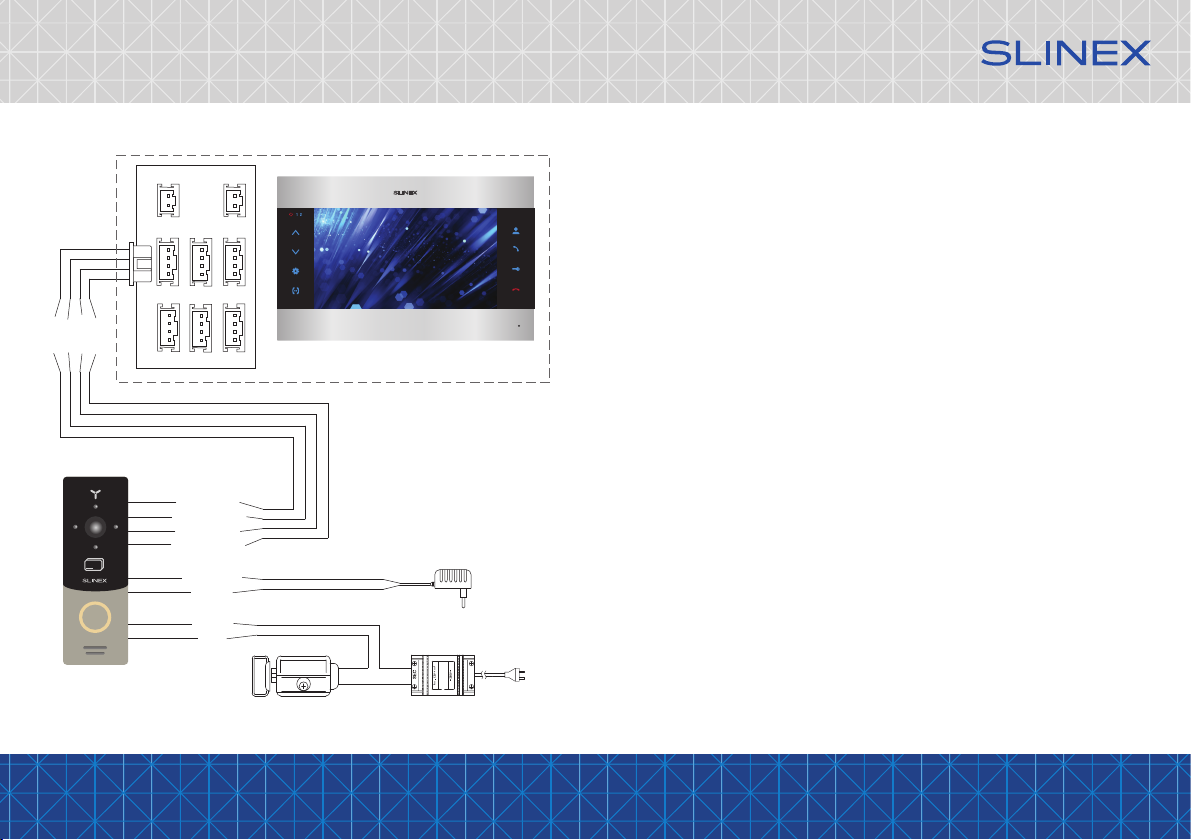

5. Schematic diagram

Power (Red)

Audio (White)

GND (Black)

Video (Yellow)

Video

GND

Audio

Power

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

ACCESSORIES

SERIES

{ Design. Uniqueness. Innovations }

11 12

«Unlock ID cards setup» and «delete card» modes

1) In standby mode situate management card near the card reader to enter

«unlock cards setup»mode. Door panel will emmit double sound and

backlight of the call button will becomes blue;

2) Situate every unlock ID card that need to be added near card reader, one

by one. After each card reading, double sound signal can be heard. In case

if current ID card has been already added to the card reader memory then

three time sound signal can be heard while touching it near the card

reader;

3) When all unlock ID cards have been added then situate management card

near the card reader to enter «delete card»mode. Door panel will emmit

double sound and backlight of the call button will becomes red;

4) Situate any unlock ID card that need to be deleted near card reader while

«delete card»mode is active. After double short sound current ID card will

be deleted from the door panel list;

5) While «delete card»mode is active, situate management card near the

card reader to exit into standby mode.

6) Wait for 10 seconds without any actions in «unlock cards setup»or «delete

card» modes to exit into standby mode automatically.

7) Maximum unlock ID cards quantity that can be added to the card reader

memory is 248 pcs.

7. Video camera settings

Door panel video camera can work in three basic modes:

analog (CVBS), AHD and CVI. As AHD and СVI are high

resolution formats, so they have better quality then

analog (СVBS). While using high resolutioon modes the

monitor should maintain that kind of signal (AHD or CVI),

otherwise there will be no image on the monitor screen.

Press and hold mode switching button on the back of the

door panel during 8 seconds to switch video camera

mode in such sequence: CVBS →AHD → CVI.

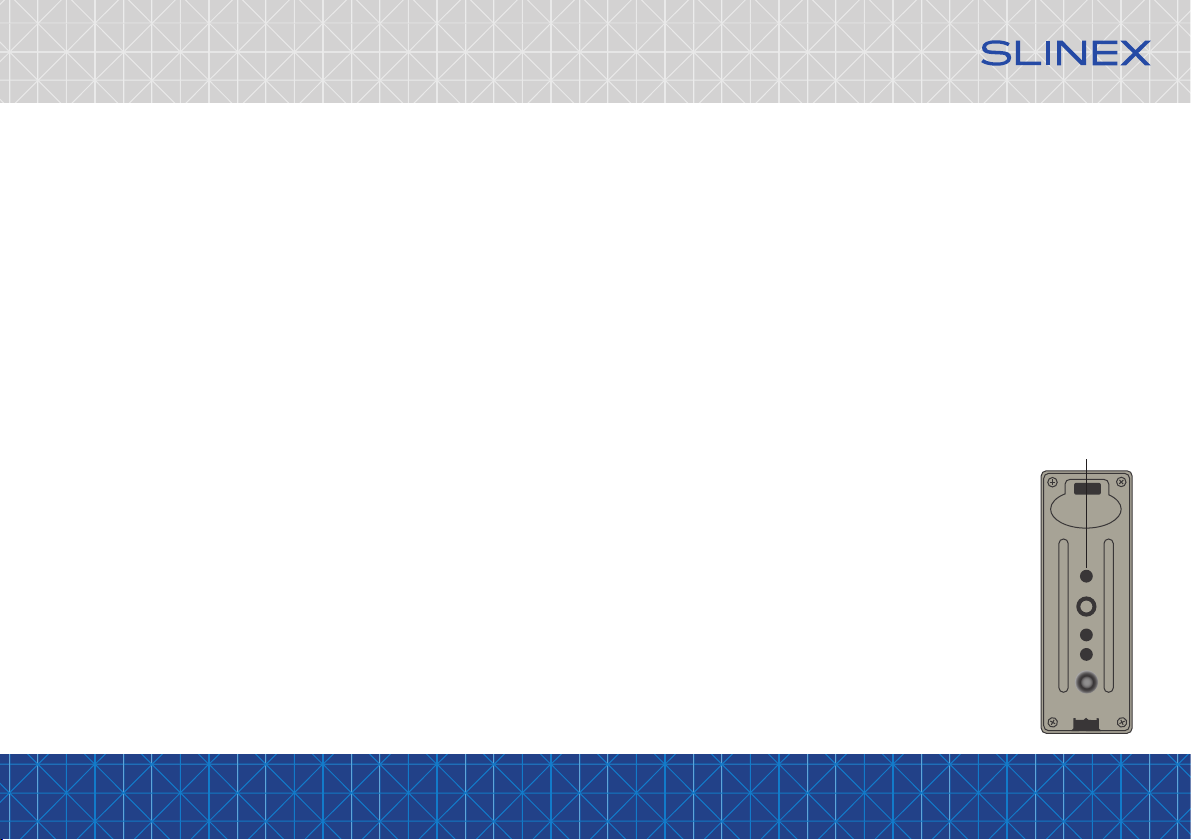

Camera mode

switching

button is

under resin cap

ACCESSORIES

SERIES

Sound and visual indication.

Door unlock successfull – double short «beep» and call button backlight

becomes blue twice;

No such unlock card – triple short «beep» and call button backlight becomes

red twice;

«Unlock ID cards setup» mode – call button backlight is constantly blue;

«Delete card» mode – call button backlight is constantly red;

Standby mode – call button backlight is constantly white;

Card setup successfull – double «beep»;

Card is already added – four times short «beep».

{ Design. Uniqueness. Innovations }

13 14

8. Limited warranty

Manufacturer guarantees product normal functioning during the warranty

period if the user keeps all safety instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing

(warranty period could be extended up to 24 months or more, depending on

the local regulations).

Warranty period allows user to make guarantee repair in cases when normal

functioning of the product was violated by the fault of manufacturer and the

user haven’t oend transporting, installation and working conditions.

This limited warranty does not cover any damage to the product that results

from improper installation, accident, abuse, misuse, natural disaster,

insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or

modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from

the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for

defective products, as provided above. Manufacturer is not liable for, and does

not cover under warranty, any damages or losses of any kind whatsoever

resulting from loss of, damage to, or corruption of, content or data or any costs

associated with determining the source of system problems or removing,

servicing or installing products. This warranty excludes third party software,

connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected

equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair

the product, oer to replace it with a comparable product or provide a refund

at the lesser of the purchase price or the product’s current value.

Repaired or replacement products will continue to be covered by this limited

warranty for the remainder of the original warranty term.

ACCESSORIES

SERIES

Autres manuels Slinex Système d'interphone

Slinex

Slinex SQ-04M Manuel utilisateur

Slinex

Slinex ML-16HR Manuel utilisateur

Slinex

Slinex SM-07 Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex SL-07IP HD Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex SM-07MN Manuel utilisateur

Slinex

Slinex ML-20CRHD Manuel utilisateur

Slinex

Slinex DESIGN DIRECT ML-16 Manuel utilisateur

Slinex

Slinex IP DIRECT Series Manuel utilisateur

Slinex

Slinex Imani Manuel utilisateur

Slinex

Slinex ML-20TLHD Manuel utilisateur

Slinex

Slinex VR-16 Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex SL-07N Cloud Manuel utilisateur

Slinex

Slinex ML-20HR Manuel utilisateur

Slinex

Slinex SM-07M Manuel utilisateur

Slinex

Slinex SM-04M Manuel utilisateur

Slinex

Slinex Imani Manuel utilisateur

Slinex

Slinex SONIK 7 Cloud Manuel utilisateur

Slinex

Slinex MA-02 Manuel utilisateur

Slinex

Slinex SM-07N Cloud Manuel utilisateur

Slinex

Slinex SL-10IPT HD Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
