Slinex SM-04M Manuel utilisateur

{ Design. Uniqueness. Innovation }

DESIGN

DIRECT

SERIES

SM-04M 4” video door phone

Thank you for the

choice of our equipment

User manual

{ Design. Uniqueness. Innovation } DESIGN

DIRECT

SERIES

1 2

Rev. 1.0

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Package ............................................................................................................................................................................................3

2. Specication...................................................................................................................................................................................3

3. Description......................................................................................................................................................................................4

4. Installation.......................................................................................................................................................................................5

4.1 Cable requirements.......................................................................................................................................................5

4.2 Schematic diagrams......................................................................................................................................................6

4.3 Unit mount .......................................................................................................................................................................7

5. Operation.........................................................................................................................................................................................8

5.1 Incoming call ...................................................................................................................................................................8

5.2 Door panel and camera image monitoring..........................................................................................................9

5.3 Incoming call redirection .........................................................................................................................................10

5.4 Intercom .........................................................................................................................................................................11

6. Monitor settings......................................................................................................................................................................... 11

6.1 Display settings............................................................................................................................................................ 12

7. Snapshots recording and viewing....................................................................................................................................... 13

8. Limited Warranty........................................................................................................................................................................14

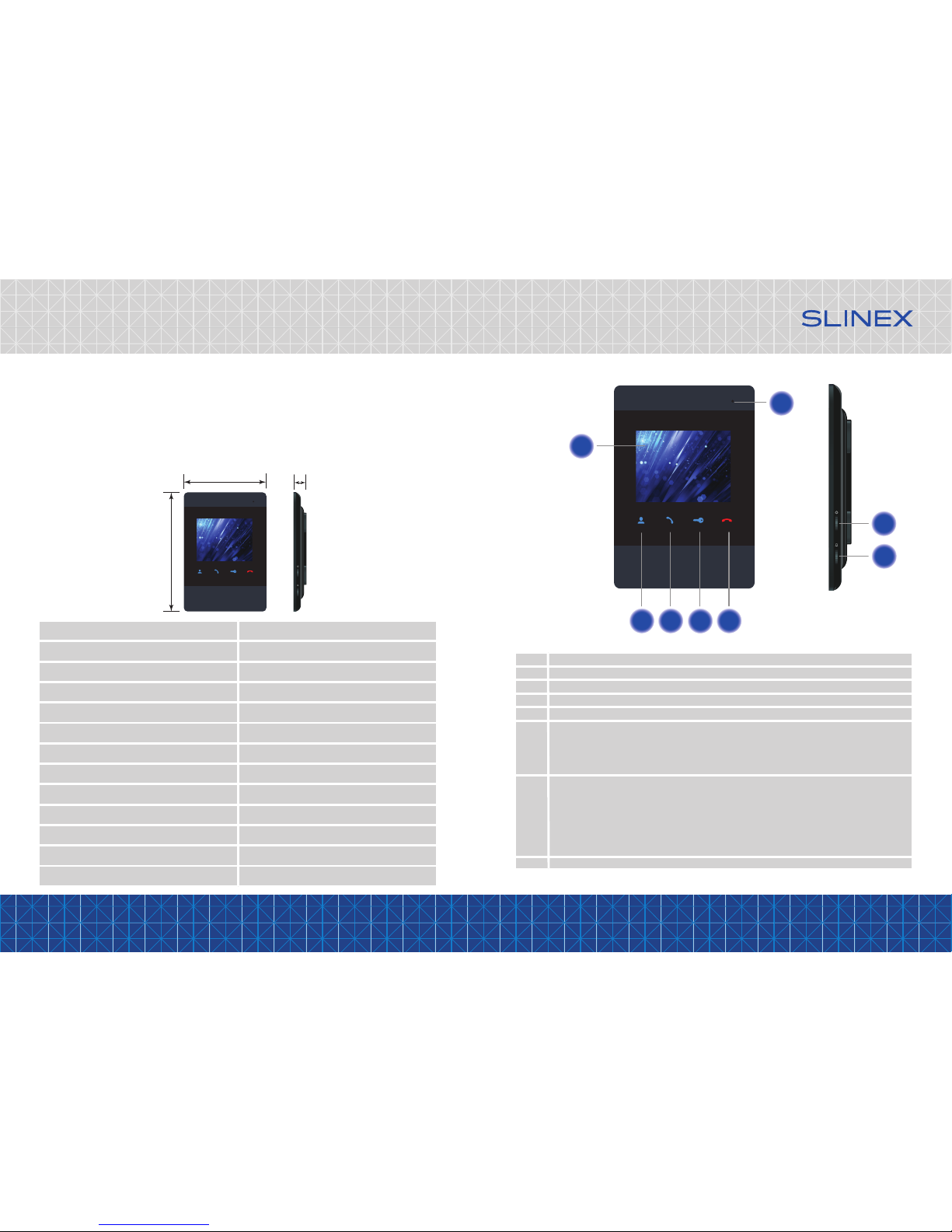

3. Description

52 4

{ Design. Uniqueness. Innovation } DESIGN

DIRECT

SERIES

3 4

Display

«Monitor» button – door panel or camera image monitoring

«Answer» button – incoming call answer and start talking with the visitor

«Unlock» button – door unlocking

«Hang Up» – stop conversation with the visitor / settings menu exit

Volume joystick:

• move joystick up or down during intercom to increase or decrease talking volume;

• push the joystick while monitoring to save a photo;

• push the joystick while standby to enter photo viewing mode

Settings joystick:

• push the joystick any time to enter settings menu;

• move joystick up or down to move through the settings menu (next/previous parameter);

• push the joystick on any parameter to change its value. Change the value of current

parameter by moving joystick up or down and then push the joystick again to save the

parameter.

Microphone

169 mm

118 mm 20

Screen

Resolution

Video system

Audio type

Call time

Internal memory

Memory extension slot

Standby mode power consumption

Working mode power consumption

Power supply

Mounting type

Size

Working temperature

4”, color TFT (4:3)

320×240 pixels

PAL/NTSC

Half duplex

120 seconds

250 photos

1 W

6 W

Built-in power supply, ~100–240 V

Surface mount

118×169×20 mm

−10...+55 ˚C

1. Package

SM-04M door monitor − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires − 5 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

{ Design. Uniqueness. Innovation } DESIGN

DIRECT

SERIES

5 6

SM-04M (Master)

Door 1

Door 2

Input

Output

PowerCCTV1/2

Door 1

Door 2

Input

Output

PowerCCTV1/2

GND

+13,5 V

SM-04M (Slave)

CCTV 2

CCTV 1

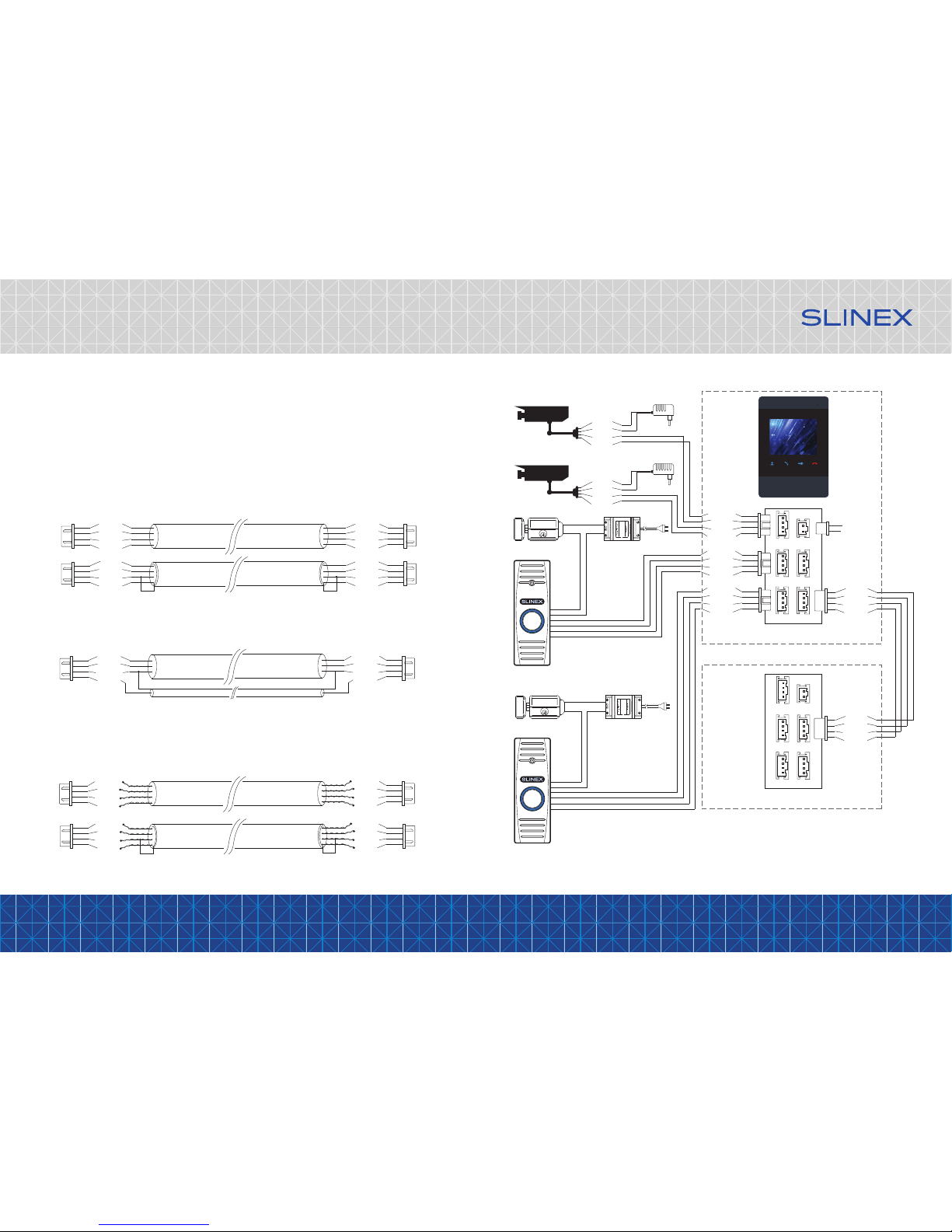

4.2 Schematic diagrams

SM-04M door panels, cameras and locks connection.

4. Installation

4.1 Cable requirements

Disconnect all power cables before device installation.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters use a cable with 0,22 mm square of one wire;

• distance 25 to 50 meters use a cable with 0,41 mm square of one wire;

• distance 50 to 100 meters use a cable with 0,75 mm square of one wire.

b) If the distance between door monitor and door panel is between 80 and 100 meters then use a 3-wire

cable with 0,75 mm square of one wire and RG-59 or RG-6 coaxial cable for the video signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters non-shielded twisted pair can be used;

• distance 25 to 50 meters shielded twisted pair should be used.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80-100 m

RG-59 or RG-6

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

Lock

Door

panel 1

Lock power

supply

CCTV power

supply

CCTV power

supply

Lock

Door

panel 2

Lock power

supply

+12 V

GND

Video

+12 V

GND

Video

Video 1

GND

Video 2

Power

Audio

GND

Video

Power

Audio

GND

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Notes:

* Use «Power»plug on the monitor to connect external power supply +13,5 V. While use

external power supply please keep main power cord ~100-240 V disconnected from the outlet,

otherwise it can damage monitor circuits.

** Door panels, cameras, power supplys and locks, described on the diagram are optional

devices and are not included into monitor kit.

{ Design. Uniqueness. Innovation } DESIGN

DIRECT

SERIES

7 8

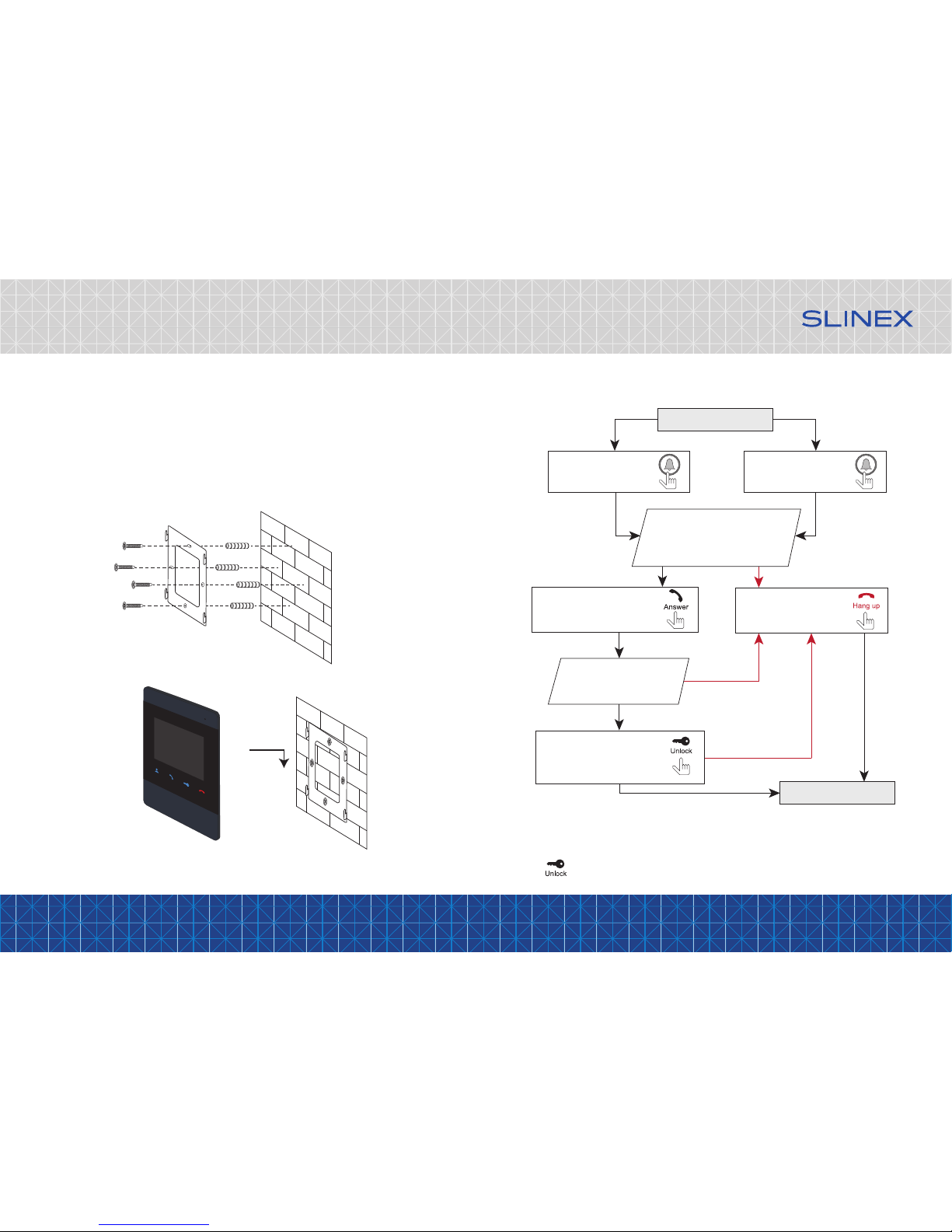

4.3 Unit mount

1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line.

2) Mark and drill four halls in the wall.

3) Take four nuts from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the monitor on the surface mount bracket.

5. Operation

5.1 Incoming call

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button

on the rst door panel

Visitor presses call button

on the second door panel

Press «Answer» button to start

conversation with the visitor

Melody stops ringing and

conversation starts,

talking time is 120 seconds

Press «Hang up» button to

stop conversation or

incoming call

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 60 seconds;

2) Image and sound from the door panel will be active during 20 seconds after the moment user presses

button. It let the user know if the visitor passed through the door.

20 seconds

{ Design. Uniqueness. Innovation } DESIGN

DIRECT

SERIES

9 10

5.2 Door panel and camera image view

Standby mode

Monitor will display

the image from the

rst door panel

(monitoring time – 60 seconds)

Monitor will display

the image from the

second door panel

(monitoring time – 60 seconds)

Press «Monitor»

button on the

monitor

20 seconds

Standby mode

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Monitor will display

the image from the

rst CCTV camera

(monitoring time is unlimited)

Monitor will display

the image from the

second CCTV camera

(monitoring time is unlimited)

Press «Hang up» button to

stop monitoring or

conversation

Press «Answer» button to start

conversation with the visitor

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

5.3 Incoming call redirection

Two monitors connected into one system are used.

Notes:

1) If only one door panel connected to the monitor then you can escape monitoring mode by pressing

«Monitor» button one more time. (all other sources of video signal should be disabled in the monitor

settings).

2) If several monitors connected into one system, the user can view the image from door panels and

cameras on any monitor inside this system. The image will be transferred from the «Master» monitor door

panels and cameras to the «Slave» monitors.

3) If someone press call button on the door panel while monitoring is active then the image from this door

panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation.

Note:

If incoming call was successfully redirected to the other monitor and other user answered the call then

current monitor will enter standby mode.

Melody starts ringing on

the other monitor inside

the system and visitor image

appears on the monitor screen

Conversation with the

visitor on the other

monitor begins

Incoming call from the

door panel and the

user starts conversation

Press «Answer»

button to start

call redirection

20 seconds

Press «Answer» button on the

other monitor to start

conversation with the visitor

Standby mode

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Press «Hang up» button to

stop conversation or

incoming call

{ Design. Uniqueness. Innovation } DESIGN

DIRECT

SERIES

11 12

Enter monitor settings like it described above.

The next parameters are available in the monitor settings:

Language – choose the monitor settings language;

Date – current date set;

Time – current time set;

Ring 1 – melody and volume for the rst door panel;

Ring 2 – melody and volume for the second door panel;

Delete all – delete all photos from the monitor memory;

Mode:choose «Master», if any door panels or cameras connected to this door monitor, otherwise choose

«Slave»;

Door 2 – include or exclude second door panel from the monitoring list;

Cam – include or exclude CCTV cameras from the monitoring list;

Unlock – lock relay open time (from 02 up to 10 seconds);

Exit – exit monitor settings.

If the user does not use the monitor (does not monitors door panel or camera, does not makes any settings),

then the monitor will be automaticaly pushed into standby mode after 1 minute of no actions.

6.1 Display settings

Push the joystick in monitoring or talking mode to enter display settings. Use the manual from the

previous page to navigate through the menu. Brightness, contrast and chroma can be changed in the

range from 0 up to 50. Default values for every parameter is 25.

Choose «Exit» parameter and push joystick to exit from the display settings.

Also you can press button to exit.

Note:

If someone press call button on the door panel while intercom is active then the image from this door panel

appears on the monitor screen and call melody starts. Press «Answer» button to start conversation

with the visitor.

6. Monitor settings

Settings joystick situated on the right side of the monitor case. It has several functions:

• push the joystick in stanby mode to enter monitor settings;

• move the joystick up or down to change current parameter of the

monitor settings;

• push the joystick again to choose current parameter and move it up

or down to change parameter value;

• push the joystick one more time to save current parameter setting.

Volume joystick also situated on the right side of the monitor case and has such functions:

• push the joystick in monitoring or talking mode to save a photo;

• push the joystick in standby mode to enter photo viewing mode.

Languge

Date

Time

Ring 1

Ring 2

Delete all

English

2016-28-10

11:31:15

08 08

Mode

Door 2

Cam

Unlock

Exit

Master

Enable

02s

Brightness

Contrast

Chroma

Exit

5.4 Intercom

Two monitors connected into one system are used.

Melody starts

ringing

Standby mode

Press «Answer»

button to start

intercom

conversation

Conversation with the

other monitor starts

Press «Answer» button on

the other monitor to start

conversation

Press «Hang up»

button to stop

conversation

Move up

Move down

Push

{ Design. Uniqueness. Innovation } DESIGN

DIRECT

SERIES

13 14

7. Snapshot recording and viewing

Monitor automatically take snapshot every time visitor pushes the call button on the door panel. Push the

joystick in monitoring or talking mode to take manual snapshot. Internal memory capacity is 250

snapshots. If snapshots quantity exceeds 250, then most old snapshots will be deleted.

Push the joystick in standby mode to enter snapshot viewing mode.

Move the joystick up or down, to view next/previous snapshot.

Push the joystick while viewing to delete current snapshot. Blinking icon will appear on the

display. Push the joystick again to conrm snapshot deleting.

If you want to delete all snapshots from the monitors memory then go to the «Delete all» parameter in the

monitor settings menu and push the joystick on that parameter to start deleting.

Press button any time to exit snapshot viewing mode.

2015/10/09 17:23:47

01/27 Unview 01

8. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex SL-10IPT HD Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex SONIK 7 Cloud Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT Series Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex XR-30IP Manuel utilisateur

Slinex

Slinex SL-07MHD Manuel utilisateur

Slinex

Slinex Imani Manuel utilisateur

Slinex

Slinex ML-20CRHD Manuel utilisateur

Slinex

Slinex SL-07IP HD Manuel utilisateur

Slinex

Slinex SM-07 Manuel utilisateur

Slinex

Slinex SM-07MHD Manuel utilisateur

Slinex

Slinex ML-20TLHD Manuel utilisateur

Slinex

Slinex Design Direct SL-07IP Manuel utilisateur

Slinex

Slinex Unique Direct Series Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex DESIGN DIRECT ML-16 Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex ML-20HD Manuel utilisateur

Slinex

Slinex SL-10IP Manuel utilisateur

Slinex

Slinex ML-30CR Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex Tabo Manuel utilisateur

Slinex

Slinex SM-07N Cloud Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
