Slinex DESIGN DIRECT ML-16 Manuel utilisateur

{ Design. Unique. Innovation }

ML-16 video door panel

DESIGN

DIRECT

SERIES

Thank you for the

choice of our equipment

User manual

{ Design. Unique. Innovation }

Rev. 1.0

DESIGN

DIRECT

SERIES

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –40 ˚C to +65 ˚C, always keep it within that

temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and

ovens.

The device can be installed near other electronic equipment in case if the

temperature of the environment does not exceed previously mentioned

range.

The device should be protected from the direct inuence of the natural

phenomena, such as direct sunlight, rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Attention!

As a result of continuous upgrades and functionality

improvements, technical characteristics of the device can

be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint.

The owner reserves the right to make corrections to the information described

in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Nature protection

Don’t throw away the device with other industrial or

nutritive trash if you see that symbol. Some regions have

separation and recycling systems for the electronic

equipment.

Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

form, translated into other languages or reproduced in any way including

electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

{ Design. Unique. Innovation }

Table of contents

1. Package .................................................................................................................................. 4

2. Specication ......................................................................................................................... 4

3. Description............................................................................................................................ 6

4. Schematic diagram ............................................................................................................ 7

5. Installation............................................................................................................................. 8

6. Limited Warranty................................................................................................................. 9

1. Package

ML-16 door panel − 1 pc.

Angle bracket − 1 pc.

Rainshield − 1 pc.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

DESIGN

DIRECT

SERIES

Sensor type

Resolution

View angle

Night backlight

Voltage

Power consumption

Installation type

Dimensions

Working temperature

1/3” CMOS

420 ТV-lines

56˚ (horizontal), 48˚ (vertical)

Infrared LED’s. 1,5 m distance

+12 V

2,4 W in working mode

Surface mount

41×122×23 mm

–40 ... +65 ˚C

{ Design. Unique. Innovation }

DESIGN

DIRECT

SERIES

Microphone

Video camera

Night infrared backlight

Call button

Speaker

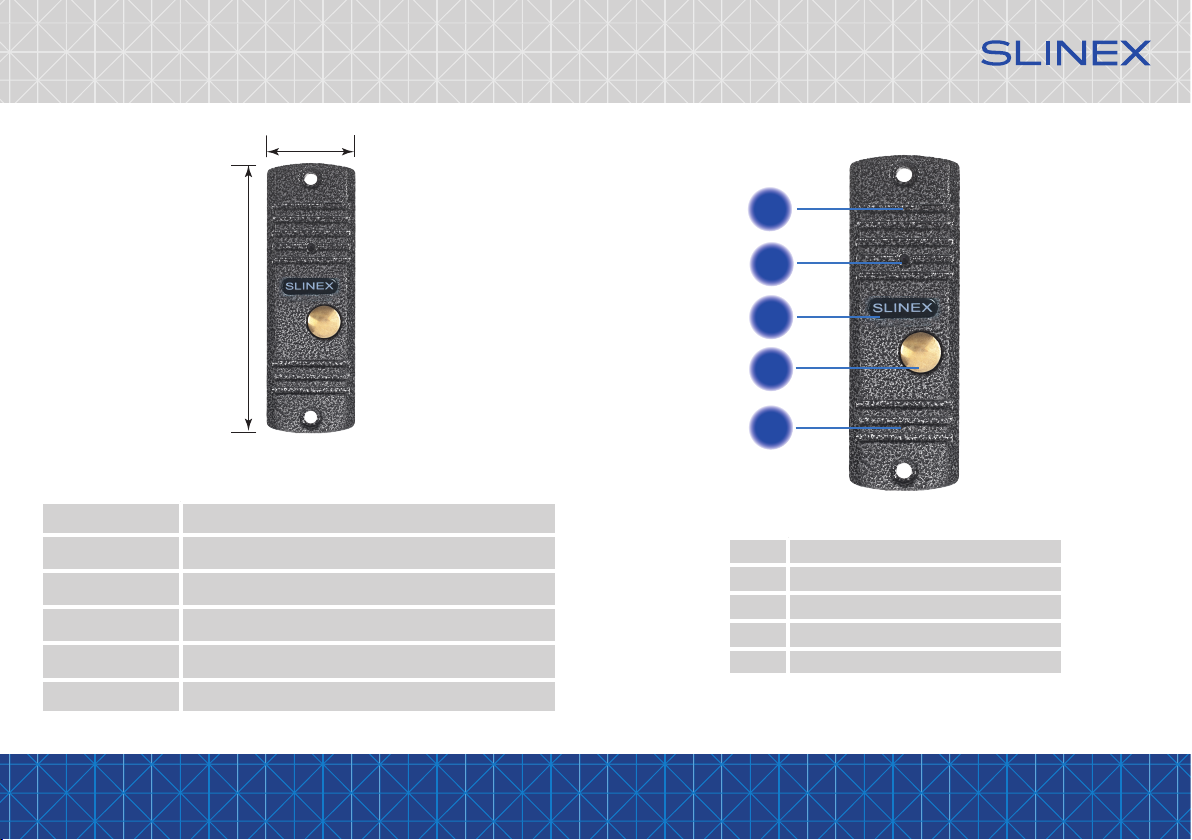

3. Description

Red

Black

Yellow

White

Brown

Blue

ML-16 wire colors

Power, +12 V

Ground (GND)

Video

Audio

COM relay contact

N.O. relay contact

122 мм

41 мм

{ Design. Unique. Innovation }

DESIGN

DIRECT

SERIES

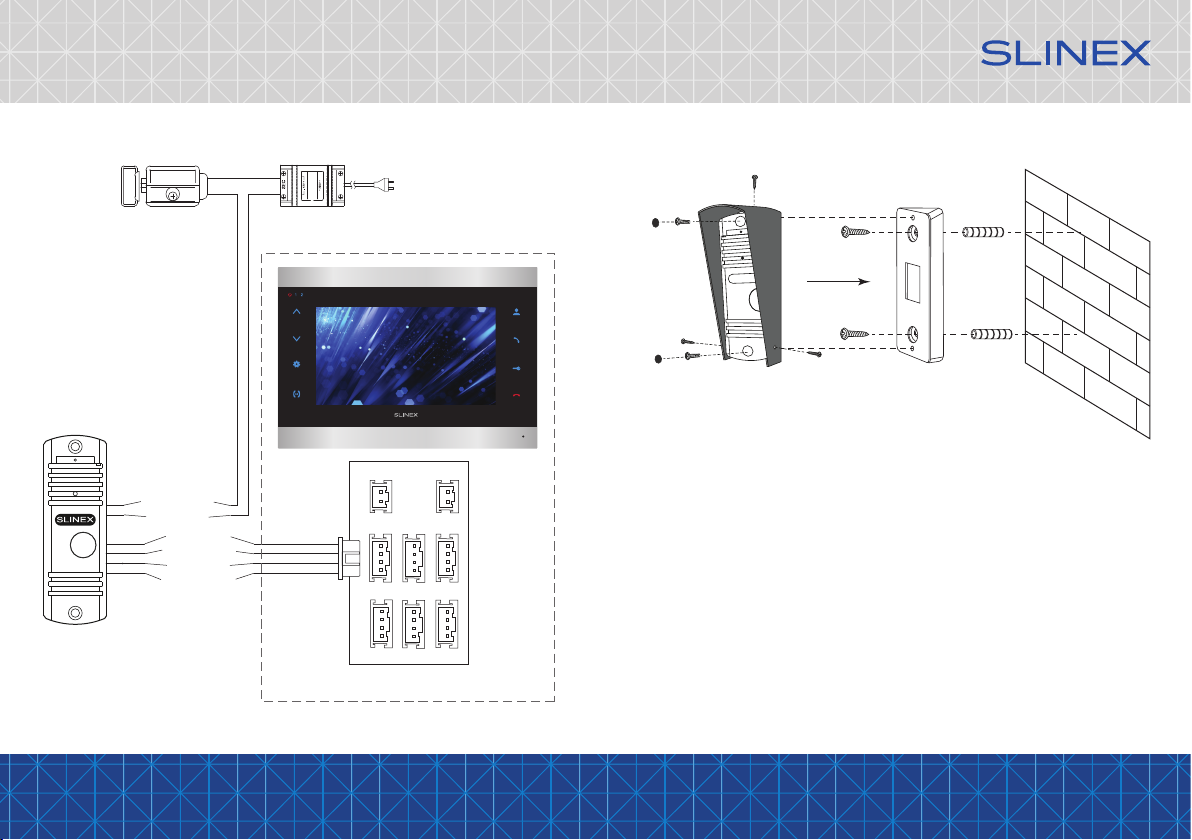

4. Schematic diagram 5. Installation

Power (Red)

Audio (White)

GND (Black)

Video (Yellow)

COM (Brown)

N.O. (Blue)

Lock

ML-16

SL-07M (Master)

Lock power

supply

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

1) Take the angle bracket from the kit and situate it 150-160 cm from the oor

line;

2) Mark and drill two halls inside the wall;

3) Take two nuts from the kit and hammer them into the drilled halls;

4) Fix angle bracket on the wall by two screws from the kit;

5) Connect all communication wires and x the door panel on the angle

bracket by two screws from the faceplate side. Then install the caps on the

mounting screws.

{ Design. Unique. Innovation }

910

DESIGN

DIRECT

SERIES

6. Limited warranty

Manufacturer guarantees product normal functioning during the warranty

period if the user keeps all safety instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing.

Warranty period allows user to make guarantee repair in cases when normal

functioning of the product was violated by the fault of manufacturer and the

user haven’t oend transporting, installation and working conditions.

This limited warranty does not cover any damage to the product that results

from improper installation, accident, abuse, misuse, natural disaster,

insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or

modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from

the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for

defective products, as provided above. Manufacturer is not liable for, and does

not cover under warranty, any damages or losses of any kind whatsoever

resulting from loss of, damage to, or corruption of, content or data or any costs

associated with determining the source of system problems or removing,

servicing or installing products. This warranty excludes third party software,

connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected

equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair

the product, oer to replace it with a comparable product or provide a refund

at the lesser of the purchase price or the product’s current value.

Repaired or replacement products will continue to be covered by this limited

warranty for the remainder of the original warranty term.
