Slinex MA-02 Manuel utilisateur

{ Design. Uniqueness. Innovations }

MA-02 MA-04 MA-08

Multi-user

outdoor panels

Thank you for

choosing our equipment

User manual

SERIES

ACCESSORIES

{ Design. Uniqueness. Innovations }

1Rev. 1.0 2

Attention!

As a result of continuous upgrades and functionality improvements, technical character-

istics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Please read and keep that manual.

The device installation process should be carried out by the qualied specialists.

Use the device from the –40 ˚C to +65 ˚C (–40 ˚F to 149 ˚F), always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissues to remove strong dirt.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying are strictly forbidden without owner permission.

Table of contents

1. Package ............................................................................................................................................................................................3

2. Specication ...................................................................................................................................................................................3

3. Description......................................................................................................................................................................................4

4. Installation.......................................................................................................................................................................................5

5. Connectors......................................................................................................................................................................................5

6. Schematic diagrams ....................................................................................................................................................................6

7. ID card reader settings................................................................................................................................................................8

8. Sound and visual indication ..................................................................................................................................................10

9. Unlock time setting.................................................................................................................................................................. .10

10. Name plates ..............................................................................................................................................................................11

11. Limited Warranty..................................................................................................................................................................... 12

SERIES

ACCESSORIES

{ Design. Uniqueness. Innovations }

1. Package

MA-02 (MA-04 or MA-08) outdoor panel − 1 pc.

Power supply − 1 pc.

Flush mount installation box − 1 pc.

ID cards − 3 pcs.

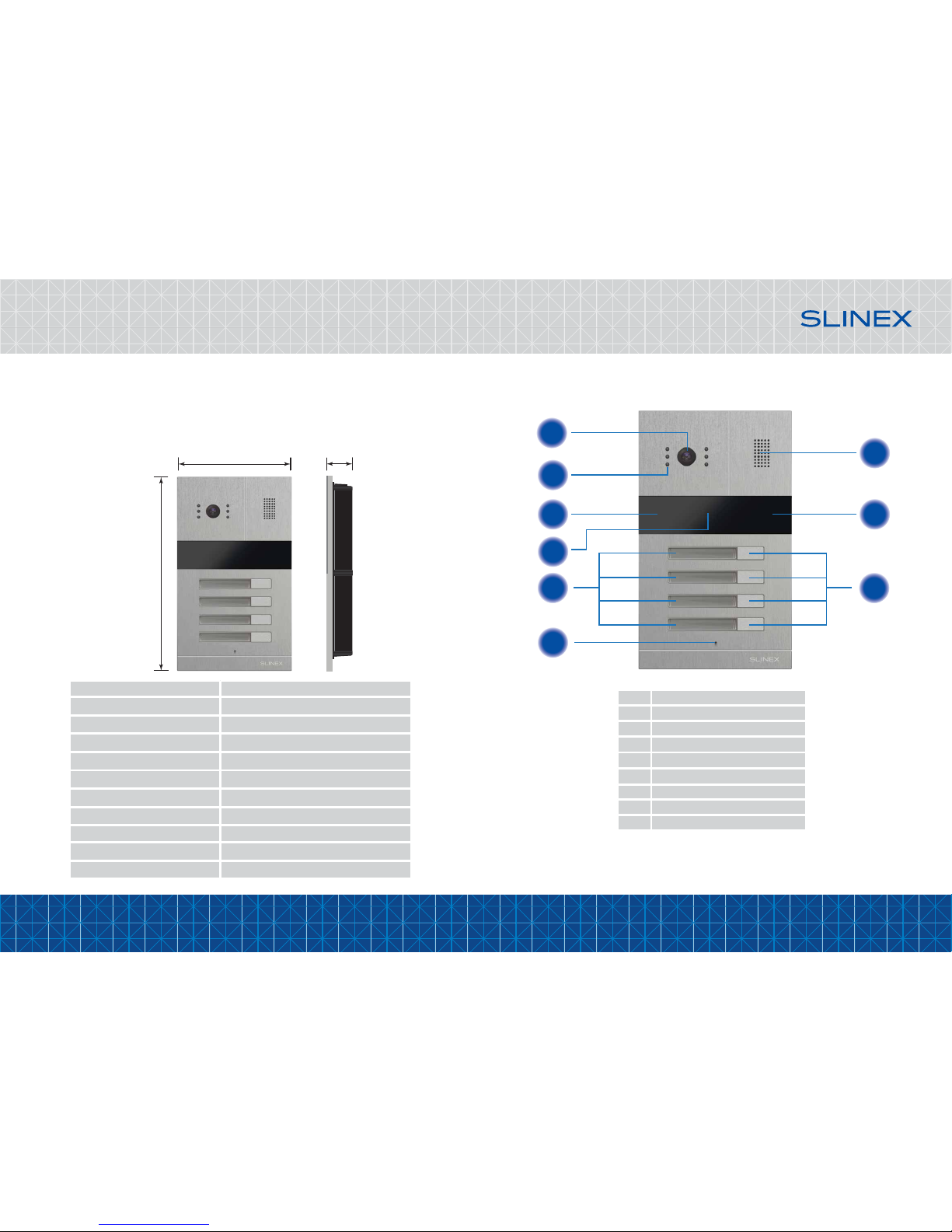

2. Specication

3. Description

SERIES

ACCESSORIES

Sensor type

Resolution

View angle

Night backlight

Voltage

Lock relay continuous current

Power consumption

ID cards

Installation type

Panel dimensions (installation box)

Working temperature

1/4” CMOS

960 ТV-lines

138˚

Infrared LED’s. 1,5 m distance

+12V

10A

6 W in working mode

EM-Marin, Mifare (refer to page 8 for more info)

Flush or surface mount

110×185×34 mm (98×173×34 mm)

–40 ... +65 ˚C (–40 ... 149 ˚F)

110 mm 34

185 mm

Video camera

Night infrared backlight

Wireless ID card reader

Light sensor

Name plates

Microphone

Call buttons

Status LED

Speaker

Connection wires kit − 1 pkg.

Mounting screws and anchors − 1 pkg.

User manual − 1 pc.

MA-02/04 outdoor panel has dual type ID card reader which maintains such wireless ID card standards:

EM-Marin, Mifare Classic, Mifare ID, Ultralight, Ultralight EV1 and NFC.

{ Design. Uniqueness. Innovations }

5 6

SERIES

ACCESSORIES

5. Connectors

Power

Audio

Ground

Video

Monitor 1

MA-02

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Monitor 2

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Video

Ground

Audio

Power

(–)

(+)

Power supply

12V, 1A

Monitor 1

Monitor 2

Power

MA-02

Monitor 1

ID card

reader setup

button

Speaker

volume

tuning

Monitor 2

Output for MA-08

Lock & Exit button

Power

MA-04

Video

Ground

Audio

Power

Exit button

Ground

COM

+12 V

Ground

PowerMonitor Lock & Exit button

Connectors pinout

Monitor 1

ID card

reader setup

button

Speaker

volume

tuning

Monitor 2

Monitor 3

Monitor 4

Output for MA-08

Lock & Exit button

Power

MA-08

Monitor 5

Monitor 6

Monitor 7

Monitor 8

Monitor 1

Monitor 2

Monitor 3

Monitor 4

Input from

MA-02/04

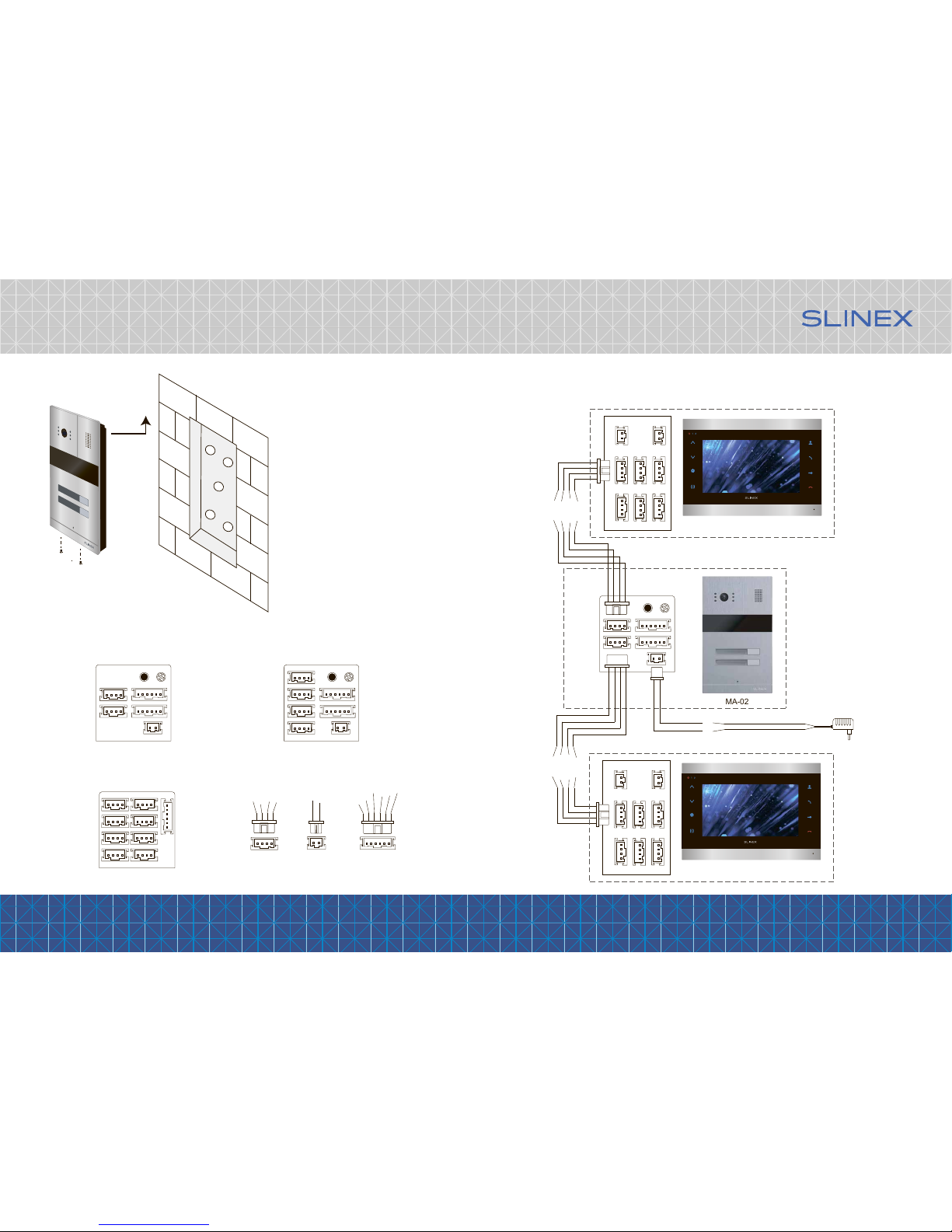

Diagram 1. MA-02 and two monitors connection.

Outdoor panel ush mount process:

1) Prepare the hollow inside the wall

according to the sizes mentioned on

the 3rd page of the manual, 150-160

cm up from the oor line.

2) Mount ush mounting box into the

hollow and x it.

3) Connect all communication wires

and insert the door panel inside the

ush mounting box. Then x it with

two screws from the down side.

4. Installation 6. Schematic diagrams

{ Design. Uniqueness. Innovations }

7 8

Diagram 2. MA-02 mechanical lock connection

SERIES

ACCESSORIES

7. ID card reader settings

Connect +12V power supply through the 2-pin connector on the back side of the outdoor panel red (+) and

black (–) wires on the connector side. Note that (+) wire from power adapter has grey strips on the side.

Memory reset

Press and hold “ID card reader setup button”during 5 seconds (button situated on the back side of the

outdoor panel, see page 5), until repeatable sound is heard. It means that ID card reader memory was

formatted.

Mechanical

lock Lock power

supply

COM

Note:

MA-08 can only be used as an extension unit for MA-02/04 outdoor panels. MA-08 can not be used as an

independent outdoor panel.

MA-02 MA-08

Diagram 3. MA-02 and MA-08 interconnection.

Diagram 3. MA-02 electromagnetic lock connection

Magnetic

lock

Lock power

supply

COM

Button

COM

Open lock

button

{ Design. Uniqueness. Innovations }

9 10

SERIES

ACCESSORIES

Manager ID card setup

1. Shortly press “ID card reader setup button” (on the back side of the outdoor panel, see page 5) to enter

manager ID card setup mode. User will hear a short sound and status LED becomes blue.

2. Take the ID card that should be used as manager card and touch it near card reader zone on the front

of the door panel. If manager card setup was successful then user will hear a sound signal. (If user

doesn’t touch ID card near card reader during 10 seconds then door panel will be automatically

switched into standby mode). Only one manager ID card can be added to the card reader memory.

“Unlock ID cards setup”and “delete card” modes

1. In standby mode situate management card near the card reader to enter “unlock cards setup”mode.

Outdoor panel will emit double sound and backlight of the call button will become blue.

2. Put every unlock ID card that needs to be added near card reader one by one. After each card reading,

a double sound signal can be heard. In case if current ID card has been already added to the card reader

memory then four-time sound signal can be heard while touching it near the card reader.

3. When all unlock ID cards have been added then put management card near the card reader to enter

“delete card” mode. Door panel will emit double sound a asignal and status LED will become red.

4. Put any unlock ID card that needs to be deleted near card reader while “delete card”mode is active.

After double short sound current ID card will be deleted from the memory.

5. While “delete card”mode is active, situate management card near the card reader to exit into standby

mode.

6. Wait for 10 seconds without any actions in «unlock ID cards setup»or «delete card»modes to exit into

standby mode automatically.

7. Maximum unlock ID cards quantity that can be added to the card reader memory is 248 pcs.

8. Sound and visual indication

Door unlock successfull – one “beep”and blue status LED blinks twice

No such unlock card – triple short “beep”and status LED blinks red

twice

Standby mode – status LED doesn’t work

“Unlock ID cards setup” mode – double “beep”and status LED is

constantly blue

“Delete card” mode – double “beep” and status LED is constantly red

Card setup successfull – double“beep”

Card is already added – four times short“beep”

9. Unlock time setting

Depending on the lock type connected to the door panel dierent unlock time should be used. While using

an electromechanical lock, unlock time must be set under 2 seconds (1 second is typical value) to prevent

electromechanical lock damaging. For the electromagnetic lock set unlock time to let visitors open the door

during this time (typically it is 3-5 seconds).

Unlock time setting can be made in such way:

1. Shortly press “ID card reader setup button” (on the rear side of the door panel, see page 5) to enter

unlock time setting.

2. On 2 users door panel use the 1st user button on the front to increase unlock time or the 2nd user

button to decrease unlock time.

3. On 4 users door panel use the 2nd user button on the front to increase unlock time or the 3rd user

button to decrease unlock time.

4. While unlock time setting you can hear sound signals from the door panel speaker. Sound signals

quantity displaying current unlock time value in seconds. Unlock time value can be set up for 1 to 5

seconds.

–

{ Design. Uniqueness. Innovations }

11 12

SERIES

ACCESSORIES

10. Name plates

Here you can cut the name plates to insert under glass near the button. Each name plate has dimensions

47×8 mm. Glass can be disassembled with extractor from the outdoor panel kit.

11. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows the user to make guarantee repair in cases when normal functioning of the product

was violated by the fault of the manufacturer and the user haven’t oended transporting, installation and

working conditions.

This limited warranty does not cover any damage the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

The warranty does not cover following cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according to recommendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. The manufacturer is not liable for and does not cover under warranty, any damages or losses of any

kind whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated

with determining the source of system problems or removing, servicing or installing products. This warranty

excludes third-party software, connected equipment or stored data. The manufacturer is therefore not

liable for any losses or damage attributable to the third party software, connected equipment or stored

data.

In case a product has been discontinued, the manufacturer shall either repair the product, oer to replace it

with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex SONIK 7 Cloud Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT Series Manuel utilisateur

Slinex

Slinex SM-04M Manuel utilisateur

Slinex

Slinex ML-16HR Manuel utilisateur

Slinex

Slinex MS-04 Manuel utilisateur

Slinex

Slinex IP DIRECT Series Manuel utilisateur

Slinex

Slinex ML-17HD Manuel utilisateur

Slinex

Slinex SL-10IPT HD Manuel utilisateur

Slinex

Slinex SL-10IP Manuel utilisateur

Slinex

Slinex ML-15HR Manuel utilisateur

Slinex

Slinex Unique Direct Series Manuel utilisateur

Slinex

Slinex Imani Manuel utilisateur

Slinex

Slinex ML-20TLHD Manuel utilisateur

Slinex

Slinex SQ-07MTHD Manuel utilisateur

Slinex

Slinex SM-07MHD Manuel utilisateur

Slinex

Slinex SM-07N Cloud Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex Tabo Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex SL-07N Cloud Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
