Slinex Innovation Direct Series Manuel utilisateur

INNOVATION

DIRECT

SERIES

IP video intercom kit

with call redirection

to the mobile app

{ Design. Uniqueness. Innovation }

Thank you for the

choice of our equipment

User manual

Link AP Power

VZ-50

Zian

Uma

XR-30IP

{ Design. Uniqueness. Innovations }

1Rev. 1.0 2

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C (14 ˚F to 131 ˚F), always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Zian indoor monitor....................................................................................................................................................................3

1.1 Package..............................................................................................................................................................................3

1.2 Specication.....................................................................................................................................................................3

1.3 Description .......................................................................................................................................................................4

2. Uma outdoor panel......................................................................................................................................................................5

2.1 Package..............................................................................................................................................................................5

2.2 Specication.....................................................................................................................................................................5

2.3 Description .......................................................................................................................................................................6

3. XR-30IP converter.........................................................................................................................................................................7

3.1 Package..............................................................................................................................................................................7

3.2 Specication.....................................................................................................................................................................7

3.3 Description .......................................................................................................................................................................8

4. VZ-50 adapter.................................................................................................................................................................................9

4.1 Package..............................................................................................................................................................................9

4.2 Specication.....................................................................................................................................................................9

4.3 Description .................................................................................................................................................................... 10

5. Installation.................................................................................................................................................................................... 11

5.1 Cable requirements.................................................................................................................................................... 11

5.2 Schematic diagrams................................................................................................................................................... 11

6. XR-30IP software settings.......................................................................................................................................................13

6.1 Notication messages............................................................................................................................................... 15

7. Zian operation ............................................................................................................................................................................16

7.1 Incoming call ................................................................................................................................................................16

7.2 Outdoor panel image view...................................................................................................................................... 17

7.3 Monitor menu ..............................................................................................................................................................17

8. Limited Warranty........................................................................................................................................................................18

INNOVATION

DIRECT

SERIES

{ Design. Uniqueness. Innovations }

3 4

1. Zian indoor monitor

1.1 Package

Zian indoor monitor − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires − 7 pcs.

Mounting screws and wall anchors − 1 pkg.

1.2 Specication

1.3 Description

INNOVATION

DIRECT

SERIES

106 mm (4.2″)

171 mm (6.7″)

277 mm (10.9″)

185 mm (7.3″)28 mm (1.1″)

216 mm (8.5″)1

Display

«Settings» / «Open display» button

«Messages» button

SOS / Alarm button

Microphone

«Open / hide display» button

«Monitor» button

«Answer» button

Screen

Resolution

Standby mode power consumption

Working mode power consumption

Power

Mounting type

Size

Working temperature

7”, color TFT with touch screen

800×480 pixels

3 W

13 W

External power supply, +13 V

Surface mount

216×277×28 mm (8.5×10.9×1.1 inch)

−10...+55 ˚C (+14...+131 ˚F)

{ Design. Uniqueness. Innovations }

5 6

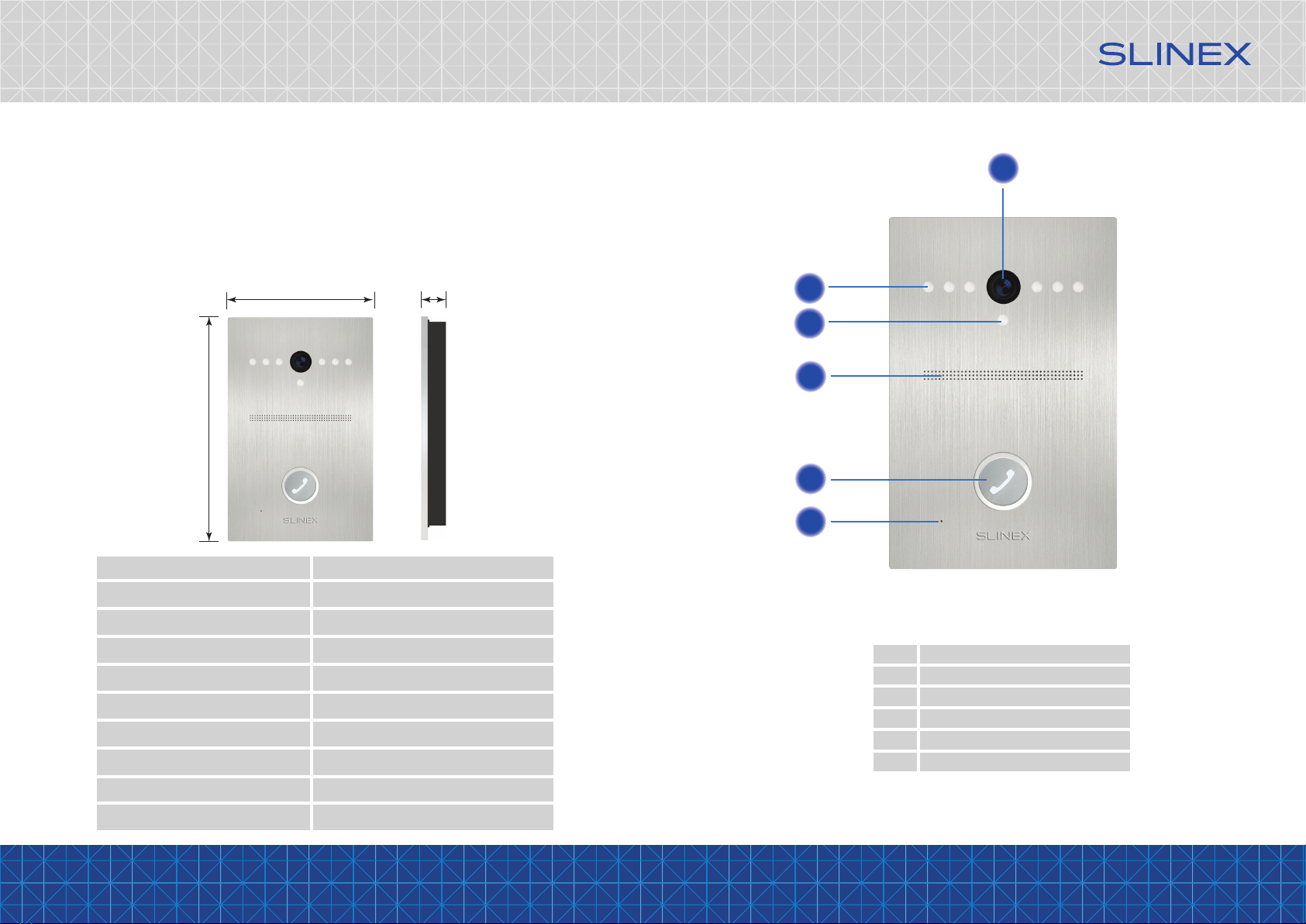

2. Uma outdoor panel

2.1 Package

Outdoor panel − 1 pc.

Flush mounting box − 1 pc.

Connection wires − 3 pcs.

Mounting key, screws and wall anchors − 1 pkg.

2.2 Specication

2.3 Description

INNOVATION

DIRECT

SERIES

Sensor type

Resolution

View angle

Night backlight

Power

Working mode power consumption

Mounting type

Panel dimensions

Installation hole dimensions

Working temperature

1/3”CCD

800 ТV-lines

45˚

Infrared LED’s. 1,5 m distance

+13V from the monitor

5 W

Flush mount

110×170×28 mm (6.7×4.3×1.1 inch)

96×156×34 mm (3.78×6.14×1.35 inch)

–40 ... +65 ˚C (–40...+149 ˚F)

170 mm (6.7″)

110 mm (4.3″)28 mm (1.1″)

Video camera

Night infrared backlight

Light sensor

Speaker

Call buttons

Microphone

{ Design. Uniqueness. Innovations }

7 8

INNOVATION

DIRECT

SERIES

Video system

Network interface

Memory

Standby mode power consumption

Working mode power consumption

Power

Mounting type

Size

Working temperature

PAL/NTSC

Ethernet 10/100M, Wi-Fi

MicroSD card slot, up to 32GB

2 W

5 W

External power supply, +12 V

Surface mount

80×120×22 mm (3.1×4.7×0.9 inch)

−10...+55 ˚C (+14...+131 ˚F)

DC power supply input +12 V, 1 A

Indoor monitor plug

Outdoor panel plug

Local area network RJ-45 plug (10/100M base T Ethernet)

Network LED. If device is connected to wired or wireless Wi-Fi network then LED is active.

«Access point» mode LED. If «Access point» mode is active then LED is blinking.

Power LED. If the device is powered up then LED is active.

SMA plug for the external Wi-Fi antenna.

MicroSD card slot

«Access point» mode button. Push and hold that button until «Access point» mode LED

becomes active. «Access point» mode will be activated after reboot for 10 minutes.

Link AP Power

Antenna

AP MicroSD

80 mm (3.1″)

120 mm (4.7″)

22 mm (0.9″)

Link AP Power

Lan

Outdoor Indoor +12 V

Antenna

AP MicroSD

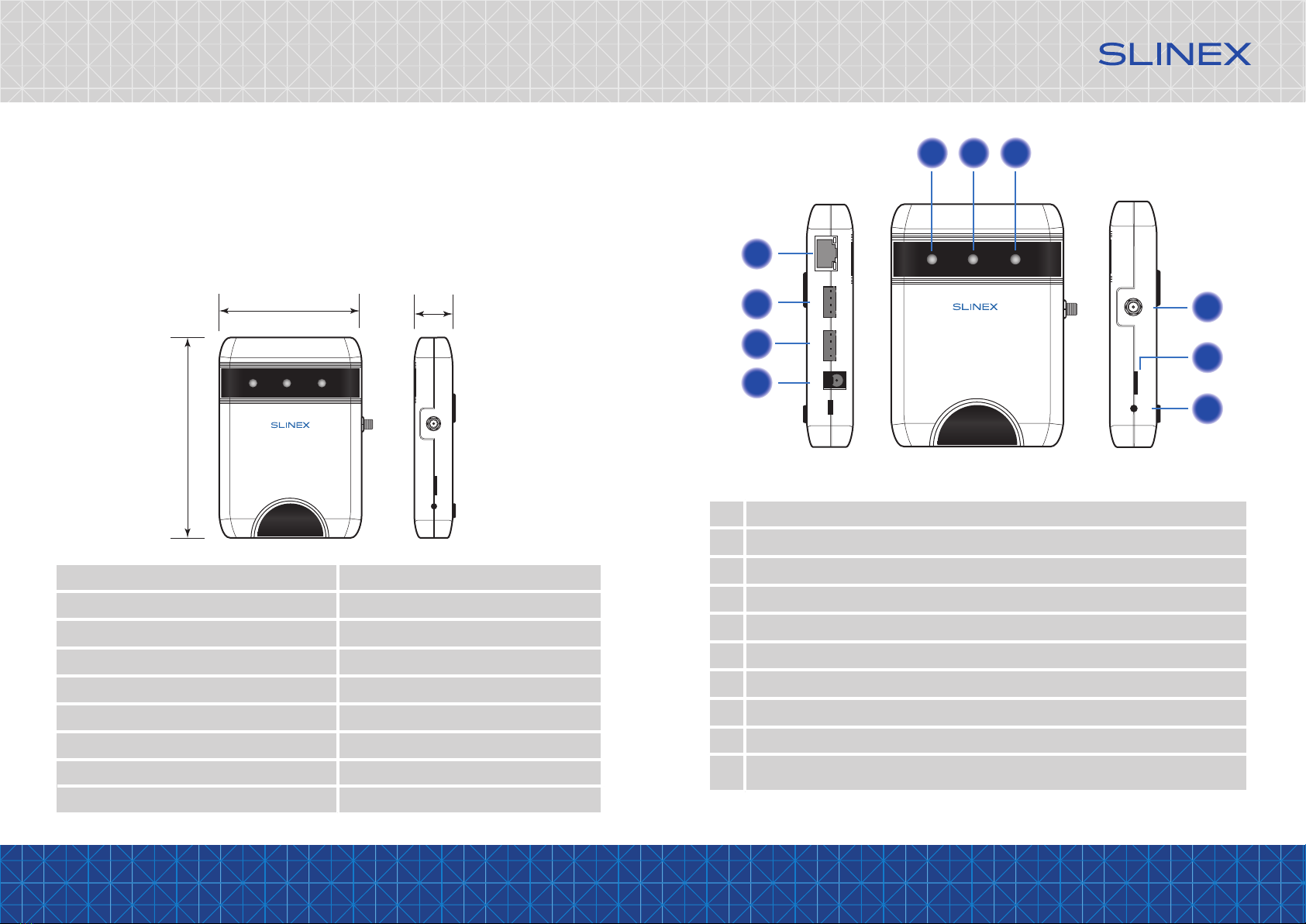

3. XR-30IP converter

3.1 Package

XR-30IP converter – 1 pc.

Power supply – 1 pc.

Connection wires – 2 pcs.

Mounting screws and nuts – 1 pkg.

User manual – 1 pc.

3.2 Specication

3.3 Description

5 6 7

{ Design. Uniqueness. Innovations }

9 10

INNOVATION

DIRECT

SERIES

Video system

Standby mode power consumption

Working mode power consumption

Power

Mounting type

Size

Working temperature

PAL/NTSC

1 W

3 W

+13V from the monitor

Surface mount

42×96×15mm (1.65×3.78×0.59 inch)

−10...+55 ˚C (+14...+131 ˚F)

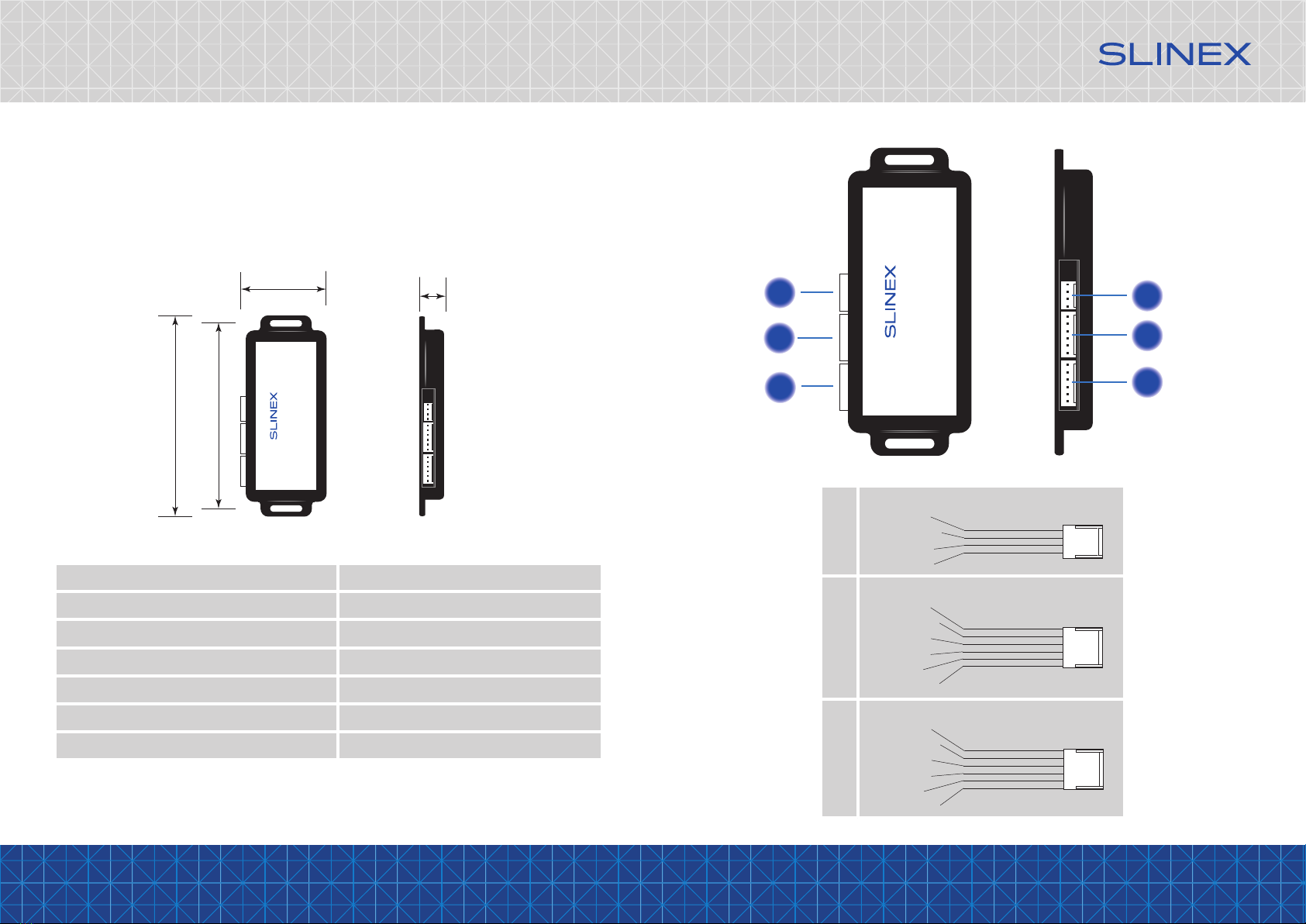

4. VZ-50 adapter

4.1 Package

VZ-50 adapter – 1 pc.

Connection wires – 3 pcs.

4.2 Specication

4.3 Description

42 mm (1.65″)

96 mm (3.78″)

88 mm (3.46″)

15 mm (0.59″)

VZ-50

XR-30IP connector

Video

Ground

Audio

Power

Zian indoor monitor connector

Video

Ground

Power

Audio

Data

Ground

Uma outdoor panel connector

Video

Ground

Power

Audio

Data

Ground

{ Design. Uniqueness. Innovations }

11 12

INNOVATION

DIRECT

SERIES

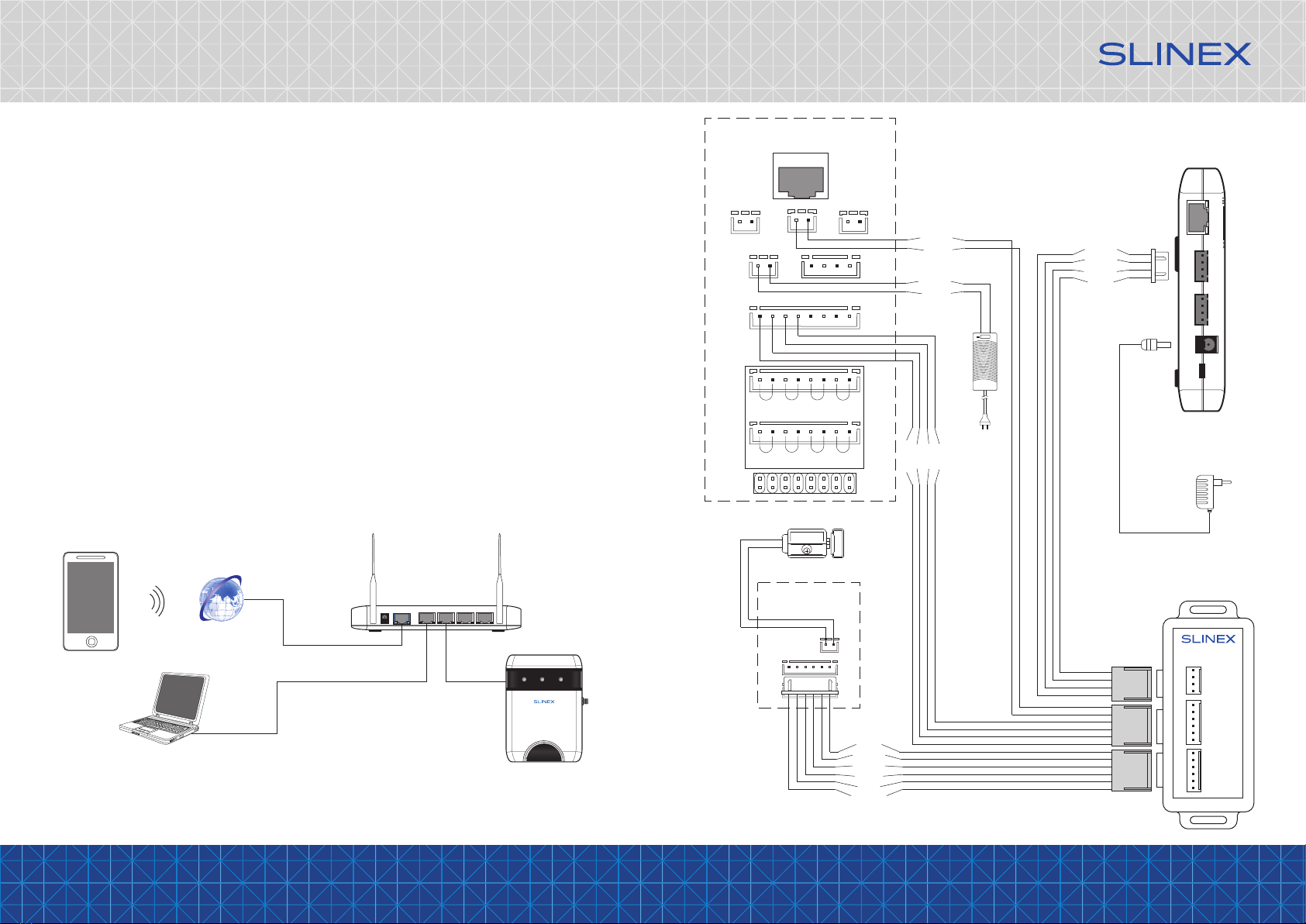

5.2 Schematic diagrams

Diagram 1. XR-30IP network connection.

5. Installation

5.1 Cable requirements

Disconnect all power cables before devices installation.

Devices can be connected with such cable types depends on the distance between indoor monitor and

outdoor panel:

) Use the cables with such parameters:

• distance up to 25 meters (80 ft.) use a cable with 0,22 mm square of one wire (AWG24);

• distance 25 to 50 meters (80 to 160 ft.) use a cable with 0,41 mm square of one wire (AWG21);

• distance 50 to 100 (160 to 330 ft.) meters use a cable with 0,75 mm square of one wire (AWG18).

b) If the distance between door monitor and door panel is between 80 and 100 meters (260 and 330 ft.) then

use a cable with 0,75 mm square of one wire (AWG18) and RG-59 or RG-6 coaxial cable for the video signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters (80 ft.) non-shielded twisted pair can be used;

• distance 25 to 50 meters (80 to 160 ft.) only shielded twisted pair should be used.

Android / iOS

Internet

3G / Wi-Fi

XR-30IP

converter

Router

UTP cat.5

cable

WAN 1 2 3 4

Link AP Power

LAN

Outdoor Indoor +12V

Power

Audio

Ground

Video

Ground

Power

Ground

Video

Power supply

AC 220V / +12V

Zian

XR-30IP

1 2 3 4

5 6 7 8

Power

supply

XR-30IPZian

Uma

Video

Ground

Audio

Power

Video

Ground

Power

Audio

Data

Ground

Video

Ground

Power

Audio

Data

Ground

VZ-50

Ground

Data

Audio

Power

Uma

Lock

Video

Ground

Power

Audio

Data

Ground

Diagram 2. Zian, Uma, XR-30IP and VZ-50 system interconnection.

{ Design. Uniqueness. Innovations }

13 14

INNOVATION

DIRECT

SERIES

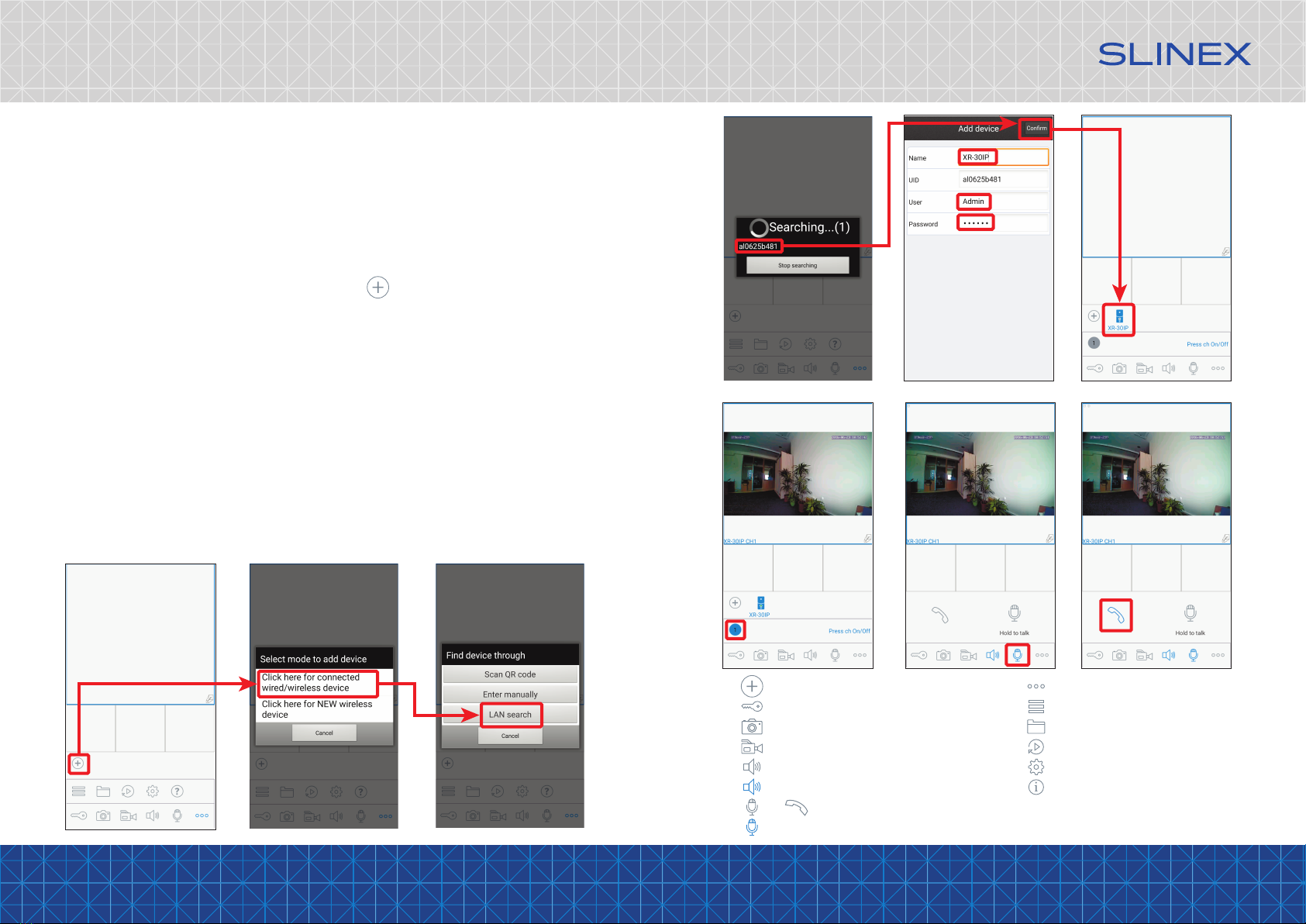

6. XR-30IP software settings

Use twisted pair CAT5 or CAT6 cable to connect XR-30IP converter to the local network according to the

diagram on page 11.

Wired network setup includes next steps:

1) Enter «GooglePlay»(for Android) or «AppStore» (for iOS) and search for «Slinex» application, then install

this applicationи on your mobile device.

2) Connect mobile device to the local network, which is XR-30IP connected.

3) Run «Slinex» application on your mobile device and press icon to add a new device.

4) Press «Click here for connected wired/wireless device» button, then press «LAN search» button.

5) When new device have been found, choose its number in the list and ll in the device information:

Name: enter device name in the list

UID: unique identication number of the device

User: Admin (by default)

Password: 888888 (by default)

then ress «Conrm» button.

6) Device will be added to the bar on the middle part of the screen. You can also turn alarm notication on

or o by the switcher near device name in the devices list («Switch ON/OFF notication»).

− additional settings

− device list

− local snapshots and video

− remote snapshots and video

− settings

− help

− add new device

− door unlock

− snapshot

− start/stop video recording

− turn on the sound from the door station

− press again to turn o the sound

+ - start conversation

− press again to stop conversation

{ Design. Uniqueness. Innovations }

15 16

INNOVATION

DIRECT

SERIES

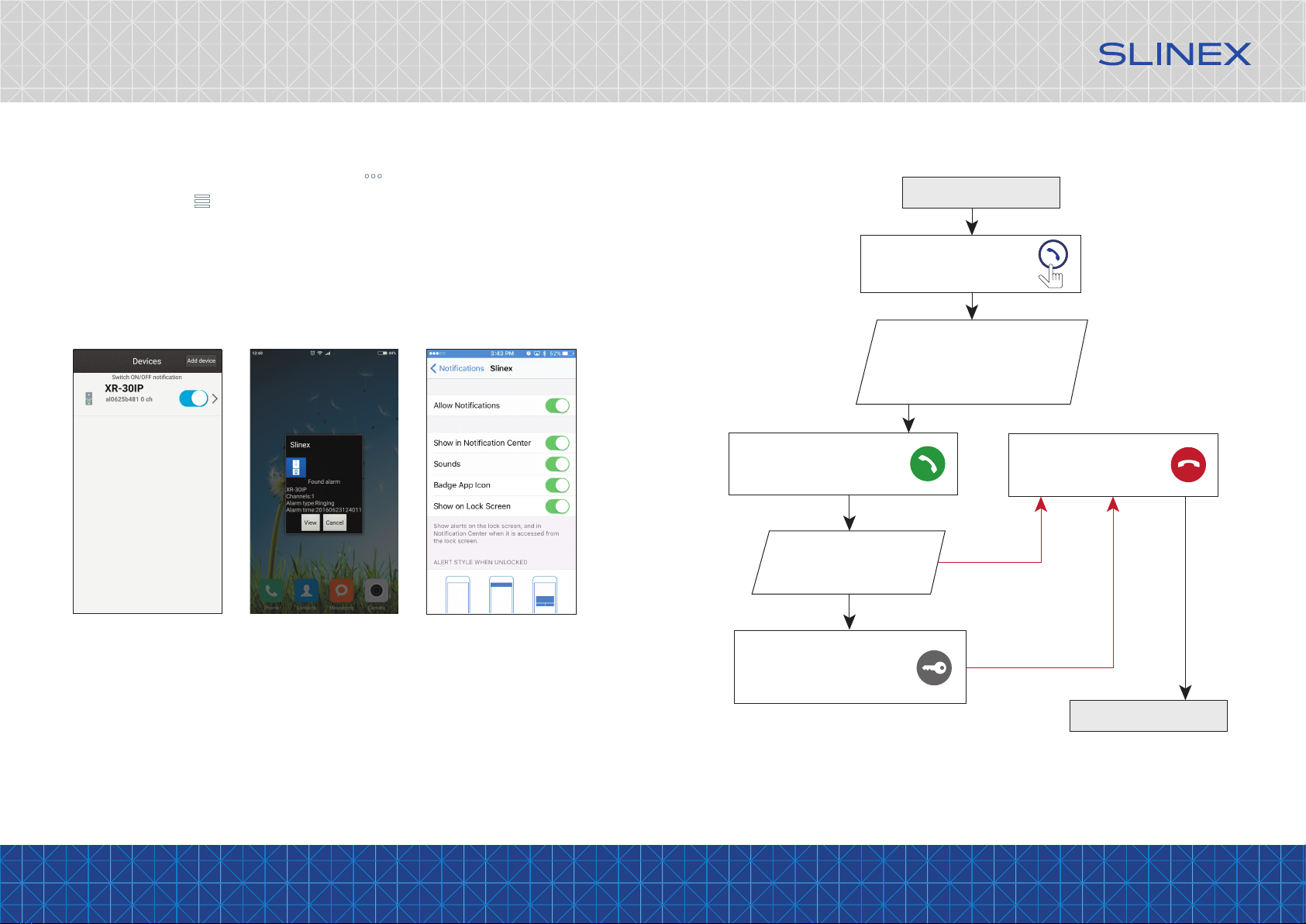

6.1 Notication messages

Check mobile device and XR-30IP converter both connected to the Internet.

Start «Slinex» application on the mobile device and press button on the bar to display additional

settings menu. Then press button to enter device list. On the right side from the device name you will

see the switch. If it has blue color then alarm notication is enabled. If it has gray color then alarm

notication is disabled.

While alarm notication is enabled the user will receive the alarm message if someone presses the call

button on the door station. Press «View» button to talk with the visitor or «Cancel» button to disable alarm

message.

Note:

For the iOS mobile devices, go to «Settings»→«Notications», then click «Slinex»icon and make sure that

all the notication are turned on:

Allow notications;

Show in Notication Center;

Sounds;

Badge App Icon;

Show on Lock Screen.

7. Zian operation

7.1 Incoming call

Standby mode

Melody starts ringing on the

Zian monitor and mobile devices,

connected to XR-30IP.

Image from the door panel

appears on the monitor screen

Visitor presses call button

on the individual door panel

Press «Answer» button to start

conversation with the visitor

Melody stops ringing and

conversation starts,

talking time is 60 seconds

Press «Hang up» button to

stop conversation

Press «Unlock» button to open

lock connected to the current

door panel

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 30 seconds;

Call Messages Monitoring Queries Media Alarm Settings

9 3

Fri, Feb 23 1

{ Design. Uniqueness. Innovations }

17 18

INNOVATION

DIRECT

SERIES

8. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

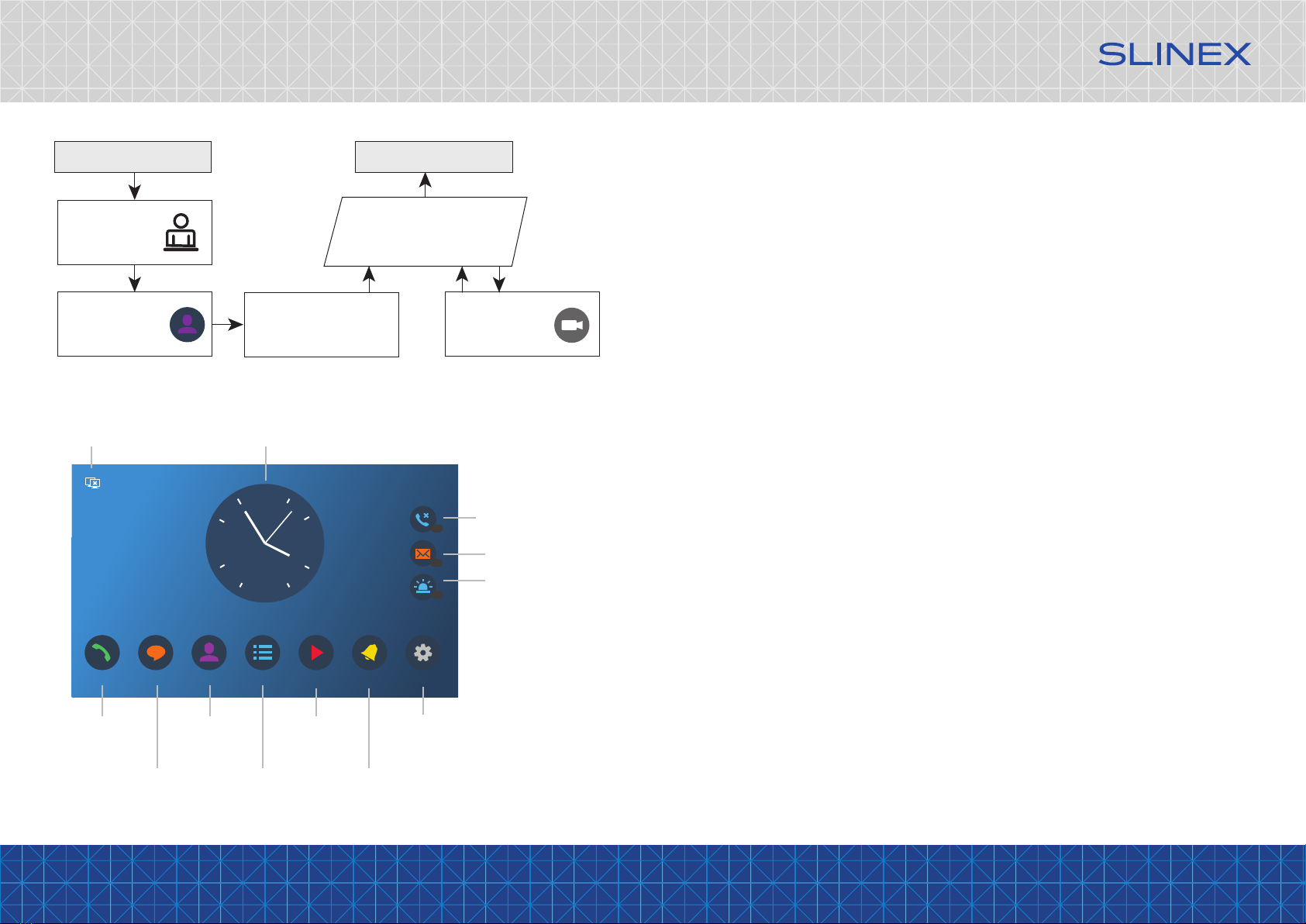

7.2 Outdoor panel image view

7.3 Monitor menu

Standby mode

Monitor will display

the image from the

outdoor panel

(monitoring time – 20 seconds)

Press «Monitor»

button on the

Zian monitor

Standby mode

Press «Monitoring»

icon on the

monitor screen

IP calls

Outdoor panels

monitoring

Incoming messages

and snapshots menu

Network

status

Monitor events

log

Wallpaper setting

and audio message

recording

Alarm status

setting

(Default password: 0000)

Monitor sdettings

(Engineer mode default

password: 008550)

Missed, answered and

outgoing calls log

Press «Individual panel»

menu. Then choose

«Individual panel 1»

Press «Camera»

icon to make a

snapshot

Current

date and time

Audio messages

Alarm messages

Autres manuels pour Innovation Direct Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex ML-17HD Manuel utilisateur

Slinex

Slinex ML-20CR Manuel utilisateur

Slinex

Slinex VR-16 Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex ML-20HD Manuel utilisateur

Slinex

Slinex SL-07MHD Manuel utilisateur

Slinex

Slinex ML-15HR Manuel utilisateur

Slinex

Slinex ML-16HR Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT IP Series Manuel

Slinex

Slinex SQ-04M Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex SM-04M Manuel utilisateur

Slinex

Slinex SM-07MN Manuel utilisateur

Slinex

Slinex ML-20HR Manuel utilisateur

Slinex

Slinex SQ-07MTHD Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT Series Manuel utilisateur

Slinex

Slinex SL-10IPT HD Manuel utilisateur

Slinex

Slinex ML-16HD Manuel utilisateur

Slinex

Slinex ML-20CRHD Manuel utilisateur

Slinex

Slinex Imani Manuel utilisateur

Slinex

Slinex Unique Direct Series Manuel utilisateur

Slinex

Slinex SM-07 Manuel utilisateur

Slinex

Slinex SL-10M Manuel utilisateur

Slinex

Slinex Sonik 7 Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
