SL-10IPT 10” touch screen

video door phone

User manual

Thank you for

choosing our equipment

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

1 2

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Rev. 4.0

Table of contents

1. Package ............................................................................................................................................................................................3

2. Specication...................................................................................................................................................................................3

3. Description......................................................................................................................................................................................4

4. Installation.......................................................................................................................................................................................5

4.1 Cable requirements.......................................................................................................................................................5

4.2 Schematic diagrams......................................................................................................................................................6

4.3 Unit mount .......................................................................................................................................................................8

5. Operation.........................................................................................................................................................................................9

5.1 Incoming call ...................................................................................................................................................................9

5.2 Door panel and camera image monitoring....................................................................................................... 10

5.3 Incoming call redirection ......................................................................................................................................... 11

5.4 Intercom ......................................................................................................................................................................... 12

6. Monitor settings......................................................................................................................................................................... 12

6.1 Mouse and touch screen functions ...................................................................................................................... 12

6.2 Tool bar ...........................................................................................................................................................................13

6.2.1 Congurtion settings ................................................................................................................................. 14

6.2.2 Playback .......................................................................................................................................................... 18

6.2.3 Recording ....................................................................................................................................................... 19

6.2.4 Talking volume control panel.................................................................................................................. 19

6.2.5 SD card removing........................................................................................................................................19

6.2.6 System reboot............................................................................................................................................... 19

7. Web browser settings............................................................................................................................................................... 19

7.1 General conditions ..................................................................................................................................................... 19

7.2 Security settings .......................................................................................................................................................... 20

7.3 Network settings ......................................................................................................................................................... 21

7.4 Plugin installation ....................................................................................................................................................... 22

7.5 Web interface................................................................................................................................................................ 23

7.5.1 Real time monitoring, «LIVE» bookmark ............................................................................................. 23

7.5.2 Video playback, «PLAYBACK» bookmark............................................................................................. 24

7.5.3 Remote access settings, «REMOTE SETTING» bookmark............................................................... 26

7.5.4 Local storage settings, «LOCAL SETTING» bookmark..................................................................... 32

8. Mobile application .................................................................................................................................................................... 33

8.1 Creating new account ...............................................................................................................................................33

8.2 Network connection steps.......................................................................................................................................33

8.3 Operation....................................................................................................................................................................... 35

8.4 Notication messages...............................................................................................................................................36

9. Limited Warranty........................................................................................................................................................................37

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

3 4

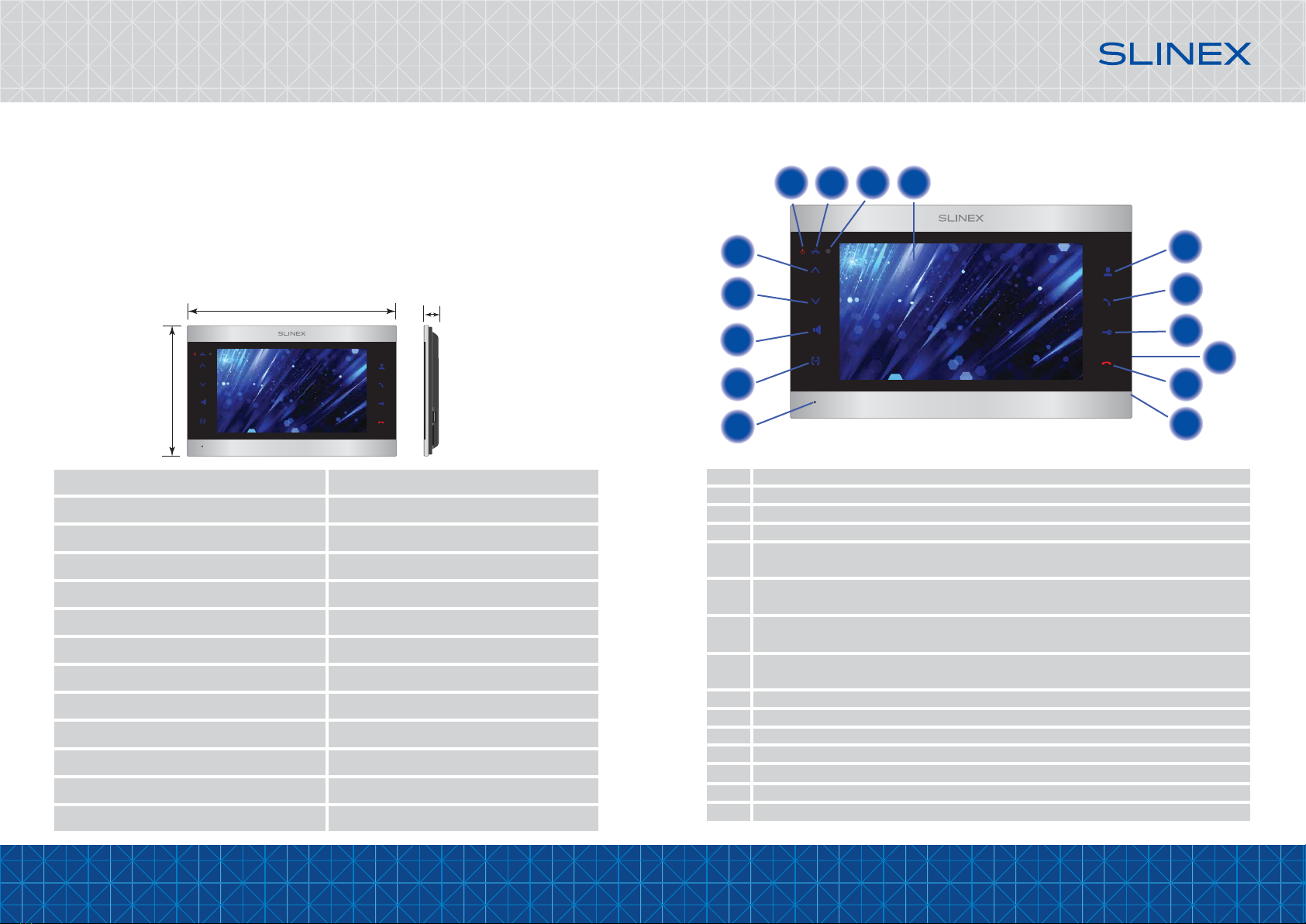

Display

Remote control IR receiver

Local area network (LAN) connection indicator

Power LED. Active when power is on.

«Up» button – increase talking volume, system settings menu cursor movement,

parameter increase inside settings menu

«Down» button – decrease talking volume, system settings menu cursor movement,

parameter decrease inside settings menu

«Volume» button – enter talking volume setting, system settings menu left cursor

movement

«Intercom» button – start intercom between monitors, system settings menu right cursor

movement

Microphone

SD memory card slot (on the side of the monitor)

«Hang Up» – stop conversation with the visitor / current system settings menu exit

«Unlock» button – door unlocking

Mouse USB connector

«Answer» button – incoming call answer and start talking with the visitor

«Monitor» button – door panel or camera image monitoring

190 mm (7.48")

304 mm (11.97")

24 mm

(0.94")

USB

Screen

Resolution

Video system

Audio type

Call time

Internal memory

Memory extension slot

Standby mode power consumption

Working mode power consumption

Power supply

Mounting type

Size

Working temperature

10”touch screen, color TFT (16:9)

1024×600 pixels

PAL/NTSC

Half duplex

120 seconds

SD, up to 128GB

14 W

21 W

Built-in power supply, ~100–240 V

Surface mount

304×190×24 mm (11.97×7.48×0.94")

−10...+55 ˚C (+14...+131 ˚F)

1. Package

SL-10IPT door monitor − 1 pc.

Wall mounting bracket − 1 pc.

RJ-45 connector − 1 pc.

IR remote control − 1 pc.

Connection wires − 5 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

3. Description

910

Door 1Door 2

Output

Ext. Power

ISP CCTV1

CCTV2

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

5 6

SL-10IPT

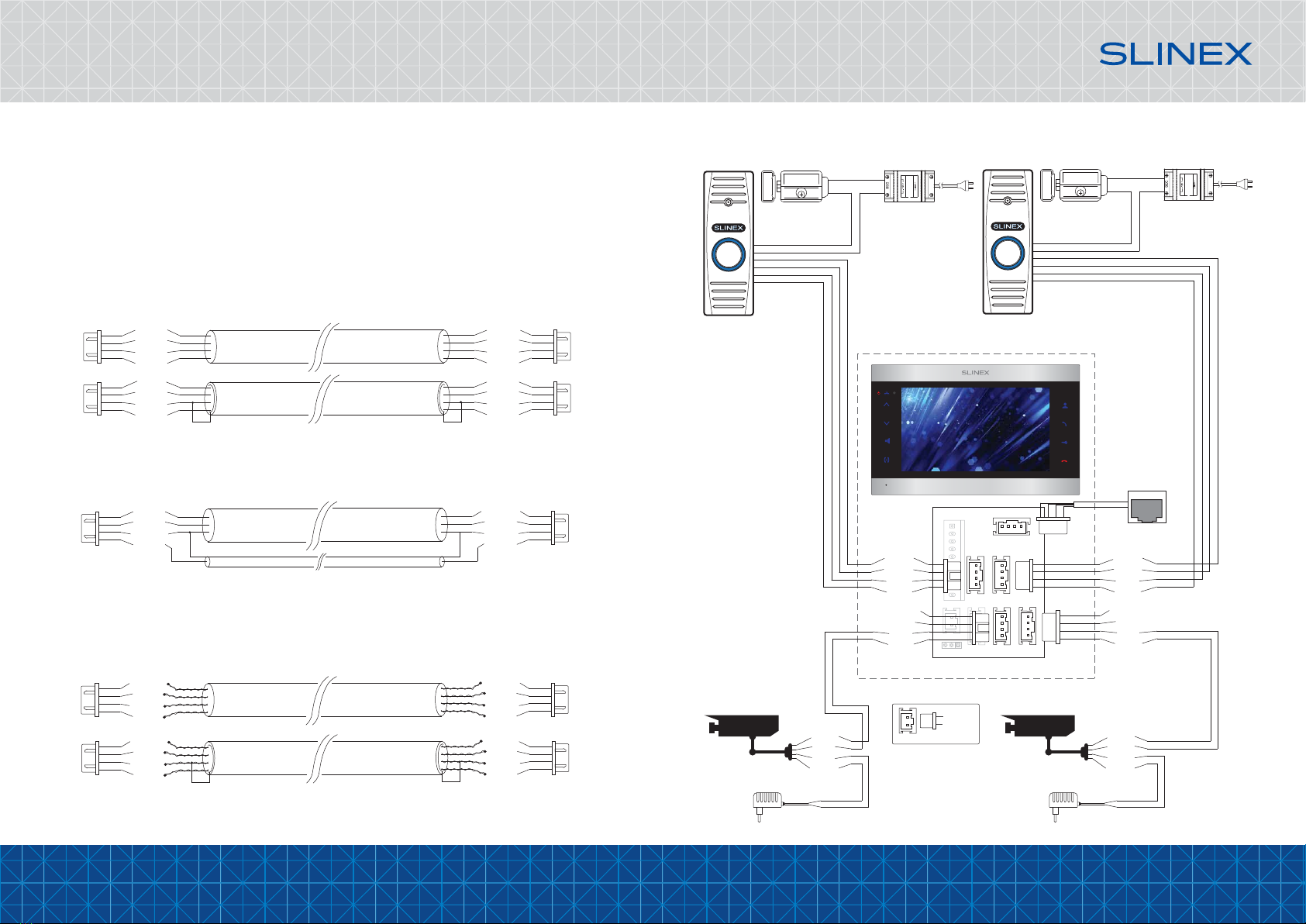

4.2 Schematic diagrams

Diagram 1. SL-10IPT door panels, cameras and locks connection.

Door

panel 1

Door

panel 2

Lock Lock power

supply

Lock Lock power

supply

Power

Audio

GND

Video

Power

Audio

GND

Video

Not used

Audio

GND

Video

Not used

Audio

GND

Video

GND

+12 V

Video

GND

+12 V

Camera

power

suppply

Camera

power

suppply

CCTV 1CCTV 2

Power

Ground

+13,5 V

RJ-45 connector

4. Installation

4.1 Cable requirements

Disconnect all power cables before device installation.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters (82 ft.) use a cable with 0,22 mm square of one wire (AWG 24);

• distance 25 to 50 (82-164 ft.) meters use a cable with 0,41 mm square of one wire (AWG 21);

• distance 50 to 100 meters (164-328 ft.) use a cable with 0,75 mm square of one wire (AWG 18).

b) If the distance between door monitor and door panel is between 80 and 100 meters (262-328 ft.) then use

a 3-wire cable with 0,75 mm(AWG 18) square of one wire and RG-59 or RG-6 coaxial cable for the video

signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters (82 ft.) non-shielded twisted pair can be used;

• distance 25 to 50 (82-164 ft.) meters shielded twisted pair should be used.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80 - 100 m

RG-59 or RG-6

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

164 - 262 ft.

0 - 164 ft.

262 - 328 ft.

0 - 82 ft.

82 - 164 ft.

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Door 1Door 2

Output

Ext. Power

ISP CCTV1

CCTV2

RJ-45 connector

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

7 8

SL-07M (Slave)

SL-07M (Slave) SL-07M (Slave)

Audio

GND

Data

Video

SL-10IPT (Master)

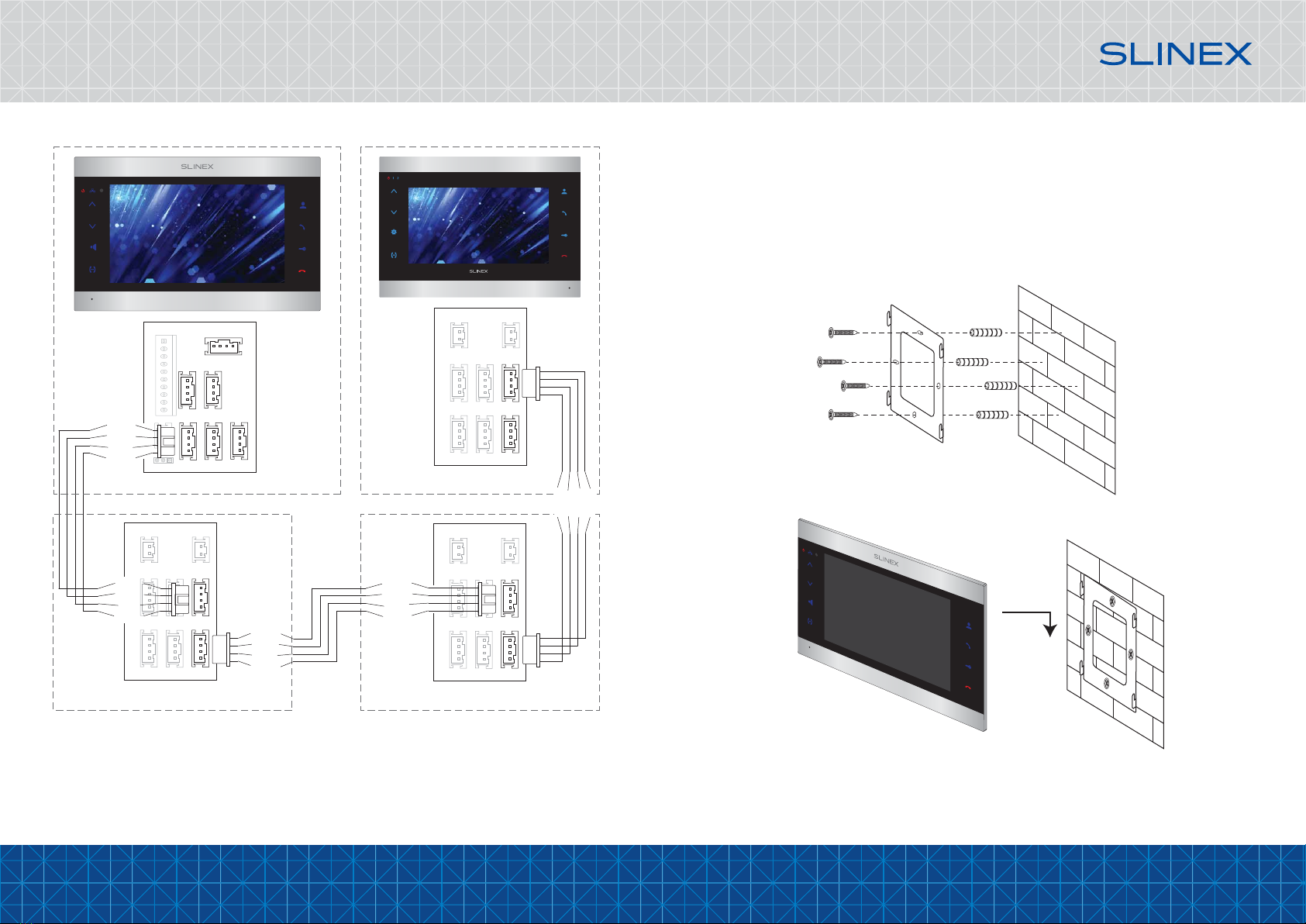

Diagram 2. SL-10IPT and SL-07M system connection.

Notes:

* Use «Power»plug on the monitor to connect external power supply +13,5 V. While use external power

supply please keep main power cord ~100-240 V disconnected from the outlet, otherwise it can damage

monitor circuits.

** Door panels, cameras, power supplys, locks and other additional equipment described on the schemes

are optional devices and aren’t included into monitors kit.

4.3 Unit mount

1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line.

2) Mark and drill four halls in the wall.

3) Take four nuts from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the monitor on the surface mount bracket.

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

9 10

Monitor will show

the image from the

rst CCTV camera

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Press «Monitor»

button on the

monitor

Press «Monitor»

button on the

monitor again

Monitor will show

the image from the

second CCTV camera

Monitor will show

the quad image screen

Press «Monitor»

button on the

monitor again Monitor will show

the image from the

second door panel

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

5. Operation

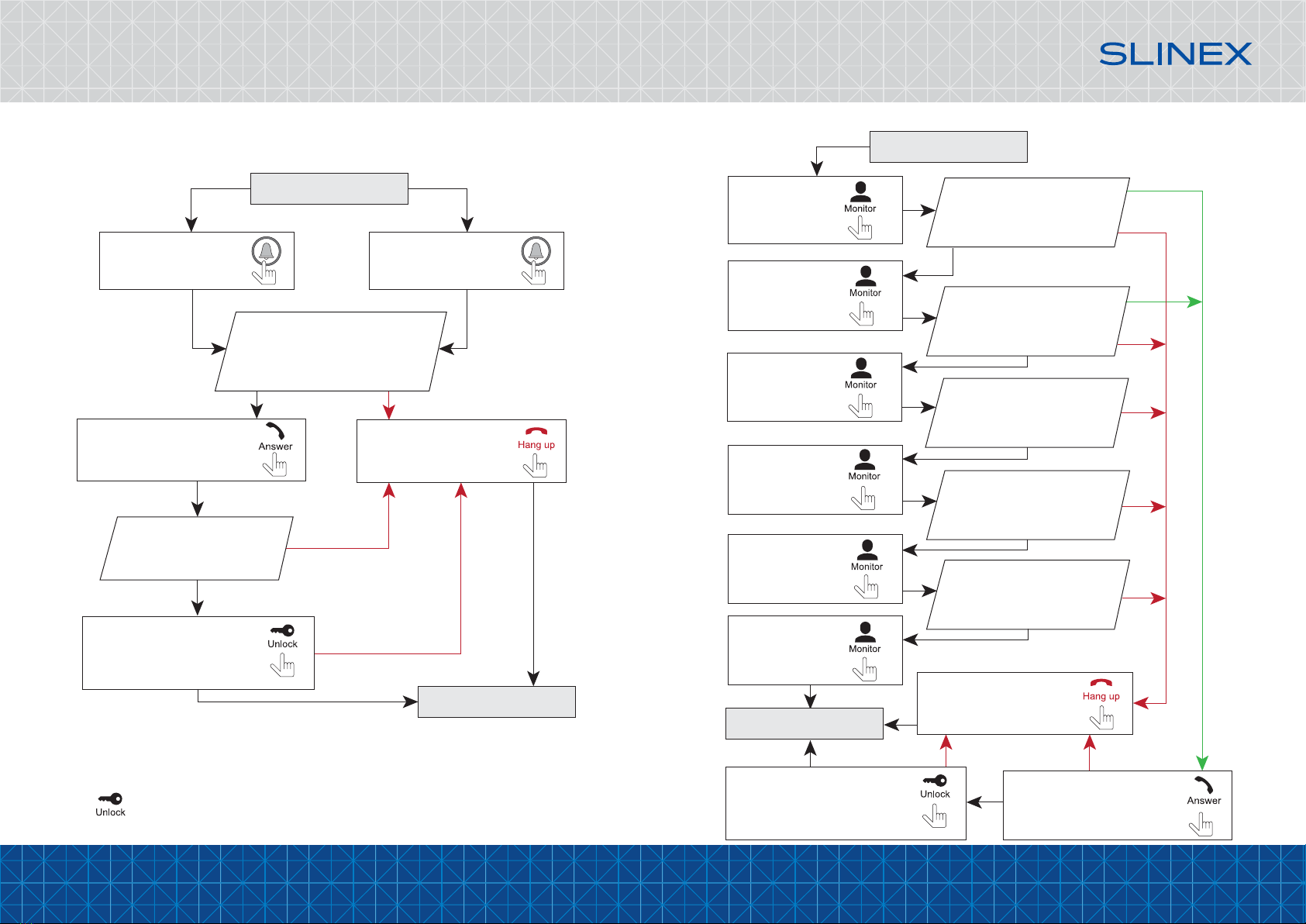

5.1 Incoming call

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button

on the rst door panel

Visitor presses call button

on the second door panel

Press «Answer» button to start

conversation with the visitor

Melody stops ringing and

conversation starts,

talking time is 120 seconds

Press «Hang up» button to

stop conversation or

incoming call

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 60 seconds;

2) Image and sound from the door panel will be active during 20 seconds after the moment user presses

button. It let the user know if the visitor passed through the door.

20 seconds

Monitor will show

the image from the

rst door panel

20 seconds

Standby mode

Press «Answer» button to start

conversation with the visitor

Press «Hang up» button to

stop monitoring or

conversation

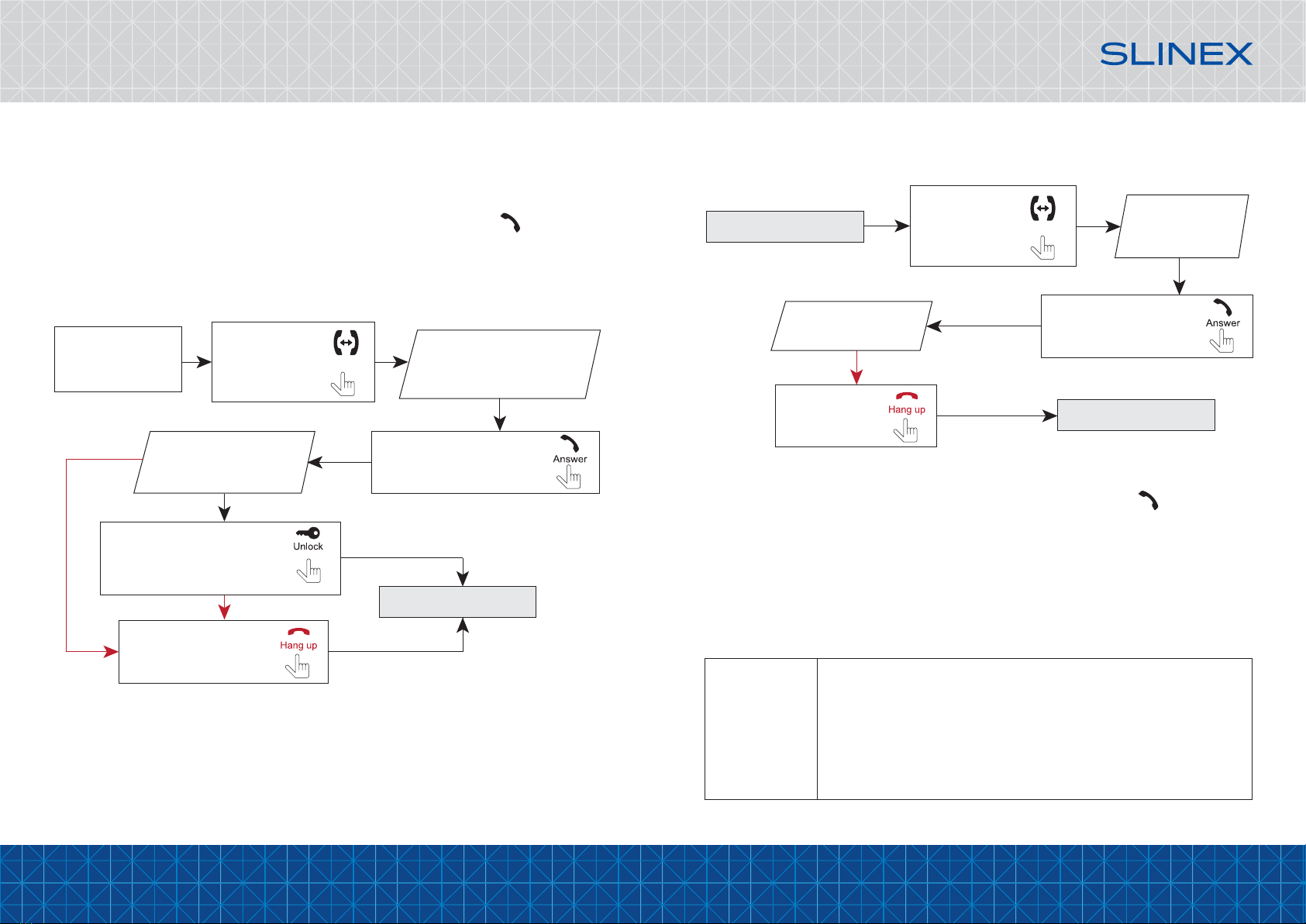

5.2 Door panel and camera image monitoring

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

11 12

Note:

If someone presses call button on the door panel while intercom is active then the image from this door

panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation with the visitor.

6. Monitor settings

6.1 Mouse and touch screen functions

User can use the mouse to make monitor settings and change dierent parameters. Connect the mouse to

the USB port situated on the right side of the monitor. Mouse can be connected without monitor power

disconnection.

Right mouse

button click

1. In standby or monitoring mode click right mouse button to enable or disable

instrumental panel.

2. In the conguration menu or instrumental panel click right mouse button to

exit from the current parameter setting to the previous menu.

3. In playback mode lick right mouse button to enable or disable playback

control panel.

5.3 Incoming call redirection

Two monitors connected into one system are used.

Notes:

1) If several monitors connected into one system, the user can view the image from door panels on any

monitor inside this system. The image will be transferred from the «Master» monitor door panels to the

«Slave» monitors.

2) If someone press call button on the door panel while monitoring is active then the image from this

door panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation.

Note:

If incoming call was successfully redirected to the other monitor then current monitor will enter standby

mode.

Melody starts ringing on

the other monitor inside

the system and visitor image

appears on the monitor screen

Conversation with the

visitor on the other

monitor begins

Incoming call from the

door panel and the

user starts conversation

Press and hold

«Intercom» button

for 3 sec. to start

call redirection

20 seconds

Press «Answer» button on the

other monitor to start

conversation with the visitor

Standby mode

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Press «Hang up» button to

stop conversation or

incoming call

Intercom

5.4 Intercom

Two monitors connected into one system are used.

Melody starts

ringing on the

other monitor

Standby mode

Press «Intercom»

button to start

intercom

conversation

Conversation with the

other monitor starts

Press «Answer» button on

the other monitor to start

conversation

Press «Hang up»

button to stop

conversation

Intercom

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

13 14

Left mouse

button click

Left mouse

button double click

Left mouse

button hold & slide

1. Click left mouse button on icon from instrumental panel to enter

conguration settings menu.

2. In conguration settings menu click left mouse button on any icon to enter

current sub menu settings.

3. Click left mouse on any icon to enter current parmeters screen.

4. Click left mouse button on any parameter to change its value.

5. Click left mouse button on icon to exit from current parameters screen.

6. Click left mouse on any icon to enter its settings.

Double click left mouse on any part of the image in quad screen mode to enter

full screen mode.

Use left mouse button hold & slide in motion detection settings to set motion

detected part of the screen.

6.2 Tool bar

Click right mouse button in standby or monitoring mode or slide any direction by the touch screen to

enable or disable the tool bar.

Touch screen function

This model has a touch screen which makes settings changing more simplier and quicker without mouse

connection.

In standby or quad-screen mode touch any quater of the screen to view desired video chanel.

In standby or viewing mode slide any direction by the screen to enable or disable the tool bar.

Press and hold any part of the screen in viewing mode to enable talking volume setting bar.

Press any icon or parameter in settings menu to change its value.

Setup

Playback

Manual Record

Remove SD

E-Zoom

Talking volume

Reboot

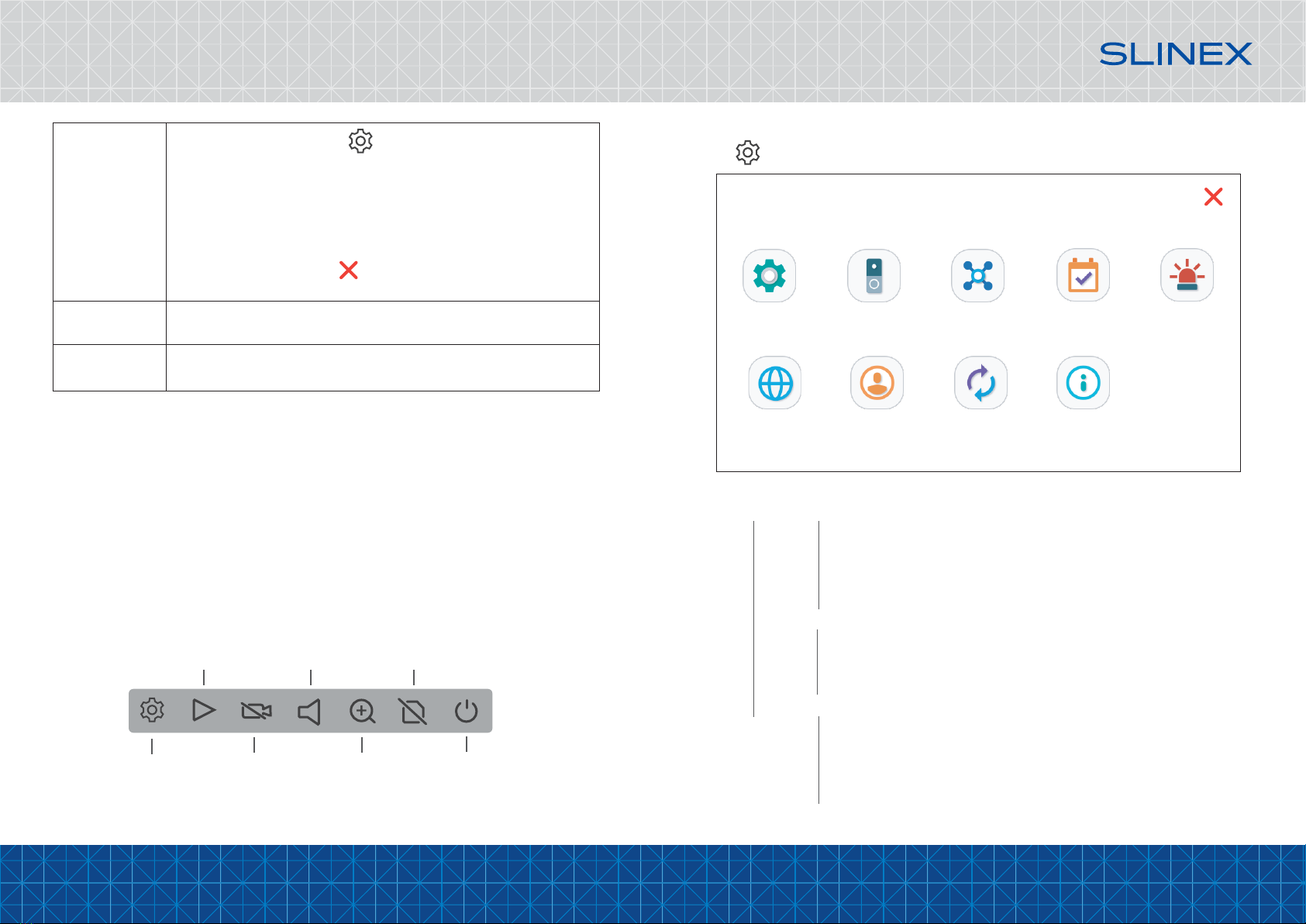

6.2.1 Conguration settings

Press icon on the tool bar to enter conguration settings menu:

Conguration settings menu has the following structure:

System → Basic → Language – system menu and settings language

→ Standard –video signal standard (PAL or NTSC)

→ Door input – door video cameras resolution HD(AHD) or D1(CVBS)

→ Camera input– additional video cameras resolution HD(AHD) or D1(CVBS)

→ Screen saver – clock displaying while stanby (Enabled or Disabled)

→ Time → Date format – date display format (MM/DD/YY, YY/MM/DD or DD/MM/YY)

→ Date – date setting

→ Time format – time display format (12 Hour / 24 Hour)

→ Time – time setting

→ Video → Channel – choose channel number to change settings

→ Channel name – current channel name

→ Color setup – Chroma, Brightness, Contrast and Saturation settings

→ Video margin – Left, Right, Up and Down image margins

→ Record – record Resolution and Frame rate settings for all channels

Choose E-Zoom icon on the tool bar then press and hold left mouse button while dragging the part of the

image to enlarge it or simply slide the part of the image using touch screen.

Configurtion

User

Alarm

System Door

Default Information

Maintenance

Network Scheduling

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

15 16

Scheduling – weekly recording schedule (MD – recording when motion detection occurs)

Alarm →Channel – current chanel motion detection settings

→Sensitivity – motion detection sensitivity setting

→MD area – area of the image where motion detection is applied

→MD Enable – enable / disable motion detection for the current channel

→Record – start recording when motion detection occurs setting

→Push – push notication enabled/disabled when motion detection occurs setting

Maintenance →SD →Format – format SD card

→Auto overwrite – overwriting data on SD card when it is full: Auto or Disable

→Upgrade →System upgrade – system software update (need an update le).

User – add or delete user account

Default – restore default monitor settings

Information – device information, such as: unique UID device number, software version and production

date.

Network →Basic →Network type – IP address obtaining type (static or dynamic IP − DHCP)

→MAC-address

→IP address – IP address setting

→Subnet mask – subnet mask setting

→Gateway – gateway IP address setting

→DNS address – DNS server IP address

→Port →Media port – data exchange between door monitor and PC

→Web port – web interface access port number

→Setup port – device managing port number

→Advanced →DDNS – DDNS server parameter settings.

→Wi-Fi – Wi-Fi network connection settings

→UPnP – UPnP enable or disable.

→Mobile phone –redirection parameters to mobile devices setting, push

messages notication setting

→Sub stream – sub stream parameter settings

→IP rewall – IP addresses ltering (white and black list)

Door →Basic →Call Rec – incoming call recording mode (Photo/Video)

→Door LED – Enable/Disable door panel backlight while standby mode

→Do not disturb mode – Enable/Disable incoming call melody

→Time – do not disturb mode activation time

→Ring →Door 1 ringtone – data exchange between door monitor and PC

→Door 2 ringtone – web interface access port number

→Volume – device managing port number

→Ring time – device managing port numbe

→Door 1 unlock time– device managing port numbe

→Door 2 unlock time – device managing port numbe

→Button sound – device managing port numbe

Detailed descriptions of some parameters of «Congurtion» settings are listed further.

Network →Advanced →Wi-Fi

User can connect door phone to the local network in two ways: wired or wireless Wi-Fi connection. We

strongly recommend to use wired connection because it is more reliable than wireless one. Enable Wi-Fi

module if wireless connection should be used to connect door phone to the local network. Press

switch on the left of «Wi-Fi» sign to activate the module. Then press «Wi-Fi» sign by left mouse button to

enter Wi-Fi settings menu.

Press button to start netwrk searching for available networks. Choose the network and press left

mouse button on its name. If the password required for this network then the window with the password

input field will appear on the display. Input the right password for the current network and press icon

to confirm it. The monitor will be rebooted and connected to the current network.

Note that Wi-Fi network name should be only consisted of english characters and numbers (spaces and special

symbols are not allowed). Otherwise network registration will not be approved.

Press icon to connect wireless network manually and then enter all the settings. Also current

wireless network parameters can be changed here:

SSID – wireless network name

Auth mode – authorization type «WPA-PSK» or «WPA2-PSK» can be set

Encryption type – «AES» or «TKIP» encryption types are available

Password – wireless network password

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

17 18

Scheduling

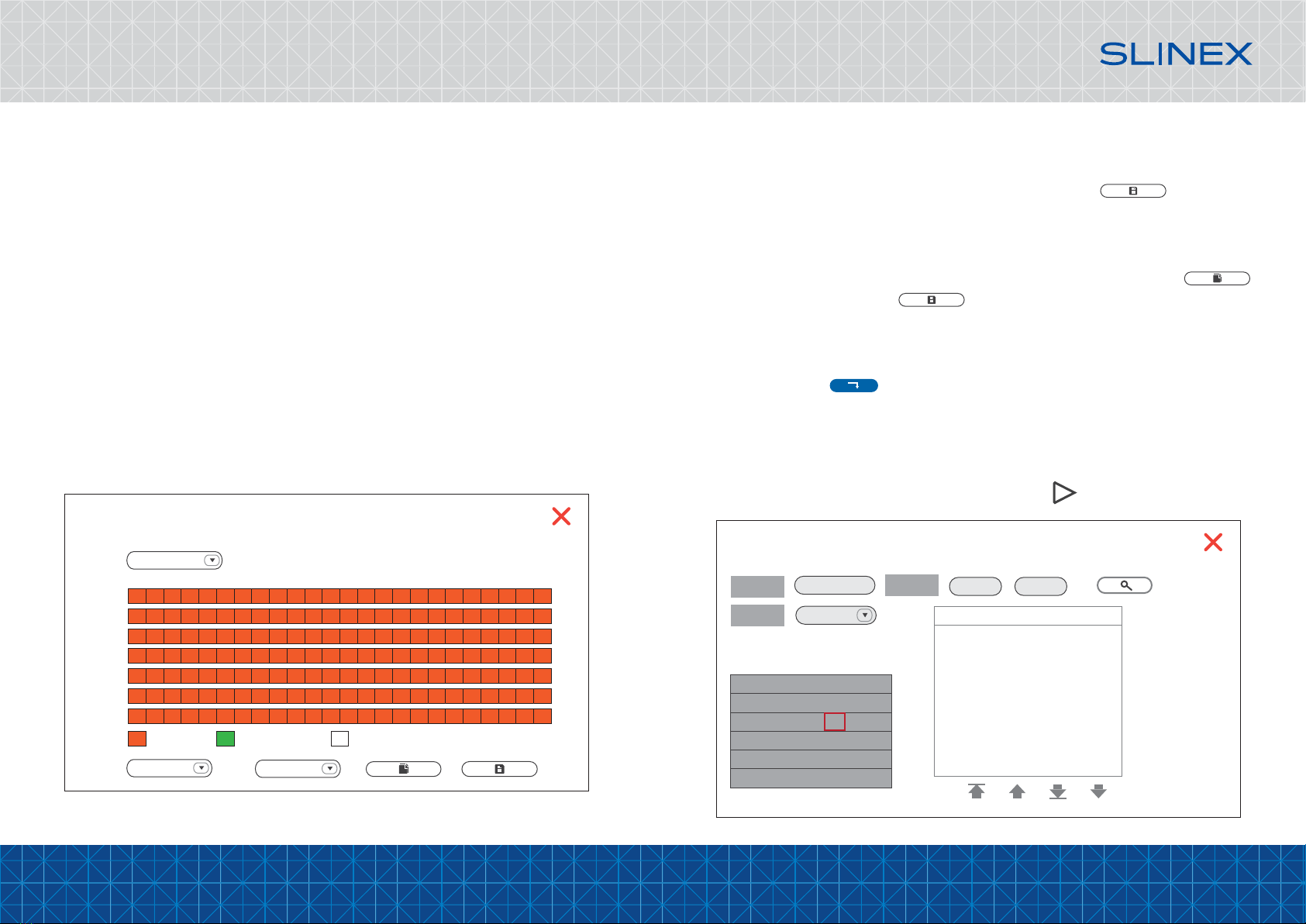

Record schedule can be seted up on this screen. There are three types of schedule settings: «MD» – motion

detection recording (orange color in schedule table), «Normal» – constant recording (green color in

schedule table) and «None» – disable recording (grey color in schedule table).

Maintenance →Upgrade

Create an «ivrupgrade» folder on the SD card root. Copy upgrade file into this folder and insert SD card into

door phone slot. Press icon to start system upgrade. Firmware upgrade will take two or three

minutes. Don’t remove SD card or turn off the power during this time, otherwise it can demage the door

phone. System will be restarted after firmware upgrade.

Choose one of the schedule settings under schedule table and then click on the time which you want to

apply this type of setting on the schedule table. One square on the schedule table matches one hour time

interval. Then the first left square of the table matches the time from 00:00 to 01:00 and the last one matches

the time from 23:00 to 00:00. When all the settings will be done then press icon to save all

the changes.

Alternative way to set all the schedule is to set the schedule for one day and then copy it for other days of

the week. Use «Copy from» bar under schedule. Choose the day which you want to copy schedule from in

the left block and choose the day(s) which you want current schedule to be applied to. Press

icon to start copying, and then press icon to save all the settings.

Network →Advanced →Mobile phone

Phone port – mobile devices connection port (from 1024 up to 65535). 10510 is defult value mobile

port number

Push time (s) – push notification delay in seconds.

Push – enable or disable push notification for moble devices.

Network →Advanced →Sub stream

Channel – channel number to make settings

Frame rate – can be changed from 5 up to 25 frames/second for PAL or from 5 up to 30 frames/second

for NTSC.

Bit rate – streaming bit rate quality, 64К, 128К, 192К, 256К or 384К can be seted.

Bit rate control – type of video compression: CBR – constant bit rate, VBR – variable bit rate.

Scheduling

Channel 3

Copy from Mon to All

00 06 12 18 23

MD Normal None

Mon.

Tue.

Wed.

Thu.

Fri.

Sat.

Sun.

6.2.2 Playback

Slide any direction by the screen to enable the tool bar. Then press icon to enter playback menu.

Playback

Sun. Wed. Sat.

01 02 03 04 05

06 07 08 09 10 11 12

13 14 15 16 17 18 19

20 21 22 23 24 25 26

27 28 29 30 31

Channel Time Size

0/0

Data 17/08/2017 Time 00:00 - 23:59

Media Video

Autres manuels pour Design Direct Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT Series Manuel utilisateur

Slinex

Slinex MA-02 Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex Design Direct SL-07IP Manuel utilisateur

Slinex

Slinex Imani Manuel utilisateur

Slinex

Slinex ML-20CR Manuel utilisateur

Slinex

Slinex ML-15HD Manuel utilisateur

Slinex

Slinex SL-10M Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT IP Series Manuel

Slinex

Slinex Sonik 7 Manuel utilisateur

Slinex

Slinex IP DIRECT Series Manuel utilisateur

Slinex

Slinex SL-07N Cloud Manuel utilisateur

Slinex

Slinex ML-16HD Manuel utilisateur

Slinex

Slinex SL-07IP HD Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex ML-20HR Manuel utilisateur

Slinex

Slinex Unique Direct Series Manuel utilisateur

Slinex

Slinex SL-07M Manuel utilisateur

Slinex

Slinex SM-07M Manuel utilisateur

Slinex

Slinex ML-16HR Manuel utilisateur

Slinex

Slinex ML-20HD Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
