ML-20IP IP video door station

User manual

Thank you for

choosing our equipment

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

1 2

Table of contents

1. Package ...........................................................................................................................................................................................3

2. Specication..................................................................................................................................................................................3

3. Description.....................................................................................................................................................................................4

4. Installation......................................................................................................................................................................................5

4.1 Cable requirements......................................................................................................................................................5

4.2 Schematic diagrams.....................................................................................................................................................5

4.3 Unit mount ......................................................................................................................................................................7

5. Software..........................................................................................................................................................................................8

5.1 Сreating new account .................................................................................................................................................8

5.2 Wired network connection steps.............................................................................................................................8

5.3 Wireless Wi-Fi network connection steps.......................................................................................................... 10

5.4 Operation...................................................................................................................................................................... 12

5.5 Notication messages.............................................................................................................................................. 13

5.6 RTSP support ............................................................................................................................................................... 14

6. Limited Warranty....................................................................................................................................................................... 16

Rev. 4.0

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Please read and keep that manual.

The device installation process should be carried out by the qualied specialists.

Use the device from the –40 ˚C to +50 ˚C (–40 ˚F to 122 ˚F), always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissues to remove strong dirt.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying are strictly forbidden without owner permission.

Network RJ-45 connector

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

3 4

Sensor type

Sensor resolution

View angle

Backlight type

Voltage

Lock relay continuous current

Power consumption

Mounting type

Size

Working temperature

1/4”CMOS with mechanical IR cut lter

1,0 Mp

145˚

Infra-red, 1 m. distance

+12 V

Maximum 3 W

Surface or ush mount

45×130×24 mm (1.77×5.12×0.94”)

–40 ... +50 ˚C (–40... +122 ˚F)

White & green

Green

White & orange

Orange

Red

Black

Yellow

White

Brown

Grey wire with SMA connector

Not connected

Green wire

Not connected

White & green wire

Orange wire

White & orange wire

Microphone

Infra-red night backlight

Video camera

Call button

Speaker

Rain shield mounting hole

1. Package

Video door station ML-20IP – 1 pc.

Angle bracket – 1 pc.

Surface mount bracket – 1pc.

Rain shield – 1 pc.

Flush mount bracket – 1 pc.

Power supply – 1 pc.

External Wi-Fi antenna – 1pc.

Mounting screws and nuts – 1 pkg.

User manual – 1 pc.

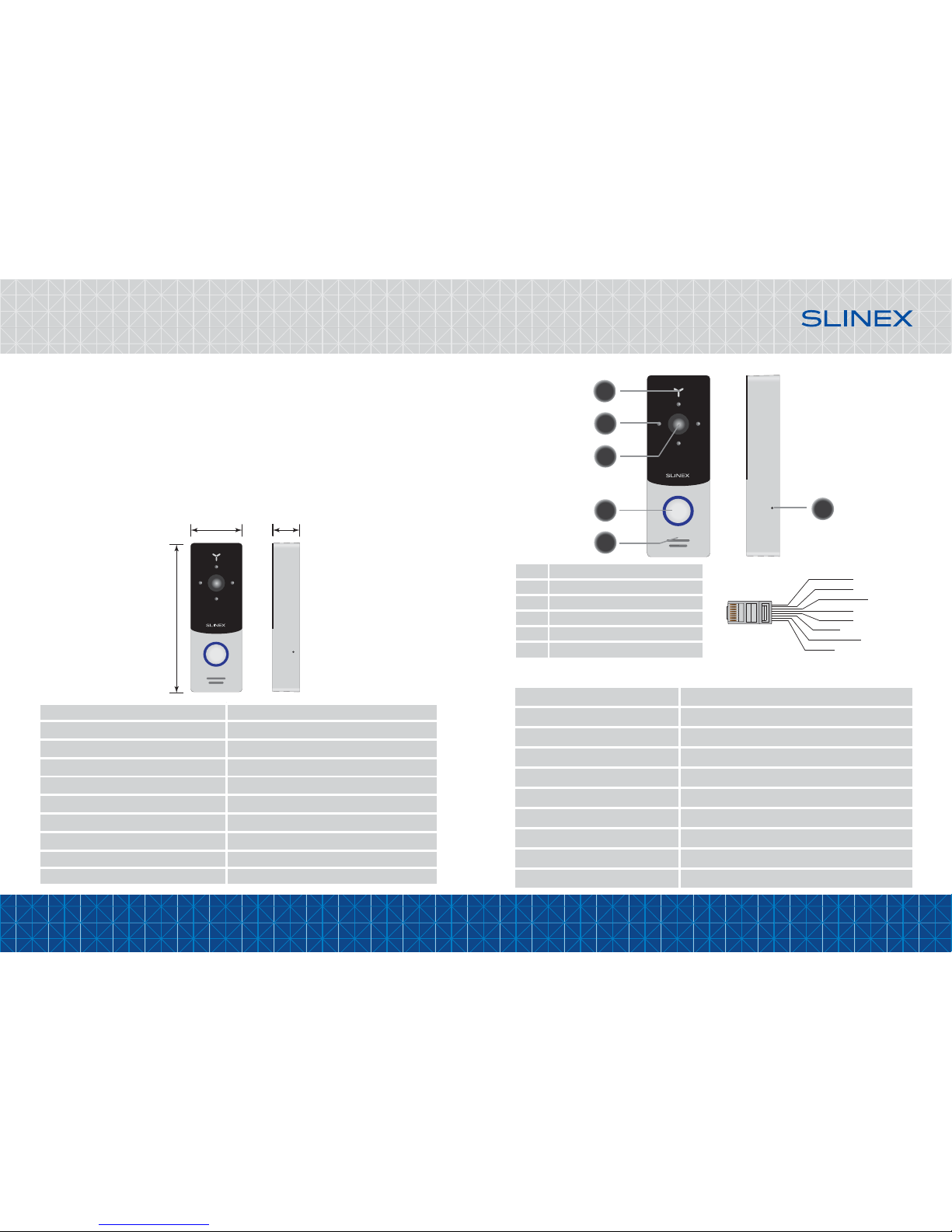

2. Specication

3. Description

Connection wires color code for ML-20IP door station

Type B

130 mm (5.12")

45 mm (1.77") 24 mm

(0.94")

Network, white & green wire

Network, green wire

Network, white & orange wire

Network, orange wire

Power, +12 V

Ground

Video (analog, for the 4-wire monitors)

Audio (analog, for the 4-wire monitors)

2 wires for the lock connection

External Wi-Fi antenna

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

5 6

4. Installation

4.1 Cable requirerments

Disconnect all power cables before device installation.

This device can be connected with such cable types:

) Use 2- or 4-wire cable for the video door station power and electronic lock power

• distance up to 25 meters (82 ft.) use a cable with 0,22 mm square of one wire (AWG 24);

• distance 25 to 50 (82-164 ft.) meters use a cable with 0,41 mm square of one wire (AWG 21);

• distance 50 to 100 meters (164-328 ft.) use a cable with 0,75 mm square of one wire (AWG 18).

b) Local network connection should be made with shielded or non-shielded twisted pair:

• distance up to 25 meters (82 ft.) non-shielded twisted pair can be used;

• distance 25 to 100 (82-328 ft.)meters shielded twisted pair should be used.

Also wireless Wi-Fi connection can be used for the local network. In that case, there is no need to use twisted

pair cable. Instead of twisted pair cable you should use Wi-Fi antenna connected to the SMA plug of the

video door station.

Note:

Volume setting can be made by the screwdriver inserted into the hole on the back part of the door station.

The hole is situated on the bottom part of the back pannel and covered by the rubber cap.

Android / iOS

Internet

3G / Wi-Fi

Router

WAN 1 2 3 4

Diagram 2. ML-20IP network wired connection by twisted pair cable

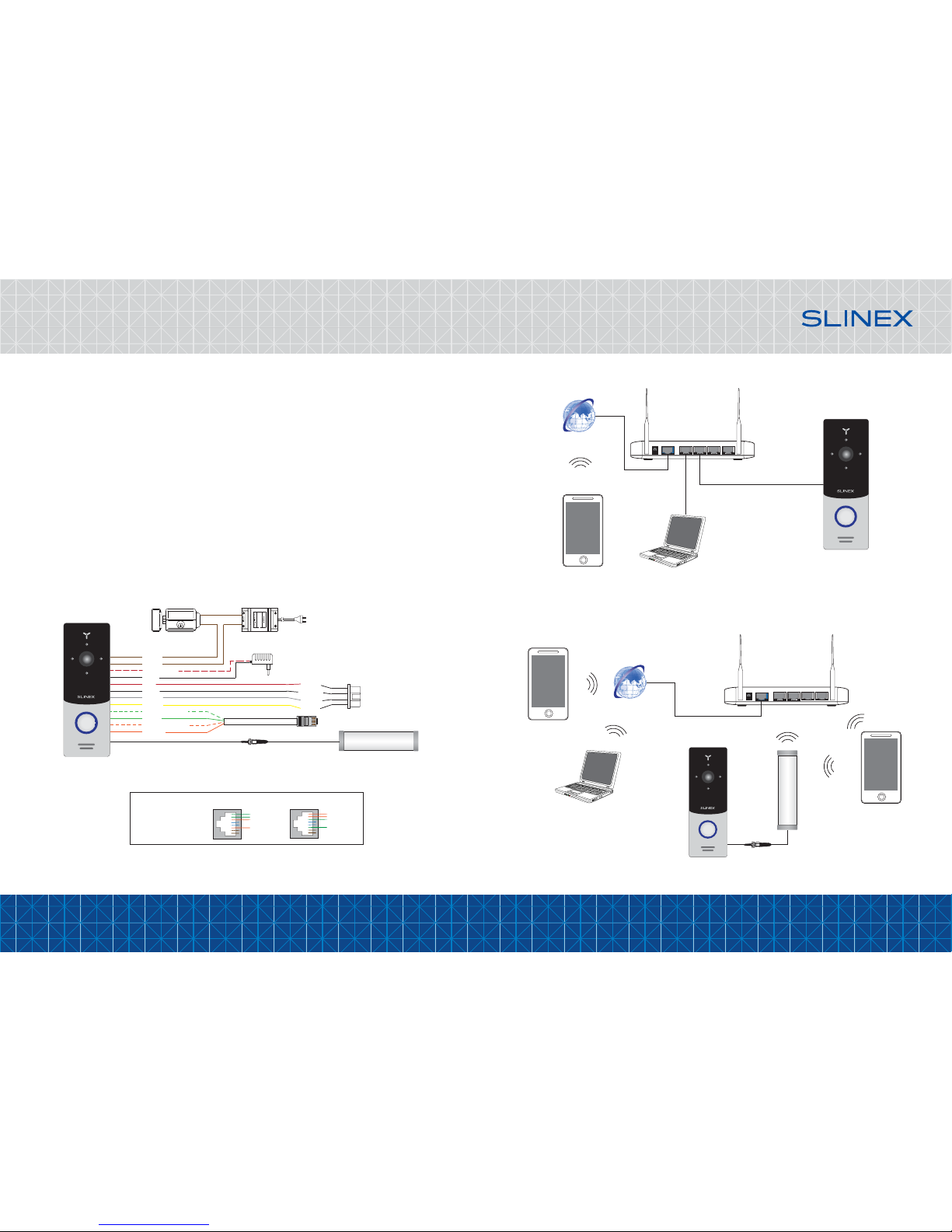

4.2 Schematic diagrams

Diagram 1. ML-20IP power and lock connection

Door station power

supply ~ 220 V / +12 V

External

Wi-Fi antenna

Analog 4-wire

monitor

SMA plug for

external

Wi-Fi antenna

Twisted pair RJ-45

ML-20IP

Video door station

ML-20IP

Video door station

ML-20IP

Video door station

Lock Lock power

supply

Brown

Red & White

Black

Red

Black

White

Yellow

White & Green

Green

White & Orange

Orange

Diagram 3. ML-20IP network wireless Wi-Fi connection

Android / iOS

3G / Wi-Fi

Wi-Fi (LAN)

«Access point»

mode

WAN 1 2 3 4

Android / iOS

Power

Ground

Audio

Video

RJ-45

Twisted pair

cable pinout

Type 

8 7 6 5 4 3 2 1

White & Green

Green

White & Orange

Orange

White & Orange

Orange

White & Green

Green

Type B

8 7 6 5 4 3 2 1

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

7 8

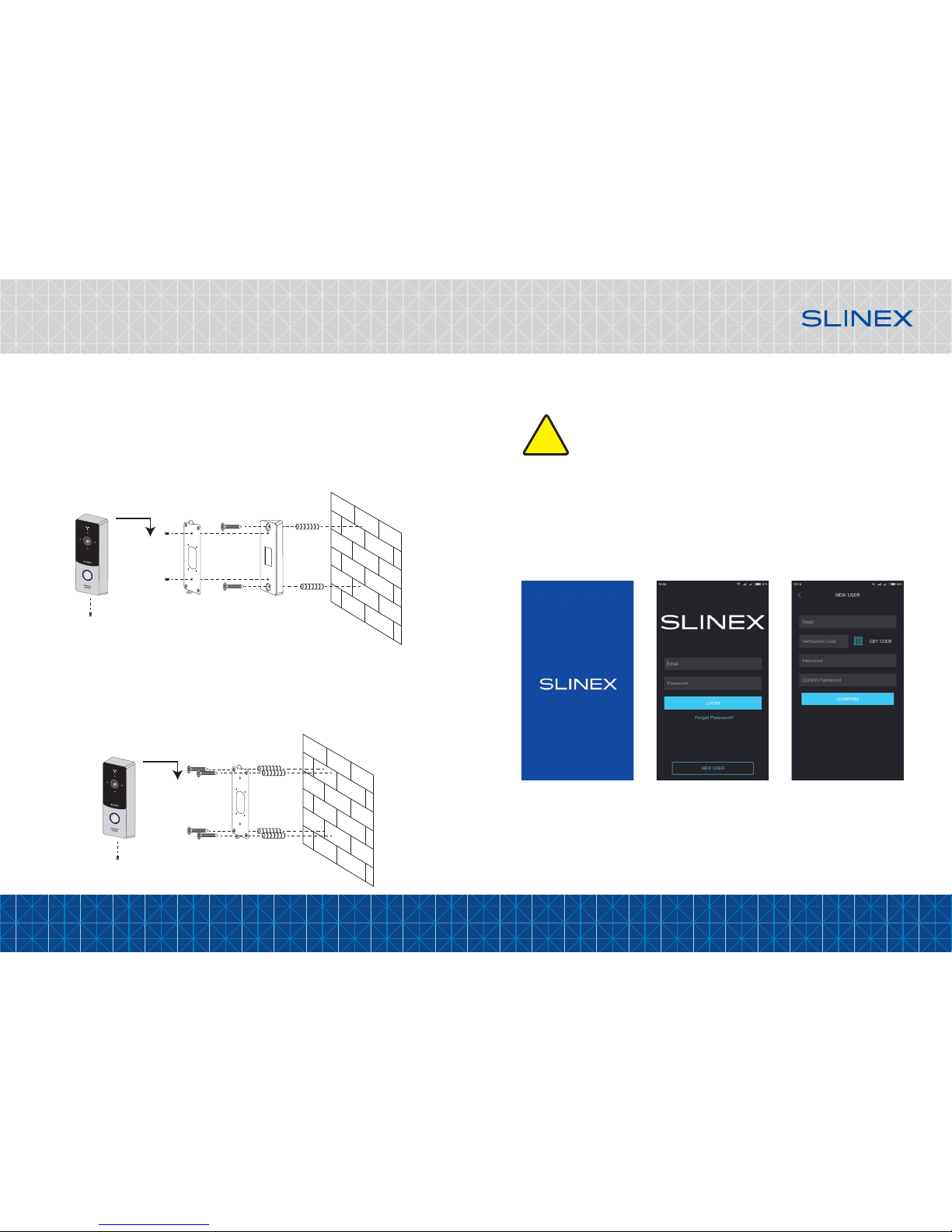

4.3 Unit mount

Angle bracket mount

1) Take the angle bracket from the kit and place it 150-160 cm (4.9-5.2 ft.) from the oor line.

2) Mark and drill two halls in the wall.

3) Take two wall anchors from the kit and hammer them into the drilled halls.

4) Fix the angle bracket on the wall by the screws from the kit.

5) Then x surface mount bracket over the angle bracket by two bolts from the kit.

6) Connect all communication wires and x the door station on the surface mount bracket by one bolt from

the bottom side.

Surface mount

1) Take the surface mount bracket from the kit and place it 150-160 cm (4.9-5.2 ft.) from the oor line.

2) Mark and drill four halls in the wall.

3) Take four nuts from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the door station on the surface mount bracket by one bolt from

the bottom side.

5. Software

Enter «Google Play»(for Android) or «Apple App Store»(for iOS) and search for «Cloud Call»application,

then install this applicationи on your mobile device.

Below you can nd basic steps how to add new device to «Cloud Call» application.

Full manual on «Cloud Call» application you can nd on www.slinex.com

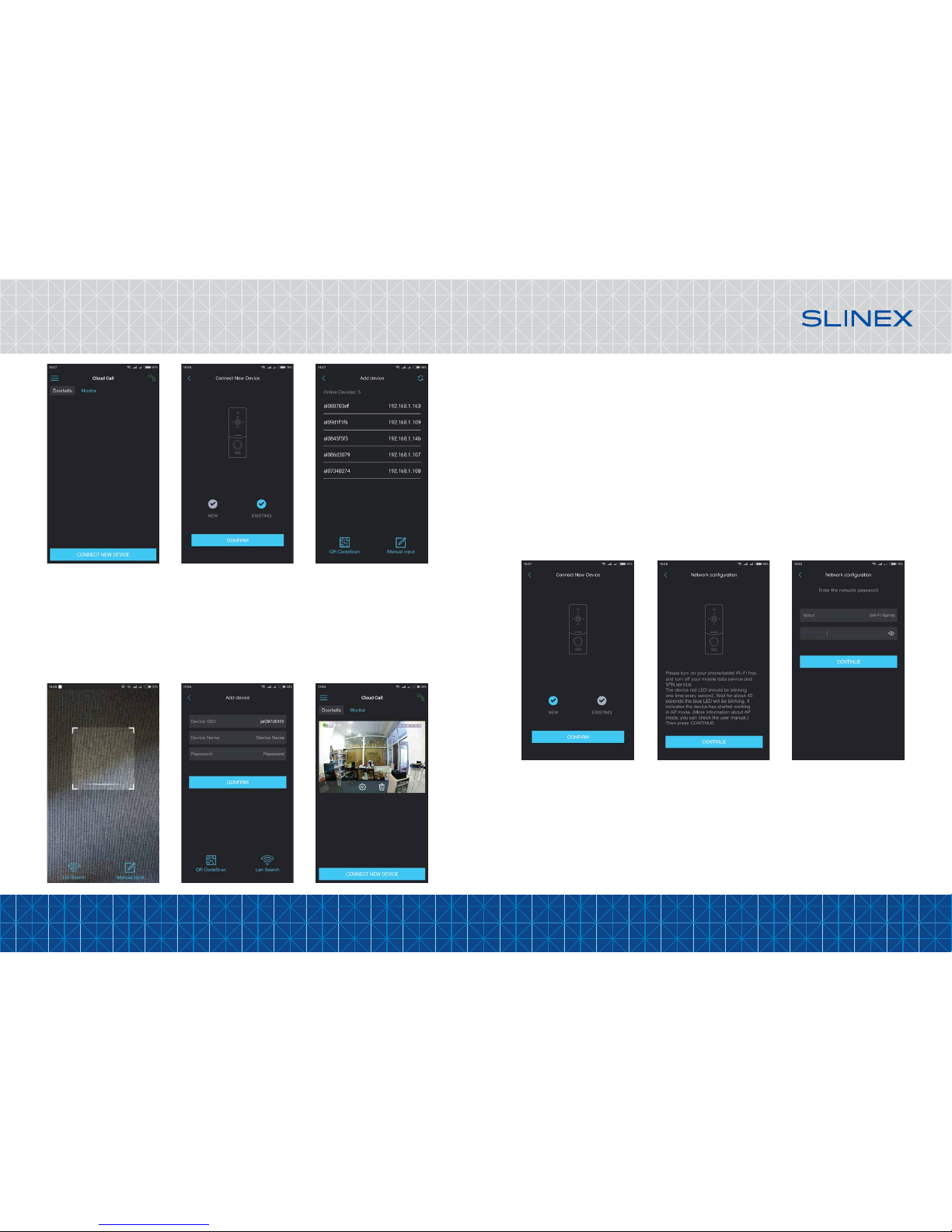

5.1 Creating new account

1) Start «Cloud Call» application on your mobile device and press «NEW USER» button to create an account;

2) Fill in «Email» box and press «GET CODE» button;

3) Check for a new message with activation code on your Email account and enter it into «Verication

Code» box;

4) Fill in «Password» and «Conrm Password» boxes and press «CONFIRM» button to create new account.

That password will be used to login into created account.

5.2 Wired network connection steps

1) Use twisted pair CAT5 or CAT6 cable to connect device to the router;

2) Connect mobile device into the same local network;

3) Press «CONNECT NEW DEVICE» button, then choose «EXISTING» check box and press «CONFIRM»

button;

4) New devices search will be applied and you will see the list of the devices, connected to the local

network;

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

9 10

5) Tap on UID in the left column, corresponding to the device sticker or press «QR CodeScan» button and

then scan QR code on your device sticker if device UID isn’t in the list;

6) Fill in device information:

Device UID: unique identication number of the device (already lled);

Device Name: any name you like;

Password: 888888 (by default);

then press «CONFIRM» button and you will see added device on the main bar.

5.3 Wireless Wi-Fi network connection steps

1) Connect mobile device into the Wi-Fi network you want to connect outdoor panel;

2) Disable 3G/4G internet connection on your mobile device;

3) Press «CONNECT NEW DEVICE» button, then choose «NEW» check box and press «CONFIRM» button;

4) On the outdoor panel enter into «Access point» mode following next steps:

Press&hold call button →rst short «beep» sound →release call button and quickly press&hold it again

→ second short «beep» sound →release call button and quickly press&hold it again →third double

«beep» →release call button → door station will be restarted and then after a minute you will hear

constant «beeps» sound. It means the door station entered «Access point» mode.

5) Press «CONTINUE» button on the mobile device screen to go to the next step;

6) Enter password of the Wi-Fi network which you want to connect to and press «CONTINUE» button;

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

11 12

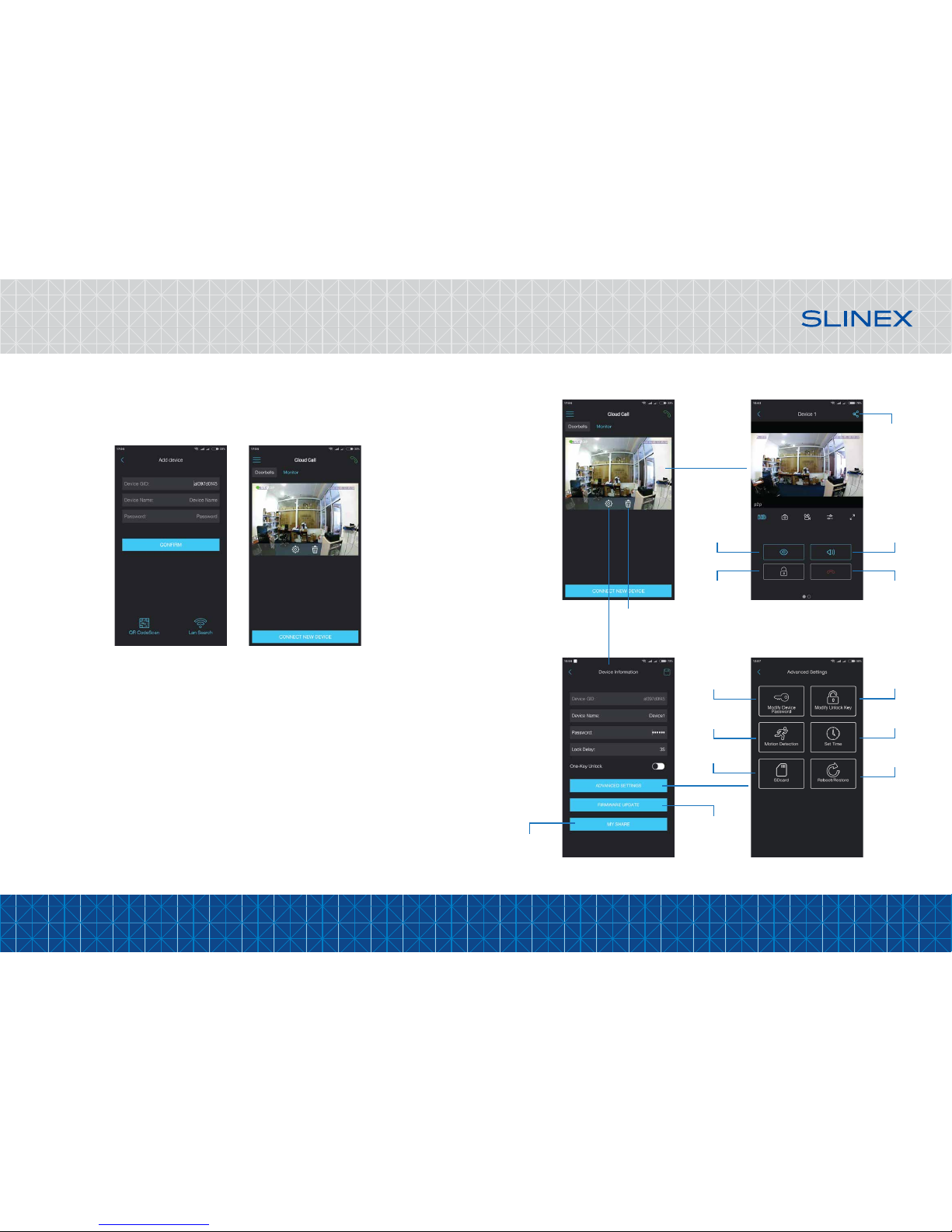

7) Fill in device information:

Device UID: unique identication number of the device (already lled);

Device Name: any name you like;

Password: 888888 (by default);

then press «CONFIRM» button and you will see added device on the main bar.

Notes:

1) If there is no LAN cable connected to the monitor or outdoor panel on the rst boot then it will automatically

go into «Access point» mode and you can skip 4th step of section 5.3.

2) If device is already added to some account, you can’t add it to another one, only can share it with other

account.

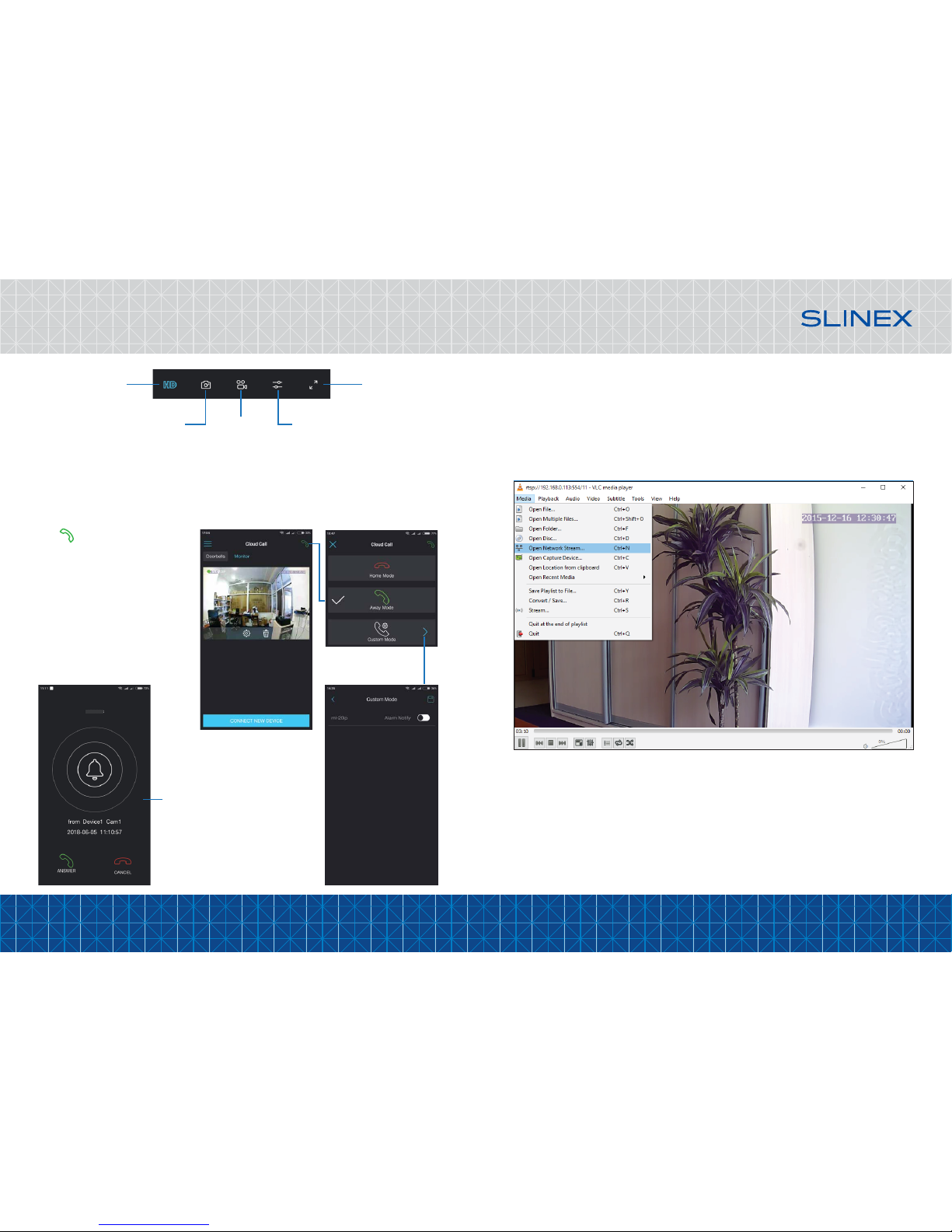

5.4 Operation

Tap on the device

image to start

monitoring

Main bar Device bar

Tap on the recycle

bin to delete

this devise from

the account

Talk with

the visitor

Hang on

Door unlock

(Default password:

888888)

Disable

monitoring

Tap on settings icon

to enter device

settings

Change default

device password

Motion detection

settings

SD card

information

Door panel/

monitor

rmware update

List of

shared

devices

Change

default

unlock

password

Time sync

with mobile

device

Default

settings/

reboot

device with

other

account

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

13 14

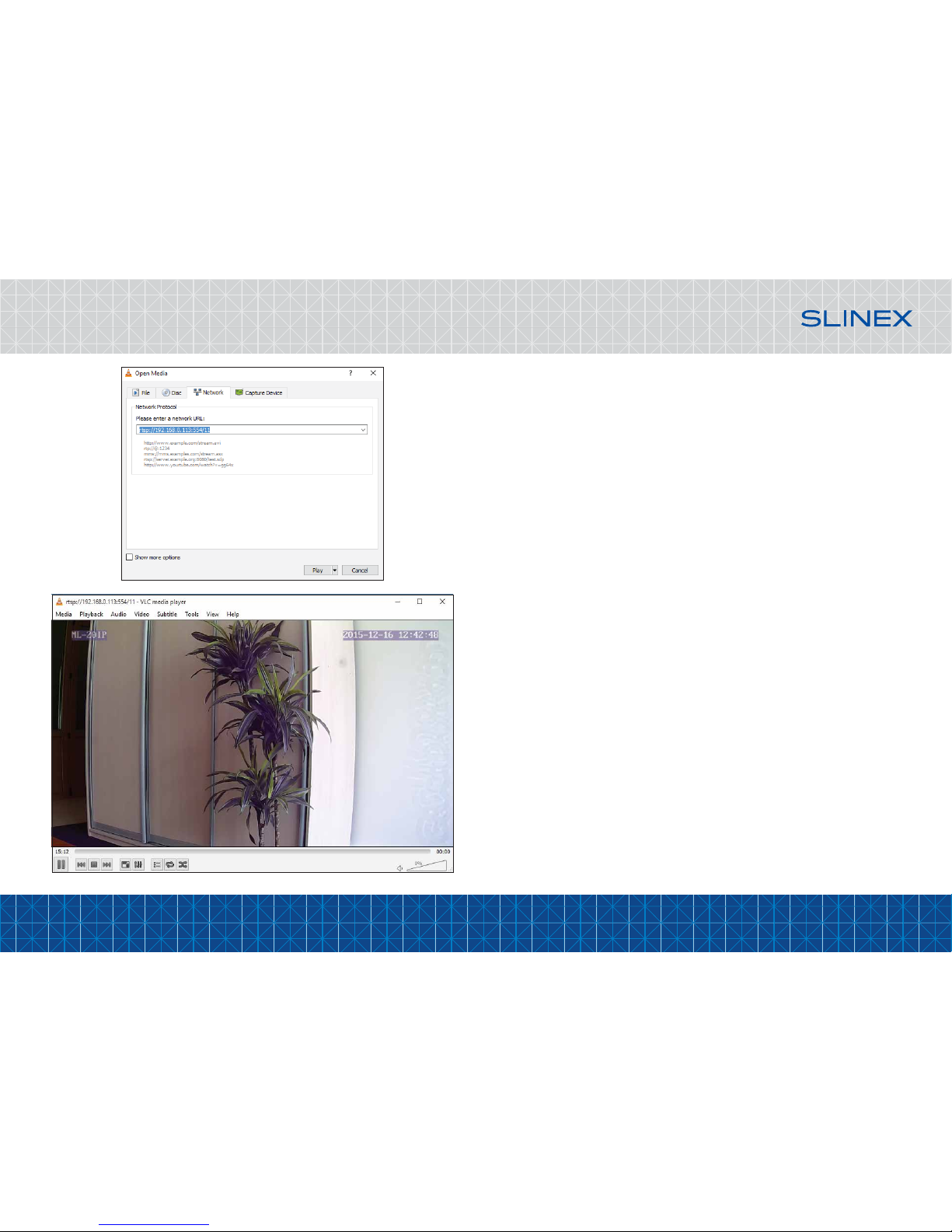

5.6 RTSP support.

Thу ML-20IP door station supports video streaming through the RTSP (Real Time Streaming Protocol). This

function allows us to view or record video on the PC or NVR (Network Video Recorder).

RTSP string format: rtsp://192.168.0.113:554/11, where 192.168.0.113 is the IP address of the door station.

For example, we can view real-time video stream through the VideoLAN (VLC) media player.

Choose «Media» → «Open network stream» or press Ctrl+N combination on the keyboard.

Enter RTSP string in «Please enter a network URL» eld. Then press «Play» button to start viewing video

stream from the door station.

5.5 Notication messages

Press button to activate notification

messages preset.

Home mode – notification messages

are disabled;

Away mode – notification messages are

enabled;

Custom mode – notification messages

can be enabled or disabled depending

on the settings inside that preset;

In case notification messages are

enabled then you wil receive push

message if somebody presses call

button on the outdoor panel.

Press «ANSWER» button to start talking

with the visitor or «CANCEL» button to

stop the call.

Take a

snapshot Record

video

Speaker volume/

microphone

sensitivity

Full screen

mode

Image quality:

HD or SD

Note:

While device monitoring, one way audio is constantly active from the outdoor panel side so you can hear

what hapens nearby. To activate two way communication press «Talk with the visitor» button in the

application.

Call

{ Design. Uniqueness. Innovations } INNOVATION

DIRECT

SERIES

15 16

6. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

Autres manuels pour Innovation Direct Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex XR-30IP Manuel utilisateur

Slinex

Slinex SL-07N Cloud Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex SL-07MHD Manuel utilisateur

Slinex

Slinex SQ-07MTHD Manuel utilisateur

Slinex

Slinex Tabo Manuel utilisateur

Slinex

Slinex ML-20CRHD Manuel utilisateur

Slinex

Slinex SONIK 7 Cloud Manuel utilisateur

Slinex

Slinex SL-10N Cloud Manuel utilisateur

Slinex

Slinex SL-10IPT HD Manuel utilisateur

Slinex

Slinex SM-07MN Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex SL-07IP HD Manuel utilisateur

Slinex

Slinex SL-10M Manuel utilisateur

Slinex

Slinex SM-07MHD Manuel utilisateur

Slinex

Slinex MA-02 Manuel utilisateur

Slinex

Slinex ML-17HD Manuel utilisateur

Slinex

Slinex DESIGN DIRECT ML-16 Manuel utilisateur

Slinex

Slinex Shan Manuel utilisateur

Slinex

Slinex Unique Direct Series Manuel utilisateur

Slinex

Slinex ML-15HD Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT Series Manuel utilisateur

Slinex

Slinex ML-20TLHD Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
