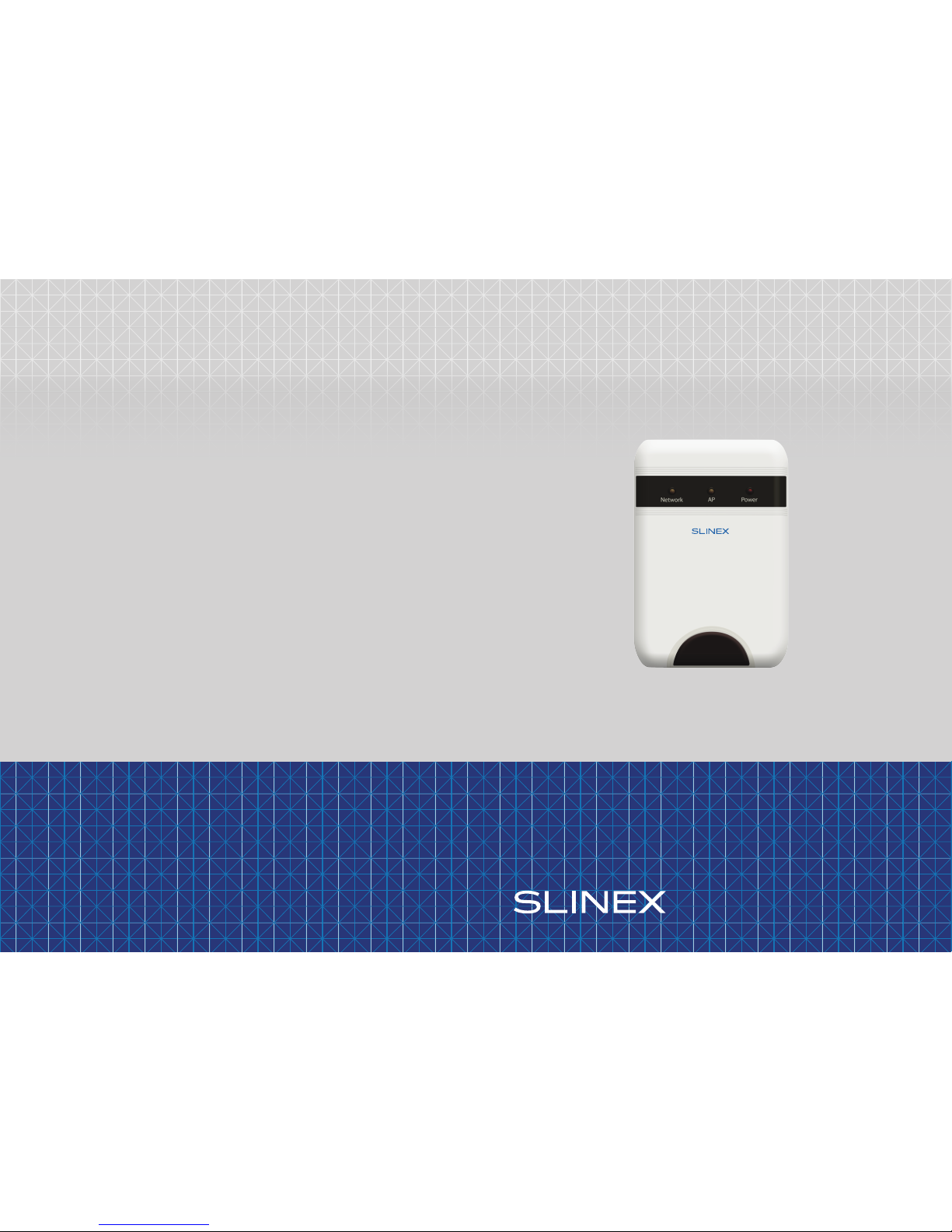

Slinex XR-30IP Manuel utilisateur

UNIQUE

DIRECT

SERIES

XR-30IP

{ Design. Unique. Innovation }

Thank you for the

choice of our equipment

IP converter

User manual

{ Design. Unique. Innovation } UNIQUE

DIRECT

SERIES

1 2

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –40 ˚C to +50 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Attention!

As a result of continuous upgrades and functionality improvements, technical characteristics of the device

can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to

the information described in the user manual and device package.

Table of contents

1. Device functions............................................................................................................................................................................2

2. Package.............................................................................................................................................................................................3

3. Specication....................................................................................................................................................................................3

4. Description......................................................................................................................................................................................4

5. Installation.......................................................................................................................................................................................5

5.1 Cable requirements.....................................................................................................................................................5

5.2 Schematic diagrams...................................................................................................................................................6

5.3 Unit mount.....................................................................................................................................................................7

6. Software............................................................................................................................................................................................8

6.1 Wired network connection steps...........................................................................................................................8

6.2 Wireless Wi-Fi network connection steps.........................................................................................................10

6.3 Notication messages.............................................................................................................................................13

7. Limited Warranty.........................................................................................................................................................................14

1. Device functions

XR-30IP main function is to connect 4-wire door panels to the local network and internet. This function

enables to answer incoming calls from the door panel, view the image from the door camera, talk to visitors

and open lock from mobile devices, tablets or personal computers.

One door panel and door monitor can be connected to XR-30IP converter. It provides a possibility to use this

converter in systems where door panel and monitor are already installed for more convenient

communication with the visitors.

XR-30IP converter can be connected to the local network by wired (twisted pair) or wireless (Wi-Fi)

connection.

{ Design. Unique. Innovation } UNIQUE

DIRECT

SERIES

3 4

Video system

Power consumption (standby mode)

Power consumption (working mode)

Power supply

Network interface

Working temperature

Mount type

Size

PAL/NTSC

2 W

5 W

External, +12 V, 1 А

Ethernet 10/100M, Wi-Fi

−10...+60 ˚C

Surface mount

80×120×22 mm

DC power supply input +12 V, 1 A

Indoor monitor plug

Outdoor panel plug

Local area network RJ-45 plug (10/100M base T Ethernet)

Network LED. If device is connected to wired or wireless Wi-Fi network then LED is active.

«Access point» mode LED. If «Access point» mode is active then LED is blinking.

Power LED. If the device is powered up then LED is active.

SMA plug for the external antenna connection.

«Access point» mode button. Push and hold that button until «Access point» mode LED

becomes active. «Access point» mode will be activated after reboot for 10 minutes.

Network AP Power

Antenna

AP mode

120 mm

80 mm 22 mm

Network AP Power

Antenna

AP mode

6 7

Lan

Outdoor Indoor DC

1. Package

XR-30IP converter – 1 pc.

Power supply – 1 pc.

Connection wires – 2 pcs.

Mounting screws and nuts – 1 pkg.

User manual – 1 pc.

2. Specication

4. Description

{ Design. Unique. Innovation } UNIQUE

DIRECT

SERIES

5 6

5. Installation

5.1 Cable requirements

Disconnect all power cables before device installation.

XR-30IP connects into breakup between door monitor and door panel.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters use a cable with 0,22 mm square of one wire;

• distance 25 to 50 meters use a cable with 0,41 mm square of one wire;

• distance 50 to 100 meters use a cable with 0,75 mm square of one wire.

b) If the distance between door monitor and door panel is between 80 and 100 meters then use a 3-wire

cable with 0,75  square of one wire and RG-59 or RG-6 coaxial cable for the video signal.

c) Local network connection should be made with shielded or non-shielded twisted pair:

• distance up to 25 meters non-shielded twisted pair can be used;

• distance 25 to 100 meters shielded twisted pair should be used.

Also, wireless Wi-Fi connection can be used for the local network. In that case, there is no need to use

twisted pair cable. Instead of twisted pair cable, use Wi-Fi antenna connected to the SMA plug of the IP

converter.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80-100 m

RG-59 or RG-6

5.2 Schematic diagrams

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Lock

Door

panel

Door monitor

Lock power

supply

Power supply

~ 220V / +12V

XR-30IP

converter

Diagram 2. XR-30IP network interface connection by the wired method.

Diagram 1. XR-30IP door panel and monitor connection.

Lan

Outdoor Indoor DC

Door 1

Door 2

Camera1

Camera 2

Input

Output

PowerTV-otput

Door panel

Android / iOS

Internet

3G / Wi-Fi

XR-30IP

converter

Router

Door monitor

WAN 1 2 3 4

Network AP Power

RJ-45

Twisted pair

cable pinout

Type 

8 7 6 5 4 3 2 1

White & Green

Green

White & Orange

Orange

White & Orange

Orange

White & Green

Green

Type B

8 7 6 5 4 3 2 1

{ Design. Unique. Innovation } UNIQUE

DIRECT

SERIES

7 8

Diagram 3. XR-30IP network interface connection by wireless method.

Door panel

Android / iOS

Internet

3G / Wi-Fi

Wi-Fi (LAN)

AP mode

(Access point)

XR-30IP

converter

Router

Door monitor

WAN 1 2 3 4

Android / iOS

5.3 Unit mount

1) Mark and drill two halls in the wall.

2) Take two nuts from the kit and hammer them into the drilled halls.

3) Fix XR-30IP on the wall by the screws from the kit.

4) Connect all communication wires to the IP converter.

Antenna

AP mode

Network AP Power

6. Software

6.1 Wired network connection steps

Use twisted pair CAT5 or CAT6 cable to connect XR-30IP converter to the local network according to the

diagram on page 6.

Wired network setup includes next steps:

1) Enter «GooglePlay»(for Android) or «AppStore» (for iOS) and search for «Slinex» application, then install

this applicationи on your mobile device.

2) Connect mobile device to the local network, which is video door station connected.

3) Run «Slinex» application on your mobile device and push icon to add a new device.

4) Push «Click here for connected wired/wireless device» button, then push «LAN search» button.

5) When new device have been found, choose its number in the list and ll in the device information:

Name: enter device name in the list

UID: unique identication number of the device

User: Admin (by default)

Password: 888888 (by default)

then push «Conrm» button.

6) Device will be added to the bar in the middle part of the screen. You can also push alarm notication on

or o by the blue switcher in the devices list («Switch ON/OFF notication»).

7) If you want to view the image from the door station press its icon on the bar and then press rst channel

icon to start monitoring mode. Press rst channel icon again to stop monitoring mode.

{ Design. Unique. Innovation } UNIQUE

DIRECT

SERIES

9 10

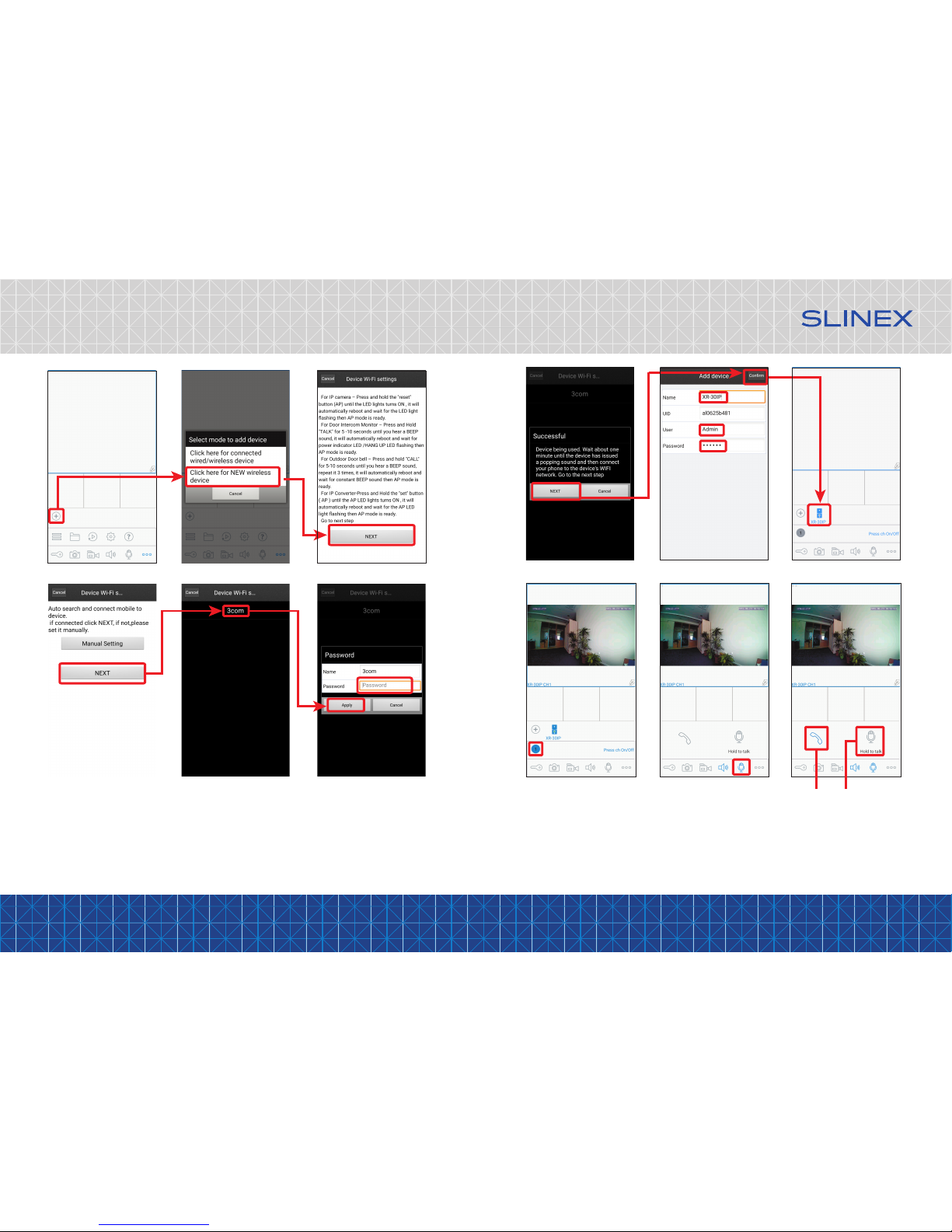

6.2 Wireless Wi-Fi network connection steps

Wireless Wi-Fi network connection should be made according to Diagram 3.

Wireless network setup includes next steps:

1) Enter «Google Play Market»(for Android) or «App Store»(for iOS) and search for «Slinex» application, then

install this applicationи on your mobile device.

2) Run «Slinex» application on your mobile device and press icon to add a new device.

3) Press «Click here for NEW wireless device» button.

4) Enter into «Access point» mode: press and hold «AP mode»button on the right side of the converter until

blue AP LED will be activated. Then release «AP mode»button and converter will be rebooted. After reboot

converter will enter «Access point» mode. Press «NEXT» button on the mobile device screen to go to the

next step.

5) Wait for a minute while XR-30IP connects your mobile device. On the Android devices, the connection

will be established automatically. On the iOS device user should connect to the door station manually. Press

«Wi-Fi settings»on the iOS device to view networks list. Find the network name with UID number of the

converter and connect it. Then press «NEXT» button.

6) The list of the available wireless networks will be displayed in the next window. Choose the network

which is the IP converter will be connected and enter the password if it is needed. After that, the converter

will be restarted and after a minute it will be connected to the chosen network.

7) Press «NEXT» button, to add the IP converter to the device list. Fill in the device information:

Name: enter device name in the list

UID: unique identication number of the device (don’t change this number)

User: Admin (by default)

Password: 888888 (by default)

then push «Conrm» button.

8) Device will be added to the bar in the middle part of the screen. You can also switch alarm notication on

or o by the blue switcher in the devices list («Switch ON/OFF notication»).

9) If you want to view the image from the door station press its icon on the bar and then press rst channel

icon to start monitoring mode. Press rst channel icon again to stop monitoring mode.

Note:

If XR-30IP converter has been entered into «Access point» mode and wasn’t connected to any wireless

network during 10 minutes then after that time it will be returned to the normal working mode.

− additional settings

− devices list

− local snapshots and video

− remote snapshots and video

− settings

− help

− add new device

− door unlock

− snapshot

− start/stop video recording

− turn on the sound from the door station

− press again to turn o the sound

+ - start conversation

− press again to stop conversation

{ Design. Unique. Innovation } UNIQUE

DIRECT

SERIES

11 12

Push to start talk

with the visitor

Push an hold to

talk to the visitor

{ Design. Unique. Innovation } UNIQUE

DIRECT

SERIES

13 14

6.3 Notication messages

Check mobile device and XR-30IP converter both connected to the Internet.

Start «Slinex» application on the mobile device and press button on the bar to display additional

settings menu. Then press button to enter device list. On the right side from the device name you will

see the switch. If it has blue color then alarm notication is enabled. If it has gray color then alarm

notication is disabled.

While alarm notication is enabled the user will receive the alarm message if someone presses the call

button on the door station. Press «View» button to talk with the visitor or «Cancel» button to stop alarm

Note:

For the iOS mobile devices, go to «Settings»→«Notications», then click «Slinex»icon and make sure that

all the notication are turned on:

Allow notications;

Show in Notication Center;

Sounds;

Badge App Icon;

Show on Lock Screen.

7. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all

safety instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing.

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of the manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the custumer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

Autres manuels pour XR-30IP

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex SL-07MHD Manuel utilisateur

Slinex

Slinex SM-07M Manuel utilisateur

Slinex

Slinex SM-07MN Manuel utilisateur

Slinex

Slinex ML-16HD Manuel utilisateur

Slinex

Slinex SM-04M Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex DESIGN DIRECT ML-16 Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex RD-30 Manuel utilisateur

Slinex

Slinex IP DIRECT Series Manuel utilisateur

Slinex

Slinex Design Direct Series Manuel utilisateur

Slinex

Slinex ML-20HD Manuel utilisateur

Slinex

Slinex MS-04 Manuel utilisateur

Slinex

Slinex VR-16 Manuel utilisateur

Slinex

Slinex SQ-04M Manuel utilisateur

Slinex

Slinex SL-07M Manuel utilisateur

Slinex

Slinex SM-07 Manuel utilisateur

Slinex

Slinex ML-20CRHD Manuel utilisateur

Slinex

Slinex ML-20TLHD Manuel utilisateur

Slinex

Slinex SM-07N Cloud Manuel utilisateur

Slinex

Slinex RD-30 Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT IP Series Manuel

Slinex

Slinex Design Direct Series Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
