SIIG FireWire 800 ExpressCard Manuel utilisateur

04-0442A

FireWire 800 ExpressCard

Quick Installation Guide

Introducing the FireWire 800 ExpressCard

The FireWire 800 ExpressCard adds FireWire 800 (1394b)

interface to your ExpressCard equipped computer.

Features and Benefits

• Provides 1 FireWire 800 (9-pin) and 1 FireWire 400

(6-pin) ports for multiple device connections

• Supports data transfer rates up to 800Mb/s

• Supportshot-swappingandPlug-n-Playconnection

of peripheral devices

• Works with FireWire devices including DV

camcorders, CD-RW/DVD-ROM drives, portable

hard disks, digital cameras and other audio/video

devices

System Requirements

• ExpressCard-enablednotebookPCwithanavailable

ExpressCard/54 slot

• Windows 2000/XP/Server 2003/Vista

PackageContents

• FireWire 800 ExpressCard

• Driver CD

• Quick Installation Guide

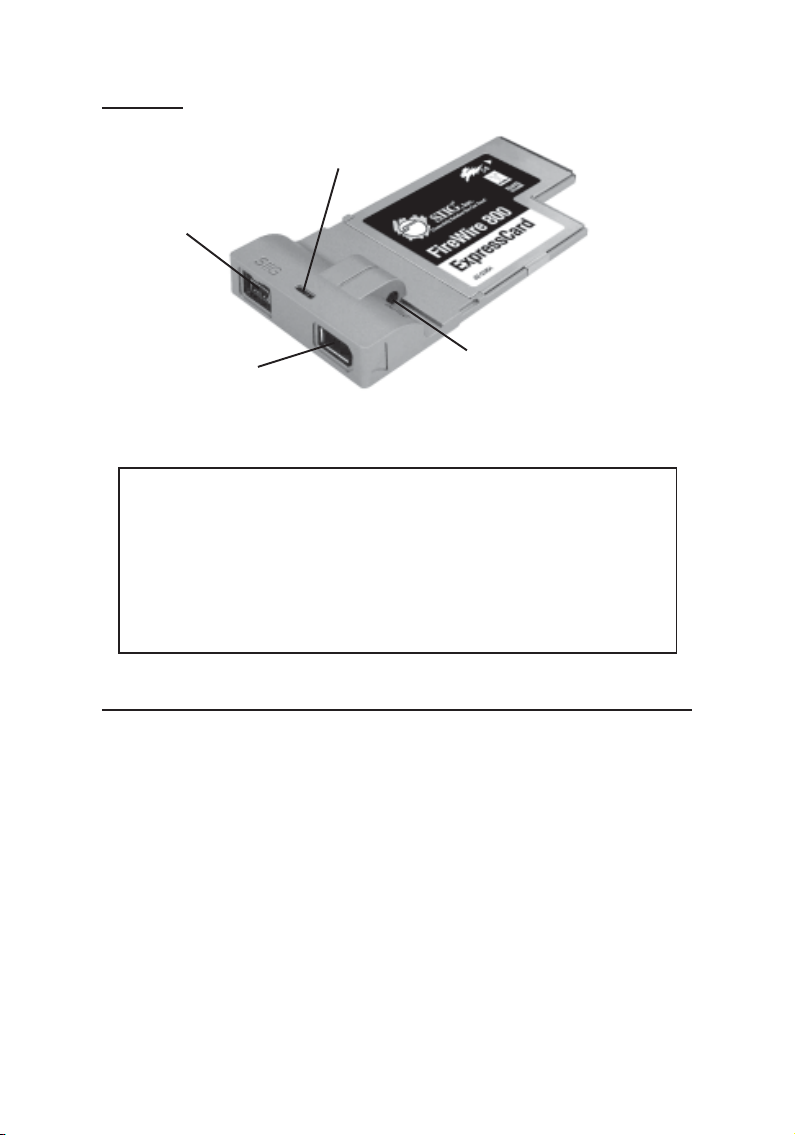

Layout

Figure 1. Layout

*Note: FireWire devices that have their own power

supply do not require the optional power adapter

to be connected in order to work. However,

non-poweredFireWiredevicesrequirethis optional

power adapter to work. The power adapter can be

purchasedatSIIG'sOnlineStore, part#NN-ADA011.

Hardware Installation

General instructions for installing the card are provided

below. Since the design of notebook computers may

vary, refer to your system’s reference manual for further

information, if needed.

Insert the ExpressCard into the ExpressCard/54 slot of

your notebook computer. Make sure it is inserted all the

way in for a solid connection.

Power Adapter Jack*

FireWire 400 port

(6-pin)

FireWire 800 port

(9-pin)

Power LED

Driver Installation

This section provides information on how to install the

FireWire 800 ExpressCard drivers.

Windows 2000

Windows 2000 automatically installs it's built-in 1394a

driver for the FireWire 800 ExpressCard. To get the full

speed out of this controller, install the Firewire 800 driver

using the directions below.

1. Insert the driver CD. Click Start, Run. Type

D:\setup.exe, click OK. (Change D: to match the

drive letter of your CD-ROM)

2. At the Welcome screen, click Next.

3. At the License Agreement screen, click Yes.

4. Type in your customer information, then click Next.

5. At the Destination Location screen, click Next.

6. Select Complete, then click Next.

7. At Program Folder screen, click Next.

8. AttheDigital Signature screen, click Yes three times,

then click Finish.

9. Select the restart Windows option, then click Finish.

Windows XP

Windows XP automatically installs it's built-in 1394a

driver for the FireWire 800 ExpressCard. To get the full

speed out of this controller,install the Firewire 800 driver

using the directions below.

1. Insert the driver CD. Click Start, Run. Type

D:\setup.exe, click OK. (Change D: to match the

drive letter of your CD-ROM)

2. At the Welcome screen, click Next.

3. At the License Agreement screen, click Yes.

4. Type in your customer information, then click Next.

5. At the Destination Location screen, click Next.

6. Select Complete, then click Next.

7. At Program Folder screen, click Next.

8. At the Hardware Installation screen, click Continue

Anyway three times, then click Finish.

9. Select the restart Windows option, then click Finish.

Windows Server 2003

Windows Server 2003 automatically installs it's built-in

FireWire 400 driver for the FireWire 800 ExpressCard. To

get the full speed out of this controller,install the Firewire

800 driver using the directions below.

1. Insert the driver CD. Click Start, Run. Type

D:\setup.exe, click OK. (Change D: to match the

drive letter of your CD-ROM)

2. At the Welcome screen, click Next.

3. At the License Agreement screen, click Yes.

4. Type in your customer information, then click Next.

5. At the Destination Location screen, click Next.

6. Select Complete, then click Next.

7. At Program Folder screen, click Next.

8. At the Security Alert box, click Yes. (Click Yes two

times for 2003 Standard Edition)

9. At the Hardware Installation screen, click Continue

Anyway two times (click Continue Anyway three

times for 2003 Standard Edition), then click Finish.

10. Select the restart Windows option, then click Finish.

Windows Vista

WindowsVistaautomaticallyinstallsit's built-in FireWire

400 driver for the FireWire 800 ExpressCard. To get the full

speed out of this controller,install the Firewire 800 driver

using the directions below.

1. Insert the driver CD. Click Start, Run. Type

D:\setup.exe, click OK. (Change D: to match the

drive letter of your CD-ROM)

2. Click Allow.

3. At the Welcome screen, click Next.

4. At the License Agreement screen, click Yes.

5. Type in your customer information, then click Next.

6. At the Destination Location screen, click Next.

7. Select Complete, then click Next.

8. At the Program Folder screen, click Next.

9. At the Windows Security box, click Install this

driversoftwareanyway fourtimes,thenclick Finish.

10. Select the restart Windows option, then click Finish.

Verify Proper Installation

1. Right click My Computer, click Manage, then click

Device Manager.

2. Double click 1394 Bus host controllers. IEEE 1394b

(FireWire 800) adapter should be displayed.

Removing the ExpressCard

Stop the ExpressCard before removing it from the

ExpressCard slot.

1 The utility is located by the system clock.

For Windows 2000: Click the Unplug or Eject

Hardware icon. Click Remove PCI standard

PCI-to-PCI bridge.

For Windows XP/Server 2003/Vista: Click the Safely

Remove Hardware icon. Click Safely remove PCI

standard PCI-to-PCI bridge.

2. Wait for the confirmation box, then remove the

ExpressCard from the ExpressCard slot.

Connecting Devices

General driver installation steps are provided below.

Please review your device's user manual for more details.

Windows 2000

1. At the Found New Hardware Wizard, click Next.

2. Select Search for a suitable driver..., then click Next.

3. Uncheck all check boxes, then click Next.

4. Click Next, then click Finish.

Windows XP

1. At the Found New Hardware Wizard,

For XP w/SP2 or later

Select No, not this time, then click Next.

For XP w/SP1 or earlier

Go directly to step #2.

2. SelectInstalltheSoftware Automatically,click Next.

3. Click Continue Anyway. (Skip if not prompted)

4. Click Finish to complete the installation.

Server 2003

1. At the Found New Hardware Wizard,

For 2003 w/SP1 or later

Select No, not this time, then click Next.

For 2003 no service pack installed

Go directly to step #2.

2. SelectInstalltheSoftware Automatically,click Next.

3. At the Security Alert box click Yes, or the Hardware

Installation box click Continue Anyway, then click

Finish to complete the installation.

Windows Vista

Windows Vista will automatically detect and install

most FireWire devices when connected. However, for

devices that do not install automatically, follow the steps

below to complete the installation.

1. Click Locate and install driver software.

2. Click Continue to complete the installation.

ubSwitch Utility

In order to use a DV camcorder with this controller,

Microsoft's FireWire 400 driver must be installed in the

system. We have supplied an easy to use utility that

allows switching between Microsoft's driver and the

FireWire 800 driver. Before using this utility, unplug all

devices from the FireWire 800 card.

1. Click Start, Programs, Unibrain ubcore, Tools then

ubSwitch.

2. Right click the ubSwitch icon located in the system

tray by the clock.

3. Click the 1394 Adapter that you want to switch, then

click on Microsoft 1394 Drivers.

Note: If your system has multiple 1394 adapters

installed, make sure that you click on the 1394

adapter that the camcorder will be plugged into.

4. Windows will display an information box when the

driver is ready for use. It may take a few seconds for

this box to appear.

Note: To switch back to the FireWire 800 driver,

follow the same procedures, but in step 3 instead of

clickingonMicrosoft1394Drivers, clickonUnibrain

1394 Drivers.
