2-1

Installation

Chapter 2

Installation

This chapter will guide you through the installation of your

CyberParallel Dual. There are no jumpers or switches to set for

this PCI Plug-n-Play board.

2-1 Hardware Installation

General instructions for installing the board are given since the

design of computer chassis varies. Refer to your computer’s

reference manual for information on removing the computer

cover.

1. Turn OFF the power to your computer and any other

connected peripheral devices.

2. Unplug the power cord from the back of the computer.

3. Remove the computer’s cover by removing its mounting

screws and sliding off the cover.

4. Select an available 32-bit PCI slot for the board with an

adjacent slot for installing the connector bracket.

5. Remove the slot bracket by unscrewing the holding screw

and sliding it out. Save this screw for securing the board

after it's installed. Follow the same procedures for the

connector bracket.

6. To install the CyberParallel Dual, carefully align the board’s

bus connector to the expansion slot on the motherboard.

Push the board down firmly, but gently, until it is well

seated.

7. To install the connector bracket, carefully slide it into the

selected slot where the slot bracket had been removed.

2-2

CyberParallel Dual User's Manual

Note Hold the board by its external edges only. Try to

avoid touching the components, connectors or pins.

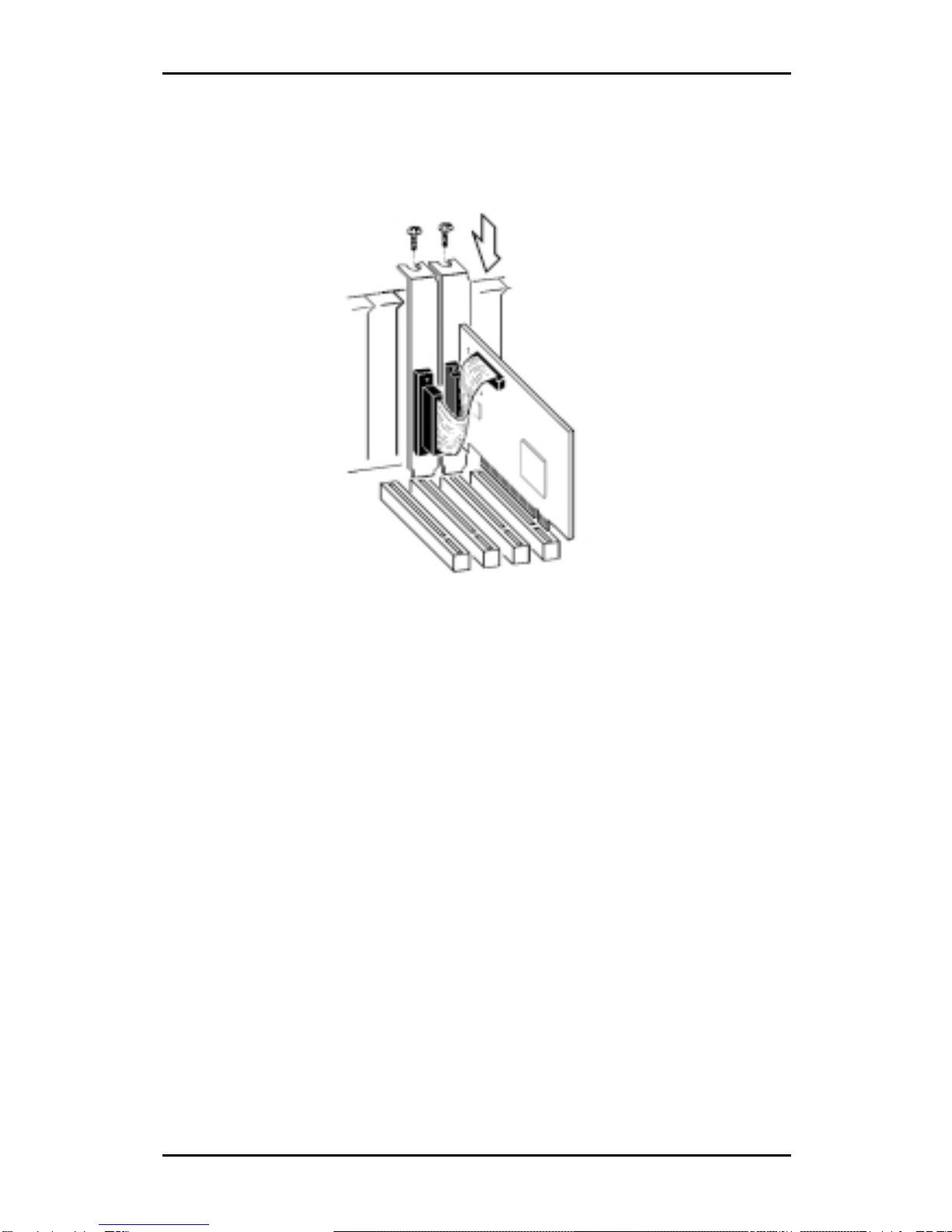

Figure 2-1. Install theCyberParallel Dual Board and

the connector bracket

8. Replace the slot bracket's holding screws to secure the

board and the connector bracket to the rear slot panel.

9. Connect the connector on the bracket mounted parallel

port's ribbon cable to the 26-pin connector on the

CyberParallel Dual board. Make sure pin 1 of the ribbon

cable (the side imprinted with color stripe) is matched

with pin 1 on the board’s connector (indicated by a silk

screened number 1).

10. Replace the computer's cover.

11. Reconnect power cord and make new connections to the

ports.

The hardware installation is now complete. Continue to the

next section for the software installation.

2-3

Installation

2-2 Software Installation

This section provides information on how to install the

CyberParallelDual'sdriversforthefollowingoperatingsystems:

Windows 95/98

Windows NT 4.0

DOS/Windows 3.1x

2-2.1 Windows 95 Driver Installation

To ensure proper installation in your system, verify the

version(4.00.950,4.00.950Bor4.00.950C)ofWindows95in

your system and follow the installation procedures

accordingly. Toverify version, gotoMy Computer/Control

Panel/System/General

Follow the procedures listed below to install the Windows 95

drivers:

1. When you first turn on your computer after installing the

board, Windows will notify you of “New Hardware

Found”.

2. Forversion4.00.950user,select“Driverfromdiskprovided

byhardwaremanufacturer” andclickon“OK”.

(For version 4.00.950B or 4.00.950C user, the “Update

Device Driver Wizard” dialog box will appear, click on

“Next”)

3. Insert the Driver Installation diskette in the floppy drive

and type in a:\Win95 and click on “OK”.

(For version 4.00.950B or 4.00.950C, check “Other

Locations” and type in a:\Win95, click on “OK”, and

then “Finish”. From the "Insert Disk" window, click on

“OK”. When the “Copying Files” dialog box appears,

type in a:\Win95 and click on “OK” again.)

4. Remove the diskette and select “Yes” to restart the

computer for the setup to take effect.

2-4

CyberParallel Dual User's Manual

2-2.2 Windows 98 Driver Installation

Follow the steps listed below to install the Windows 98

drivers:

1. At the Add New Hardware Wizard windows, click on

“Next”.

2. Select the option “ Search for the best driver for your

devices(Recommend)”, and clickon“Next”.

3. Select the option “Specify the location”, and type in

a:\Win98 then clickon “Next”.

4. Click “Next” and then “Finish” respectively.

5. Remove the diskette, then select “Yes” to restart the

computer for the setup to take effect.

To verify successful installation in Windows 95/98:

1. From the main desktop, click on My Computer, then

double-click on Control Panel, System, and Device

Manager.

2. Double-clickoneitherPorts(COM&LPT) orSIIGCyber

PCI device options. SIIG CyberParallel Dual Board

should be displayed when successfully installed. The

port is ready to connect new device.

2-5

Installation

2-2.3 Windows NT 4.0 Driver Installation

Follow the steps listed below to install the Windows NT 4.0

drivers:

1 Go toStartandRun.

2. Insert theDriver Installation diskette in the floppy drive

and type in: A:\NT4\setup, then click on “OK”.

3. The “Welcome” window will appear. Click on “Next”.

4. From the “Choose Destination Location” window, click

on “Next”.

5. From the next “Setup Complete” window, select “Yes, I

wanttorestartmycomputernow”andclickon“Finish”.

6. Remove the diskette and restart the computer for the

setup to take effect.

To verify successful installation in Windows NT 4.0:

1. Go to Start / Setting / Control Panel,double-click on

SIIG CyberPCI 20X deviceicon.

2. New LPT numbers will be assigned for the parallel ports

when successfully installed. The board is ready to

connect printers.

Note If you plan to connect a parallel device other

than a printer, such as zip drive, scanner etc, please

followthe nextsection to change the port's I/O address

to support the device.

2-6

CyberParallel Dual User's Manual

2-2.4 DOS/Windows 3.1x Driver Installation

Follow the steps listed below to install the drivers for DOS/

Windows 3.1x:

1. Insert Driver Installation diskette in the floppy drive and

from the C:\> prompt, type in: copy a:\dos\*.*and press

<Enter>.

2. Typein:editautoexec.batandpress<Enter>.

3. Add C:\CB20XPC.exeat the bottom of the autoexec.bat

file.

4. Go to File, save the changes and exit.

5. Remove the diskette and restart the system for the new

setup to take effect.

To change the I/O address in Windows NT 4.0:

1. Go to Start / Setting / Control Panel,double-click on

SIIG CyberPCI 20X deviceicon.

2. Highlight the LPT address you want to change and click

onSetting.

3. Select or type in an I/O address supported by the device

you would like to configure and click on “OK”. Make

sure the selected I/O address does not conflict with

other device in your system.

4. Select Restart Now for the new setup to take effect.
