SIIG SATA II PCIe RAID Manuel utilisateur
1
04-0389C
Introducing the SATA II PCIe RAID
The SATA II PCIe RAID is an ultra high-speed two
channelSerialATAGenerationIIRAIDcontrollerforuse
in PCI Express enabled systems.
FeaturesandBenefits
• CompliantwithPCIExpressBaseSpecification1.0A
• Compliant with Serial ATA 1.0 specifications with
support for full complement of SATA II optional
features
• PCIExpress1-lane(x1)SATAIIadapterworkswith
PCI Express slots with different lane width
• Installs in any available PCI Express slot and
supportsdatatransferratesupto3.0Gbps(300MBps)
• Supports Native Command Queuing (NCQ),
Non-zero offsets NCQ, and Out-of-order data
delivery NCQ
• Independent command fetch, scatter/gather, and
command execution
• Supports RAID 0 (striping) and RAID 1 (mirroring)
for speed and data protection respectively
SystemRequirements
• PCIExpress-enabledsystemwithoneavailablePCI
Express slot
• Windows®7 (32-/64-bit) / Vista (32-/64-bit) /
XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) /
2000
SATA II PCIe RAID
QuickInstallationGuide
2
PackageContents
•SATA II PCIe RAID
• Spare enhanced low profile bracket
• 2 Serial ATA data cables
• Dual-connector Serial ATA power cable
• Driver software CD
• Quick Installation Guide
Layout
Figure 1. SATA II PCIe RAID layout
* Note: Connect the hard disk drive activity LED
of the system case to the pins horizontally. This
connection is optional.
CH1
CH2
Hard Disk
LED Pins
(optional)*
HDD Activity
LED
Serial ATA
Connectors
3
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer cover.
4. RemovetheslotbracketcoverfromanavailablePCI
Express slot.
5. To install the card, carefully align the card's bus
connector with the selected PCI Express slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket holding screw to secure the
card.
7. Now go to Device Connection to connect your
Serial ATA hard disk drives.
DeviceConnection
The SATA II PCIe RAID is a two channel Serial ATA
controllerthatsupportstwoSerialATAharddiskdrives.
It is recommended to use identical hard drives for all
RAID configurations, however, it's possible to combine
hard drives of different sizes and makes.
4
1. Install your hard disk drive(s) in the chassis.
2. ConnecttheSerialATAharddiskdrivetothesystem
power supply using the included Dual Connector
Serial ATA power cable.
Note: For hard drives with both SATA power
connectorandlegacy5-pinconnector,useeitherthe
SATA power connector or the legacy 5-pin power
connector. Using both power connectors may
damage the hard drive.
3. Connect one end of the Serial ATA cable to the hard
disk drive.

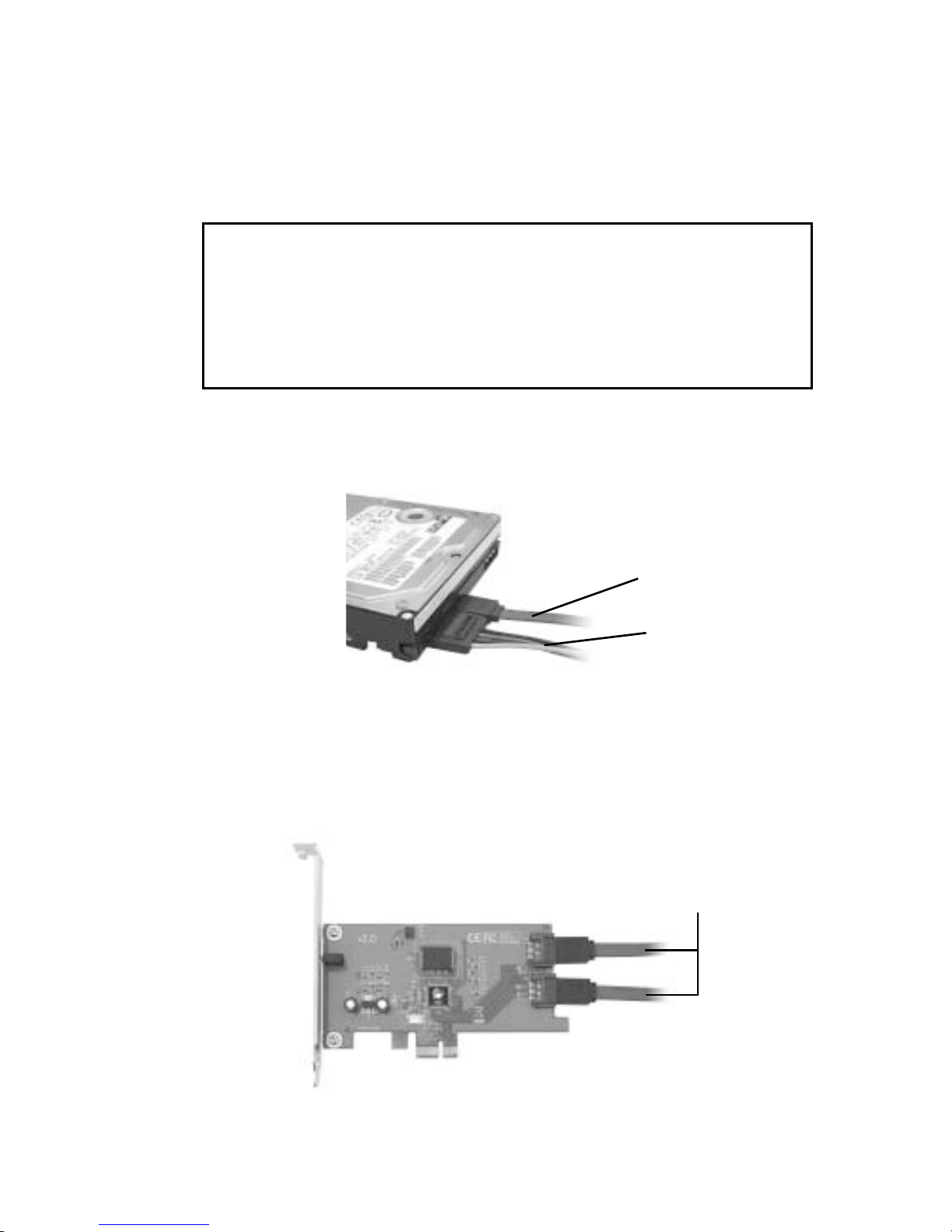

Figure 2. Hard disk drive connections
4. AttachtheotherendoftheSerialATAdatacabletothe
Serial ATA connector on the SATA II PCIe RAID.
Figure 3. Connecting the Serial ATA data cable(s)
Serial ATA cable
Power cable
Serial ATA cable
5
5. Follow the same instructions to connect the second
hard drive. Device connection is now complete.
Note: If it is your desire to monitor disk activity of
the Serial ATA hard drives, you may at this time
connect the hard disk LED of the system case to the
Hard Disk LED Pins on the Serial ATA controller.
Figure 4. Connecting HDD LED
6. Replace the computer cover and reconnect the
power cord. Go to RAID Arrays to configure the
RAIDBIOS.
RAID Arrays
RAID Arrays are setup in the SATA II PCIe RAID BIOS.
Find your RAID set from the table of contents.
Table of Contents
RAID 0 (striping)............................................page 6-7
RAID 1 (mirroring).........................................page 7-8
Rebuilding a Failed Mirror Set....................page 8-9
Deleting RAID Arrays ...................................... page 9
Resolving Conflicts......................................... page 10
Low Level Format........................................... page 10
Logical Drive Info ........................................... page 10
6
RAID 0 (Striping)
This RAID array to be used on New/Blank hard drives.
Striping will destroy existing data on the hard drive.
Auto Configuration is recommended. For applications
that require custom chunk size, Manual Configuration
is offered.
Auto Configuration (recommended)
The default chunk size is 64k when selecting Auto
configuration.
1. AstheBIOSbootspressCtrl+SorF4whenprompted
to enter the RAID BIOS.
2. At the next screen select Create RAID Set, then
press Enter.
3. Select RAID0, then press Enter.
4. Select Auto configuration, then press Enter.
5. Input the RAID size, press Enter.
6. WhenaskedAreYouSure(Y/N)?,pressYtoaccept.
7. Press Ctrl+E to exit the BIOS.
8. When asked Are you sure to exit (Y/N)?, press Yto
exit and reboot.
9. Continue with Fdisk and Format steps as if you
were installing a conventional hard drive.
Manual Configuration
1. AstheBIOSbootspressCtrl+SorF4whenprompted
to enter the RAID BIOS.
2. At the next screen select Create RAID Set, then
press Enter.
3. Select RAID0, then press Enter.
4. Select Manual configuration then press Enter.
7
5. Select chunk size from 8k, 16k, 32k, 64k or 128k,
then press Enter.
6. Select the first drive, press Enter.
7. Select the second drive, press Enter.
8. Input the RAID size, press Enter.
9. WhenaskedAreYouSure(Y/N)?,pressYtoaccept.
10. Press Ctrl+E to exit the BIOS.
11. When asked Are you sure to exit (Y/N)?, press Yto
exit and reboot.
12. Continue with Fdisk and Format steps as if you
were installing a conventional hard drive.
RAID 1 (Mirror)
For New/Blank Hard Drives
1. AstheBIOSbootspressCtrl+SorF4whenprompted
to enter the RAID BIOS.
2. At the next screen select Create RAID Set, then
press Enter.
3. At the next screen select RAID1 then press Enter.
4. Select Auto configuration, then press Enter.
5. Input the RAID size, press Enter.
6. WhenaskedAreYouSure(Y/N)?,pressYtoaccept.
7. Press Ctrl+E to exit the BIOS.
8. When asked Are you sure to exit (Y/N)?, press Yto
exit and reboot.
9. Continue with Fdisk and Format steps as if you
were installing a conventional hard drive.
For Existing Hard Drives with Data
1. AstheBIOSbootspressCtrl+SorF4whenprompted
to enter the RAID BIOS.
8
2. At the next screen select Create RAID Set, then
press Enter.
3. At the next screen select RAID1 then press Enter.
4. Select Manual configuration, then press Enter.
5. Select the Source drive, press Enter.
6. Select the Target drive, press Enter.
7. Select Create with data copy, then press Enter.
8. Select online copy, then press Enter.
Note: Selecting Online Copy builds the mirror
while in Windows. Selecting Offline Copy builds
the mirror before exiting the RAID BIOS.
9. Input the RAID size, press Enter.
10. Press Ctrl+E to exit the BIOS.
11. When asked Are you sure to exit (Y/N)?, press Yto
exit and reboot.
RebuildingaFailedMirrorSet
Whenafailuretoonememberoccurs,youwillbenotified
either by the RAID BIOS during boot or by the SATA
Raid5 GUI while in Windows. The steps below will
guide you in rebuilding a failed mirror set.
For Offline Mirror Rebuild (SATA RAID BIOS)
1. Replacethe failed drivewith one ofequal or greater
capacity, then power on the computer.
2. During boot press Ctrl+S or F4 to enter the RAID
BIOS.
3. Select Create RAID Set press Enter.
4. Select SPARE DRIVE, then press Enter.
5. Select the single hard drive then press Enter.
9
6. Input the RAID size, press Enter. When asked Are
You Sure (Y/N)?, press Yto confirm.
7. Select Rebuild Raid 1 Set, press Enter.
8. When asked Are you sure (Y/N)?, press Yconfirm.
The mirror will begin rebuilding. Do not interfere
with the process.
9. When rebuilding is finished, press Ctrl+E.
10. When asked Are you sure to exit (Y/N)?, press Yto
exit and reboot.
For Online Mirror Rebuild (in Windows)
1. Replacethefaileddrivewithoneofequalorgreater
capacity, then power on the computer.
2. When Windows resumes, at the SATA SoftRaid 5
screen,clickLegacySupport,RebuildLegacyRAID
Group.
Note: If Legacy Support does not show, click File,
Configuration, AdvancedOptions. Check Legacy
(Bootable) Support, then click OK.
3. At Rebuild Legacy RAID Group box, hold down
the Ctrl key, select both hard drives, click Rebuild.
4. Click OK, then click Cancel to close the window.
5. Rebuild time may take several hours or more,
depending on the size of the mirror set.
DeletingRAIDArrays
1. AstheBIOSbootspressCtrl+SorF4whenprompted
to enter the RAID BIOS.
2. Select Delete RAID Set, then press Enter.
3. Select the RAID set then press Enter.
4. WhenaskedAreYouSure(Y/N)?,pressYtoconfirm.
10
ResolvingConflicts
When a RAID set is created, the metadata written to the
disk includes drive connection information. If, after a
diskfailure, the replacement diskwas previouslypartof
a RAID set (or used in another system), it may have
conflictingmetadata. Ifso,thiswillprohibittheRAIDset
frombeingeithercreatedorrebuilt,inorderfortheRAID
set to function properly, this old metadata must be first
overwrittenwiththenewmetadata.Toresolvethis,from
the main BIOS window select Resolve Conflicts, then
press Enter, the correct metadata, including the correct
drive connection information, will be written to the
replacement disk.
LowLevelFormat
Low Level Format is built into the RAID BIOS to make it
more convenient to erase the entire contents of a hard
disk drive, including data, drive and partition
information. The Low Level Format utility works on
singleharddrivesonly,beforetheRAIDsetisconfigured.
LogicalDriveInfo
This menu item allows the display of the assignment of
physical drives within a logical set (RAID0, RAID1, etc.).
This is a display only function.
Table des matières
Autres manuels SIIG Matériel informatique
SIIG
SIIG SC-SAEE12-S1 Manuel utilisateur
SIIG
SIIG Low Profile USB Adapter Manuel utilisateur
SIIG
SIIG FireWire Dual-Port CardBus Manuel utilisateur
SIIG
SIIG eSATA II ExpressCard Manuel utilisateur
SIIG
SIIG CE-ED0011-S1 Manuel utilisateur
SIIG
SIIG SIIG 2-Port Serial 950-Value Manuel utilisateur
SIIG
SIIG UltraATA 100 Pro Manuel utilisateur
SIIG
SIIG CE-H23J11-S1 Manuel utilisateur
SIIG
SIIG USB 2.0 5-Port PCI Manuel utilisateur
SIIG
SIIG CyberParallel ExpressCard Manuel utilisateur
SIIG
SIIG 1 FireWire 800 CardBus DV-Ki Manuel utilisateur
SIIG
SIIG NN-EC2812-S1 Manuel utilisateur
SIIG
SIIG CyberParallel Dual Manuel utilisateur
SIIG
SIIG 1-Port ECP Manuel utilisateur
SIIG
SIIG Silent Mini Notebook Cooler Manuel utilisateur
SIIG
SIIG JJ-PCM012-S2 Manuel utilisateur
SIIG
SIIG Network Device EVTEK-5103 Guide d'installation
SIIG
SIIG AV-GM0AK3-S1 Manuel utilisateur
SIIG
SIIG CyberParallel Dual Manuel utilisateur
SIIG
SIIG UltraATA 133 PCI Manuel utilisateur
Manuels Matériel informatique populaires d'autres marques
EMC2
EMC2 VNX Series Manuel du propriétaire
Panasonic
Panasonic DV0PM20105 Manuel utilisateur
Mitsubishi Electric
Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur
Gigabyte
Gigabyte B660M DS3H AX DDR4 Manuel utilisateur
Raidon
Raidon iT2300 Manuel utilisateur
National Instruments
National Instruments PXI-8186 Manuel utilisateur
