Owner’s Manual

TE-889SLF

ATT ENTION

Please read your

owne r’s manual before

driving your scooter.

CONTENTS

INTRODUCTION ..................................................................................................................3

FEATURE GUIDE ................................................................................................................3

SAFET Y ADVICE .................................................................................................................4

EMI Warning ........................................................................................................................6

ADJUSTMENT .....................................................................................................................8

SCOOTER TILLER CONTROLS ......................................................................................10

FREE WHEEL OPERATION .............................................................................................12

ST ART ING TO DRIVE YOUR SCOOTER.........................................................................13

EXTRA GUIDELINES IN THE CONT ROL OF YOUR SCOOTER ..............................14

BATTERIES AND BAT TERY CHARGER .......................................................................15

MAINTENANCE ...................................................................................................................16

TROUBLE SHOOTING GUIDE .........................................................................................17

TECHNICAL SPECIFICATIONS.........................................................................................18

NOTES.....................................................................................................................................19

DISCLAIMER ........................................................................................................................20

INTRODUCTION

Congratulations on your purchase of the Shoprider® scooter. This scooter incorporates the

latest innovative designs patented and only available on a Shoprider®

scooter. This

scooter can be used in confined spaces both indoors and outdoors. Direct drive

transaxles and electromagnetic brakes give a s afe and efficient ride. This Shoprider®

scooter is designed for persons with limited mobility.

Please read this manual carefully and thoroughly before us ing your scooter and

make sure you understand all the instructions.

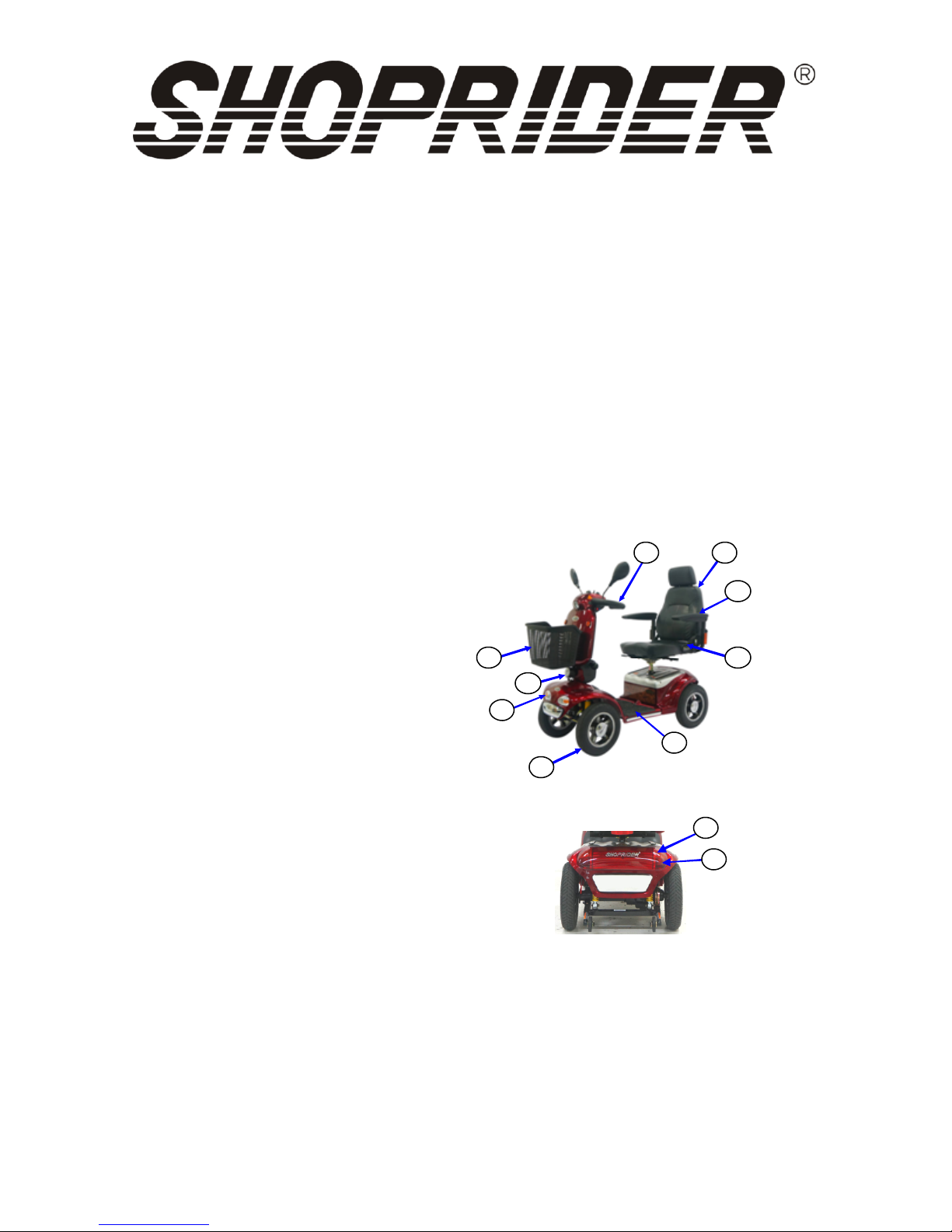

FEATURE GUIDE

1. Tiller Handle Bar

2. Black Vinyl Captain Seat

3. Armrests

4. Seat Reclining

5. Black Pneumatic Tire

6. Footrest Ma t

7. Headlight

8. Indicator Light

9. Hazard Light

10. Front Basket

SAFETY ADVICE

• Do not c arry passengers.

• This mobility Product is intended to assis t you. For your own safety, please read the

Owner’s Manual before using the Scooter. If in any doubt, contact your supplier directly for

advice.

• Do not e xceed inclines over 12 degrees (20% grade).

• Driver weight may exceed weight of the unit, speed must be reduced when turning.

• Do not get on or off the scooter unless the brake is on and the scooter is switched off.

• Do not s witch off the scooter while the scooter is moving.

• Do not drive the scooter where you can not safely or legally walk.

• Do not attempt to drive o ver curbs greater than 1.5 inches in height. Doing so c ould cause

your scooter to turn over, causing personal injury or damage to the scooter. For curbs

less than 1.5 inches, always approach them at an angle of 90 degrees and at a low

speed.

• Do not drin k or use a mobile phone when driving your scooter.

• Do not e xceed the suggested user weight limit to use the product. Doing so, could cause

personal injury and invalidate the warranty.

• Always keep your feet on the scooter when moving.

• Please make sure that you are physically fit to operate this unit. Consult your

dealer/doctor for advice.

• Always slow down and proceed carefully when tra ve ling over rough or uneven ground.

• For individuals with balance problems , practice getting on the scooter with the assistance

of a qualified healthcare professional.

• Do not operate the scooter without anti-tip wheels installed.

• Do not use an escalator to move a scooter between floors or serious injury could occur.

• Do not drive the scooter on an incline that has oil, water or ice film on it.

• Do not try to lift the scooter by its seat, tiller, rear chassis cover, or any removable parts.

Any of these could cause injury to the user or damage to the scooter.

• Do not use parts or accessories that are not authorized by the original manufacturer of the

scooter.

• Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will insure

the POWER is off and the scooter can not move under its own power. As a general

precaution, always remove the key from the ignition while the scooter is not in use. This

will prevent the use by untrained and unauthorized persons.

• Do not c onnect any foreign device to the scooter battery or charging port. This could

cause failure of the device, the scooter and personal injury.

• Make sure the tiller is properly adjusted and locked to the user or damage and injury could

result.

• It is not allowed to have any person sitting in the scooter when transported by a vehicle,

otherwise any injury or damage that might result.

• Do not use the scooter in the rain, near a shower or in a damp bathroom. Direct exposure

to ra in or dampness c ould cause the scooter to electrically malfunction and prematurely

rust.

• Do not lean against or pu ll forward on the tiller while mounting or dismounting the scooter.

Otherwise, injury may oc cur.

• Do not operate the unit o r turn the key on while charging.

• Whenever a center bolt of the wheel assembly has been loos ened, please replace a

specified new bolt from authorized dealers and secure with a torque of 240 ± 5 kg-cm

together with Loctite 271 adhesive (or equivalent).

• Regularly check on your Battery Charge. Always Charge the unit daily after use.

• Charging p lug has to be removed from the scooter after charging.

• Battery c ables must be securely fastened onto battery terminals by the authorized dealers

before using the unit.

• Batteries m ust be tied down correctly and securely.

• Any loose cable can not be allowed when the unit is driving.

• Must check the battery c harge remained before operating the unit.

• Always charge the batteries of the unit in a well ventilated area.

• If the unit went over or sank into deep water, please switch off power of the unit and

consult with your authorized dealer for help right away.

• Switch off power of the unit while not in use or before charging, removing and installing

the batte ries. Otherwise, injury and/or damage to the unit or surrounding property may

occur.

• Do not operate the unit in the way of exceeding to the product’s specification listed in this

owner’s manual.

• Do not use the thumb/finger lever befo re the key switch is turned on, or the operation will

be prohibited until to turn key switch off and then on.

• Avoid driving close to shoulder of the road.

• Always use low speed on downhill.

• Do not c ross the railway cross.

• Be sure to be well trained with full practice before using the mobility products on road.

EMI Warning

Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is a

kind of interfering e lectromagnetic energy (E M) emitted from sources such as radio stations,

TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The

interference (from radio wave sources) can cause the scooter to release its brakes, move

by itself, or move in unintended directions. It can also permanently damage the scooter’s

control system. The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie

talkie”, security, fire and police transceivers, cellular telephones, and other personal

communic ation devices.

NOTE! So me ce llular telephones and similar devices transmit signals while they are

ON, even when not be ing used.

2. Medium-range mobile transceivers, such as those us ed in police cars, fire trucks,

ambulanc es , and taxis. These usually have the antenna mounted on the outside of the

vehicle.

3. Long-range transmitters and transc eivers, such as commercial broadcast transmitters

(radio and TV broadcas t antenna towers) and amateur (HAM) radios.

NOTE! Othe r types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and small

appliances, such as electric shave rs and hair dryers, so far as we know, are not

likely to cause problems to the scooter.

Scooter Electromagnetic Interfe rence (EMI)

Because EM energ y rapidly becomes m ore intense as one moves closer to the transmitting

antenna (source), the EM fields from hand-held radio sources (transceivers) are of special

concern. It is possible to unintentionally bring high levels of EM energ y very close to the

scooter’s control system while using these devices. This can affect scooter movement and

braking. There fore, the warn ings listed below are recommended to prevent possible

interference with the control system of the scooter.

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens band

(CB) radios, or turn ON pers onal communication devices, such as cellular phones, while

the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming

close to them.

3. If unintended movement or bra ke release occurs, turn the scooter OFF as s oon as it is

safe.

4. Be aware that adding accessories or components, or modifying the scooter may make it

more susceptible to E MI.

NOTE! There is no e asy way to evaluate the overall immunity of the scooter.

5. Report all incidents of unintended movement or braking to your Shoprider® dealer, and

note whether the re are sources of EMI nearby.

WARNING: The original manufacturer and the importer of the scooter is not

responsible for damage or injury incurred due to improper and unsafe use of our

scooter.

ADJUSTMENTS

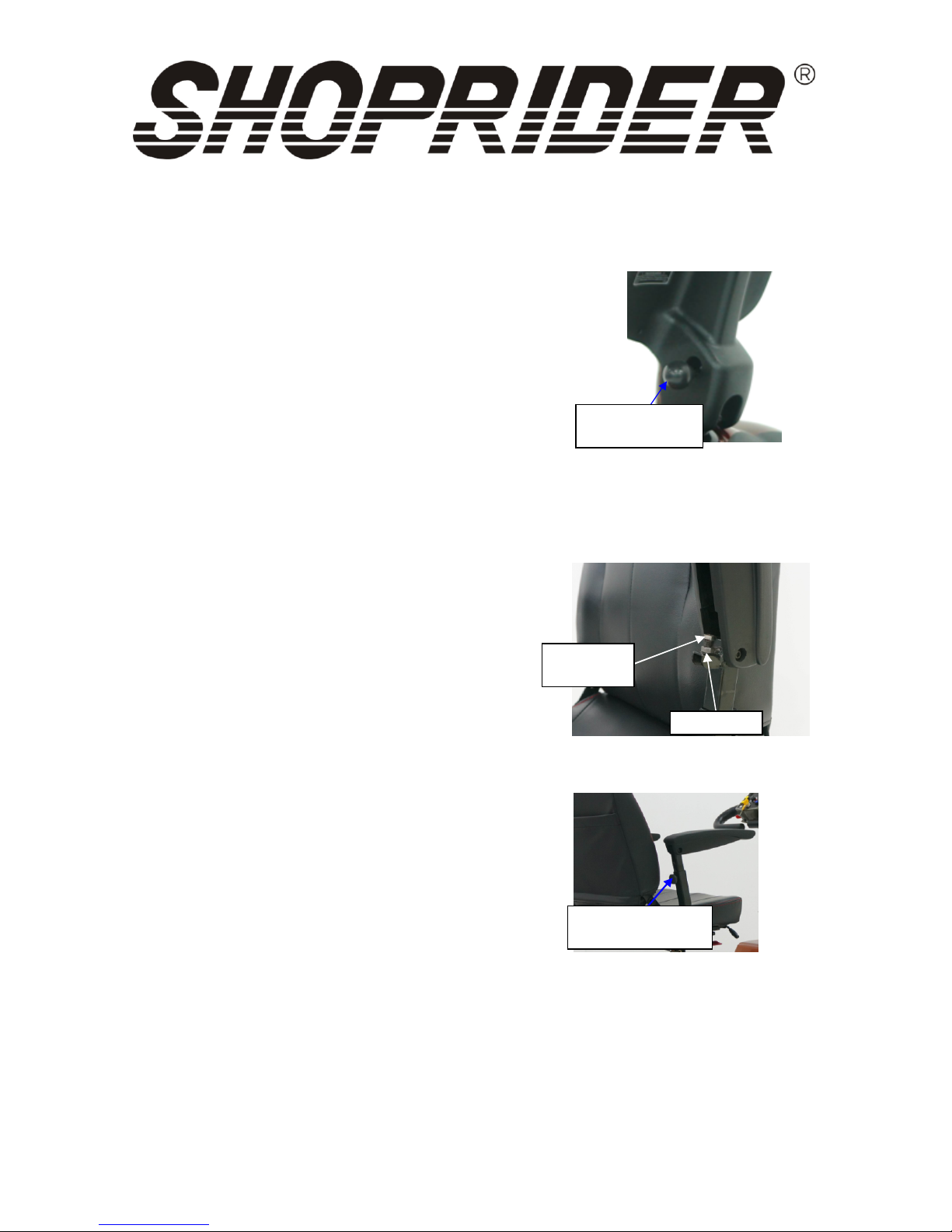

T iller Angle Adjustment (Fig. 1)

The tiller can be adjusted to five different positions.

To decide whic h position best fits your needs,

carefully pull the large b lack ball that is located on

the left hand side, at the joint base of tiller, and

gently lower or raise the tiller to select require angle.

Once you are satisfied with the angle of the tiller,

simply release the black ball and to lock the tiller

angel for your safety.

Armrest Angle Ad justme nt (Fig. 2)

Flip up the armrests to allow access to the

adjustable bolt and lock nut, unscrew the

lock-nut and screw the bolt in or out to

increase or decrease the angle. Re-tigh ten

the lock-nut. Your scooter is dispatched from the

factory with the arm rests set parallel to the floor.

Armrest He ight Adjustment (Fig. 3)

The vertical square tube connected with

the armrest can be reset to the desired

position by re-tightening the hand knob

for armrest height adjustment.

Lock-Nut

Adjusta ble

Bolt

Fig. 2

Arm res t Adjustabl e

Hand Knob

Fig. 3

Fig. 1

Tiller Angl e

Adjustable Ball

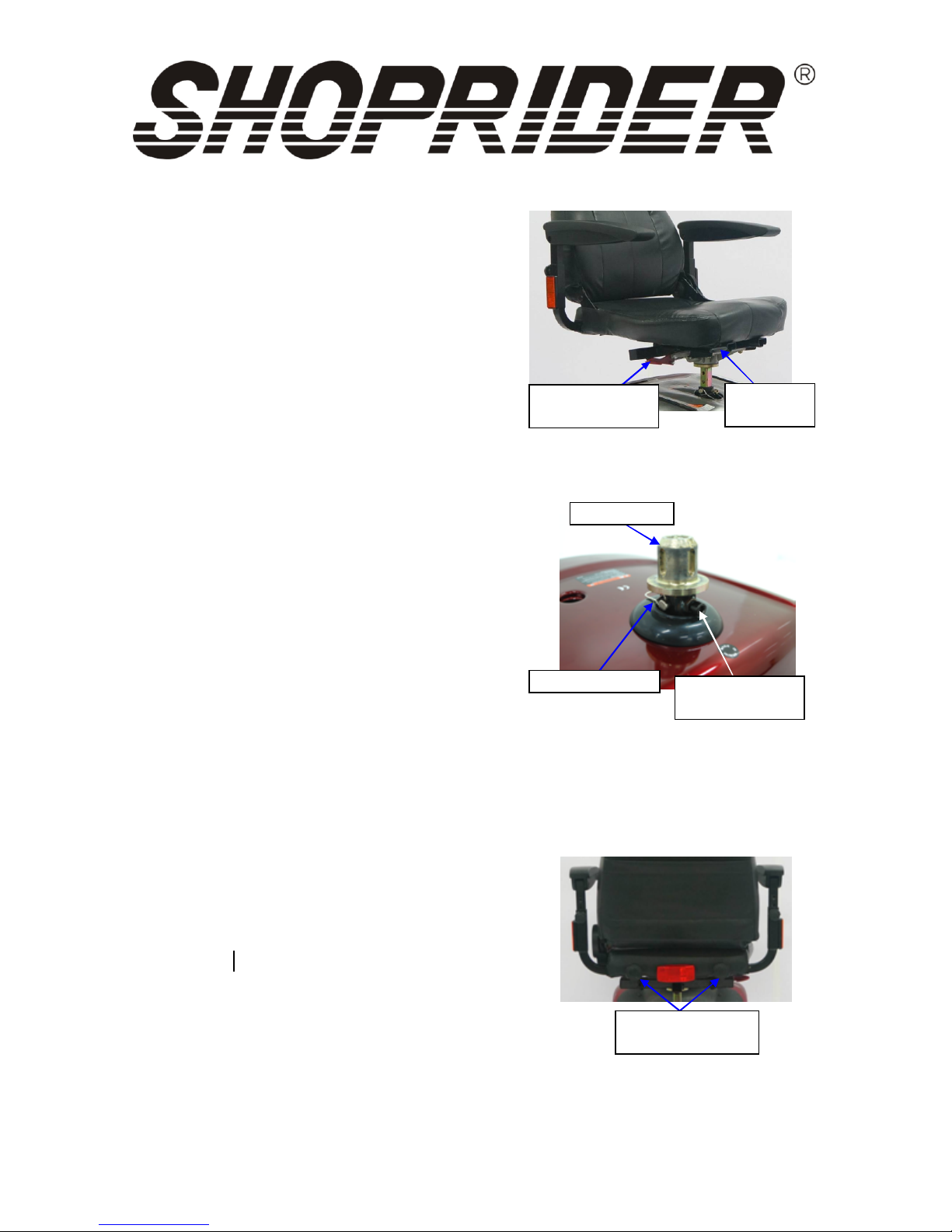

Seat Slide & Swivel Adjustment (Fig. 4)

Pulling up on the seat slide lever allows the

seat position to be ad justed forward or

backward. Release the lever and the seat

will lock in that position. Under the right

side of the seat there is a spring loaded red

lever. Pulling up on the lever allows the seat

to swivel, when released the seat will lock

into one of 3 positions.

Seat Re moval (Fig. 5)

Fold down the back o f the seat. Pull up the

swivel seat adjustable lever (fig. 4) and lift

seat off.

Seat He ight Adjustment (F ig. 5)

Remove s eat as described above. Loosen

seat tightening bolt by hex key wrench.

Remove the locking pin that secures the seat

adaptor. Lift the seat adaptor out of the seat

post. The seat height can be adjusted to 3

different s ettings by inserting the steel locking

pin in the required hole. Retighten the bolt and

replace the seat.

Armrest Width Ad justme nt (Fig. 6)

On the unders ide of the seat there are two

hand knobs, one either side. Loosening the

hand knob allows the armrest to be adjusted

to the required width, or removed for

transportation.

Do not use the scooter without the arms

being fitted.

Swivel Seat

Adjustable Lever

Seat Slide

Lever

Fig. 4

Seat Tightening

Bolt

Seat Locki ng Pin

Seat Post

Fig. 5

Armres t Adjustable

Tighteni ng Knob

Fig. 6

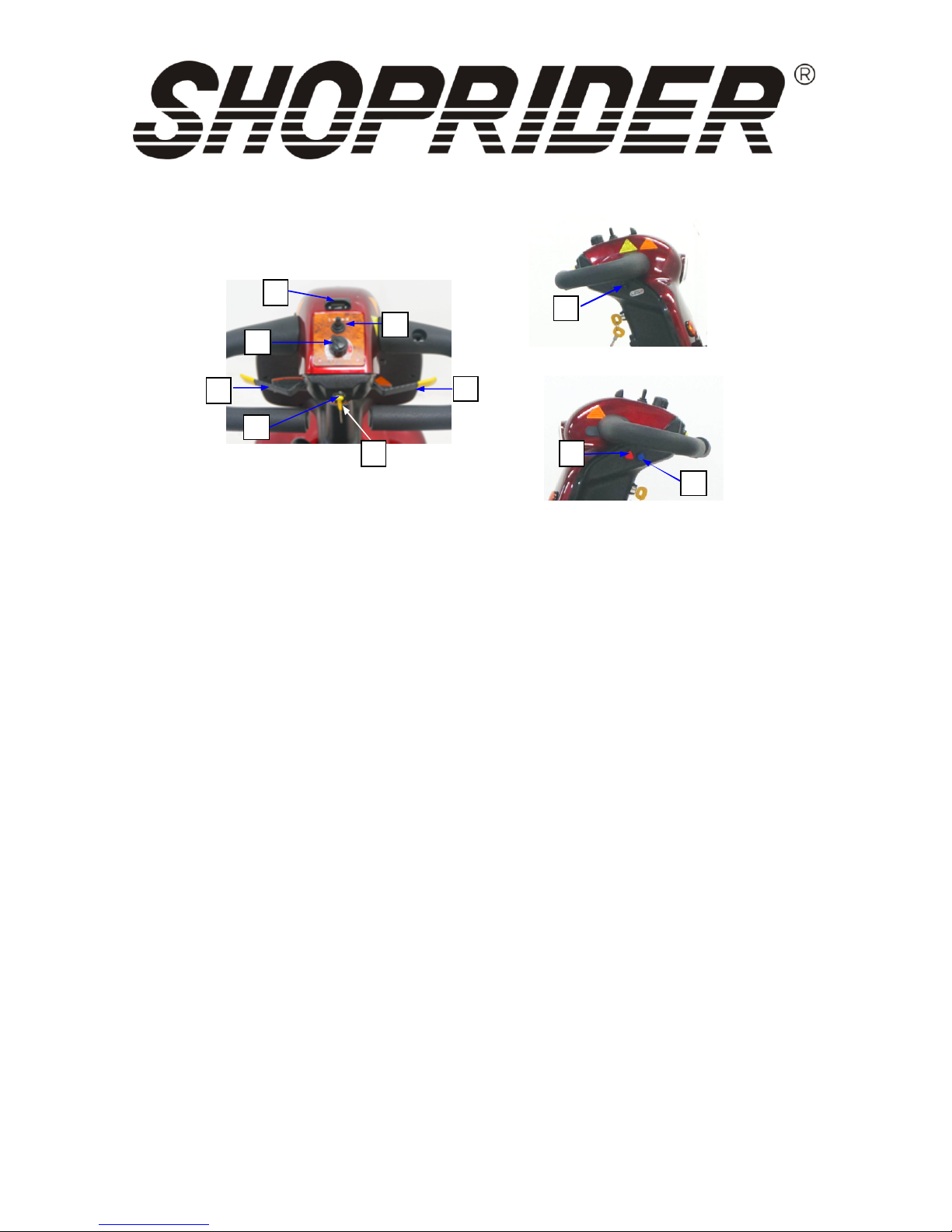

SCOOTER TILLER CONTROLS (Fig. 7)

(1 & 2) Speed Controls

The s peed c ontrol allows you to set a speed between 1 (minimum) and 10 (maximum).

Turn the dial knob counter-clockwise to “minimum” to decrease s peed, and clockwise

towards “maximum” to increase your speed. The “High / Low” switch for extra speed.

Please use extra caution when using the scooter in “High” mode.

NOTE: When attempting to climb slopes, you will need to set the dial to “h igh” setting.

Remember the higher the number you set your speed dial to, the faster your scooter will

travel.

(3) Battery Level Indicator

The gauge is marked from “E” empty, to “F” full. For extra clarity there is a c olored

graduated scale ranging from RED, (E) through YELLOW to GREEN, (F).

GREEN indicates ready for use.

YELLOW indicates batteries to be charged as soon as possible.

RED indicates charge batteries immediately.

(4) Lights

A b lue colored button operates the headlights.

(5) Horn

A yellow button operates the horn.

Fig. 7

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider QT-8 LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider 778 Series Manuel utilisateur

Shoprider

Shoprider Recreational Scooter GR889 Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider TE-778NR Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider Perrero S-888SLR Manuel utilisateur

Shoprider

Shoprider TE-787M Manuel utilisateur

Shoprider

Shoprider Valencia Manuel utilisateur

Shoprider

Shoprider Dasher 3 Manuel utilisateur

Shoprider

Shoprider GK8 Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider (888-3L) Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider S-889NR Manuel utilisateur

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider VIKING 3 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider SUNRUNNER 3 888B-3 Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
