Shoprider S-889NR Manuel utilisateur

Deluxe

Model: S-889NR

USER MANUAL

Please ensure that this manual is read and understood before

using the scooter.

Nov 2011

Contents Page

Introduction 3

IntendedUse 3

Technical Specification 3

Feature Guide 4

Safety Advice 5

Adjustments

Tiller angle 6

Seat swivel / removal 6

Arm width adjustment 6

Arm angle adjustment 7

Seat height adjustment 7

Tiller Controls 8

Brake Release / Freewheel Operation 9

Starting to Drive

Getting Started 10

MovingOff 10

Steering 10

Reversing 10

Ramps / Slopes 11

Transport and Storage 11

Batteries and Battery Charger 12

Maintenance 13 & 14

Troubleshooting

Circuit Breaker 14

Fuses 14

Check List 15

Further InfoShopridertion 15

Warranty

Introduction

Congratulations on your purchase of the SHOPRIDER Deluxe scooter. This

scooter incorporates comfort and style with the latest in technology. The

SHOPRIDER Deluxe can be used in confined spaces both indoors and out.

Direct drive rear transaxles and electromagnetic brakes give a safe and

efficient ride. The scooter can be easily disassembled without tools and will fit

into the boot of most vehicles for easy transport.

Intended Use

The SHOPRIDER Deluxe was carefully designed for indoor or outdoor use in

pedestrian areas by a single occupant with limited mobility up to a maximum

weight of 136kg (21st). It is not intended for road use.

The intended user should possess the necessary physical, visual and

cognitive skills to operate the scooter safely. If you have any doubt, please

consult your dealer / prescriber.

Technical Specification

Class 1 Medical Device

Class 2/B Indoor/Outdoor Vehicle

Overall Size Seat Dimensions

Length 1300mm Width 450mm

Width 580mm Depth 400mm

Height 1000mm Height to floor 600-670mm

Battery 2 x 34Ah Backrest height 680-800mm

Height Total 940mm Range 32km (20m)*

Maximum user weight 136kg / 21st Battery charger (off board) 3 amp

Max. climbing angle 8º

Weight with batteries 82kg(180lbs)

Max. Speed 6km/h

(4mph)

*Passenger weight, rough ground conditions, low temperatures and battery

condition can affect maximum range.

It is important that the user and carer reads and understands the safety

advice given within this manual before operating the product to avoid possible

injury to the user or bystanders and avoid damage to the scooter or

surrounding property.

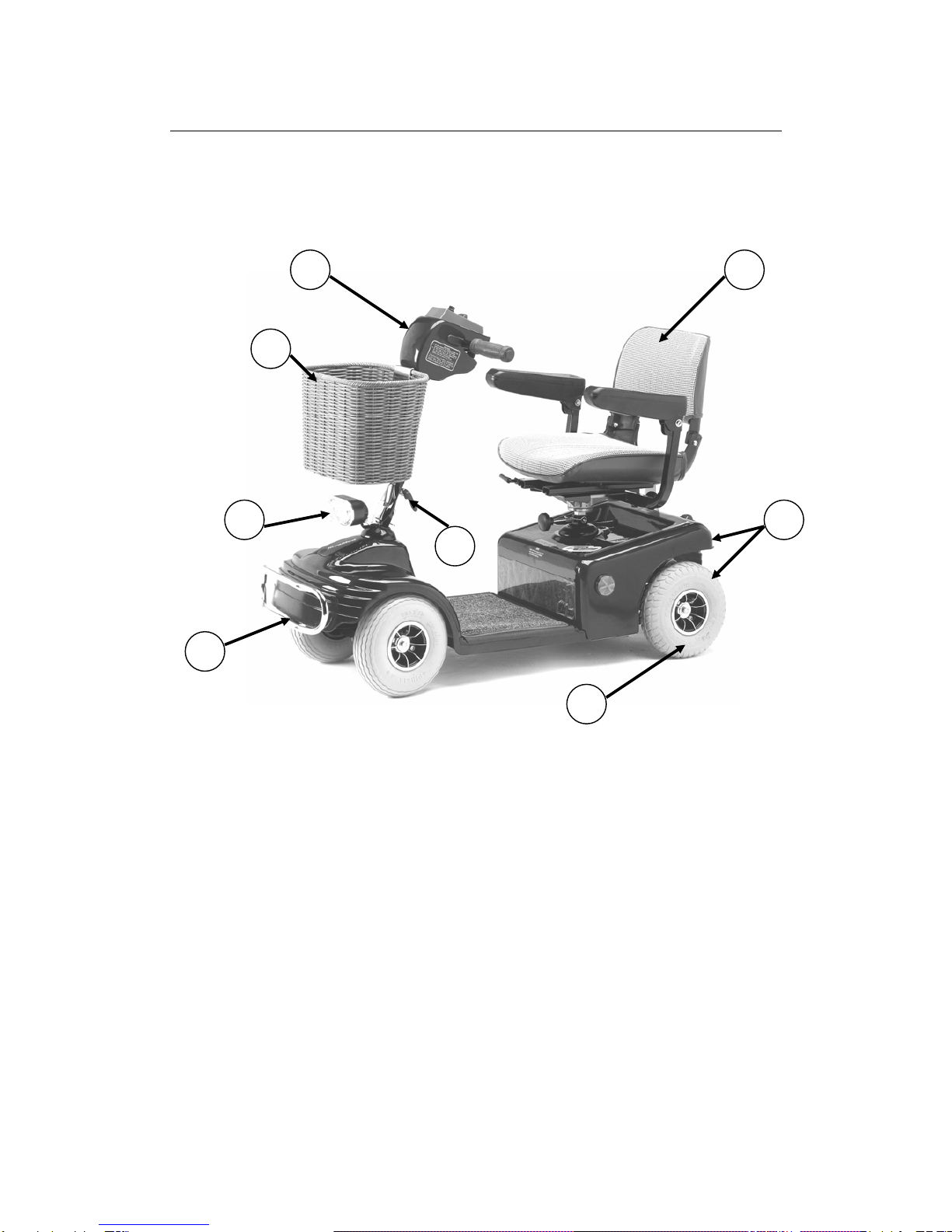

Feature Guide

Deluxe

1. Tiller control head

2. Detachable padded swivel seat with fold down back

3. Head light

4. Tiller angle adjustment lever (5 position)

5. Chrome front bumper

6. Pneumatic wheels with non-marking tyres

7. Anti-tip wheels

1 2

3 47

Safety Advice

DO:

Read this manual carefully before using your scooter

Turn the power off when transferring to and from the scooter

Select a slow speed when going down gradients (max 8°) or over

uneven ground

Keep your feet on the scooter whilst driving

Ensure the seat is in a fixed position facing forwards before driving

Ensure the batteries are fully charged before your journey

Avoid rough or soft terrain and long grass wherever possible

Be aware of other road users and pedestrians

Turn the power off when not in use

Follow the maintenance guide to ensure safe operation of the scooter

Always remove the keys if leaving the scooter unattended.

Unauthorised persons/children may use the scooter resulting in injury.

DO NOT:

Carry passengers

Exceed inclines over 8°

Traverse inclines

Attempt inclines if the surface is slippery

Turn sharply at full speed as this may affect stability

Use the scooter in high wind if a canopy is fitted (winds exceeding

38mph / 61kmph)

Exit or enter the scooter unless the power is switched off

Switch off the power whilst driving – this will cause the scooter to stop

abruptly

Use the scooter where you cannot safely or legally walk

Attempt to climb kerbs except drop down kerbs not greater than 50mm

Use the scooter if under the influence of alcohol or any medication

Use a mobile phone whilst driving

Attempt to negotiate steps or escalators

Sit on the scooter if being transported in a vehicle

Attempt to tow any other devices

Exceed the stated weight limit

Connect any other devices to the batteries as this could cause

permanent damage and void your warranty

Use any other batteries/charger other than those supplied by RMA

Travel through water or over soft terrain (mud, sand etc.)

Travel on the road except when crossing between pavements

Lift the scooter by the shroud assembly or any plastic part

Sharply shift your centre of gravity as this could make the scooter

unstable

Every care has been taken to ensure that your scooter will give you safe,

reliable service provided you adhere to the advice given above.

Adjustments

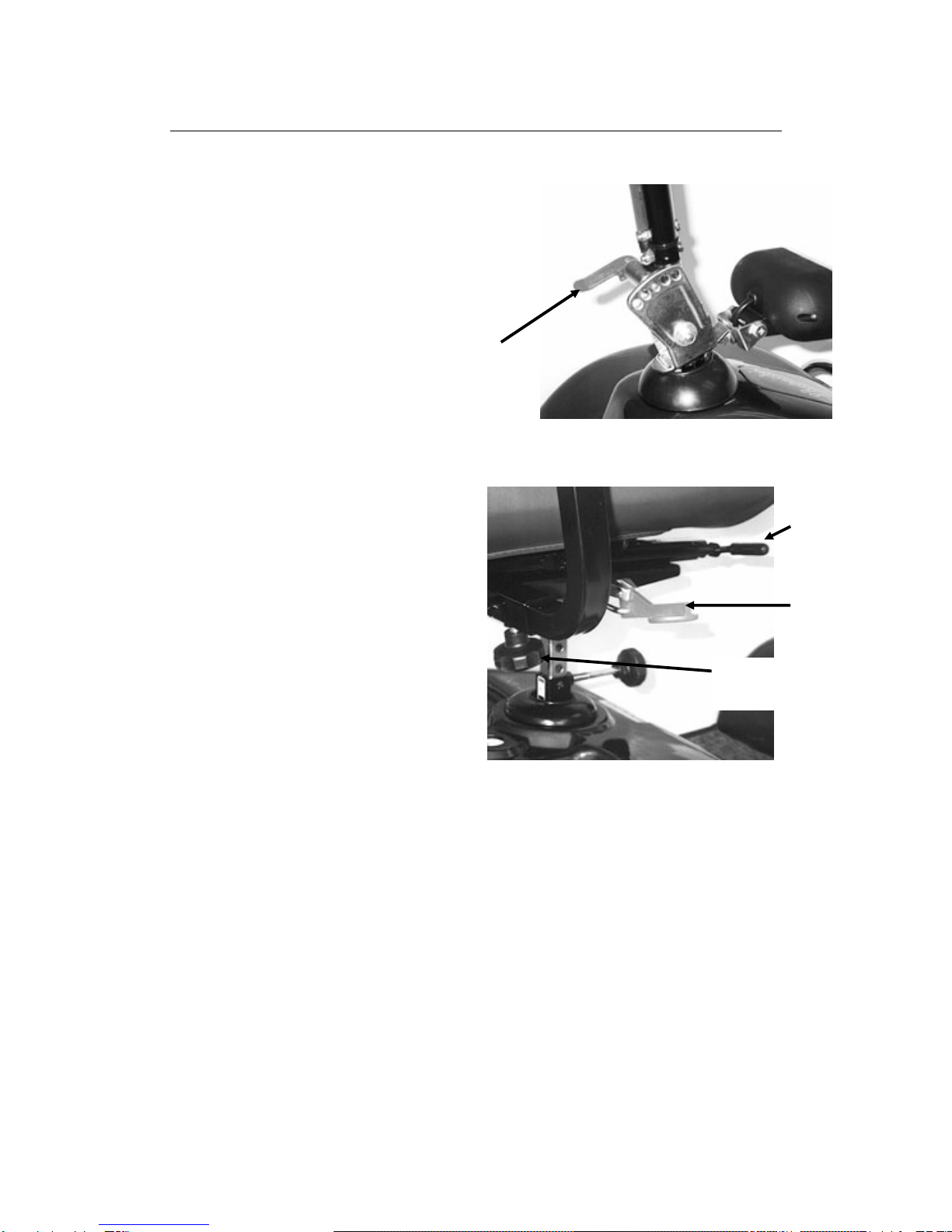

Tiller Angle Adjustment (Fig. 1)

On the left hand side at the base of the tiller

is a red adjustment lever. Push the lever in to

release the pin and select the required tiller

angle. Release the lever to re-locate the pin

into one of the five angle positions.

Seat Slide Adjustment (Fig. 2)

Pulling up on the lever allows the seat

position to be adjusted forward or

backward. Releasing the lever will lock

the seat in position.

Seat Swivel Adjustment (Fig. 2)

Under the right of the seat is a red

lever. Pulling up on the lever allows

the seat to swivel to either side,

allowing for easy manoeuvring on or

off the scooter. Do not drive the

scooter if the seat is not locked in

the forward position.

Armrest Width Adjustment (Fig. 2)

On the underside of the seat there are two hand knobs. Releasing the hand

knob allows the arms to be adjusted to the required width, or removed for

transportation.

Ensure the knobs are fully tightened before driving the scooter. Do not

drive the scooter without the arms fitted.

Tiller Adjustment

Lever

Slide

Lever

Swivel

Lever

Armrest Width

Adjustment Knob

Continued…..

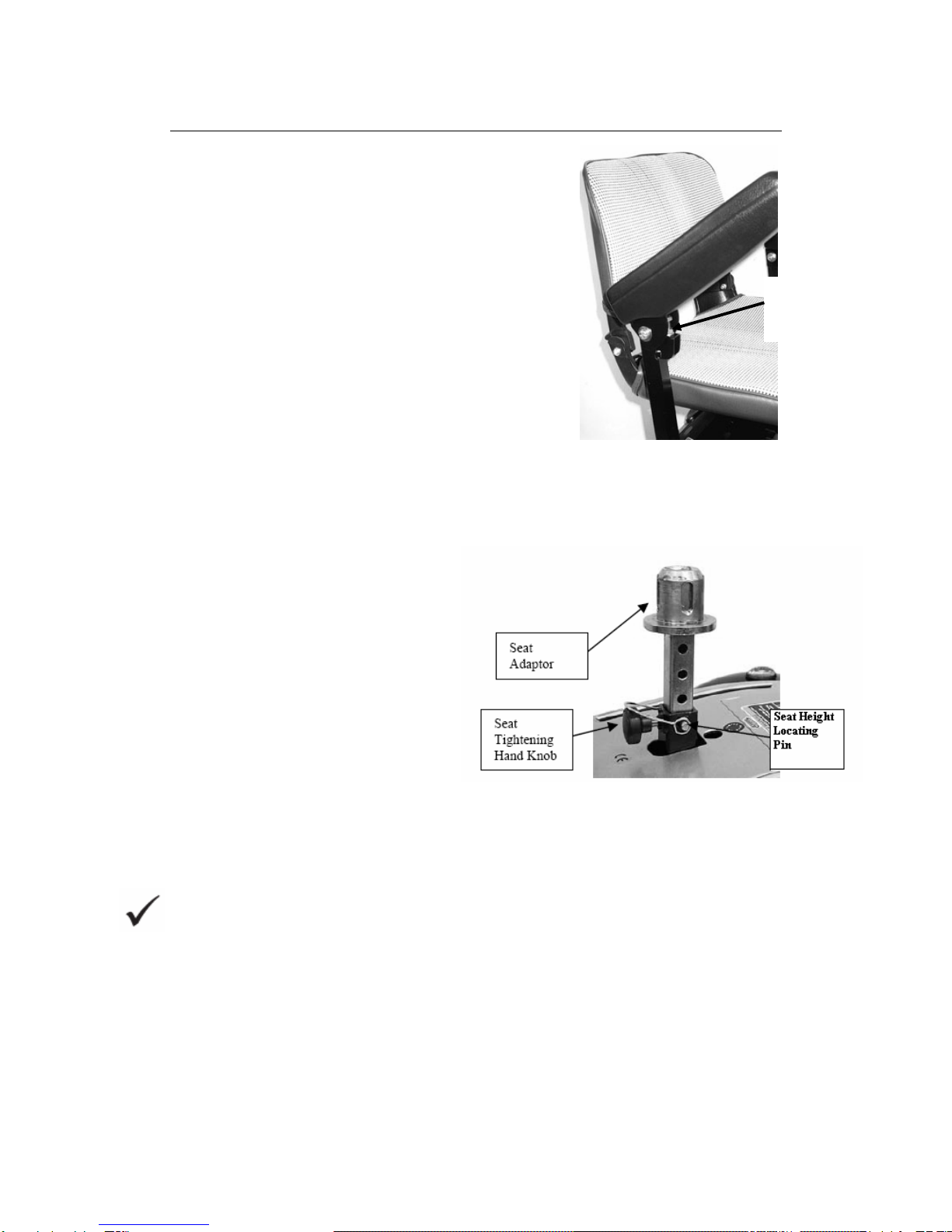

Armrest Angle Adjustment (Fig. 3)

Flip up the armrests to allow access to the

adjustment screw and locknut. Unscrew the

locknut and screw the bolt in or out to achieve the

desired angle and re-tighten the locknut.

The scooter will be delivered with the arms parallel

to the floor.

Seat Height Adjustment (Fig. 4)

To adjust the height of the seat,

undo the seat-tightening knob

under the front of the seat.

Pull the swivel adjustment lever

(Fig. 2) upwards and at the same

time lift the seat from the adaptor.

Remove the seat height-locating

pin and set the seat to the desired

height and reset the locking pin.

Reverse the above instruction to

replace the seat and re-tighten the

hand knob.

The higher the seat is adjusted,

the more stability may be affected due to the higher centre of gravity.

Note: If removing the armrests for transport, ensure that the knobs are

re-tightened to avoid them rattling loose and falling out.

Do not apply full body weight to the armrests for transferring. Pivot the

seat or lift the arm up out of the way to transfer to another seat.

Angle

Adjustment

Screw

Tiller Controls (Fig. 5)

Thumb Lever Controls

The thumb lever controls the reverse and forward motion of the scooter.

Pressing the right lever will drive the scooter forward, pushing the left lever

will reverse the scooter. The amount of pressure applied to the levers will

determine the speed the scooter travels up to the maximum speed selected.

More pressure = more speed. Release the thumb lever and the scooter will

automatically come to a safe stop as the electromagnetic brake is applied.

Horn Button

The yellow button operates the scooters horn. This should only be used to

warn others of your presence and not as a rebuke of any form.

Light Switch

The blue button operates the scooters lights. Using the lights continually

can affect the range of the scooter.

Battery Level Indicator Gauge

This gauge gives you a guide to the amount of charge left in the scooters

batteries. This will give the truest reading when the scooter is in motion.

Always fully charge the batteries before driving your scooter and never

let the batteries become completely drained, as this may cause

permanent damage to the batteries.

Charging

Socket

On/Off Key

Switch

Speed

Control

Battery Level

Indicator

Horn

Button

Light

Switch

Thumb Lever

Controls

Continued…..

On/Off Key Switch

Insert the key supplied with the scooter and turn clockwise. The battery gauge

needle will move. There may be a slight delay before the thumb levers

operate as the controller checks the scooters circuits. Never leave the key in

the switch unattended to prevent unauthorised use. Do not switch the

power off to stop the scooter unless it is an emergency. The scooter will

stop very abruptly if stopped in this way.

Speed Control Dial

The speed control enables you to set the maximum speed of the scooter. “1”

being slow, and “10” being the maximum. Always start at a slow speed until

accustomed with the scooter. Do not put excessive pressure on the dial.

Only turn as far as the stops.

Charging Socket

See Batteries and Battery Charger (Page 12)

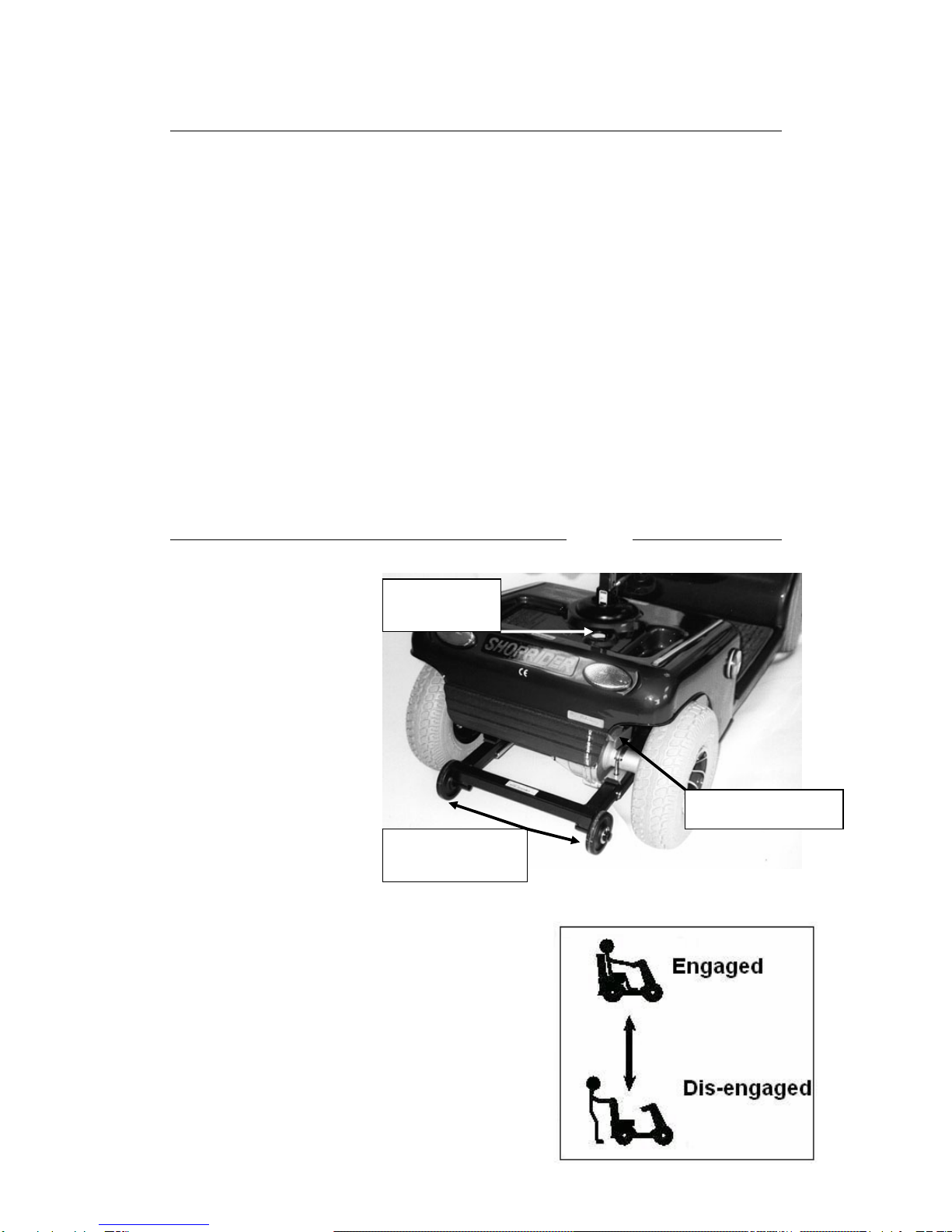

Brake Release / Freewheel Operation (Fig. 6 & 7)

The brake release lever

is situated under the

shroud at the right rear

of the scooter. This lever

allows you to disengage

the drive mechanism

and push the scooter in

‘freewheel’ mode. To

disengage the drive,

push the knob down to

the ‘disengaged’ position

(Fig.7). The scooter can

now be pushed.

Simply pull the lever

back to re-engage the

drive mechanism (the

scooter can now be driven). The scooter will

not operate when the lever is in the

disengaged position. The scooter must be

turned off and on by the key switch to reset the

circuits before it will resume noShopriderl

operation. The scooter will bleep continually if

the brake is disengaged when it is switched on.

Freewheel Lever

Anti Tipping

Wheels

Circuit

Breaker

Continued…..

Caution! Never leave the scooter unattended whilst in freewheel mode

as it will roll away down an incline. ‘Freewheel’ mode should only be

used in an emergency to move the scooter due to power failure. NEVER

move the scooter in this mode whilst it is occupied.

Starting to Drive

Getting Started

Note: You must fully charge the batteries prior to first use (see ‘Batteries

and Charging’)

Select an area with plenty of space.

Mount the scooter by either lifting the arm and sliding onto the seat or swivel

the seat around to access the scooter. Ensure the seat is securely locked

in the forward facing position before driving. Adjust the tiller and seat if

necessary (see ‘Adjustments’). DO NOT use the tiller to fully support you

during transfers.

Moving Off

Turn the key clockwise to turn on the power. Initially set the speed control to a

low setting. Push your right thumb lever and the scooter will move forward

slowly. The further you push the lever the faster the scooter will travel, but

only to the maximum speed that has been selected. Release the lever and the

scooter will come to a smooth controlled stop.

Caution! DO NOT switch off the power to stop the scooter as this will

cause the transmission to lock and the scooter will come to a sharp

stop, which could possibly cause injury. This procedure should only be

used in an emergency.

Steering

Steering the scooter is light and easy. Ensure you give obstacles a wide

clearance to avoid the rear wheels catching. When steering through limited

spaces, turn the tiller in the direction that you wish to go and apply power

gently. The scooter can turn very tightly with complete stability at slow

speeds.

Caution! NEVER turn sharply at high speeds (when speed is set in the

red area on the dial) as it can make the scooter unstable, which could

lead to injury.

Reversing

Before reversing ensure the area behind the scooter is free from any

obstacles or hazards. Adjust the speed setting to low before you reverse.

Press the left thumb lever, and steer wide of all corners and obstacles.

Caution! Do not reverse onto a main thoroughfare.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider TE-GK9 Manuel utilisateur

Shoprider

Shoprider Altea SL7-3 Manuel utilisateur

Shoprider

Shoprider TE-779XLS Manuel utilisateur

Shoprider

Shoprider Cadiz S-889SL Manuel utilisateur

Shoprider

Shoprider Valencia Manuel utilisateur

Shoprider

Shoprider Mikra TE-7A Manuel utilisateur

Shoprider

Shoprider TE-9 Manuel utilisateur

Shoprider

Shoprider 778 Series Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider 889-3XLS Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider Recreational Scooter GR889 Manuel utilisateur

Shoprider

Shoprider VIKING 3 Manuel utilisateur

Shoprider

Shoprider 889xlsn Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY With SUSPENSION Manuel utilisateur

Shoprider

Shoprider GK8 Manuel utilisateur

Shoprider

Shoprider Scooter Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider Perrero S-888SLR Manuel utilisateur

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider 889SLBF Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
