Shoprider GK8 Manuel utilisateur

3/17/2005 1

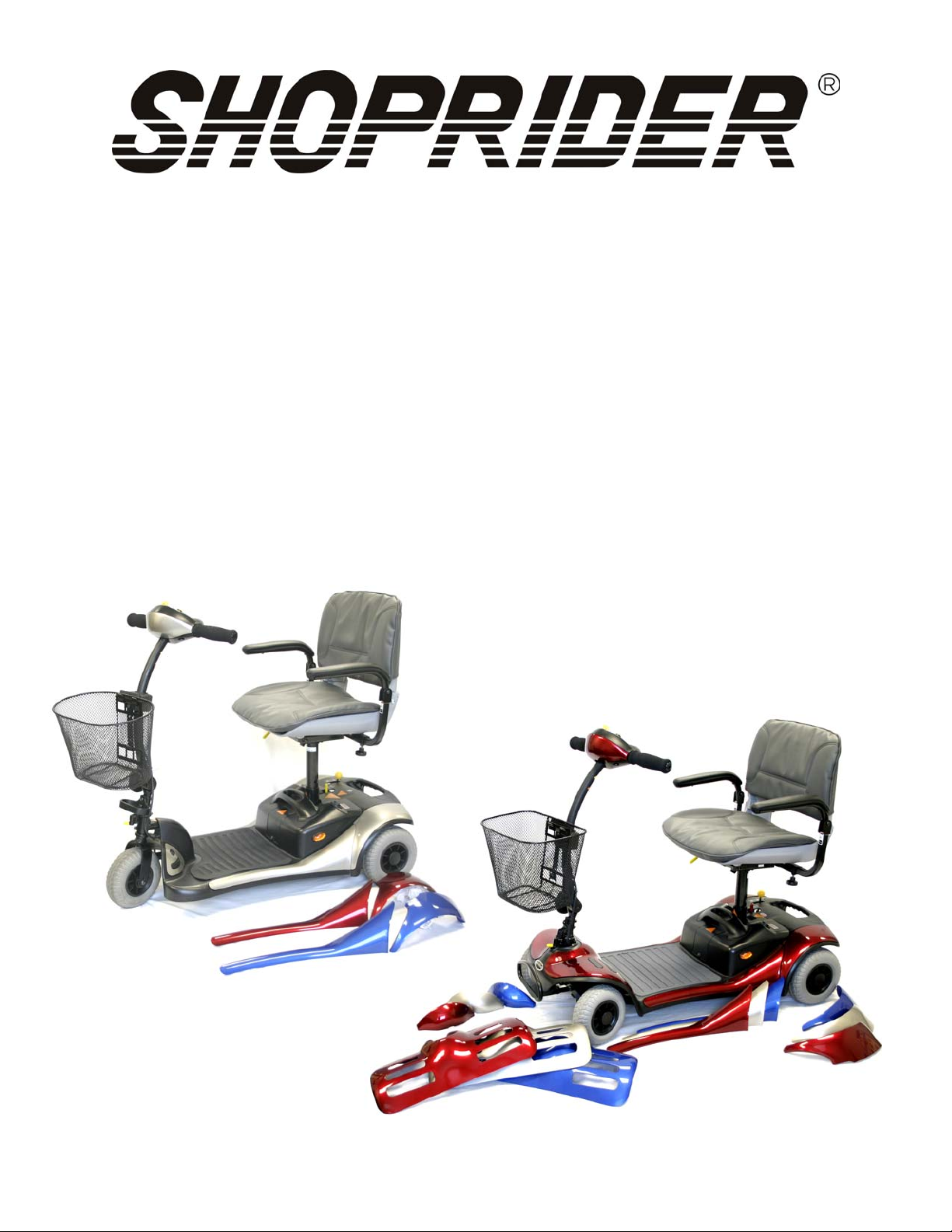

Dasher 3

Dasher 4

Portable Scooter

Model: GK83 / GK8

User Manual

™

3/17/2005 2

Table of Contents

INTRODUCTION…………………………………………………………….…………3

FEATURE GUIDE…………………………………………………………….………..3

SAFETY ADVICE………………………………………………………………….…...4

EMI WARNING………………………………………………………….……………...5

WARNINGS…………………………………………………………….……………….6

ADJUSTMENTS………………………………………………….……………………..7

SCOOTER TILLER CONTROLS………………………………….…………………..9

DRIVE/FREEWHEEL OPERATION…………………………………………………10

STARTING TO DRIVE YOUR SCOOTER………………………………………….11

EXTRA GUIDELINES IN THE CO NTROL OF YOUR SCOOTER……………….12

TRANSPORT/STORAGE……………………………………………………………..13

BATTERIES AND BATTERY CHARGING………………………………………….14

MAINTENANCE………………………………………………………………………..15

TROUBLESHOOTING GUIDE……………………………………………………….15

TECHNICAL SPECIFICATIONS……………………………………………………..16

QUARTERLY INSPECTION………………………………………………………….17

WARRANTY…………………………………………………………………………….18

DISCLAIMER…………………………………………………………………………...18

3/17/2005 3

INTRODUCTION

Congratulations on your purchase of the Shoprider® Dasher Portable scooter. The

Dasher is the ultimate combination of style, comfort and portability.

The Dasher comes with three interchangeable colors, giving you the choice of a

different color every day, and includes several innovative and convenient features.

The Dasher goes with you wherever you go and can be assembled or disass embled in

just seconds with wireless quick-connect components. The Dasher is super light and

compact, and can be stored in small areas such as the trunk or back seat of your car.

The compact features support easy transportation of your Dasher for today’s active

lifestyle.

The Dasher can be used in confined s paces both indoors and out. Direct drive

transaxles and electromagnetic brakes give a safe and efficient ride. We know that the

Dasher portable scooter will provide many years of mobility for you.

Please ensure that you read this manual carefully, it is important for your safety

that you understand the guidelines and instructions given.

3/17/2005 4

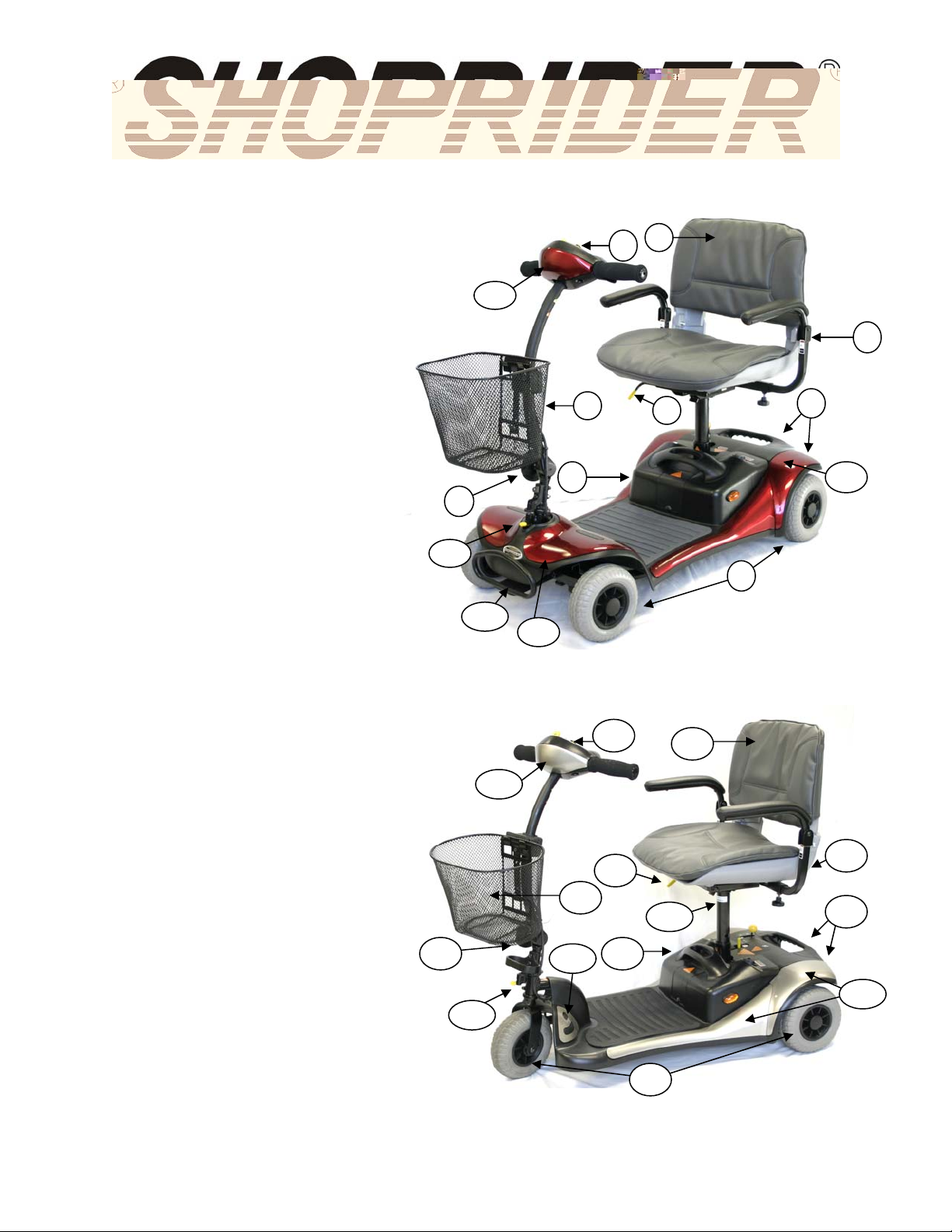

FEATURE GUIDE (Fig 1)

1. Tiller control head

2. Detachable seat with fold

down back

3. Removable flip-up arm

rests

4. Detachable basket

5. Detachable battery-pack

6. Tiller adjustment knob

7. Swivel seat lever and seat

release lever

8. Puncture proof tires

9. Anti-tip wheels

10. Front bumper

11. Tiller lock for transport

12. Detachable color-changing

panels (Secured by Velcro-

simply pull panel off to

change)

FEATURE GUIDE (Fig 2)

1. Tiller control head

2. Detachable seat with fold

down back

3. Removable flip-up arm rests

4. Detachable basket

5. Detachable battery-pack

6. Tiller adjustment knob

7. Swivel seat lever and seat

release lever

8. Puncture proof tires

9. Anti-tip wheels

10. Serial number

11. Tiller lock for transport

12. Detachable color-changing

panels (Secured by Velcro-

simply pull panel off to

change)

Figure 1

Figure 2

3/17/2005 5

SAFETY ADVICE

•DO NOT carry passengers.

•DO NOT exceed inclines over 8 degrees (14% grade).

•DO NOT turn on steep inclines.

•DO NOT turn suddenly at high speeds.

•DO NOT get on or off the scooter unless the brake is on and the scooter is switched

off.

•DO NOT switch off the scooter while the scooter is moving.

•DO NOT drive the scooter where you can not safely or legally walk .

•DO NOT drive the scooter on the road, street or highway.

•DO NOT attempt to drive over curbs greater than 2 inches in height. Doing so could

cause your scooter to turn over, causing injury or damage to the scooter.

•DO NOT drink or use a mobile phone when driving your scooter.

•DO NOT exceed the suggested user weight limit. Doing so, could cause personal

injury and invalidate the warranty.

•ALWAYS keep your feet on the scooter when moving.

•Consult your doctor if there is any doubt about your ability to use a scooter safely.

•ALWAYS slow down and proceed carefully when tr aveling over rough or uneven

ground.

•For individuals with balance problems practice getting on the scooter with assistance

of a qualified healthcare professional.

•DO NOT operate the scooter without anti-tip wheels installed.

•DO NOT use an escalator to move a scooter between floors. Serious injury could

occur.

•DO NOT drive the scooter on an incline that has oil, water or ice film on it.

•DO NOT try to lift the scooter by its seat, tiller, or any removable parts. Any of these

could cause injury to the user or damage to the scooter.

•DO NOT use parts or accessories that are not authorized by Shoprider®.

•Before sitting in or exiting the scooter, REMOVE the key from the ignition. This wi ll

insure the POWER is off and the scooter can not move under its own power.

•As a general precaution, always remove the key from the ignition while the scooter is

not in use. This will prevent use by untrained and unauthorized persons.

•DO NOT connect any medical device to the scooter battery. This could cause failure

of the device, the scooter and personal injury.

•Make sure the tiller is properly adjusted to the user or damage and injury could result.

•DO NOT transport in a vehicle WHILE seated on the scooter. Shoprider® will not be

responsible for any injury or damage that might result.

•DO NOT use the scooter in the rain or near any other water source where t he scooter

may get wet. Direct exposure to rain or dampness could cause damage to the scooter

electrical components.

•For maximum battery life, make sure to fully charge batteries for up to 12 hours prior

to first use.

3/17/2005 6

EMI WARNING

Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is

a kind of interfering electromagnetic energy (EM) emitted from sources such as radio

stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular

phones. The interference (from radio wave sources) can cause the scooter to release

its brakes, move by itself, or move in unintended directions. It can also permanently

damage the scooter’s control system.

The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transce ivers (transmitters-receivers) with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios,

“walkie talkie”, security, fire and police transceivers, cellular telephones, and other

personal communication devices.

NOTE! Some cellular telephones and similar devices transmit signals while they

are ON, even when not being used.

2. Medium-range mobile transceivers, such as those used in polic e cars, fire trucks,

ambulances, and taxis. These usually have the antenna mounted on the outside of

the vehicle.

3. Long-range transmitters and transceiv ers, such as commercial broadcast

transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and small

appliances, such as electric shavers and hair dryers, so far as we know, are not

likely to cause problems to the scooter.

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio sources (transceivers)

are of special concern. It is possible to unintentionally bring high levels of EM energy

very close to the scooter’s control system while using these devices. This can affect

scooter movement and braking. Therefore, the warnings listed below are

recommended to prevent possible interference with the control system of the scooter.

3/17/2005 7

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens

band (CB) radios, or turn ON personal communication devices, such as cellular

phones, while the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid

coming close to them.

3. If unintended movement or brake release occurs, turn the scooter OFF as soon as it

is safe.

4. Be aware that adding accessories or components, or modifying the scooter may

make it more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the scooter.

5. Report all incidents of unintended movement or braking to your Shoprider® provider,

and note whether there are sources of EMI nearby.

WARNING! Shoprider® is not responsible for damage or injury incurred due to

improper and unsafe use of our scooter.

3/17/2005 8

ADJUSTMENTS

Tiller Angle Adjustment (Fig 2)

At the base of the tiller is a round knob. Turn the knob

counterclockwise to loosen the tiller and select the

desired tiller angle. Turn the knob clockwise to

securely lock the tiller into place.

Folding the Tiller (Fig 3)

Fold down the tiller by loosening the tiller angle

adjustment knob located at the base of the tiller

(fig 2). Tighten knob to lock tiller in place. Yo u may

lock the tiller assembly into place so that it doesn’t

swing from side to side by liftin g the yellow tiller

lock lever up (fig 2) and to the right.

Seat Removal (Fig 4)

Fold down the back of the seat. Lift the swivel seat

release handle up to lift the seat up and off the seat

post.

Figure 3

Figure 4

Swivel

Seat

Release

Handle

Figure 2

Tiller Angle

Adjustment

Knob

Tiller Lock

Lever

(yellow)

3/17/2005 10

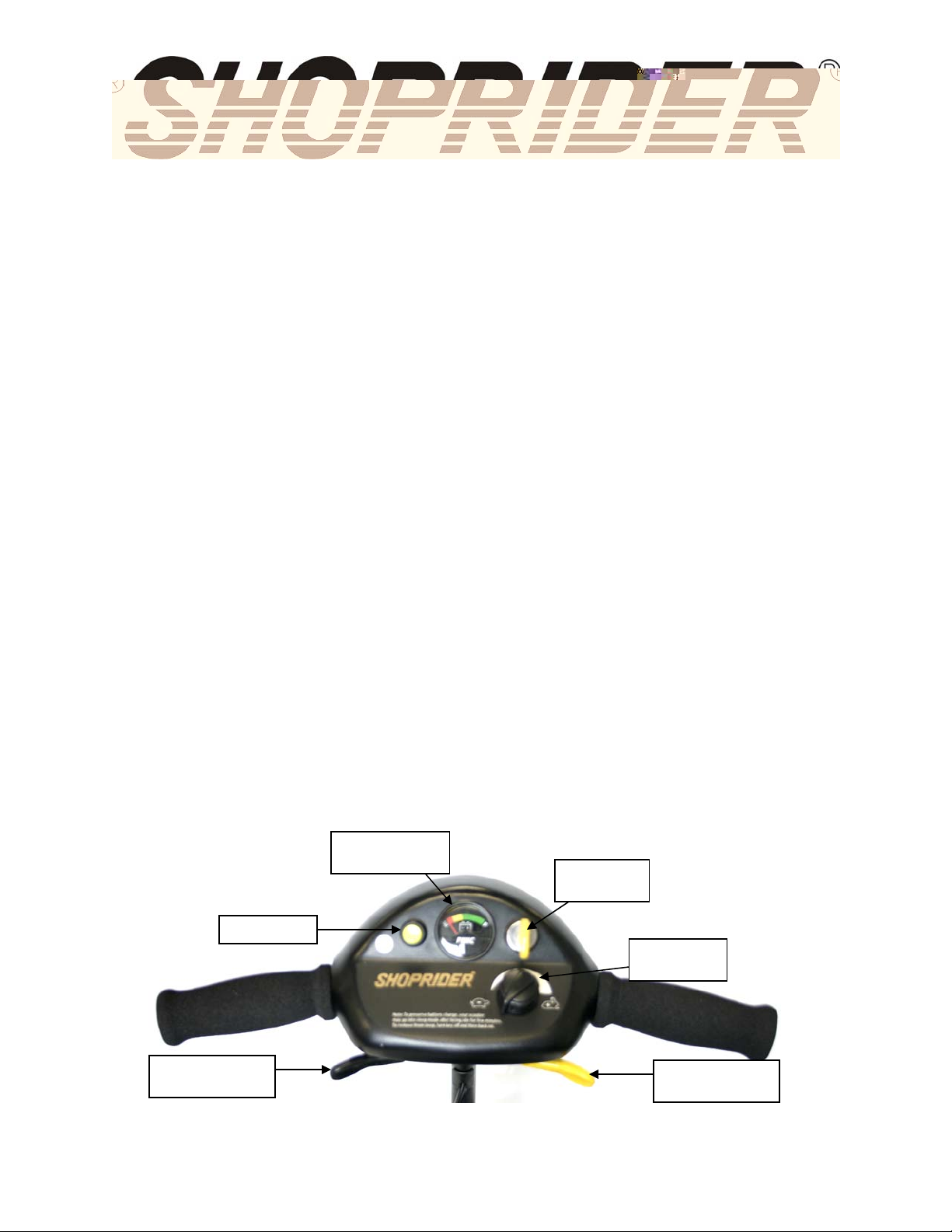

SCOOTER TILLER CONTROLS (FIG 7)

Speed Controls

The speed control allows you to set a speed between slow (turtle) and fast (rabbit).

Battery Level Indicator Gauge

Where the needle sits, shows the amount of charge left in your batteries. The amount of

charge will only show at its true level when the scooter is in drive.

Caution – Do not allow the gauge needle to go down completely as complete

discharge of the batteries could cause irreversible damage.

Horn

A yellow button on top of the tiller operates the horn.

Thumb Lever Controls

The left thumb lever controls the reverse and the right thumb lever controls the forward

motion. The amount of pressure applied to each lever will determine the speed the scooter

travels at up to the speed selected. Release the thumb lever and the scooter will

automatically come to a stop as the electromagnetic brake is applied to the motor.

On/Off Key Switch

Insert the key into the key switch located on top of the tiller. Turn the key and the battery

gauge needle will move. There may be a slight delay before the thumb lever control can be

operated, while the main controller checks the circuits.

Electromagnetic Brake

The brake is automatically operated when the thumb control levers are pressed or

released. There is a slight delay when the scooter decelerates; this allows the scooter to

come to a smooth stop.

Battery Level

Indicator Gauge

Speed

Control Dial

On/Off

Key Switch

Horn Button

Thumb Lever

Control (Forward)

Thumb Lever

Control (Reverse)

Figure 7

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Perrero S-888SLR Manuel utilisateur

Shoprider

Shoprider FS777 GETABOUT Manuel utilisateur

Shoprider

Shoprider S-889NR Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider mobility scooter Manuel utilisateur

Shoprider

Shoprider Greenrider ES-16 Manuel utilisateur

Shoprider

Shoprider SUNRUNNER 3 888B-3 Manuel utilisateur

Shoprider

Shoprider TE-787M Manuel utilisateur

Shoprider

Shoprider 778 Series Manuel utilisateur

Shoprider

Shoprider Venturer Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider Altea SL7-3 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider TE-889SLF Manuel utilisateur

Shoprider

Shoprider Rocky 6 Manuel utilisateur

Shoprider

Shoprider Cooper Manuel utilisateur

Shoprider

Shoprider Torino S-778XLSBN Manuel utilisateur

Shoprider

Shoprider Capri S787M Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider 888SE Explorer Manuel utilisateur

Shoprider

Shoprider 889SLBF Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
