Shoprider VIKING 3 Manuel utilisateur

Owner’s Manual

IKING 3

ATTENTION

Please read your

owner’s manual before

driving your scooter.

CONTENTS

INTRODUCTION .....................................................................................................3

FEATURE GUIDE ....................................................................................................3

SAFETY ADVICE ....................................................................................................4

EMI Warning ...........................................................................................................6

ADJUSTMENT ........................................................................................................9

SCOOTER TILLER CONTROLS .............................................................................10

FREE WHEEL OPERATION ...................................................................................11

STARTING TO DRIVE YOUR SCOOTER.................................................................12

EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER ...........................13

BATTERIES AND BATTERY CHARGER ...............................................................14

MAINTENANCE ......................................................................................................15

TROUBLE SHOOTING GUIDE ...............................................................................17

WARRANTY TERMS & CONDITIONS ....................................................................19

TECHNICAL SPECIFICATIONS ...............................................................................21

DISCLAIMER ...........................................................................................................22

NOTES ......................................................................................................................24

INTRODUCTION

Congratulations on your purchase of the Shoprider®scooter. This scooter incorporates the

latest innovative designs patented and only available on a Shoprider®scooter. This

scooter can be used in outdoors. Direct drive transaxles and electromagnetic brakes give

a safe and efficient ride. This Shoprider®scooter is designed for persons with limited

mobility.

Please read this manual carefully and thoroughly before using your scooter and

make sure you understand all the instructions.

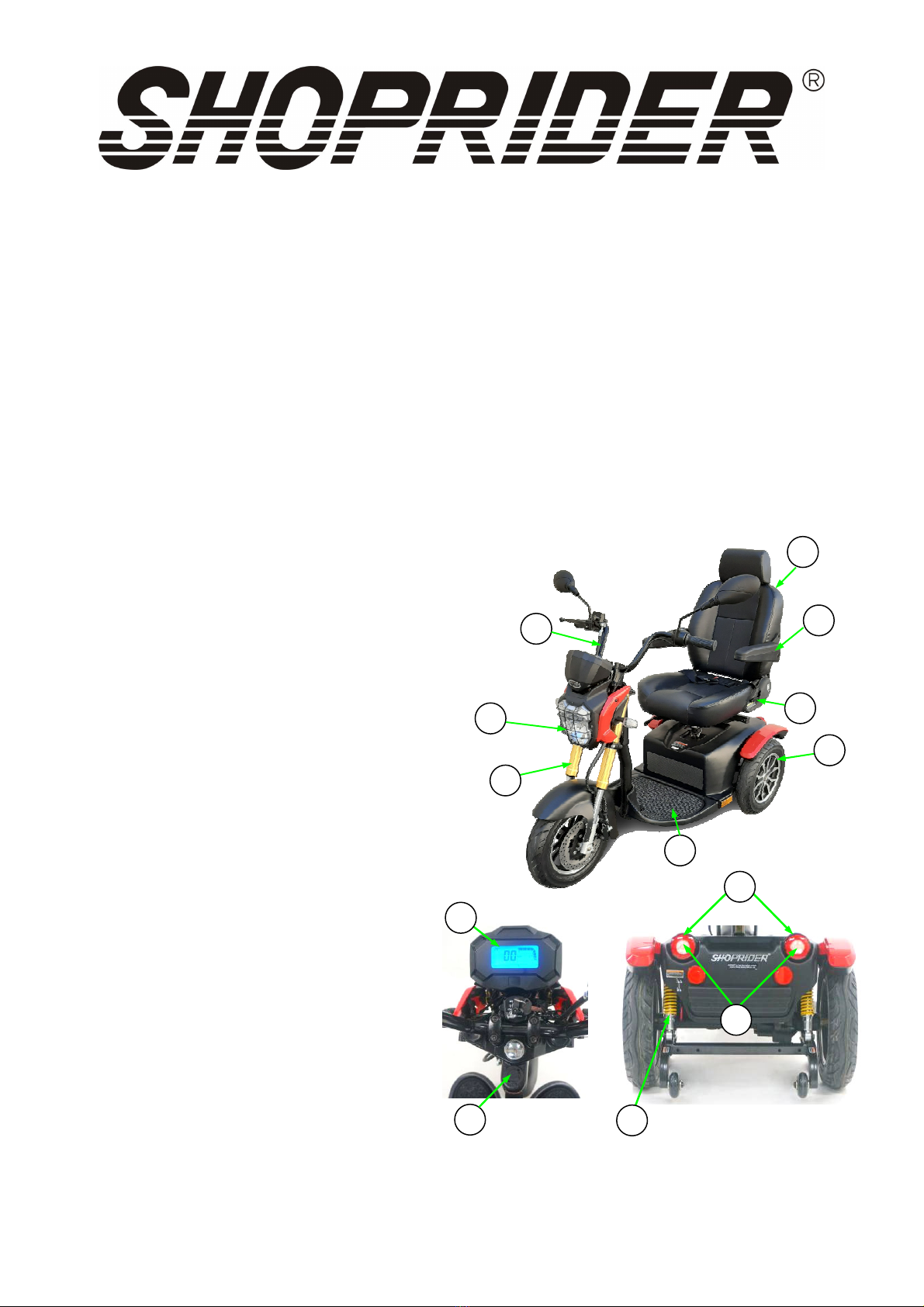

FEATURE GUIDE (VIKING 3)

1. Tiller Handle Bar

2. Black Vinyl Captain Seat

3. Armrests

4. Seat Reclining

5. Black Pneumatic Tire

6. Footrest Mat

7. Front Suspension Forks

8. LED Headlight

9. LCD Display

10. Charging Port

11. Rear Indicators & Hazard Lights

12. Brake & Taillights

13. Rear Suspension

10 13

SAFETY ADVICE

• Do not carry passengers.

• This mobility Product is intended to assist you. For your own safety, please read the

Owner’s Manual before using the Scooter. If in any doubt, contact your supplier directly for

advice.

• Do not exceed inclines over 9 degrees (15% grade).

• Driver weight may exceed weight of the unit, speed must be reduced when turning.

• Do not get on or off the scooter unless the brake is on and the scooter is switched off.

• Do not switch off the scooter while the scooter is moving.

• Do not drive the scooter where you can not safely or legally walk.

• Do not attempt to drive over curbs greater than 6.5cm in height. Doing so could cause

your scooter to turn over, causing personal injury or damage to the scooter. For curbs

less than 6.5cm, always approach them at an angle of 90 degrees and at a low speed.

• Do not drink or use a mobile phone when driving your scooter.

• Do not exceed the suggested user weight limit to use the product. Doing so, could cause

personal injury and/or damage to the unit or surrounding property may occur.

• Always keep your feet on the scooter when moving.

• Please make sure that you are physically capable to operate this unit. Consult your

dealer/doctor for advice.

• Always slow down and proceed carefully when traveling over rough or uneven ground.

• For individuals with balance problems, practice getting on the scooter with the assistance

of a qualified healthcare professional.

• Do not use an escalator to move a scooter between floors or serious injury could occur.

• Do not drive the scooter on an incline that has oil, water or ice film on it.

• Do not try to lift the scooter by its seat, tiller, rear chassis cover, or any removable parts.

Any of these could cause injury to the user or damage to the scooter.

• Do not use parts or accessories that are not authorised by the original manufacturer of the

scooter.

• Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will insure

the POWER is off and the scooter can not move under its own power. As a general

precaution, always remove the key from the ignition while the scooter is not in use. This

will prevent the use by untrained and unauthorised persons.

• Do not connect any foreign device to the scooter battery or charging port. This could

cause failure of the device, the scooter and personal injury.

• Make sure the tiller is properly adjusted and in the locked position to suit the user to avoid

damage and injury

• It is not allowed to have any person sitting in the scooter when transported by a vehicle,

otherwise any injury or damage that might result.

• Do not use the scooter in the rain, near a shower or in a damp bathroom. Direct exposure

to rain or dampness could cause the scooter to electrically malfunction.

• Do not lean against or pull forward on the tiller while mounting or dismounting the scooter.

Otherwise, injury may occur.

• Do not operate the unit or turn the key on while charging.

• Whenever a center bolt of the wheel assembly has been loosened, please replace a

specified new bolt from authorized dealers and secure with a torque of 240 ± 5 kg-cm

together with Loctite 271 adhesive (or equivalent).

• Charge batteries daily after use.

• Charging plug has to be removed from the scooter after charging.

• Battery cables must be securely fastened onto battery terminals by the authorised dealers

before using the unit and secured inside the scooter rear cover.

• Batteries must be tied down correctly and securely with the straps supplied.

• Always check the check the battery charge remaining before operating the unit to ensure

you have sufficient for your journey.

• Always charge the batteries of the unit in a well ventilated area.

• If the unit went over or sank into deep water, please switch off power of the unit and

consult with your authorised dealer for help right away.

• Always remove the key from the scooter when the unit is not in use or before charging,

removing and installing the batteries. Otherwise, injury and/or damage to the unit or

surrounding property may occur.

• Do not operate the unit in the way of exceeding to the product’s specification listed in this

owner’s manual. Otherwise, injury and/or damage to the unit or surrounding property may

occur. Doing so may also Void your warranty.

• Do not use the thumb/finger lever before the key switch is turned on, or the operation will

be prohibited until to turn key switch off and then on.

• Ensure the scooter is serviced every 12 months by an authorised Shoprider service

provider to ensure it remains in safe working order. Failure to do so may cause

catastrophic failure with possible injury and damage to surrounding property.

EMI Warning

Shoprider®scooters may be susceptible to electromagnetic interference (EMI), which is a

kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations,

TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The

interference (from radio wave sources) can cause the scooter to release its brakes, move

by itself, or move in unintended directions. It can also permanently damage the scooter’s

control system. The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie

talkie”, security, fire and police transceivers, cellular telephones, and other personal

communication devices.

NOTE! Some cellular telephones and similar devices transmit signals while they are

ON, even when not being used.

2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,

ambulances, and taxis. These usually have the antenna mounted on the outside of the

vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast transmitters

(radio and TV broadcast antenna towers) and amateur (HAM) radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and small

appliances, such as electric shavers and hair dryers, so far as we know, are not

likely to cause problems to the scooter.

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the transmitting

antenna (source), the EM fields from hand-held radio sources (transceivers) are of special

concern. It is possible to unintentionally bring high levels of EM energy very close to the

scooter’s control system while using these devices. This can affect scooter movement and

braking. Therefore, the warnings listed below are recommended to prevent possible

interference with the control system of the scooter.

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens band

(CB) radios, or turn ON personal communication devices, such as cellular phones, while

the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming

close to them.

3. If unintended movement or brake release occurs, turn the scooter OFF as soon as it is

safe.

4. Be aware that adding accessories or components, or modifying the scooter may make it

more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the scooter.

5. Report all incidents of unintended movement or braking to your Shoprider®dealer, and

note whether there are sources of EMI nearby.

WARNING: The original manufacturer and the importer of the scooter is not

responsible for damage or injury incurred due to improper and unsafe use of our

scooter.

ADJUSTMENTS

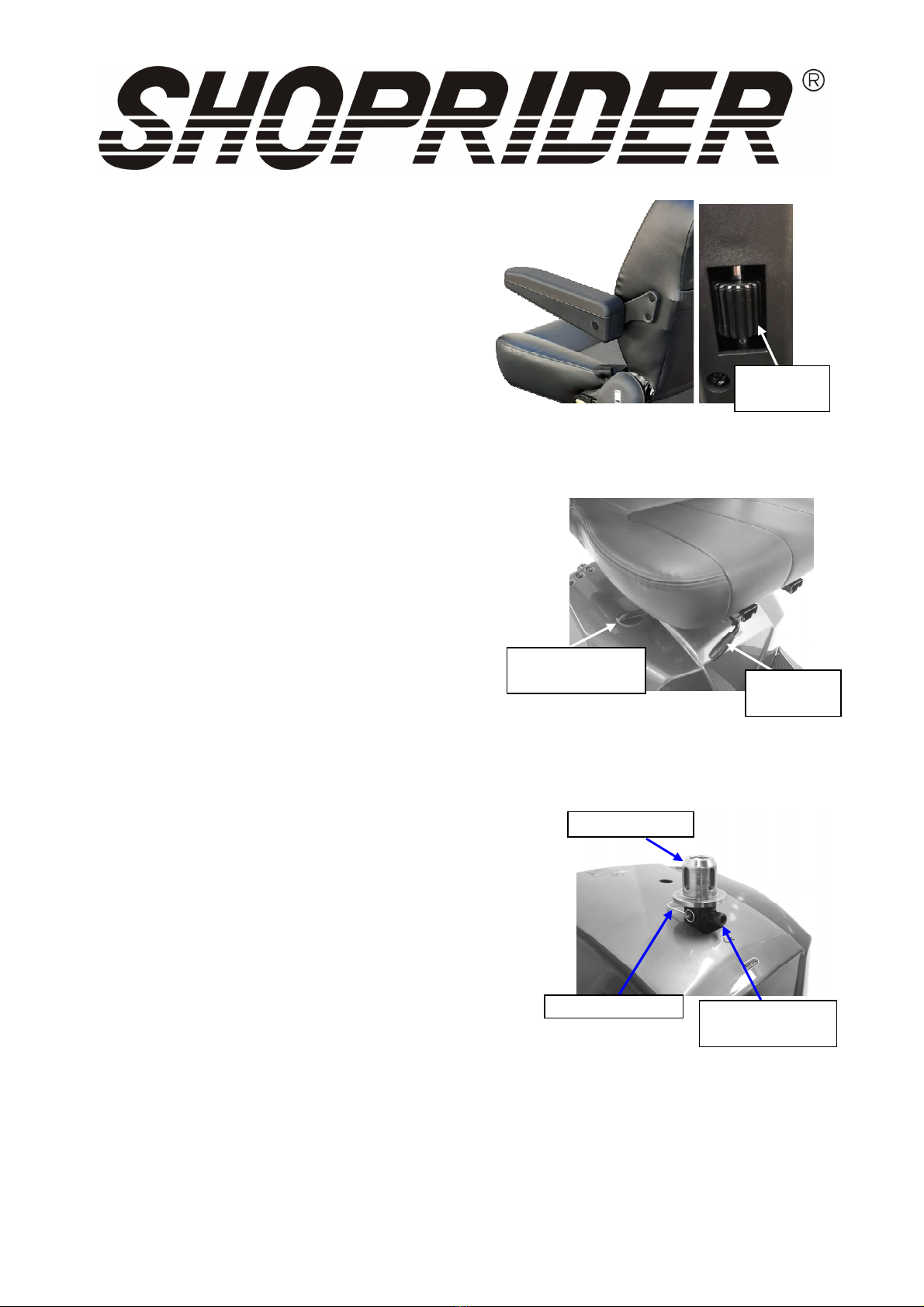

Armrest Angle Adjustment (Fig. 1)

Flip up the armrests to allow access to the

adjusting wheel located under the armrest

wind the adjusting wheel (Fig. 2) in a either

clockwise or anti clock direction to adjust the

armrest up or down.

Do not use the scooter without the arms

being fitted.

Seat Slide & Swivel Adjustment (Fig. 3)

Pulling up on the seat slide lever allows the

seat position to be adjusted forward or

backward. Release the lever and the seat

will lock in that position. Under the right

side of the seat there is a spring loaded red

lever. Pulling up on the lever allows the seat

to swivel, when released the seat will lock

into one of 3 positions.

Seat Removal (Fig. 4)

Fold down the back of the seat. Pull up the

swivel seat adjustable lever (fig. 3) and lift

seat off.

Seat Height Adjustment (Fig. 4)

Remove seat as described above. Loosen

seat tightening bolt by hex key wrench.

Remove the locking pin that secures the seat

adaptor. Lift the seat adaptor out of the seat

post. The seat height can be adjusted to 3

different settings by inserting the steel locking

pin in the required hole. Retighten the bolt and

replace the seat.

Fig. 2

Swivel Seat

Adjustable Lever Seat Slide

Lever

Fig. 3

Seat Tightening

Bolt

Seat Locking Pin

Seat Adaptor

Fig. 4

Fig. 1

Adjusting

Wheel

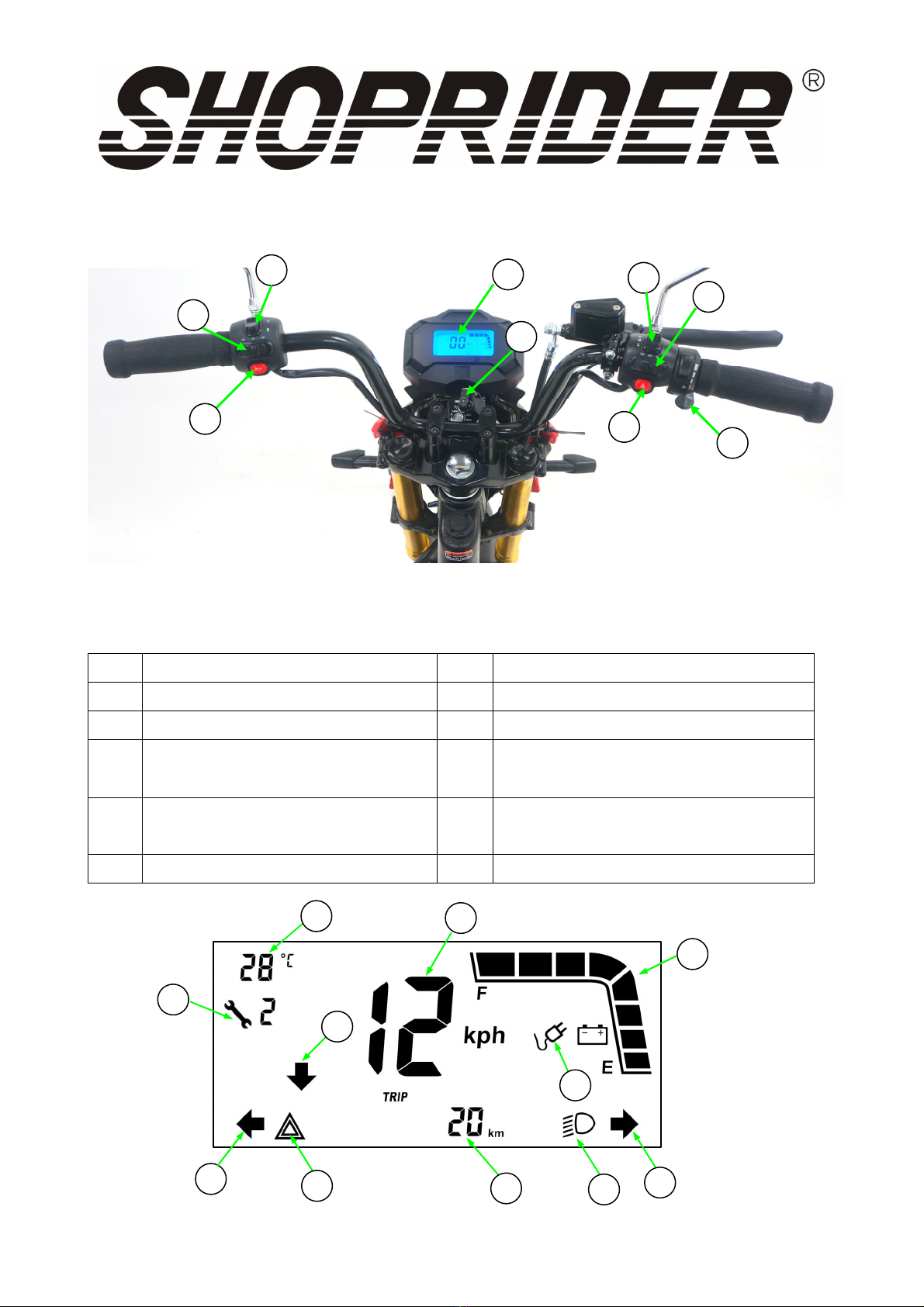

SCOOTER TILLER CONTROLS (Fig. 5)

(1) LCD Display

Item Description Item Description

A Temperature Display F Odometer Display

B Speedometer Display G Headlight / High Beam Display

C Battery Gauge Display

“E”: Empty ; “F”: Full H Hazard Warning Light Display

D Direction of Travel Display I Spanner Symbol & Code – Service

refer to Self-Help Guide (P.17)

E Left / Right Turn Signal Display J Charging Display

Fig. 5

6 5

E E

(2 & 3) Speed Controls

The speed control allows you to control your speed up to maximum speed of 10kmph

Pushing down on the thumb lever (2) to increase or decrease your speed, to stop the

scooter remover your thumb from the lever for automatic braking. The “High / Medium /

Low” switch (3) can be used to drive the scooter at it maximum speed of 10kmph.

Please use extra caution when using the scooter in “High” mode.

NOTE: When attempting to climb slopes you will need to set the “High / Medium / Low”

switch in to the “High” setting.

NOTE: This scooter is fitted with slow when turning function so will slow down when the

handle bars are turned you cannot speed the scooter up when turning.

Electromagnetic Brake

The brake is automatically operated when the control levers are released. There is a slight

delay when the scooter decelerates; this allows the scooter to come to a smooth stop.

(4) Headlight

Sliding switch to turn on the LED headlight light ( ). To turn on high beam use ( )

button, the tail lights will come on when the headlights are on.

(5) Hazard Warning Switch

A red button operates all indicators flashing.

(6) Horn

A red button operates the horn.

(7) Forward or Reverse Controls

The thumb lever controls the speed and to operate the scooter in reverse – ensure the

scooter is at a standstill and press (7) and look at the LCD screen (D) to see the indicated

direction of travel. To change back to the forward direction ensure the scooter is at a

standstill and press (7) and look at the LCD screen (D) to see the indicated direction of

travel.

(8) On/Off Key Switch

Insert the key in the key barrel. Turn the key on and the LCD screen will indicate the battery

charge. There is a delay before the thumb lever control can be operated, while the

controller is checking the circuits.

(9) Indicator Switch

Slide the switch to the Right or Left indicator respectively. Returning the lever to centre

position to turn off the indicator

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Grande TE-9AS Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider 889xlsn Manuel utilisateur

Shoprider

Shoprider GK4 Manuel utilisateur

Shoprider

Shoprider (888-3L) Manuel utilisateur

Shoprider

Shoprider SUNRUNNER 3 888B-3 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider Scooter Manuel utilisateur

Shoprider

Shoprider FS777 GETABOUT Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider ROCKY 8 Manuel utilisateur

Shoprider

Shoprider Rocky 6 Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider eclipse 778EL Manuel utilisateur

Shoprider

Shoprider Greenrider ES-16 Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider Dasher 3 Manuel utilisateur

Shoprider

Shoprider Cooper Manuel utilisateur

Shoprider

Shoprider Cadiz S-889SL Manuel utilisateur

Shoprider

Shoprider Torino S-778XLSBN Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
