Shoprider Grande TE-9AS Manuel utilisateur

Grande

Model – TE-9AS

USER MANUAL

Please ensure that this manual is read and understood before using

the scooter.

June 2014

Rev 1

Contents Page

Introduction 3

Intended Use 3

Feature Guide 4

Safety Advice 5

Adjustments

Tillerangle 6

Seat swivel / slide 6

Seat removal 7

Seat height 7

Arm width adjustment 7

Arm angle adjustment 8

Arm height adjustment 8

Tiller Controls 9

Brake Release / Freewheel Operation 11

Starting to Drive

Getting Started 12

MovingOff 13

Steering 13

Reversing 13

Ramps / Slopes 13

Surfaces 13

Transferring 13

Storage 14

Batteries and Battery Charger 14 - 15

Maintenance 15

Troubleshooting

Fuses 16

CheckList 16

Further Information 17

Technical Specification 18

Warranty

Introduction

Congratulations on your purchase of the SHOPRIDER Grande scooter. This scooter

incorporates the latest innovative designs. The SHOPRIDER Grande can be used in

confined spaces both indoors and out. A direct drive rear transaxle and

electromagnetic brake give a safe and efficient ride.

Intended Use

The SHOPRIDER Grande is intended for indoor or outdoor use in pedestrian areas by a

single individual with limited mobility up to a maximum weight of 136kg (21st). It is

intended to be used by those suffering from some disability or impairment which

prevents a normal level of personal mobility.

The acute manoeuvrability prohibits the use by persons who are severely physically

impaired or those who have balance difficulties. Your assessor / healthcare professional

will determine the suitability of the scooter for each individuals’ intended use.

Note: Persons with lower body amputations should not use this device unless evaluated

with artificial limbs fitted, as stability may be compromised due to an irregular centre of

gravity.

The Grande is a Class 3 invalid carriage and is not legally defined as a motor vehicle,

and therefore the user is not required to possess a driving license. It is exempt from MOT

certification. It must however be registered with the DVLA and display a nil duty vehicle

license (tax disk).

A Class 3 invalid carriage can only be used by a person suffering from some physical

defect or physical disability aged 14 or over, or by an able bodied person who is

demonstrating a vehicle before sale, training a disabled user or taking the vehicle to or

from a place for maintenance or repair.

A Class 3 invalid carriage can be used on public roads, but not on motorways, cycle

lanes or bus lanes. When used on pavements or in pedestrian areas the scooter MUST

be switched to its lower speed limit (see page 8). It is not recommended that the

scooter is used on a dual carriageway, but if it is necessary an amber coloured flashing

beacon must be used to warn other road users of your presence.

It is important that the user reads and understands the safety advice given within this

manual before attempting to operate the product to avoid possible injury to the user or

bystanders and avoid damage to the scooter or surrounding property.

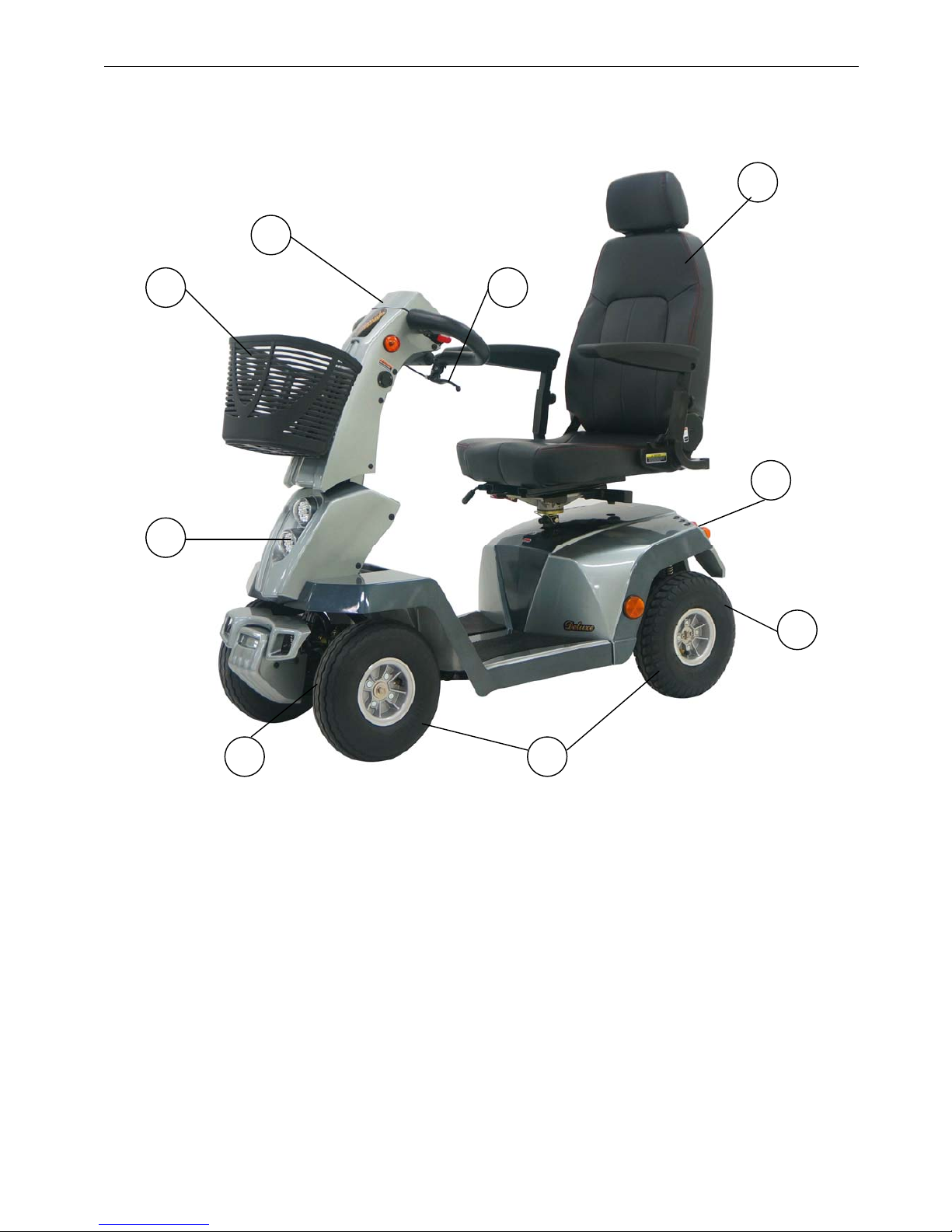

Feature Guide

‘Grande’

1. Tiller control head

2. Hand brake

3. Captains seat with recline and adjustable width armrests

4. Indicators

5. Anti tippers

6. 12.5” Wide profile pneumatic wheels – non marking tyres

7. Front and rear suspension

8. LED headlights

9. Detachable front basket

Safety Advice

DO:

Read this manual carefully before using your scooter.

Turn the power off when transferring to and from the scooter.

Select a slow speed when going down gradients (max 6°) or over uneven ground.

Keep your feet on the scooter whilst driving.

Ensure the seat is in a fixed position facing forwards before driving.

Ensure the tiller is secure.

Ensure the batteries are fully charged before your journey.

Avoid rough or soft terrain and long grass wherever possible.

Be aware of other road users and pedestrians. If driving on the road you MUST

adhere to the Highway Code.

Use lights whenever necessary.

Turn the power off when not in use.

Follow the maintenance guide to ensure safe operation of the scooter.

Always remove the keys if leaving the scooter unattended. Unauthorised

persons/children may use the scooter resulting in injury.

DO NOT:

Carry passengers.

Carry bags, luggage or walking aids on or near the tiller control other than in the

basket provided.

Exceed inclines over 8°.

Traverse inclines.

Attempt inclines if the surface is slippery.

Turn sharply at full speed.

Exit or enter the scooter unless the power is switched off.

Switch off the power whilst driving – this will cause the scooter to stop abruptly

(see emergency procedures – page 16).

Use the scooter where you cannot safely or legally walk.

Attempt to climb or descend kerbs except drop down kerbs.

Use the scooter if under the influence of alcohol or any medication.

Use a mobile phone whilst driving.

Attempt to negotiate steps or escalators.

Sit on the scooter if being transported in a vehicle.

Attempt to tow any other devices.

Exceed the stated weight limit.

Connect any other devices to the batteries as this could cause permanent

damage and void your warranty.

Use any other batteries/charger other than those supplied by SHOPRIDER.

Travel through water or over soft terrain (mud, sand etc.)

Lift the scooter by the shroud assembly or any plastic part.

Sharply shift your centre of gravity as this could make the scooter unstable.

Freewheel down hills. This will damage the motor and brake and void the

warranty,

Tow the scooter with any other vehicle in the event of a breakdown.

Every care has been taken to ensure that your scooter will give you safe, reliable service

provided you adhere to the advice given above.

Adjustments

Tiller Angle Adjustment

The lever to adjust the tiller angle is located on the right side of the tiller cover. To adjust

the angle hold down the lever and move the tiller to the desired position and then

release the lever to lock it in position. DO NOT hang bags or other objects from the lever.

Seat Swivel & Seat Slide

The seat has a lockable swivel base to allow easier transfers. Simply lift the lever and

rotate the seat at the same time. Releasing the lever will allow the seat to lock in

position. The seat locks in 90-degree intervals. Always ensure the seat is in a locked

position before mounting or dis-mounting the scooter. The seat should always be locked

facing forward whilst driving. To adjust the seat depth, lift the seat slide lever and move

the seat to the most comfortable position. Release the lever to lock in position.

Continued…..

Seat Removal

To remove the seat, lift the seat swivel lever and at the same time lift the seat up, away

from the scooter. Fitting the seat is the reverse of the above procedure. Ensure the seat

is properly relocated after fitting by operating the swivel function.

Do not hang baggage or other objects on the back of the seat as this may affect

stability.

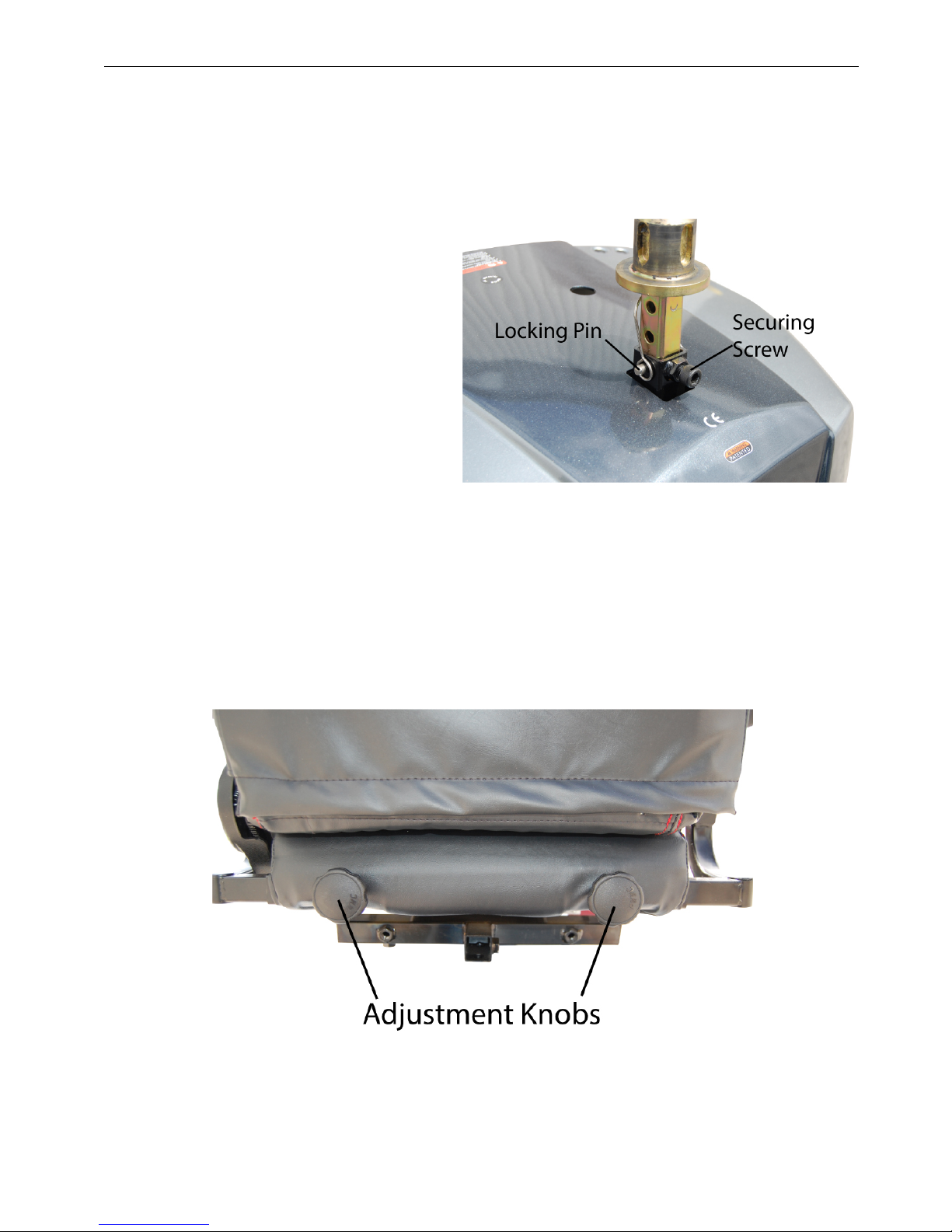

Seat Height Adjustment

Remove the seat as previously

described. Loosen the securing screw

and remove the locking pin. Adjust the

seat post to the desired height. Insert

the locking pin ensuring the retaining

clip is refitted and tighten the securing

screw. Re-fit the seat as above.

The higher the seat is adjusted; stability may be affected due to the higher centre of

gravity.

Arm Width Adjustments

On each side of the seat towards the back there are two hand knobs, these are to

adjust the width of the armrests or to remove then for transport.

Turn the hand knobs anti-clockwise to loosen. Once the knobs are loose you will be able

to adjust the armrests in or out to the desired width. Re-tighten when a comfortable

width has been achieved or remove the armrests completely for transport.

If removing the armrests for transport, ensure that the hand knobs are re-tightened to

avoid them rattling loose and falling out.

Do not apply full body weight to the armrests for transferring. Lift the arm up out of the

way to transfer to another seat.

Continued…..

Armpad Angle Adjustment

Lift up the armpad to expose the adjustment screw. Slacken the locking nut and undo /

tighten the adjustment screw to change the angle of the armpad to the most

comfortable position. Tighten the locking nut to fix the angle of the armpad.

Armrest Height Adjustment

At the back of each arm upright you will see the adjustment hand knob. Completely

undo the handknob and adjust to the required height. Reinsert the handknob and fully

tighten, ensuring it locates into one of the holes in the arm upright.

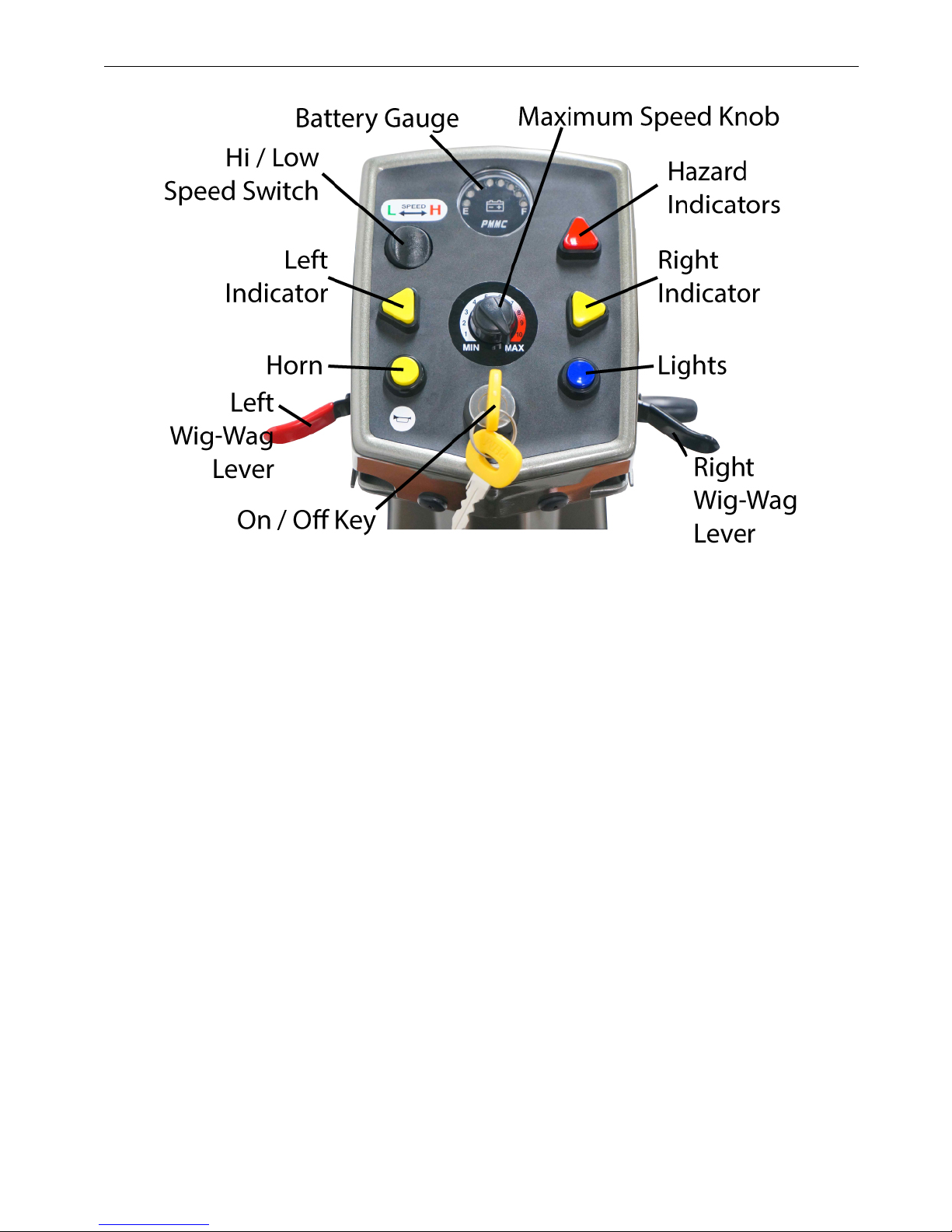

Tiller Controls

Maximum Speed Knob

The speed control enables you to set the maximum speed of the scooter. Turn clockwise

to increase the maximum speed and anti-clockwise to decrease. Always start at a slow

speed until accustomed with the characteristics of your scooter. Do not put excessive

pressure on the dial. Only turn as far as the stops.

When driving in pedestrian areas such as shopping precincts and busy pavement areas

always respect other pedestrians and turn the maximum speed down so that the

scooter travels at the walking pace of others around you.

Battery Level Indicator Gauge

This gauge gives you a guide to the amount of charge left in the scooters batteries. This

will give the truest reading when the scooter is in motion. Always fully charge the

batteries before driving your scooter and never let the batteries become completely

drained, as this may cause permanent damage to the batteries.

Hazard Indicators

Pressing the button will activate the hazard warning lights. All indicators will flash on & off

simultaneously until the button is pressed again.

Right / Left Indicators

To operate the direction indicators, press either the right / left button to indicate your

intended manoeuvre. The button should be pressed a second time to cancel the

indicator.

Lights

Pressing the button will turn on the headlights and rear lights. Press again to switch off.

Continued…..

On / Off Key

Simply insert the key and turn clockwise to switch the power on. The display will light up

to indicate the power is on. There may be a slight delay before the thumb levers

operate as the controller checks the scooters circuits. Never leave the key in the switch

unattended to prevent unauthorised use. Do not switch the power off to stop the scooter

unless it is an emergency. The scooter will stop very abruptly if stopped in this way.

Finger Lever (Wig-Wag)

The finger levers control the reverse and forward motion of the scooter – see ‘Starting To

Drive’ for operation. Remember, more pressure = more speed. Release the lever and

the scooter will automatically come to a safe stop as the electromagnetic brake is

applied. Always release the lever if the scooter behaves erratically.

Horn Button

The button operates the scooters horn. This should only be used to warn others of your

presence and not as a rebuke of any form.

Hi / Low Speed Switch

This will switch the scooter between a maximum 4mph & 8mph mode. 8mph may only

be used when driving on the road.

Take notice of the advice given regarding maximum speed when in pedestrian areas.

Emergency Handbrake

This is located on the left side of the tiller.

Should all emergency procedures fail, the emergency handbrake operates a brake on

the rear wheel. DO NOT use this during normal driving as it could damage the

electronics.

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Venturer Manuel utilisateur

Shoprider

Shoprider Greenrider ES-16 Manuel utilisateur

Shoprider

Shoprider S-889NR Manuel utilisateur

Shoprider

Shoprider UL7-4 Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider Cooper Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider Altea SL7-3 Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Perrero S-888SLR Manuel utilisateur

Shoprider

Shoprider eclipse 778EL Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider TE-779XLS Manuel utilisateur

Shoprider

Shoprider GK4 Manuel utilisateur

Shoprider

Shoprider 889SLBF Manuel utilisateur

Shoprider

Shoprider Capri S787M Manuel utilisateur

Shoprider

Shoprider QT-8 LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider mobility scooter Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider SUNRUNNER 3 888B-3 Manuel utilisateur

Shoprider

Shoprider VIKING 3 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
