Shoprider FS777 GETABOUT Manuel utilisateur

Owner’s Manual

FS777

GETABOUT

ATTENTION

Please read your

owner’s manual before

driving your scooter.

CONTENTS

INTRODUCTION .....................................................................................................3

FEATURE GUIDE ....................................................................................................3

SAFETY ADVICE ....................................................................................................4

EMI Warning ...........................................................................................................6

ADJUSTMENT /FREE WHEEL OPERATION..........................................................8

SCOOTER TILLER CONTROLS .............................................................................10

STARTING TO DRIVE YOUR SCOOTER.................................................................11

EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER ............................12

BATTERIES AND BATTERY CHARGER.................................................................13

MAINTENANCE ........................................................................................................14

TROUBLE SHOOTING GUIDE.................................................................................15

WARRANTY TERMS & CONDITIONS .....................................................................16

TECHNICAL SPECIFICATIONS...............................................................................18

DISCLAIMER ............................................................................................................19

NOTES ......................................................................................................................20

INTRODUCTION

Congratulations on your purchase of the Shoprider®Getabout scooter. This scooter

incorporates the latest innovative designs patented and only available on a Shoprider®

scooter. This scooter can be used in confined spaces both indoors and outdoors. Direct

drive transaxles and electromagnetic brakes give a safe and efficient ride. This Shoprider®

scooter is designed for persons with limited mobility.

Please read this manual carefully and thoroughly before using your scooter and

make sure you understand all the instructions.

FEATURE GUIDE

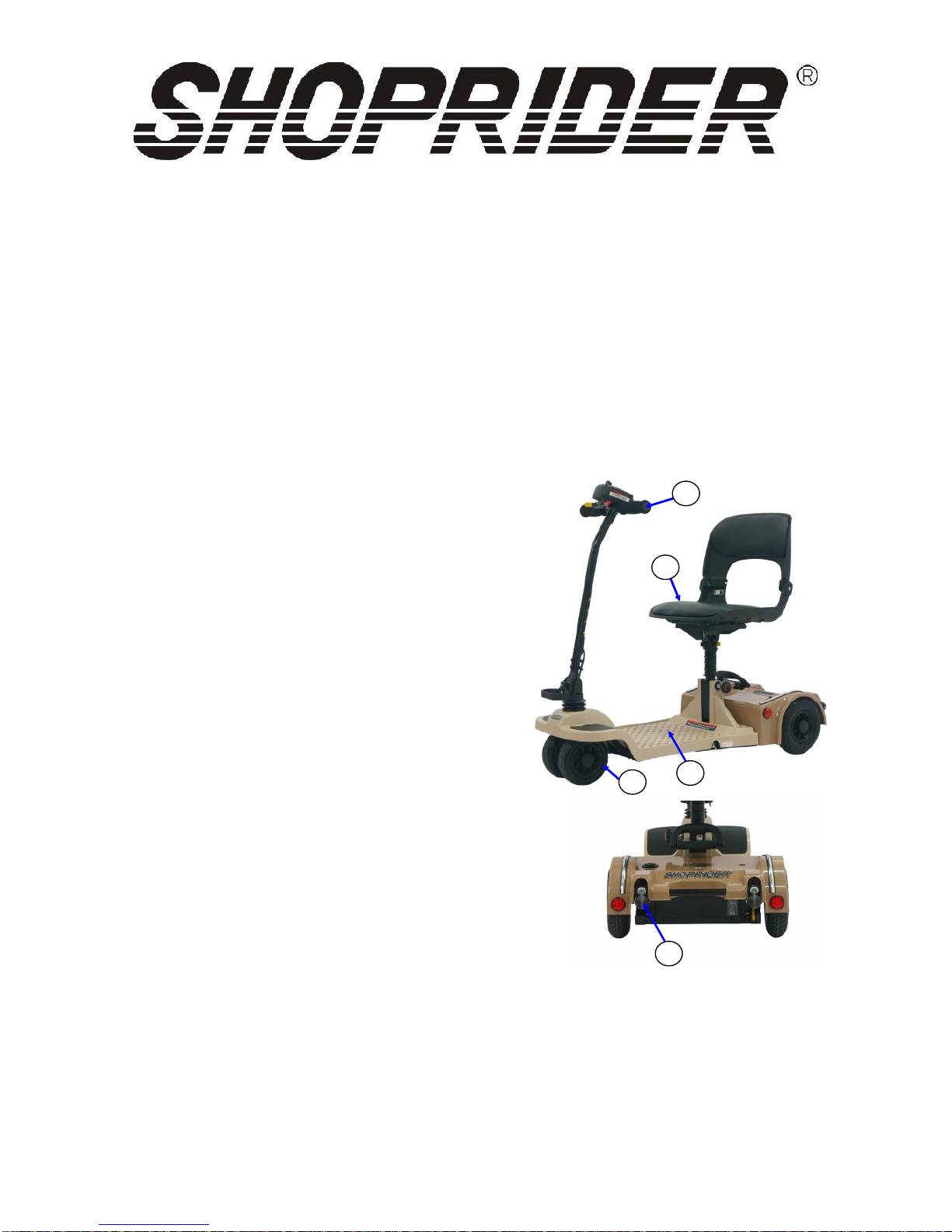

1. Tiller Handle Bar

2. Tire

3. Footplate

4. Seat

5. Rear Pull Wheel

SAFETY ADVICE

• Do not carry passengers.

• This mobility Product is intended to assist you. For your own safety, please read the

Owner’s Manual before using the Scooter. If in any doubt, contact your supplier directly for

advice.

• Do not exceed inclines over 6 degrees (10% grade).

• Driver weight may exceed weight of the unit, speed must be reduced when turning.

• Do not get on or off the scooter unless the brake is on and the scooter is switched off.

• Do not switch off the scooter while the scooter is moving.

• Do not drive the scooter where you can not safely or legally walk.

• Do not attempt to drive over curbs greater than 15mm in height. Doing so could cause

your scooter to turn over, causing personal injury or damage to the scooter. For curbs

less than 15mm, always approach them at an angle of 90 degrees and at a low speed.

• Do not drink or use a mobile phone when driving your scooter.

• Do not exceed the suggested user weight limit to use the product. Doing so, could cause

personal injury and invalidate the warranty.

• Always keep your feet on the scooter when moving.

• Please make sure that you are physically fit to operate this unit. Consult your

dealer/doctor for advice.

• Always slow down and proceed carefully when travelling over rough or uneven ground.

• For individuals with balance problems, practice getting on the scooter with the assistance

of a qualified healthcare professional.

• Do not operate the scooter without anti-tip wheels installed.

• Do not use an escalator to move a scooter between floors or serious injury could occur.

• Do not drive the scooter on an incline that has oil, water or ice film on it.

• Do not try to lift the scooter by its seat, tiller, rear chassis cover, or any removable parts.

Any of these could cause injury to the user or damage to the scooter.

• Do not use parts or accessories that are not authorised by the original manufacturer of the

scooter.

• Before sitting in or exiting the scooter, turn scooter switch to off position. This will insure

the POWER is off and the scooter can not move under its own power. As a general

precaution, always turn scooter off while the scooter is not in use. This will prevent the

use by untrained and unauthorised persons.

• Do not connect any foreign device to the scooter battery or charging port. This could

cause failure of the device, the scooter and personal injury.

• Make sure the tiller is properly adjusted and locked to the user or damage and injury could

result.

• It is not allowed to have any person sitting in the scooter when transported by a vehicle,

otherwise any injury or damage that might result.

• Do not use the scooter in the rain, near a shower or in a damp bathroom. Direct exposure

to rain or dampness could cause the scooter to electrically malfunction and prematurely

rust.

• Do not lean against or pull forward on the tiller while mounting or dismounting the scooter.

Otherwise, injury may occur.

• Do not operate the unit or turn the switch on while charging.

• Whenever a center bolt of the wheel assembly has been loosened, please replace a

specified new bolt from authorized dealers and secure with a torque of 240 ± 5 kg-cm

together with Loctite 271 adhesive (or equivalent).

• Charge batteries daily after use.

• Charging plug has to be removed from the scooter after charging.

• Battery cables must be securely fastened onto battery terminals by the authorised dealers

before using the unit.

• Batteries must be tied down correctly and securely.

• Always check the battery charge remaining before operating the unit.

• Always charge the batteries on the unit in a well ventilated area.

• If the unit went over or sank into deep water, please switch off power of the unit and

consult with your authorised dealer for assistance

• Switch off power of the unit while not in use or before charging, removing and installing

the batteries. Otherwise, injury and/or damage to the unit or surrounding property may

occur.

• Do not operate the unit in the way of exceeding to the product’s specification listed in this

owner’s manual. Doing so may Void your warranty.

• Do not use the thumb/finger lever before the switch is turned on, or the operation will be

prohibited until to turn switch off and then on

• Always use low speed on downhill.

• Ensure the scooter is serviced every 12 months to ensure it remains in safe working order

failure to do so may cause catastrophic failure with possible injury and damage to the

surrounding property.

EMI Warning

Shoprider®scooters may be susceptible to electromagnetic interference (EMI), which is a

kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations,

TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The

interference (from radio wave sources) can cause the scooter to release its brakes, move

by itself, or move in unintended directions. It can also permanently damage the scooter’s

control system. The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie

talkie”, security, fire and police transceivers, cellular telephones, and other personal

communication devices.

NOTE! Some cellular telephones and similar devices transmit signals while they are

ON, even when not being used.

2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,

ambulances, and taxis. These usually have the antenna mounted on the outside of the

vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast transmitters

(radio and TV broadcast antenna towers) and amateur (HAM) radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and small

appliances, such as electric shavers and hair dryers, so far as we know, are not

likely to cause problems to the scooter.

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the transmitting

antenna (source), the EM fields from hand-held radio sources (transceivers) are of special

concern. It is possible to unintentionally bring high levels of EM energy very close to the

scooter’s control system while using these devices. This can affect scooter movement and

braking. Therefore, the warnings listed below are recommended to prevent possible

interference with the control system of the scooter.

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens band

(CB) radios, or turn ON personal communication devices, such as cellular phones, while

the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming

close to them.

3. If unintended movement or brake release occurs, turn the scooter OFF as soon as it is

safe.

4. Be aware that adding accessories or components, or modifying the scooter may make it

more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the scooter.

5. Report all incidents of unintended movement or braking to your Shoprider®dealer, and

note whether there are sources of EMI nearby.

WARNING: The original manufacturer and the importer of the scooter is not

responsible for damage or injury incurred due to improper and unsafe use of our

scooter.

ADJUSTMENTS

Tiller Angle Adjustment (Fig. 1)

The tiller of your scooter is uniquely designed to

allow you to position it to a comfortable driving position.

To decide which position best fits your needs, carefully

push the red lever that is located on the right side of tiller,

and gently lower or raise the tiller. Once you are satisfied

with the position of the tiller, simply release the red lever

and the tiller will automatically lock for your safety.

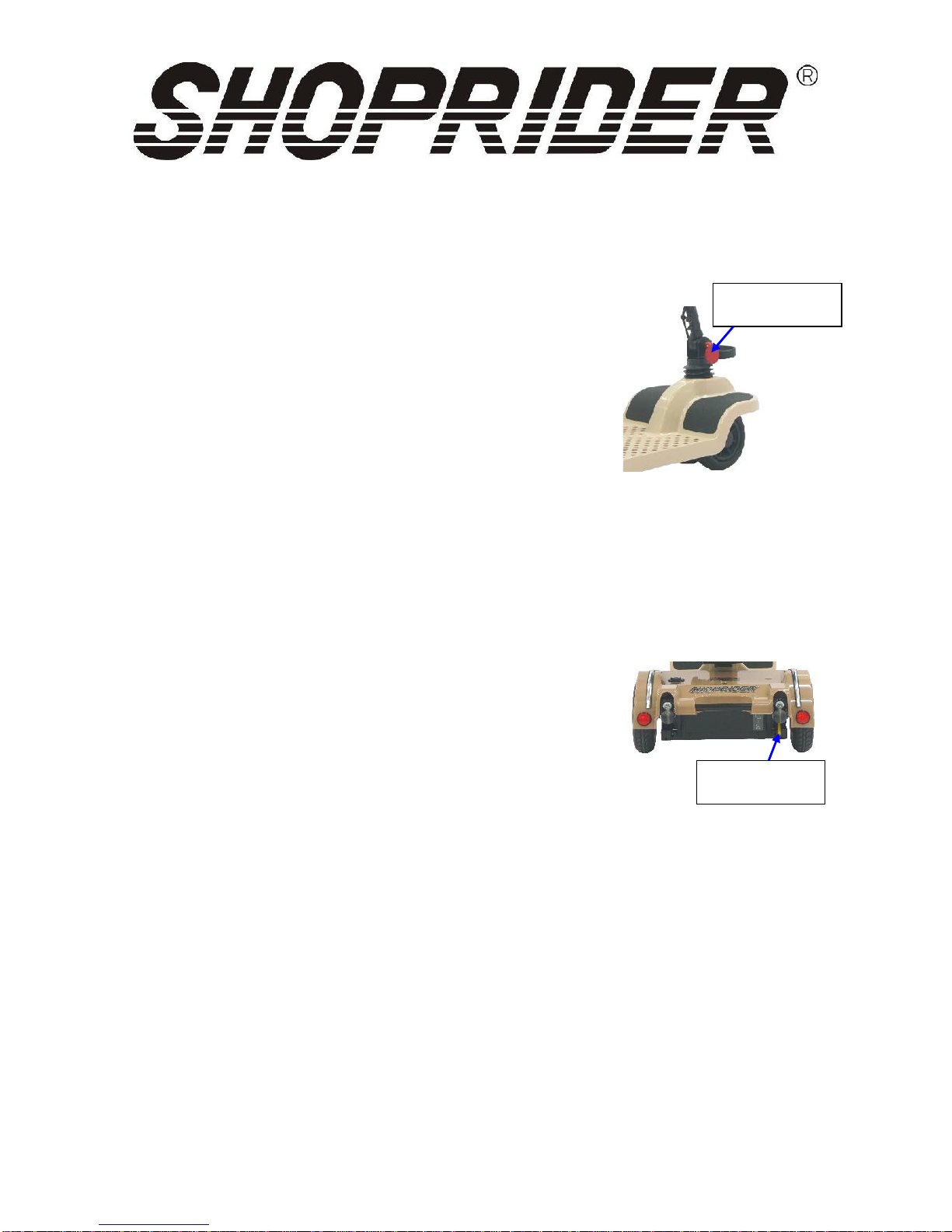

Free Wheel Operation (Fig. 2)

The free wheel release lever (yellow handle) is

located inside the right rear wheel. To disengage

the motor, lift up the lever (the scooter can now

be pushed). To re-engage the motor push down

on the lever.

WARNING! Always re-engage the free wheeling device after use.

Failure to do so may result in injury.

WARNING - THERE IS NO BRAKING ON THIS SCOOTER WHEN IT IS IN

FREE WHEELMODE !

The original manufacturer and the importer of the scooter is not responsible for

damage or injury incurred due to improper or misuse of the scooter.

Tiller Angle

Adjustable Lever

Fig. 1

Free Wheel

Release Lever

Fig. 2

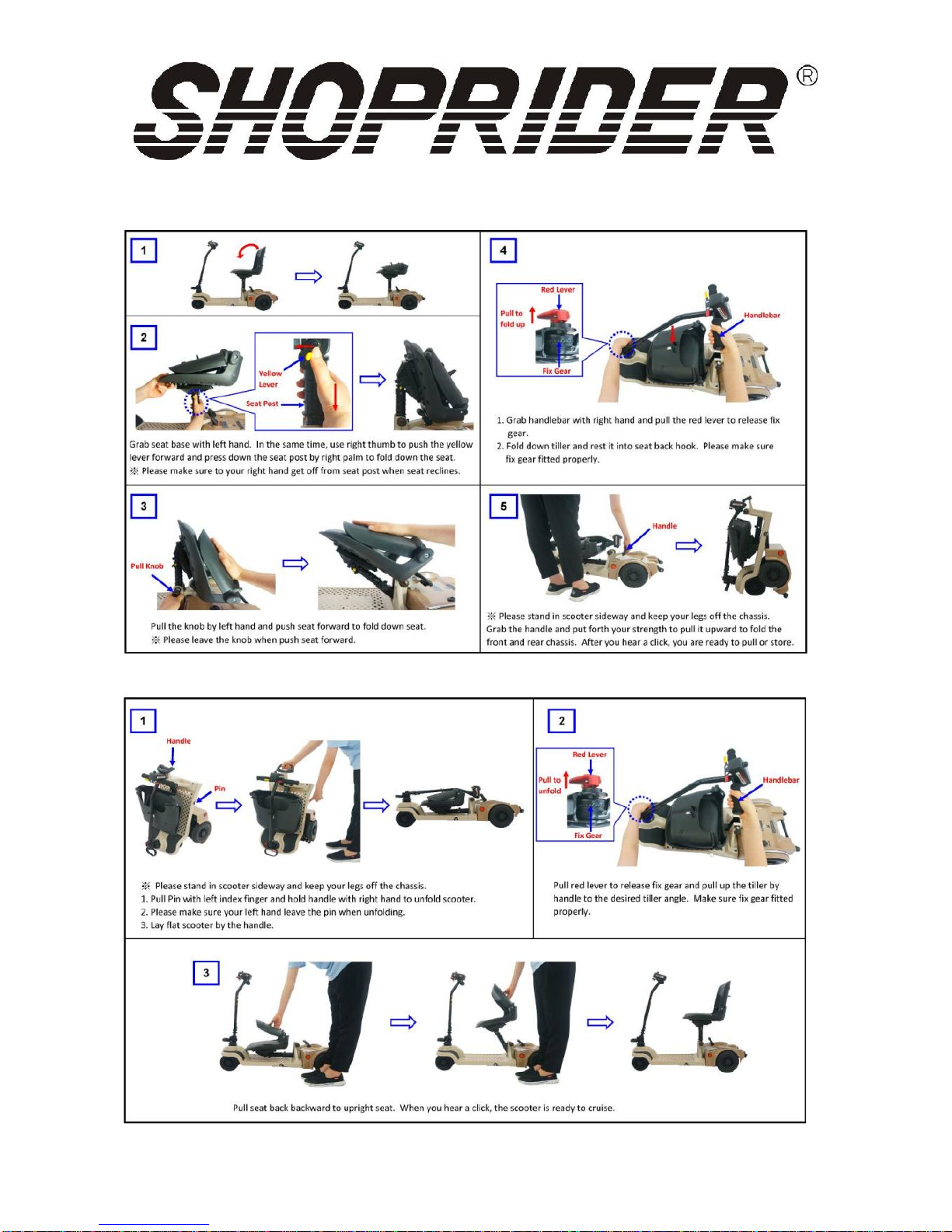

Folding Procedure

Unfolding Procedure

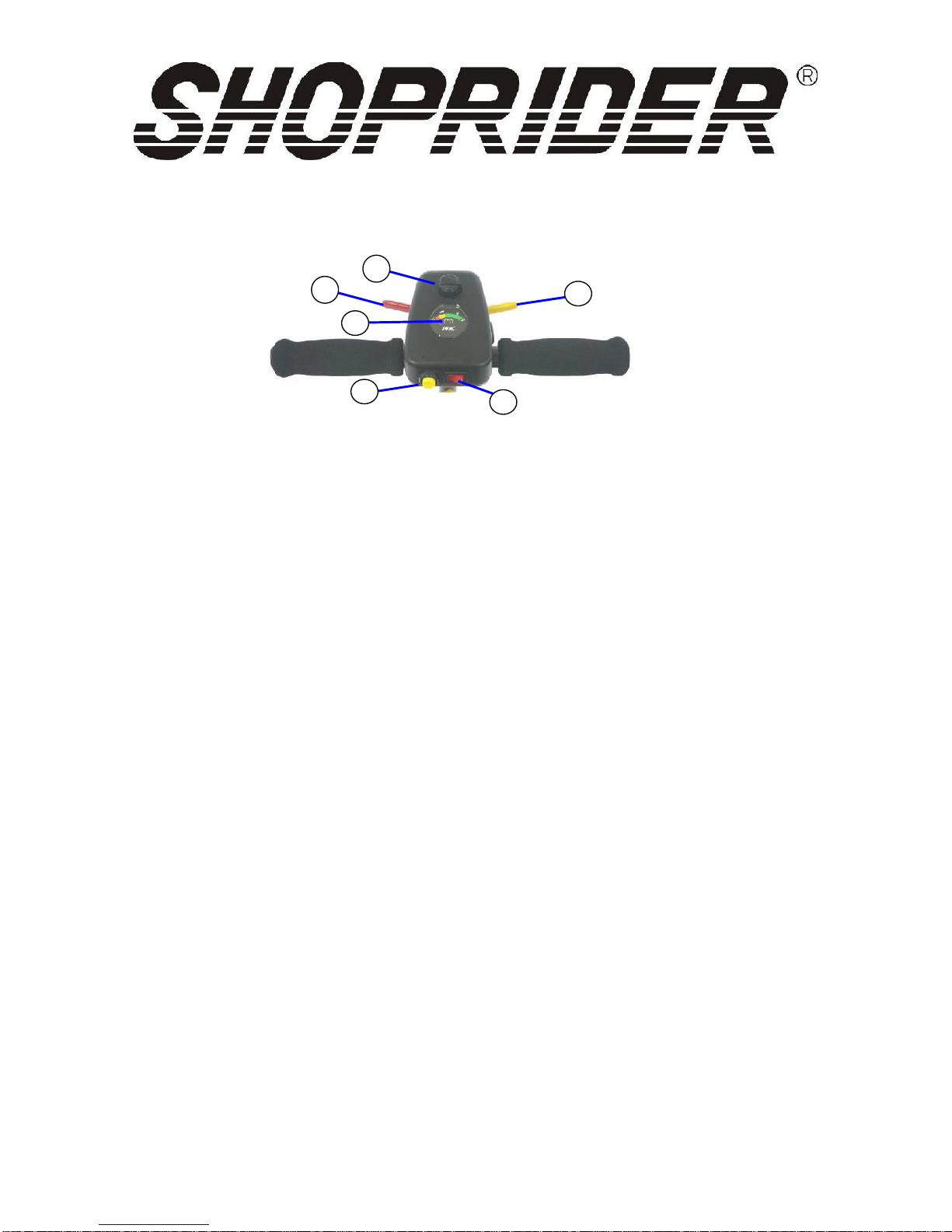

SCOOTER TILLER CONTROLS (Fig. 4)

(1) Speed Controls

The speed control allows you to set a speed between slow (turtle) and fast (rabbit).

(2) Battery Level Indicator Gauge

Where the needle sits, shows the amount of charge in your batteries. The amount of charge

will only show at its true level when the scooter is in drive. Always charge the batteries

completely before beginning out on any journey.

Caution – Do not allow the gauge needle to go down completely as complete

discharge of the batteries could cause irreversible battery damage.

(3) Horn

A yellow button next to power switch on tiller operates the horn.

(4) On/Off Switch

The On/Off switch is located on the tiller. When the unit is in the On position the switch will

display a red light and the battery gauge needle will move. There may be a slight delay

before the hand lever control can be operated, while the main controller checks the circuits.

(5) Thumb/Finger Lever Controls

The left thumb/finger lever controls the reverse and the right thumb/finger lever controls the

forward motion. The amount of pressure applied to each lever will determine the speed the

scooter travels at. Release the lever and the scooter will slowly come to a stop and the

electromagnetic brake will be applied.

Electromagnetic Brake

The brake is automatically operated when the control levers are released. There is a slight

delay when the scooter decelerates; this allows the scooter to come to a smooth stop.

Autres manuels pour FS777 GETABOUT

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider GK4 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider Mikra TE-7A Manuel utilisateur

Shoprider

Shoprider 778 Series Manuel utilisateur

Shoprider

Shoprider Recreational Scooter GR889 Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider Venturer Manuel utilisateur

Shoprider

Shoprider VIKING 3 Manuel utilisateur

Shoprider

Shoprider TE-779XLS Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider 889SLBF Manuel utilisateur

Shoprider

Shoprider UL7-4 Manuel utilisateur

Shoprider

Shoprider TE-889NRS Manuel utilisateur

Shoprider

Shoprider Scooter Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider Altea SL7-3 Manuel utilisateur

Shoprider

Shoprider Grande TE-9AS Manuel utilisateur

Shoprider

Shoprider TE-GK9 Manuel utilisateur

Shoprider

Shoprider Capri S787M Manuel utilisateur

Shoprider

Shoprider 888SL Manuel utilisateur

Shoprider

Shoprider Rocky 6 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
