Shoprider TE-889NRS Manuel utilisateur

Owner’s Manual

TE-889NR

ATTENTION

Please read your

owner’s manual before

driving your scooter.

TE-889NRS

CONTENTS

INTRODUCTION ......................................................................................................3

FEATURE GUIDE .....................................................................................................3

SAFETY ADVICE .....................................................................................................4

EMI Warning ............................................................................................................6

ADJUSTMENT .........................................................................................................8

SCOOTER TILLER CONTROLS ..............................................................................10

FREE WHEEL OPERATION ....................................................................................12

STARTING TO DRIVE YOUR SCOOTER.................................................................13

EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER ............................14

BATTERIES AND BATTERY CHARGER ................................................................15

MAINTENANCE .......................................................................................................16

TROUBLE SHOOTING GUIDE ................................................................................17

TECHNICAL SPECIFICATIONS...............................................................................18

NOTES ......................................................................................................................19

DISCLAIMER ...........................................................................................................20

INTRODUCTION

Congratulations on your purchase of the Shoprider®scooter. This scooter incorporates the

latest innovative designs patented and only available on a Shoprider®scooter. This scooter

can be used in confined spaces both indoors and outdoors. Direct drive transaxles and

electromagnetic brakes give a safe and efficient ride. This Shoprider®scooter is designed for

persons with limited mobility.

Please read this manual carefully and thoroughly before using your scooter and make

sure you understand all the instructions.

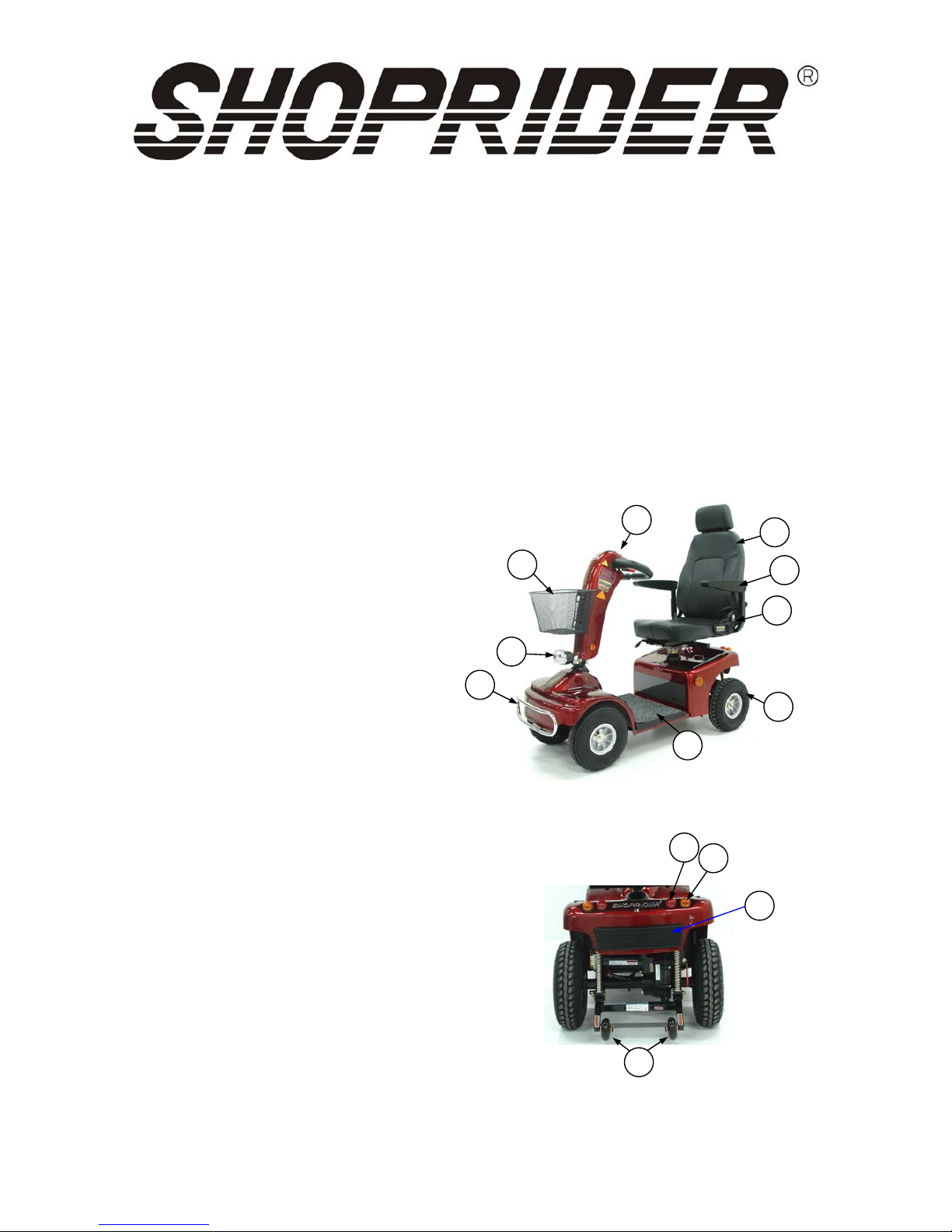

FEATURE GUIDE

1. Tiller Handle Bar

2. Black Vinyl Captain Seat

3. Armrests

4. Seat Reclining

5. Black Pneumatic Tire

6. Footrest Mat

7. Front Bumper

8. Headlight

9. Basket

10. Rear Indicators & Hazard Lights

11. Taillights

12. Anti-tip Wheels

13. Rear Bumper

SAFETY ADVICE

• Do not carry passengers.

•ThismobilityProductisintendedtoassistyou.Foryourownsafety,pleasereadtheOwner’s

Manual before using the Scooter. If in any doubt, contact your supplier directly for advice.

• Do not exceed inclines over 9 degrees (15% grade).

• Driver weight may exceed weight of the unit, speed must be reduced when turning.

• Do not get on or off the scooter unless the brake is on and the scooter is switched off.

• Do not switch off the scooter while the scooter is moving.

• Do not drive the scooter where you can not safely or legally walk.

• Do not attempt to drive over curbs greater than 1.5 inches in height. Doing so could cause

your scooter to turn over, causing personal injury or damage to the scooter. For curbs less

than 1.5 inches, always approach them at an angle of 90 degrees and at a low speed.

• Do not drink or use a mobile phone when driving your scooter.

• Do not exceed the suggested user weight limit to use the product. Doing so, could cause

personal injury and invalidate the warranty.

• Always keep your feet on the scooter when moving.

• Please make sure that you are physically fit to operate this unit. Consult your dealer/doctor

for advice.

• Always slow down and proceed carefully when traveling over rough or uneven ground.

• For individuals with balance problems, practice getting on the scooter with the assistance of

a qualified healthcare professional.

• Do not operate the scooter without anti-tip wheels installed.

• Do not use an escalator to move a scooter between floors or serious injury could occur.

• Do not drive the scooter on an incline that has oil, water or ice film on it.

•Donottrytoliftthescooterbyitsseat,tiller, rearchassiscover,oranyremovableparts. Any

of these could cause injury to the user or damage to the scooter.

• Do not use parts or accessories that are not authorized by the original manufacturer of the

scooter.

• Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will insure

thePOWERisoffandthescootercannotmoveunderitsownpower.Asageneralprecaution,

always remove the key from the ignition while the scooter is not in use. This will prevent the

use by untrained and unauthorized persons.

• Do not connect any foreign device to the scooter battery or charging port. This could cause

failure of the device, the scooter and personal injury.

• Make sure the tiller is properly adjusted and locked to the user or damage and injury could

result.

• It is not allowed to have any person sitting in the scooter when transported by a vehicle,

otherwise any injury or damage that might result.

• Do not use the scooter in the rain, near a shower or in a damp bathroom. Direct exposure to

rain or dampness could cause the scooter to electrically malfunction and prematurely rust.

• Do not lean against or pull forward on the tiller while mounting or dismounting the scooter.

Otherwise, injury may occur.

• Do not operate the unit or turn the key on while charging.

•Wheneveracenterboltofthewheelassemblyhasbeenloosened,pleasereplaceaspecified

new bolt from authorized dealers and secure with a torque of 240 ± 5 kg-cm together with

Loctite 271 adhesive (or equivalent).

• Charge batteries daily after use.

• Charging plug has to be removed from the scooter after charging.

• Battery cables must be securely fastened onto battery terminals by the authorized dealers

before using the unit.

• Batteries must be tied down correctly and securely.

• Any loose cable can not be allowed when the unit is driving.

• Must check the battery charge remained before operating the unit.

• Always charge the batteries of the unit in a well ventilated area.

• If the unit went over or sank into deep water, please switch off power of the unit and consult

with your authorized dealer for help right away.

• Switch off power of the unit while not in use or before charging, removing and installing the

batteries. Otherwise, injury and/or damage to the unit or surrounding property may occur.

• Do not operate the unit in the way of exceeding to the product’s specification listed in this

owner’s manual.

• Do not use the thumb/finger lever before the key switch is turned on, or the operation will be

prohibited until to turn key switch off and then on.

EMI Warning

Shoprider®scootersmaybesusceptibletoelectromagneticinterference(EMI),whichisakind

of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV

stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The

interference (from radio wave sources) can cause the scooter to release its brakes, move by

itself,ormoveinunintendeddirections. Itcanalsopermanentlydamagethescooter’scontrol

system. The sources of radiated EMI can be broadly classified into three types:

1.Hand-heldportabletransceivers(transmitters-receivers)withtheantennamounteddirectly

onthetransmittingunit.Examplesinclude:citizensband(CB)radios,“walkietalkie”,security,

fireandpolicetransceivers,cellulartelephones,andotherpersonalcommunicationdevices.

NOTE!SomecellulartelephonesandsimilardevicestransmitsignalswhiletheyareON,

even when not being used.

2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,

ambulances, and taxis. These usually have the antenna mounted on the outside of the

vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast transmitters

(radio and TV broadcast antenna towers) and amateur (HAM) radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop computers,

AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such

as electric shavers and hair dryers, so far as we know, are not likely to cause problems

to the scooter.

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the transmitting

antenna (source), the EM fields from hand-held radio sources (transceivers) are of special

concern. It is possible to unintentionally bring high levels of EM energy very close to the

scooter’s control system while using these devices. This can affect scooter movement and

braking. Therefore, the warnings listed below are recommended to prevent possible

interference with the control system of the scooter.

WARNINGS

1.Donotoperatehand-heldtransceivers(transmitters-receivers),suchascitizensband(CB)

radios, or turn ON personal communication devices, such as cellular phones, while the

scooter is turned ON.

2.Beawareofnearbytransmitters,suchasradioorTVstations,andtrytoavoidcomingclose

to them.

3.Ifunintendedmovementorbrakereleaseoccurs,turnthescooterOFFassoonasitissafe.

4. Be aware that adding accessories or components, or modifying the scooter may make it

more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the scooter.

5.ReportallincidentsofunintendedmovementorbrakingtoyourShoprider®dealer,andnote

whether there are sources of EMI nearby.

WARNING:Theoriginalmanufacturerandtheimporterofthescooterisnotresponsible

for damage or injury incurred due to improper and unsafe use of our scooter.

ADJUSTMENTS

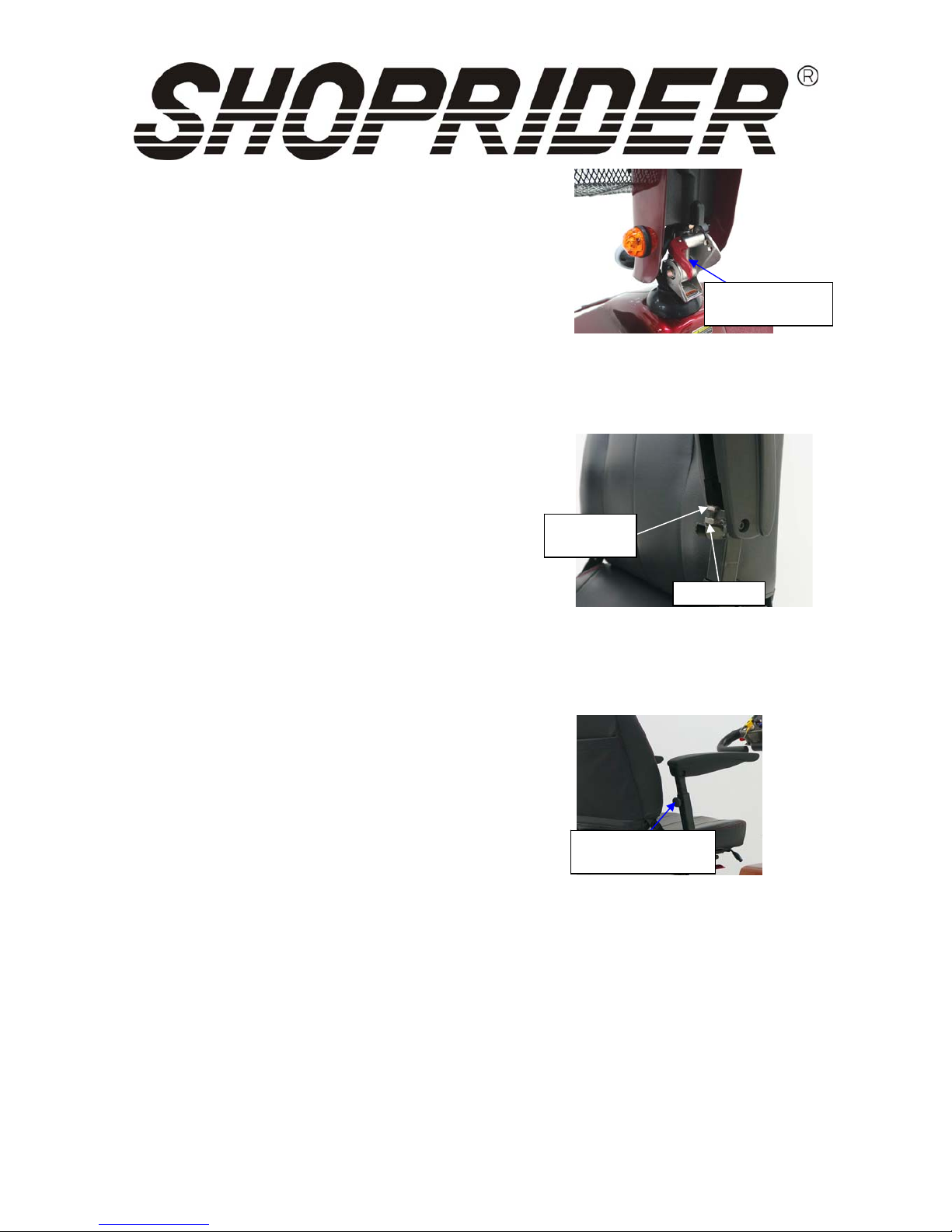

Tiller Angle Adjustment (Fig. 1)

The red lever located on the left hand side at

the joint base of the tiller is used for tiller angle

adjustment. Push the lever to release the

pin and select the required tiller angle. Refit

the pin into one of the five location holes to

complete the adjustment.

Armrest Angle Adjustment (Fig. 2)

Flip up the armrests to allow access to the

adjustable bolt and lock nut, unscrew the

lock-nut and screw the bolt in or out to

increase or decrease the angle. Re-tighten

the lock-nut. Your scooter is dispatched from the

factory with the armrests set parallel to the floor.

Armrest Height Adjustment (Fig. 3)

The vertical square tube connected with

the armrest can be reset to the desired

position by re-tightening the hand knob

for armrest height adjustment.

Lock-Nut

Adjustable

Bolt

Fig. 2

Armrest Adjustable

Hand Knob

Fig. 3

Tiller Angle

Adjustable Lever

Fig. 1

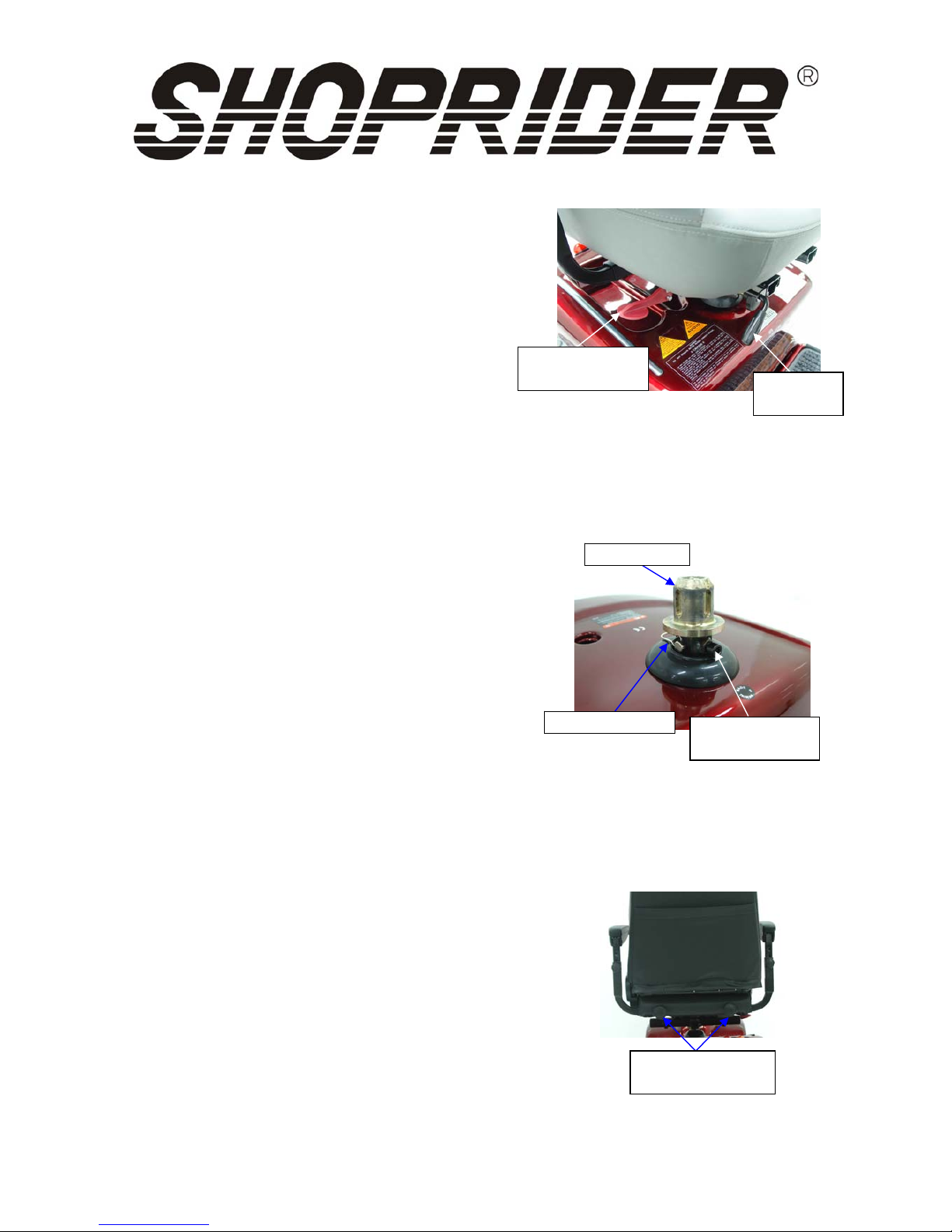

Seat Slide & Swivel Adjustment (Fig. 4)

Pulling up on the seat slide lever allows the

seat position to be adjusted forward or

backward. Release the lever and the seat

will lock in that position. Under the right

side of the seat there is a spring loaded red

lever. Pulling up on the lever allows the seat

to swivel, when released the seat will lock

into one of 3 positions.

Seat Removal (Fig. 5)

Fold down the back of the seat. Pull up the

swivel seat adjustable lever (fig. 4) and lift

seat off.

Seat Height Adjustment (Fig. 5)

Remove seat as described above. Loosen

seat tightening bolt by hex key wrench.

Remove the locking pin that secures the seat

adaptor. Lift the seat adaptor out of the seat

post. The seat height can be adjusted to

different settings by inserting the steel locking

pin in the required hole. Retighten the bolt and

replace the seat.

Armrest Width Adjustment (Fig. 6)

On the underside of the seat there are two

hand knobs, one either side. Loosening the

hand knob allows the armrest to be adjusted

to the required width, or removed for

transportation.

Do not use the scooter without the arms

being fitted.

Armrest Adjustable

Tightening Knob

Fig. 6

Swivel Seat

Adjustable Lever Seat Slide

Lever

Fig. 4

SeatTighteningBolt

Seat Locking Pin

Seat Post

Fig. 5

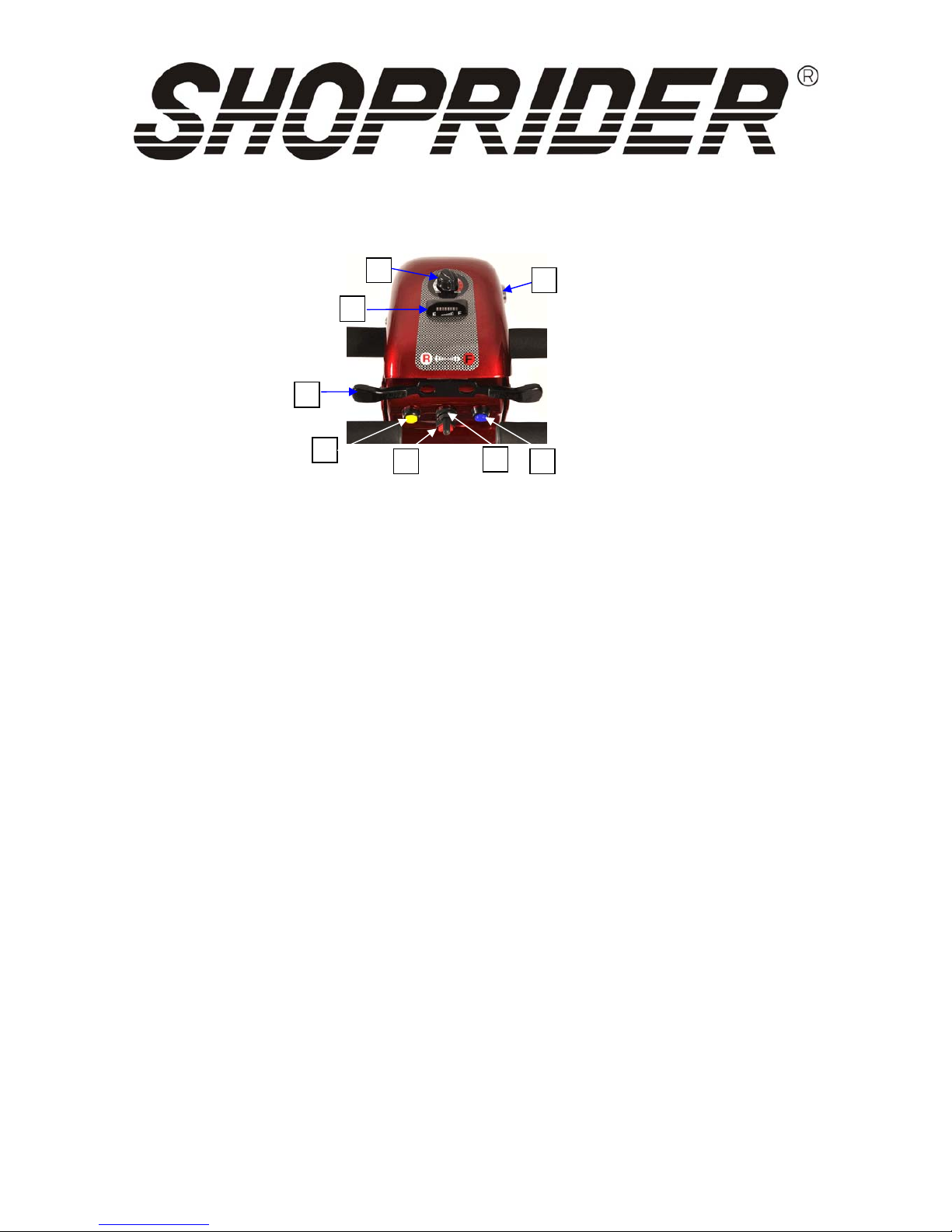

SCOOTER TILLER CONTROLS (Fig. 7)

(1) Speed Controls

The speed control allows you to set a speed between 1 (minimum) and 10 (maximum).

Turnthedialknobcounter-clockwiseto“minimum”todecreasespeed,andclockwisetowards

“maximum” to increase your speed.

(2) Battery Level Indicator

The gauge is marked from “E” empty, to “F” full. For extra clarity there is a colored graduated

scale ranging from RED, (E) through YELLOW to GREEN, (F).

GREEN indicates ready for use.

YELLOW indicates batteries to be charged as soon as possible.

RED indicates charge batteries immediately.

(3) Lights

A blue colored button operates the LED headlights.

(4) Horn

A yellow button operates the horn.

Fig. 7

4 8 7 3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Mikra TE-7A Manuel utilisateur

Shoprider

Shoprider Valencia Manuel utilisateur

Shoprider

Shoprider TE-9 Manuel utilisateur

Shoprider

Shoprider 888SE Explorer Manuel utilisateur

Shoprider

Shoprider Capri S787M Manuel utilisateur

Shoprider

Shoprider 889-3XLS Manuel utilisateur

Shoprider

Shoprider START 8 GK9 Manuel utilisateur

Shoprider

Shoprider Scooter Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider Grande TE-9AS Manuel utilisateur

Shoprider

Shoprider Torino S-778XLSBN Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider 889xlsn Manuel utilisateur

Shoprider

Shoprider SUNRUNNER 3 888B-3 Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider Recreational Scooter GR889 Manuel utilisateur

Shoprider

Shoprider EZ Chopper S8M Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Greenrider ES-16 Manuel utilisateur

Shoprider

Shoprider (888-3L) Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
