Shoprider Scooters User Guide

CONTENTS

page page

1 Introduction...............................................1

2 Features......................................................1

3 Safety Precautions.................................... 3

4 Adjustments.............................................. 4

4.1 Seat Slide Adjustment........................... 4

4.2 Seat Swivel Adjustment......................... 4

4.3 Seat Height Adjustment........................ 4

4.4 Seat Tension Adjustment....................... 4

4.5 Captains Seat Back Angle Adjustment... 4

4.6 Armrest Width Adjustment....................4

4.7 Armrest Angle Adjustment.................... 5

4.8 Armrest Height Adjustment...................5

4.9 Tiller Angle Adjustment....................... 5

5 Scooter Operation.....................................5

5.1 Controls................................................ 5

5.1.1 Speed Adjustment Dial................... 5

5.1.2 Horn...............................................5

5.1.3 Thumb Lever Control (Wig Wag).....5

5.1.4 LED Battery Indicator.......................6

5.1.5 Key Switch......................................6

5.1.6 Charging Socket.............................6

5.1.7 Lights............................................. 6

5.1.8 Hazard Lights..................................6

5.1.9 Indicators........................................6

5.1.10 High/Low Speed Switch................ 6

5.1.11 Free Wheeling Device................... 6

5.1.12 Anti Tip Wheels............................ 6

5.2 Mounting..............................................7

5.3 Basic Driving..........................................7

5.3.1 Steering..........................................7

5.3.2 Reversing........................................7

5.4 Dismounting......................................... 7

6 General Advice.......................................... 7

6.1 Control through Obstacles.....................7

6.1.1 Control through Doors................... 7

6.1.2 Control on Ramps...........................8

6.1.3 Control over Grass, Gravel and Hills..8

6.2 Parking in Public....................................8

7 Maintenance..............................................8

7.1 Wheels and Tyres...................................8

7.1.1 Changing Wheels and Tyres............8

7.1.2 Tyre Pressure...................................8

7.2 Lubrication............................................ 9

8 Batteries and Battery Charging................9

8.1 Batteries................................................9

8.2 Battery Charging................................... 9

9 Troubleshooting..................................... 10

9.1 Circuit Breaker and Fuse...................... 10

9.2 If the Scooter does not run..................10

10 Warranty Information...........................10

Shoprider Scooters User Guide 1

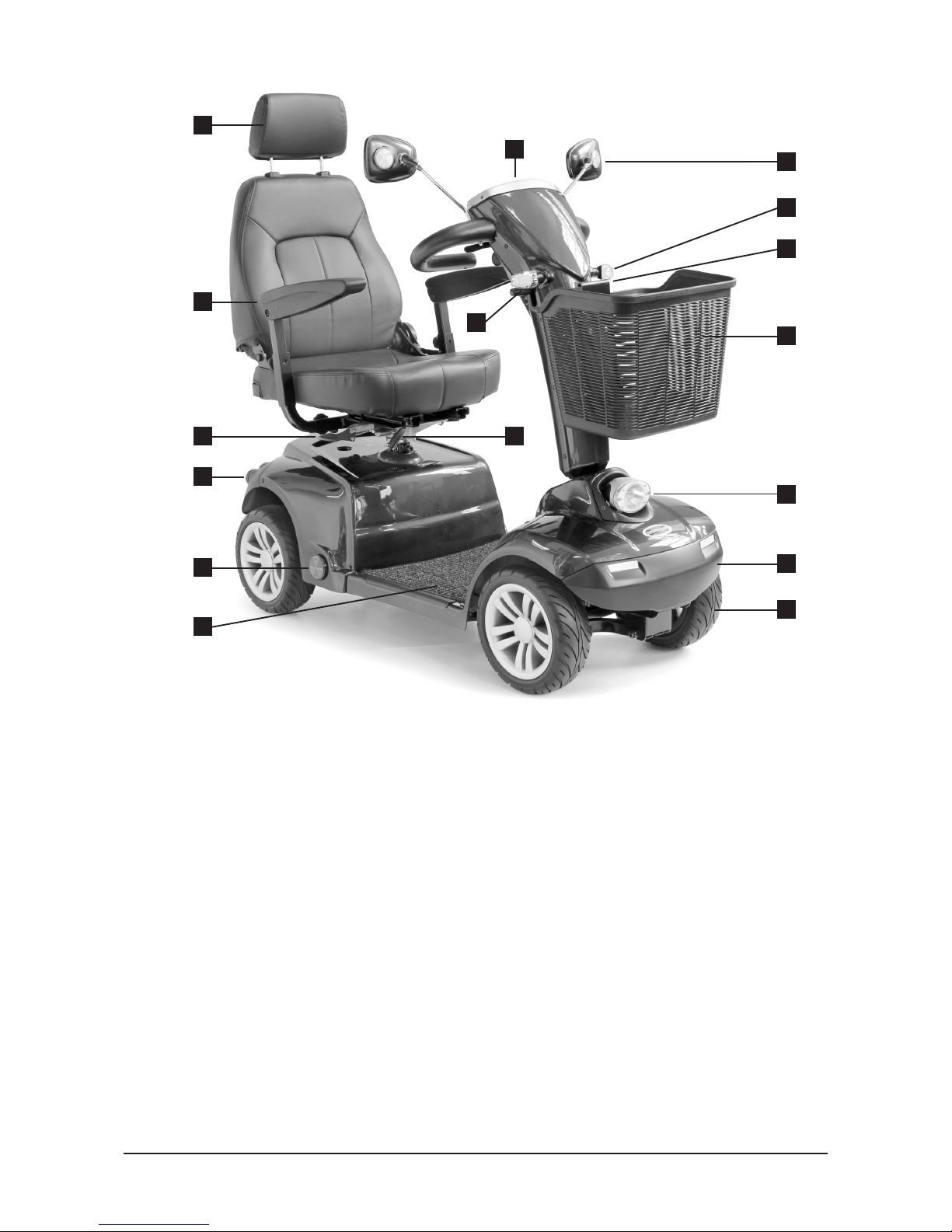

1 Adjustable back angle Captains chair

with adjustable height head rest

2 Flip back, adjustable width, height and

angle armrests

3 Captains chair rotate lever

4 Side reﬂectors

5 Tiller control head / steering column

6 Tiller steering column angle adjustment

7 Captains chair fore / aft slide lever

8 Foot rest

9 Rear vision mirrors

10 Battery charging plug (right side)

11 Detachable basket

12 Headlight

13 Front bumper

14 Pneumatic tyres on alloy wheels

1. INTRODUCTION

Congratulations on your purchase of a Shoprider Scooter. Your scooter is the ultimate

combination of style and comfort and incorporates Shopriders latest innovative designs.

Your scooter has been designed to be easily manoeuvred within the smallest spaces both

in and outdoors. Direct drive rear wheels and electromechanical disk brakes provide a safe

comfortable ride. Shoprider scooters are designed for persons with limited mobility.

This manual contains important information regarding the safe use of your scooter. Please,

read it carefully before using your scooter and make sure you understand the instructions.

2. FEATURES

TE-9

Mid size scooter with 5 stage suspension and adjustable gas tiller

2Shoprider Scooters User Guide

1 Adjustable back angle Captains chair

with adjustable height head rest

2 Flip back, adjustable width, height and

angle armrests

3 Captains chair rotate lever

4 Rear reﬂectors

5 Side reﬂectors

6 Foot rest

7 Tiller control head / steering column

8 Tiller steering column angle adjustment

9 Captains chair fore / aft slide lever

10 Adjustable rear vision mirror

11 Turn indicators

12 Battery charging plug (left side)

13 Detachable basket

14 Bright LED head light

15 Colour keyed front bumper

16 Mag wheels with solid tyres

TE-888iX

Modern mid size scooter with suspension and new tiller design

Shoprider Scooters User Guide 3

3. SAFETY PRECAUTIONS

• Donotdrinkalcoholanddrive

• Donotdrink/eatoruseamobilephonewhileriding

• Donotcarrypassengers

• Donotexceedanyinclineover9°

• Donotturnonsteepinclines

• Donotproceedonanyinclinethathasoil,iceorotherslipperysubstances

• Proceedcarefullywhenonanyincline,alwaysleanforward

• Donotoperatescooterwithoutanti-tipwheelsattached-doingsocouldcauseinjury

• Donotturnsuddenlyatfullspeed

• Donotmountordismountthescooterunlessthebrakeisengagedandthekeyisoff

• Donotswitchoffthescooterwhilethescooterismoving

• Donotridethescooterwhereyoucannotsafelywalk(e.g.softdirt/sand,deepgrass,

loose gravel)

• Alwaysproceedcarefullywhileridingonunevensurfaces

• Donotridethescooteronroads,streetsormotorways

• Remembertoobserveallrulesandregulationsofotherpedestrians

• Donotattempttoclimboverkerbsgreaterthan2inches(5cm).Forkerbsunder2inches,

alwaysapproachslowlyandat90°tothekerb.

• Donotreversethescooterunlessthespeeddialissetlow

• Alwaysstopfullybeforechangingdirection(forwardorreverse)

• Alwayskeepyourfeetontheplatformwhenriding

• DonotusepartsoraccessoriesthatarenotauthorisedbyShopriderNZ

• Donotconnectanymedicaldevicetothescooterbattery-doingsocouldcauseinjury

• Donotexceedthesuggesteduserweightlimit-doingsocouldcauseinjuryand

invalidate the warranty

• Makesurethetillerandseatareproperlyadjusted-failuretodosocouldcause

personal injury

• Donotsitonyourscooterwhilethescooterisbeingtransportedinavehicle-doingso

could cause injury

• Donotusethescooterasacommercialdeliveryvehicle,e.g.fordeliveryofleaet,

newspapers etc

• Donotusethescooterintherain,intheshower,orinanywetenvironment-direct

exposuretowetcancauserustandfailureoftheelectronics

ShoprideralsoknownasShopriderNZLtdarenotresponsibleforanydamageorinjury

caused due to improper or unsafe use of their scooters.

EMI Warning

Shoprider scooters may be susceptible to electromagnetic interference (EMI), which is a kind

of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV

stations,amateurradio(HAM)transmitters,two-wayradio,andcellularphones.Donot

operatehandheldtransceivers(transmitters-receivers),suchascitizensband(CB)radios,or

turn on personal communication devices, such as cellular phones, while the scooter is turned

on. Be aware of nearby transmitters, such as radio or TV stations and try to avoid getting

close to them. Adding accessories or components or modifying the scooter may make it more

susceptible to EMI.

4Shoprider Scooters User Guide

4. ADJUSTMENTS

The Shoprider Scooter allows various adjustments to be made to suit your requirements:

4.1 - SEAT SLIDE ADJUSTMENT

A lever located under the front of the seat, allows you to adjust your seat forward and back.

Simply lift the lever and move in the desired direction. As soon as you release the lever, the

seat will lock in the new position you have selected.

4.2 - SEAT SWIVEL ADJUSTMENT

Lift the red lever located underneath the right side of the seat and rotate the seat around 90º.

The seat will lock into position once the lever has been released.

4.3 - SEAT HEIGHT ADJUSTMENT

Lift the red “Seat Swivel Adjustment” lever and lift the seat clear of the scooter. Loosen

the“SeatTensionAdjustment”knob(TE9)orhexbolt(TE888iX)andremovethesteel

locking pin, the seat post has several different position holes. Retighten the “Seat Tension

Adjustment” knob/bolt and replace the seat once you have chosen your new position hole.

4.4 - SEAT TENSION ADJUSTMENT

Theseattensionknob(TE9)orhexbolt(TE888iX)tightenstheseatposttothescooterframe.

4.5 - CAPTAIN SEAT BACK ANGLE ADJUSTMENT

At the bottom of the seat back on the right side there is a lever to recline the back. Simply lift

the lever and adjust the seat back angle to the position required. The back is also provided

withanadjustableheadrestextension.Thebackfoldsdownontotheseatallowingtheunit

to be stored in a limited space.

4.6 - ARMREST WIDTH ADJUSTMENT

On each side underneath you will ﬁnd a knob. By loosening this knob you are able to adjust

the armrests to whatever width you desire. The armrests can be removed for transporting the

scooter but must be ﬁtted when using the scooter.

4.1

4.8

4.6

4. Adjustments

4.9

4.5

4.7

4.2

4.4

4.3

Shoprider Scooters User Guide 5

4.7 - ARMREST ANGLE ADJUSTMENT

Pull up on the end of the armrests and they will ﬂip back up allowing easy transfer in and

outoftheseat.Underthearmrests,onsomemodels,thereisaboltandlock-nutthatcanbe

adjusted up/down to change the angle of the armrests.

4.8 - ARMREST HEIGHT ADJUSTMENT (TE 888iX only)

At the rear of the armrest on the down supporting tube there is a knob that allows you to

reposition the tube and armrest. Once the knob has been fully removed you can then adjust

the armrest to a new height using the positional holes. Replace and retighten the adjustment

knob and repeat for the other side.

4.9 - TILLER ANGLE ADJUSTMENT

On the right side of the tiller near the top, a black release lever can be located. By pushing

the lever down you can adjust the tiller angle to a different position. Releasing the lever locks

the tiller in that position.

5. SCOOTER OPERATION

5.1 - CONTROLS

5.1.1 - Speed Adjustment Dial

This allows you to select your desired top speed. The dial can be set anywhere between the

0 (slowest) and 10 (fastest) speed setting.

5.1.2 - Horn Button

Press the round yellow horn button to sound the horn.

5.1.3 - Thumb Lever Control (Wig Wag)

This controls your speed and forward and reverse motion. The right thumb lever moves

the scooter forward and controls the speed. The left thumb lever moves the scooter in

reverse and also controls the speed. When the lever is released you will stop gently and the

electromagnetic brake will be applied.

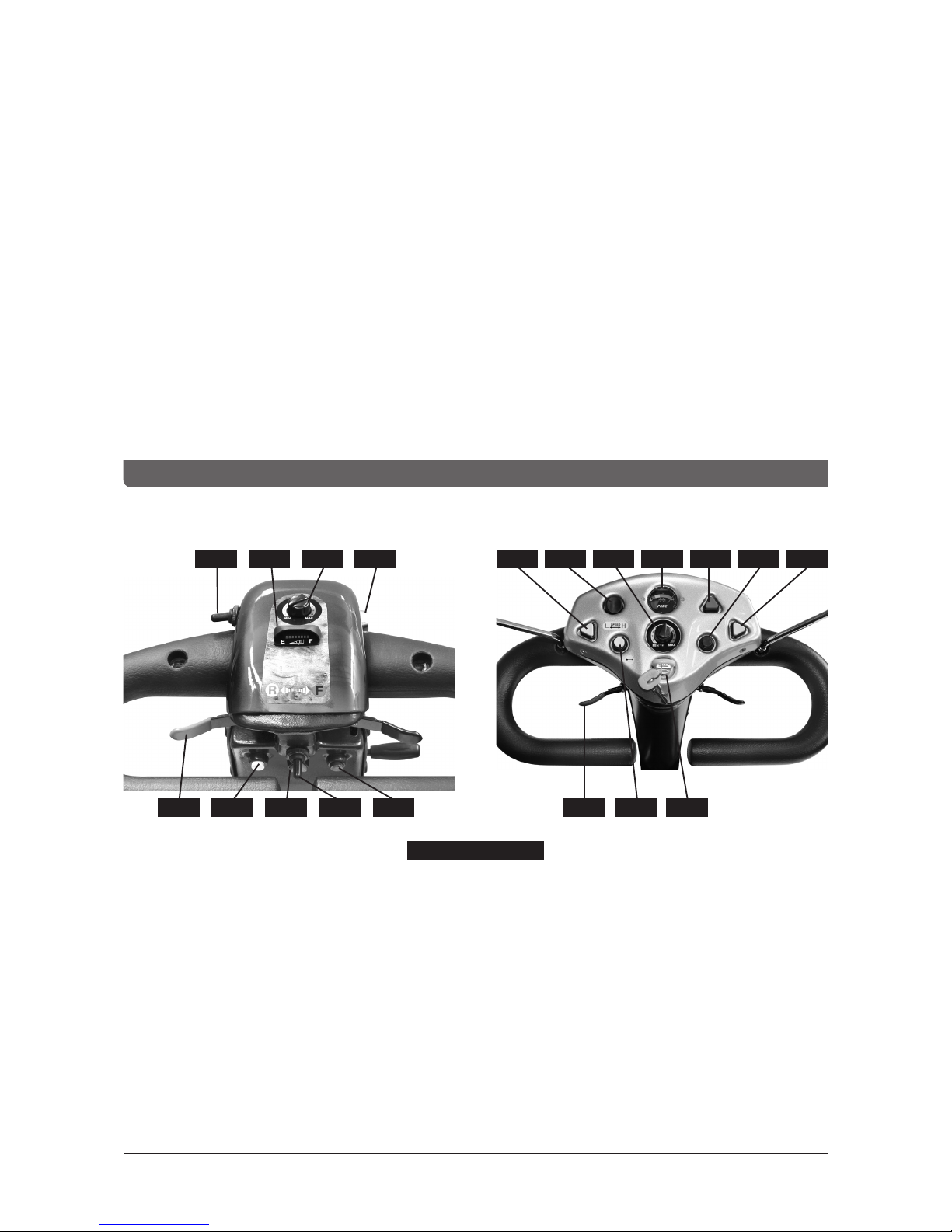

5.1 Controls

5.1.10 5.1.1

5.1.3 5.1.35.1.2 5.1.25.1.8

5.1.75.1.10

5.1.9

5.1.95.1.4 5.1.45.1.1 5.1.5

5.1.55.1.7

5.1.9 5.1.8

6Shoprider Scooters User Guide

5.1.4 - LED Battery Indicator

These indicate the amount of charge you have in the batteries. The number of bars lit,

shows the amount of charge left in your batteries. The amount of charge will only show at

its true level when the scooter is in drive.

WARNING! - Do not allow the bars to go out completely as the complete discharge of the

batteries could cause them irreversible damage.

5.1.5 - Key Switch

Insert the key and turn clockwise (the LED bars will illuminate). There is a 3 second delay

while the controller checks its circuits before the thumb lever control can be operated. Turn

keyanti-clockwisetoturnscooteroff.

5.1.6 - Charging Socket

Locatednearthetopofthetillerontheleftside(TE888iX)orrightside(TE9)youwillnd

the charging socket. For recharging the batteries see 8.2 for battery charging.

5.1.7- Lights

Press the round blue button to turn the light(s) on and press again to turn off.

5.1.8 - Hazard Lights

Press the triangle shaped red button for the front and rear hazard lights to operate.

5.1.9 - Indicators

On the (TE 9) a black switch works the indicators left or right when moved sideways.

The(TE888iX)hastwoyellowtriangularbuttonsthatindicateleftorrightwhenpushed.

5.1.10 - High/Low Speed

This black switch offers a low speed or high speed range with a ﬂick of the switch.

5.1.11 - Free Wheeling Device

Locatedunderthebodyattherearofthescooterontheleft(TE888iX)orright(TE9)side

is either a red or yellow handle lever. To freewheel the scooter simply push down the lever.

To engage the motor again, just pull the lever up. In freewheel mode the speed control

(wig wag) will not move the scooter and the scooter will not operate.

WARNING! - Always re-engage the free wheeling device after use. Failure to do so may

result in injury. Do not sit on the scooter while in freewheel mode.

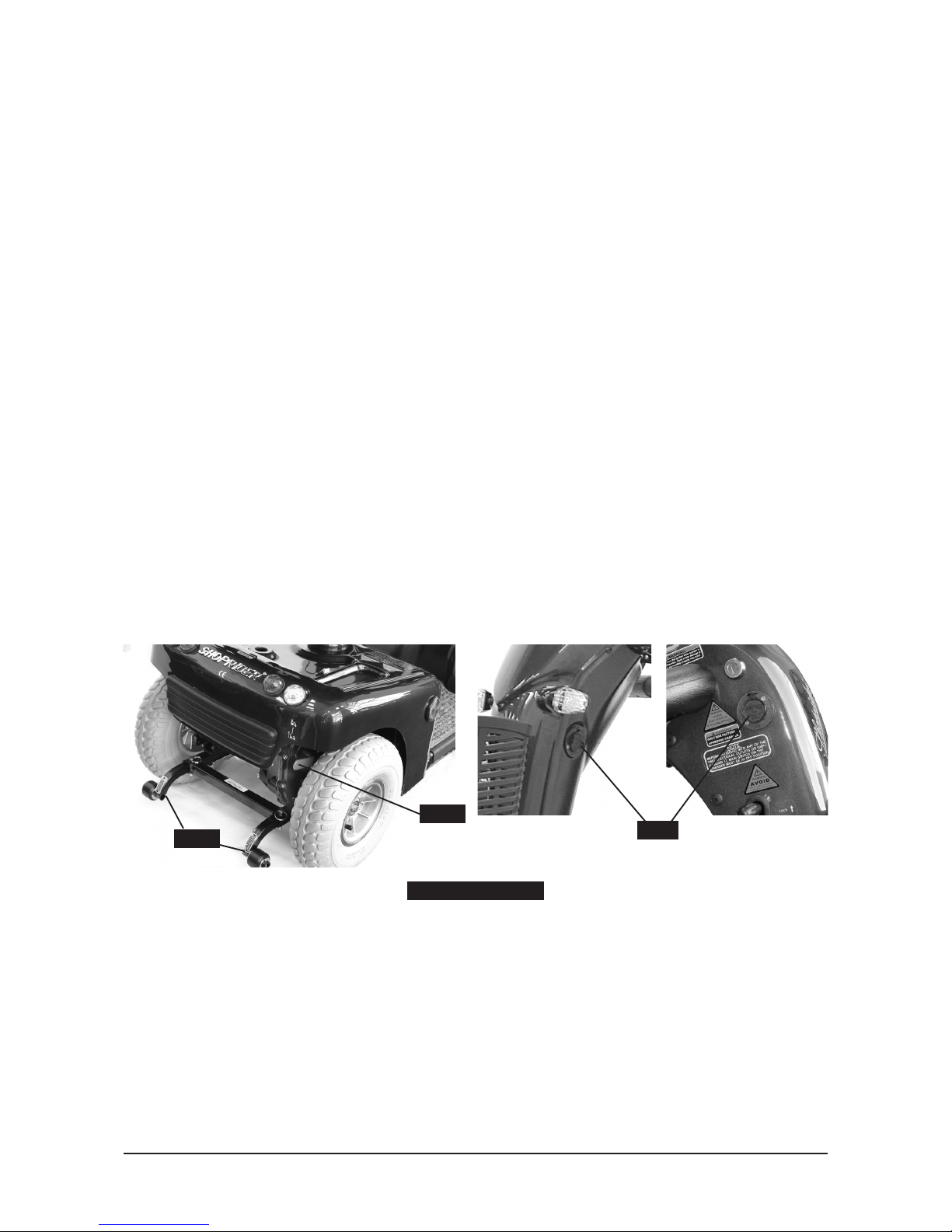

5.1.12 - Anti-Tip Wheels

These wheels are located on the rear frame of the scooter.

5.1 Controls

5.1.12

5.1.11

5.1.6

Shoprider Scooters User Guide 7

5.2 - MOUNTING

For your ﬁrst sessions, be sure that you and the scooter are on a level surface. Put the key in

its slot, but leave it turned off. Grip the hand lever located at the right hand side of the seat

andpulltheleverup.Thiswillreleasetheseatfromitssetlocation.Theseathasfourxing

pointsandwhenrotatingtheseatafterreleasefromoneofitslocationsthespring-loaded

catch will lock into your required position. Seat yourself and swing the seat to face the

handlebars. Make sure you are straight.

5.3 - BASIC DRIVING

l Make sure you are properly seated on the scooter

2 Turn the Speed Adjustment Dial (ﬁg 5.1.1) to slow.

3 Turnkey(g5.1.5)totheONposition.

4 Press the right thumb control (ﬁg 5.1.3) to start in a forward motion. You will very gently

accelerate.

5 Releasing the lever will automatically apply the brake and you will gently stop.

Practice these basic functions until you get used to them.

5.3.1 - Steering

Steering the scooter is easy and natural. Just be sure to remember to give wide clearance

when turning so that the rear wheels clear any obstacle. If you must steer in a tight spot,

such as entering a doorway or when turning around, stop, turn the handlebars to where

you want to go, then apply power gently. This will make the scooter turn very sharply, but

it will still go gently and with complete stability.

5.3.2 - Reversing

Reversing the scooter requires greater attention. Turn your Speed Adjustment Dial to slow

before you reverse (ﬁg 5.1.1). Push the left Thumb Lever Control. Remember to turn your

steering column before applying power. Steer wide of all corners and obstacles.

5.4 - DISMOUNTING

Before dismounting, ALWAYS turn key to the OFF position.

1 Locate the seat lever and pull the lever up.

2 Swing the seat away ensuring it locks into position, and ease onto your feet.

CAUTION! - If you require steadying when mounting or dismounting the scooter, use the

armrests rather than the front tiller

6. GENERAL ADVICE

6.1 - CONTROL THROUGH OBSTACLES

The chances are that when you start really using your scooter you will meet some obstacles

that will require some practice to drive through smoothly. Here are some common obstacles,

with tips that will help master them quickly. You will soon be in control through heavy doors,

up and down ramps, up and over kerbs, through grass, gravel and up hills with surprising

ease by following these tips.

6.1.1 - Control Through Doors

Approach the door slowly. If the door opens away from you, hold the doorknob or bar in

one hand and apply the power with the other hand. If it is a self closing door, you can go

through allowing the door to close behind you. If not, just stop when you are clear of the

8Shoprider Scooters User Guide

door and push it closed. If the door opens towards you, hold the knob or bar with one

hand and gently press on your left thumb lever, and allow the gentle reverse power to

do the work. When the door is open wide enough, push the forward lever and go ahead

quickly, leaving your hand on the door to keep it free of the scooter and letting go as you

pass the doorjamb.

6.1.2 - Control on Ramps

Many public buildings have ramps for scooters access. Some have a turn in the middle, and

good cornering is required. Having stopped while facing uphill, starting up again simply

requires that you apply forward power.

Going down any ramp or hill, keep the speed adjustment dial set to “Slow’. This will keep

you in a safely controlled descent. If you wish to stop completely, simply release the thumb

control lever.

6.1.3 - Control Over Grass, Gravel and Hills

The Shoprider scooter performs admirably in grass, gravel and on hills. However, you must

notexceedtheguidelinessetdowninthisguide.Please,refertothesafetyprecautions

(page 2). Safety must always come ﬁrst. If you are unsure about any situation, avoid it.

Feelfreetouseyourscooteronlawnsorinparkareas.Packedgravelsuchasondrive-ways

or roads will present no problem. Avoid long grass, loose deep gravel as well as loosely

packed sand. Because of the power of your scooter, you are able to climb steep hills, but

themaximumsafegradelimitis9°-thereasonforthisistoensureproperstability.Tryto

avoid wet weather and wet surfaces, rain or showers may cause electrical faults and wet

surfaces can become slippery.

6.2 - PARKING IN PUBLIC

If you need to park and leave the scooter, simply remove your key. This will keep the brake on

and will make your scooter difﬁcult to move. It is best to leave it in sight of someone like a

shop assistant who can watch it for you.

7. MAINTENANCE

7.1 - WHEELS AND TYRES

All Shoprider Scooters have split rim wheels. This allows any puncture to be repaired with ease.

The TE 888iX has solid tyres, these do not get punctures and do not need to be inﬂated.

7.1.1 - Changing Wheels and Tyres

When changing a wheel, remove the centre bolt and then remove the wheel. Replace with

new/repairedwheelandre-boltthecentrebolttothehub.Whenchangingatyreyou

must deﬂate the tyre. Remove the centre bolt and the four lock nut bolts after deﬂation to

split the wheel.

7.1.2 - Tyre Pressure

The recommended tyre pressures are Front 25 psi and Rear 30 psi. The tyre pressure must

notexceed50psi(psi=poundspersquareinch).Tyrepressuresshouldbecheckedregularly.

CAUTION! - On the tyre itself it states that maximum tyre pressure is 50 psi.

Please, note that this is the maximum tyre pressure and the tyres should never

be inﬂated to this pressure.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Rocky 6 Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider 889-3XLS Manuel utilisateur

Shoprider

Shoprider Grande TE-9AS Manuel utilisateur

Shoprider

Shoprider Solares FS777 Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider Venturer Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider Torino S-778XLSBN Manuel utilisateur

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider TE-778NR Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider 888SE Explorer Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider 888SE Explorer Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY With SUSPENSION Manuel utilisateur

Shoprider

Shoprider GK8 Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider 889SLBF Manuel utilisateur

Shoprider

Shoprider VIKING 3 Manuel utilisateur

Shoprider

Shoprider 889xlsn Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
