Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie RG-NBS3200 Series Switches

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview

1 Product Overview

Ruijie RG-NBS3200 series switches are mainly applicable to the small and medium-sized enterprise (SME) networks to

provide services according to business needs to ensure the prompt transmission of key data. The RG-NBS3200 series

switches provide various interfaces to meet the requirement for interfaces in network constructions.

RG-NBS3200 Series Switches

Model

10/100/1000

Base-T Ethernet Port

1000Base-X SFP

Port

10G SFP+ Port

Console Port

Power

Supply

RG-NBS3200-2

4GT4XS

N/A

Single

RG-NBS3200-2

4SFP/8GT4XS

8 (combo)

N/A

Single

RG-NBS3200-2

4GT4XS-P

24 (Support PoE+)

N/A

Single

RG-NBS3200-4

8GT4XS

N/A

Single

RG-NBS3200-4

8GT4XS-P

48 (Support PoE+)

N/A

Single

1000Base-T is downward compatible with 100Base-TX and 10Base-T.

Combo port consists of one 1000Base-X SFP port and one 10/100/1000Base-T Ethernet port. That is, only one

port of them is available at a particular time.

1.1 RG-NBS3200-24GT4XS

Technical Specifications

Model

RG-NBS3200-24GT4XS

CPU

Built-in CPU, single-core processor, 800MHz

BOOTROM

N/A

Flash Memory

256 MB

SDRAM

DDRIII 512MB

Optical Module

See Appendix B.

The copper cable is not supported.

The supported module type may change at any time. Consult Ruijie Networks for the latest

information.

SFP+ Port

10GBase-R

1000Base-X

Power Supply

AC input

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current: 1.5A

Input Leakage

Current

≤3.5mA

EEE

Supported

PoE

Not supported

Power

Consumption

28W

Temperature

Operating temperature: 0 ºC to 50ºC

Storage temperature: -40 ºC to 70ºC

Humidity

Operating humidity: 10% to 90% RH

Storage humidity: 5% to 95% RH

Fan

Supports adaptive speed adjustment

Temperature

Alarm

Not supported

EMC Standards

GB9254-2008

EN 55032:2015+AC:2016

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55035:2017

ETSI EN 300 386 V2.1.1 (2016-07)

Security

Standards

GB4943-2011

EN 62638-1

Dimensions

(W x D x H)

440 mm x 207.5 mm x 43.6 mm (with front panel )

Weight

2.9 kg

The RG-NBS3200-24GT4XS switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

Product Appearance

On the front panel, the RG-NBS3200-24GT4XS Ethernet switch provides 24 10/100/1000Base-T Ethernet ports and 4

SFP+ ports. On the back panel, it provides an AC power port.

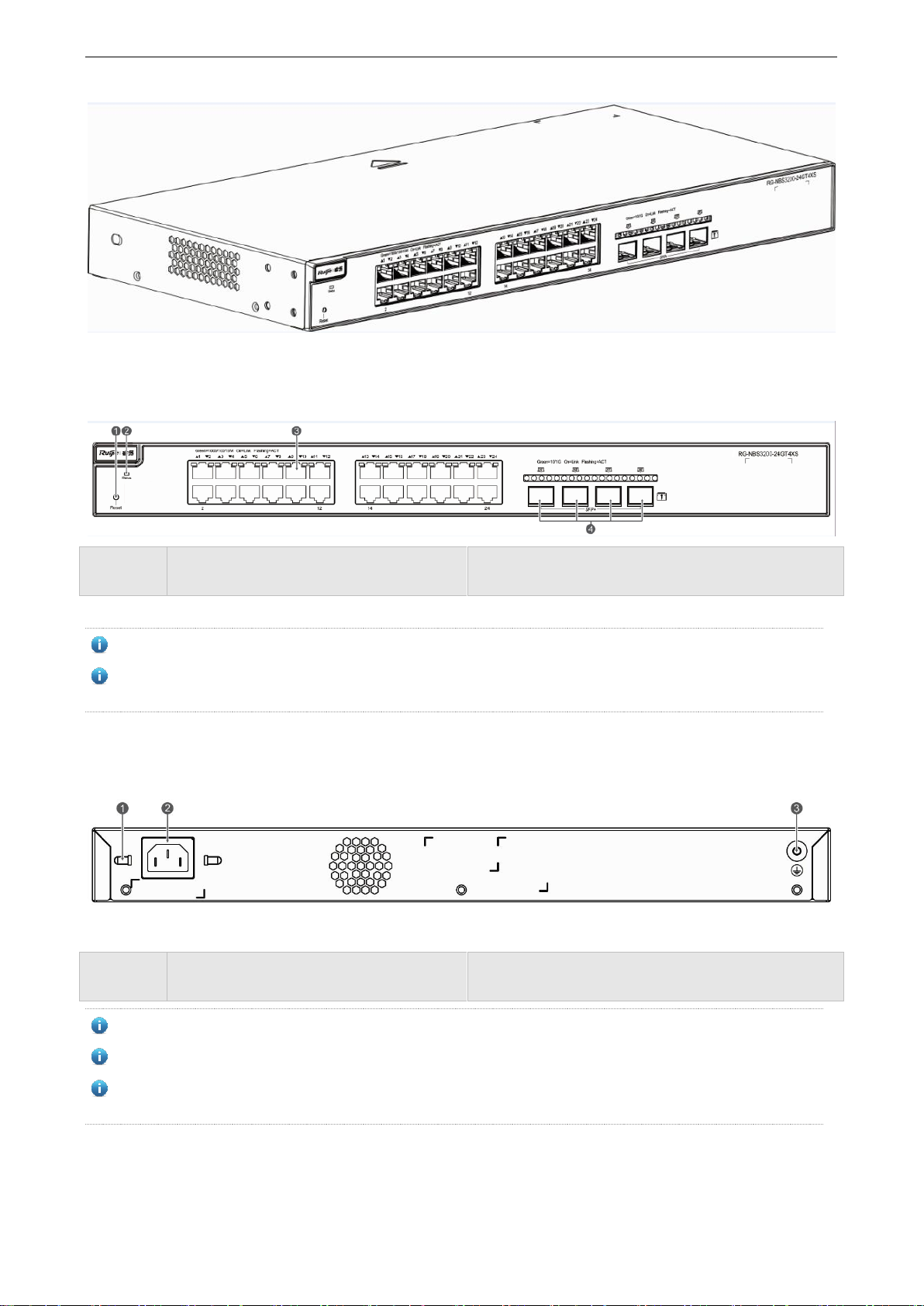

Figure 1-1 Appearance of RG-NBS3200-24GT4XS

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview

Front Panel

Figure 1-2 Front Panel of RG-NBS3200-24GT4XS

Note:

1. Reset button

2. System status LED

3. 10/100/1000 Base-T Ethernet port

4. 10GE SFP+ port

The switch reboots after the reset button is pressed for less than 2 seconds.

The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the

status LED blinks).

Back Panel

Figure 1-3 Back Panel of RG-NBS3200-24GT4XS

Note:

1. Power cord retention clips

2. Three-hole AC power receptacle

3. Protective earthing terminal

This device relies on the separate protective earthing terminal.

The device installation shall be permanently connected to building earth by a skilled person.

The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication

centre, a dedicated computer room, or a restricted access area).

Heat Dissipation

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview

RG-NBS3200-24GT4XS adopts side-to-rear heat dissipation, thereby ensuring normal function of the device in the

specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to

allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

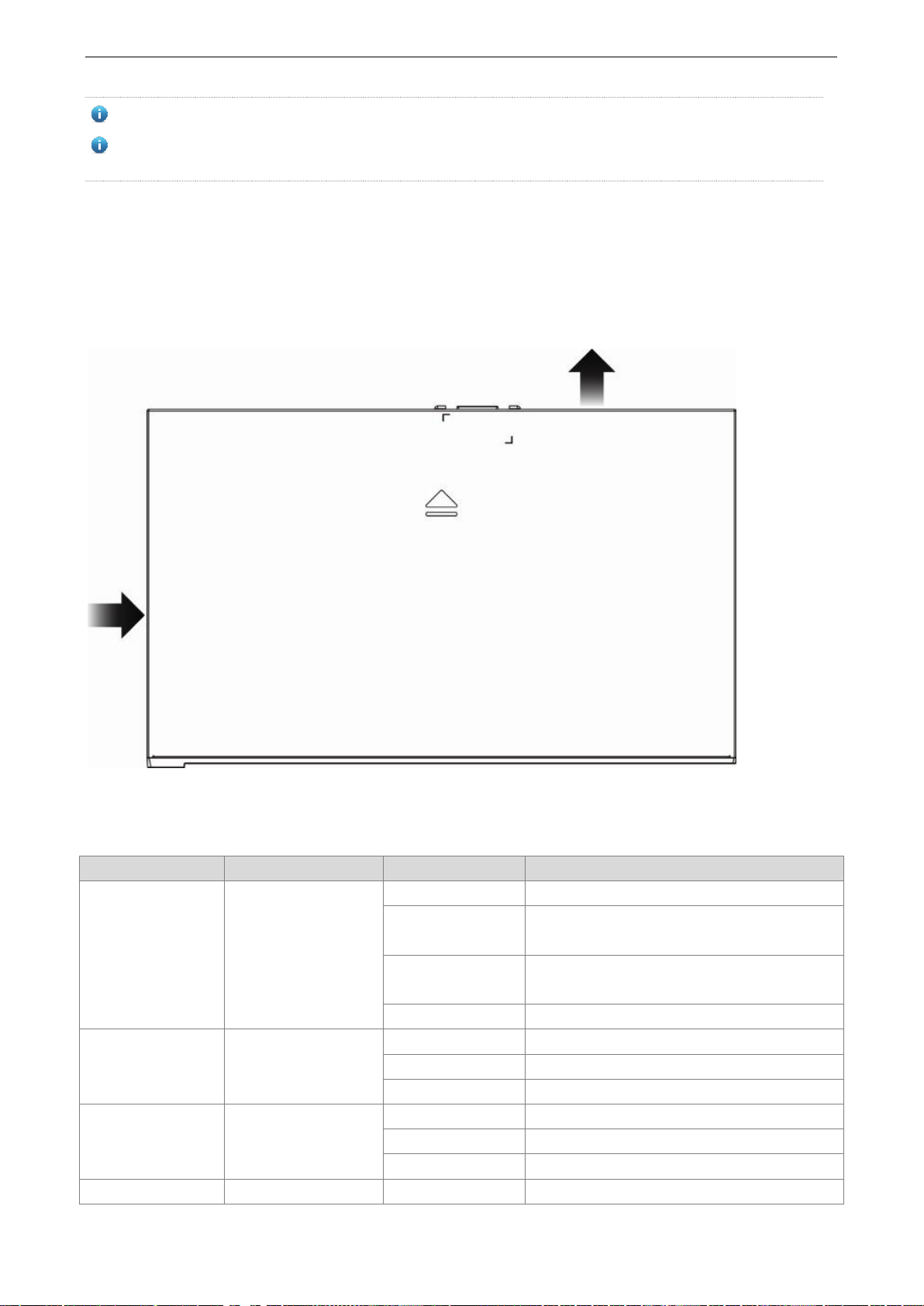

Figure 1-4 Flow Scheme of Heat Dissipation

LED

Panel Identification

State

Meaning

System status LED

Status

Off

The switch is not receiving power.

Blinking green

(0.5Hz)

The switch is running, but is not connected to

Ruijie Cloud.

Blinking green

(10Hz)

The switch is being upgraded or initialized.

Solid green

The switch is connected to Ruijie Cloud.

10/100/1000Base-T

Ethernet port status

LED

1-24

Off

The port is not connected.

Solid green

The port is connected at 10/100/1000 Mbps.

Blinking green

The port is receiving or transmitting traffic.

SFP+ port status

LED

25F-28F

Off

The port is not connected.

Solid green

The port is connected.

Blinking green

The port is receiving or transmitting traffic.

1.2 RG-NBS3200-24SFP/8GT4XS

Technical Specifications

Model

RG-NBS3200-24SFP/8GT4XS

CPU

Built-in CPU, single-core processor, 800MHz

BOOTROM

N/A

Flash Memory

256 MB

SDRAM

DDRIII 512MB

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview

Optical Module

See Appendix B.

The copper cable is not supported.

The supported module type may change at any time. Consult Ruijie Networks for the

latest information.

SFP Port

100Base-FX

1000Base-X

SFP+ Port

10GBase-R

1000Base-X

Power Supply

AC input

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current:2A

Input Leakage

Current

≤3.5mA

EEE

Supported

PoE

Not supported

Power

Consumption

42W

Temperature

Operating temperature: 0 ºC to 50ºC

Storage temperature: -40 ºC to 70ºC

Humidity

Operating humidity: 10% to 90% RH

Storage humidity: 5% to 95% RH

Fan

Supports adaptive speed adjustment

Temperature

Alarm

Not supported

EMC Standards

GB9254-2008

EN 55032:2015+AC:2016

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55035:2017

ETSI EN 300 386 V2.1.1 (2016-07)

Security

Standards

GB4943-2011

EN 62638-1

Dimensions

(W x D x H)

440 mm x 267.5 mm x 43.6 mm (with front panel )

Weight

3.35 kg

The RG-NBS3200-24SFP/8GT4XS switch is a class A product. In a domestic environment, this product may cause

radio interference in which case the user may be required to take adequate measures.

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview

Product Appearance

On the front panel, the RG-NBS3200-24SFP/8GT4XS Ethernet switch provides 24 SFP ports (8 Gigabit combo ports)

and 4 SFP+ ports. On the back panel, it provides an AC power port.

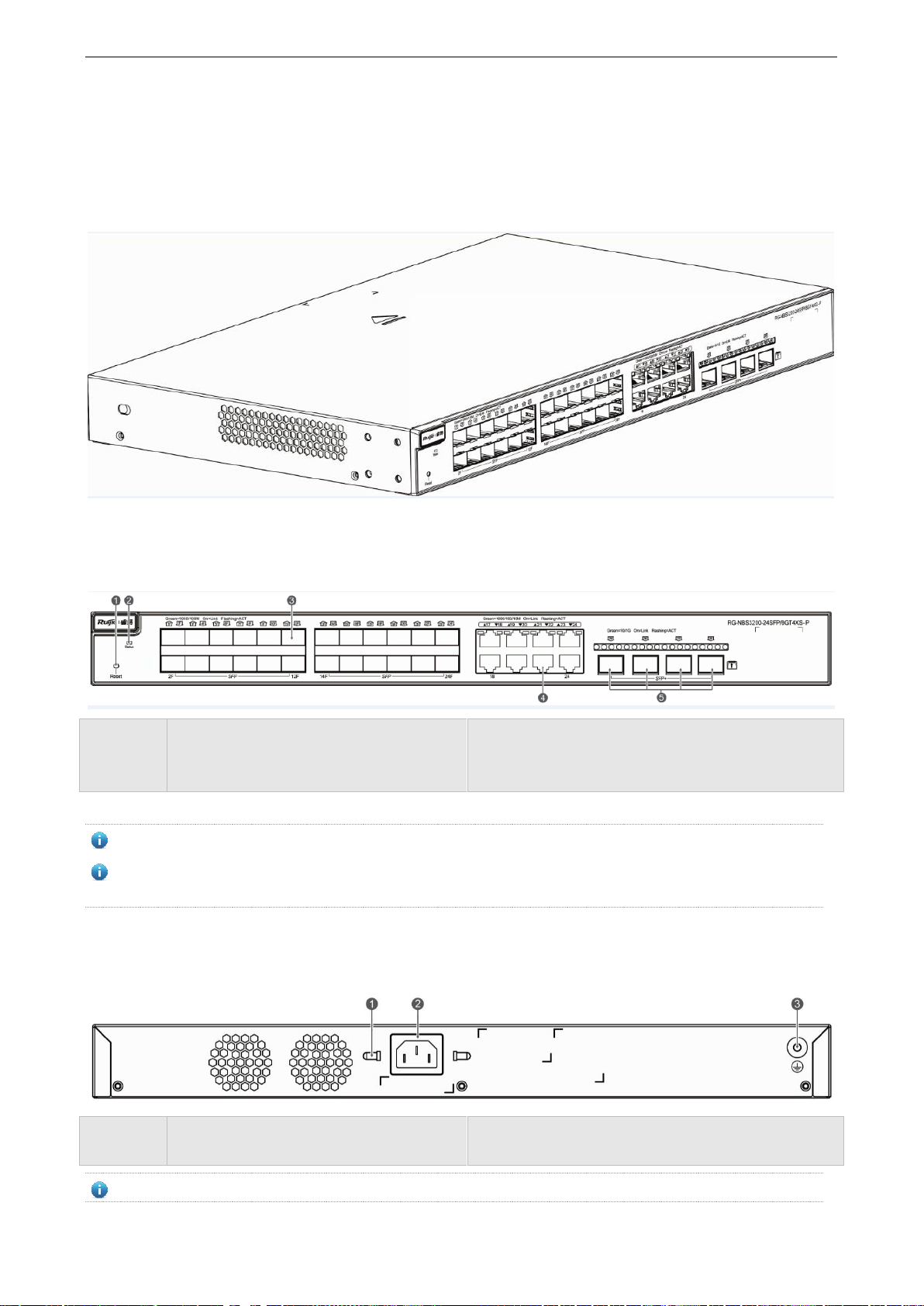

Figure 1-5 Appearance of RG-NBS3200-24SFP/8GT4XS

Front Panel

Figure 1-6 Front Panel of RG-NBS3200-24SFP/8GT4XS

Note:

1. Reset button

2. System status LED

3. 1000Base-X SFP port

4. Combo port

5. 10GE SFP+ port

The switch reboots after the reset button is pressed for less than 2 seconds.

The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the

status LED blinks).

Back Panel

Figure 1-7 Back Panel of RG-NBS3200-24SFP/8GT4XS

Note:

1. Power cord retention clips

2. Three-hole AC power receptacle

3. Protective earthing terminal

This device relies on the separate protective earthing terminal.

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview

The device installation shall be permanently connected to building earth by a skilled person.

The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication

centre, a dedicated computer room, or a restricted access area).

Heat Dissipation

RG-NBS3200-24SFP/8GT4XS adopts fan for heat dissipation, thereby ensuring normal function of the device in the

specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to

allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

Figure 1-8 Flow Scheme of Heat Dissipation

LED

Panel Identification

State

Meaning

System status LED

Status

Off

The switch is not receiving power.

Blinking green

(0.5Hz)

The switch is running, but is not connected to

Ruijie Cloud.

Blinking green

(10Hz)

The switch is being upgraded or initialized.

Solid green

The switch is connected to Ruijie Cloud.

10/100/1000Base-T

Ethernet port status

LED

17-24 (Combo ports)

Off

The port is not connected.

Solid green

The port is connected at 10/100/1000 Mbps.

Blinking green

The port is receiving or transmitting traffic.

SFP port status LED

1F-24F

Off

The port is not connected.

Solid green

The port is connected.

Blinking green

The port is receiving or transmitting traffic.

SFP+ port status

25F-28F

Off

The port is not connected.

Autres manuels pour RG-NBS3200 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S5750-S Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2910-24GT4SFP-UP-H Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES126S-P V2 Manuel utilisateur

Ruijie

Ruijie Reyee RG-NBS7006 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SF2920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S8600 Series Manuel utilisateur

Ruijie

Ruijie RG-S6110 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6220-48XS6QXS-H Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES206GS-P Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S7808C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S7800C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6980-64QC Manuel d'installation et d'exploitation

Ruijie

Ruijie S8600E Series Mode d'emploi

Ruijie

Ruijie RG-S2900G-E Series Manuel utilisateur

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES1 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6920-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES08 Manuel utilisateur

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2915-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES109DS Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
