Quantum LTO-3 Manuel utilisateur

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and

LTO-8

Contents

Connecting the Drive Interface and Power

Cables .....................................................2

Installing a Second Tape Drive or

Replacing a Tape Drive ...........................4

Preinstallation Requirements .............4

Installation Procedure ........................4

SCSI Cable Configurations ...............12

Installing the 1U Rackmount Enclosure in

a Rack ...................................................15

Tools Required ..................................15

Installation Procedure ......................15

Completing the Installation .............22

Class A Device Declarations..................24

1U Rackmount Enclosure

Installation Guide

The 1U Rackmount enclosure is provided with either one or two of the

following supported tape drives already installed:

• LTO-3 (Model B) Half-Height, SCSI model TC-L33CX-EY-B

• LTO-3 (Model B) Half-Height, SAS model TC-L33CN-EY-B

• LTO-4 (Model B) Half-Height, SCSI model TC-L43CX-EY-B

• LTO-4 (Model B) Half-Height, SAS model TC-L43CN-EY-B

• LTO-5 Half-Height, SAS model TC-L53CN-AR

• LTO-6 Half-Height, SAS model TC-L62AN-BR

• LTO-7 Half-Height, SAS model TC-L72AN-BR

• LTO-8 Half-Height, SAS model TC-L82AN-BR

You can upgrade a single-drive enclosure to the two-drive configuration by

installing a second tape drive using any supported model of the same type

interface.

This guide references the instructions for installing the 1U Rackmount

enclosure in an equipment rack, and provides the procedures for:

• Connecting the drive interface and power cables

• Installing a second tape drive into the 1U Rackmount enclosure

2Connecting the Drive Interface and Power Cables

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

Power Requirements Power requirements for the 1U Rackmount enclosure are as follows:

• 100 to 240 Volts AC, 2 to 4 Amps

• 47 to 63 Hz

Connecting the Drive Interface and Power Cables

1Shut down and turn off the host server system.

2Turn off all attached accessory devices, such as printers and other SCSI devices.

3On the back panel of a SCSI 1U Rackmount enclosure (see Figure 1):

Note: If this is a SAS 1U rackmount enclosure, continue with Step 4.

aConnect one end of the supplied external parallel SCSI cable to parallel SCSI

connector on the same side of the enclosure as the installed tape drive.

bConnect the other end of the supplied external parallel SCSI cable to the parallel

SCSI connector on the host server.

cAs required, use the parallel SCSI ID selector switch to set the SCSI ID of the

installed tape drive (see Figure 1).

Note: Any time you change the parallel SCSI ID, you must turn the tape drive

power off and then back on by pressing the power button on the front

panel of the 1U Rackmount enclosure.

Figure 1 Parallel SCSI Interface

Connectors

4On the back panel of a serial-attached SCSI (SAS) 1U Rackmount enclosure (see

Figure 2):

aConnect one end of the supplied external SAS interface cable to one of the

external SAS interface connectors at the rear of the enclosure (see Figure 2). The

left-most SAS connector is for a drive installed on the left of the enclosure, and

the right-most SAS connector is for a drive installed on the right.

Parallel SCSI connectorSCSI ID selector

Connecting the Drive Interface and Power Cables 3

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

bConnect the other end of the external SAS interface cable to the SAS connector

on the host server.

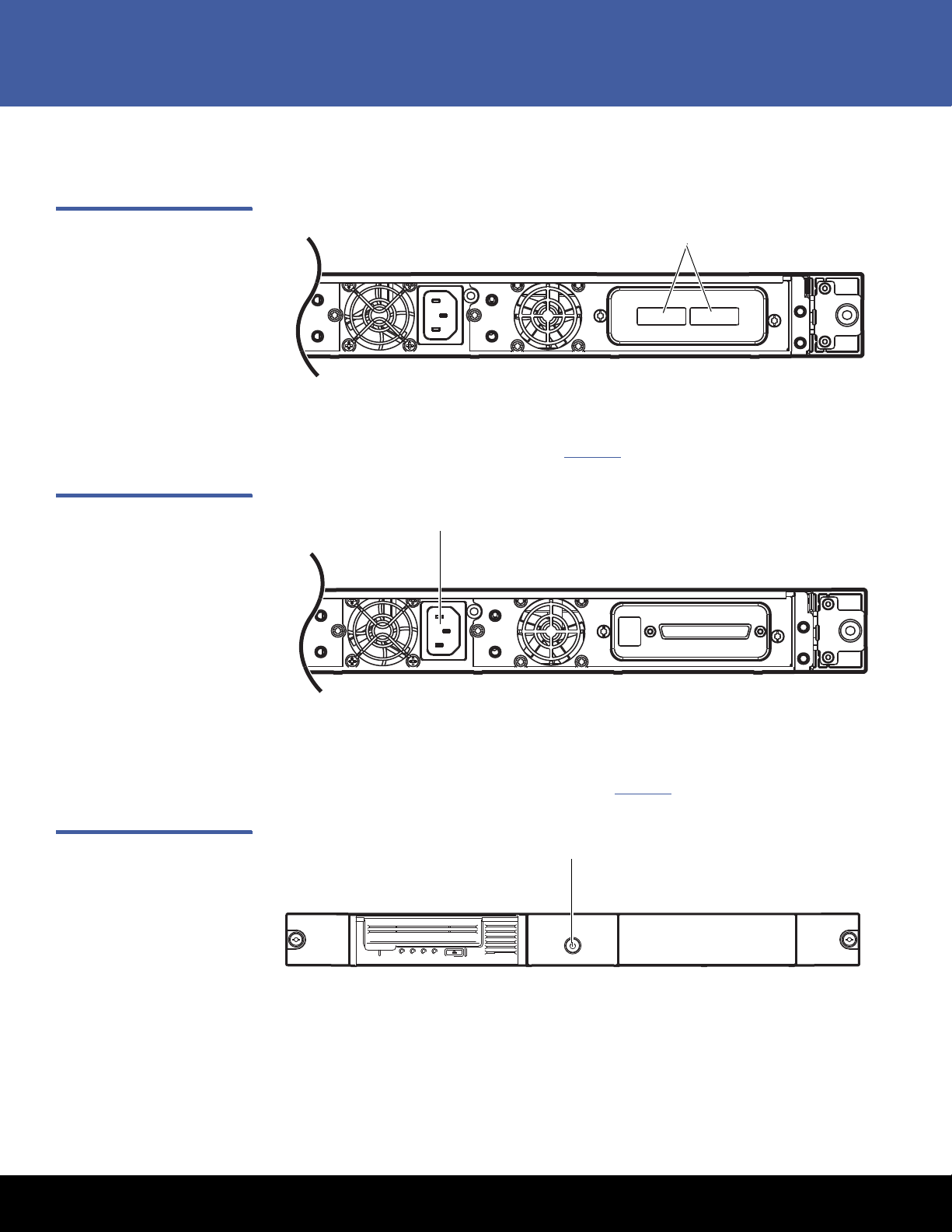

Figure 2 SAS Interface

Connectors

5Connect the supplied AC power cable to the AC power connector on the back panel

of the 1U Rackmount enclosure (see Figure 3).

Figure 3 AC Power Connector

6Connect the other end of the AC power cable to the rack/facility AC power

receptacle.

7Press the drive power pushbutton switch on the front panel of the 1U Rackmount

enclosure, illuminating the power LED. (see Figure 4).

Figure 4 Power Button

8Turn on all attached accessory devices, such as printers and other SCSI devices that

you turned off at step 2 of this procedure.

9Turn on and restart the host server.

SAS connectors

AC power connector

Power button

4Installing a Second Tape Drive or Replacing a Tape Drive

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

Installing a Second Tape Drive or Replacing a Tape Drive

Follow these instructions to install a second tape drive or to replace a tape drive after it

has been removed.

Caution: Before installing a second tape drive, you must turn off the 1U Rackmount

enclosure and disconnect it from its AC power source.

Preinstallation

Requirements

Before installing a second tape drive in the 1U Rackmount enclosure, make sure you

have the following required tools and parts:

Installation Procedure The installation procedure is divided into the following major sections:

•Removing the Top Panel

•Adding a Second Tape Drive

•Replacing a Tape Drive:

•Connecting the Tape Drive Cables

•Re-installing the Top Panel

Removing the Top Panel

To remove the top panel:

1Press the drive power pushbutton switch on the front panel of the 1U Rackmount

enclosure to turn off the drive power.

2Disconnect the AC power cable from the AC power connector on the back panel of

the 1U Rackmount enclosure.

3Remove the 1U Rackmount enclosure from the equipment rack and place it on a

clean, stable, flat surface.

4Remove the top access panel (see Figure 5):

aLoosen the latch screw

bLift the latch and slide the top panel toward the back of the 1U rackmount

enclosure.

To o l s 3/16 in. (5 mm) flat-blade screwdriver

T-15 Torx driver

Parts

• A supported model tape drive

• Parallel SCSI cable and terminator or SAS cable depending on the

tape drive type

Installing a Second Tape Drive or Replacing a Tape Drive 5

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

cRemove the top access panel from the 1U rackmount enclosure.

Figure 5 Top Access Panel

Adding a Second Tape Drive

Note: If you are replacing a tape drive, refer to Replacing a Tape Drive: on page 7.

To add a second tape drive:

1Remove the drive blank (see Figure 6):

aPull the spring-loaded button on the right mounting rail up.

bSlide the drive blank forward and lift up out of the 1U rackmount enclosure.

Latch screw

Latch

Top panel

6Installing a Second Tape Drive or Replacing a Tape Drive

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

Figure 6 Removing the Drive

Blank

2Remove the screws securing the mounting brackets to the tape drive blank (see

Figure 7).

Figure 7 Removing the

Mounting Brackets

3Secure the mounting brackets with two screws on each side of the tape drive (see

Figure 8).

Spring-loaded button

Drive blank

Mounting bracket s

Installing a Second Tape Drive or Replacing a Tape Drive 7

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

Figure 8 Installing the

Mounting Brackets

4Install the drive (see Figure 9):

aPosition the mounting bracket keyhold slots over the mounting posts.

bSlide the drive toward the back of the enclosure.

cThe spring-loaded button will automatically snap into place.

Figure 9 Installing the Tape

Drive

Continue with Connecting the Tape Drive Cables on page 10.

Replacing a Tape Drive:

To replace a tape drive:

Mounting bracket s

Spring-loaded button

Tape drive

8Installing a Second Tape Drive or Replacing a Tape Drive

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

1Remove the tape drive (see Figure 10):

aDisconnect all cables from the tape drive.

bPull the spring-loaded button on the right mounting rail up.

cSlide tape drive forward and lift up out of the 1U rackmount enclosure.

Figure 10 Removing the Tape

Drive

2Remove the screws securing the mounting brackets to the tape drive (see Figure 11).

Figure 11 Removing the

Mounting Brackets from the

Ta p e D r i v e

Spring-loaded button

Tape drive

Mounting bracket s

Installing a Second Tape Drive or Replacing a Tape Drive 9

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

3Secure the mounting brackets with two screws on each side of the new tape drive

(see Figure 8).

Figure 12 Installing the

Mounting Brackets

4Install the new tape drive (see Figure 9):

aPosition the mounting bracket keyhold slots over the mounting posts.

bSlide the drive toward the back of the enclosure.

cThe spring-loaded button will automatically snap into place.

Figure 13 Installing the Tape

Drive

Mounting bracket s

Spring-loaded button

Tape drive

10 Installing a Second Tape Drive or Replacing a Tape Drive

LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

Connecting the Tape Drive Cables

To connect the tape drive cables:

1For a SCSI tape drive, connect the following cables to the back of the tape drive (see

Figure 14).

aSCSI cable

bPower cable

cSCSI ID selector switch

Figure 14 Connecting the SCSI

and Power Cables

2For an LTO-3 (Model B) and LTO-4 (Model B) SAS tape drive, connect the following

cables to the back of the tape drive (see Figure 16).

aSAS cable

bPower cable

Figure 15 Connecting the SAS

and Power Cables (LTO-3 and

LTO -4 Only)

SCSI cable

Power cable

SCSI ID selector

SAS cable

Power cable
