Quantum Scalar LTFS Manuel de la liste des pièces

6-68094-01 Rev A, December 2013 *6-68094-01 A*

Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates

in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum

specifications are subject to change.

Quantum Scalar LTFS

Appliance:

Hard Drive Blank Replacement

To replace the hard drive blank in the Scalar®Linear Tape File System (LTFS)

Appliance, refer to the following sections:

•Preparing to Replace a Hard Drive Blank on page 1

•Removing a Hard Drive Blank on page 2

Preparing to Replace a Hard Drive Blank

Before beginning the replacement procedure, make sure that you have the

required replacement kit. Refer to the following table for the replacement kit

contents (see Table 1 on page 1).

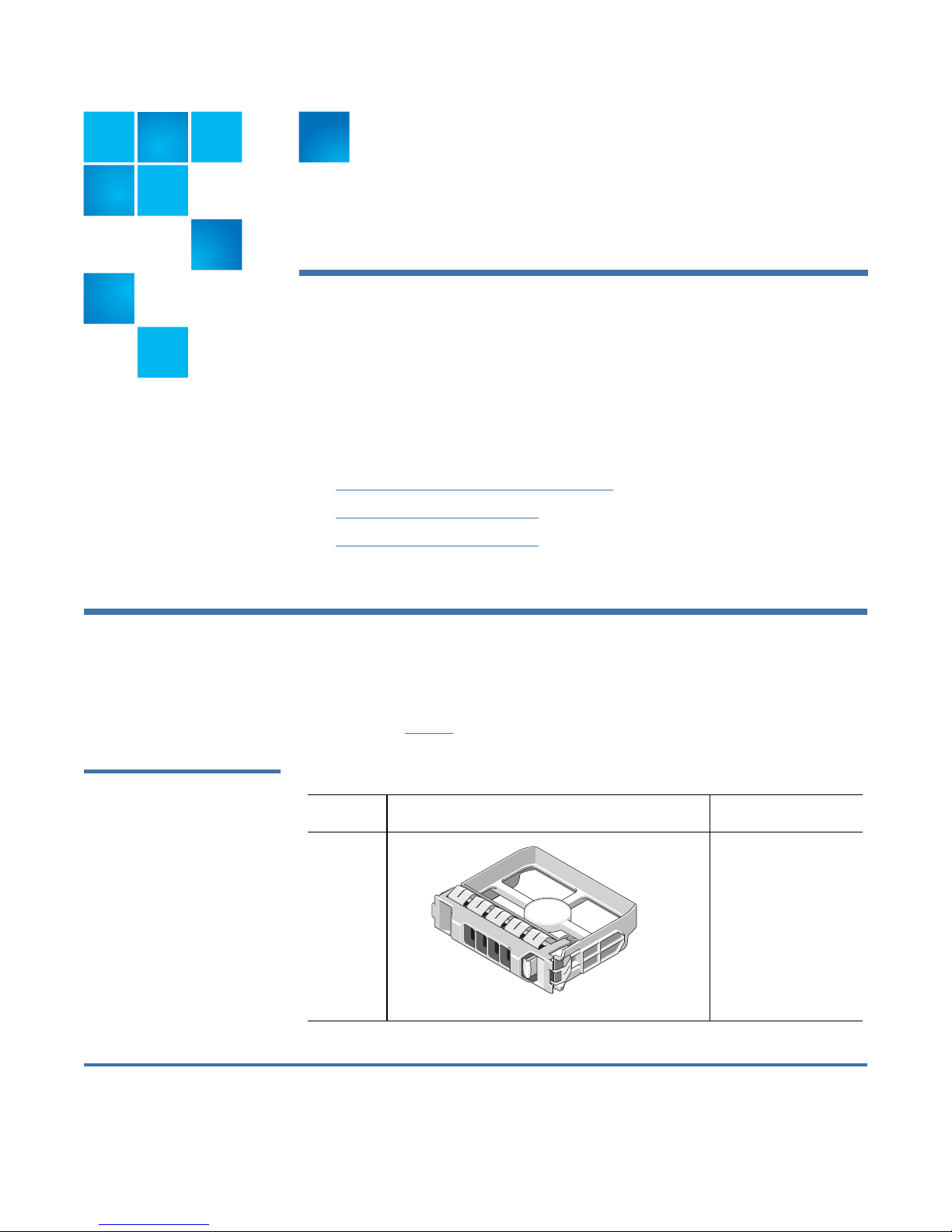

Table 1 Scalar LTFS Appliance

Hard Drive Blank Kit Qty Illustration Description

1 Replacement hard

drive blank

Quantum Scalar LTFS Appliance: Hard Drive Blanks Replacement

6-68094-01 Rev A

December 2013

2 Removing a Hard Drive Blank

Required Tools: None.

Removing a Hard Drive Blank

Caution: To prevent overheating, do not leave a slot open for more than 5

minutes.

To remove a hard drive blank, complete the following steps:

1If installed, remove the front bezel:

aUnlock the key lock at the left end of the bezel (see Figure 1).

bLift the release latch next to the key lock.

cRotate the left end of the bezel away from the front panel.

dUnhook the right end of the bezel and pull the bezel away from the

chassis of the top Scalar LTFS Appliance.

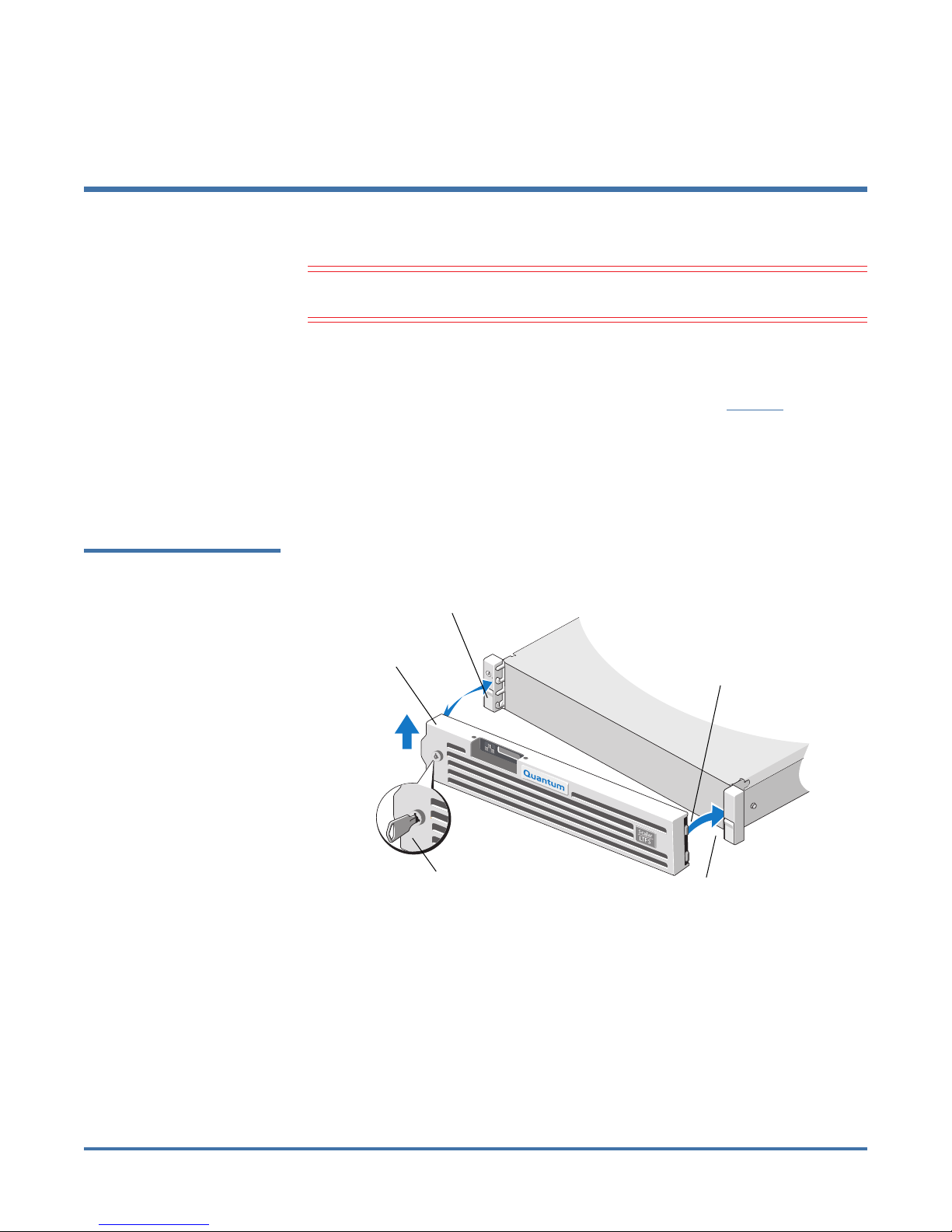

Figure 1 Removing the Scalar

LFTS Appliance Bezel

Key lock (Step 1a)

Bezel (Step 1c)

Release latch (Step 1b)

Hook (Step 1d)

Chassis

Quantum Scalar LTFS Appliance: Hard Drive Blanks Replacement

6-68094-01 Rev A

December 2013

Removing a Hard Drive Blank 3

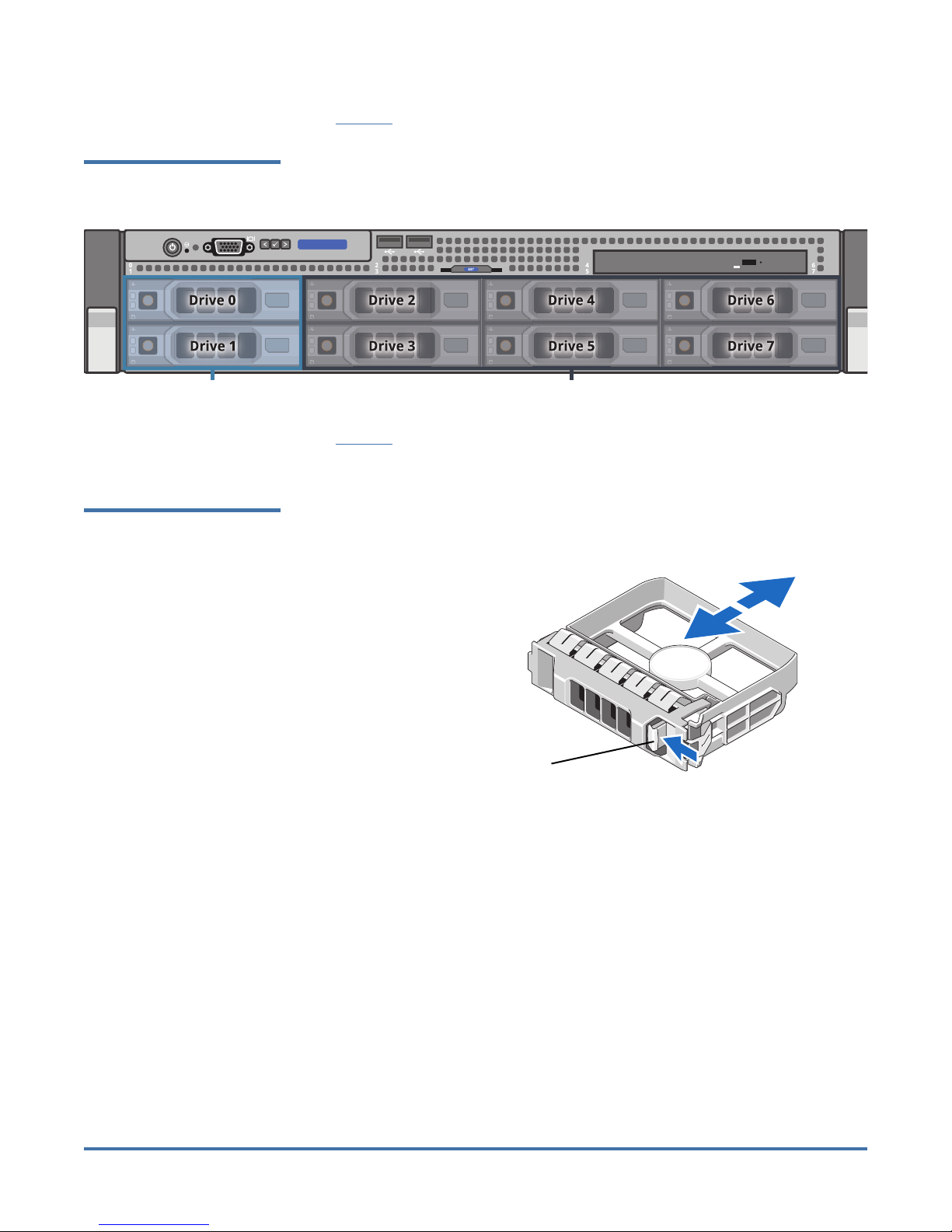

Figure 3 shows the Front of the Scalar LTFS after the bezel is removed.

Figure 2 Front of the

Scalar

LTFS

2Identify the blank you want to release and press the release tab (see

Figure 3).

3Slide the blank out until it is free of the drive bay.

Figure 3 Removing the Scalar

LTFS Appliance Hard Drive

Blank

System Software Empty Drive Bays

Hard drive blank release tab

Quantum Scalar LTFS Appliance: Hard Drive Blanks Replacement

6-68094-01 Rev A

December 2013

4 Replacing a Hard Drive Blank

Replacing a Hard Drive Blank

To replace the hard drive blank, complete the following steps:

Note: To avoid damaging the hard drive blank’s metal spring, follow the hard

drive blank installation sequence described in Figure 4 if installing more

than one hard drive blank at a time.

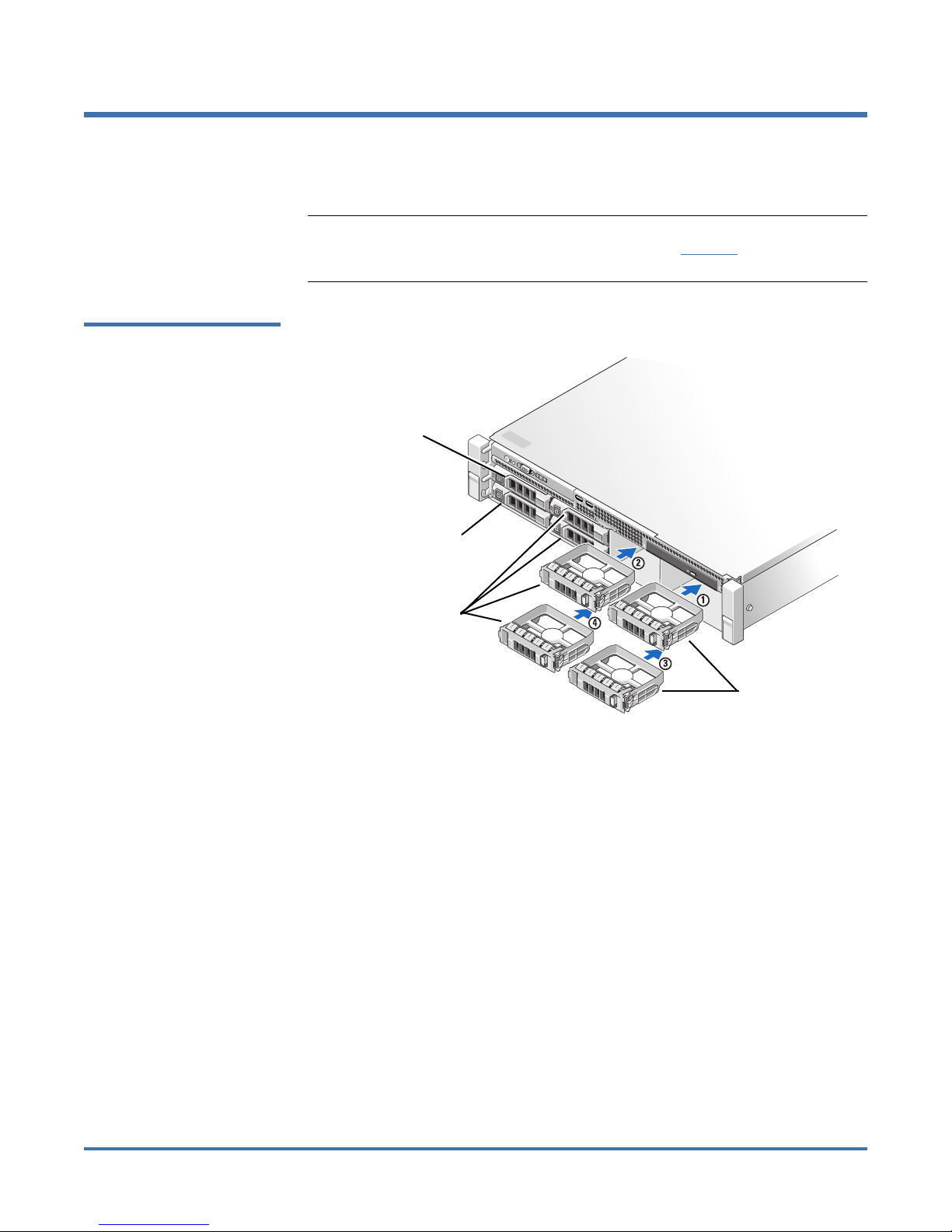

Figure 4 Scalar LTFS Appliance

Hard Drive Blanks Installation

Sequence

1Insert the replacement hard drive blank into the empty drive bay.

2Continue inserting the hard drive blank until the release button clicks into

place.

3If you removed the front bezel, place it back on the chassis:

aHook the right end of the bezel onto the chassis of the top Scalar LTFS

Appliance.

bFit the free end of the bezel onto the chassis.

cSecure the bezel with the key lock.

Hard drive

blank

Hard drive 0

Hard drive 1

Hard drive

blank
