Quantum P1000 Series Manuel utilisateur

Document 6221100-02, Ver. 2, Rel. 0

March 1999

ATL P1000 Series Library

Unpacking Instructions 0

Introduction....................................................................................................3

Selecting an Installation Location ...............................................................5

Floor Space...............................................................................................5

Floor Clearance .......................................................................................6

Floor Strength and Inclination..............................................................6

Overhead Clearance...............................................................................6

Power and Grounding ...........................................................................6

Power Inlet ........................................................................................7

Rack Current Rating Consideration ..............................................7

Grounding.........................................................................................7

Temperature......................................................................................7

Environmental Requirements...............................................................7

Unpacking the Library..................................................................................8

Unloading Space Requirements..................................................................9

Uncrating the Library .................................................................................10

Installing the Slide Assembly in the Rack................................................13

Verifying the Rack Requirements.......................................................13

Rack Current Rating Consideration ............................................13

Grounding.......................................................................................14

Temperature....................................................................................14

Determining the Mounting Position..................................................14

Installing the Slide Assembly in the Rack.........................................15

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

Adjusting the Slide Assembly ............................................................17

Adjusting the Slide Assembly on the Mounting Brackets.......17

Adjusting the Slide Assembly Tray on the Slide Rails.............19

Removing the Library from the Pallet.....................................................22

Removing a Stand-alone Library from the Pallet............................22

Removing a Rack-mount Library from the Pallet ...........................24

Removing the Internal Packing Materials...............................................28

Opening the Doors...............................................................................28

Removing the Load and Bulk Packs..................................................28

Removing the Shipping Restraint......................................................29

Packaging the Library for Reshipment....................................................31

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

Introduction 3

Introduction 0

The ATL P1000 Series is an automated tape library consisting of up to 4

tape drives and 30 DLT™ cartridges.

This document explains how to unpack the ATL P1000 Series. Once the

library is unpacked and moved to the desired installation location, set

up the library using the instructions in the ATL P1000 Series Library

User’s Guide.

The P1000 library is shipped in either a stand-alone (see figure 1) or

rack-mount configuration (see figure 2). The stand-alone P1000 is set

on casters. The rack-mount P1000 comes with a slide tray assembly for

installation in a rack.

Note: A rack is not provided with the rack-mount P1000; it must be obtained

separately.

Figure 1 ATL P1000

SeriesLibrary,Stand-alone

Configuration

Key lock

Bulk pack door

Power switch

Window

Touch screen

Load port

Load pack door

graphical user

interface (GUI)

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

4 Introduction

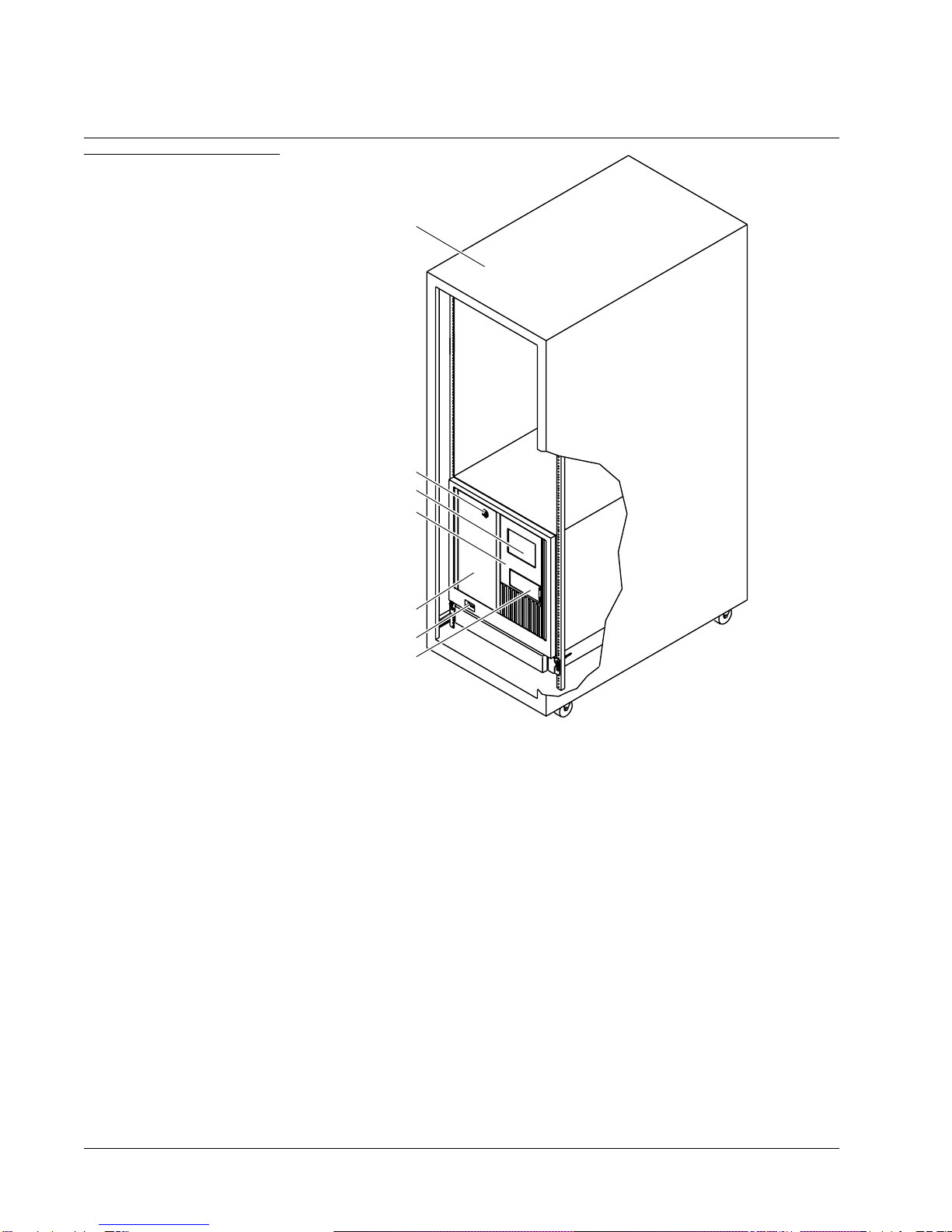

Figure 2 ATL P1000

SeriesLibrary,Rack-mount

Configuration

Key lock

Bulk pack door

Power switch

GUI

Load port

Load pack door

Rack (not included)

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

Selecting an Installation Location 5

Selecting an Installation Location 2

When selecting an installation site for the ATL P1000 Series, consider

the following requirements:

‡floor space

‡floor clearance

‡floor strength and inclination

‡power and grounding

‡environmental conditions

These requirements are also described in the ATL P1000 Series Library

User’s Guide.

Floor Space 2Figure 3 shows the floor space requirements of the stand-alone P1000.

Figure 3 Floor Space

Requirements, Stand-

alone Library

17.5 in.

(45 cm)

24 in. (61 cm) 29.5 in. (75 cm)

54 in. (137.2 cm)

Library FrontBack

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

6 Selecting an Installation Location

Figure 4 shows the floor space requirements for the rack-mount P1000.

Figure 4 Floor Space

Requirements,

Rack-mount Library

Floor Clearance 4The stand-alone P1000 has a floor clearance of 0.75 in. (1.9 cm). Place

the library on a level, uncarpeted floor free of defects.

Floor Strength and

Inclination 4

The floor at the installation site must be rated at 250 lb/ft2(1221 kg/

m2). This is sufficient to support a fully loaded P1000 on the floor or in

a rack.

The floor at the installation site must be level to within 0.25 in (6.4 mm)

over a 6 ft by 6 ft (1.8 m by 1.8 m) area.

Overhead Clearance 4To remove the P1000 enclosure, there must be a minimum clearance of

24 in. (61 cm) above the library. When combined with the height of the

library (21 in./53 cm), this is a total of 45 in. (114.5 cm) from the floor

(stand-alone library) or bottom of the slide (rack-mount library).

Power and Grounding 4The library auto-ranging power supply accepts single-phase, 90 VAC

to 264 VAC input power at 47 Hz to 63 Hz.

30 in. (76.2 cm)

17.5 in.

(45 cm)

24 in. (61 cm)

19-inch rack Library

(extended

from rack)

24 in.

(61 cm)

each side

24 in.

(61 cm)

Back

Front

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

Selecting an Installation Location 7

Power Inlet 4

The power inlet is an IEC-320 connector (see figure 5). For

international applications, replace the power cord with a harmonized

3x1.0mm

2power cord approved by the country where used.

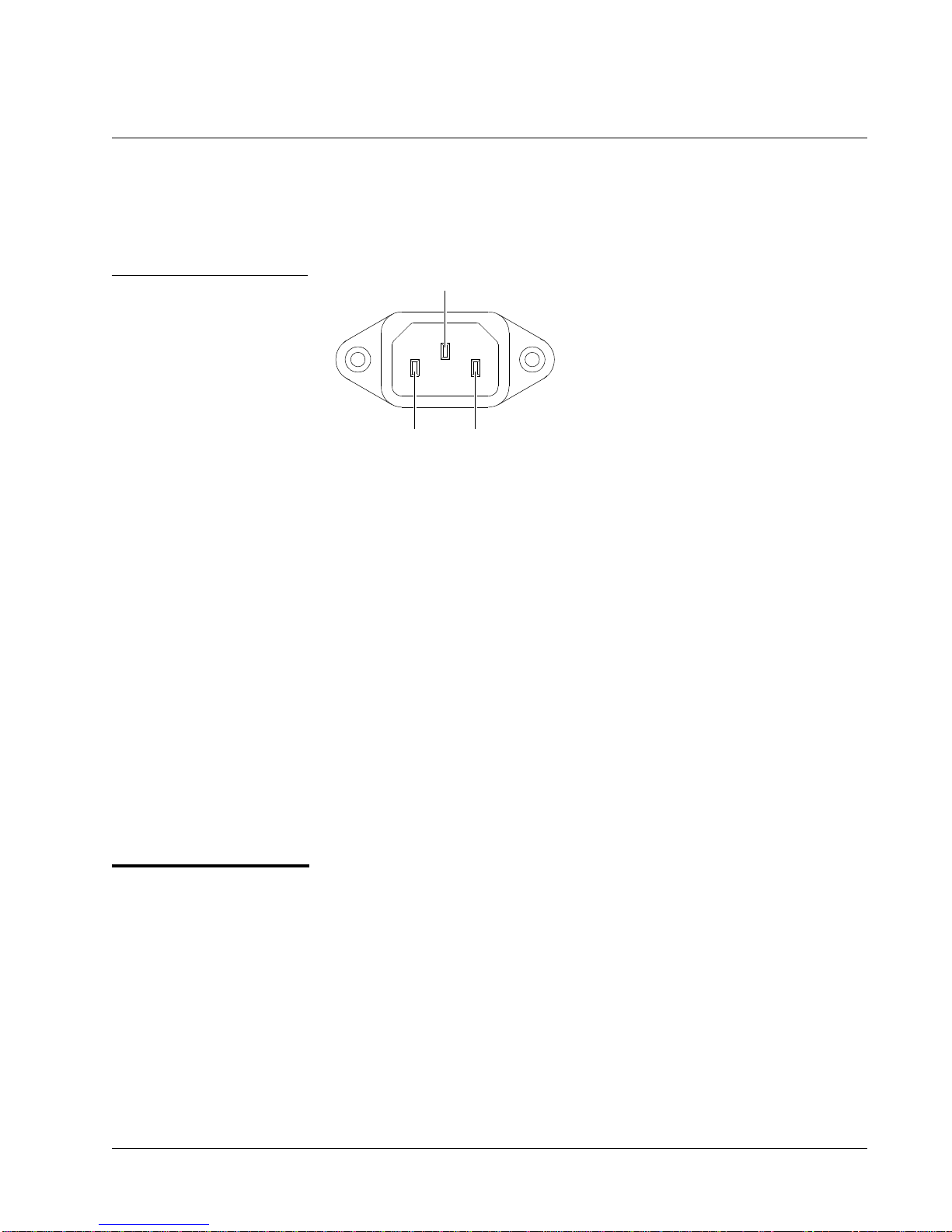

Figure 5 AC Power

Receptacle

Rack Current Rating Consideration 5

Consider the current rating of the rack before installing more than one

P1000 library. The P1000 library is rated 6A/3A (120V/230V). This

means that no more than two libraries can be installed in a typical

15A/120V rack.

If other equipment is installed in the rack, determine the total current

rating of all the equipment before adding the P1000 library to the rack.

Grounding 5

The P1000 must be connected to a grounded power outlet. If the

library is rack-mounted, the rack must also be grounded.

Temperature 5

The rack temperature should be less than 90qF (32qC).

Environmental

Requirements 5

The installation site (stand-alone library) or the interior of the rack

(rack-mount library) must meet the following environmental

requirements:

‡humidity: 20% to 80%, non-condensing

‡temperature: 59qF to 90qF (15qC to 32qC)

‡altitude: sea level to 10,000 feet (3,033 meters)

NeutralLine

Ground

~100V to 120V / ~200V to 240V

6A/3A 50Hz/60Hz

IEC-320 Type

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

8 Unpacking the Library

Unpacking the Library 5

The P1000 unpacking procedure consists of the following steps:

‡receiving the library from the shipper (see “Unloading Space

Requirements” on page 9)

‡uncrating the library (see “Uncrating the Library” on page 10)

‡installing the slide assembly in the rack (rack-mount library only)

(see “Installing the Slide Assembly in the Rack” on page 13)

‡removing the library from the pallet (see “Removing the Library

from the Pallet” on page 22)

‡removing the internal packing materials from the library (see

“Removing the Internal Packing Materials” on page 28)

The following sections detail each of these steps.

Note: Before performing the procedures in the following sections, make sure

the site you have chosen for the installation meets the requirements

listed in “Selecting an Installation Location” on page 5.

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

Unloading Space Requirements 9

Unloading Space Requirements 5

Before uncrating the library, verify that you have sufficient space. For

the stand-alone unit, allow a minimum of six feet in front of the ramp

side of the pallet (see figure 6).

Note: Unpack the library as close to the installation site as possible.

Figure 6 Unloading Space

Requirements, Stand-

alone Library

Pallet

Pallet ramp

Library

Unloading area

(minimum)

30 in. (76 cm)

18 in. (46 cm)

33 in. (84 cm) 97 in. (2.5 m)

ATL P1000 Series Library Unpacking Instructions

Document 6221100-02, Ver. 2, Rel. 0

March 1999

10 Uncrating the Library

Uncrating the Library 6

To uncrate the P1000 library:

Procedure

1Open the top of the shipping carton by carefully cutting the

packaging tape.

The following items are stacked on top of the P1000:

‡accessories tray

‡ramp (stand-alone library) or slide assembly (rack-mount

library)

2Remove these items from the carton and set them aside.

3Remove all foam supports from inside the carton (see figure 7 on

page 11 and figure 8 on page 12).
