Quantum

SDLT 600

User Reference Guide

User Manual Statements for Class A Equipment (Internal Tape System)

This is a Class A product. This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment in a residential area may cause

harmful interference in which case the user will be required to correct the interference at his own expense.

Any modifications to this device—unless expressly approved by the manufacturer—can void the user’s authority to

operate this equipment under Part 15 of the FCC rules.

User Manual Statements for Class B Equipment (Tabletop Tape System)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a resi-

dential installation. Any modifications to this device—unless expressly approved by the manufacturer—can void the

user’s authority to operate this equipment under part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that

may cause undesirable operation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio or TV technician for help.

Contents | SDLT 600 Tape Drive User Reference Guide

Contents

A Using the Tape Drive

A1 Handling the Tape Drive and Data Cartridges

A2 Interpreting the Front of the Tape Drive

A3 Loading and Unloading Data Cartridges

A4 Cleaning the Tape Heads

B Using Data Cartridges

B1 Choosing Data Cartridges

B2 Write-protecting Data Cartridges

B3 Caring for Data Cartridges

B4 Inspecting Data Cartridges

C Connecting the Tape Drive

C1 Understanding the Tape Drive’s Interface

C2 Choosing Cables and Connectors

C3 Setting the SCSI ID

C4 Connecting the SCSI Model as a Single Device

C5 Connecting the SCSI Model in a Daisy Chain

C6 Connecting the Fibre Channel Model

D Troubleshooting Tape Drive Problems

D1 Using the Power-On Self-Test

D2 General Troubleshooting

D3 SCSI Troubleshooting

D4 Checking for Tape Drive Errors

D5 Optimizing the Tape Drive

E Tape Drive Information

E1 Specifications

E2 Regulatory Information

Pointers for Using this Guide

!Pay attention to these points. They are important for tape

drive operation.

 A1

Follow these cross references for information on related

topics.

A1 | Handling the Tape Drive and Data Cartridges

A Using the Tape Drive

A1 Handling the Tape Drive

and Data Cartridges

Handling the Tape Drive

!Do not carry the tape drive by inserting your fingers into

the receiver area. You could damage the tape drive if you

lift or carry it in this manner.

Do not stand the tape drive on its front panel.

Always place the tape drive on a flat, stable surface.

Avoid dusty, humid, or smoke-filled areas.

Use proper electrostatic discharge (ESD) protection.

Handling Data Cartridges

Keep cartridges in their protective cases when not in use.

Protect cartridges from shock, vibration, moisture, direct

sunlight, dust, smoke, and magnetic fields.

Use the slide-in labels provided. Do not use adhesive

labels or Post-it®notes, and do not write on the cartridge.

Never touch the tape or tape leader. Dust and oils from

your skin contaminate the tape and affect performance.

!Always visually inspect a data cartridge before placing it

in the tape drive. If it is damaged, do not use the cartridge.

B4

!Never power off the tape drive while it contains a

cartridge.

For a more comprehensive list of data cartridge handling

guidelines, B3.

Receiver

Area

Protective Case

Interpreting the Front of the Tape Drive | A2

A2 Interpreting the Front of

the Tape Drive

Note: Upon reset, all LEDs flash briefly and then illuminate

in sequence until the tape drive is ready for use. All

LEDs flash when the tape drive encounters an error.

Title Color/

Symbol Action Explanation

Drive

Density Orange/

Green Off No cartridge is inserted, or an

incompatible cartridge is inserted.

Green A Super DLTtape™II cartridge is

inserted or has just been ejected.

Orange A backward-read cartridge, such as

Super DLTtape I or DLTtape™VS1,

is inserted.

Drive

Status Green On The tape drive is idle. The tape drive

may or may not contain a cartridge.

Off The tape drive has not been powered

on or is not plugged into a power

source.

Flashing The tape drive is in use. This

includes functions such as:

• Loading and unloading tape

• Reading

• Writing

• Rewinding

• Calibrating

Cleaning

Required Yellow On Cleaning is required.

Off Cleaning is not required.

Eject N/A Press Use the Eject button to eject a

cartridge from the tape drive. When

you press Eject, the tape drive

finishes writing data to the tape, then

ejects the cartridge.

Infrared Port The infrared port provides a wireless

remote testing base for customers

and integrators to access system

diagnostic information.

This section describes the tape drive

controls as well as tape drive and

data cartridge conditions communi-

cated by the LEDs on the front of

the tape drive.

A3 | Loading and Unloading Data Cartridges

A3 Loading and Unloading

Data Cartridges

To Load a Data Cartridge

1. Insert the data cartridge into the receiver on the front of the

tape drive.

2. Push the cartridge completely into the receiver.

The green Drive Status LED (A2)flashes as the tape loads.

When the tape reaches the Beginning of Tape (BOT) marker,

the Drive Status and Drive Density LEDs (A2)light

steadily, indicating that the cartridge is ready for use.

Note: The Drive Density LED is green when a

Super DLTtape II cartridge is inserted; orange when a

Super DLTtape I or DLTtape VS1 cartridge is inserted;

and off when no cartridge is inserted or an incompatible

cartridge is inserted (A2). For information about

choosing data cartridges, B1.

To Unload a Data Cartridge

1. Press the Eject button on the front bezel.

The tape drive completes writing data to the tape, and the

Drive Status LED (A2) flashes as the tape rewinds.

When the tape reaches the BOT marker, the tape drive ejects

the data cartridge. The Drive Status LED lights steadily, and

the Drive Density LED:

• Remains green if you ejected a Super DLTtape II cartridge

• Turns off if you ejected a backward-read cartridge.

2. Remove the cartridge from the tape drive and return it to its

plastic case (A1).

Ejec

Cleaning the Tape Heads | A4

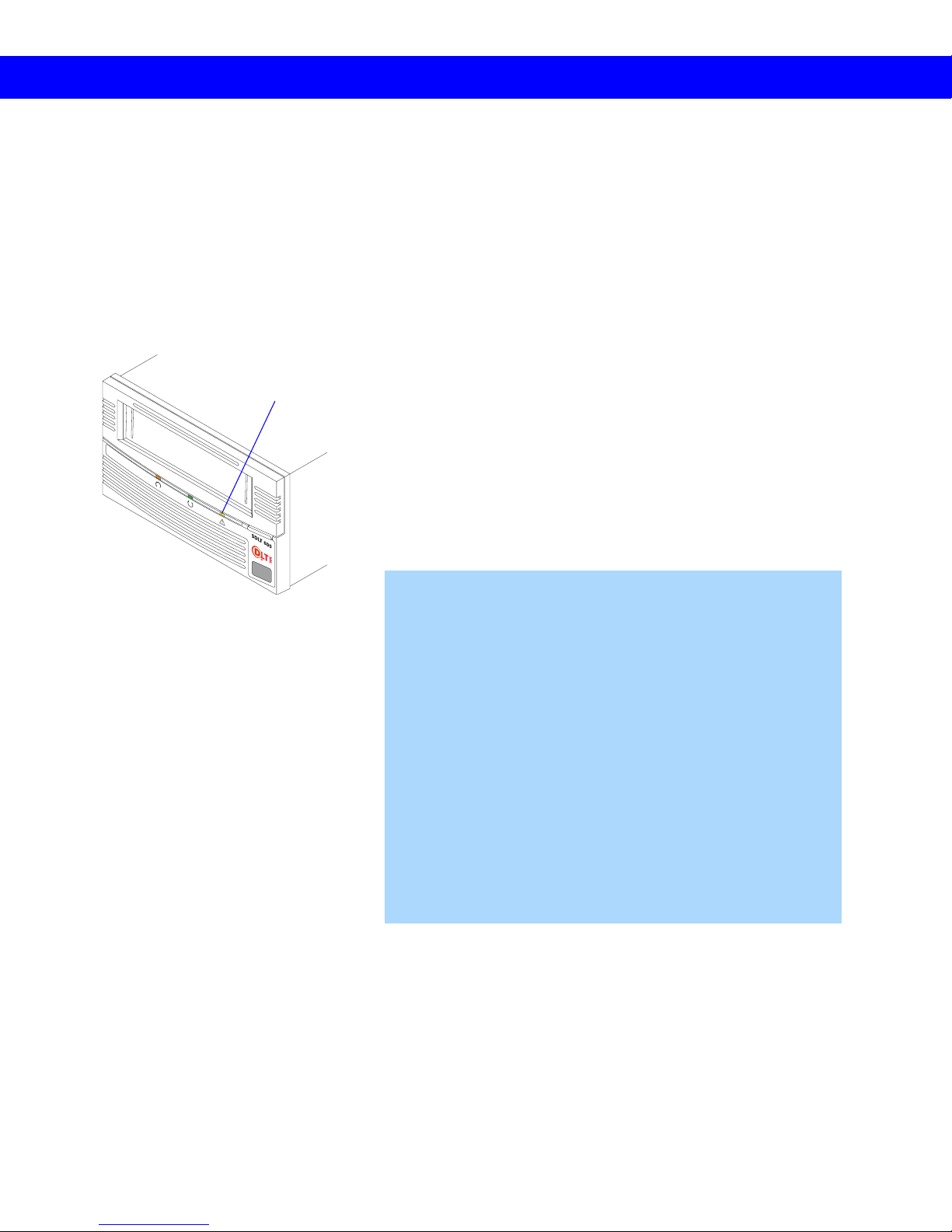

A4 Cleaning the Tape Heads

Over time, ambient pollution and particulates in the

environment contaminate the tape heads. The tape drive

indicates when cleaning is required by illuminating the

yellow Cleaning Required LED. A2

!Do not clean the tape heads unless the Cleaning Required

LED is illuminated.

!Use ONLY the SDLT CleaningTape. Other cleaning tapes,

such as CleaningTape III or DLT VS CleaningTape, are

incompatible with the SDLT 600 tape drive heads.

To Clean the Tape Heads

1. Insert a Super DLTtape cleaning cartridge (the brand name

to look for is SDLTtape™ CleaningTape) into the tape

drive.

The green Drive Status LED flashes and the cleaning cycle

begins automatically.

When the cleaning cycle completes, the tape drive

automatically ejects the CleaningTape; turns off the Cleaning

Required LED; and steadily illuminates the Drive Status

LED.

2. Remove the CleaningTape, place it back in its plastic case,

and mark the label after each cleaning.

Note: On the last cleaning, the tape drive does not eject the

CleaningTape. Use the Eject button on the front of the

tape drive to eject the expired cleaning cartridge and

dispose of it.

Cleaning

Required

B1 | Choosing Data Cartridges

B Using Data Cartridges

B1 Choosing Data Cartridges

The SDLT 600 tape drive writes to Super DLTtape II data

cartridges. The Super DLTtape II cartridge is blue and has a

distinctive pattern molded into the plastic, along with the

DLTtape logo. The cartridge’s geometry is similar to

previous DLTtape cartridges to simplify integration with

existing tape library designs. Its keying feature, however,

ensures that it cannot be loaded into previous generation tape

drives.

The SDLT 600 tape drive includes a backward-read

compatibility feature that enables it to read (but not write to)

Super DLTtape I and DLTtape VS1 cartridges. The

following table lists the transfer rates for backward-read

cartridges.

Backward-read Transfer Rates

Cartridge Type Native

Capacity (GB) BRC Transfer

Rate: 80% of

Native Read

Transfer Rate

(MB/second)*

* Transfer rates quoted are nominal, measured reading

uncompressed data.

Super DLTtape I,

SDLT 320-formatted 160 12.8

Super DLTtape I,

SDLT 220-formatted 110 8.8

DLTtape VS1 80 6.4

Super DLTtape II Data Cartridge

Super DLTtape I Data Cartridge

DLTtape VS1 Data Cartridge

Write-protecting Data Cartridges | B2

B2 Write-protecting Data

Cartridges

To prevent accidental erasure of your data, each data

cartridge has a write-protect switch. When active, this switch

prevents the tape drive from writing data to the cartridge.

!For valuable data, always make sure the cartridge is

write-protected before inserting it into the tape drive.

To enable write-protection:

Move the write-protect switch left so that the bright

orange rectangle is visible.

To disable write-protection:

Move the write-protect switch right so that the orange

rectangle is not visible.

Move switch left to write-

protect media. Orange

indicates write-protected.

Autres manuels pour DLTtape SDLT 600

Table des matières

Autres manuels Quantum Stockage

Quantum

Quantum Scalar 50 Manuel utilisateur

Quantum

Quantum DXi3500 Manuel utilisateur

Quantum

Quantum P3000 Series Manuel utilisateur

Quantum

Quantum LTO 2U Feuille d'instructions

Quantum

Quantum StorNext QS1200 Manuel technique

Quantum

Quantum PX500 Series Guide de démarrage rapide

Quantum

Quantum Tape Drive SDLT 600A Manuel utilisateur

Quantum

Quantum DAT 160 Manuel de service

Quantum

Quantum DXi4500 Manuel utilisateur

Quantum

Quantum Scalar i6000 Manuel technique

Quantum

Quantum ValueLoader DLT VS80 Manuel utilisateur

Quantum

Quantum ValueLoader DLT VS160 Manuel utilisateur

Quantum

Quantum SuperLoader 3A Series Manuel du propriétaire

Quantum

Quantum Scalar i40 Instructions d'utilisation et de sécurité

Quantum

Quantum Scalar i6 Manuel utilisateur

Quantum

Quantum Maxtor Fireball lct10 Manuel utilisateur

Quantum

Quantum P2000 Series Manuel utilisateur

Quantum

Quantum StorNext M330 Instructions d'installation

Quantum

Quantum DXi9000 Manuel utilisateur

Quantum

Quantum P7000 Series Manuel utilisateur

Quantum

Quantum Quantum Atlas 10K II 9.2/18.4/36.7/73.4 GB Manuel utilisateur

Quantum

Quantum DXi4500 Manuel utilisateur

Quantum

Quantum DLTtape DLT 7000 Manuel utilisateur

Quantum

Quantum SNC 4500 Mode d’emploi

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
