Quantum ATL M2500 Manuel utilisateur

Document 6423000-04 A01, May 2003 1

Quantum ATL M2500

Unpacking Instructions

Introduction 3

Removing the Library from the Shipping Carton 3

Removing the Remaining Packing Materials 10

Checking the Contents 21

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

2 6207947-05fN 11

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

Introduction 3

Introduction 0

This document explains how to unpack the ATL M2500 library.

The unpacking procedure consists of the following major steps:

• Removing the library from the shipping carton

• Removing the remaining packing materials

• Checking the contents

Removing the Library from the Shipping Carton 0

To unpack the library:

1The following tools are required for this operation:

•Scissors

•Flatbladescrewdriver

•T-20TORX

®screwdriver

• Antistatic wrist strap

2Place the shipping carton and pallet as close to the installation site

as possible.

Warning: This document is provided as a reference only. This

product requires professional installation by Quantum-

authorized personnel. Non-authorized personnel should

not attempt unpacking or installation. Improper

installation may result in service charges or may

invalidate your product warranty. Please call one of the

following numbers to arrange for professional

installation.

North America: 800-284-5101 or 949-725-2100

Europe: +44 (0) 1256 848748

Asia/Pacific: +61 (7) 3839 0988

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

4 Removing the Library from the Shipping Carton

3Carefully cut the two plastic straps securing the shipping carton to

the pallet (see figure 1).

Figure 1 Removing the

Plastic Straps

Caution: The straps are under tension and snap away when

cut.

Straps

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

Removing the Library from the Shipping Carton 5

4Lift the lid off of the shipping carton (see figure 2).

Figure 2 Removing the Lid

from the Shipping Carton

Lid

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

6 Removing the Library from the Shipping Carton

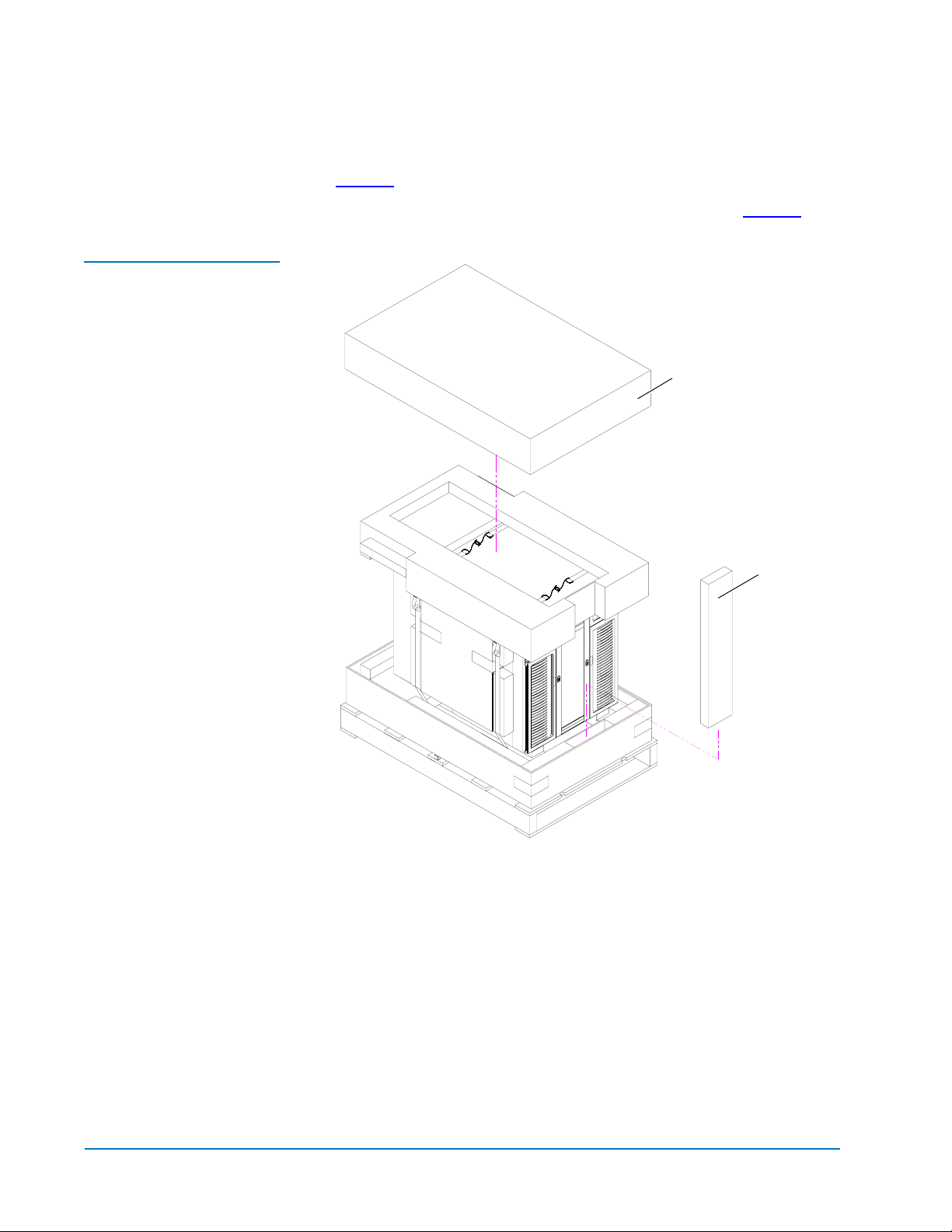

5Cut the adhesive tape securing the upper tray and lift it off (see

figure 3).

6Remove the rack mount shelf box and set it aside (see figure 3).

Figure 3 Removing the

Upper Tray and the Rack

Mount Shelf Box

Rack mount

shelf box

Upper tray

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

Removing the Library from the Shipping Carton 7

7Remove the packing foam from the top of the library and set them

aside (see figure 4).

Figure 4 Removing the

Packing Foam

Packing foam

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

8 Removing the Library from the Shipping Carton

8Fold down the front of the lower tray and remove the front

packaging piece from the lower cushion assembly (see figure 5).

9With the help of another person, remove the library from the pallet

and place it on a level surface (see figure 5).

Figure 5 Removing the

Library from the Pallet

Warning: The library weighs approximately 152 lbs. (69 kg). At

least two people are required to lift and install the

library.

Caution: Lift the library by its sides, not by the front bezel.

Lower tray

Library

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

Removing the Library from the Shipping Carton 9

10 Remove the straps securing the shipping panels to the sides of the

library (see figure 6):

aPull down on the strap tension ratchets to loosen the straps.

bAt the top of the library, unhook the straps.

11 Remove the accessory boxes from the sides of the library and set

them aside (see figure 6).

Figure 6 Removing the

Straps and Accessory

Boxes

12 Remove the shipping panels from the library (see figure 7):

aWith the help of another person, tilt the library to the left

slightly so that the right side of the library lifts up from the

ground approximately 1 in. (25 mm).

bGrip the top of the right shipping panel and pull it away from

the library.

The bottom of the panel disconnects from the bottom of the

library.

Straps

Accessory boxes

Quantum ATL M2500 Unpacking Instructions

Document 6423000-04 A01

May 2003

10 Removing the Remaining Packing Materials

cSet the panel aside.

dRepeat steps 12athrough 12con the other side to remove the

left shipping panel.

Figure 7 Removing the

Shipping Panels

Removing the Remaining Packing Materials 0

Now that you have removed the library from its shipping carton,

remove the remaining packing materials from the library:

1Remove the transit screw from the top of the library and set it aside

(see figure 8).

Later in this procedure you will place the transit screw in a storage

location within the library in case it is needed for future

repackaging and shipment of the library.

Caution: The transit screw secures the library robotics. Do not

try to move the library robotics unless this screw and

the two transit screws securing the X-Y tray

(removed later during this procedure) have been

removed; moving the robotics with the transit screws

in place can cause serious damage to the library.

Shipping panels
