PowerWalker 1000 LCD/UK Manuel utilisateur

1000VA/1500VA

Line Interactive Sinewave UPS

(220/230/240VAC)

Version: 1.4

USER MANUAL

Tabel of Contents

SAFETY INSTRUCTION ....................................................................1

1. Introduction................................................................................3

2. Package Contents........................................................................3

3. Product Overview........................................................................3

4. Installation .................................................................................4

5. Battery Replacement ...................................................................7

6. Operation ...................................................................................9

7. Trouble Shooting ....................................................................... 15

8. Specifications............................................................................ 16

SAFETY INSTRUCTION

Thank you for purchasing this power protection product. Please comply with all warnings and

operating instructions in this manual strictly. Save this

manual properly and read carefully the

following instructions before installing the unit. Do not operate this unit before reading

through all safety information and operating instructions

carefully.

Transportation

⚫Please transport the UPS system only in the original package to protect against shock and

impact.

Preparation

⚫Do not dismantle the UPS system, except the specialized technical personnel.

⚫Do not plug the UPS input into its own output.

⚫Do not attach a power strip or surge suppressor to the UPS.

⚫Do not attach non-computer-related items, such as medical equipment, life-support

equipment, microwave ovens, or vacuum cleaners to UPS.

⚫Condensation may occur if the UPS system is moved directly from cold to warm

environment. The UPS system must be absolutely dry before being installed. Please allow

at least two hours for the UPS system to acclimate the environment.

⚫Do not install the UPS system near water or in moist environments.

⚫Do not install the UPS system where it would be exposed to direct sunlight or near heater.

⚫Do not block ventilation holes in the UPS housing.

Installation

⚫This unit intended for installation in a controlled environment (temperature controlled,

indoor area free of conductive contaminants). Avoid installing the UPS in locations where

there is standing or running water, or excessive humidity.

⚫Caution - Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

⚫WARNING: This is a category C2 UPS product. In a residential environment, this product

may cause radio interference, in which case the user may be required to take additional

measures.

Operation

⚫Prevent no fluids or other foreign objects from inside of the UPS system.

⚫Do not connect appliances or devices which would overload the UPS system to the UPS

output sockets.

⚫Place cables in such a way that no one can step on or trip over them.

⚫Do not connect domestic appliances such as hair dryers to UPS output sockets.

⚫The UPS can be operated by any individuals with no previous experience.

⚫Connect the UPS system only to an earthed shockproof outlet which must be easily

accessible and close to the UPS system.

⚫Please use only VDE-tested, UL-marked mains cable (e.g. the mains cable of your

computer) to connect the UPS system to the building wiring outlet (shockproof outlet).

Maintenance, service and faults

⚫The UPS system operates with hazardous voltages. Repairs may be carried out only by

qualified maintenance personnel.

⚫Caution - risk of electric shock. Even after the unit is disconnected from the mains

(building wiring outlet), components inside the UPS system are still connected to the

battery and electrically live and dangerous.

⚫Before carrying out any kind of service and/or maintenance, disconnect the batteries and

verify that no current is present and no hazardous voltage exists in the terminals of high

capability capacitor such as BUS-capacitors.

Storage & Maintenance

The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at

25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case,

please contact your dealer.

Before storing, charge the UPS 5 hours. Store the UPS covered and upright in a cool, dry

location. During storage, recharge the battery in accordance with the following table:

Storage Temperature

Recharge Frequency

Charging Duration

0 - 40°C

Every 3 months

1-2 hours

Be sure to deliver the spent battery to a recycling facility or ship it to

your dealer in the replacement battery packing material.

1. Introduction

This product is an intelligent line interactive sinewave UPS (Uninterruptible Power Supply) which is

designed to protect your personal computer or sensitive electronic equipment from all forms of

power interference, including complete power failure.

2. Package Contents

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is

damaged. Please keep the original package in a safe place for futureuse. You should have received

the following items inside of package:

UPS unit User manual USB cable Input power cable (only for IEC/UK models)

Output power cable (only for IEC/UK models) Coaxial cable/RJ45 cable (option)

3. Product Overview

1. LCD display (Please check LCD section for the details)

2. Up/down button

3. Mute button

4. ON / OFF button

5. USB charger ports (5V 3A, type A/type C) for device charging

6. USB communication port for UPS monitoring and control

7. Modem/phone/network surge protection

8. Battery backup outlets

9. Surge-protected outlets

10. Coax surge protection (option)

11. Input circuit breaker

12. AC input for connecting to utility power

4. Installation

Before installing the UPS, please read below to select a proper location to install the UPS.

⚫UPS should be placed on the flat and clean surface. Place it in an area away from vibration,

dust, humidity, high temperature, flammable liquids and gases, corrosive and conductive

contaminants. Install the UPS indoors in a clean environment, where it is away from

window and door.

⚫It’s required to maintain the maximum altitude of 1000m to keep UPS normal operation at

full load UPS. If it’s used in high altitude area, please reduce the connected load. Altitude

derating power with connected loads for UPS normal operation is listed as below:

Altitude (m)

Derating factor1)

1 000

1 500

2 000

2 500

3 000

3 500

4 000

4 500

5 000

1.0

0.95

0.91

0.86

0.82

0.78

0.74

0.7

0.67

Based on density of dry air =1.225 kg/m3 at

sea-level,+15ºC

1) Since fans lose efficiency with altitude, force

air-cooled equipment will have a smaller derating.

⚫Place UPS: This UPS is equipped with the fan for cooling. Therefore, place the UPS in a

well-ventilated area. It’s required to maintain the minimum clearance of 100mm in the front

of the UPS and 300mm in the back and two sides of the UPS for heat dissipation and

easy-maintenance.

Step 1: UPS Input Connection

Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension

cords.

For the best results, suggest to charge the battery at least 5 hours before initial use. The unit

charges its battery while connecting to the utility.

Note: Do not expect full battery run capability during this initial charge period.

Step 2: UPS Output Connection

Battery Backup Outlets

Connect computer and monitor to the "Battery Backup" outlets. These outlets provide battery

backup, EMI filtering, line conditioning, and surge protection. Battery power is automatically

provided in case of power failure.

Surge-Protected Outlets

Connect a printer, fax machine, or scanner to the “Surge-protected” outlets. These outlets do

not provide power during power failure.

CAUTION: NEVER connect a laser printer or scanner to the battery backup sockets of UPS.

The equipment may draw significantly power to overload the UPS.

Step 3: Connect Modem/Phone Line/Network Surge Protection

Connect a single modem/phone line into surge-protected “IN” outlet on the back panel of the

UPS unit. Connect from “OUT” outlet to the computer with another phone line cable.

Step 4: Connect Communication Port and Install Software

Connect one end of the USB cable to PC and the other to the USB port at the rear of the UPS.

Download the latest version of ViewPower software from

http://www.power-software-download.com to your hard drive. Follow on-screen instructions to

complete the software installation.

Optional HID Function

If this UPS is equipped with optional HID function, you may simply connect one computer with

installed Microsoft windows OS via USB port to execute safely shutdown during power failure

even though there is no monitoring software installed.

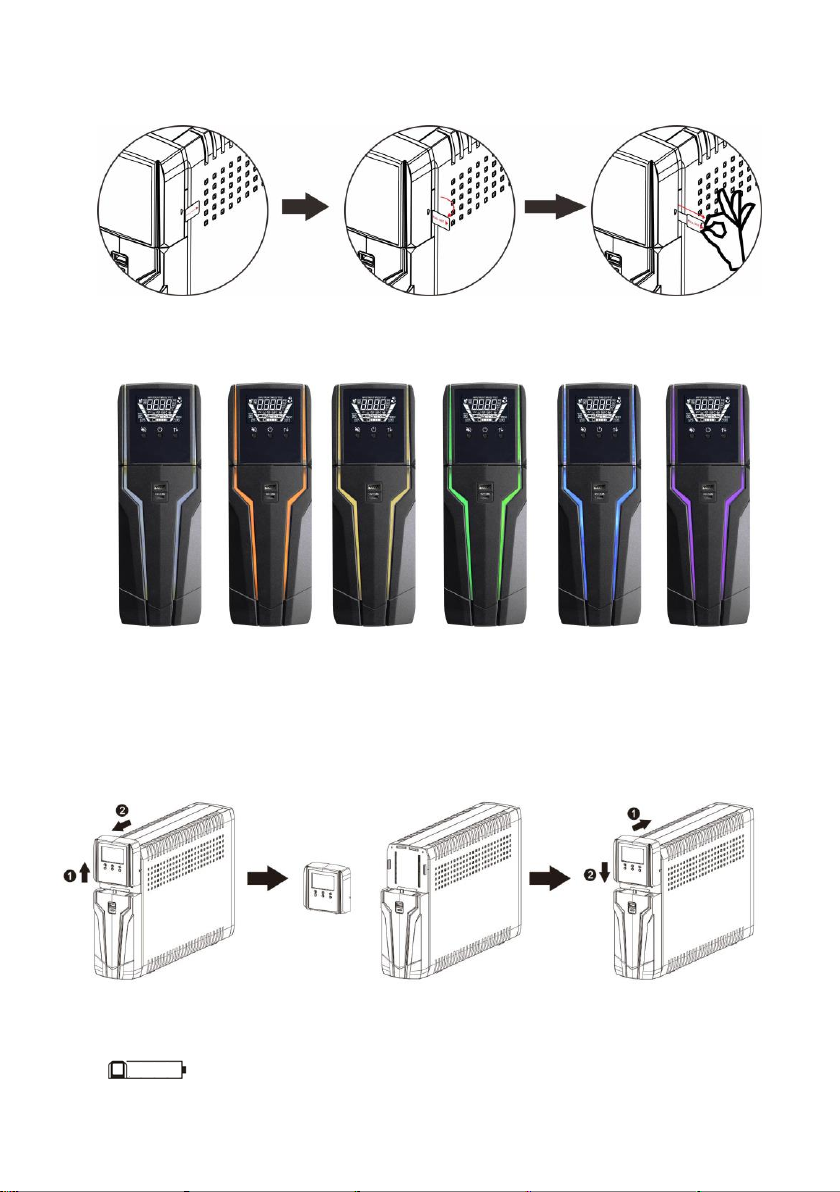

Step 5: Turn On the UPS

Before using the UPS, be sure to remove this label from LCD remote panel module.

To turn on the UPS, simply press the ON/OFF button on the front panel for 2 seconds. UPS will

beep once and LED bars will light up with different colors in order of light blue, orange, yellow,

green, blue, purple and scroll from bottom to top in 6 secs. Then, LCD will light on.

Remote panel operation

LCD panel can be removed from the base and place it closed around you when

playing PC game. Follow below charts to remove the remote panel. The distance

between remote panel and base should not be longer than 6m.

There is a NiMH battery installed on the back of remote panel. Once the remote panel is

installed on the base unit, it will automatically charge battery. When the battery capacity is low

level, icon will flash to remind users to charge remote panel.

5. Battery Replacement

Please read all of the WARNINGS and CAUTIONS before attempting to service the batteries.

Typical battery life is 3 to 5 years. Environmental factors do affect battery life. High

temperatures, poor utility power, and frequent, short duration discharges have a negative

impact on battery life.

⚫WARNING! This UPS contains potentially hazardous voltages. Do not attempt to

disassemble the UPS beyond the battery replacement procedure.

⚫This UPS contains no user serviceable parts. Repairs and battery replacement must be

performed by QUALIFIED SERVICE PERSONNEL ONLY.

⚫Caution - Do not dispose of batteries in a ﬁre. The batteries may explode.

⚫Caution - Do not open or mutilate batteries. Released electrolyte is harmful to the skin and

eyes. It may be toxic.

⚫Caution - A battery can present a risk of electrical shock and high short-circuit current.

Contact with any part of a grounded battery can result in electrical shock. The following

precautions should be observed when working on batteries:

a) Remove watches, rings, or other metal objects.

b) Use tools with insulated handles.

c) Wear rubber gloves and boots.

d) Do not lay tools or metal parts on top of batteries.

e) Disconnect charging source and load prior to installing or maintaining the battery.

f) Remove battery grounds during installation and maintenance to reduce likelihood of

shock. Remove the connection from ground if any part of the battery is determined to

be grounded.

⚫Caution - risk of electric shock. The battery circuit is not isolated from the input voltage.

Hazardous voltages may occur between the battery terminals and the ground. Before

touching, please verify that no voltage is present.

⚫Please replace the fuse or circuit breaker only with the same type and amperage in order to

avoid fire hazards.

⚫Only persons are adequately familiar with batteries and with the required

precautionary

measures may replace batteries and supervise operations.

Unauthorized persons must be

kept well away from the batteries.

⚫Caution - Replace batteries with the same number and type as originally installed in the

UPS. These batteries have pressure operated vents. These UPSs contain sealed

non-spillable maintenance-free lead acid batteries.

NOTE: If there is a power interruption while replacing the batteries, the load will not be backed

up even though the UPS is still on. To replace the batteries with UPS on, please start with step

Please follow below steps to replace the batteries if necessary.

Step 1: Turn off the equipment that is plugged into the output of the UPS.

Step 2: Turn off the UPS.

Step 3: Remove AC input plug of the UPS from the AC wall outlet.

Step 4: Remove all equipment from the output sockets of the UPS.

Step 5: Remove battery cover by loosening two screws located on the bottom of the UPS and

slide the battery cover downward, then outward. Set it aside.

Step 6: Disconnect the battery wires (BAT+ and BAT-). Then, slide out the existing battery pack

from the UPS by grasping the battery tap.

Caution - Do not short the positive wire and negative wire of battery.

Caution - DO NOT pull the battery pack out by pulling the battery wires.

Step 7: Slide the new battery pack into the UPS.

Step 8: Verify proper polarity. Re-connect the battery connectors together.

NOTE-Some sparking might occur and this is normal.

Step 9: Re-install the battery cover onto the UPS. Now, the UPS is ready for normal operation.

NOTICE: Properly dispose of the old batteries at an appropriate recycling facility or return

them to the supplier in the packing material for the new batteries.

Autres manuels pour 1000 LCD/UK

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels PowerWalker UPS

PowerWalker

PowerWalker VFD 1000 Guide d'installation

PowerWalker

PowerWalker VFD 600 APFC Manuel utilisateur

PowerWalker

PowerWalker VFI 1000CRM LCD Manuel utilisateur

PowerWalker

PowerWalker VI 1000RT/LE Manuel utilisateur

PowerWalker

PowerWalker VFI 6000RT LCD Manuel utilisateur

PowerWalker

PowerWalker VFI 1000-3000 CG PF1 Manuel utilisateur

PowerWalker

PowerWalker VFI 1000 RMG PF1 Manuel utilisateur

PowerWalker

PowerWalker VFI 1000RM Manuel utilisateur

PowerWalker

PowerWalker VFI 1000 CRS Manuel utilisateur

PowerWalker

PowerWalker VI 1000 Manuel utilisateur

PowerWalker

PowerWalker VFD 400 Manuel utilisateur

PowerWalker

PowerWalker VFI 10000 CG PF1 Manuel utilisateur

PowerWalker

PowerWalker DC UPS Manuel utilisateur

PowerWalker

PowerWalker VFD 400 Manuel utilisateur

PowerWalker

PowerWalker VI SCL Series Manuel utilisateur

PowerWalker

PowerWalker VFI 10000CP 3/3 Manuel utilisateur

PowerWalker

PowerWalker VFI 6000 ICT Manuel utilisateur

PowerWalker

PowerWalker PowerMust 6054 Manuel utilisateur

PowerWalker

PowerWalker VI 2000 LCD Manuel utilisateur

PowerWalker

PowerWalker VFI 10000CP 3/3 Manuel utilisateur

PowerWalker

PowerWalker VFI 6000T LCD L Manuel utilisateur

PowerWalker

PowerWalker VI TW Series Manuel utilisateur

PowerWalker

PowerWalker VI 450 LCD Manuel utilisateur

PowerWalker

PowerWalker VFI 20000-40000TAP 3/3 BI Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
