Issue 5.5 November 2021

40-563A User Manual

PXI BRIC™ Multi-Slot Solid State Matrix Module

Page (II) BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

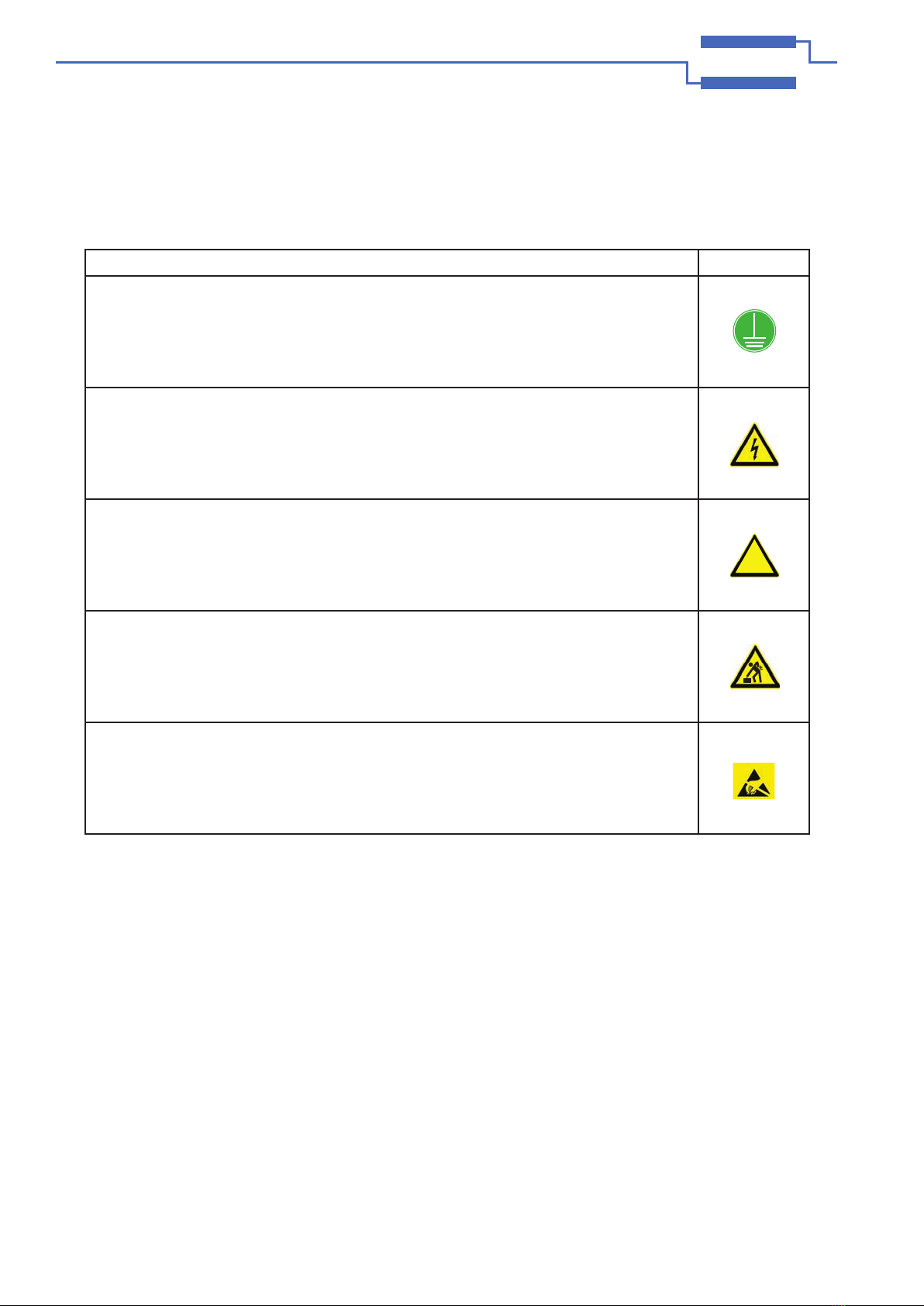

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Mechanical Description ........................................................2.1

Functional Description .........................................................2.3

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options for PXI Modules ..............................4.1

Module Architecture..............................................................4.2

Programming The Module ....................................................4.2

Section 5

Connector Information................................................................5.1

Section 6

Troubleshooting ..........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Fuse Replacement................................................................. 7.1

Relay Look-Up Tables ...........................................................7.2

PCB Layout Diagrams...........................................................7.15

Daughter Board Removal/Replacement..............................7.16

CONTENTS

Page (VI) BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI BRIC™ Multi-Slot Solid State Matrix 40-563A

ISSUE 4.1 NOV 2021

yIntegrated PXI Matrix Module With Built In

High Performance Screened Analog Bus

yAvailable as 2, 4 and 8 Slot 3 U PXI Modules

ySolid State 1-Pole Matrix With Sizes Between

64x8 and 384x8

yLow Thermal EMF

yFast Switch Operation and Long Service Life

ySwitch up to 40 V, 0.25 A Continuous Current

yAutomatic Analog Bus Isolation Switching

Gives Maximum Bandwidth

ySupported by PXI or LXI Chassis

yVISA, IVI & Kernel Drivers Supplied for

Windows

yReduced Service and Maintenance Costs

Through the Use of Built-In Diagnostics -

BIRST

™

ySupported by

eBIRST

™

y3 Year Warranty

BRIC

™

PXI Solid State Matrices

The 40-563A PXI BRIC is an ultra high density matrix

module. It is available in 2, 4 or 8-slot sizes to suit high

performance PXI Matrix requirements and are constructed

using solid state switches.

With its high level of switching density, the 40-563A matrix

modules allow a complete functional ATE system to be

housed in a single 3 U PXI chassis, BRIC Modules allow the

use of much lower cost 8 or 14-slot PXI chassis.

• BRIC2 is a 2-slot PXI Module, this can hold up to 3

matrix daughtercards with a maximum size of 96x8.

• BRIC4 is a 4-slot PXI Module, this can hold up to 6

matrix daughtercards with a maximum size of 192x8.

• BRIC8 is an 8-slot PXI Module, which can hold up to

12 matrix daughtercards with a maximum size of 384x8.

High Reliability and Easy of Use

All models in the 40-563A range are constructed using

solid state relays making them ideal for applications

requiring fast operation and a long service life with

frequent switch operations. Since the design is based

on solid state switching, the matrix has no wear out

mechanism.

Built-In Relay Self-Test -

BIRST

The BIRST facility provides a quick and simple way of

ﬁnding relay failures. No test equipment is required, simply

disconnect the UUT from the BRIC’s connectors, launch

the BIRST application and the tool will run a diagnostic test

that will ﬁnd all relays with faulty contacts.

For more information go to: pickeringtest.com/birst

Supported by

eBIRST

These modules are also supported by eBIRST. These test

tools simplify switching fault-ﬁnding by quickly testing the

system and graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

The 40-563A PXI BRICs are designed to minimize the cost

and complexity of cable assemblies to the device under

test and instrumentation. Analog busing is housed within

the module using a high performance screened analog

bus backplane. Pickering can construct custom cable

assemblies for all of our PXI modules, please contact sales

ofﬁce for further assistance.

Page 1.2 BRIC INTEGRATED PXI MATRIX SYSTEM WITH BIRST™ (40-563A)

pickering

SECTION 1 - TECHNICAL SPECIFICATION

BRIC Multi-Slot Solid State Matrix, 40-563A

pickeringtest.com

Overview

Pickering Solid State BRIC Advantages

• Uses high speed, high reliability solid state

relays.

• Long service life – solid state relays have no

wear out mechanism.

• Low thermal EMF errors for accurate low

voltage switching.

• Simpliﬁed cabling and interconnection for

large matrix solutions.

• Extensive accessory support.

• Built in self-test to ﬁnd defective and

degrading relays with full path resistance

characterisation.

• Simpliﬁed operation through automated

isolation relay operation and single matrix

presentation.

• Highest density solid state switching solution

in PXI.

• Extensive range of conﬁgurations and

solutions.

• Fast operation through VISA driver with

multiple relay operation in one command or

have the convenience and simplicity of IVI

drivers.

OTHER PXI BRIC MODULES FROM PICKERING

40-560A - 1-Pole Matrix with BIRST

BRIC2 Up to 276x4, 138x8 or 69x16

BRIC4 Up to 552x4, 276x8 or 138x16

BRIC8 Up to 1104x4, 552x8 or 276x16

40-561A - 1-Pole, 1-Pole Screened or 2-Pole Matrix with BIRST

BRIC2 Up to 90x8 or 45x16

BRIC4 Up to 180x8 or 90x16

BRIC8 Up to 360x8 or 180x16

40-562A - 1-Pole, 1-Pole Screened or 2-Pole Matrix with BIRST

BRIC2 Up to 132x4, 66x8, 33x16 or 15x32

BRIC4 Up to 264x4, 132x8, 66x16 or 30x32

BRIC8 Up to 528x4, 264x8, 132x16 or 60x32

40-565A - 2-Pole, 2 Amp Matrix with BIRST

BRIC4 Up to 96x8

BRIC8 Up to 192x8

40-566A - 2-Pole, 2 Amp Matrix with BIRST

BRIC4 Up to 165x4

BRIC8 Up to 385x4

40-592 - Fault Insertion Breakout Matrix

BRIC4 Up to 124x8 with 2 or 3-pin breakout

BRIC8 Up to 248x8 with 2 or 3-pin breakout

40-595 - Power Fault Insertion Breakout Matrix

BRIC8 Up to 30x8 with 3-pin breakout

40-569 - ARINC 608 Resource Distributor/Bus Matrix

BRIC4 1 or 2 Resource Distributor, 1 to 4 Bus Matrix Cards

BRIC8 1 or 2 Resource Distributor, 1 to 6 Bus Matrix Cards

X12

X10

X11

X14

X16

X13

X15

X17

X18

X19

X384

X382

X383

X20

X381

MATRIX

CROSSPOINT

Switching Diagram for the 40-563A Solid State Matrix

Avilable With a Minimum Size of 64x8 and a Maximum Size of 384x8

How to use the BRIC matrix to connect instrumentation to the UUT

Instrument 1

Instrument 2

Instrument 3

Instrument 4

Instrument 5

Device

Under Test

No. 1

Device

Under Test

No. 2

189

190

191

192

DUT

No. 3

Table des matières

Autres manuels Pickering Unité de contrôle

Pickering

Pickering 40-880 Manuel utilisateur

Pickering

Pickering 40-870 Manuel utilisateur

Pickering

Pickering 40-331 Manuel utilisateur

Pickering

Pickering 40-252 Manuel utilisateur

Pickering

Pickering PXI 40-510 Manuel utilisateur

Pickering

Pickering 40-587B Manuel utilisateur

Pickering

Pickering 40-561A Manuel utilisateur

Pickering

Pickering Pxi 41-182A Manuel utilisateur

Pickering

Pickering 40-545 Manuel utilisateur

Pickering

Pickering 40-500 Manuel utilisateur

Pickering

Pickering PXI 41-752 Manuel utilisateur

Pickering

Pickering 40-582A Manuel utilisateur

Pickering

Pickering PXI 40-795-001 Manuel utilisateur

Pickering

Pickering 40-529A Manuel utilisateur

Pickering

Pickering Module Manuel utilisateur

Pickering

Pickering 40-553A Manuel utilisateur

Pickering

Pickering 43-182B Manuel utilisateur

Pickering

Pickering 42-724 Manuel utilisateur

Pickering

Pickering 40-522 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-569 Manuel utilisateur

Pickering

Pickering 41-670 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-567A Manuel utilisateur

Pickering

Pickering 40-574 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
