MATRIX MODULE 40-510/511/512/513

pickering

Issue 8.2 March 2017

User Manual

Matrix Module

(Model No. 40-510/511/512/513)

pickeringtest.com pickering

Page (II) MATRIX MODULE 40-510/511/512/513

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

MATRIX MODULE 40-510/511/512/513

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) MATRIX MODULE 40-510/511/512/513

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

MATRIX MODULE 40-510/511/512/513

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Cards.................4.1

Module Architecture 40-510.................................................4.3

Module Architecture 40-511.................................................4.4

Module Architecture 40-512.................................................4.5

Module Architecture 40-513.................................................4.6

Programming The Module ....................................................4.7

Section 5

Connector Information................................................................5.1

40-510 .....................................................................................5.1

40-511......................................................................................5.2

40-512 .....................................................................................5.3

40-513 .....................................................................................5.4

Section 6

Trouble Shooting.........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Relay Lookup Table 40-510..................................................7.2

Relay Lookup Table 40-511..................................................7.3

Relay Lookup Table 40-512..................................................7.4

Relay Lookup Table 40-513..................................................7.5

CONTENTS

Page (VI) MATRIX MODULE 40-510/511/512/513

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

MATRIX MODULE 40-510/511/512/513

pickering

Page (VII)

REED RELAY MODULE 40-110/115/120/125

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user

I/O signals that may be present. Blanking panels are available to order from Pickering in a variety

of slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page (VIII) MATRIX MODULE 40-510/511/512/513

pickering

THIS PAGE INTENTIONALLY BLANK

Page 1.1

MATRIX MODULE 40-510/511/512/513

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

40-510/511/512/513

Matrix Module

●Reed Relay Matrix Module

●12x4, Dual 12x4, 24x4 or 12x8

●1-Pole, 2-Pole or Screened Versions

●Large Matrices Built Using Multiple Modules

●Screened 50ΩOption with 50MHz Bandwidth

●Uses High Reliability Pickering Reed Relays For

Maximum Performance

●Fast Operating Speed < 500µs

●Switch up to 150Volts, 1.2A with 20W Max Power

●

VISA, IVI & Kernel Drivers Supplied for Windows

●Supported by PXI or LXI Chassis

●Supported by eBIRST

●3 Year Warranty

40-511 Matrix Dual 12x4

The 40-510 series of matrix modules feature a wide range of

selectable switching conﬁgurations (12x4, dual 12x4, 12x8 and

24x4). Typical applications include signal routing in ATE and data

acquisition systems.

Available reed relay formats are 1-pole, 2-pole and 1-Pole

screened. The screened version is suitable for switching signals

up to 50MHz. Larger matrices may be constructed by Daisy

Chaining the common signals from multiple PXI moodules.

Relay Type

All 40-510 series modules are ﬁtted with Reed Relays

(Ruthenium sputtered type), these offer very long life with good

low level switching performance and excellent contact resistance

stability.

Spare Reed Relays are built onto the circuit board to facilitate

easy maintenance with minimum downtime.

All reed relays are manufactured by our sister company Pickering

Electronics, www.pickeringrelay.com.

40-513 Matrix 24x4

40-512 Matrix 12x8 2-pole

(each line is a 2 wire connection)

ISSUE 10.1 MAR 2017

X10

X11

X12

2-POLE

CROSSPOINT

X102

X104

X108

X101

X103

X105

X106

X107

X109

X110

Y102

Y104

Y101

Y103

X202

X204

X208

X201

X203

X205

X206

X207

X209

X210

Y202

Y204

Y201

Y203

X111

X112

X211

X212

MATRIX

CROSSPOINT

X12

X10

X11

X14

X16

X13

X15

X17

X18

X19

X20

X21

X22

X23

X24

MATRIX

CROSSPOINT

X10

X11

X12

MATRIX

CROSSPOINT

40-510 Matrix 12x4

Supported by eBIRST

This product is supported by eBIRST which tests the switching

system using an external tool. eBIRST provides a graphical output

of its tests which includes an image showing the location of any

defective relay. For more information on eBIRST see 93-000D.pdf

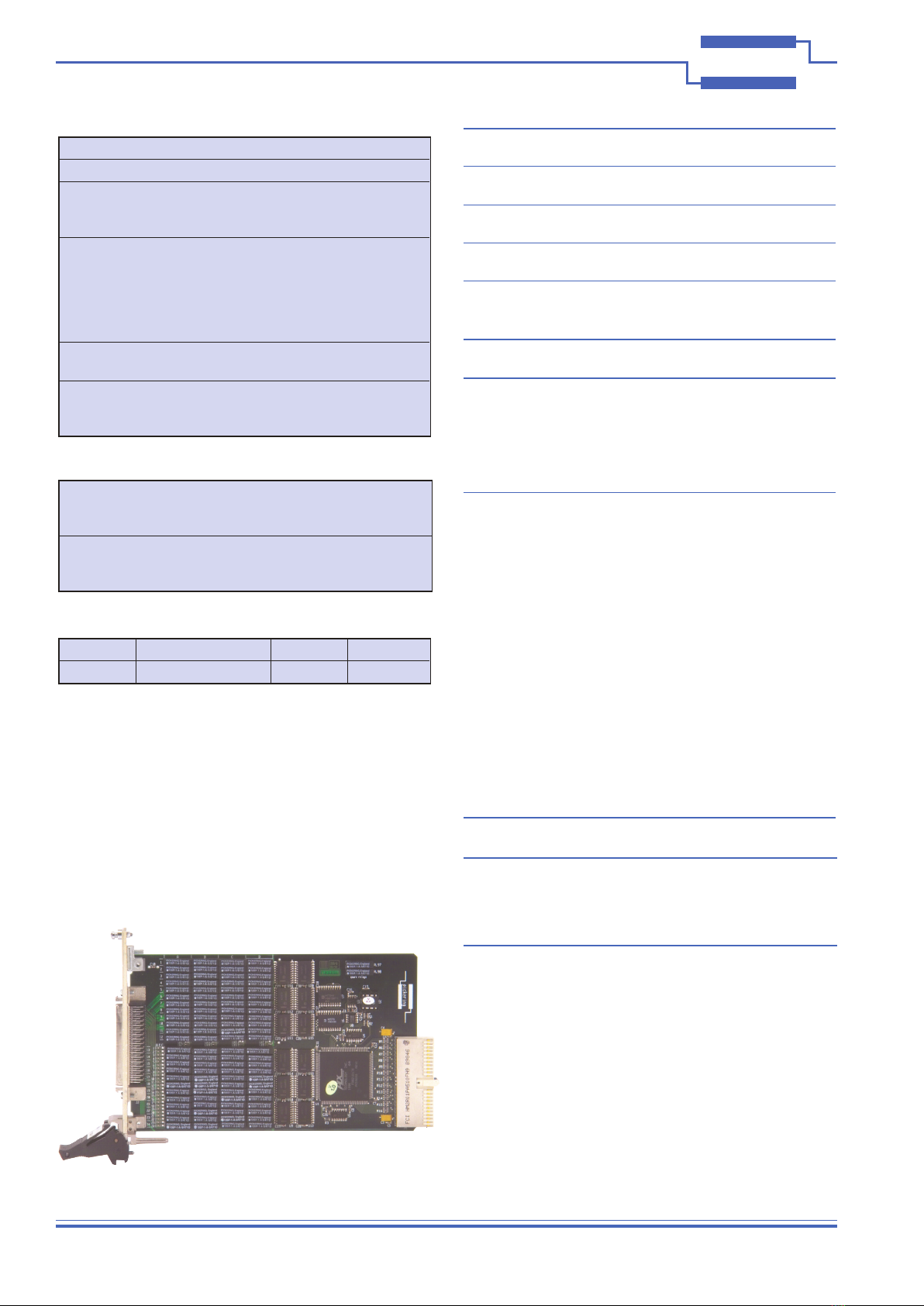

Page 1.2 MATRIX MODULE 40-510/511/512/513

pickering

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

Switching Speciﬁcation

Switch Type: Ruthenium Reed

Max Switch Voltage: 150VDC/100VAC

Max Power:

Max Switch Current:

Max Carry Current:

20W

1.2A

Initial Path Resistance

On (single module):

Off (single module):

Differential Thermal Offset:

<600mΩ (40-510/511)

<1000mΩ(40-512)

<800mΩ(40-513)

>109Ω

<15µV

Operate Time:

Release Time:

<0.5ms, 0.25ms typical

Expected Life

Low power load:

Full power load:

1x109operations

>5x106 operations

Isolation and Crosstalk (screened reed versions)

Crosstalk @1MHz:

@10MHz:

@25MHz:

62dB (typical)

42dB (typical)

40dB (typical)

Isolation @1MHz:

@10MHz:

@25MHz:

65dB (typical)

49dB (typical)

45dB (typical)

Product Order Codes

Single 12x4 Matrix, 1-Pole 40-510-021

Single 12x4 Matrix, 2-Pole 40-510-022

Dual 12x4 Matrix, 1-Pole 40-511-021

Dual 12x4 Matrix, 2-Pole 40-511-022

Single 12x8 Matrix, 1-Pole 40-512-021

Single 12x8 Matrix, 2-Pole 40-512-022

Single 24x4 Matrix, 1-Pole 40-513-021

Single 24x4 Matrix, 2-Pole 40-513-022

Options

–S All 1-pole versions are available with screened reed

relays (e.g. 40-512-021-S)

Power Requirements

+3.3V +5V +12V -12V

0400mA (typ 280mA) 0 0

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

Module weight: 280g (40-513-021)

260g (40-513-022)

3D models for all versions in a variety of popular ﬁle formats

are available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 68-pin female micro-D connector, pin

outs are in the operating manual.

PCB Layout for the 40-510 Matrix Module

Mating Connectors & Cabling

For connection accessories for the 40-510 series

please refer to the 90-015D 68-pin micro-D Connector

Accessories data sheet where a complete list and

documentation can be found for accessories, or refer to the

Connection Solutions catalog.

Support Products

eBIRST Switching System Test Tool

This product is supported by the eBIRST test tools which

simplify the identiﬁcation of failed relays, the required

eBIRST tools are below. For more information see eBIRST.

Product Test Tool Adapter

All Types 93-006-001 93-006-401

Spare Relay Kits

Kits of replacement relays are available for the majority of

Pickering’s PXI switching products, simplifying servicing and

reducing down-time.

Product Relay Kit

40-510-021 91-100-003

40-510-021-S 91-100-011

40-510-022 91-100-008

40-511-021 91-100-003

40-511-021-S 91-100-011

40-511-022 91-100-008

40-512-021 91-100-003

40-512-021-S 91-100-011

40-512-022 91-100-008

40-513-021 91-100-003

40-513-021-S 91-100-011

40-513-022 91-100-008

For further assistance, please contact your local Pickering

sales ofﬁce.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pickering Unité de contrôle

Pickering

Pickering 40-670A Manuel utilisateur

Pickering

Pickering 40-280 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-563A Manuel utilisateur

Pickering

Pickering 40-527A Manuel utilisateur

Pickering

Pickering 40-582 Manuel utilisateur

Pickering

Pickering 40-880 Manuel utilisateur

Pickering

Pickering 40-553A Manuel utilisateur

Pickering

Pickering 45-541 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-656A Manuel utilisateur

Pickering

Pickering 41-735 Manuel utilisateur

Pickering

Pickering 40-519A Manuel utilisateur

Pickering

Pickering 40-500 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-569B Manuel utilisateur

Pickering

Pickering PXI 40-855 Manuel utilisateur

Pickering

Pickering 40-580 Manuel utilisateur

Pickering

Pickering 40-587B Manuel utilisateur

Pickering

Pickering 4 890 Series Manuel utilisateur

Pickering

Pickering 40-565A Manuel utilisateur

Pickering

Pickering 40-561A Manuel utilisateur

Pickering

Pickering PXI 40-787 Manuel utilisateur

Pickering

Pickering Pxi 41-750 Manuel utilisateur

Pickering

Pickering 40-884A Manuel utilisateur

Pickering

Pickering Pxi 41-182A Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
