Page 1.1

SOURCE SWITCHING MODULE 40-618A

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI Source Switching Module 40-618A

ISSUE 1.0 FEB 2019

• Designed to Support the Requirements of the

ARINC 608A Speciﬁcation

• 44xSPST Relay Contacts and 12 Banks of

4 Channel Multiplexer in a Single PXI Module

• Uses High Quality Electro-mechanical Relays

• Maximum Current 2A Hot or Cold Switching

• Switch up to 300VDC/250VAC and up to 60W Max Power

• Breakdown Voltage >500V

• VISA & Kernel Drivers Supplied for Windows

• Supported by PXI or LXI Chassis

• 3 Year Warranty

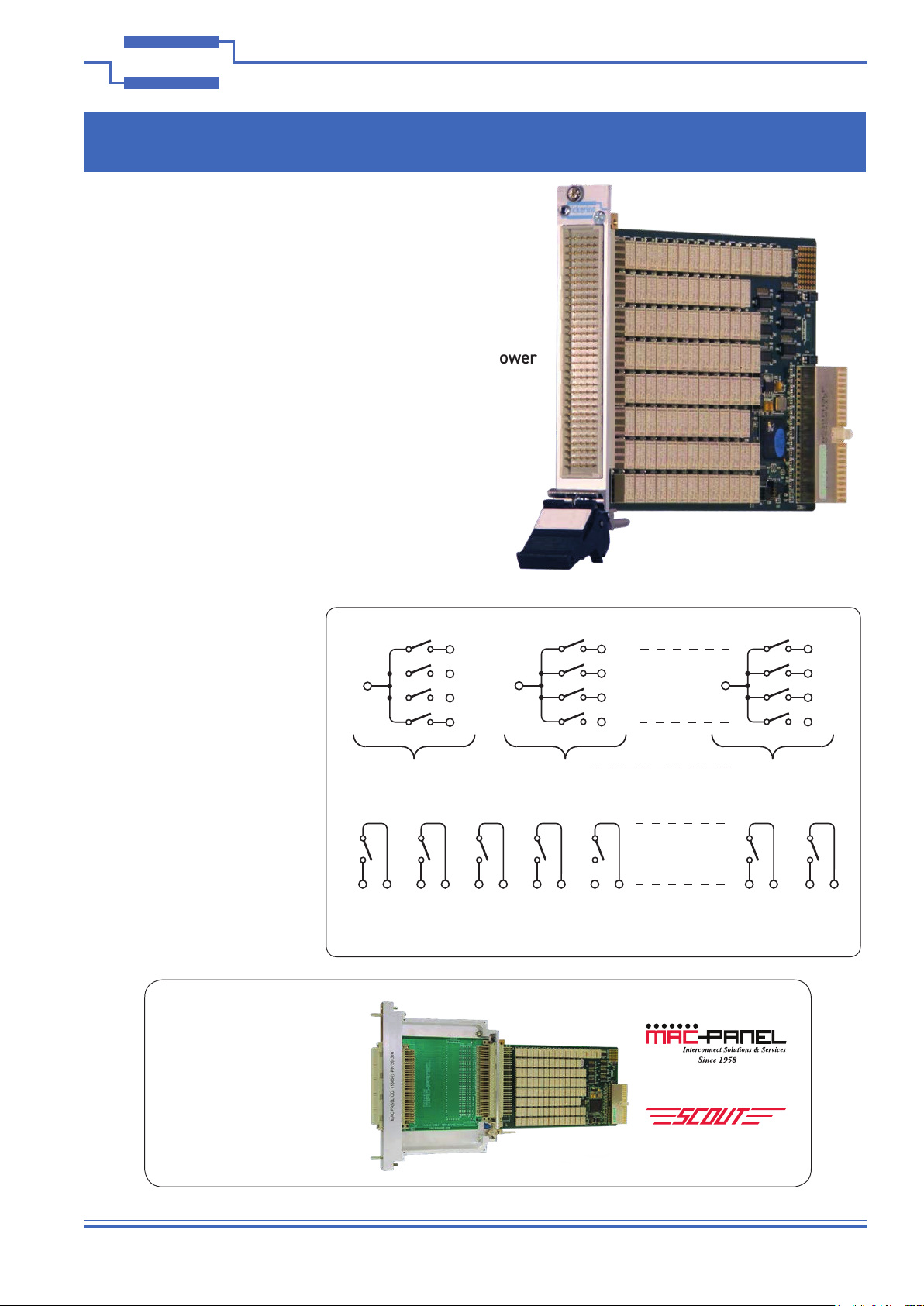

Pickering PXI Modules

are compatible with Mass

Interconnect solutions

from both VPC and MAC

Panel. Shown is the

40-618A module with the

terminal block for the

MAC Panel Scout.

Switching Diagram For The 40-618A-001 Source Switching Module

Com1

1.1

1.2

1.3

1.4

Com2

2.1

2.2

2.3

2.4

Com12

12.1

12.2

12.3

12.4

BANK 1 BANK 2 BANK 12

A2 C2 A3 C3 A4 C4 A5 C5 A43 C43 A44 C44A1 C1

4 CHANNEL MULTIPLEXERS

SPST UNCOMMITTED RELAY CONTACTS

The 40-618A Source Switching Module consists of 12 separate

4-channel multiplexers and 44 uncommitted SPST relay contacts in a

single width PXI module. Typical applications include signal routing for

avionics test systems that conform to the ARINC 608A specication.

Switching is performed using high quality electro-mechanical signal

relays with 2A switch/carry current and

voltage handling of 300VDC/250VAC.

The signal breakdown voltage is

greater than 500V.

The multiplexers of the 40-618A can

be operated in the conventional way

with break-before-make action when a

new channel is selected. Alternatively,

product variants can be supplied

that allow multiple channels to be

simultaneously selected.

The 40-618A channel selection

congurations have been revised from

the 40-618. The 40-618A defaults to

single channel selection with multiple

channel selection variants dened by

use of a sufx.

Other congurations for this module can

be supplied, please contact Pickering

Interfaces with your requirements.

Page 1.2 SOURCE SWITCHING MODULE 40-618A

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Source Switching Module – 40-618A

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Switch Type: Electro-mechanical

Contact Type: Palladium-Ruthenium, Gold

Covered Bifurcated

Max Hot Switch Voltage:

Breakdown Voltage:

300VDC/250VAC*

>500V

Max Power:

Max Switch Current:

Max Continuous Carry Current:

Max Pulsed Carry Current Example

(for a single switch path):

62.5VA, 60W from 30V to

220VDC, 30W to 300VDC

(resistive load)

6A for 100ms

(up to 10% duty cycle)

Initial Path Resistance

On (Single Module):

Off (Single Module):

Minimum Voltage:

Thermal Offset:

Minimum Breakdown Voltage:

<300mΩ

>109Ω

100µV

<5µV

>500V

Estimated Bandwidth

SPST Switch:

4-Channel MUX:

30MHz

30MHz (dependent upon

application)

Operate Time: 6ms typical,

3ms for multichannel mode

Expected Life (operations)

Very low power signal load:

Low power load (2W):

Medium power load (30W):

Full power load (60W):

>1x108

>1.5x107(0.1A 20VDC)

>5x106(1A 30VDC)

>1x105(2A 30VDC)

>1x105(0.1A 300VDC)

* For full voltage rating, signal sources to be switched must be fully

isolated from mains supply and safety earth.

Power Requirements

+3.3V +5V +12V -12V

0 <2A 0 0

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0°C to +55°C

Up to 90% non-condensing

5000m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20°C to +75°C

Up to 90% non-condensing

15000m

PXI & CompactPCI Compliance

The module is compliant with the PXI Specication 2.2. Local Bus,

Trigger Bus and Star Trigger are not implemented.

Uses a 33MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable EU

directives: Low-voltage safety EN61010-1:2010, EMC Immunity

EN61326-1:2013, Emissions EN55011:2009+A1:2010.

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular le formats are

available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 160-pin male DIN 41612 connector, for pin

outs please refer to the operating manual.

The connector includes a strain relief xing for use with Pickering’s

cables.

We recommend that Pickering mating connectors are used with

this module which are designed to ensure there are no mechanical

interference problems when used in a PXI chassis.

Relay Type

The 40-618A is tted with high quality electro-mechanical signal

relays.

The 40-618A module

is based on a simple

combination of the proven

features of Pickering’s

40-613 Multiplexer and

the 40-139 General

Purpose Relay module.

Table des matières

Autres manuels Pickering Unité de contrôle

Pickering

Pickering 40-870 Manuel utilisateur

Pickering

Pickering 40-656A Manuel utilisateur

Pickering

Pickering 40-296 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering PXi 41-720 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-559 Manuel utilisateur

Pickering

Pickering 4 785C Series Manuel utilisateur

Pickering

Pickering PXI 60-104 Manuel utilisateur

Pickering

Pickering 40-170 Manuel utilisateur

Pickering

Pickering 40-650A Manuel utilisateur

Pickering

Pickering PXI BRIC 40-569B Manuel utilisateur

Pickering

Pickering 40-529A Manuel utilisateur

Pickering

Pickering 41-761 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-563A Manuel utilisateur

Pickering

Pickering Module Manuel utilisateur

Pickering

Pickering PXI 40-597 Manuel utilisateur

Pickering

Pickering 40-587B Manuel utilisateur

Pickering

Pickering 40-280 Manuel utilisateur

Pickering

Pickering 40-582 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-519B Manuel utilisateur

Pickering

Pickering 40-567A Manuel utilisateur

Pickering

Pickering PXI BRIC 40-560A Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
