Installation and Assembly:

SmartMount™ Pivot Wall Arm for 22" - 40" LCD Screens

Models: SP740P, SP740P-S, SWV240/BK, SWV240/SI

Features:

•Fits 22" - 40" LCD screens

• Two tensionable pivot points for extensive adjustment of viewing angle

• VESA®75/100/200 x 100/200 x 200 compatible

• Frees up space by folding ﬂat against the wall Max UL Load Capacity: 80 lb (36.3 kg)

USC

ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

3215 W. North Ave. • Melrose Park, IL • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

2 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

Note: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Wood Stud Wall................................................................................................................................................4

Installation to Solid Concrete and Cinder Block .....................................................................................................................5

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity. See page one.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of

an "edge to edge" stud ﬁnder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

• This product was designed to be installed on the following wall construction only;

WALL CONSTRUCTION HARDWARE REQUIRED

• Wood Stud Included

•Wood Beam Included

•Solid Concrete Included

•Cinder Block Included

• Metal Stud Do not attach except with Peerless Metal Stud Accessory Kit

(not evaluated by UL)

• Brick Contact Qualiﬁed Professional (not evaluated by UL)

• Other or unsure? Contact Qualiﬁed Professional

WARNING

Tools Needed for Assembly

• stud ﬁnder ("edge to edge" stud ﬁnder is recommended)

• phillips screwdriver

• 5/16 (8 mm) drill bit for concrete and cinder block walls

• 5/32 (4 mm) drill bit for wood stud walls

• level

3 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

SP740P SP740P-S

SWV240/B

SWV240/SI

Description Qty. Part # Part #

wall mount 1 095-P1640 095-4640

Bconcrete anchor 2 590-0320 590-0320

Cretaining spacer 4 590-5005 590-5003

D1/4-20 x .5" flat head phillips screw 2 520-1209 520-2178

EM4 x 10 mm phillips screw 4 504-9012 520-2027

FM4 x 20 mm phillips screw 4 504-9020 504-2014

GM6 x 12 mm phillips screw 4 520-1128 520-2039

H#14 x 2.5" mm flat head wood screw 2 520-1202 520-2165

IM6 x 20 mm phillips screw 4 520-9402 520-2040

JM6 x 30 mm phillips screw 4 510-9109 520-2042

KM5 x 6 mm phillips screw 5 520-1023 520-2214

L#10 flat washer 4 540-9400 540-9442

Mhook plate 1 095-P1346 095-4346

Nadapter plate 1095-P1322 095-4322

O#10-32 x 1/4" flat head phillips screw 1 520-1108 520-2108

Pcable ties 4560-1756 560-1756

Qcable tie anchors 2590-1290 590-1290

R8-32 x 1/4" phillips screw 2520-1622 520-2622

Sscrew cover 2590-1324 590-4324

T5 mm allen wrench 2560-9640 560-9640

U#3 screwdriver bit (not shown) 1560-0209 560-0209

Parts List

PQR

FGI

Parts may appear slightly different than illustrated.

Before you begin, make sure all parts shown are included with your product.

4 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

Installation to Wood Stud Wall

WOOD

STUD

WALL

WALL PLATE

3.5"

(89 mm)

STUD

WALL PLATE

CS = CENTER OF SCREEN

ﬁg. 1.1

ﬁg. 1.2

Use a stud ﬁnder to locate the edges of the studs and draw a vertical line down each stud’s center. Place wall

plate on wall as a template. The top mounting hole should be located 3.5" (89 mm) above the desired screen

center as shown in ﬁgure 1.1. Drill two 5/32" (4 mm) dia. holes to a depth of 2.5" (64 mm). Attach wall mount

assembly (A) to wall with two #14 x 2.5" ﬂat head wood screws (H) using #3 phillips screwdriver bit (U) as shown

in ﬁgure 1.2.

Insert two screw covers (S) into mounting holes.

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all

attached hardware and components.

• Tighten wood screws so that wall plate is ﬁrmly attached, but do not overtighten. Overtightening can damage the

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud ﬁnder

is highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-

ers are responsible to provide hardware for other types of mounting situations (not evaluated by UL).

WARNING

5 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

Installation to Solid Concrete and Cinder Block

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual

concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount

in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. Cinder block must meet ASTM

C-90 speciﬁcations. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a

hammer drill to avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

WARNING

Use wall plate as template to mark center of holes.

The top mounting hole should be located 3.5"

(89 mm) above the desired screen center as shown

in ﬁgure 1.1 on page 4.

Drill two 5/16" (8 mm) dia.

holes to a minimum depth of 2.5" (64 mm). Insert

anchors (B) into holes. Place wall mount (A) over

anchors and

attach wall mount (A) to wall using

two #14 x 2.5" ﬂat head wood screws (H) using #3

phillips screwdriver bit (U).

Insert two screw covers (S) into mounting holes.

WALL PLATE

SOLID CONCRETE

CINDER BLOCK

Drill holes and insert anchors (B).

Place plate (A) over anchors (B) and secure with screws (H).

Tighten all fasteners.

concrete

surface

CUTAWAY VIEW

INCORRECT CORRECT

wall

plate

wall

plate

plaster/

drywall plaster/

drywall

concrete concrete

• Tighten screws so that wall plate is ﬁrmly attached,

but do not overtighten. Overtightening can damage

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Always attach concrete expansion anchors directly

to load-bearing concrete.

• Never attach concrete expansion anchors to

concrete covered with plaster, drywall, or other

ﬁnishing material. If mounting to concrete surfaces

covered with a ﬁnishing surface is unavoidable (not

evaluated by UL), the ﬁnishing surface must be

counterbored as shown below. Be sure concrete

anchors do not pull away from concrete when

tightening screws. If plaster/drywall is thicker than

5/8" (16 mm), custom fasteners must be supplied

by installer (not evaluated by UL).

WARNING

6 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

FOR VESA 200 x 100 MOUNTING PATTERN:

Choose hole pattern as shown below. Attach

adapter plate (N) to back of screen using four M4 x

10 mm screws (E) as shown below.

NOTE: If screw (E) gets less than three threads of

engagement, attach adapter plate (N) to back of

screen using four M4 x 20 mm screws (F) and four

spacers (C) as indicated below.

Skip to step 3 on page 8.

FOR VESA 200 x 200 MOUNTING PATTERN:

Choose hole pattern as shown below. Attach

adapter plate (N) to back of screen using four M6 x

12 mm screws (G) as shown below.

NOTE: If screw (G) gets less than three threads of

engagement, attach adapter plate (N) to back of

screen using four M6 x 20 mm screws (I). If screw

(I) still gets less than three threads of engagement,

use four M6 x 30 mm screws (J).

Skip to step 3 on page 8.

Attaching Adapter Plate to Screen with VESA 200 x 100 or 200 x 200

Mounting Pattern

Attach hook bracket (M) to adapter plate (N) using

four M5 x 6 mm screws (K) and #10 washers (L) as

shown.

NOTE: For VESA 75 mm and 100 mm patterns, see

following page.

2-1

• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not

tightly secured, damage may occur to screen or product may fail.

WARNING

For screens with a hole

pattern in a pocket,

spacers (C) go between

adapter plate (N) and

screen. C

7 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

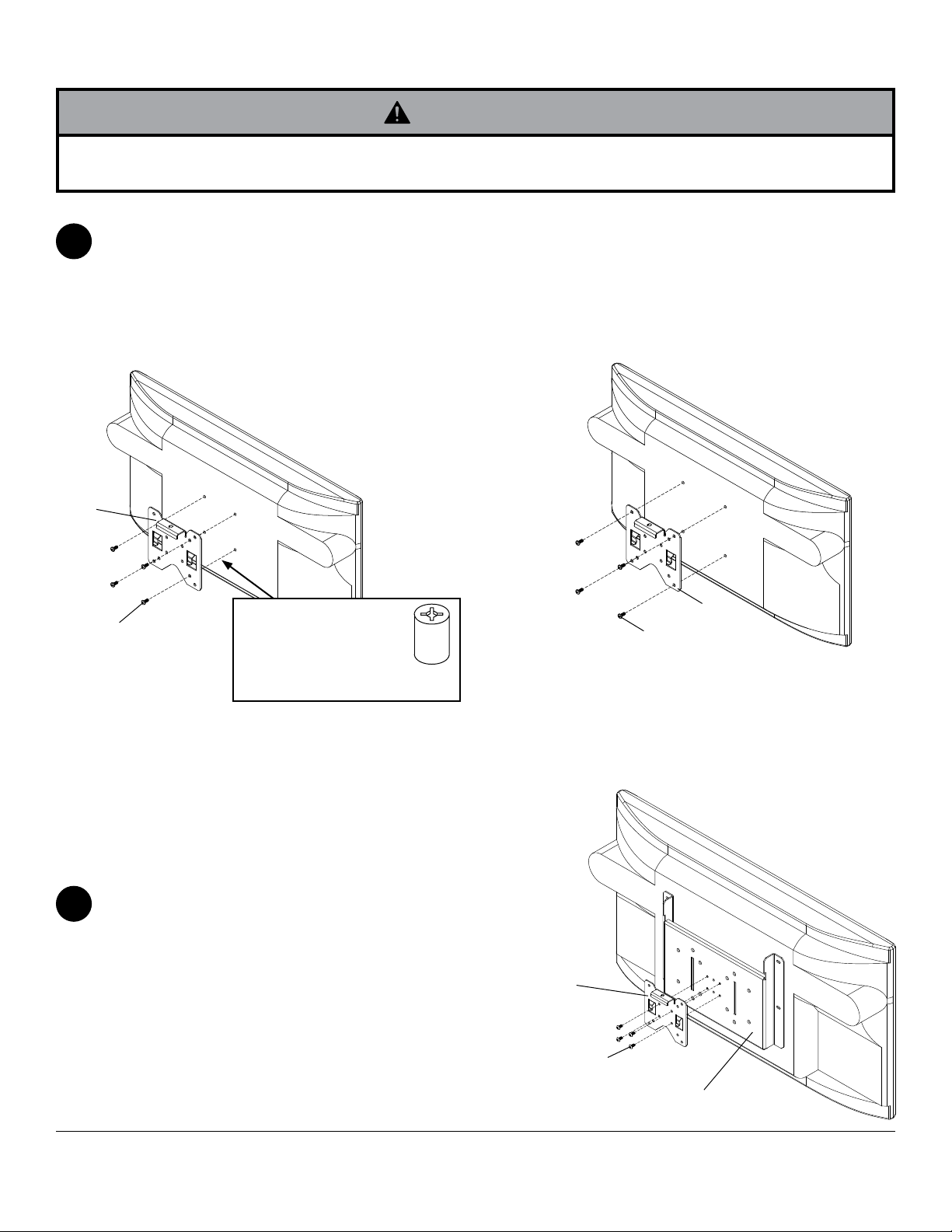

Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern

FOR VESA®75 MOUNTING PATTERN:

Choose hole pattern as shown below. Attach hook

bracket (M) to back of screen using four

M4 x 10 mm screws (E) as shown below.

NOTE: If hole pattern is in a pocket, attach hook

bracket (M) to back of screen using four

M4 x 20 mm screws (F) and four retaining spacers

FOR VESA 100 MOUNTING PATTERN:

Choose hole pattern as shown below. Attach hook

bracket (M) to back of screen using four

M4 x 10 mm screws (E) as shown below.

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

For screens with a hole

pattern in a pocket,

spacers (C) go between

hook bracket (M) and

screen.

For screen compatibility please refer to the LCD or plasma interface list on our website www.peerlessmounts.com or

call customer care for a screen speciﬁc adapter bracket LC or PLP models (not UL evaluated).

FOR INSTALLING TO PEERLESS PLP MODEL ADAPTER BRACKET

NOTE: Refer to PLP model adapter bracket instruc-

tion sheet for attachment of adapter bracket to

screen.

NOTE: M5 x 10 mm screws are included with the

PLP model adapter bracket.

Attach hook bracket (M) to adapter bracket using

four M5 x 10 mm screws.

GENERIC ADAPTER

BRACKET

M5 X 10 mm SCREW

8 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

Hold screen securely and loosen tension knob on

side of mount shown in ﬁgure 4.1 to allow for tilt.

Adjust screen to desired tilt (15° forward, 5°

backward), then retighten tension knob.

• Do not tighten screws with excessive force.

Overtightening can cause damage to mount. Tighten

screws to 40 in. • lb (4.5 N.M.) maximum torque.

• Be careful not to pinch ﬁngers when opening and

closing mount from the wall.

CAUTION

TENSION KNOB

ﬁg. 4.1

4-1 Rotate screen by hand to level screen. Roll bracket

allows 2° roll adjustment.

Insert #10-32 x 1/2" ﬂat head phillips screw (O) to

lock screen into position as shown in ﬁgure 4.2.

ﬁg. 4.2

To attach screen to wall mount (A), lower hook

bracket (M) into pockets of wall mount. Once clips

are engaged, push down to seat clips into pockets.

Insert and tighten M5 phillips screw (K) to lock

screen to wall mount as shown in ﬁgure 3.1.

To remove screen from mount, loosen screw (K)

and lift screen off of mount.

Installing and Removing Flat Panel Screen

SCREEN

ﬁg. 3.1

• Do not lift more weight than you can handle. Use ad-

ditional man power or mechanical lifting equipment

to safely handle placement of the screen.

• Failure to lock hook bracket (M) with screw (K) can

cause screen to come off mount if hit accidentally.

WARNING

POCKET

CLIP

9 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

Cords may be routed using cable ties (P).

Attach cable tie anchor (Q) to top or bottom of wall arm (A) using 8-32 x 1/4" phillips screw (R) as shown in

ﬁgure 5.1.

Secure cables to top or bottom of wall arm (A) using cable ties (P) as shown in ﬁgure 5.2.

Secure cables to bottom of wall plate using a cable tie (P) as shown below.

5-1

5-2

ﬁg. 5.1

ﬁg. 5.2

Cable Management

CABLE

CABLE SLOT

10 of 42 ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09

If more or less tension is desired in the arm pivot points, do the following:

• To increase tension, turn tension screw(s) clockwise with 5 mm allen wrenchs (T). NOTE: Tighten screws to

50 in • lbs (5.6 N.m.) maximum torque.

• To reduce tension, turn tension screw(s) couter-clockwise with 5 mm allen wrenchs (T). NOTE: Do not turn more

than half a turn.

Tension Adjustment

TENSION SCREWS

All other brand and product names are trademarks or registered trademarks of their respective owners.

Peerless Industries, Inc.

3215 W. North Ave.

Melrose Park, IL 60160

www.peerlessmounts.com

• Do not remove screw or loosen screw until it is no longer engaged with the mount. Doing so may cause the screen

to fall.

• If screws become loose over time, tighten screws as necessary. Tighten screws to 50 in. • lb (5.6 N.M.) maximum

torque.

WARNING

Autres manuels pour SmartMount SP740P

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels PEERLESS Support et étagère

PEERLESS

PEERLESS PARAMOUNT PF640 Mode d’emploi

PEERLESS

PEERLESS ESA746PU Mode d’emploi

PEERLESS

PEERLESS SPK 811W Manuel utilisateur

PEERLESS

PEERLESS SUF650P and assembly Mode d’emploi

PEERLESS

PEERLESS WSP820 Mode d’emploi

PEERLESS

PEERLESS SUF640P and assembly Mode d’emploi

PEERLESS

PEERLESS IM740P Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PP740 Manuel utilisateur

PEERLESS

PEERLESS Vision-Point LCV 100 Mode d’emploi

PEERLESS

PEERLESS DS246 Mode d’emploi

PEERLESS

PEERLESS Paramount PA760 Mode d’emploi

PEERLESS

PEERLESS LDS 1920U Mode d’emploi

PEERLESS

PEERLESS Solid-Point PLB 1 Mode d’emploi

PEERLESS

PEERLESS VPM 25-W Mode d’emploi

PEERLESS

PEERLESS Mobile Videowall Trolley PDVWM 2x2 46 55 L Mode d’emploi

PEERLESS

PEERLESS ACC-V800X Mode d’emploi

PEERLESS

PEERLESS Smartmount SWS310/BK Mode d’emploi

PEERLESS

PEERLESS IWB600-WB Mode d’emploi

PEERLESS

PEERLESS PED 410 Mode d’emploi

PEERLESS

PEERLESS SP850-UNLP-GB Mode d’emploi

PEERLESS

PEERLESS SmartMount D-FPF-320 Mode d’emploi

PEERLESS

PEERLESS Slimline OP-LWB 530 Mode d’emploi

PEERLESS

PEERLESS Smartmount ST670 Mode d’emploi

PEERLESS

PEERLESS WBK100-W Mode d’emploi

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
