PEERLESS DST360 Mode d’emploi

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

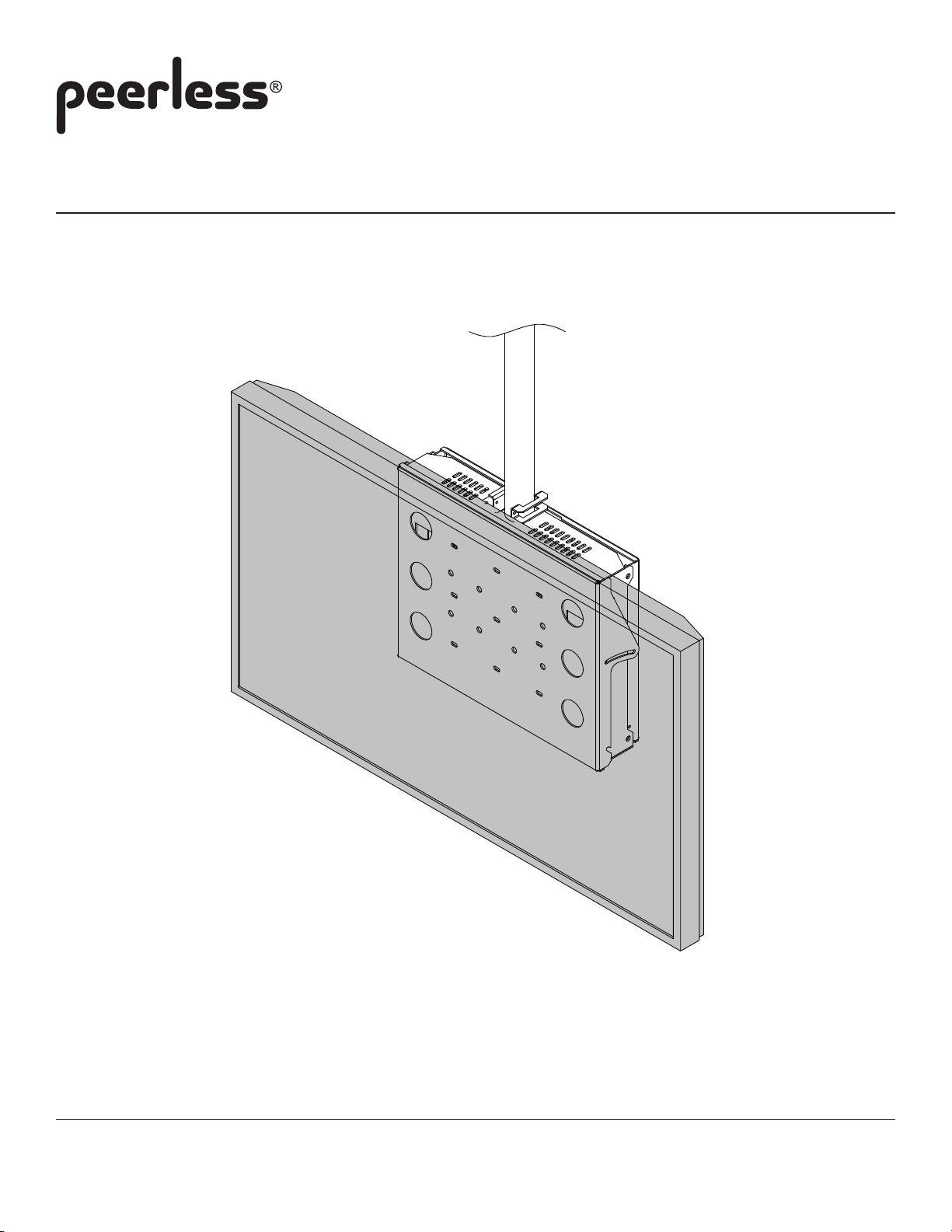

Installation and Assembly:

Mount - Wall/Ceiling Mount

Model: DST360

Max Load Capacity: 150 lb (68. kg)

2 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Description Qty. Part #

Apc box 1 145-1050

Baccess plate 1 145-1049

Cadapter plate 1 145-1038

Dpinch bracket 1 130-1073

Eyaw lock bracket 1 140-1019

FM6 x 12 mm socket pin serrated washer head screw 6 510-1050

Galligator anchor 6 590-0097

H#14 x 2.5 hex phillips wood screw 6 5S1-015-C03

I4 mm allen wrench 1 560-9646

Jrubber pad 4 590-1159

K2" snap bushing 1 590-1149

LM8 x 15 mm socket pin screw 4 520-1068

Mretaining collar 1 1800-375

Nwasher 1 540-9432

OM5 x 10 mm type F screw 1 520-9250

PM5 nylock nut 2 530-1019

QM5 x 55 mm socket screw 2 520-1193

R1/4 - 20 x 2.5 phillips screw 6 520-9521

Stoggler 6 560-9708

T1/4 - 20 washer 6 540-9440

UM4 x 12 mm phillips screw 4 504-9013

#8 washer 4 540-1001

WM5 x 12 mm phillips screw 4 520-1027

XM6 x 12 mm phillips screw 4 520-1128

PARTS LIST

NOTE: Read instruction sheet before you start installation and assembly.

NOTE: Some parts may appear slightly different than illustrated

EF G HI

KLM N

OP Q R S

TUVWX

3 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Using access plate (B) as a template, drill six 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach

access plate (B) to centers of wood studs using six #14 x 2.5" wood screws (H) shown.

Installation to Wood Stud Wall

• Installermust verify thatthe supporting surfacewill safely supportthe combined loadof the equipmentand all attached

hardwareandcomponents.

• Tightenwood screws sothat wall plateis firmly attached,butdo not overtighten.Overtightening can damagethe

screws,greatlyreducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is

highlyrecommended.

• Hardwareprovided is forattachmentof mount throughstandard thickness drywall orplaster into woodstuds.Installers

areresponsibleto provide hardware forothertypes of mounting situations.

WARNING

For Intallation to Column skip to Step 10 on Page 9

4 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Position access plate (B) at desired position on wall.Use

access plate (B), making sure that it is level, as a tem-

plate to mark holes. Drill six 1/4" (6 mm) dia. holes to a

minimumdepth of 2-1/2"(64 mm). Concretemust be 2000

psi density minimum. Insert anchors (G) in holes flush

with wall as shown in figure 2.3. Place access plate (B)

over anchors and secure with six #14 x 2-1/2" (6 mm x 65

mm) wood screws (H) as shown in figure 2.4. Make sure

wall plate is level and tighten all fasteners.

Installation to Solid Concrete and Cinder Block Wall

CUTAWAYVIEW

INCORRECT

concrete

plaster/

drywall

CORRECT

concrete

plaster/

drywall

concrete

wall

Drill holes and insert anchors.

Place access plate (B) over anchors and secure with

screws (H).

Tighten all fasteners.

• Tighten wood screws firmly,but do notovertighten.

Overtighteningcandamage the screws, greatly

reducingtheirholdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifications.

It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid

breakingout the backof the holewhen entering avoid or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Makesure thatthe supporting surface will safelysupport thecombined load of the equipmentand allattached hard-

wareandcomponents.

WARNING

fig 2.3

fig 2.4

• Concreteanchors are notintendedforattachmentto

concretewall covered withalayer of plaster, drywall,

orotherfinishing material asshownbelow.Ifmounting

toconcrete wall coveredwith plaster/drywall is

unavoidable,plaster/drywall (up to5/8" thick) mustbe

counterboredas shown below.Be sure concrete

anchorsdo not pullawayfrom concrete whentighten-

ing screws. If plaster/drywall is thicker than

5/8", custom fasteners must be supplied by installer.

WARNING

CINDERBLOCK

SOLIDCONCRETE

5 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Rotatetoggler(S)

clockwise to wedge it

against inside walls

of metal stud.

Push into hole.

Pivotendof toggler (S).

Slide plastic cap

forwardwhilepulling

back firmly on ring.

Break off excess.

FOR METAL STUD WALLS ONLY: Drill six 1/2"

(13 mm) dia. holes through drywall and studs at

locationscorresponding to wallplate.Insert togglers

(S)as shown below.

∅ 1/2"

(13mm)

• Product must be mounted through drywall that has a

minimum thickness of 1/2" and into metal studs, 26

gaugeorheavier.

• Make sure that togglers are anchored into the center

of the studs as shown in figure 3.1. The use of an

"edgeto edge" studfinder is highlyrecommended.

fig. 3.1

WARNING

3-1

3-2

3-3

3-4

3-5

6 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Align wall plate with

holein wall and

fastenusing

1/4-20 x 2.5" screw

(R)and1/4"

washer(T).

access plate

3-6

Select mounting hole pattern and secure adapter plate (C) to screen using screws (U,W, or X) and washers

(V)ifrequired.

4200mm x200 mm 200mm x100 mm PLP Adapter Plate Mounting Holes

Fastenersprovidedby

dedicatedadapterplate

Using Screws (U,W, or X) and washers (V) as required

PLPADAPTERPLATE

NOTE: First attach the vertical uprights to the

screen detailed in the PLPAdapter Plate

instructions

verticaluprights

7 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Thread two M6 x 12 mm socket pin screws (F) into

PC box (A) leaving 1/8" exposed thread as shown in

detail 1. Hook screen and adapter plate onto exposed

screws.

Secure PC box (A) to access plate (B) with

four M8 x 15 mm socket pin screws (L).

Tightenusing allen wrench(I).

Detail 1

1/8"

5SecurePC topc box (A) using strapprovided withpc box (A), and rubber pads (J)for support andventilation. Secure

2" snap bushing (K) as desierd.

STRAP

8 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Loosen top two M8 x 15 mm socket pin screws (L) 1/4 turn and temporaliy remove bottom two M8 x 15 mm socket

pin screws (L) on pc box (A) as shown. Swing screen forward and swing support brackets downward to brace screen

inopen position.

Accessing CPU

SUPPORTBRACKETS

(BOTHSIDES)

LOOSENSCREWS1/4

TURNONBOTHSIDES

Secure two M6 x 12 mm socket pin screws (F)

into PC box (A) at desired tilt. Tighten using allen

wrench(I).

REMOVE

9 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

SecurePC topc box (A) using strap provided withpc box(A), and rubber pads (J) for support and ventilation.

Secure 2" snap bushing (K) as desierd.

Secure yaw lock bracket (E) to pc box (A) with two

M6 x 12 mm socket pin screws (F). Tighten using

allenwrench(I).

Slide tube into top of pc box (A) and secure using

washer (N), retaining collar (M) and one M5 x 10 mm

type F screw (O).

Secure pc box (A) to tube using two M5 x 55 mm

socket screws (Q), pinch bracket (D), yaw lock

bracket (E), and M5 nylock nut (P).

Installing To Column

STRAP

10 11

10 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09

Secure pc box (A) to access plate (B) using

four M8 x 15 mm socket pin screws (L).

Detail 2

Thread two M6 x 12 mm socket pin screws (F) into

pc box (A) leaving 1/8" exposed thread as shown in

detail 2. Hook screen and adapter plate onto exposed

screws.

1/8"

13 Select mounting hole pattern and secure adapter plate (C) to screen using screws (U,W, or X) and washers

(V)ifrequired.

200mm x200 mm 200mm x100 mm PLP Adapter Plate Mounting Holes

Fastenersprovidedby

dedicatedadapterplate

Using Screws (U,W, or X) and washers (V) as required

PLPADAPTERPLATE

verticaluprights

NOTE: First attach the vertical uprights to the

screen detailed in the PLPAdapter Plate

instructions
