PEERLESS DS495 Mode d’emploi

Model: DS495

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

Installation and Assembly:

Custom Mac Mini PC Holder

NOTE: Read entire instruction sheet before you start installation and assembly.

• DonotbegintoinstallyourPeerlessproductuntilyouhavereadandunderstoodtheinstructionsandwarnings

containedinthisInstallationSheet.Ifyouhaveanyquestionsregardinganyoftheinstructionsorwarnings,please

callPeerlesscustomercareat1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Makesure that the supporting surface will safely support the combined load of the equipment and all attached hard-

wareand components.

• Neverexceed the Maximum LoadCapacity.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrews firmly,butdo not overtighten. Overtightening can damagetheitems, greatly reducing their holding

power.

WARNING

Maximum Load Capacity: 10 lb (4.5 kg)

2 of 5 ISSUED:03-05-09 SHEET#:125-9053-1

Before you begin, make sure all parts shown are included with your product.

Parts may appear slightly different than illustrated. A

Parts may appear slightly different than illustrated.

Description Qty. Part #

Acomputer box 1 124-1139

Balternate support bracket 4 124-1141

Cbox cover 1 124-1140

D#10 x 1/2" TEK phillips screw 4 520-1320

EM4 x 10 mm serrated washer head socket pin screw 2 510-1060

F4mm security allen wrench 1 560-9646

Gcable tie 6 560-9711

HM5 x 10 mm type-F socket pin screw 8 520-1164

Parts List

FGH

3 of 5 ISSUED:03-05-09 SHEET #:125-9053-1

• Installermust verify that the supporting surface will safely support the combinedweightof all attached equipment and

hardware.

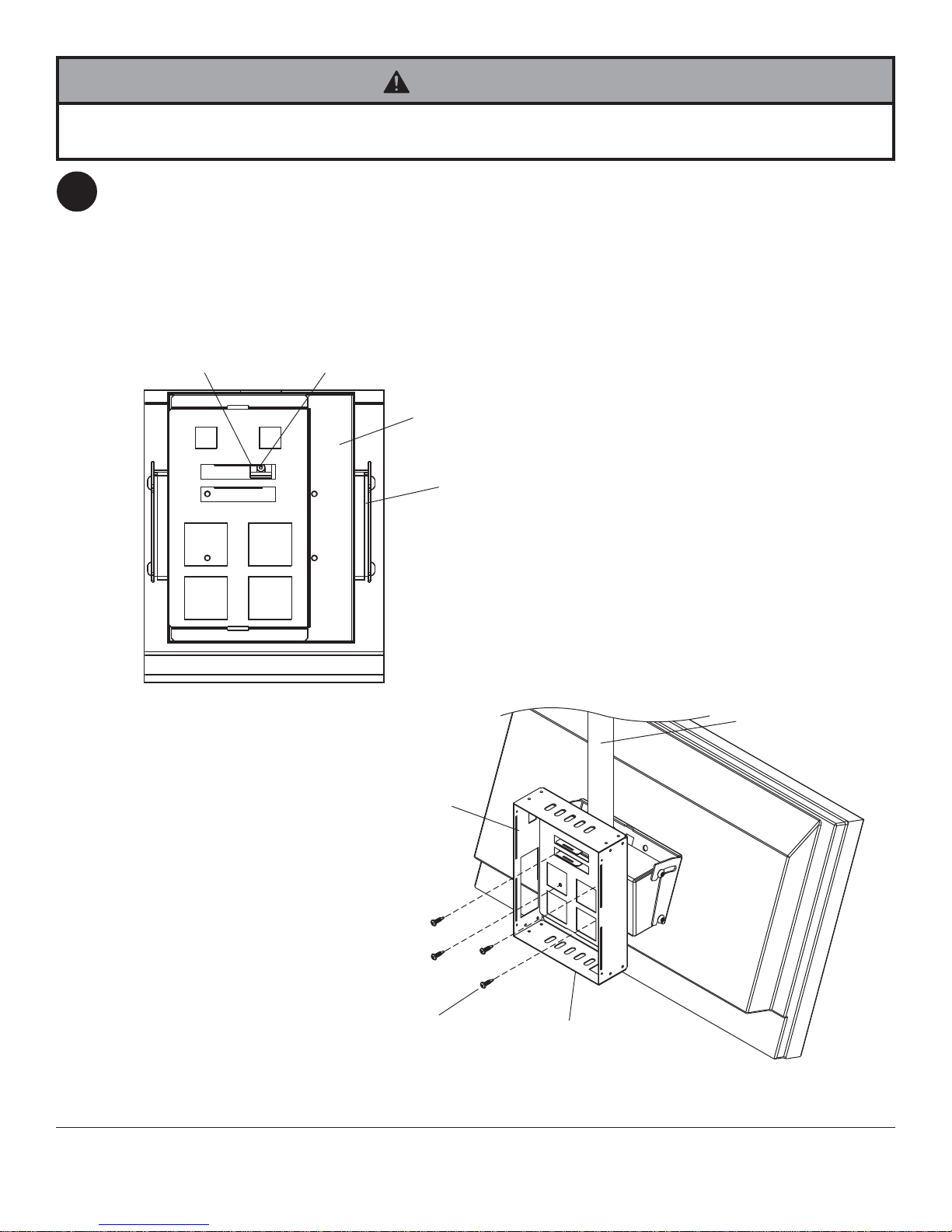

Hold back of computer box (A) against the back of PLCM-2 (not included). Line up locator hole of computer box (A)

with screw of PLCM-2 so that the head of screw is visible, as shown in fig. 1.1. Secure with four #10 x 1/2" TEK

phillips screws (D) as shown in fig. 1.2.

Skip to step 2.

PLCM-2

(NOTINCLUDED)

fig. 1.1

fig. 1.2

PLCM-2

(NOTINCLUDED)

SCREW

LOCATER

HOLE

WARNING

Installation to PLCM-2 (Not Included)

EXTENSIONCOLUMN

(NOTINCLUDED)

4 of 5 ISSUED:03-05-09 SHEET #:125-9053-1

There are eight mounting places for the alternate support brackets (B) as shown in fig. 1.3. Determined the locations

foralternate support brackets (B) according to supporting surface. Using allen wrench (F), fasten two or four alternate

support brackets (B) to computer box (A) with two M5 x 10 mm type-F socket pin screws (H) for each alternate

support bracket (B). Use installer supplied screws/fasteners to attach alternate support brackets (B) to supporting

surface.

NOTE: For each alternate support brackets (B), two screws must be used for attachment to supporting surface.

Installation to Supporting Surface

fig. 1.3

• Installermust verify that the supporting surface will safely support the combinedweightof all attached equipment and

hardware.

WARNING

fig. 1.4

5 of 5 ISSUED:03-05-09 SHEET #:125-9053-1

Attach power supply and mini mac to computer box (A) using cable ties (G).

3Slide tabs of box cover (C) into slots of computer box (A). Using allen wrench (F), secure box cover (C) with two

M4 x 10 mm serrated washer head socket pin screws (E).

NOTE: Boxcover(C) can be oriented left or right.

POWER

SUPPLY

MINIMAC

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
