Peerless-AV SS560F Mode d’emploi

ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

Installation and Assembly:

Display Stand for 32" - 60" Flat Panel Displays

Models: SS560F

Max UL Load Capacity: 150 lb (68 kg)

Suitable For Institutional Use

2 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

Table of Contents

Parts List.................................................................................................................................................................................3

Assembling Floor Stand .........................................................................................................................................................4

Attaching Display using VESA 100, 200 or VESA 300 Mounting Pattern...............................................................................6

Mounting Flat Panel Display ..................................................................................................................................................8

Tools Needed for Assembly

• level

• phillips screwdriver

NOTE: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, and fully understands

these instructions.

• Never exceed the Maximum UL Load Capacity on page 1. Use with heavier televisions may result in instability

causing tip over resulting in death or serious injury.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• The cart or stand is not afﬁxed or secured to the ﬂoor, and may therefore tip over and/or fall if screen and/or stand

is shaken or hit. Not recommended for use in areas with heavy trafﬁc.

• Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control

or toys placed on the furnishing may encourage a child to climb on the furnishing resulting in the furnishing tipping

over on to the child.

• Relocating audio and/or video equipment from this cart or stand to furniture not speciﬁcally designed to support

audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning

onto a child.

WARNING

3 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

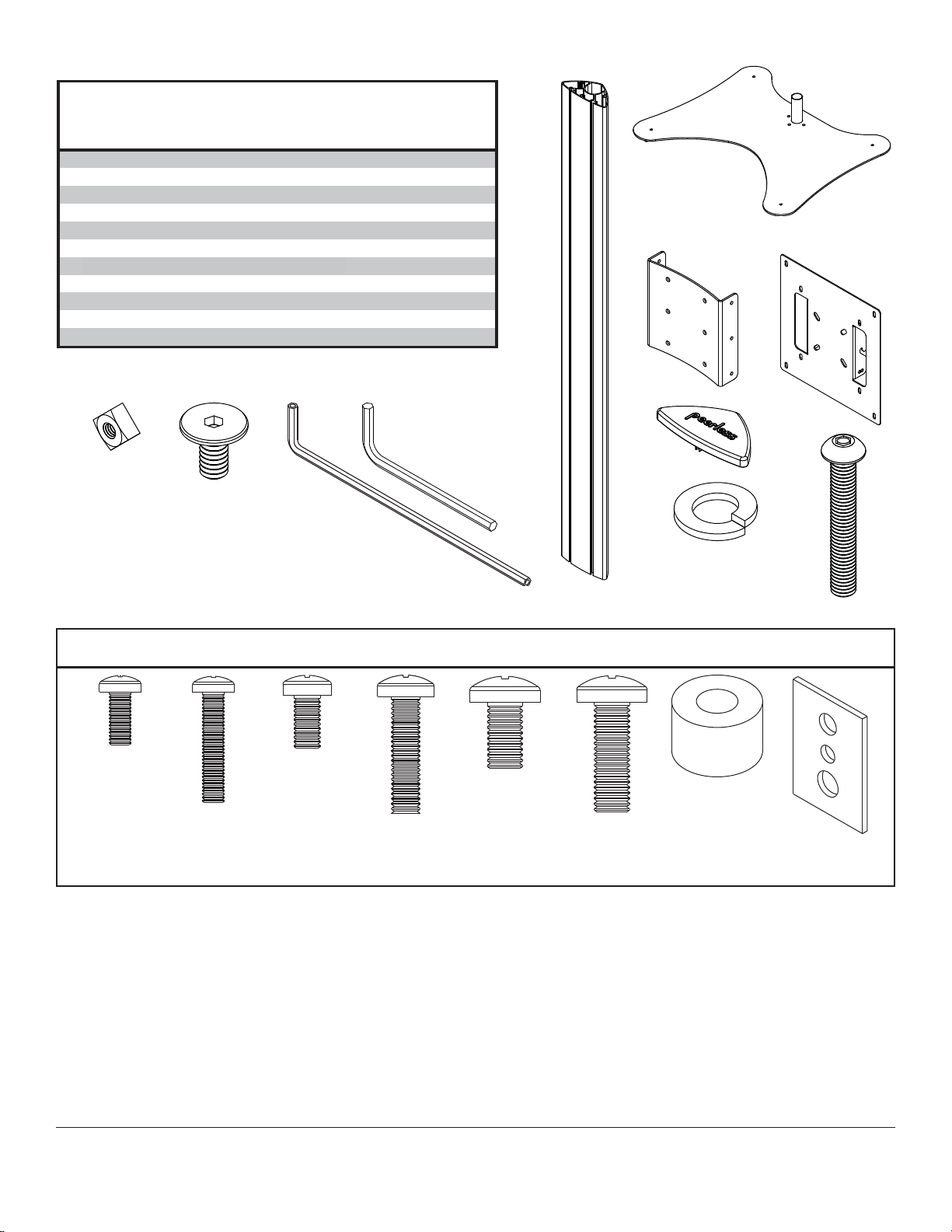

Some parts may appear slightly different than illustrated.

SS560F

Description Qty. Part #

base 1 009-1407

Bupright 1 009-1413

Cdisplay mounting bracket 1 201-1156

Dadapter plate 1 009-1599

Etop cover 1 590-1210

F3/8-16 x 2.5" button socket cap screw 3 520-9550

G1/4-20mm nut 6 530-1050

H1/4-20 x 12mm decorative screw 10 520-2325

I4mm allen wrench 1 560-9646

J7/32" allen wrench 1 560-9715

KM10 x .402 ID washe

3 540-9424

Parts List

IJ F

Before you begin, make sure all parts shown are included with your product.

Adapter Bracket Fasteners

M5 x 12 mm (4)

(520-1027)

M5 x 25 mm (4)

(520-9543)

M6 x 12 mm (4)

(520-1128)

M6 x 25 mm (4)

(520-1208)

.75" spacer (4)

(540-1059)

Multi-washer (4)

(580-1398)

M8 x 25 mm (4)

(520-1031)

M8 x 12 mm (4)

(520-9571)

4 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

1Attach upright (B) to base (A) with three 3/8-16 x 2.5" socket screws (F) and three M10 washers (K) as shown in

ﬁgure 1.1. Tighten screws using 7/32" allen wrench (J). Run cords through upright (B) using cord management

holes as shown in ﬁgure 1.2.

CORD

MANAGEMENT HOLE

CORD

MANAGEMENT HOLE

ﬁg. 1.1 ﬁg. 1.2

Slide display mounting bracket (C) onto upright (B)

so that 1/4-20 nuts (G) slide into slots of upright (B)

as shown in ﬁgure 3.1 and detail 1. Slide display

mounting bracket to desired position, level, then

tighten 1/4-20 x 12 mm screws (H) using 4 mm allen

wrench (I).

Loosely attach six 1/4-20 x 12 mm screws (H) and

1/4-20 nuts (G) to display mounting bracket (C).

SLOT

ﬁg. 3.1

DETAIL 1

5 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

Insert two 1/4-20 x 12 mm screws (H) into display mounting bracket (C), leaving 1/8" of exposed thread as shown

in ﬁgure 5.1 and detail 2.

Snap top cover (E) onto upright (B).

ﬁg. 5.1

DETAIL 2

1/8"

6 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

To prevent scratching the display, set a cloth on a ﬂat, level surface that will support the weight of the display. Place

display face side down. If display has knobs on the back, remove them to allow the adapter plate to be attached.

Place adapter plate (D) on back of display, align to holes, and center on back of display as shown below. Attach the

adapter plate to the back of the display using the appropriate combination of screws, multi-washers, and spacers

as shown in ﬁgure 6.1 or 6.2.

NOTE: Top and bottom mounting holes on display must be used for attaching adapter plate.

NOTE: Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.

NOTE: For ﬂat back displays proceed to step 6-1. For bump-out or recessed back display skip to step 6-2.

NOTE: "X" dimensions should be equal.

NOTES:

• The number of fasteners used will vary, depending

upon the type of display.

• Multi-washers and spacers may not be used,

depending upon the type of display.

• Use the corresponding hole in the multi-washer that

matches your screw size as shown.

MEDIUM HOLE FOR M5 SCREWS

SMALL HOLE FOR M4 SCREWS

LARGE HOLE FOR M6 SCREWS

MULTI-WASHER

Installing Adapter Plate

• Tighten screws so adapter plate is ﬁrmly attached. Do not tighten with excessive force. Overtightening can cause

stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not

tightly secured, damage may occur to display or product may fail.

WARNING

7 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

Attaching Display using VESA 100, 200 or VESA 300 Mounting Pattern

• If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not

tightly secured, damage may occur to display or product may fail.

WARNING

If you have any questions, please call Peerless customer care at 1-800-865-2112.

Select the screws from the bafﬂed fastener pack that best ﬁt your display. Begin with the shortest length screw,

hand thread through multi-washer and adapter plate (D)into display as shown below. Screw must make at least

three full turns into the mounting hole and ﬁt snug into place. Do not overtighten. If screw cannot make three full

turns into the display, select a longer length screw from the bafﬂed fastener pack. Repeat for remaining mounting

holes and tighten screws.

NOTE: Spacers may not be used, depending upon the type of display.

Select the screws from the bafﬂed fastener pack that best ﬁt your display. Begin with longer length screw, hand

thread through multi-washer, adapter plate (D) and spacer in that order into display as shown below. Screw must

make at least three full turns into the mounting hole and ﬁt snug into place. Do not overtighten. If screw cannot

make three full turns into the display, select a longer length screw from the bafﬂed fastener pack. Repeat for

remaining mounting holes and tighten screws.

For Flat Back Display

For Bump-out or Recessed Back Display

6-1

6-2

DISPLAY

ﬁg. 6.1

MULTI-WASHER

SCREW

MULTI-WASHER

SCREW

ﬁg. 6.2

SPACER

8 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

Insert two 1/4-20 x 12 mm screws (H) into holes indicated below for desired display orientation. Tighten all screws

using 4 mm allen wrench (I).

2° Backward Tilt 5° Forward Tilt

No Tilt

All other brand and product names are trademarks or registered trademarks of their respective owners.

Attach adapter plate (D) to display mounting

bracket (C).

Service and Maintenance

This product has no user serviceable parts.

9 of 9 ISSUED: 08-05-11 SHEET #: 009-9054-5 05-07-2015

Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal

use, for a period of ﬁve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture).

At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or ﬁtness for a particular purpose be longer than the period of the applicable

express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless,

(b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless’ instructions or warnings when installing,

using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured

by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other

person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product.

This warranty gives speciﬁc legal rights, and you may also have other rights which vary from state to state.

LIMITED FIVE-YEAR WARRANTY

www.peerlessmounts.com
