Installation and Assembly: 32" - 65" Flat Panel Display Cart
Models: SC560DPB, SC560DPS
ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
Max UL Load Capacity: 115 lb (52 kg) display
2 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
NOTE: Read entire instruction sheet before you start installation and assembly.
Table of Contents
Parts List............................................................................................................................................................................ 3, 4
Assembling Cart.....................................................................................................................................................................5
Installing Adapter Plate...........................................................................................................................................................7
Mounting Flat Panel Display...................................................................................................................................................9
Cable Management............................................................................................................................................................. 10
Tools Needed for Assembly
• phillips screwdriver
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, and fully understands
these instructions.
• Never exceed the Maximum UL Load Capacity on page 1.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• The cart is not affixed or secured to the floor, and may therefore tip over and/or fall if display and/or cart is shaken
or hit. Always monitor children and do not let children play alone around cart as they could get hurt by a falling
display. Not recommended for use in areas with heavy traffic.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
WARNING
3 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
Before you begin, make sure all parts shown are included with your product.
SC560DPB SC560DPS
Description Qty. Part Number Part Numbe
r
A
column bracket 1 009-1419 009-1419
Badapter plate 1 009-1599 009-1599
Ccolumn base 1 009-1484 009-1484
Dcolumn 2 009-1394 009-5452
Eright leg 1 009-1295 009-1295
Fleft leg 1 009-1296 009-1296
G3/8-16 x 1-1/2" bolt 4 520-1329 520-1329
Hjoint connector 4 530-1037 530-1037
Icaster 2 600-0044 600-0044
Jcaster with brake 2 600-0045 600-0045
K5/16"-18 x 3/8" socket cap screws 4 520-1693 520-2693
L1/4-20 x 12mm socket screws 4 520-2325 520-2325
M5/16 x 1/4" set screw 4 520-9566 520-9566
N4mm allen wrench 1 560-9646 560-9646
O7/32" allen wrench 1 560-9715 560-9715
P3/16 allen wrench 1 560-0071 560-0071
Parts List
Parts may appear slightly different than illustrated.
A B C
D
E
F
G
HJ
I
KLM ON P
4 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
Adapter Bracket Fasteners
M5 x 12 mm (4)
(520-1027)
M5 x 25 mm (4)
(520-9543)
M6 x 12 mm (4)
(520-1128)
M6 x 25 mm (4)
(520-1208)
.75" spacer (4)
(540-1059)
Multi-washer (4)
(580-1398)
M8 x 25 mm (4)
(520-1031)
M8 x 12 mm (4)
(520-9571)
5 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
Insert right leg (E) into column base (C) as shown in figure 1.1. Then line up holes of right leg with holes in column
base. Fasten right leg to column base using two 3/8-16 x 1-1/2" bolts (G) and two joint connectors (H), tighten using
3/16"allen wrench (P) and 7/32"allen wrench (O) as shown in figure 1.2.
NOTE: Left and right legs can be identified by looking at the cart from the front.
Repeat for left side of column base with left leg (F).
1
E
H
G
fig. 1.2
fig. 1.1
C
E
FRONT OF CART
FRONT OF LEG
2Insert casters (I,J) into holes of support legs (E,F) and hand thread to secure. Attach casters with brake (J)to rear
of support legs (E,F). Attach casters without brake (I)to front of support legs (E,F) as shown.
NOTE: Lock brakes on casters to restrict movement during installation.
F
J
I
E
HAND THREAD
HOLD WHEEL
6 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
Insert columns (D) over column base supports (C)
and align cable management holes. Secure columns
to column base supports using four 5/16" socket
screws (K). Tighten screws using 3/16" allen
wrench (P).
3
D
K
M
D
A
L
A
A
D
D
FRONT VIEW REAR VIEW
Lock column bracket (A) in place by installing
four 5/16" set screws (M). Tighten screws against
columns (D) using 4mm allen wrench (N).
Insert column bracket (A) over columns (D) and
adjust to desired height. 65
Insert two 1/4-20 x 12mm socket screws (L) into
column bracket (A) using 4mm allen wrench (N),
leaving 3/16" of exposed thread as shown in detail 1.
4
CABLE MANAGEMENT
HOLES
DETAIL 1
3/16"
C
7 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
NOTE: For flat back displays proceed to step 7-1. For bump-out or recessed back display skip to step 7-2.
NOTES:
• The number of fasteners used will vary, depending
upon the type of display.
• Multi-washers and spacers may not be used,
depending upon the type of display.
• Use the corresponding hole in the multi-washer that
matches your screw size as shown.
MEDIUM HOLE FOR M5 SCREWS
SMALL HOLE FOR M4 SCREWS
LARGE HOLE FOR M6 SCREWS
MULTI-WASHER
To prevent scratching the display, set a cloth on a flat, level surface that will support the weight of the display. Place
display face side down. If display has knobs on the back, remove them to allow the adapter plate to be attached.
Place adapter plate (B) on back of display. Align to holes then attach the adapter plate to the back of the display
using the appropriate combination of screws, multi-washers, and spacers as shown in figure 7.1 or 7.2.
NOTE: Top and bottom mounting holes on display must be used for attaching brackets.
NOTE: Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.
7
Installing Adapter Plate
• Tighten screws so adapter plate is firmly attached. Do not tighten with excessive force. Overtightening can cause
stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not
tightly secured, damage may occur to display or product may fail.
WARNING
NOTE: "X" dimensions should be equal.
X
X
B
8 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
Attaching Display using VESA 100, 200 or VESA 300 Mounting Pattern
• If screws don't get three complete turns in the display inserts or if screws bottom out and adapter plate is still not
tightly secured, damage may occur to display or product may fail.
WARNING
If you have any questions, please call Peerless customer care at 1-800-865-2112.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
Select the screws from the baffled fastener pack that best fit your display. Begin with the shortest length screw,
hand thread through multi-washer and adapter plate (B)into display as shown below. Screw must make at least
three full turns into the mounting hole and fit snug into place. Do not overtighten. If screw cannot make three full
turns into the display, select a longer length screw from the baffled fastener pack. Repeat for remaining mounting
holes and tighten screws.
NOTE: Spacers may not be used, depending upon the type of display.
Select the screws from the baffled fastener pack that best fit your display. Begin with longer length screw, hand
thread through multi-washer, adapter plate (B) and spacer in that order into display as shown below. Screw must
make at least three full turns into the mounting hole and fit snug into place. Do not overtighten. If screw cannot
make three full turns into the display, select a longer length screw from the baffled fastener pack. Repeat for
remaining mounting holes and tighten screws.
For Flat Back Display
For Bump-out or Recessed Back Display
7-1
7-2
B
B
DISPLAY
DISPLAY
fig. 7.1
MULTI-WASHER
SCREW
MULTI-WASHER
SCREW
fig. 7.2
SPACER
9 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12

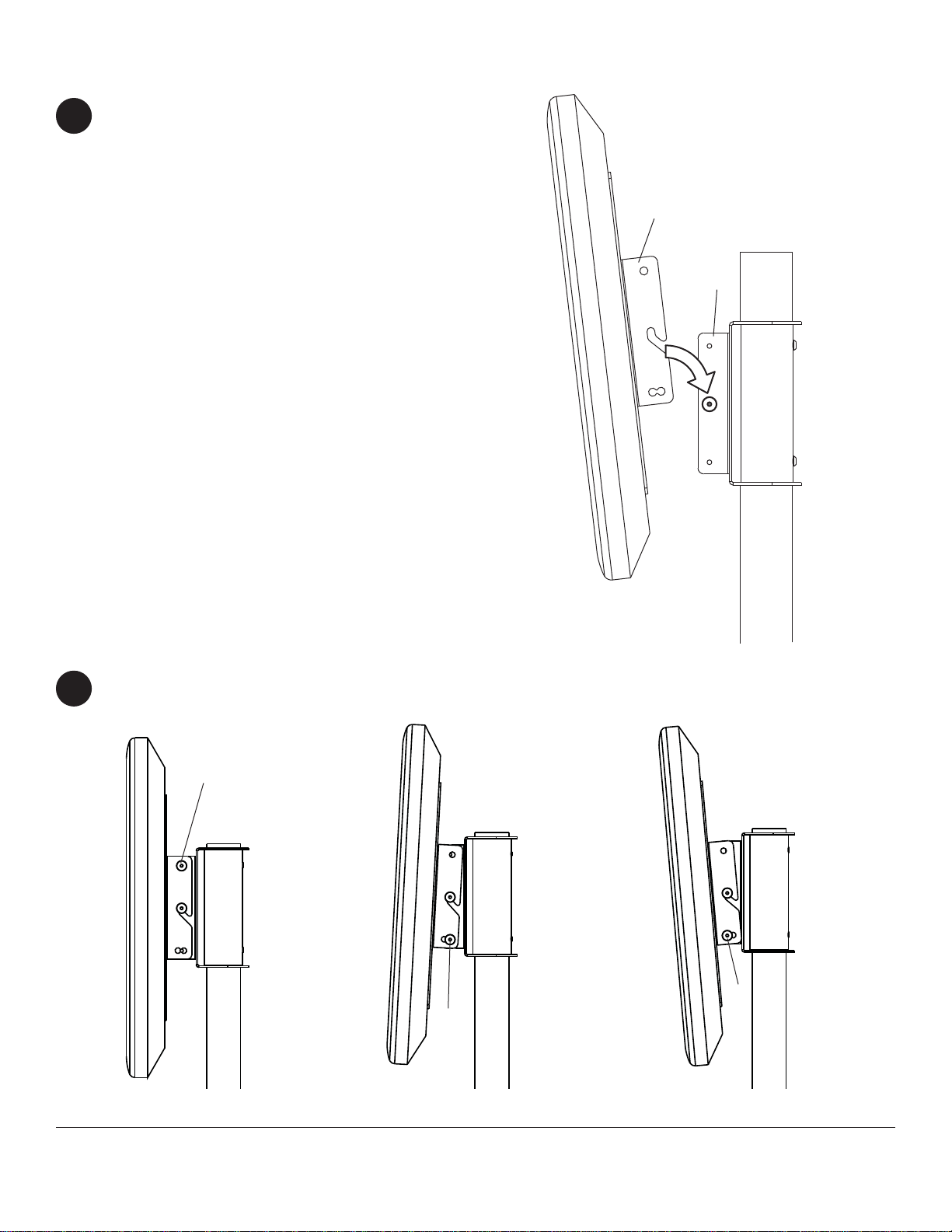

Mounting Flat Panel Display
Attach adapter plate (B) onto 1/4-20 screws of
column bracket (A).
B
A
L
LL
2° Backward Tilt 5° Forward TiltNo Tilt
Insert two 1/4-20 x 12mm screws (L) into top holes indicated below for desired display orientation. Adjust display
then secure with two 1/4-20 x 12mm screws (L). Tighten all screws using 4mm allen wrench (N).
8
9
10 of 11 ISSUED: 08-31-11 SHEET #: 009-9053-7 07-25-12
Run cables through columns (D) using cable management holes.
10
CABLE
MANAGEMENT
HOLES
D
Cable Management
© 2012, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Peerless Industries, Inc.
2300 White Oak Circle
Aurora, Il 60502
www.peerless-av.com
