Paradyne Hotwire 8785 Manuel utilisateur

HotwirerTDM SDSL Termination Units

Models 8775 and 8785

Installation Instructions

Document Number 8700-A2-GN15-20

February 2001

Product Documentation Online

Complete documentation for this product, including configuration options and cable pin

assignments, is available at www.paradyne.com. Select Library →Technical Manuals

→Hotwire DSL & MVL Systems.

Select the following document:

8700-A2-GB25

Hotwire TDM SDSL Termination Units, Models 8775 and 8785, User’s Guide

For information about the DSLAM or MCC, select from the following documents:

8000-A2-GB22

Hotwire Management Communications Controller (MCC) Card, IP Conservative,

User’s Guide

8000-A2-GB29

Hotwire Management Communications Controller (MCC) Card

User’s Guide

8610-A2-GN10

Hotwire 8610 DSLAM Installation Instructions

8810-A2-GN11

Hotwire 8810 DSLAM Installation Instructions

8820-A2-GN10

Hotwire 8820 GranDSLAM Installation Instructions

To order a paper copy of a Paradyne document:

HWithin the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

HOutside the U.S.A., call 1-727-530-8623

Hotwire TDM SDSL Termination Units

Hotwirer8775 and 8785 TDM SDSL Termination Units are circuit card assemblies

comprising four Time Division Multiplexer Symmetric Digital Subscriber Line

(TDM SDSL) ports and four synchronous ports. When the Hotwire 87xx TDM SDSL

Termination Unit is used in a Hotwire 8600 or 8800 Series Digital Subscriber Line

Access Multiplexer (DSLAM), it transports up to 2048 kbps signals over traditional

twisted-pair telephone wiring.

Installation Overview

Installation and configuration of the Hotwire 87xx TDM SDSL Termination Unit

consists of:

HInstalling the unit in the DSLAM.

HConnecting to the Data Terminal Equipment (DTE).

HConnecting to a Main Distribution Frame (MDF).

HProviding initial unit identity information or changing existing identity information.

HConfiguring the unit using the Configuration Edit menus.

Before you install the unit, read the Important Safety Instructions in the appropriate

DSLAM manual.

Planning the Installation

Review the following list to help plan for the installation.

-Obtain the applicable cables; refer to Cables You Need.

-Make sure the Hotwire DSLAM is installed and power is supplied to the chassis.

-After the unit is installed, there are configuration procedures that must be

performed before you can begin to use it. Refer to the User’s Guide if you require

detailed configuration procedures.

Cables You Need

The following customer-provided cables are used with this product.

For the network connection:

HPlug-ended 50-position Telco cable for connection from the Hotwire DSLAM to the

Main Distribution Frame (MDF) or other demarcation point.

For the DTE connection, one of the following:

HV.35: 100-position plug-to-four MS34

(like Paradyne Feature No. 8700-F1-501)

HX.21: 100-position plug-to-four DB15

(like Paradyne Feature No. 8700-F1-502)

HRS-449: 100-position plug-to-four DB37

(like Paradyne Feature No. 8700-F1-503)

HEIA-530-A: 100-position plug-to-four DB25

(like Paradyne Feature No. 8700-F1-504)

HV.35: 100-position plug-to-four MS34 crossover

(like Paradyne Feature No. 8700-F1-506)

HEIA-530-A: 100-position plug-to-four DB25 crossover

(like Paradyne Feature No. 8700-F1-507)

For more information refer to Cables and Pin Assignments in the User’s Guide, and the

appropriate DSLAM installation document.

496-15149

Installing TDM SDSL Cards

A Hotwire TDM SDSL Termination Unit can be installed, removed, and replaced without

disrupting service to other cards in the chassis.

!HANDLING PRECAUTIONS FOR STATIC-SENSITIVEDEVICES

This product is designed to protect sensitive components from

damage due to electrostatic discharge (ESD) during normal

operation. When performing installation procedures,

however, take proper static control precautions to

prevent damage to equipment. If you are not sure

of the proper static control precautions, contact

your nearest sales or service representative.

"Procedure

To install the unit:

1. Determine in which slot the unit will be installed. Verify that cards in adjacent slots

have been fastened using the screws at each end of their front panels.

2. Remove the filler plate from the installation slot.

3. Insert the unit into the DSLAM:

—For a Hotwire 8600 Series DSLAM – Hold the unit horizontally, with the

component side facing up, and insert it into the left and right card guides.

99-16311-02

STACK

POSITION

INPUT

ESDESD

48VDC CLASS 2

OR LIMITED

PWR SOURCE

48V

ARTN

ABBAB

DC FUSES

T4A, MIN. 48V PWR

ALM

FAN

BOUTIN SERIAL ALM INTF MCP/1 23

MCP/

DSL

MANAGEMENT 10 BASE T

8610

M/HDSL

8785

SYSTEM

OKAlrm

Test

123

SYNC PORT

DSL PORT

LINK-UP

M/HDSL

8785

SYSTEM

OKAlrm

Test

123

SYNC PORT

DSL PORT

LINK-UP

—For a Hotwire 8800 Series DSLAM –Hold the unit vertically, with the

component side facing right, and insert it into the top and bottom card guides.

ALARMS

Major MinorFanBA

POWER

MCC

SYSTEM

Alm

Test

ETHERNET

Coll

99-16544

MGT

SERIAL

MGT

10BT ALARM

SLOTS 1 - 6

SLOTS 7-12

SLOTS 13-18

LINES

-48V (A)

-48V INPUT

-48V (B)

RET (A)

RET (B)

FR GND

246810 12 14 16 18

1357911 13 15 17

LAN/WAN SLOT 20

LAN/WAN SLOT

M/HDSL

8785

SYSTEM

OKAlrm

Test

123

SYNC PORT

DSL PORT

LINK-UP

4. Slide the unit into the slot until the power and network connectors seat firmly in the

mating connectors on the backplane.

CAUTION:

Do not force the unit into the slot. This could damage the backplane

connectors. If the card does not seat properly, remove the card and reinstall

it. If it still does not seat properly, call your service representative.

The unit performs a power-on self-test. All of the LEDs turn ON and OFF briefly.

When the self-test is completed successfully, the SYSTEM OK LED begins to

pulse.

5. If the LED is not pulsing, refer to Messages and Troubleshooting in the User’s

Guide.

6. Secure the unit by fastening the screws at each end of the faceplate.

Connecting to the DTE

Connection to the four ports of the unit is through the 100-pin connector on its

faceplate. Use one of the DTE cables listed under Cables You Need on page 3.

"Procedure

To connect the Hotwire 87xx TDM SDSL Termination Unit to your DTE:

1. Connect the 100-position connector of the cable to the connector on the faceplate

of the unit. Align one end of the cable connector with the card connector, then push

on the cable connector until it seats.

The end of the cable connector has two release buttons. To remove the connector,

press the release buttons simultaneously and pull the connector away from the

card.

2. Feed the cable through the Cable Guide if it is installed. When all cables are

installed, anchor them with cable ties to the rack, DSLAM, or Cable Guide.

3. Connect the four terminating connectors to your DTE.

Connecting to an MDF

You can connect the Hotwire DSLAM containing the Hotwire 87xx TDM SDSL

Termination Unit to an MDF or other demarcation point. Do not connect it to a POTS

splitter.

"Procedure

To connect the Hotwire DSLAM containing the unit to an MDF:

1. Plug the 50-position Telco cable into the appropriate connector on the DSLAM

using the following table.

For Model 8775 . . . For Model 8785 . . .

DSLAM Use the DSLAM Connectors Labeled . . .

8600 LINE (Front of chassis) Not Applicable

8610 1–3 (Rear of chassis) 1–3 (Rear of chassis)

8800 SLOTS 1–6, SLOTS 7–12,

SLOTS 13–18 (Front of chassis) Not Applicable

8810 SLOTS 1–6, SLOTS 7–12,

SLOTS 13–18 (Front of chassis) 1–18 (Rear of chassis)

8820 1–18 (Rear of chassis) 1–18 (Rear of chassis)

2. If necessary to attach the cable connector firmly in place, replace the longer Telco

cable captive screw with a shorter one. Fasten the connector.

3. Insert a cable tie (provided with Hotwire DSLAM) through the tie mount to hold the

50-position Telco connector in place.

4. Make sure the other end is connected to the appropriate MDF or demarcation

point.

NOTE:

If connecting the Telco 25-pair, 50-position cable to an MDF, a converter may be

necessary for terminating the other end of the cable on a punchdown block before

cross-connecting to an MDF.

Ferrite Choke (Installation in Hotwire 8820 GranDSLAM Only)

CAUTION:

All ferrite chokes that are supplied must be installed following these

instructions to ensure compliance with FCC Part 15, VCCI, and CISPR22

rules.

"Procedure

A ferrite choke is included with all Hotwire 8775 and 8785 TDM SDSL Termination

Units. The ferrite choke is only required if you install the termination unit in a Hotwire

8820 GranDSLAM; otherwise, it can be discarded.

To install the ferrite choke onto the 50-pin DSL cable:

1. Open the ferrite choke and place it around the cable as close to the Hotwire 8820

GranDSLAM as possible.

2. Close the two halves around the cable and snap the choke shut, pressing down on

the plastic latch to secure it.

3. Add a tie wrap if necessary to prevent the ferrite choke from slipping down the

cable.

97-14820-02

Ferrite Choke

Plastic

Latch

Connector

End

Tie

Wrap

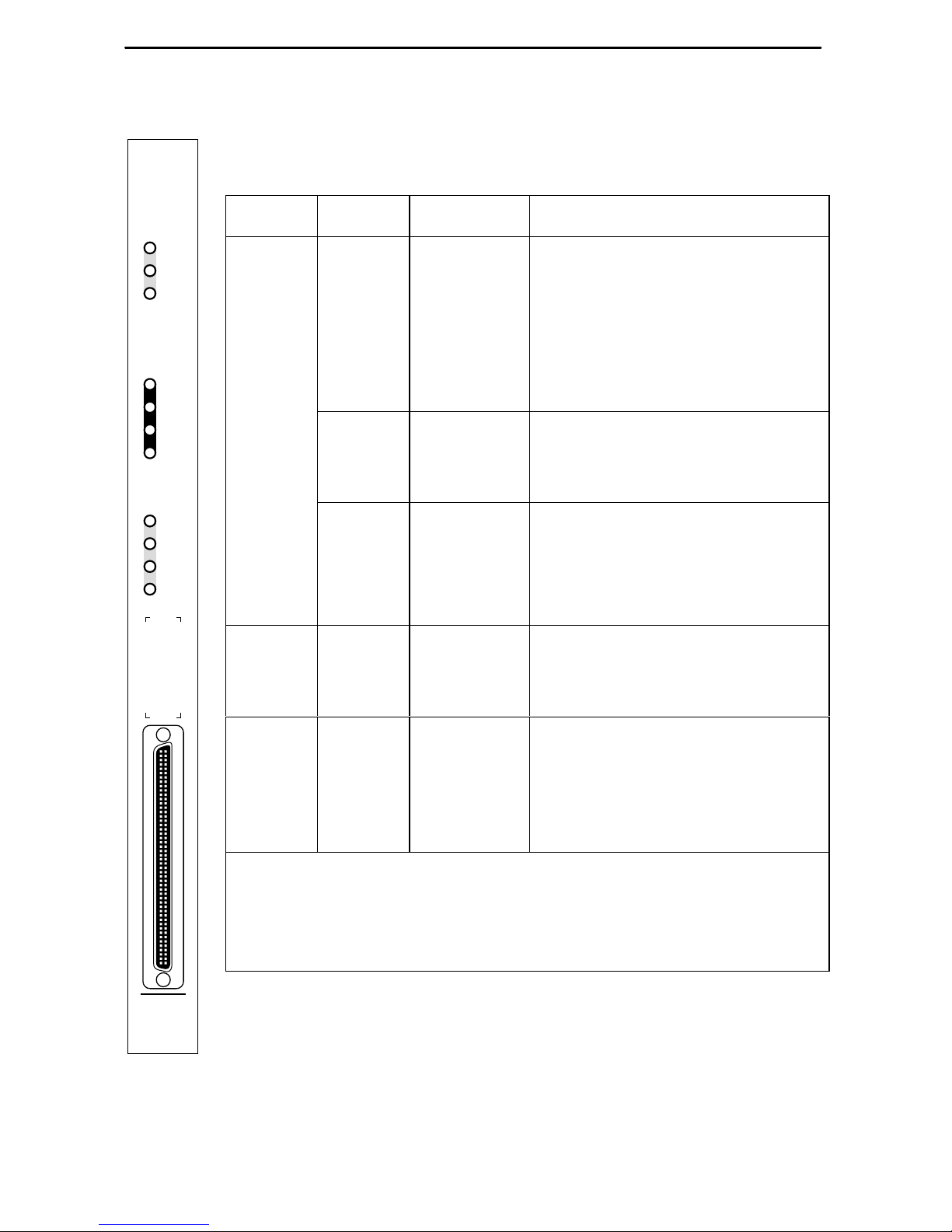

Front Panel LEDs

The following table describes the meaning and states of the LEDs on the

Hotwire 8775 or 8785 TDM SDSL Termination Unit’s faceplate.

Type LED LED is . . .* Indicating . . .

SYSTEM OK

(Green) On

Off

Slow Cycling

Pulsing

Unit failure; system processing has

stopped.

No power to card.

Unit is in minimum mode and a

download is required.

Normal operation.

Alrm

(Amber) On

Off

Unit failure, or Power-On Self-Test

(POST) has failed.

No alarms.

Test

(Amber) On

Slow cycling

Off

Loopback test or 511 test pattern in

progress.

POST in progress.

No tests.

SYNC

PORT 1, 2, 3, 4

(Green) On

Off

The port is operational.

No signal on the port, or DTR or

RTS is off.

DSL

PORT

LINK-UP

1, 2, 3, 4

(Green) On

Slow cycling

Fast cycling

Off

DSL link is up.

DSL training in progress.

OOF condition.

DSL link is down.

* Slow Cycling: LED turns off and on in equal duration once

per second.

Fast Cycling: LED turns off and on in equal duration 5 times

per second.

Pulsing: LED turns off momentarily once per second.

TDM

SDSL

8775

SYSTEM

OKAlrm

Test

123

SYNCPORT

DSL PORT

LINK-UP

00-15834-03

Logging In to the Hotwire DSLAM

You can log in to the Hotwire DSLAM system using either a local VT100-compatible

terminal or a remote Telnet connection.

After you enter your user ID and password, the system displays the Hotwire Chassis

Main Menu. See your management card documentation for information about selecting

the unit from the card selection screen.

Asynchronous Terminal Interface Menu

The following illustration shows the paths to the Hotwire 8775 or 8785 TDM SDSL

Termination Unit’s various ATI screens.

Main

Status Test

System and

Test Status Performance

Statistics Display

LEDs Identity

Network

Error

Statistics

Network

Performance

Statistics

Configuration Control

Default

Factory

Configuration

Loader

Current

Configuration

Network SYNC

Ports Copy

Ports System

Options Management

and

Communication

Telnet

Session General SNMP

Management SNMP NMS

Security SNMP

Traps

Change

Identity

Administer

Logins

Download

Code Apply

Download

Reset

AutoRate

NetworkTests SYNC Data

PortTests Device

Tests Abort All

Tests

01-16296a-01

Reset

Device

Current

Network

Performance

Entering Identity Information

After accessing your unit for the first time, use the Change Identity screen to determine

SNMP administrative system information that will be displayed on the Identity screen of

the Status branch. To access the Card Identity screen, follow this menu selection

sequence:

Main Menu →Control →Change Identity

Configuring the Unit

Configuration option settings determine how the unit operates. Use the Configuration

menu branch to display or change configuration option settings.

The unit is shipped with factory settings in the Default Factory Configuration area. If the

factory default settings do not support your network’s configuration, customize the

configuration options for your application.

A DSLAM-to-DSLAM configuration requires that the unit at one end of the link be set to

NTU mode. DSLAM-mounted Hotwire termination units default to LTU mode.

Accessing and Displaying Configuration Options

To display the configuration options, you must first load a configuration option set into

the edit area.

To load a configuration option set into the configuration edit area, follow this menu

selection sequence:

Main Menu →Configuration (Load Configuration From)

Make a selection by placing the cursor at your choice and pressing Enter.

If you select . . . Then . . .

Current

Configuration The selected configuration option set is loaded and the

Configuration Edit/Display menu screen appears.

Configuration

Loader The Configuration Loader screen is displayed allowing you to

upload or download configurations from a TFTP server.

Default Factory

Configuration The selected configuration option set is loaded and the

Configuration Edit/Display menu screen appears.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Paradyne Matériel réseau

Paradyne

Paradyne Hotwire 8775 Manuel utilisateur

Paradyne

Paradyne JetFusion 2208 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 6700 Series Manuel utilisateur

Paradyne

Paradyne iMarc FLEX 9123 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3800PLUS Manuel

Paradyne

Paradyne iMarc DSL 9720 CSU/DSU Manuel utilisateur

Paradyne

Paradyne Jetstream CPX-1000 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel utilisateur

Paradyne

Paradyne HotWire 7924 Manuel utilisateur

Paradyne

Paradyne Hotwire 6210 Instructions d'utilisation d'origine

Paradyne

Paradyne Hotwire 5620 RTU Manuel utilisateur

Paradyne

Paradyne HotWire 7924 Manuel utilisateur

Paradyne

Paradyne 4300 Manuel utilisateur

Paradyne

Paradyne GranDSLAM 4200 Manuel utilisateur

Paradyne

Paradyne 9126 Manuel utilisateur

Paradyne

Paradyne ACCULINK 316x Manuel

Paradyne

Paradyne Hotwire 5216 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel de la liste des pièces

Paradyne

Paradyne 7112 Manuel utilisateur

Paradyne

Paradyne MCC Manuel utilisateur

Paradyne

Paradyne T1 Access Mux 916x Manuel d'utilisation et d'entretien

Paradyne

Paradyne Comsphere 3510 Manuel d'exploitation et d'entretien

Paradyne

Paradyne COMSPHERE 3550 Series Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
