Hotwire®5620 RTU

Installation Instructions

Document Number 5620-A2-GN11-40

September 2001

Contents

Hotwire 5620 RTU Overview ........................................................................ 1

Product Documentation Online ..................................................................... 4

Getting Started .............................................................................................. 5

Installing the DSL Access Wiring .................................................................. 6

Connecting to the DSL Access Wiring .......................................................... 8

Installing the Hotwire 5620 RTU ................................................................... 9

Power-On ...................................................................................................... 13

Troubleshooting ............................................................................................. 14

Increasing the Number of End-User Systems .............................................. 15

Cables & Connectors .................................................................................... 15

Optional RTU Wall Placement ...................................................................... 17

Technical Specifications for the Hotwire 5620 RTU ...................................... 19

Important Safety Instructions ........................................................................ 20

Government Requirements ........................................................................... 22

Warranty, Sales, Service, and Training Information ...................................... 24

Hotwire 5620 RTU Overview

The Hotwire®5620 RTU (Remote Termination Unit) is a component in the Hotwire

RADSL Access System and interoperates with the Hotwire 8373, 8374, or 8510 DSL

Card in the DSLAM (Digital Subscriber Line Access Multiplexer) system. This system

provides high-speed Internet or corporate LAN access over traditional twisted-pair

copper telephone wiring.

Copper pairs run from the central office (CO) to the customer premises (CP) to create

the local loop. The local loop terminates on the customer premises at the demarcation

point in a punchdown block or network interface device (NID).

NOTE:

In this document:

—End-user system is used to represent any host with an Ethernet connection.

—Service provider is used to represent any Internet Service Provider (ISP) or

remote LAN access provider.

DSL Access with a Hotwire 5030 POTS Splitter

An optional POTS (plain old telephone service) splitter can be installed to block out the

DSL signal and allow the POTS frequencies to pass through. At the customer premises,

the Hotwire 5620 RTU and a telephone can function simultaneously over the same pair

of copper wires when a Hotwire 5030 POTS Splitter is installed near the demarcation

point for all telephones on the same POTS line as DSL.

When a Hotwire 5030 POTS splitter is used at both ends of the local loop, wiring is

connected:



From the demarcation point to the CP POTS splitter, and



From the demarcation point to the DSL jack.

The Hotwire 5030 POTS Splitter is designed for outdoor or indoor installation.

00-16726

Punchdown

Block or NID

DSL

Jack RTU

New Wiring Connections Existing Wiring (POTS)

Customer Premises (CP)

POTS/DSL

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

Hub

POTS

Splitter

DSL –Digital Subscriber Line POTS –Plain Old Telephone Service

NID –Network Interface Device RTU –Remote Termination Unit

POTS

End-user

Systems

Service

Provider

DSL Access without a POTS Splitter

When the Hotwire 5620 RTU is installed without a POTS splitter, the DSL line is used for

data only and does not provide telephone services.

Phone Filters

For optimum performance, if the wiring for the RTU is also used for voice (POTS), a

phone filter should be installed on each voice line with a phone, modem, fax machine, or

other telecommunications device attached. One Hotwire phone filter can be used with

multiple telecommunications devices (for example, a phone and fax machine can be

supported using a single filter) if a multiple line adapter is used.

00-16725

Punchdown

Block or NID

DSL

Jack RTU

Customer Premises (CP)

POTS/DSL

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

Hub

End-user

Systems

DSL –Digital Subscriber Line RTU –Remote Termination Unit

NID –Network Interface Device New Wiring Connections

Service

Provider

01-17034

Hotwire

RTU

Customer Premises (CP)

DSL/POTS

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO) Local Loop

Hub

DSL –Digital Subscriber Lines

POTS –Plain Old Telephone Service

End-user

Systems

Network

Service

Provider

(NSP) Demarcation

Point

Filter

There are two Hotwire phone filters that can be used with the 5620 RTU:



Hotwire 6035 Universal Phone Filter is designed for use with a tabletop phone.



Hotwire 6040 Universal Wall Jack Phone Filter is designed for use with a

wall phone.

If installing the router on the wall instead of a table or desk, refer to

Optional RTU Wall

Placement

on page 17 before installing the router and cables.

Product Documentation Online

Complete documentation for this product is available at www.paradyne.com.

Select

Library

→

Technical Manuals

→

Hotwire DSL Systems.

To install a POTS splitter or phone filter, refer to the appropriate document:

Document

Number Document Title

5030-A2-GN10

Hotwire 5030 POTS Splitter Customer Premises Installation

Instructions

6035-A2-GN11

Hotwire 6035 Universal Phone Filter Installation Instructions

6040-A2-GN11

Hotwire 6040 Universal Wall Jack Phone Filter Installation

Instructions

01-17035

RJ11

Wall Jack

RJ11

Wall

Jack

Customer

Premises (CP)

Hotwire

RTU

6035

Phone Filter 6040

Wall Jack

Phone

Filter

POWERETHERNET

DSL

Phone Filter

Getting Started

Before beginning your RTU’s installation, make sure that you have all the equipment you

will need.

Package Checklist

In addition to these instructions, verify that your package contains the following:

❑Model 5620 Remote Termination Unit (RTU)

❑DSL interface cable with RJ11 modular plugs

❑Power cord with power transformer

Wiring and Connectors You Will Need

The following wiring and standard connectors are used with this product:

❑Standard RJ11 wall jack for the DSL cabling.

❑Multiple line adapter if a telephone and RTU are connected in the same location.

❑DSL cabling: New or existing unshielded twisted-pair wiring (CAT3 or better). The

CAT3 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or

26 AWG (.4 mm).

❑Ethernet cabling: Standard Ethernet 8-pin, non-keyed modular plug for a PC or

workstation. An Ethernet straight-through or crossover cable is used. Refer to

procedures in

Installing the Hotwire 5620 RTU

on page 9 for Ethernet cable details.

Refer to

Cables & Connectors

on page 15 for standard pin numbers.

Installing the DSL Access Wiring

The local loop terminates at the punchdown block or NID. Wiring must be connected

from the customer premises side of the punchdown block or the NID to an RJ11 jack.

Typically, the punchdown block is installed in commercial locations and the NID is

installed in residential locations.

Procedure

1. Access the punchdown block or NID.

2. Disconnect the DSL access pair from the local loop.

WARNING:

Do not continue unless the DSL access line from the local loop has been

disconnected at the NID or punchdown block. Refer to

Important Safety

Instructions

on page 20.

A punchdown block is used without a POTS splitter in the following example.

ABCD

DSL

Access

from Local

Loop

Wiring to

DSL Jack

Bridge Clip

Punchdown Block

00-15348-01

Demarcation Point

Customer Premises

3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the NID

or punchdown block. Attach the wiring that will be connected to the DSL jack.

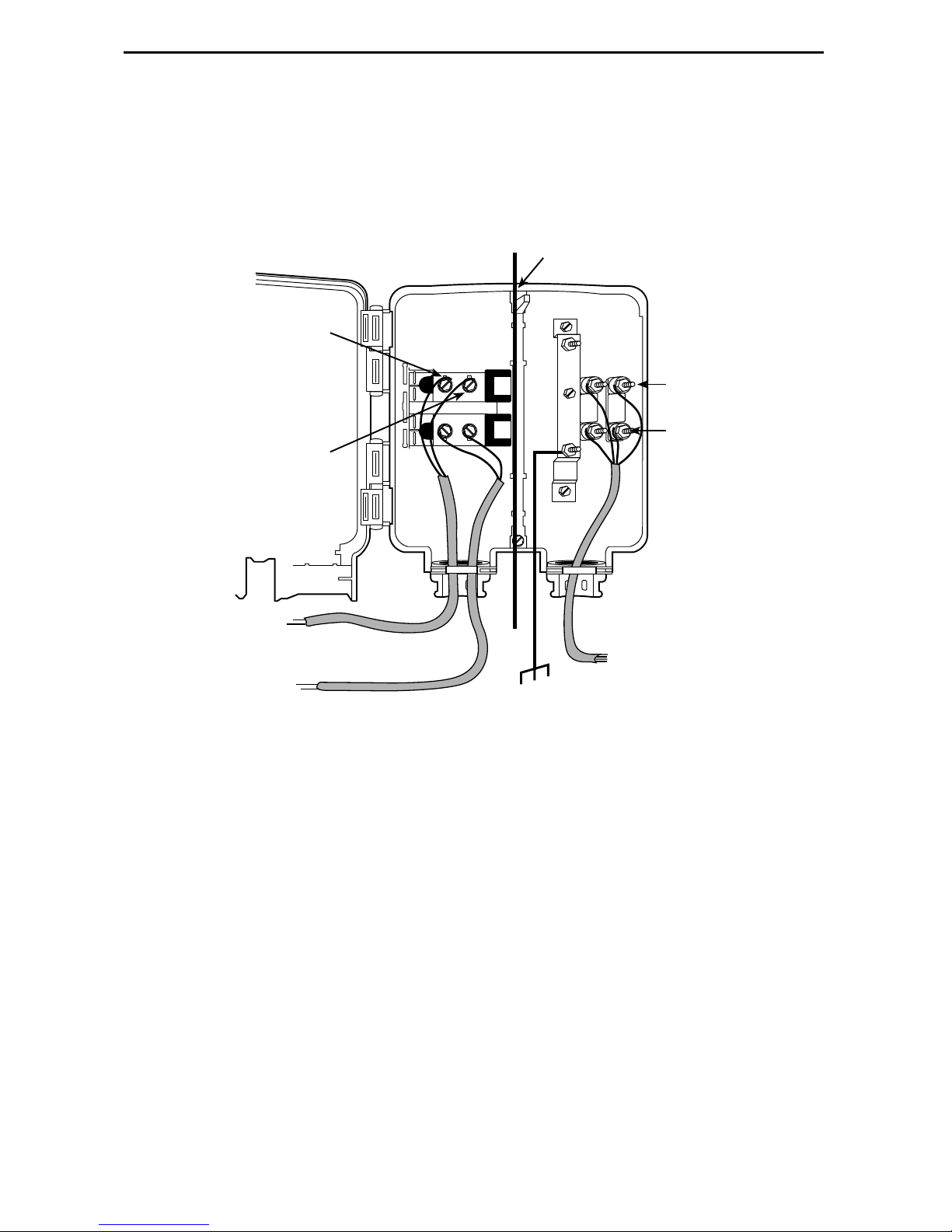

In the following example, a NID is used without a POTS splitter. It includes an

existing POTS line and a second pair installed for DSL access.

DSL/POTS

Access from

Local Loop

Wiring to

DSL Jack

Telephone Network Interface Device (NID)

Ground

Tip

(Green)

Ring

(Red)

97-15438-01

Existing POTS

Wiring to

Telephone

Demarcation Point

Customer Premises

DSL Pair

POTS Pair

Connecting to the DSL Access Wiring

The Hotwire 5620 RTU connects to the local loop via wiring from the demarcation point

to an RJ11 wall jack. The DSL twisted-pair wiring from the localloop terminates at anew

or existing wall jack. It may be necessary to install a standard single RJ11 jack or

replace a single jack with a double RJ11 jack.

Procedure

1. Wiring can be run from the

punchdown block or NID to

a new or existing wall jack.

Match the pair colors on both

ends.

2. Label the DSL jack.

3. Reconnect the DSL access pair

at the punchdown block or NID.

Refer to

Installing the DSL

Access Wiring

on page 6.

Tighten both terminal screws

with a flat-blade screwdriver.

The RJ11 6-pin jack uses the center two pins. For pin assignments, refer to

Cables &

Connectors

on page 15.

97-15343-02

DSL

RJ11

Jack

Central

Office

Punchdown

Block or NID

Customer Premises

POTS/DSL

Local Loop

Demarcation Point DSL

Twisted-pair

Wiring

RTU

97-15300a

RJ11 Wall Jack

Installing the Hotwire 5620 RTU

Place the Hotwire 5620 RTU on a flat surface with clearance for the rear connectors.

Connecting the DSL Line in a Home Environment (Phone and RTU in the

Same Location)

Use the supplied RJ11 6-pin cable for the DSL connection. You will also need a multiple

line adapter and a phone filter (see

Phone Filters

on page 3).

Procedure

1. Insert a multiple line adapter into the wall jack.

2. Insert one end of the cable into the DSL jack on the RTU.

3. Insert the other end of the cable into one of the jacks (Line 1 or Line 2) on the

multiple line adapter.

4. Insert the line cord from the LINE jack on the filter into the empty jack on the

multiple line adapter.

5. Insert the phone line cord from the phone into the PHONE jack on the filter.

POWER ETHERNET

DSL

Hotwire RTU

01-17036

LINE

PHONE

Multiple

Line

Adapter

Filter

Connecting the DSL Line in All Other Environments

Use the supplied RJ11 6-pin cable for the DSL connection.

Procedure

1. Insert one end of the cable into the DSL jack on the RTU.

2. Insert the other end into the wall jack.

97-15300-01

DSL

Jack

POWER ETHERNET

DSL

Hotwire RTU

Autres manuels pour Hotwire 5620

Table des matières

Autres manuels Paradyne Matériel réseau

Paradyne

Paradyne COMSPHERE 3550 Series Manuel utilisateur

Paradyne

Paradyne ACCULINK 3163 DSU Manuel utilisateur

Paradyne

Paradyne Hotwire 5620 RTU Manuel utilisateur

Paradyne

Paradyne COMSPHERE 6700 Series Manuel utilisateur

Paradyne

Paradyne Hotwire 7996 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel d'exploitation et d'entretien

Paradyne

Paradyne COMSPHERE 3610 Manuel utilisateur

Paradyne

Paradyne 7510-A2-GB20-00 727 Manuel utilisateur

Paradyne

Paradyne HotWire 8800 DSLAM Manuel utilisateur

Paradyne

Paradyne HotWire 7924 Manuel utilisateur

Paradyne

Paradyne Comsphere 3510 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Paradyne

Paradyne Hotwire 8784 Manuel utilisateur

Paradyne

Paradyne Hotwire 7995 Manuel utilisateur

Paradyne

Paradyne JetFusion 2008 Manuel utilisateur

Paradyne

Paradyne BitStorm IP DSLAM 1900 Manuel du produit

Paradyne

Paradyne 3172 Manuel utilisateur

Paradyne

Paradyne MIM-2E1 Manuel utilisateur

Paradyne

Paradyne iMarc SLV 9820-2M Manuel utilisateur

Paradyne

Paradyne Hotwire 5100 Manuel utilisateur

Paradyne

Paradyne 12000E Manuel utilisateur

Paradyne

Paradyne ACCULINK 3161 CSU Manuel utilisateur

Paradyne

Paradyne GranDSLAM 4200 Manuel utilisateur

Paradyne

Paradyne FrameSaver SLV 9124 Manuel d'utilisation et d'entretien

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
