4300 Remote Broadband Access Concentrator

Installation Instructions

Document Number 4300-A2-GZ40-00

July 2004

Contents

CONTENTS.................................................................................................................................................................................. 1

USING THIS INSTALLATION GUIDE ................................................................................................................................... 2

PRODUCT DOCUMENTATION ONLINE.............................................................................................................................. 2

INSPECTING SHIPMENT......................................................................................................................................................... 3

WARRANTY, SALES, SERVICE, AND TRAINING INFORMATION ............................................................................... 3

PRODUCT OVERVIEW............................................................................................................................................................. 3

CABINET CONFIGURATIONS............................................................................................................................................... 5

EXPANSION, MOUNTING AND MAINTENANCE KITS .................................................................................................... 6

PRODUCT SPECIFICATIONS................................................................................................................................................. 7

QUARTER-TURN LOCKING DOOR LATCHES ................................................................................................................... 8

INSTALLATION PROCEDURE ............................................................................................................................................... 9

CLEARANCE REQUIREMENTS ............................................................................................................................................ 9

INSTALLATION PROCEDURE FOR POLE MOUNTING .................................................................................................. 10

INSTALLATION PROCEDURE FOR WALL MOUNTING................................................................................................. 12

CABINET GROUNDING INFORMATION ........................................................................................................................... 14

GROUND WIRE...................................................................................................................................................................... 14

GROUNDING DIAGRAM AND PROCEDURE.................................................................................................................... 15

PROTECTION/CROSS CONNECTS...................................................................................................................................... 16

PROTECTION/CROSS CONNECT WIRING TABLES ...................................................................................................... 17

FAN/FILTER REPLACEMENT.............................................................................................................................................. 19

FILTER MAINTENANCE .............................................................................................................................................................. 19

EXTERNAL WIRING............................................................................................................................................................... 20

LINE POWER ............................................................................................................................................................................ 20

SCHEMATIC WIRING DIAGRAMS ..................................................................................................................................... 20

4300 Remote Broadband Access Concentrator Installation Instructions

Using This Installation Guide

This publication provides a description of the 4300 Remote Broadband Access Concentrator (BAC). Typical

applications, mechanical descriptions, installation instructions, safety guidelines, grounding instructions, and wiring

diagrams are included.

Two types of messages appear throughout this manual, identified by the following icons:

Note - indicates special conditions.

Caution - indicates possibility of personal injury or equipment damage.

Product Documentation Online

Complete documentation for this product is available at www.paradyne.com. Select Support →Technical

Manuals.

Select the following documents:

2600-A2-GB21

GranDSLAM 4200 IP DSLAM Command Line Interface Reference

2600-A2-GB22

GranDSLAM 4200 IP DSLAM SNMP Reference

2600-A2-GT20

GranDSLAM 4200 IP DSLAM Training Guide

4200-A2-GB20

GranDSLAM 4200 ATM DSLAM User's Guide

4200-A2-GN20

GranDSLAM 4200 ATM DSLAM Installation Guide

4200-A2-GN21

GranDSLAM 4200 IP DSLAM Installation Guide

4300-A2-GZ41-00

Field Upgrade Kit for the 4300 Remote BAC, Feature Number 4300-F1-100, Installation Instructions

4300-A2-GZ42-00

Pole Mounting Kit for the 4300 Remote BAC, Feature Number 4300-F1-400, Installation Instructions

4300-A2-GZ43-00

Wall Mounting Kit for the 4300 Remote BAC, Feature Number 4300-F1-401, Installation Instructions

4300-A2-GZ44-00

Fan Replacement Kit for the 4300 Remote BAC, Feature Number 4300-F1-500, Installation Instructions

4300-A2-GZ45-00

Filter Replacement Kit for the 4300 Remote BAC, Feature Number 4300-F1-501, Installation Instructions

To order a paper copy of a Paradyne document, or to speak with a sales representative, please call 727-530-2000.

2 July 2004 4300-A2-GZ40-00

4300 Remote Broadband Access Concentrator Installation Instructions

Inspecting Shipment

On receipt of the equipment, inspect the shipping container(s) and note any signs of damage. Then unpack the

container(s) and carefully inspect for damage to the contents. If the equipment has been damaged in transit,

immediately report the extent of damage to the transportation company and your sales representative.

Warranty, Sales, Service, and Training Information

Contact your local sales representative, service representative, or distributor directly for any help needed. For

additional information concerning warranty, sales, service, repair, installation, documentation, training, distributor

locations, or Paradyne worldwide office locations, use one of the following methods:

• Internet: Visit the Paradyne World Wide Web site at www.paradyne.com. (Be sure to register your warranty

at www.paradyne.com/warranty.)

• Telephone: Call our automated system to receive current information by fax or to speak with a company

representative.

– Within the U.S.A., call 1-800-870-2221

– Outside the U.S.A., call 1-727-530-2340

Trademarks

GranDSLAM is a registered trademark of Paradyne Corporation. All other products and services mentioned herein

are the trademarks, service marks, registered trademarks, or registered service marks of their respective owners.

Product Overview

The 4300 Remote BAC is a pole-mounted or wall-mounted outdoor telecommunications equipment cabinet. The

cabinet has overall dimensions of 26 inches high x 19 inches deep x 22 inches wide. See the figures on the

following pages for details.

The cabinet is constructed of aluminum with a powder coat painted finish for reduced weight and superior corrosion

resistance. The front door is equipped with a quarter turn padlockable door latch. The top of the cabinet has a

double wall construction to reduce the effects of solar radiation and for structural integrity.

Cooling is provided by a –48 VDC fan ventilation system. The fan is mounted to the roof of the cabinet behind the

equipment. The fan pulls air through the front door of the cabinet and exhausts the air through the roof overhang

and the louvers in the sides of the roof.

The left front of the equipment-mounting bay has 6U (10.5 inches) of 19" rack space provided for mounting up to

three GranDSLAM 4200 assemblies (1U each) and a rectifier or a DC-DC converter (2U each). An additional 1U is

provided for future expansion. Two swing-out 19” racks are provided on the right side of the equipment bay for

mounting up to four 50 pair protection/cross connect assemblies (200 pair capacity). Each protection/cross connect

swing-out rack has 4U of 19” rack space (8U total).

Cable entry and exit from the cabinet passes through two sealing boots located in the bottom rear of the equipment

bay. The master grounding bus bar is located on the rear wall of the equipment bay on the left side. AC and DC

power centers are mounted to the rear wall on the right side.

4300-A2-GZ40-00 July 2004 3

4300 Remote Broadband Access Concentrator Installation Instructions

Cabinet lifting eyelets

Rectifier or DC-DC

Converter

GranDSLAM 4200

DSLAMs

Protection/Cross

Connect Panels

Swing out racks for

Protection/Cross

Connect Panels

Figure A - Front view of cabinet with door open

4 July 2004 4300-A2-GZ40-00

4300 Remote Broadband Access Concentrator Installation Instructions

Ground Bus Bar

AC Input Panel for Model 2

DC Input Panel for Model 3

Air Filters

Cable Entry Ports

Cable Management

Brackets

DC Distribution Box

Figure B - Front view of cabinet without equipment

CABINET CONFIGURATIONS

Three basic cabinet configurations are offered as explained below. Expansion kits are provided to increase the capacity

of each configuration to up to three GranDSLAM 4200 DSLAMs. Kits are also provided for fan and filter replacement and

for pole or wall mounting brackets.

Model numbers are of the form 43WX-P1-Y0Z, where:

• Wis the DSL type (1 for ReachDSL, 2 for ADSL, 3 for ADSL Annex B, 7 for SHDSL)

• Xis the uplink type (1 for T1 ATM, 2 for E1 ATM, 3 for 8-port T1/E1 IMA, 9 for 10/100/1000BaseT/GigE fiber)

• Yis the power type (1 for externally-fed –48/–60 VDC, 2 for AC, 3 for line power)

• Zis the splitter option (0 for 900 ohm, 1 for 600 ohm)

The three basic cabinet configurations are:

Model 1 (Feature Number 43xx-P1-10x) - Cabinet to be used at existing remote terminal sites, where the RT can

supply –48 VDC power. This model will be wired for one GranDSLAM assembly.

Model 2 (Feature Number 43xx-P1-20x) – Cabinet to be used where AC power is available. This model will be

wired for one GranDSLAM assembly and will include an AC load center and a –48 VDC rectifier.

Model 3 (Feature Number 43xx-P1-30x) – Cabinet to be used where AC power is not available. Power to the cabinet

will be provided by up to 25 common pairs. The tips and rings of the pairs are bussed together and fed to a DC-DC

converter, which provides the –48 VDC power to the GranDSLAM assemblies. The input voltage to the DC-DC converter

is 90 to 400 VDC. This model will be wired for one GranDSLAM assembly.

4300-A2-GZ40-00 July 2004 5

4300 Remote Broadband Access Concentrator Installation Instructions

EXPANSION, MOUNTING AND MAINTENANCE KITS

See Table 1 for expansion kit part numbers. The Ordering Procedure section of this document contains instructions

for ordering the kits.

Table 1 - Expansion, Mounting and Maintenance Kits

Feature Number Description

4300-F1-100

Field upgrade for adding one protected GranDSLAM assembly to Model 1, 2 or

3. Includes one 50 pair protection/100 pair cross connect block and associated

cabling.

4300-F1-400

Pole mounting kit. Includes mounting brackets and hardware for pole mounting

the cabinet.

4300-F1-401

Wall mounting kit. Includes mounting brackets and hardware for wall mounting

the cabinet.

4300-F1-500 Fan field replacement kit. Includes one –48 VDC fan assembly.

4300-F1-501 Filter field replacement kit. Includes the filters required for one cabinet.

6 July 2004 4300-A2-GZ40-00

4300 Remote Broadband Access Concentrator Installation Instructions

PRODUCT SPECIFICATIONS

Cabinet outer physical dimensions:

Height – 26 inches (66 cm)

Width – 22 inches (56 cm) — does not include heat exchanger

Depth – 19 inches (48 cm) internal

Approx. Weight – 60 pounds (27 kg)

Top View

Front View Side View

Figure C – Cabinet overall dimensions

4300-A2-GZ40-00 July 2004 7

4300 Remote Broadband Access Concentrator Installation Instructions

QUARTER-TURN LOCKING DOOR LATCHES

The cabinet door is equipped with 2 quarter-turn padlockable latches. The latches are secured by turning the 7/16” hex

security bolt one quarter turn clockwise until the stop is reached. Convenient security locking hasps are factory installed

to allow for a #1 Master Lock padlock (or equivalent) to be installed. With a padlock on the latch, the door cannot be

opened, deterring vandalism.

Figure D – Quarter turn locking door latches

8 July 2004 4300-A2-GZ40-00

4300 Remote Broadband Access Concentrator Installation Instructions

Installation Procedure

The 4300 Remote BAC can be mounted on a pole or wall. See figures below.

Lifting eyelets are provided to facilitate hoisting if desired.

During cabinet mounting, fix the cabinet securely to avoid personal injury or cabinet damage.

CLEARANCE REQUIREMENTS

When selecting a location to mount the cabinet, ensure that proper clearance is available to allow adequate

ventilation and to allow the cabinet door to open fully. See figure E below for the top view of the cabinet footprint.

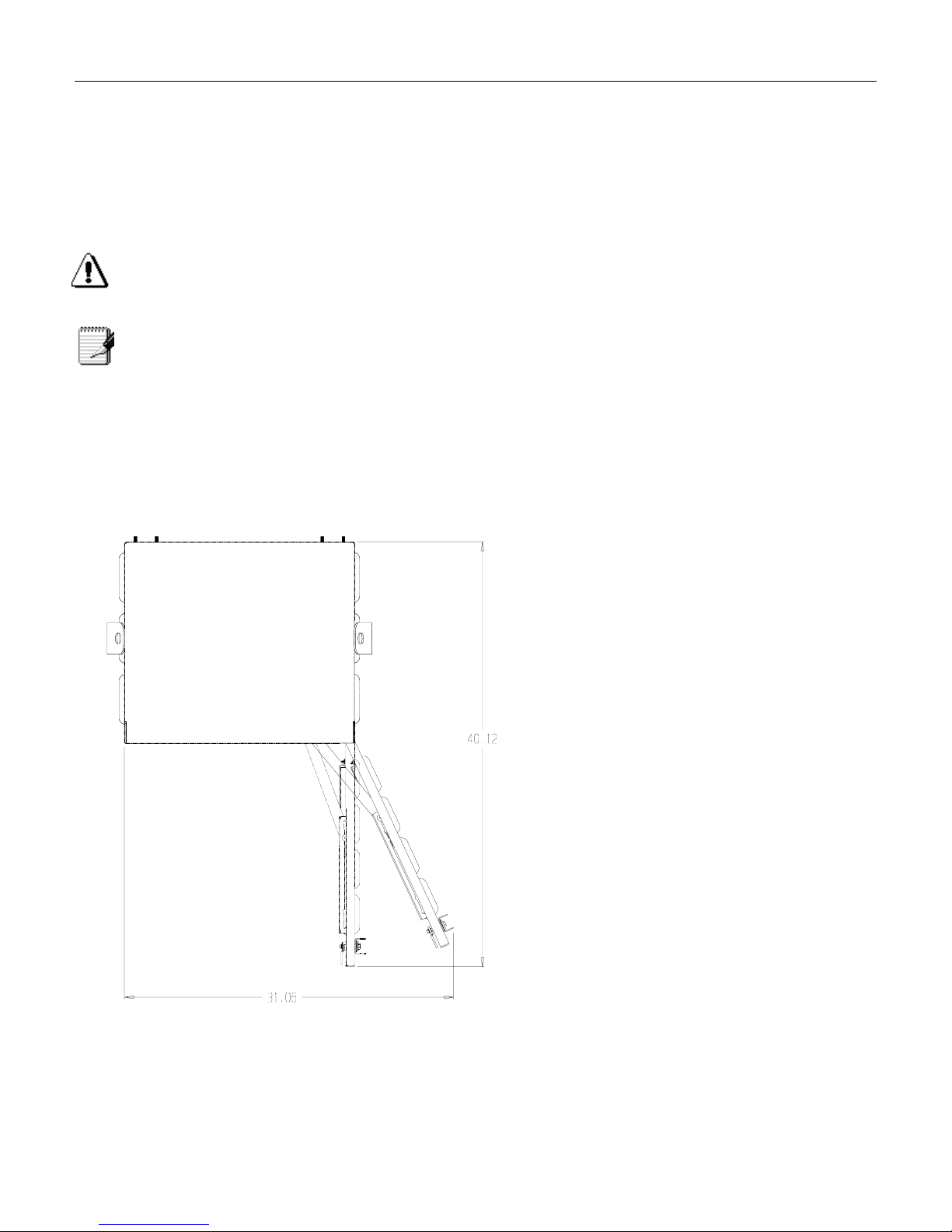

Figure E - Cabinet Footprint

4300-A2-GZ40-00 July 2004 9

4300 Remote Broadband Access Concentrator Installation Instructions

INSTALLATION PROCEDURE FOR POLE MOUNTING

Use this procedure to mount the cabinet on a 6-inch to 8-inch diameter pole. See Figure F below for a cabinet

mounting illustration.

Figure F - Pole Mounting Diagram

10 July 2004 4300-A2-GZ40-00
