GENERAL

This device is used indoors (ta 40 C) in

places where emergency luminaires are

needed. The luminaire has pre-installed the

anti panic lens. The package also contains

the corridor lens that can be replaced by the

user. Each device must be permanently

connected to mains power supply. In normal

operation the battery is charging. In case of

a mains power supply failure, the device

enters emergency mode and the illumination

LED turns on. When the mains power

supply is restored the device turns to normal

operation.

INSTALLATION

To install the luminaire follow the installation

instructions οn page 3.

Battery Charging

The battery charging is completely

controlled. In this case, is achieved the

perfect battery maintenance , as well as the

elongation of its duration. When the battery

has completely charged, it charges with a

maintenance current.

Battery Cut-off

The device in this operation when the mains

power supply fails and battery has lost its

energy. During this operation the device

enters the idle state and battery consumption

is negligible, in order to be protected from

deep discharge.

Manual Test

This test can be done by pushing the test

button. The light source and the emergency

circuit of the device is monitored. The manual

test can be conducted only if the main power

supply and the battery is connected. During

this test period all indication LEDs are OFF.

Automatic Operational Test

This test includes all the operations that

provide the manual test and is conducted

automatically every 15 days. In order to be

performed, the mains power supply and the

battery should be connected.

Automatic Autonomous Test

The Automatic Autonomous Test is conducted

and measures the device’s back up operation

and emergency duration. The BATTERY

FAULT LED blinks during the measurement,

indicating this process to the user. This test is

conducted automatically every six months. In

order to be performed, the mains power

supply and the battery should be connected

and fully charged. If the battery is not fully

charged, the test is postponed until the

battery is completely charged. If during this

test, the autonomy is less than the nominal

SELF TESTING NON-MAINTAINED EMERGENCY CEILING MOUNTED LUMINAIRES

OPERATION TEMPERATURE RANGE

RELATIVE HUMIDITY

CONSTRUCTION MATERIAL

EXTERNAL DIMENSION

WEIGHT

GUARANTEE

OPERATION VOLTAGE

MAXIMUM POWER CONSUMPTION

BATTERY (NiMh)

CHARGE TIME

INDICATIONS - CONTROLS

BATTERY PROTECTION

MINIMUM DURATION

DEGREES OF COVER PROTECTION

PRODUCED IN ACCORDANCE WITH

EMERGENCY ILLUMINATION

LIGHT SOURCE

220-240V AC / 50-60Hz

1.5 hour

24 hours

Deep discharge and overcharge protection

IP40

4.8V/1.2Ah

300lm

1 white power LED

5 to 40 C

Up to 95%

ABS/PC

3 years (1 year for the battery)

474gr.

Ø125 x 62 mm

EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3

Charge, lamp fault, battery fault, TEST button

GR-220/DUO/M

4.3W / 4.7 VA

TECHNICAL CHARACTERISTICS (for LED MODULE specifications see page 5)

Thank you for your trust in our products

Olympia Electronics - European manufacturer

3 hours

150lm

GR-221/DUO/M

then the battery fault led turned on

continuously and the battery must be

replaced.

Back Up Operation

The autonomous duration of battery during

emergency mode is at least the one that is

stated in the list of the technical

characteristics. During emergency mode, a

light source test is also performed.

Resetting Errors

Push the Test button for >10 seconds, to

delete all the indicated LED errors. Then the

device enters regular operation mode.

Test Switch

Pressing the test switch less than 5 seconds

will initiate a light source test (last for 3 secs).

If the test switch is pressed for more than 10

seconds, the device will be reset (delete all

errors).

ΑΤΤΕΝΤΙΟΝ!!!

1. Operations for installation, maintainance or

testing must be done by authorized personnel

only.

2. The device must be connected to the

m a i n s p o w e r s u p p l y t h r o u g h a f u s e

dependent by the total amount of the line’s

power load.

3. The replacement of the battery and the light

source must be done using parts of the same

type, by the manufacturer or by a competent

person.

4. In case of inactive use for a period greater

than 2 months, disconnect the battery by

pulling out the battery’s connector.

5. I s not allowed to discard batteries into t i

common trash bins, they must be

discarded only in battery recycling

points. Do not incinerate.

Connection to module (After request)

This luminaire can be connected to any of the

following modules: Remote module, address

module, wireless module and fault relay

module. If you connect it to a module that

supports inhibit or rest mode, you should

know that these commands can be cancelled

only during normal mode (ie. not in

emergency). For installation refer to step 3 of

the istallation procedure in page 3.

Also refer to the user’s manual of each

module for additional information.

NOTE: LED= Light Emitting Diode

LABELING EXPLANATION:

X: Self contained

0: Non maintained (*)

A: Including test device

E: With non-replaceable lamp(s)

F: Automatic test gear complying with IEC

61347-2-7 denoted EL-T

90: 1.5 hour duration

180: 3 hour duration

(*) Non Maintained operation: The luminaire

turns on illumination source, only in case of

power supply failure.

923221000_09_001

Page 2 from 6

Status of LEDs

LEDs Description of indication

CHARGE : Battery charging, : battery charged, : disconnected or unfunctional battery

LAMP FAULT : Operation check, : lamp fault, : normal operation

BATT. FAULT : Autonomy test, : battery fault, : normal operation

Note : Blinking, : constantly on, : off

Note!! If a module will be used (except the fault

relay module), then the installer should fill in, on

the specification label, the letters B C.

X09 0A E F

923221000_09_001

Page 3 from 6

INSTALLATION INSTRUCTIONS

Initial installation

1 Untighten the screw but do not remove it and pull up the reflector.

2 Place the battery’s connector to the corresponding connector on the P.C.B.

3 Always use in any case round mains cable, with a diameter of 5-10mm (H05RN-F

type 2x1mm² or any other type, at least equal to it’s mechanical and electrical properties).

ATTENTION!! The cable must not be deformed in any way (This requirement is important

to ensure the ΙΡ rating). Install the included gaskets in to the cable entry holes (verify that are

not deformed). Make a hole in the center by using a small screwdriver. Pass the round cable

through the gasket. Detach the power terminal, connect the wires as shown in the picture and

attach the power terminal (10A max). If you use a module pass the 2 signal cables on the A, B

terminals Minding the correct polarity. Depending on the module that will be used, the cables that

will be used, have different names. In A, signal +L, C are also connected, while signals -L,

NC/NO in the terminal B.

4 Refit the reflector (mind the correct orientation), tighten the screw securely and the luminaire

is ready for mounting.

NOTE!! After finishing the installation you must power the luminaire for at least 24 hours in

order to completely charge the battery. The rated autonomy duration can be achieved after

that time.

Battery replacement.

It can be done only by a competent person and after the mains interruption.

1. Remove the luminaire from the suspended ceiling (figure 3).

2. Follow the step 1 of the installation instructions.

3. Disconnect the connector and remove the old battery.

4. Connect the new battery with the same type (step 2 of the installation instructions) and place it in

the position of the old one.

5. Replace the removed parts (step 1 and 4) and power the device.

Important notice for the installed luminaires in one area !!!

The installer must connect the battery’s connector first and then should power the luminaire.

The time between batteries connection must be, at least 1.5 minute.

With this variation, it is ensured that the non synchronized Automatic Autonomous Test for two or more

luminaires installed in one area, is not conducted in the same day.

Cable

entry

holes

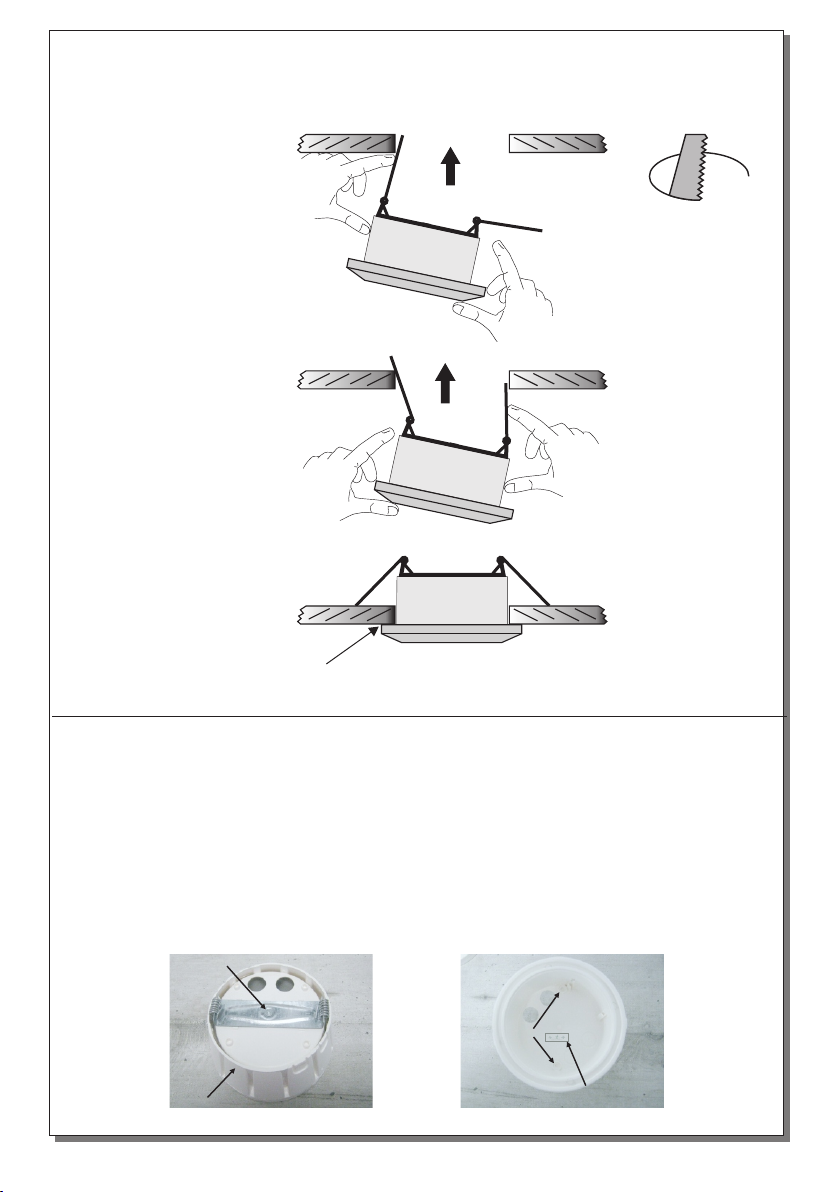

Mounting the lamp in suspended ceiling.

Set up the lamp to the suspended ceiling as it is shown bellow (Required opening 110mm):

Step 1

Bend the springs, to get into the hole of the suspended ceiling, as you can see to the next figure.

Step 2

Push up the luminaire, as shown in figure 2.

Step 3

Continue to push upwards until the lamp locks.

If you want to pull off the device, put a flat blade

screwdriver, between the device and the ceiling.

Figure 2

Figure 3

Figure 1

Ø110mm

Surface mounting.

Install the luminaire according to the following steps:

Step 1. Follow the step 1 of the installation instructions.

Step 2. Unfasten the retaining screw (Photo 1) and detach the part for suspended ceiling

installation.

Step 3. Drill 2 holes on the base using a 4mm drill bit in order to permit the retaining screws to pass.

Mark these two drilled points on the required mounting location, drill the holes and install the

supplied plastic plugs. ATTENTION!! When using the corridor lens ensure the correct orientation of

the light direction as shown on the luminaire’s base (Photo 2).

Step 4. Install the decorative rim (package included) as shown on photo 1. Next, use the 2 fasteners

to install the unit to the require location.

Step 5. Follow the steps 2,3 and 4 of the installation instructions.

Page 4 from 6 923221000_09_001

Photo 1

Decorative Rim

Retaining fastener

Photo 2

Drill here

Indications

923221000_09_001

Page 5 from 6

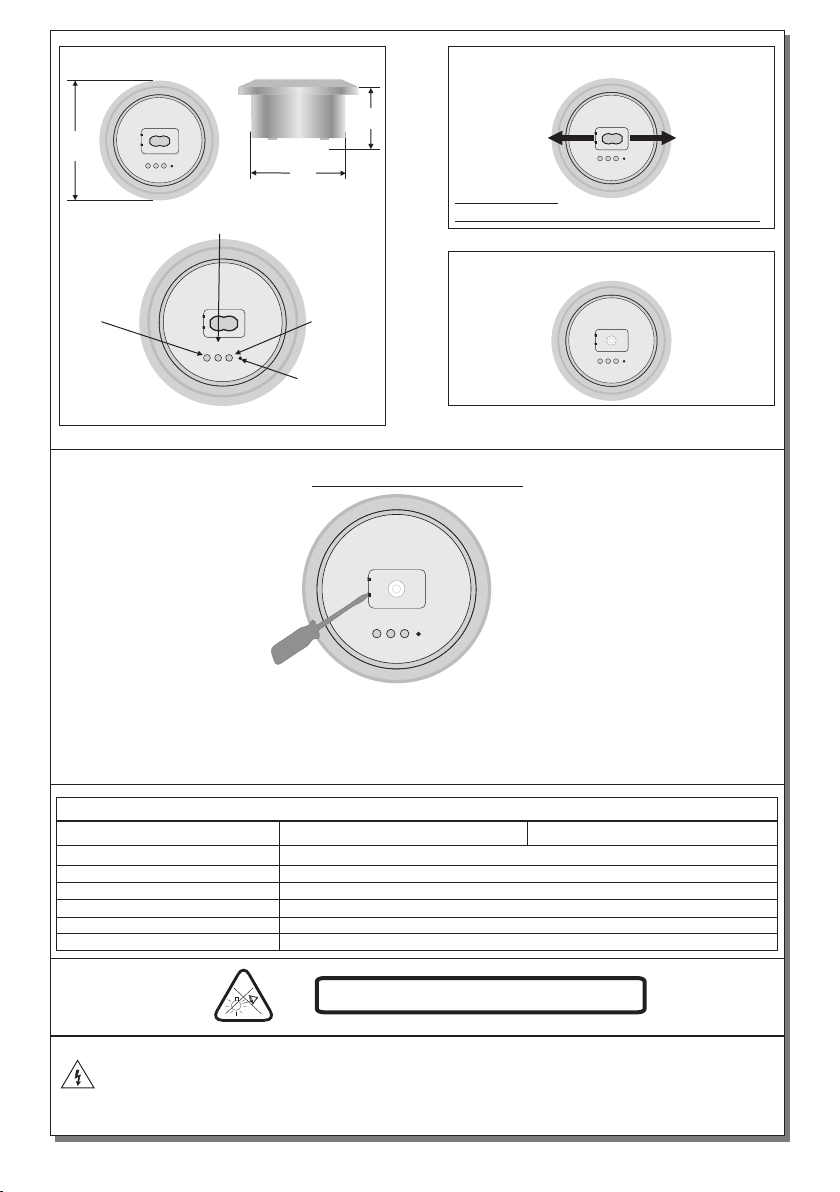

LED MODULE CHARACTERISTICS

Olympia Electronics S.A.

6 °0 C max. across the board

3-3,2V DC

1,3W

0606185

GR-220/DUO/M GR-221/DUO/M

fixed connection between main pcb and led module

Manufacturer

Model Number

Voltage Range

Connections

Nominal Power

Temperature (tc)

Lamp fault

indication LED

ATTENTION!!!

During installation follow this light direction.

Corridor

lighting

Open

area

lighting

FAULT

LAMP

CHARGE TEST

BATT.

FAULT

LAMP

CHARGE TEST

BATT.

125

FAULT

LAMP

CHARGE TEST

BATT.

FAULT

LAMP

CHARGE TEST

BATT.

Battery

fault

indication

LED

Battery

charge

indication

LED

Figure 4

Test

button

The light source contained in this luminaire shall only be replaced by the manufacturer, or his

agent, or a similar qualified person.

NOTE! The light source is non-user replaceable.

CAUTION : Do not view directly with bare eyes

GR-220/DUO/M

LENS REPLACEMENT

1. To replace the lens , first be sure that the luminaire in not connected in the mains power supply

and the battery is not connected.

2. Use a flatblade screwdriver to pry open the lens retaining cover.

3. Remove the placed lens and insert the newone taking care the two alignment pins on the lens are

inserted in the holes on the PCB. Be carefull not to touch the LED with your hand.

FAULT

LAMP

CHARGE TEST

BATT.

923221000_09_001

Page 6 from 6

WARRANTY

Olympia Electronics guarantees the quality, condition and operation of the goods. The period of

warranty is specified in the official catalogue of Olympia Electronics and also in the technical leaflet,

which accompanies each product. This warranty ceases to exist if the buyer does not follow the

technical instructions included in official documents given by Olympia Electronics or if the buyer

modifies the goods provided or has any repairs or re-setting done by a third party, unless Olympia

Electronics has fully agreed to them in writing. Products that have been damaged can be returned to

the premises of our company for repair or replacement, as long as the warranty period is valid.

Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge

the buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or

not the buyer the transportation cost.

HEAD OFFICE

72nd km. O.N.R. Thessaloniki-Katerini

P.C. 60300 P.O. Box 06 Εginio Pierias Greece

www.olympia-electronics.gr

[email protected]

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels olympia electronics Lanterne

olympia electronics

olympia electronics GR-292/M/HL Manuel utilisateur

olympia electronics

olympia electronics GR-108/12L/90 Manuel utilisateur

olympia electronics

olympia electronics GR-1935/15L Manuel utilisateur

olympia electronics

olympia electronics OLY-1004 Manuel utilisateur

olympia electronics

olympia electronics GRL-37/90/WP Manuel utilisateur

olympia electronics

olympia electronics Classic Light Series Manuel utilisateur

olympia electronics

olympia electronics POWER LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics GR-940/15L/MAR Manuel utilisateur

olympia electronics

olympia electronics GR-8/leds Manuel utilisateur

olympia electronics

olympia electronics POWER LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics GRL-38/90/M Manuel utilisateur

olympia electronics

olympia electronics GR-939/30L/LT Manuel utilisateur

olympia electronics

olympia electronics Slim Light Series Manuel utilisateur

olympia electronics

olympia electronics OLY-500 Manuel utilisateur

olympia electronics

olympia electronics KLIN-20/ST Manuel utilisateur

olympia electronics

olympia electronics BAU LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics KLIN-20/ST/ADR Manuel utilisateur

olympia electronics

olympia electronics GR-490/WP/ADR Manuel utilisateur

olympia electronics

olympia electronics GR-290/M Manuel utilisateur

olympia electronics

olympia electronics GRL-29 WP Manuel utilisateur

olympia electronics

olympia electronics WATERPROOF POWER LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics Double Easy Light GR-391/L Manuel utilisateur

olympia electronics

olympia electronics GR-796/ST/DUO/ADR Manuel utilisateur

olympia electronics

olympia electronics LLB-26/90 Manuel utilisateur

Manuels Lanterne populaires d'autres marques

KYOWA

KYOWA KW-9114 Manuel utilisateur

Stahl

Stahl ECOLUX 6610 Series Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE 24V-LGT500-CT Manuel utilisateur

PRG

PRG VARI LITE VL5 Manuel utilisateur

Raytec

Raytec VARIO2 series Manuel utilisateur

ENSA

ENSA LEDBT18WS2 Manuel utilisateur

LUG

LUG OFFICE LB LED N/T Manuel utilisateur

GE Wallighter 250 Manuel utilisateur

Draper

Draper RLEDL19/B Manuel utilisateur

Green Lighting

Green Lighting TRI-SENSOR GL4612LU Manuel utilisateur

Panasonic

Panasonic EY3741B57 Manuel utilisateur

Clas Ohlson

Clas Ohlson LCC8T Manuel utilisateur

Coolon

Coolon WDN-140 Manuel utilisateur

Holiday Travel

Holiday Travel 834873 Manuel utilisateur

BEGA

BEGA 84 036 Manuel utilisateur

BEGA

BEGA 33 596 Manuel utilisateur

Dale Tiffany

Dale Tiffany GT701162 Manuel utilisateur

Wagan

Wagan Brite Nite Pop-Up USB Lantern Manuel utilisateur

olympia electronics GR-220/DUO/M Manuel utilisateur

Manuels Lanterne populaires d'autres marques
