GENERAL

These luminaires are used in places

where emergency luminaires are needed.

Each luminaire must be permanently

connected to mains power supply. In

normal operation the led strip lights and

the battery is charging. In case of a

ma in s p ow er su pp ly fa il ur e t he

lum in a ir e wi ll lig ht t he led st r ip

automatically in emergency mode. When

the mains power supply is restored the

device turns to normal operation.

OPERATION

Battery Charging

The battery charging is completely

controlled by microprocessor and is

protected from completely discharge and

over charge.

Battery Cut-off

The luminaire enters in this operation

when the mains power supply fails and

battery has lost its energy. During this

operation the luminaire enters the idle

state and battery consumption is

negligible, in order to be protected from

deep discharge.

Manual Test

By pressing the test button briefly (less

than 5 seconds) an emergency operation

test is performed. The white LEDs will be lit

for approx. 3 seconds, the red LED will

flash during this test sequence.

Automatic Operational Test

This test includes all the operations that

provide the manual test and is conducted

automatically every 15 days. In order to be

performed, the mains power supply and the

battery should be connected.

Manual Autonomous Test

By pressing the test button for between 5

and 10 seconds a battery condition test is

performed. This test will last for the stated

duration and can only be performed when

the battery is fully charged (steady green

LED). The white LEDs will be lit and the red

LED will flash during this test sequence.

Automatic Autonomous Test

The Automatic Autonomous Test measures

SELF TESTING MAINTAINED EMERGENCY LUMINAIRIES WITH LEDs

OPERATION TEMPERATURE RANGE

RELATIVE HUMIDITY

VIEWING DISTANCE

EXTERNAL DIMENSIONS (LxHxW)

CONSTRUCTION MATERIALS

TYPICAL WEIGHT

GUARANTEE

OPERATION VOLTAGE

MAXIMUM POWER CONSUMPTION

BATTERY (Ni-MH)

CHARGING TIME

INDICATIONS - CONTROLS

BATTERY PROTECTION

MINIMUM AUTONOMOUS DURATION

DEGREES OF COVER PROTECTION

PRODUCED IN ACCORDANCE WITH

LIGHT SOURCE INTENSITY (Mains/emerg.)

ILLUMINATION SOURCE

923064003_09_002

220-240V AC/50-60Hz

90 min 90 min 90 min180 min 180 min 180 min

435 x 280 x 55 mm 673 x 400 x 55 mm287 x 205 x 55 mm

4.8V/1.2Ah 4.8V/2.4Ah 4.8V/4Ah

4.8V/2Ah4.8V/1.2Ah

7W/7.4VA (PF=0.94) 9.3W/9.8VA (PF=0.94)6W/6.4VA (PF=0.94)

230lm / 300lm

26m 40m 64m

230lm / 123lm 370lm / 300lm 600lm / 500lm

24 h

Charge LED, Lamp fault LED, Battery Fault LED, TEST button

From overcharge and deep discharge

White LEDs

5 to 40 C

Up to 95%

3 years (1 year for the battery)

Aluminum, ABS/PC, PC, Plexiglass

IP 44

EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3, EN 1838

1503gr. 1650gr. 2777gr.1396gr.876gr.

TECHNICAL CHARACTERISTICS (for LED MO DULE Specs . s ee page 3)

LLB-26/90 LLB-26/180 LLB-40/180 LLB-64/180

LLB-40/90 LLB-64/90

Thank you for your trust in our products

Olympia Electronics - European manufacturer

Page 1 from 6

the device’s back up operation and

emergency duration. This test is conducted

automatically every 6 months. In order to

be performed, the mains power supply and

the battery should be connected and fully

charged. If the battery is not fully charged,

the test is postponed until the battery is

completely charged. If during this test, the

autonomy is less than the nominal then the

battery fault led will turn on continuously

and the battery must be replaced.

Back Up Operation

The autonomous duration of battery during

emergency mode is at least the one that is

stated in the list of the technical

characteristics. During emergency mode, a

light source test is also performed.

Resetting Errors

Push the test button for >10 seconds to

delete all indicated errors. Then the

luminaire enters regular operation mode.

INSTALLATION

To install the luminaire follow the

installation instructions on page 3.

ΑΤΤΕΝΤΙΟΝ!!!

1. Operations for installation, maintainance

or testing must be done by authorized

personnel only.

2. The device must be connected to the

mains power supply through a fuse

dependent by the total amount of the line’s

power load.

3. In case of battery or lamp replacement,

these must be replaced by parts of the

same type, by the manufacturer or by a

competent person.

4. In case of inactive use for a period

greater than 2 months, disconnect the

batte ry by pu ll ing o ut the bat tery’s

connector.

5. I s not allowed to discard batteries t i

into common trash bins, they must

be discarded only in battery

recycling points. Do not incinerate.

The light source contained in this

luminaire shall only be replaced by

the manufacturer, or his agent, or a

similar qualified person.

NOTE! The light source is non-user

replaceable.

Connection to module

This luminary can be connected to any of

the following modules: Remote module,

address module and fault relay module. If

you connect it to a module that supports

inhibit or rest mode, you should know that

these commands can be cancelled only

during normal mode (ie. not in emergency).

You can also refer to the user manual of

each module for additional information. The

picture bellow shows the installation of the

optional module.

GREEN

RED

Description

Battery charged no faults

Charging (battery test not possible while charging)

Mains off, battery not connected or charger fault

Battery test

Battery fault

Light source test

Light source fault

Battery fault and light source fault

Off On Flashing

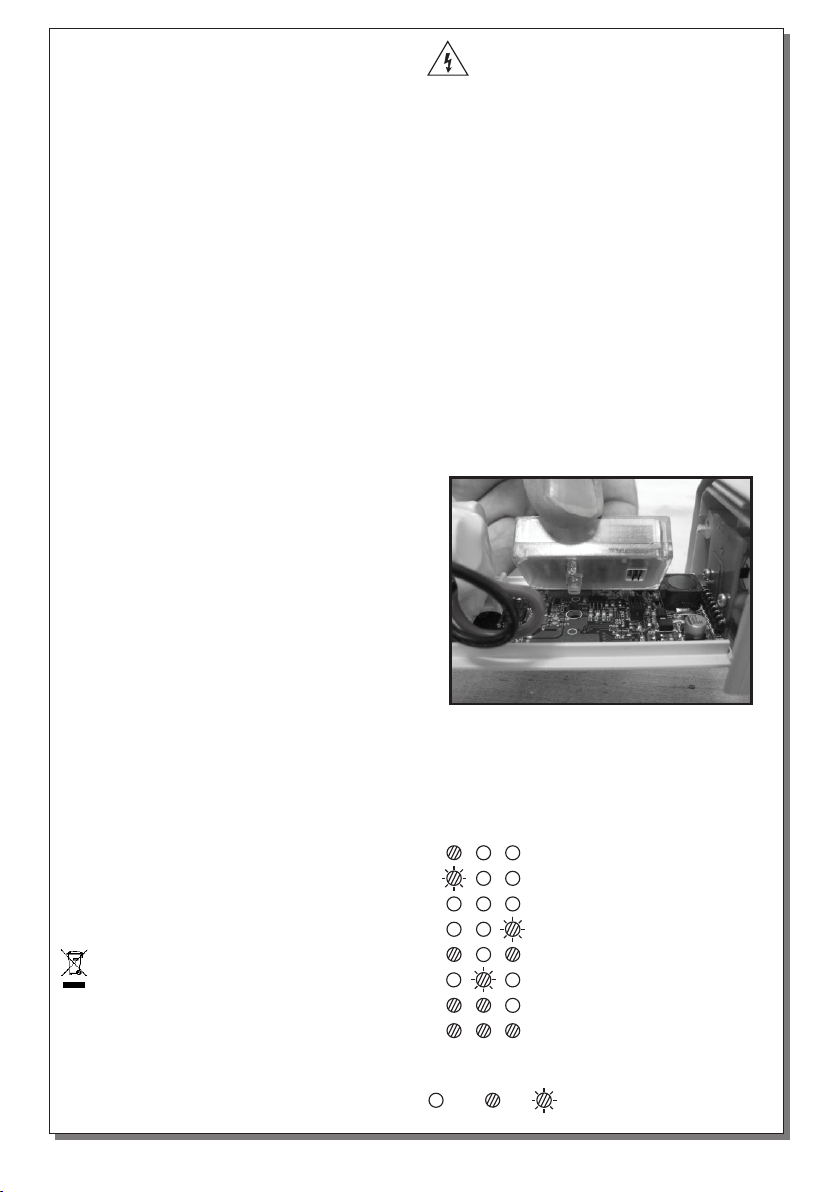

Led status explanation

Indicator LEDs

Page 2 from 6

Picture 1

923064003_09_002

ELECTRICAL CONNECTIONS (after the mains interruption)

Unfasten the two side cover screws and remove the plastic

cap by sliding it gently. Install the gasket and make a hole in

the center by using a small screwdriver. Pass the round

cable through the gasket.

Connect the mains cables to the respective terminal block. Ν

for neutral, L for live wire, L1 for the maintained

operation and the for ground connection. The L1 wire

can be connected to an external switch to control the

maintained or non maintained operation of the luminaire.

For permanent maintained operation use two wires to power

the luminaire, Ν for neutral and L for live wire, and link the L

and L1. The A and B contacts are used only if an optional

module is connected.Refer to the modules manual for more

information regarding connection.

The battery is not connected. See the section “Battery

replacement process” to access the battery compartment

and connect the battery.

ATTENTION!! Make sure that the ground cable is attached

to the respective ground connector. Replace the removed

parts in the previous steps.

SURFACE MOUNTING ON A WALL (single sided)

Install the included plastic bracket on the wall (figure 1).

Remove the aluminum bracket from the luminaire and use

the two supplied mounting screws to install the aluminum

bracket to the plastic bracket (figure 2). Slide the luminaire to

the aluminum bracket and use the bolt on the center (*), to

stabilize the luminaire (figure 2).

CEILING MOUNTING (double sided)

Remove the aluminum bracket from the luminaire and install

it with the included spacers, screws and plugs in the ceiling

(page 3). Slide the luminaire to the aluminum bracket and

use the bolt on the center (*), to stabilize the luminaire (figure

4).

Power on the device at the end of the installation.

NOTE!! After finishing the installation you must power

the luminaire at least for 24 hours for battery charging to

perform the nominal autonomy.

INSTALLATION INSTRUCTIONS

(*) First, hand tighten it and then,

use pliers to tighten it little bit

more (not all the way).

LED MODULE CHARACTERISTICS

Manufacturer

Model Number

Voltage Range

Connections

Nominal Power

Temperature (tc)

Olympia Electronics S.A

45 °C max. across the board 50 °C max. across the board45 °C max. across the board

Non reversible connection between main pcb and led module

14 - 16.5VDC

02041852405185 2605185+2705185

7.2W4.5W 11.7W

LLB-26/90-LLB-26/180 LLB-40/90-LLB-40/180 LLB-64/90-LLB-64/180

Page 3 from 6

Ground

connector

Cable

entry

Screws

Maintained

operation

(Default)

Non-maintained

operation

Luminaire

terminals

Luminaire

terminals

Connection Diagramms

923064003_09_002

SURFACE MOUNTING ON A WALL (single side luminaire)

CEILING MOUNTING (double side luminaire)

MOUNTING METHODS

Place the included mounting screws

in these holes of the plastic bracket

Mounting screws 1, 3

Included spacers 4

Bolt 2

1 3

4 4

2 Mounting screws

Bolt

Figure 2. Side view

Figure 1

GENERAL!!

Measure the distance of the mounting holes and after

the drilling place on these spots the mounting plugs

and fasten the base with the mounting screws.

Figure 3. Front view

Figure 4

Aluminum

bracket

Plastic

bracket

Page 4 from 6

SIDE WALL CLEARANCE

Depending on the size

of the luminaire the distance

from the side wall

must be more than:

LLB 26: 440mm

LLB 40: 580mm

LLB 64: 820mm

Luminaire

Aluminium

braket

(a)

(a):

923064003_09_002

Page 5 from 6

FLAG MOUNTED ON A WALL (double side luminaire)

ALTERNATIVE MOUNTING METHODS

A-1135 SET, ONLY FOR LLB-26

(OPTIONAL AFTER REQUEST)

HANGING INSTALLATION (double side luminaire)

A-1136 SET

(OPTIONAL AFTER REQUEST)

INSTALLATION PICTOGRAMMS

1. Unfasten the two screws of the luminaire

and remove the top part of the luminaire.

2.Insert the pictogramm after removing

the protective film from the back side.

3.Carefully fit the top aluminium cover and reinstall the retaining screws.

923064003_09_002

Page 6 from 6

WARRANTY

Olympia Electronics guarantees the quality, condition and operation of the goods. The period of

warranty is specified in the official catalogue of Olympia Electronics and also in the technical leaflet,

which accompanies each product. This warranty ceases to exist if the buyer does not follow the

technical instructions included in official documents given by Olympia Electronics or if the buyer

modifies the goods provided or has any repairs or re-setting done by a third party, unless Olympia

Electronics has fully agreed to them in writing. Products that have been damaged can be returned to

the premises of our company for repair or replacement, as long as the warranty period is valid.

Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge

the buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or

not the buyer the transportation cost.

HEAD OFFICE

72nd km. O.N.R. Thessaloniki-Katerini

P.C. 60300 P.O. Box 06 Εginio Pierias Greece

www.olympia-electronics.gr

[email protected]

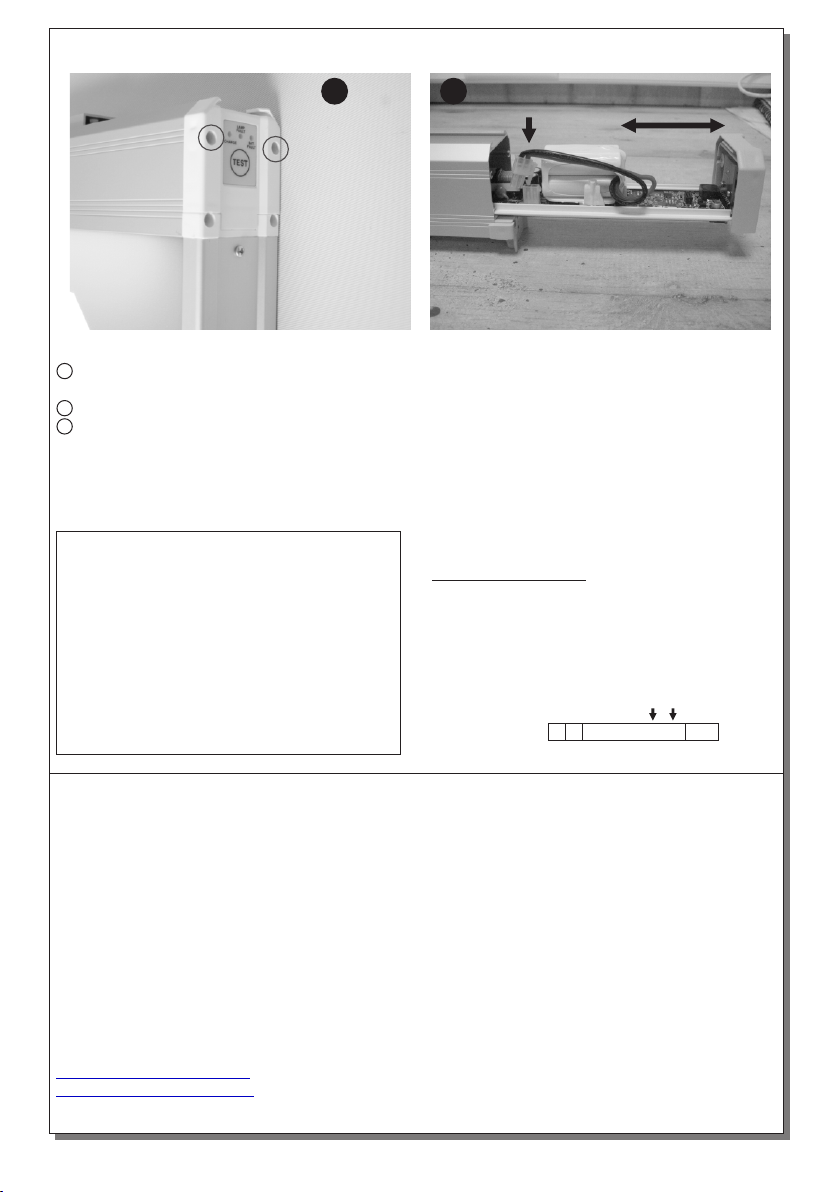

Battery replacement process

(*) Maintained operation: The luminaire lights its

illumination source, when it is powered by the

mains power supply or not.

It can be done only by a competent person and after the mains interruption.

1 Unfasten the two side cover screws and remove the plastic cap (with the indications) by sliding

it gently to the right.

2 Remove the old battery. Install the new one and place the connector as shown οn the picture.

3 Refit the plastic cap (with the indications) by sliding it gently to the left and fasten the removed

screws in step 1.

WARNING!! Use a maximum torque of 0,9Νm to tighten the screws.

ΝΟΤΕ!! In case of battery replacement the used battery must be replaced with a new one of

the same type, by the manufacturer or by a competent person.

NOTE: LED= Light Emitting Diode

LABELING EXPLANATION:

X: Self contained

1: Maintained (*)

A: Including test device

E: With non-replaceable lamp(s) and/or battery

F: Automatic test gear complying with IEC

61347-2-7 denoted EL-T

G: Internally illuminated

90: 1.5 hour duration

180: 3 hours duration

Note!! If a module will be used (except the fault

relay module), then the installer should fill in, on

the specification label, the letters B C.

X19 0A E F G

923064003_09_002

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels olympia electronics Lanterne

olympia electronics

olympia electronics BAU LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics GR-108/12L/90 Manuel utilisateur

olympia electronics

olympia electronics Power Light Series Manuel de l'opérateur

olympia electronics

olympia electronics GR-490/WP Manuel utilisateur

olympia electronics

olympia electronics WEATHER LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics POWER LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics WATERPROOF POWER LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics GR-290/WP/M Manuel utilisateur

olympia electronics

olympia electronics OLY-1004 Manuel utilisateur

olympia electronics

olympia electronics OLY-500 Manuel utilisateur

olympia electronics

olympia electronics GR-8/leds Manuel utilisateur

olympia electronics

olympia electronics GR-427/12L Manuel utilisateur

olympia electronics

olympia electronics GR-290/WP Manuel utilisateur

olympia electronics

olympia electronics GR-579/L/90/WP Manuel utilisateur

olympia electronics

olympia electronics POWER LIGHT Series Manuel utilisateur

olympia electronics

olympia electronics GRL-37/90/WP Manuel utilisateur

olympia electronics

olympia electronics GR-2100/ST Manuel utilisateur

olympia electronics

olympia electronics OLY-1024/WL Manuel utilisateur

olympia electronics

olympia electronics GR-427/12L/MAR Manuel utilisateur

olympia electronics

olympia electronics GR-1935/15L Manuel utilisateur

olympia electronics

olympia electronics GRL-29 WP Manuel utilisateur

olympia electronics

olympia electronics Classic Light Series Manuel utilisateur

olympia electronics

olympia electronics GR-796/ST/DUO/ADR Manuel utilisateur

olympia electronics

olympia electronics BAU LIGHT Series Manuel utilisateur

Manuels Lanterne populaires d'autres marques

KYOWA

KYOWA KW-9114 Manuel utilisateur

Stahl

Stahl ECOLUX 6610 Series Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE 24V-LGT500-CT Manuel utilisateur

PRG

PRG VARI LITE VL5 Manuel utilisateur

Raytec

Raytec VARIO2 series Manuel utilisateur

ENSA

ENSA LEDBT18WS2 Manuel utilisateur

LUG

LUG OFFICE LB LED N/T Manuel utilisateur

GE Wallighter 250 Manuel utilisateur

Draper

Draper RLEDL19/B Manuel utilisateur

Green Lighting

Green Lighting TRI-SENSOR GL4612LU Manuel utilisateur

Panasonic

Panasonic EY3741B57 Manuel utilisateur

Clas Ohlson

Clas Ohlson LCC8T Manuel utilisateur

Coolon

Coolon WDN-140 Manuel utilisateur

Holiday Travel

Holiday Travel 834873 Manuel utilisateur

BEGA

BEGA 84 036 Manuel utilisateur

BEGA

BEGA 33 596 Manuel utilisateur

Dale Tiffany

Dale Tiffany GT701162 Manuel utilisateur

Wagan

Wagan Brite Nite Pop-Up USB Lantern Manuel utilisateur

olympia electronics LLB-26/90 Manuel utilisateur

Manuels Lanterne populaires d'autres marques
