NXP Semiconductors SE050 Instructions d'installation et d'utilisation

AN12398

Quick start guide to SE050 Visual Studio projects

Rev. 1.1 — 20 June 2019 Application note

534611

Document information

Information Content

Keywords SE050, Plug & Trust, Visual Studio projects

Abstract This application note explains how to run the Microsoft Visual studio projects

examples included in SE050 Plug & Trust middleware.

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 2 / 36

Revision history

Revision

number

Date Description

1.0 2019-06-08 First document release

1.1 2019-06-20 Update of board figures

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 3 / 36

1 Read this first

This section lists the hardware and software required before starting this document.

1.1 Required hardware

The following hardware will be used throughout the document:

1. OM-SE050ARD development kit:

Table 1. OM-SE050ARD development kit details

Part number 12NC Content Picture

OM-SE050ARD 935383282598 SE050 development

board

2. FRDM-K64F board:

Table 2. FRDM-K64F details

Part number 12NC Content Picture

FRDM-64F 935326293598 Freedom

development platform

for Kinetis K64, K63

and K24 MCUs

1.2 Required software

•Windows laptop.

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 4 / 36

2 Prepare your laptop

This section explains how to get your laptop prepared to execute the SE050 Plug & Trust

middleware. To do it, you need to install the following software tools:

1. Visual Studio Community 2017

2. CMake

3. Python 2.7.15 version 32 bit

2.1 Install Visual Studio Community 2017

Visual Studio is Microsoft's fully-featured IDE for Android, iOS, Windows, web, and cloud.

Visual Studio 2017 introduces rich support for CMake, including cross-platform CMake

projects. To install Visual Studio 2017:

1. Go to Visual Studio site.

2. Select (1) Windows and click on Community 2017 in the Download Visual Studio

button as shown in Figure 1:

Figure 1. Download Visual Studio IDE

3. An *.exe installer will download to your laptop. Double click on the installer file and

follow the setup wizard until the installation is completed. This process might take a

few minutes. Figure 2 shows Visual Studio installation wizard as an example:

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 5 / 36

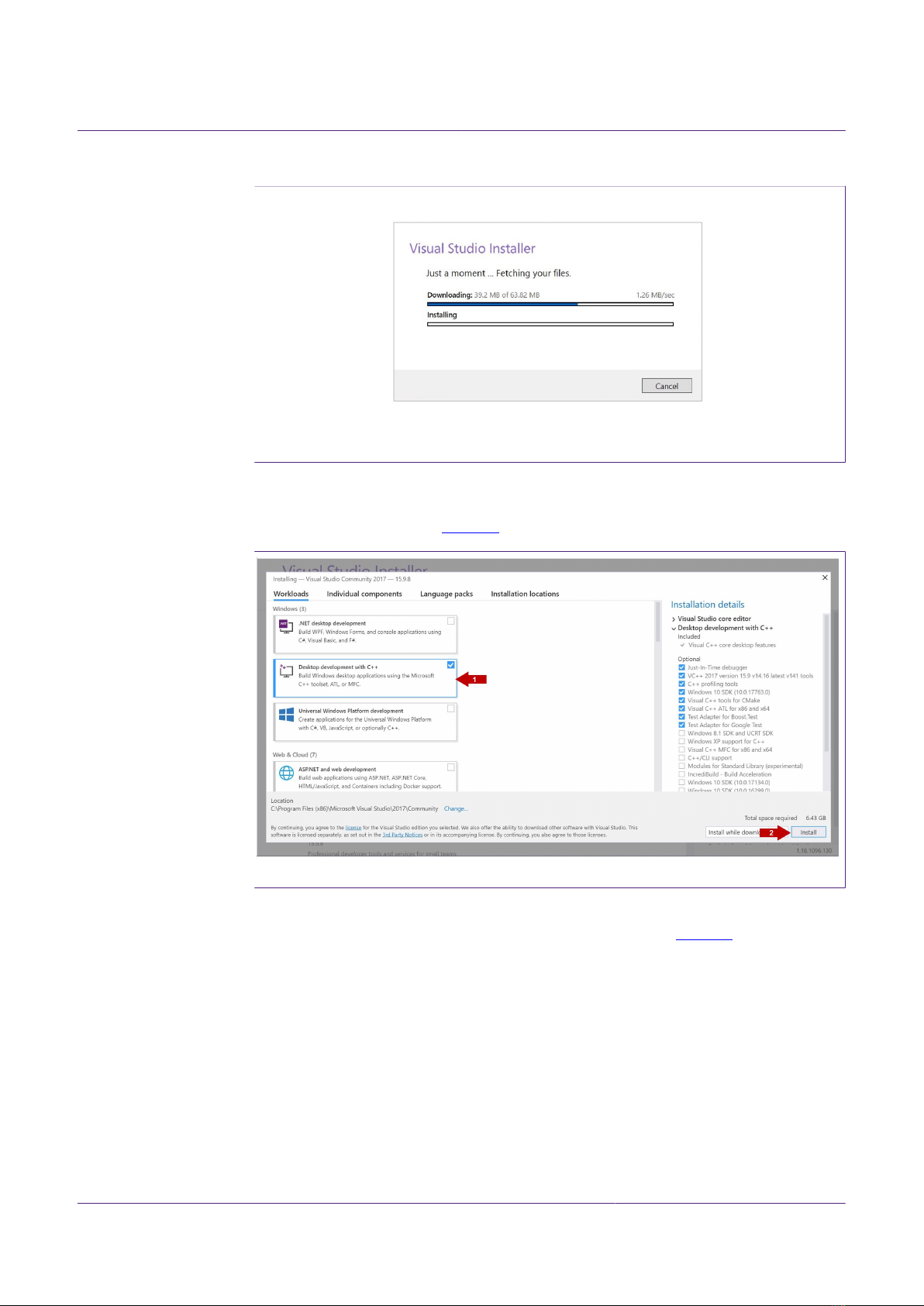

Figure 2. Visual Studio IDE installation wizard

4. As part of the Visual Studio setup, it is mandatory that you enable the installation of

Desktop development with C++. Select (1) Desktop development with C++ and

(2) click install as shown in Figure 3:

Figure 3. Select desktop development with C++

5. Visual C++ Tools for CMake is installed by default as part of the Desktop development

with C++ workload. This process might take several minutes. Figure 4 shows Visual

Studio installation wizard as an example:

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 6 / 36

Figure 4. Install desktop development with C++

6. After the installation is completed, you might be asked to reboot your system as

shown in Figure 5:

Figure 5. Visual Studio installation - reboot

2.2 Install CMake

CMake is an open-source, cross-platform family of tools that helps you build C/C++

projects on multiple platforms using a compiler-independent method. It has minimal

dependencies, requiring only a C++ compiler on its own build system. SE050 middleware

leverages on CMake to generate native makefiles and workspaces that can be used in

the compiler environment of your choice. To install CMake:

1. Go to CMake downloads page: https://cmake.org/download/

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 7 / 36

2. Scroll down and select your binary distribution. For this guide, the binary distribution is

Windows as shown in Figure 6:

Figure 6. Download CMake

3. Double click on the downloaded installer file. Windows Defender SmartScreen might

pop-up the wizard shown in Figure 7:

Figure 7. Execute CMake installer

4. If that is your case: Click (1) on More info and then (2) click on Run anyway as

shown in Figure 7:

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 8 / 36

Figure 8. Run the CMake installer

5. The CMake installation wizard will open. Click (1) Next and (2) accept the End-User

License Agrement as shown in Figure 9:

Figure 9. CMake installation wizard

6. As part of the CMake setup, (1) Add Cmake to the system PATH for all users and

(2) click Next as shown in Figure 10:

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 9 / 36

Figure 10. Add CMake path

7. Select a destination folder, (1) click Next and then (2) click Install as shown in

Figure 11:

Figure 11. Install CMake

8. Wait a few seconds until the installation is completed and click Finish as shown in

Figure 12:

NXP Semiconductors AN12398

Quick start guide to SE050 Visual Studio projects

Application note Rev. 1.1 — 20 June 2019

534611 10 / 36

Figure 12. Complete CMake installation

2.3 Install Python

Use these screenshots to install Python 2.7 in your Windows machine:

1. Go to https://www.python.org/downloads/release/python-2715/ to download Python

v.2.7.15 32 bit version. Make sure you download Python v2.7.15 32 bit version.

Python v3 is not supported and neither is the 64 bit version as shown in Figure 13:

Figure 13. Download Python 2.7.15 32 bit version

2. Double click on the downloaded installer file.

3. Follow the setup wizard as indicated in Figure 14:

a. Select install for all users and click Next button.

b. Leave the default destination directory and click Next button.
