NXP Semiconductors KIT33816FRDMEVM Manuel utilisateur

External Use

Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off.

QuickStartGuideforthe

KIT33816FRDMEVM

N o v . 1 3 . 2 0 1 4

Rev.2.0

External Use 1

Agenda

•Getting to Know the KIT33816FRDMEVM

•Getting Started Out of the Box

•MC33816 Development tools

•Explore Further

External Use 2

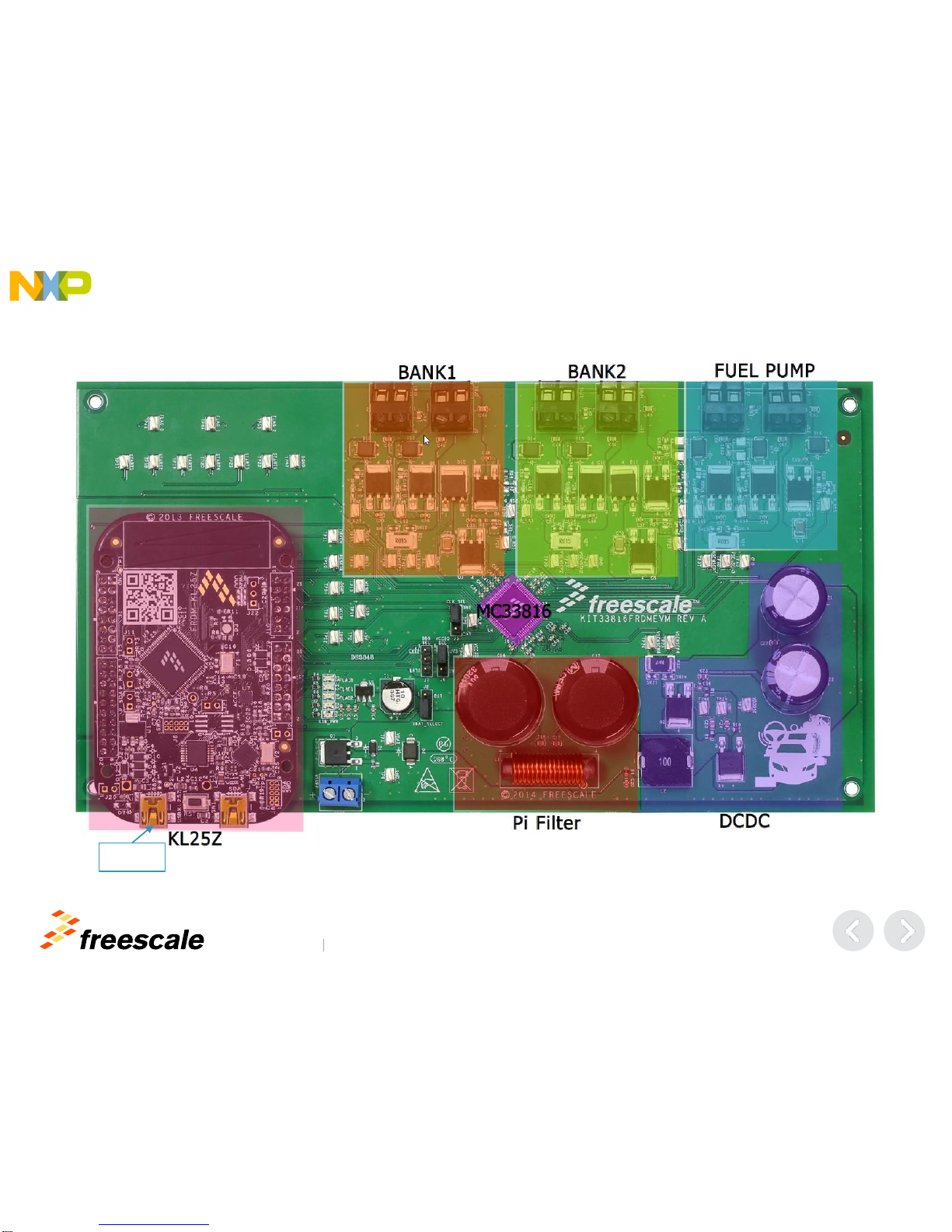

Getting to Know the KIT33816FRDMEVM

USB

VBAT

External Use 3

Getting to Know the KIT33816FRDMEVM

•MC33816 direct injection pre-driver integrated circuit

•USB-to-SPI dongle interface using the FRDM-KL25Z

•External MOSFETs controlling 4 injectors and 2 fuel pumps

•Power-conditioning circuitry

•+12 V VSUPP provides the power to the MC33816 and the loads

External Use 4

Getting Started Out of the Box

•Installing and Running the Out of the Box Demo

Download and Install SPIGEN 7.x from http://www.freescale.com/SPIGEN

Plug in a USB cable from a USB host to the KL25Z_USB. The FRDM-KL25Z

will be powered by this USB connection.

Run SPIGEN 7.1 (or latest). LED on KL25Z turns blue

Connect 14 V / 2.0 A power supply to VBAT connector

Download and unzip KIT33816-SPIGEN.spi and

KIT33816FRDM-SBCH.zip

KL25Z_USB

External Use 5

Getting Started Out of the Box

•Program MC33816 with SPIGEN 7.x

Click on Load Filenames and select the

SPIGen33816Files.txt file from the KIT33816SW

Click on Download All, a pop up Download

complete window appears.

Go to tab “Batch Command” and send Startx High and Low control signal to turn the injectors On/Off

Click on Enable Flash on CH1 and CH2

Click on Open and load the configuration file

KIT33816AESW_Rev2.0.spi

Select Micro Code from left tab

Set RSTB and DRVEN to High

External Use 6

MC33816 Development Tools

•Edit and compile source code

•Create register configurations

•Generate C files arrays*

•SPI software to

control MC33816

•Download all

configuration,

DRAM, CRAM

•Generate Start file

command

•4 cylinders + Fuel Pump control

•DCDC control

•USB/SPI interface (KL25Z)

•1MHz CLK

•Pi Filter

MC33816 IDE

PSC Simulator

•Edit, compile, and debug

source code

•Supports single step code

execution, breakpoints without

the need for hardware

•Provides graphical output of

digital and analog (load)

waveforms

SPIGEN KL25Z MC33816

KIT33816FRDMEVM

USB SPI

.bin

Files

.bin

Files

* Dedicated for MCU coding

External Use 7

Explore Further

Now that you are familiar with the KIT33816FRDMEVM and

SPIGEN, it’s time to explore the additional software and user guide

available on www.freescale.com . Select your next path from the

links in the Jump Start Your Design section.

External Use 8

Revision History

Revision

Date

Description of Changes

1.0

10/2014

•Initial release

2.0

11/2014

•Updated the filename in step 5 on page 4
