1 Introduction

NXP’s MPC574xR is a dual-core 32-bit microcontroller intended for scalable

engine control and powertrain applications. This application note will refer to

any device in the MPC574xR family, MPC5743R, MPC5745R, and MPC5746R,

as simply “MPC5746R.”

The MPC5746R supports an 8-40 MHz external oscillator (XOSC), a 16 MHz

internal RC oscillator (IRCOSC), and two phase locked loops (PLL) for a

maximum operating frequency of 200 MHz. The IRCOSC is selected out of

reset so increasing the operating frequency from 16 MHz requires additional

configuration. The MPC574xR Clock Calculator is meant to complement the

reference manual. It seeks to simplify the clock configuration process by providing a graphical, interactive tool to help the user

find the correct register settings in order to achieve the desired clock frequencies.

Accompanying this application note is the clock calculator. You can download it from MPC574xR_Clock_Calculator.

The clock calculator makes use of macros to perform functions like resetting the spreadsheet to initial values, configuring all clock

frequencies to the maximum allowable settings, and copying generated code. Macros must be enabled in the user’s MS Excel to

access these features. If macros are turned off, however, the tool will still be able to calculate clock frequencies, but the

aforementioned features will be disabled. To turn on macros in MS Excel 2016, go to the Developer tab on the top toolbar and

click on Macro Security. A popup window will appear, select Enable all macros.

Figure 1. Enable macros

2 Clock calculator design

The MPC574xR clock calculator takes the form of an interactive Microsoft Excel spreadsheet organized into multiple tabs as shown

in the following figure.

Contents

1 Introduction..........................................1

2 Clock calculator design...................... 1

3 Clock tool example use sase:

Configure FlexCAN to XOSC at

40 MHz protocol clock and PLL0

50 MHz BIU/Module clock............... 14

4 Conclusion......................................... 26

5 Revision history.................................26

AN12020

MPC574xR Clock Calculator Guide

How to use MPC574xR tool to easily calculate device frequency domains

Rev. 5 — October 2018 Application Note

Figure 2. MPC574xR Clock calculator setup

Clock sources (e.g. oscillators and PLLs) propagate to the various clock domains from which the MCU modules take their clocks.

Most cells representing clock domain frequencies are not to be modified manually. The user is meant to enter frequencies to the

few select clock sources and all clock domain frequencies derive from these sources. Several clock domain inputs are meant to

be modified manually as they represent external clocks that are driven into a pin. There are also input cells that set muxes and

clock dividers. All cells that take entries have blue borders instead of black, as shown in the figure below.

Figure 3. Input cells vs. Output cells

There are limits to what frequencies can be entered to the input frequency cells. Values that are out of range will be rejected and

the user will receive an error message. Invalid clock domain frequencies that arise from valid input values and legal, but improper,

dividers will be shaded in red, as will be explained in greater depth later in this application note.

Frequency values are linked across tabs, so PER_CLK in the Tree tab will always be the same as PER_CLK in the Peripheral

Domains tab. Hyperlinks are provided to duplicate domain names to link back to their points of origin. For example, PER_CLK

originates in Tree. So clicking the PER_CLK textbox in Peripheral Domains will take the user to PER_CLK in Tree. Textboxes that

are links, when hovered over, will cause the mouse cursor to turn into a hand icon and a pop-up to appear, showing the address

of the destination, as shown in the following figure.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 2 / 28

Figure 4. Clicking on a link

The following subsections will explain in depth the purpose of each tab.

2.1 Tree

Tree is the centerpiece of the tool. This tab is the starting point for all clock frequency calculations. It is organized to resemble the

MPC5746R clock tree as presented in the following figure.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 3 / 28

Figure 5. MPC5746R reference manual clock tree

The following figure shows, in part, the diagram’s clock tool counterpart. The difference between the two is that the latter is

interactive.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 4 / 28

Figure 6. Clock calculator tree

The flow of the diagram generally goes from left to right. On the left are the MPC5746R clock sources and on the right are the

clock domains. MCU modules run on one or more of these clock domains.

Clock domain frequency values are displayed in the outlined cells next to their labels. Most cells are not meant to be written to;

their values are dependent on the frequencies of preceding steps in the clock tree. Take PER_CLK, for example: its value is

sourced from either the IRCOSC, XOSC, or PLL0_PHI. Now look at the IRCOSC block. IRCOSC is at 16 MHz, but the frequency

that propagates depends on the next block, IRCOSC Source Controller. Therefore, the actual input frequency received by blocks

that take IRCOSC as a source is the IRCOSC frequency of 16 MHz, filtered by the IRCOSC controller block. The same goes for

XOSC. PLL0_PHI is configured in the PLL0 tab. PER_CLK selects from these three clock sources by selecting the value of the

AUX Clock Selector 0 block. Then finally the selected signal is divided by the PER_CLK prescaler value.

It is important to note, though, that the user input for the divider field is not the desired divider, but the bitfield value that one would

have to enter to achieve the desired divider. That is why the divider block says “/(1+(0…63))” rather than simply “/1…64”. The user

provides a value between 0 and 63, to which the hardware automatically adds 1 to calculate a divider that is between 1 and 64.

Each auxiliary clock and the system clock can feed into multiple domains that each have their own dividers. The number to the

left of the prescaler shows the number of the divider that is associated with that clock. In the case of PER_CLK, the number “0”

is shown next to the PER_CLK enable. This means that PER_CLK is configured by Divider 0 of Auxiliary Clock 0.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 5 / 28

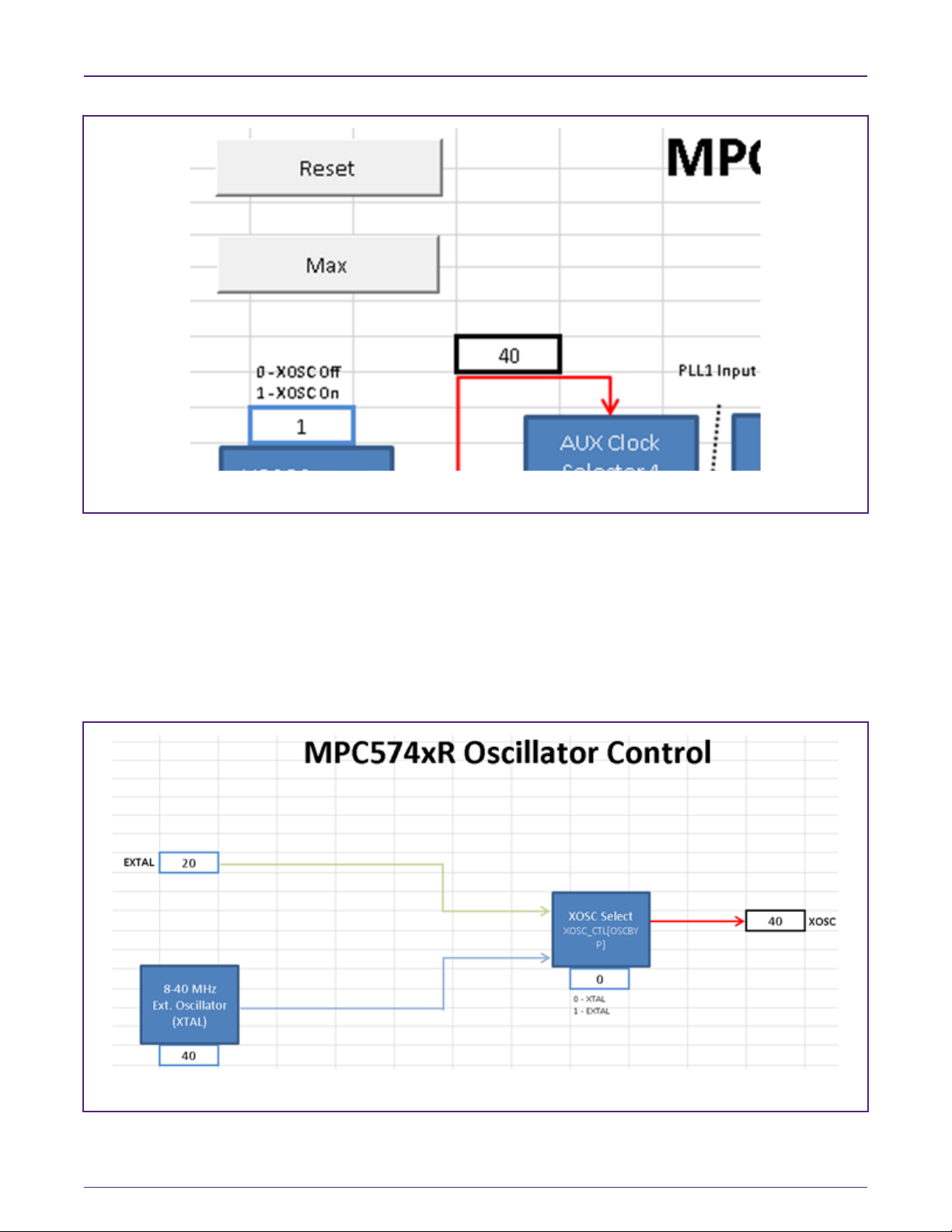

Figure 7. Buttons

2.2 Oscillator control

Oscillator Control controls the generation of the external oscillator (XOSC) frequency. MPC5746R supports two ways of XOSC

generation. The chip has two external oscillator pins, XTAL and EXTAL. An 8-40 MHz external oscillator can be connected to both

pins. This external oscillator is also referred to simply as XTAL. If the XOSC Select block selects XTAL, XOSC will derive its

frequency from the external oscillator (XTAL) block. Alternatively, a waveform can be driven directly to the EXTAL pin. This signal

is also referred to simply as EXTAL. When the XOSC Select block selects EXTAL, XOSC will derive its frequency from the EXTAL

pin. Shown below is a screenshot.

Figure 8. Oscillator control

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 6 / 28

2.3 Peripheral domains

Peripheral Domains is an in-depth diagram of MPC5746R modules. Where Tree leaves off at the clock domain level, Peripheral

Domains picks up and progresses to the module level, shown below.

Figure 9. Peripheral domains

The clock domains are color-coded. Black lines are reserved for clock domains that only a few modules use. For example, the

FlexCAN module takes both PBRIDGE_x_CLK and CAN_CLK. CAN_CLK is black because only the FlexCAN uses that clock. As

a rule of thumb, clock domains are represented with black lines if all modules using it can fit within a single window without having

to scroll. The frequencies on this tab are not meant to be modified and are dependent on frequency values in the Tree tab.

2.4 LFAST clocking

The LFAST is a versatile, but intricate module. It supports its own PLL which generates multiple phases and generates a signal

within specification only if its inputs are certain frequencies. These intricacies make it necessary to give LFAST its own dedicated

tab. Peripheral Domains still hosts an LFAST clock that shows its input clocks and is hyperlinked to LFAST Clocking, as shown

in the following figure.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 7 / 28

Figure 10. LFAST in peripheral domains

LFAST Clocking presents a block diagram of the module with various clocks going into it. It also supports LFAST_PLL

configuration to increase the LFAST frequency up to 320 MHz. The LFAST also supports a low-speed mode as well as a high-

speed mode. This tool allows the user to select between the two modes. Below is a screenshot of the sheet.

Figure 11. LFAST block diagram

Since the LFAST signal must be generated from an input clock of 10, 13, 20, or 26 MHz, this tool blocks any input from the signal

RF_REF other than these four values. RF_REF can technically be set to any value, but the signal goes through the clock

calculator’s LFAST Input Filter block to become lfast_sys_clk, which in turn is the signal that gets fed into the LFAST PLL and

phase generators, as shown in the following figure.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 8 / 28

Figure 12. LFAST clocking input filter

If RF_REF is 10, 13, 20, or 26 MHz, lfast_sys_clk is the same; otherwise, lfast_sys_clk is 0. MPC5746R does not actually filter

RF_REF the way this tool does. The purpose of the LFAST Input Filter block is to simulate how the user can technically set

RF_REF to any value, but the resulting LFAST output would be unusable. Therefore if a user were to enter an invalid input frequency

(i.e. not 10, 13, 20, or 26 MHz), all subsequent frequencies would be 0, and the user would know to change the input.

2.5 PLLx

PLL0 and PLL1 are visual abstractions of the PLL digital interface, as in the next figure.

Figure 13. PLL0 control

The input source of PLL0 and PLL1 are selected by the auxiliary clock selectors AUX Clock Selector 3 and AUX Clock Selector

4 in the Tree tab,respectively. Then, from the source, the dividers and multipliers located in the PLL0 and PLL1 tabs are set in

order to achieve the PLL output frequencies. The PLL output frequencies are in turn propagated to the PLLx_PHIn clock domains

in the Tree tab.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 9 / 28

2.6 Reference tables (pll0_phi, pll0_phi1, and pll1_phi)

The three tabs pll0_phi, pll0_phi1, and pll1_phi are reference tables for the user to find the appropriate PLL dividers and multipliers

to achieve the desired PLL frequency. There is a tab for each PLL output because input frequencies and the range of acceptable

divider/multiplier values differ between each other. However, they all follow the same setup. Note that Columns A, B, and C of

these tabs are frozen so if the table looks cut off, just scroll left or right.

PLL frequencies are calculated from a reference frequency, a reference divider (RFD), a multiplier (MFD), and in PLL0, a prescaler

(PREDIV). The PLL reference is not manually configurable because there is a finite number of input values the PLL can take. For

example, PLL0 can only reference either the 16 MHz IRCOSC or the 8-40 MHz XOSC. PLL reference therefore comes from the

Tree tab. Configure AUX Clock Selector 3 and AUX Clock Selector 4 in Tree for PLL0 and PLL1, respectively. Once the PLL

reference frequency is configured, enter the desired PLL output frequency. Also, enter the PREDIV value when using PLL0_PHI

or PLL0_PHI1. The reference table will then calculate the output frequency for each MFD and RFD setting. Like in the other

sections, frequencies are color-coded to define which values are valid and which are not. Shading will change automatically once

the output PLL frequencies are calculated. MFD and RFD settings that achieve the exact desired frequency will be shaded in

green; values that exceed the desired frequency, but are within MPC5746R hardware specifications are marked in yellow; and

frequencies that exceed the MPC5746R hardware specification are colored red. Below is a screenshot of the reference table for

PLL0_PHI.

Figure 14. PLL0_PHI reference table

2.7 Summary

Almost all blocks populating this clock calculator represent real register fields in silicon. The Summary tab collates all the

information from the rest of the clock calculator into a list of register values, a screenshot of which is shown in Register summary

table. The values in the register summary are interactive, updating automatically when the associated block is changed. Registers

listed within Summary are only the ones whose values are affected by clock configuration, not every single register available in

the SoC.

NXP Semiconductors

Clock calculator design

MPC574xR Clock Calculator Guide, Rev. 5, October 2018

Application Note 10 / 28
