FRDM-KL28Z User’s Guide

1.Introduction

The Freedom development platform is a set of software

and hardware tools for evaluation and development. It is

an ideal tool for the rapid prototyping of

microcontroller-based applications.

The FRDM-KL28Z supports power supply voltage

range from 1.71 V to 3.6 V. It features a KL28Z, a

device boasting a maximum operating frequency of 96

MHz, up to 512 KB Flash and numerous analog and

digital peripherals.

The FRDM-KL28Z includes the NXP open standard

embedded serial and debug adapter known as

OpenSDA. This circuit offers the user several options

for serial communications, flash programming and run-

control debugging.

The FRDM-KL28Z hardware is form-factor compatible

with the Arduino™ R3 pin layout, providing a broad

range of expansion board options. The on-board

interfaces include an RGB LED, a 6-axis digital sensor

(combining a 3D accelerometer and 3D magnetometer),

a 3-axis digital angular rate gyroscope, an ambient light

sensor, and a capacitive touch slider.

There are many software development tool options

available to the user. Choices include Kinetis Design

Studio (KDS), IAR Embedded Workbench, Keil MDK

featuring the µVision IDE, and so on.

All of these features combine to give users the freedom

needed to rapidly prototype many embedded designs: a

NXP Semiconductors

Document Number: FRDMKL28ZUG

User's Guide

Rev. 0

06/2016

Contents

1. Introduction ....................................................................1

2. Getting Started................................................................2

3. FRDM-KL28Z Features ..................................................2

4. FRDM-KL28Z Hardware Description..............................4

4.1. Power supply........................................................4

4.2. Serial and debug adapter (OpenSDA) ....................5

4.3. Microcontroller.....................................................7

4.4. Capacitive touch slider..........................................9

4.5. I2C Inertial Sensor..............................................10

4.6. RGB LED...........................................................11

4.7. Visible light sensor .............................................11

4.8. EMVSIM Header................................................12

4.9. SPI2 Header ....................................................... 13

4.10. Analog reference voltage.....................................13

4.11. Input/output headers............................................14

5. References....................................................................15

6. Revision History ...........................................................15

FRDM-KL28Z Features

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

2 NXP Semiconductors

powerful microcontroller built on a very low-power core and SOC platform, easy-access to I/O with a

large ecosystem of compatible hardware, a flexible programming and debug interface, and a large

ecosystem of software development environments.

2.Getting Started

Refer to the FRDM-KL28Z Quick Start Package for step-by-step instructions for getting started with the

freedom board. See the “Jump Start Your Design” section at nxp.com/FREDEVPLA for the Quick Start

Package and software lab guides.

3.FRDM-KL28Z Features

The FRDM-KL28Z hardware is a Freedom development board assembled with the following features:

MKL28Z512VLL7 MCU (96 MHz, 512 KB Flash, 128 KB RAM, 32 KB ROM,100 LQFP

package)

3-Axis Digital Angular Rate Gyroscope, FXAS21002CQ (U2)

Accelerometer and magnetometer, FXOS8700CQ (U10)

OpenSDA: On-board serial and debug adapter (U7)

I/O headers for easy access to MCU I/O pins

Ambient light sensor (Q1)

Flexible power supply options: USB, coin cell battery, external source

Capacitive touch slider

Reset push button (SW1)

NMI and LLWU buttons (SW2, SW3)

RGB LED (D2)

The FRDM-KL28Z features two MCUs: The target MCU is the MKL28Z512VLL7. The OpenSDA

MCU is the MK20DX128VFM5.

The primary components and their location on the hardware assembly are pointed out in Figure 1.

Figure 2 shows a block diagram of the FRDM-KL28Z board.

FRDM-KL28Z Features

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

NXP Semiconductors 3

MK20DX128VFM5

KL28Z

Digital Angular

Rate Gyroscope

Accelerometer and

Magnetometer

Capacitive touch

slider

RGB LED

Open SDA USB KL28Z USB

SPI2 Header

Ambient Light

Sensor

Reset Push Button

LLWU button NMI button

Figure 1. FRDM-KL28Z feature call-outs

Figure 2. FRDM-KL28Z block diagram

FRDM-KL28Z Hardware Description

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

4 NXP Semiconductors

4.FRDM-KL28Z Hardware Description

4.1. Power supply

The FRDM-KL28Z offers a design with multiple power supply options. It can be powered from the

USB connector, battery on the board, the VIN pin on the I/O header, or an off-board 1.71-3.6 V supply

from the 3.3 V pin on the I/O header. The USB and VIN supplies are regulated on-board using a 3.3 V

linear regulator to produce the main power supply. Other sources are not regulated on-board.

The following table provides the operational details and requirements for the power supplies.

Table 1. Tags Power supply requirements

Supply Source & Location

Valid Range

OpenSDA Operational?

Regulated on-board?

OpenSDA USB (J13)

5 V

Yes

KL28Z USB (J10)

5 V

Yes

P5V0-9V0_VIN

(J3 PIN16)

4.3-9 V

Yes

P3V3 Pin（J3 PIN8）

1.71-3.6 V

Battery

2-3.6 V

Figure 3 shows the schematic drawing for the power supply inputs and the on-board voltage regulator.

In addition, regulated power can be supplied to J3 pin 16 from an external source through P5-9V_VIN

by populating the board with an optional voltage regulator (for instance a 7805 style regulator) in a TO-

220 package, thus providing a high current supply to external devices. To prevent voltage sag under a

high load, C34, C35, C36, and C37 should be populated with appropriately sized capacitors to match the

regulator chosen.

Figure 3. Power supply schematic

FRDM-KL28Z Hardware Description

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

NXP Semiconductors 5

NOTE

The OpenSDA circuit is operational only when a USB cable is connected

and supplying power to J13. However, the protection circuitry is in place

to allow multiple sources to be powered at once.

Table 2. FRDM-KL28Z power supplies

Power Supply Name

Description

P5V0-9V0_VIN

Power supplied from the VIN pin of the I/O headers (J3 pin 16).

P5V_SDA

Power supplied from the OpenSDA USB connector

P5V_USB

Nominal 5 V is supplied to the I/O headers (J3 pin 10). Sourced from either the P5V_KL28Z

or P5V_SDA through a back drive protection Schottky diode.

P5V_KL28Z

Power supplied from the Mini USB connector.

P3V3_VREG

Regulated 3.3 V supply. Sources power to the P3V3 supply rail through an optional back

drive protection Schottky diode.

P3V3

Main supply rail for the FRDM-KL28Z. Can be sourced from P3V3_VREG (J3 pin 8).

P3V3_KL28Z

KL28Z MCU power supply. Header J17 provides a convenient means for KL28Z energy

consumption measurements.

P3V3_SDA

OpenSDA circuit power supply.

P3V3_BATT

Coin cell battery supply voltage. Sources power to the P3V supply rail with the option of

adding a Schottky diode.

NOTE

J9 and J17 are populated by default. It is very convenient to measure the

energy consumption of the KL28Z by a parallel voltmeter or a series

ammeter.

4.2. Serial and debug adapter (OpenSDA)

OpenSDA is an open-standard serial and debug adapter. It bridges serial and debug communications

between a USB host and an embedded target processor as shown in Figure 4. OpenSDA features a mass

storage device (MSD) bootloader, which provides a quick and easy mechanism for loading different

OpenSDA Applications such as flash programmers, run-control debug interfaces, serial-to-USB

converters, and more. Two or more OpenSDA applications can run simultaneously. For example, run-

control debug application and serial-to-USB converter runs in parallel to provide a virtual COM

communication interface while allowing code debugging via OpenSDA with just single USB

connection. These two applications are provided in a single code package. Refer to the OpenSDA User’s

Guide for more details.

OpenSDA is managed by a Kinetis K20 MCU built on the ARM Cortex-M4 core. The OpenSDA circuit

includes a status LED (D1) and a RESET pushbutton (SW1). The pushbutton asserts the Reset signal to

the KL28Z target MCU. It can also be used to place the OpenSDA circuit into bootloader mode by

holding down the RESET pushbutton while plugging the USB cable to USB connector J13. Once the

OpenSDA enters bootloader mode, other OpenSDA applications such as debug app can be programmed.

SPI and GPIO signals provide an interface to the SWD debug port of the KL28Z. Additionally, signal

connections are available to implement a UART serial channel. The OpenSDA circuit receives power

when the USB connector J13 is plugged into a USB host.

FRDM-KL28Z Hardware Description

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

6 NXP Semiconductors

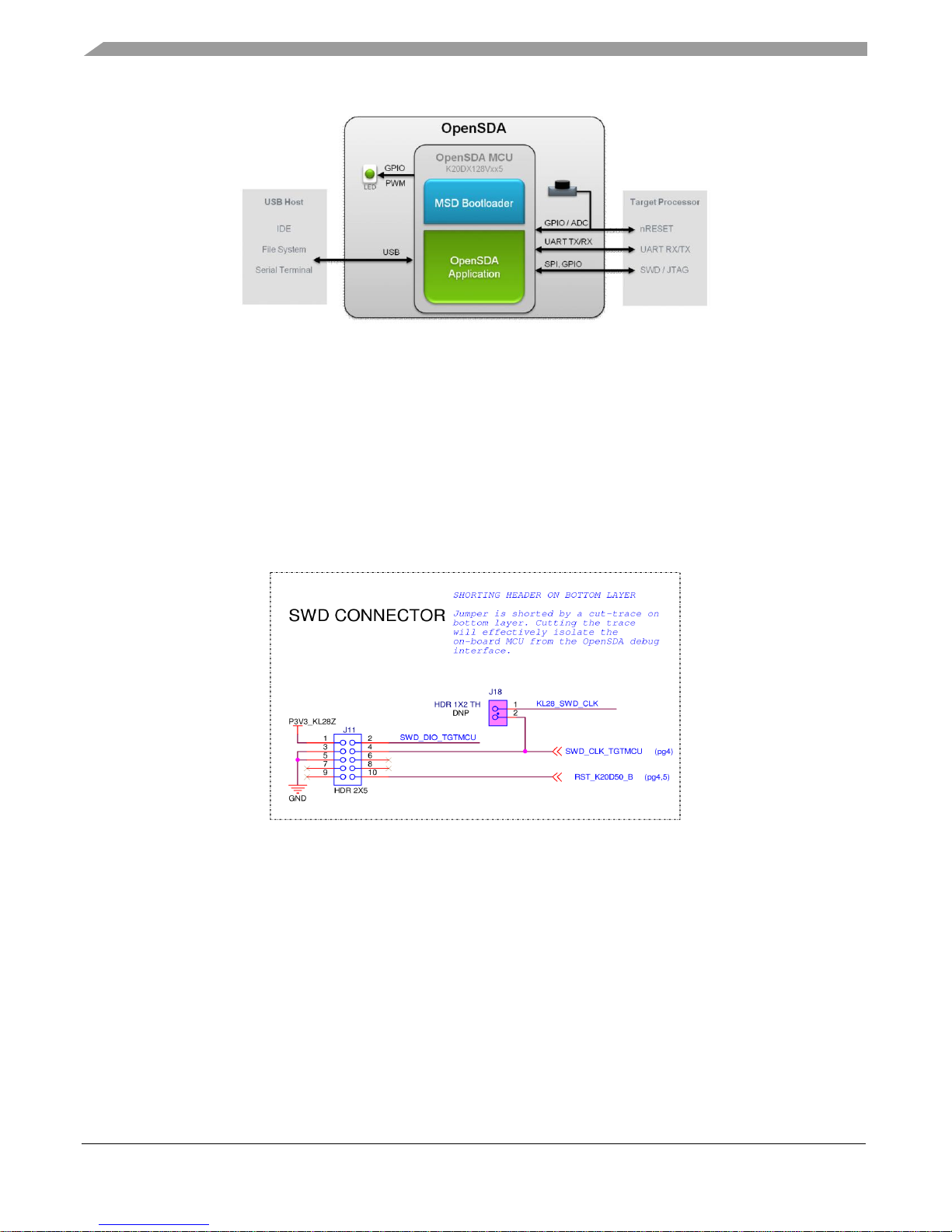

Figure 4. OpenSDA block diagram

4.2.1. Debugging interface

Signals with SPI and GPIO capability are used to connect directly to the SWD of the KL28Z. These

signals are also brought out to a standard 10-pin Cortex Debug connector (J11) as shown in Figure 5.

In order to isolate the KL28Z MCU from the OpenSDA circuit and use J11 to connect to an off-board

MCU, cut the trace between pin1 and pin2 of J18 on bottom layer. This will disconnect the SWD_CLK

pin to the KL28Z so that it will interfere with the communications to an off-board MCU connected to

J11. Figure 5 shows SWD connector signals description for KL28Z.

Figure 5. SWD debug connector to KL28Z

4.2.2. Virtual serial port

A serial port connection is available between the OpenSDA MCU and pins PTB16 and PTB17 of the

KL28Z.Several of the default OpenSDA applications provided by Freescale, including the MSD Flash

programmer and the P&E debug application, providing a USB communications device class (CDC)

interface that bridges serial communications between the USB host and this serial interface.

FRDM-KL28Z Hardware Description

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

NXP Semiconductors 7

4.3. Microcontroller

The FRDM-KL28Z is a MCU module featuring the MKL28Z512VLL7, a Kinetis microcontroller with

USB 2.0 full-speed OTG controller in a 100 LQFP package. An on-board debug circuit, OpenSDA,

provides a SWD interface and a power supply input through a mini-USB connector, as well as serial to

USB and CDC class compliant UART interface. The KL28Z MCU features as shown in Table 3.

Table 3. Features of MKL28Z512VLL7

Feature

Description

Ultra-low-power

- 10 low-power modes with power and clock gating for optimal peripheral activity and

recovery times. Stop currents of <190 nA (VLLS0), run currents of <280 uA/MHz, 4 s wake-

up from Stop mode

- Full memory and analog operation down to 1.71V for extended battery life

- Low-leakage wake-up unit with up to eight internal modules and eight pins as wake-up

sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes

- Low-power timer for continual system operation in reduced power states

Flash, SRAM, ROM

- 512 KB flash featuring fast access times, high reliability, and four levels of security

protection. No user or system intervention to complete programming and erase functions

and full operation down to 1.71 V

- 128 KB of SRAM

- 32 KB of ROM with Kinetis bootloader included (UART, SPI, I2C, USB-HID)

Mixed-signal

capability

- SAR 16-bit analog-to-digital converter (ADC)

- High-speed comparator (CMP) with internal 6-bit digital-to-analog converter (DAC)

- 12-bit digital-to-analog converter (DAC)

- VREF module 1.2 V output

Performance

- 72 MHz ARM Cortex-M0+ core

- Up to 16 channel DMA for peripheral and memory servicing with reduced CPU loading

and faster system throughput

- Cross bar switch enables concurrent multi-master bus accesses, increasing bus

bandwidth

- Independent flash banks allowing concurrent code execution and firmware updating with

no performance degradation or complex coding routines

- Bit manipulation engine (BME) allows execution of single-instruction atomic bit-modify-

write operations on the peripheral address space

Timing and control

- Three timer/PWM modules –one with six channel, and two with two channels

- Low-power timer

- Real-time clock

- 4-channel 32-bit periodic interrupt timer provides time base for RTOS task scheduler or

trigger source for ADC conversion, provides lifetime timer capability

Human-machine

interface

Connectivity and

communications

- Touch sensing input

- General-purpose input/output up to 54

- USB full-speed OTG controller with on-chip transceiver and 5 V to 3.3 V regulator,

supporting crystal-less recovery

- USB low-voltage regulator supplies up to 120 mA off chip at 3.3 volts to power external

components from 5-volt input

- Three 32-bit LPSPI modules

- Three LPUART modules

- Three LPI2C modules supporting Ultra-Fast mode

- One I2S (SAI) module

- FlexIO module

FRDM-KL28Z Hardware Description

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

8 NXP Semiconductors

4.3.1. Clock source

KL28Z start up to the default reset clock for core/system clock, which is 8 MHz from SIRC. Software

can enable the main external oscillator (EXTAL/XTAL), or to high frequency internal reference (FIRC)

48 MHz if desired. The external oscillator/resonator can range from 32.768 KHz up to 32 MHz. A

32.768 KHz crystal is the default external source for the SCG oscillator inputs (XTAL/EXTAL).

4.3.2. Serial port

The primary serial port interface signals are PTB16 and PTB17. These signals are connected to both the

OpenSDA and to the J1 I/O connector. Note that the OpenSDA connection can be isolated from J1 by

removing R47 and R48, if required.

4.3.3. USB port

The Kinetis KL28 microcontroller features a dual-role USB controller with on-chip full-speed and low-

speed transceivers. The USB interface on the FRDM-KL28Z is configured as a full-speed USB device.

J10 is the USB connector for this interface. As shown in Figure 6.

Figure 6. USB connector schematic

FRDM-KL28Z Hardware Description

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

NXP Semiconductors 9

4.3.4. Reset

The PTA20/RESET signal on the KL28Z is connected externally to a pushbutton, SW1, and also to the

OpenSDA circuit. However, R76 should be removed when isolating the OpenSDA MCU from SW1 or

to do power consumption testing for KL28Z. Isolating the RESET line allows a more accurate

measurement of the target device’s power consumption in low-power modes. The reset button can be

used to force an external reset event in the target MCU.

4.3.5. Debug

The sole debug interface on all Kinetis L series devices is a Serial Wire Debug (SWD) port. The primary

controller of this interface on the FRDM-KL28Z is the onboard OpenSDA circuit. However, a 2x5-pin

Cortex Debug connector, J11, provides access to the SWD signals for the KL28Z MCU. The following

table shows SWD connector signals description for KL28Z.

Table 4. ARM JTAG/SWD mini connector description

Function

Connection to KL28Z

VTref

P3V3_MCU

SWDIO/TMS

PTA3

GND

SWDCLK/TCK

PTA0

GND

SWO/TDO

TDI

RESET

PTA20

4.4. Capacitive touch slider

Two GPIO pins functioning as Touch Sense Input (TSI) signals, are connected to capacitive electrodes

configured as a touch slider as shown in Figure 7.

Figure 7. Touch slider connection

FRDM-KL28Z Hardware Description

FRDM-KL28Z User’s Guide, Rev. 0, 06/2016

10 NXP Semiconductors

4.5. I2C Inertial Sensor

4.5.1. 6-axis accelerometer and magnetometer

FXOS8700CQ is a small, low-power, 3-axis, linear accelerometer, and 3-axis magnetometer combined

into a single package. The device features a selectable I2C or point-to-point SPI serial interface with

14-bit accelerometer and 16-bit magnetometer ADC resolution along with smart-embedded functions. It

is interfaced through an I2C bus and two GPIO signals as shown in Figure 8 and the table below.

By default, the I2C address is 0x1E (As SA0 and SA1 were pulled low).

Figure 8. FXOS8700CQ schematic diagram

Table 5. Accelerometer FXOS8700CQ signal connections

FX0S8700CQ

KL28Z

SCL

PTE24

SDA

PTE25

INT1

PTD4

INT2

PTE5

4.5.2. 3-Axis Digital Angular Rate Gyroscope

FXAS21002C is a small, low-power, pitch, and roll angular rate gyroscope with 16 bit ADC resolution.

The full-scale range is adjustable from ±250°/s to ±2000°/s. It features both I2C and SPI interfaces. It is

interfaced through an I2C bus and two GPIO signals as shown in the following table and Figure 9. By

default, the I2C address is 0x20 (As SA0 pulled low).

Table 6. Gyroscope FXAS21002CQ signal connections

FXAS21002CQ

KL28Z

SCL

PTE24

SDA

PTE25

INT1

PTE0

INT2

PTE1

Table des matières

Autres manuels NXP Semiconductors Microcontrôleur

NXP Semiconductors

NXP Semiconductors JN517x-DK005 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors NTAG I2C plus Manuel d'utilisation et d'entretien

NXP Semiconductors

NXP Semiconductors TWR-KM34Z50M Manuel utilisateur

NXP Semiconductors

NXP Semiconductors TWR-K21F120M Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MCUXpresso SDK Manuel utilisateur

NXP Semiconductors

NXP Semiconductors OM-SE051ARD Manuel utilisateur

NXP Semiconductors

NXP Semiconductors KITMPXA6115AEVB Manuel utilisateur

NXP Semiconductors

NXP Semiconductors ASUG Manuel utilisateur

NXP Semiconductors

NXP Semiconductors freescale TWR-K60D100M Manuel utilisateur

NXP Semiconductors

NXP Semiconductors Freescale Semiconductor MPC8569E-MDS-PB Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MPC5746R Manuel utilisateur

NXP Semiconductors

NXP Semiconductors FRDM-K32L2B3 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors Intrinsyc Open-X 8M Manuel utilisateur

NXP Semiconductors

NXP Semiconductors LPC5500 Series Manuel utilisateur

NXP Semiconductors

NXP Semiconductors K32W Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MPC5777C Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MC9S12VRP64 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors Freescale TWR-MECH Manuel utilisateur

NXP Semiconductors

NXP Semiconductors LPC553 Series Mode d’emploi

NXP Semiconductors

NXP Semiconductors MPC5777M Guide de l'utilisateur

NXP Semiconductors

NXP Semiconductors AN11844 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors EasyEVSE EV Manuel utilisateur

NXP Semiconductors

NXP Semiconductors LPC1102 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors M53015EVB Manuel utilisateur

Manuels Microcontrôleur populaires d'autres marques

AMS

AMS AS7261 Demo Kit Manuel utilisateur

Novatek

Novatek NT6861 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266 SDK Guide de configuration

Nuvoton

Nuvoton ISD61S00 ChipCorder Mode d’emploi

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manuel utilisateur

Texas Instruments

Texas Instruments Chipcon CC2420DK Manuel utilisateur

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur

NEC

NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation

Mikroe

Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation

Intel

Intel Agilex Manuel utilisateur

Cypress

Cypress CY4607 HX2VL Manuel utilisateur

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manuel utilisateur

Texas Instruments

Texas Instruments TMS320F2837 D Series Manuel utilisateur

CYPRES

CYPRES CY14NVSRAMKIT-001 Manuel utilisateur

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266EX Mode d'emploi

Abov

Abov AC33M8128L Manuel utilisateur

Laird

Laird BL654PA Manuel utilisateur
