NXP Semiconductors S12VR32EVB Manuel utilisateur

Quick Start Guide

S12VR32EVB

Highly Integrated Microcontroller

Power Window Lift Relay-Based

2 3

Quick Start Guide www.nxp.com

GET TO KNOW THE S12VR32EVB BOARD SIMPLIFIED BOARD DESCRIPTION

Front side of S12VR32EVB board

User

Button

Hall Sensor

Connector

Relay

Motor

Out (2)

LIN Interface

and Power

Supply

Reset

Button

BDM

Connector

User Up/Stop/

Down Switch

External

Temperature

Sensor

4 5

Quick Start Guide www.nxp.com

2Open the Application

Software

Download and open the file up-down-

no-antipinch.mcpwith CodeWarrior

Development Studio for HCS12(X).

3Connect the

Board

Connect a 12 V automotive battery and

a brushed DC motor to the board. For

details, refer to the section titled, “Step-

By-Step Board Connection.”

4Download the Software to

the S12VR64 MCU Flash

Connect an HCS12(X) external debugger

to the computer and then connect the

debugger to J6. Follow the operating

system messages to install the debugger

drivers. Flash the application by pressing

the debug button on CodeWarrior.

Follow the debugger instructions to flash

the MCU.

INTRODUCTION SOFTWARE TOOLS INSTALLATION

The S12VR32 EVB features the S12VR32 microcontroller, an automotive 16-bit MCU

for applications based on motor control relays. The S12VR32 evaluation board

integrates an S12 CPU, a LIN physical interface, a 5 V regulator system to supply the

microcontroller and low-side drivers to control the relay.

This ultra-low-cost development platform also includes a Hall sensor interface, an

external 16 MHz oscillator, a switch button and an onboard OSBDM.

1Install CodeWarrior®5.1

Development Studio

CodeWarrior is a complete

integrated development

environment (IDE) that provides

a highly visual and automated

framework.

Download the CW5.1 from

nxp.com/codewarrior.

Quick Start Guide www.nxp.com

6 7

STEP-BY-STEP BOARD CONNECTION STEP-BY-STEP BOARD CONNECTION (CONT.)

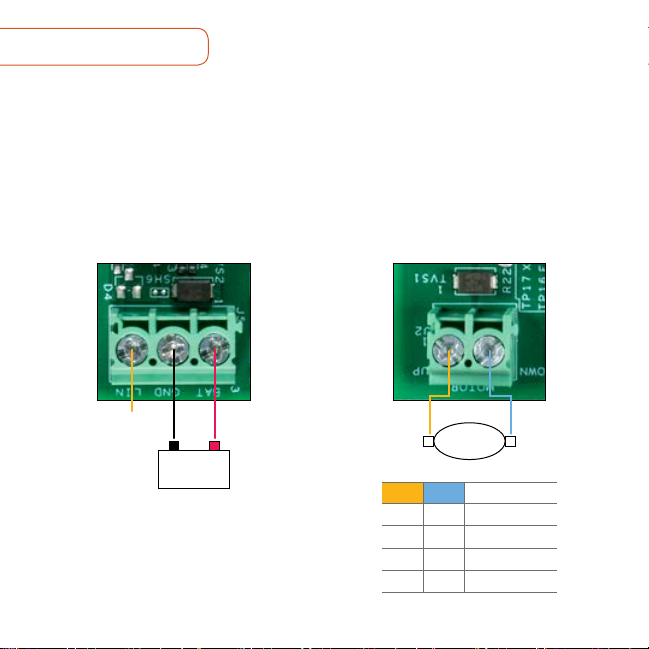

1Connect

the Board

Supply your board with 12 V as is shown

in the image.

2Connect

the Motor

Connect your DC motor as is shown in

the image.

3Connect an External

HCS12(X) Debugger 4Connect the Hall Sensor

Connector

Connect the Hall encoder (Only required

for anti pinch applications.)

LIN Bus

0V 12V

Battery

V0 V1 DIRECTION

12V 0V Up

0V 12V Down

0V 0V Off

12V 12V Invalid

Motor

Pin1

GND

SPEED +5V DIR

GND

Quick Start Guide www.nxp.com

8 9

PUSH BUTTONS AND SWITCHESHEADERS AND CONNECTORS

HEADER/CONNECTOR DESCRIPTION

J1 HALL sensor connector

Pin 1 Motor1_Out

Pin 2 Motor0_Out

Pin 1 LIN

Pin 2 GND

Pin 3 VBAT

J6 BDM Connector

J11 External temperature sensor connector

HEADER/CONNECTOR DESCRIPTION

SW1 Push button connects to a high voltage input

SW3 Switch used to control motor direction

SW4 Push button reset

Quick Start Guide www.nxp.com

10 11

www.nxp.com/automcdevkits

NXP, the NXP logo and CodeWarrior are trademarks of NXP B.V. All other product or service names are

Document Number: S12VR32EVBQSG REV 0

SUPPORT

Visit www.nxp.com/support for a list

of phone numbers within your region.

WARRANTY

Visit www.nxp.com/warranty for

complete warranty information.

Get Started

Download installation

software and documentation under

“Jump Start Your Design” at

www.nxp.com/S12VR32EVB.
