GETTING STARTED GUIDE
NI 6587
NI FlexRIO High-Speed Digital I/O Adapter Module
The NI 6587 is a 1 Gbps per channel high-speed, low-voltage differential signaling (LVDS)
adapter module designed to work in conjunction with your NI FlexRIO™ FPGA module. The
NI 6587 features 20 LVDS channels (16 data and 4 PFI).
This document contains installation instructions and signal information for the NI 6587R,
which is composed of an NI FlexRIO FPGA module and the NI 6587.
Note Before configuring your NI 6587, you must install the appropriate software
and hardware. Refer to the getting started guide for your NI FlexRIO FPGA module
for installation instructions.
The following figure shows an example of a properly connected NI FlexRIO device.
Figure 1. NI FlexRIO Device
NI FlexRIO
Adapter Module + = NI FlexRIO Device
NI FlexRIO
FPGA Module
Contents
Electromagnetic Compatibility Guidelines...............................................................................2
How to Use Your NI FlexRIO Documentation Set...................................................................3
Verifying the System Requirements..........................................................................................4
Front Panel and Connector Pinouts...........................................................................................5
Block Diagrams.........................................................................................................................7
NI 6587 Component-Level Intellectual Property (CLIP)......................................................... 9
NI 6587 CLIP..................................................................................................................10
Cables......................................................................................................................................15
Accessories......................................................................................................................16
Clocking.................................................................................................................................. 18
Installing the Application Software and Driver...................................................................... 20
Installing the NI FlexRIO Devices..........................................................................................20
Unpacking....................................................................................................................... 21
Preparing the Environment............................................................................................. 21
Installing the NI FlexRIO FPGA Module.......................................................................21
Confirming that Measurement & Automation Explorer (MAX) Recognizes the
Device....................................................................................................................... 23
Installing the NI FlexRIO Adapter Module.................................................................... 23
Installing PXI EMC Filler Panels........................................................................................... 24
Uninstalling the Hardware...................................................................................................... 25
Environment............................................................................................................................26
Operating Environment...................................................................................................26
Storage Environment.......................................................................................................26
Shock and Vibration................................................................................................................26
Compliance and Certifications................................................................................................27
Safety.............................................................................................................................. 27
Electromagnetic Compatibility....................................................................................... 27
CE Compliance .............................................................................................................. 27
Online Product Certification........................................................................................... 27
Environmental Management........................................................................................... 28
Where to Go Next................................................................................................................... 28
Worldwide Support and Services............................................................................................ 29
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) stated in the product specifications. These requirements
and limits are designed to provide reasonable protection against harmful interference when the
product is operated in the intended operational electromagnetic environment.
This product is intended for use in industrial locations. However, harmful interference may
occur in some installations, when the product is connected to a peripheral device or test object,
or if the product is used in residential or commercial areas. To minimize interference with
radio and television reception and prevent unacceptable performance degradation, install and
use this product in strict accordance with the instructions in the product documentation.
Furthermore, any modifications to the product not expressly approved by National Instruments
could void your authority to operate it under your local regulatory rules.
Caution To ensure the specified EMC performance, operate this product only with
shielded cables and accessories.
Caution To ensure the specified EMC performance, you must attach EMI gaskets
(NI part number 746228-01) to both sides of your NI 6587 before using.
Caution To ensure the specified EMC performance, you must install PXI EMC
Filler Panels (NI part number 778700-01) in all open chassis slots.
2| ni.com | NI 6587 Getting Started Guide
How to Use Your NI FlexRIO Documentation Set
Refer to the following flowchart for information about how to use FlexRIO documentation.
Figure 2. How to Use Your NI FlexRIO Documentation Set.
LabVIEW FPGA
Module Help
NI FlexRIO
Help
LabVIEW
Examples
INSTALL Hardware
and Software
CONNECT Signals
and LearnAbout
Your AdapterModule
LEARN About
LabVIEW FPGA
Module
PROGRAM Your
NI FlexRIO System
in LabVIEW FPGA
Module
Specifications document
for your FPGA module
Specifications document
for your adapter module
Are
You New to
LabVIEW FPGA
Module?
Yes No
No
Getting Started Guide
for your adapter module
Getting Started Guide
for your FPGA module
NI FlexRIO Adapter
Module Development Kit
User Manual
Table 1. NI FlexRIO Documentation Locations and Descriptions
Document Location Description
Getting started guide
for your FPGA module
Available from the Start menu and
at ni.com/manuals.
Contains installation
instructions for your NI
FlexRIO system.
Specifications
document for your
FPGA module
Available from the Start menu and
at ni.com/manuals.
Contains specifications for
your FPGA module.
Getting started guide
for your adapter
module
Available from the Start menu and
at ni.com/manuals.
Contains signal information,
examples, and CLIP details for
your adapter module.
Specifications
document for your
adapter module
Available from the Start menu and
at ni.com/manuals.
Contains specifications for
your adapter module.
NI 6587 Getting Started Guide | © National Instruments | 3
Table 1. NI FlexRIO Documentation Locations and Descriptions (Continued)
Document Location Description
LabVIEW FPGA
Module Help
Embedded in LabVIEW Help and
at ni.com/manuals.
Contains information about the
basic functionality of the
LabVIEW FPGA Module.
NI FlexRIO Help Available from the Start menu and
at ni.com/manuals.
Contains information about the
FPGA module, adapter
module, and CLIP
configuration information.
NI FlexRIO Adapter
Module Development
Kit User Manual
Available from the Start menu at
Start»All Programs»National
Instruments»NI FlexRIO»NI
FlexRIO Adapter Module
Development Kit»
Documentation.
Contains information about
how to create custom adapter
modules for use with
NI FlexRIO FPGA modules.
LabVIEW Examples Available in NI Example Finder.
In LabVIEW, click Help»Find
Examples»Hardware Input and
Output»FlexRIO.
Contains examples of how to
run FPGA VIs and Host VIs on
your device.
IPNet ni.com/ipnet Contains LabVIEW FPGA
functions and intellectual
property to share.
NI FlexRIO product
page
ni.com/flexrio Contains product information
and data sheets for NI FlexRIO
devices.
Verifying the System Requirements
To use the NI FlexRIO Adapter Module Support instrument driver, your system must meet
certain requirements. For more information about minimum system requirements,
recommended system, and supported application development environments (ADEs), refer to
the NI FlexRIO Adapter Module Support Readme, which is available on the NI FlexRIO
Adapter Module Support software DVD or online at ni.com/updates.
4| ni.com | NI 6587 Getting Started Guide
Front Panel and Connector Pinouts
The NI 6587 provides one PFI signal and one clock signal through the two SMA connectors
on the device front panel. The NI 6587 also provides the following signals on the Digital Data
& Control (DDC) connector:
• Sixteen LVDS signals
• Four LVDS PFI signals
• Three single-ended PFI signals
• One LVDS clock out signal
The following figure shows the front panel connector and signal descriptions for the NI 6587.
Figure 3. NI 6587 Front Panel and Connector Pinout
NI 6587
PFI 0
CLOCK IN
1 Gbps
LVDS
GND
PFI 1+
GND
PFI 2+
GND
PFI 3+
GND
GND
DIO 0+
GND
DIO 1+
GND
DIO 2+
GND
DIO 3+
GND
DIO 4+
GND
DIO 5+
GND
DIO 6+
GND
DIO 7+
GND
DIO 8+
GND
DIO 9+
GND
DIO 10+
GND
DIO 11+
GND
DIO 12+
GND
DIO 13+
GND
DIO 14+
GND
DIO 15+
GND
GND
GND
GND
GND
PFI 1–
PFI 2–
PFI 3–
DIO 0–
DIO 1–
DIO 2–
DIO 3–
DIO 4–
DIO 5–
DIO 6–
DIO 7–
DIO 8–
DIO 9–
DIO 10–
DIO 11–
DIO 12–
DIO 13–
DIO 14–
DIO 15–
1
3
2
4
6
5
7
98
10
12
11
13
15
14
16
18
17
19
21
20
22
24
23
25
27
26
28
30
29
31
3332
34
36
35
37
39
38
40
42
41
43
4544
46
48
47
49
51
50
52
54
53
55
5756
58
60
59
61
63
62
64
66
65
67
6968
70
72
71
73
SE_PFI_3
SE_PFI_2
DDC CLK OUT–
DDC CLK OUT+
GND
SE_PFI_1
STROBE–
STROBE+
PFI 4 –
PFI 4+
NI 6587 Getting Started Guide | © National Instruments | 5
Caution To avoid permanent damage to the NI 6587, disconnect all signals
connected to the NI 6587 before powering down the module, and connect signals
only after the adapter module has been powered on by the NI FlexRIO FPGA
module.
Caution Connections that exceed any of the maximum ratings of any connector on
the NI 6587 can damage the device and the chassis. NI is not liable for any damage
resulting from such connections.
Note If you design a custom cabling solution with the InfiniBand connector
(779157-01) and the SHB12X-B12X LVDS shielded cable (192344-01), the NI 6587
pinout is reversed at the end connector. For example, the signal shown on pin 1 maps
to pin 73 in the pinout at the end connector.
The following table contains pin location information and signal information for the SMA
connectors on the NI 6587.
Table 2. SMA Connector Names and Descriptions
Signal Name Connector Signal Type Signal Description
PFI 0 PFI 0 Control Bidirectional single-ended terminal for channel
PFI 0.
CLOCK IN CLOCK IN Clock External single-ended clock input terminal.
The following table contains pin location information and signal information for the DDC
connectors on the NI 6587.
Table 3. NI 6587 DDC Connector Names and Descriptions
Signal Name Pin(s) Signal Type Signal Description
DDC CLK OUT+ 65 Control Positive terminal for the LVDS
exported Sample Clock.
DDC CLK OUT- 66 Control Negative terminal for the LVDS
exported Sample Clock.
STROBE+ 62 Control Positive differential terminal for the
external Sample Clock source that
can be used for synchronous
dynamic acquisition.
STROBE- 63 Control Negative differential terminal for
the external Sample Clock source
that can be used for synchronous
dynamic acquisition.
6| ni.com | NI 6587 Getting Started Guide
Table 3. NI 6587 DDC Connector Names and Descriptions (Continued)
Signal Name Pin(s) Signal Type Signal Description
DIO<0..15>+ 14, 17, 20, 23, 26,
29, 32, 35, 38, 41,
44, 47, 50, 53, 56, 59
Data Positive differential terminal for the
bidirectional digitial I/O data
channels 0 through 15.
DIO<0..15>- 15, 18, 21, 24, 27,
30, 33, 36, 39, 42,
45, 48, 51, 54, 57, 60
Data Negative differential terminal for
the bidirectional digital I/O data
channels 0 through 15.
PFI <1..4>+ 2, 5, 8, 11 Control Positive differential terminals for
bidirectional PFI channels 1
through 4.
PFI <1..4>- 3, 6, 9, 12 Control Negative differential terminals for
bidirectional PFI channels 1
through 4.
SE_PFI<1..3> 68, 71, 72 Control Single-ended terminals for
bidirectional PFI channels 1
through 3.
GND 1, 4, 7, 10, 13, 16,
19, 22, 25, 28, 31,
34, 37, 40, 42, 46,
49, 52, 55, 58, 69
Ground Ground reference for signals.
For more detailed information about the NI 6587 front panel connectors, refer to the NI 6587
Specifications.
Block Diagrams
Figures 4 through 8 show the data flow through the NI 6587. Single-ended data lines use
standard clock levels to interpret data as either a binary zero or a one in high-speed digital data
transfers. Differential data lines provide a low-noise, low-power, low-amplitude differential
method for high-speed digital data transfer.
Figure 4. Clock Input Signal
CLOCK IN
Global Clock to
NI FlexRIO FPGA Module
(UserGclkLvttl)
NI 6587 Getting Started Guide | © National Instruments | 7
Figure 5. LVDS Data and PFI Lines
Data from
NI FlexRIO FPGA Module
(GPIO Output)
110 Ohm
Data to
NI FlexRIO FPGA Module
(GPIO Input)
110 Ohm
Switch
DIO <0..15>
DIO <0..15>+ and
PFI <1..4>+
Direction Control from
NI FlexRIO FPGA Module
(GPIO Direction)
and
PFI <1..4>
Figure 6. Single-Ended PFI Lines
Data from
NI FlexRIO FPGA Module
(GPIO Output)
Output Enable from
NI FlexRIO FPGA Module
(GPIO Direction)
Data to
NI FlexRIO FPGA Module
(GPIO Input)
SE_PFI <1..3>
and PFI 0
50 Ohm
Figure 7. Clock Output Signals
Clock from
NI FlexRIO FPGA Module
(GPIO Output)
Output Enable from
NI FlexRIO FPGA Module
(GPIO Direction)
DDC CLK OUT+
LVDS
LVDS DDC CLK OUT
Switch
110 Ohm
10 kOhm 10 kOhm
8| ni.com | NI 6587 Getting Started Guide
Figure 8. Crosspoint Switch
Sync Clock (PXIe Only)
Adapter Module Onboard Clock
STROBE
Reserved
Strobe Bypass Control
from NI FlexRIO FPGA Module
(GPIO_8_n)
2
2 2
2
2
Generation Bank I/O Clock
to NI FlexRIO FPGA Module
GPIO_26_CC
GPIO_26_n_CC
2
PFI Bank I/O Clock
to NI FlexRIO FPGA Module
GPIO_38_CC
GPIO_38_n_CC
2
Global Clock
to NI FlexRIO FPGA Module
UserGclkLvds
UserGclkLvds_n
Acquisition Bank I/O Clock
to NI FlexRIO FPGA Module
GPIO_56_CC
GPIO_56_n_CC
2
2
2
4×4
Crosspoint
Switch
2
Related Information
NI 6587 Component-Level Intellectual Property (CLIP) on page 9
NI 6587 Component-Level Intellectual Property
(CLIP)
The LabVIEW FPGA Module includes component-level intellectual property (CLIP) for HDL
IP integration. NI FlexRIO devices support two types of CLIP: user-defined and socketed.
•User-defined CLIP allows you to insert HDL IP into an FPGA target, enabling VHDL
code to communicate directly with an FPGA VI.
•Socketed CLIP provides the same IP integration of the user-defined CLIP, but also allows
the CLIP to communicate directly with circuitry external to the FPGA. Adapter module
socketed CLIP allows your IP to communicate directly with both the FPGA VI and the
external adapter module connector interface.
The following figure shows the relationship between an FPGA VI and the CLIP.
NI 6587 Getting Started Guide | © National Instruments | 9

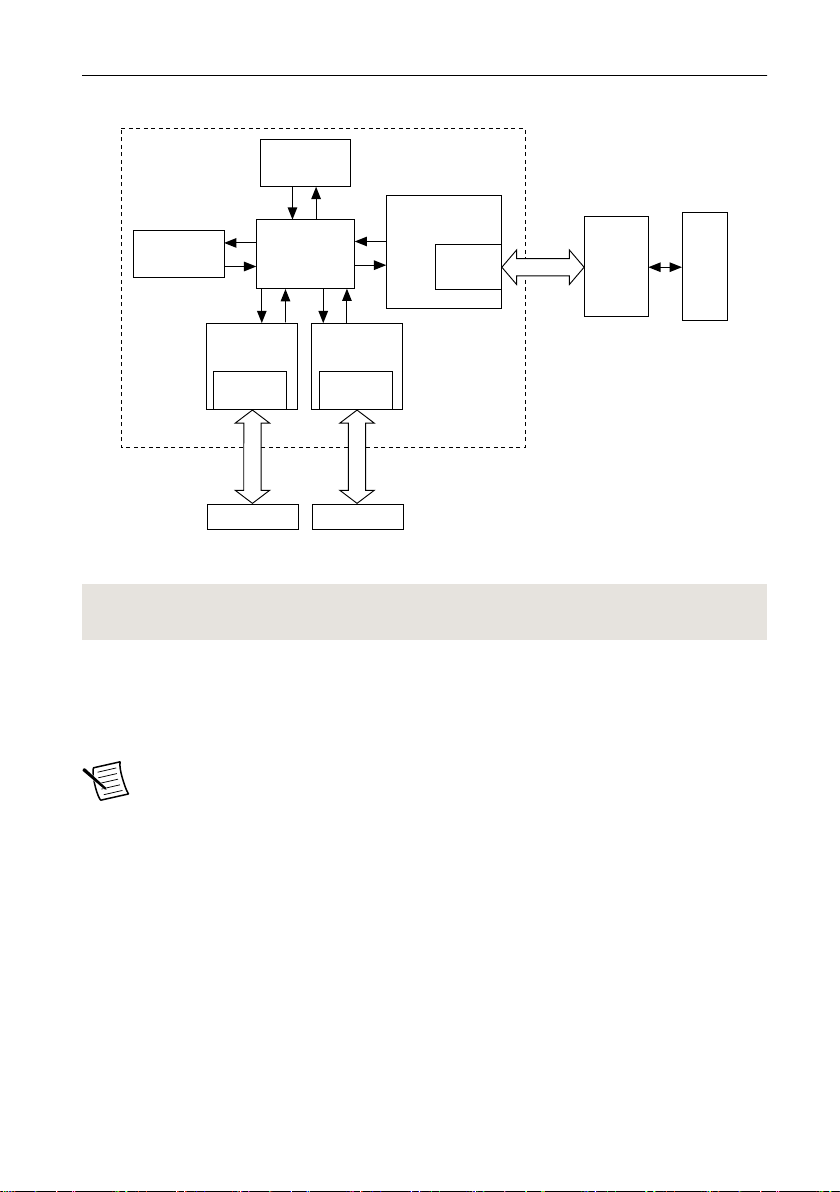

Figure 9. CLIP and FPGA VI Relationship
Adapter Module
CLIP Socket
LabVIEW
FPGA VI
User-Defined
CLIP
NI FlexRIO FPGA Module
FPGA
External
I/O Connector
Adapter
Module
Socketed
CLIP
User-Defined
CLIP Fixed I/O
DRAM 0
CLIP Socket
Socketed
CLIP
DRAM 1
CLIP Socket
Socketed
CLIP
Fixed I/O
Fixed I/O
DRAM 0 DRAM 1
The NI 6587 ships with socketed CLIP items that add module I/O to the LabVIEW project.
Related Information
Block Diagrams on page 7
NI 6587 CLIP
Refer to the following table for the available NI 6587 CLIP items, and each CLIP item's
function and available signals.
Note All NI 6587 CLIP items allow individual clock output inversion.
10 | ni.com | NI 6587 Getting Started Guide
Table des matières
Autres manuels National Instruments Unité de contrôle
National Instruments
National Instruments NI PXIe-4300 Manuel utilisateur
National Instruments
National Instruments FP-CTR-500 Manuel utilisateur
National Instruments
National Instruments SCXI-1000 Manuel utilisateur
National Instruments
National Instruments NI DCM-2316 Manuel utilisateur
National Instruments
National Instruments FieldPoint FP-1601 Manuel utilisateur
National Instruments
National Instruments DAQCard-DIO-24 Manuel utilisateur
National Instruments
National Instruments NI-5783 Manuel utilisateur
National Instruments
National Instruments FlexRIO PXIe-7975R Manuel utilisateur
National Instruments
National Instruments NI PXI-8840 Manuel utilisateur
National Instruments
National Instruments NI 9861 Manuel utilisateur
National Instruments
National Instruments SCXI-1104 Manuel utilisateur
National Instruments
National Instruments SLSC-12251 Manuel utilisateur
National Instruments
National Instruments sbRIO-9205 Manuel utilisateur
National Instruments
National Instruments R Series Manuel utilisateur
National Instruments
National Instruments CompactRIO cRIO-9263 Manuel utilisateur
National Instruments
National Instruments PXIe-6591R Manuel utilisateur
National Instruments
National Instruments NI 9227 Manuel utilisateur
National Instruments
National Instruments PXI-2503 Manuel utilisateur
National Instruments
National Instruments 9501 C Series Manuel utilisateur
National Instruments
National Instruments NI 9423 Manuel utilisateur
National Instruments
National Instruments NI PXI/e-4000 Series Manuel utilisateur
National Instruments
National Instruments FieldPoint FP-1001 Manuel utilisateur
National Instruments
National Instruments VXI-8340 Series Manuel utilisateur
National Instruments
National Instruments SCC-FV01 Manuel utilisateur
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
