Multitech MultiModem MT9234ZPX-PCIE Manuel utilisateur

MultiModem® ZPX

V.92 Internal Modem

MT9234ZPX-UPCI

MT9234ZPX-UPCI-NV

MT9234ZPX-PCIE

MT9234ZPX-PCIE-NV

Quick Start Guide

2 Multi-Tech Systems, Inc.

MultiModem ZPX Quick Start Guide

V.92 Internal Modem

MT9234ZPX-UPCI, MT9234ZPX-UPCI-NV

MT9234ZPX-PCIE, MT9234ZPX-PCIE-NV

82100130L Rev. A

This publication may not be reproduced, in whole or in part, without prior expressed

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the

contents hereof and specifically disclaims any implied warranty of merchantability or

fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves

the right to revise this publication and to make changes from time to time in the

content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or

organization of such revisions or changes. Check Multi-Tech’s Web site for current

versions of our product documentation.

Revision Date Description

A 12/28/07 Initial release.

Trademarks

Multi-Tech, MultiModem, and the Multi-Tech logo are registered trademarks of

Multi-Tech Systems, Inc. Windows 2000, 2003, XP, and Vista are registered

trademarks of Microsoft in the U.S. and other countires. All other brand and

product names mentioned in this publication are trademarks or registered

trademarks of their respective companies.

Patents

This Product is covered by one or more of the following U.S. Patent Numbers:

6151333, 5757801, 5682386, 5.301.274; 5.309.562; 5.355.365; 5.355.653;

5.452.289; 5.453.986;7082106;7082141;7092406. Other Patents Pending.

Technical Support

Country By Email By Phone

Europe, Middle East, Africa: [email protected] +(44) 118 959 7774

U.S., Canada. all others: [email protected] (800) 972-2439 or

+763-717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112 U.S.A.

(763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

http://www.multitech.com

MultiModem Quick Start Guide

Multi-Tech Systems, Inc. 3

Introduction

This guide shows you how to set up your MultiModem ZPX. For detailed

information, product specifications, troubleshooting tips, and more, see the User

Guide, available on your MultiModem CD.

Check Multi-Tech’s Web site for current versions of our product documentation.

Safety Warnings

•Use this product only with UL- and CUL-listed computers.

•To reduce the risk of fire, use only UL-listed 26 AWG (.41mm) or larger

telephone wiring.

•Never install telephone wiring during a lightning storm.

•Never install a telephone jack in a wet location unless the jack is specifically

designed for wet locations.

•Never touch uninsulated telephone wires or terminals unless the telephone

line has been disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

•Avoid using a telephone during an electrical storm; there is a risk of electrical

shock from lightning.

•Do not use a telephone in the vicinity of a gas leak.

•The telephone cord is to be disconnected before accessing the inside of the

equipment.

Package Contents

•One MultiModem ZPX

•One RJ11 telephone cable

•One printed Quick Start Guide

•One product CD

•One low profile mounting bracket (MT9234ZPX-PCIE models only)

Installing your MultiModem

Installing the MultiModem requires you to open your system. Please consult your

system manual in addition to the following instructions.

MT9234ZPX-UPCI

MT9234ZPX-PCIE

1. Turn off your system and unplug it. Failure to do so may result in damage to

both the MultiModem and your system. Do not turn on the system until the

instructions tell you to do so.

MultiModem Quick Start Guide

4 Multi-Tech Systems, Inc.

2. Remove the cover from your system as instructed in the system manual.

3. If you are installing a MT9234ZPX-PCIE board in a low profile machine, you

will have to change the mounting bracket to the low profile mounting bracket.

Refer to your User Guide for low profile mounting bracket details.

4. Select an empty PCI expansion slot. Remove the expansion slot cover and

save the retaining screw.

5. Before handling the MultiModem, discharge static in your body by touching a

bare piece of metal on the chassis. Carefully remove the MultiModem from its

antistatic bag, handling it only by the mounting bracket and edges. Do not

touch the gold-plated connectors along the bottom edge.

6. Look at the system’s main board to determine either PCI or Express

connector. Place the MultiModem directly above the expansion slot and

gently, but firmly, push it into the connector until the card’s retaining bracket

is flush against the system chassis.

7. Fasten the retaining bracket to the system chassis with the screw saved in

step 4.

8. Replace the system cover.

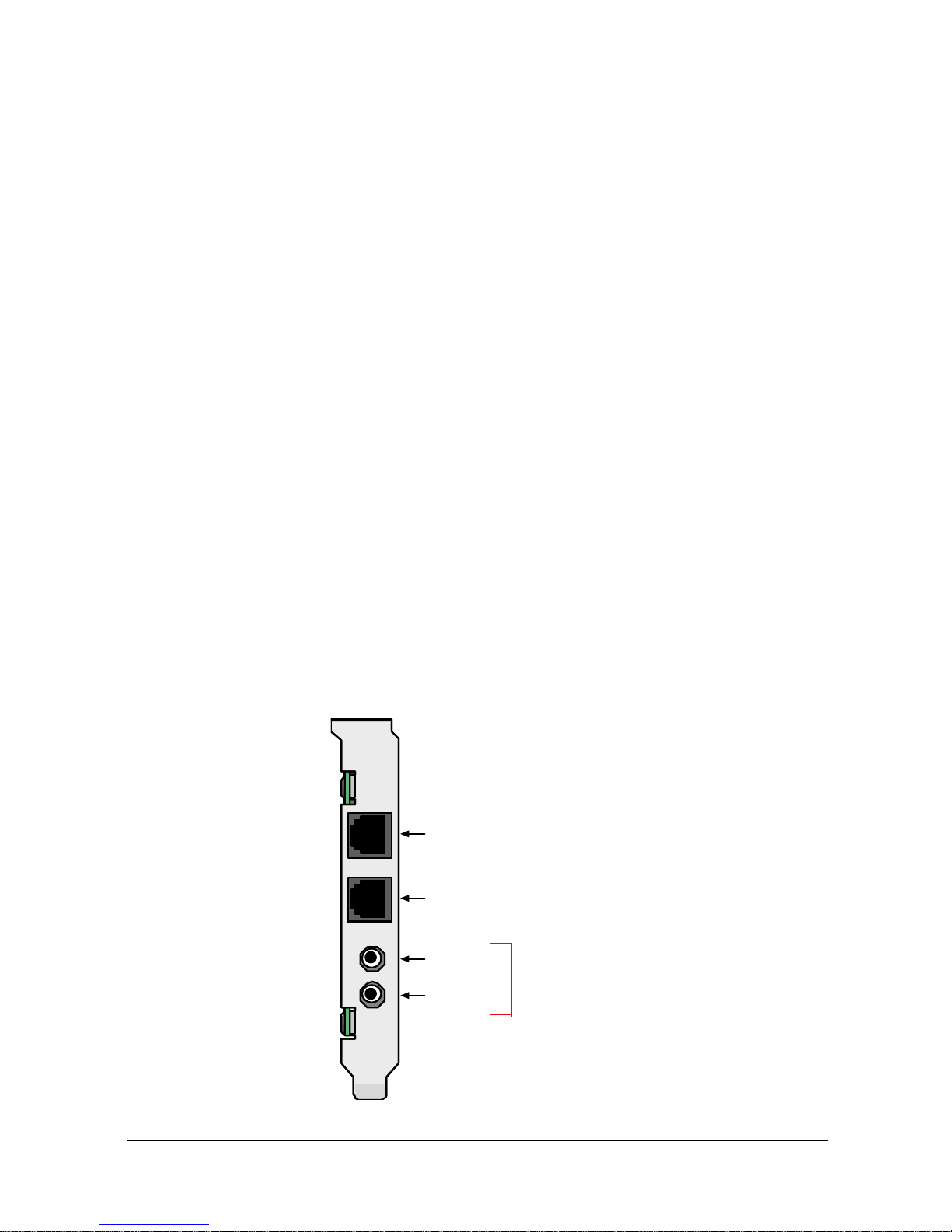

Making External Connections

Now, connect the MultiModem to the telephone line and, optionally, to your

telephone. For voice mail or speakerphone, you can also connect it to a

microphone and an external speaker, headphone, or sound card. The microphone

can be used for recording answering machine messages or for speakerphone use.

The speaker or headphone can be used for playing back messages or as a

speakerphone.

LINE

MI C

LINE

PH ONE

Optional Voice

MIC IN

LINE OUT

PHONE

LINE

MultiModem Quick Start Guide

Multi-Tech Systems, Inc. 5

Line Connection

Plug one end of the provided telephone cable into the modem’s LINE jack, and

the other end into a telephone wall jack. This is the only required connection.

Important: The LINE jack is not interchangeable with the PHONE jack. Do not

plug the phone into the LINE jack or the line cable into the PHONE jack.

Note: The Federal Communications Commission (FCC) and Industry

Canada impose certain restrictions on equipment connected to public

telephone systems.

Phone Connection (Optional)

If you wish to connect a telephone to the same line as the modem, plug

it into the modem PHONE jack. Important: The PHONE jack is not interchangeable

with the LINE jack. Do not plug the phone into the LINE jack or the line cable into

the PHONE jack.

Microphone/Headphone Connection (Optional)

For voice mail or speakerphone applications, plug an unamplified microphone into

the MIC jack. The microphone and headphone should have a stereo 3.58mm (9/64-

inch) mini plug. Do not use a monophonic microphone.

Installing the Modem Driver

The MT9234ZPX drivers need to be installed in your computer’s program directory.

The procedure will be different depending on the operating system. The first section

provides installation for the Vista Operating System. The second section provides

installation for Windows 2000 thru Windows XP Operating Systems. If you use a

Linux operating system, please refer to Appendix D in the User Guide for

installation instructions.

Vista Operating System

The MT9234ZPX driver installation is done in three parts, each directed by an

installation wizard. The three parts are: (1) installation of your PCI Serial Port, (2)

installation of the Communications Port, and (3) installation of the modem.

Preliminaries

1. Power up your computer.

2. Windows will detect that the new modem is present.

Driver Installation of your PCI Serial Port

3. The Found New Hardware screen appears with Windows needs to

install driver software for your PCI Serial Port.

MultiModem Quick Start Guide

6 Multi-Tech Systems, Inc.

Click on Locate and install driver software (recommended). Windows

will guide you through the process of installing driver software for your

device.

4. The next screen prompts you to insert the disc that came with your PCI

Serial Port. If you have the disc that came with your device, insert it now.

Windows will automatically search the disc for driver software.

Click Next.

5. Windows couldn’t find driver software for your device screen

appears. Choose Browse my computer for driver software

(advanced).

MultiModem Quick Start Guide

Multi-Tech Systems, Inc. 7

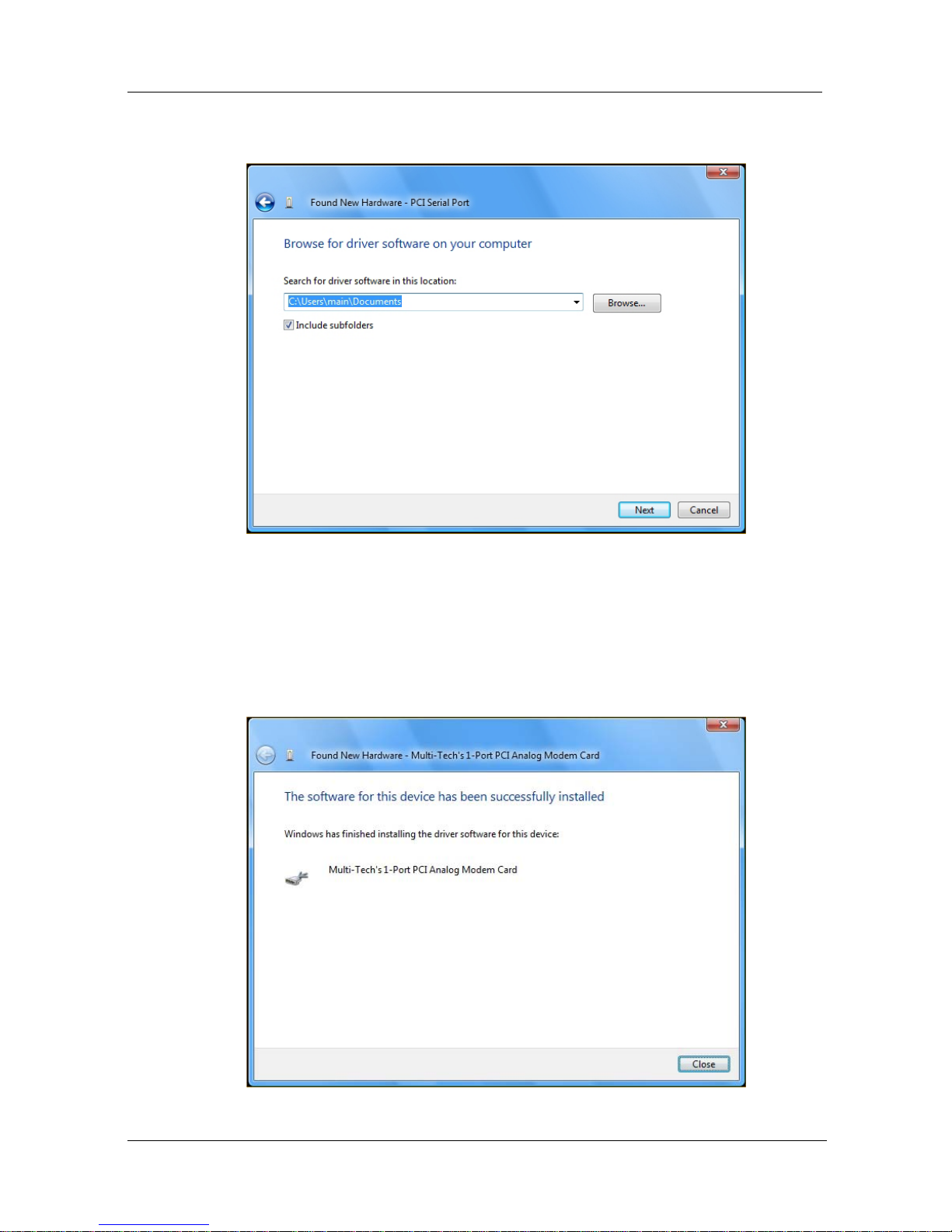

6. At the Browse for driver software on your computer screen, click the

Browse button.

7. Select the Drivers folder, and then the Vista folder on the product CD.

Click Next.

8. Searching D:\Drivers\Vista for software… screen appears.

9. When the software for this device has been successfully installed screen

appears with Windows has finished installing the driver software for this

device: Multi-Tech’s 1-Port PCI Analog Modem Card.

Click Close.

MultiModem Quick Start Guide

8 Multi-Tech Systems, Inc.

Installation of the Communications Port

10. The Found New Hardware – Multifunction Device screen appears with

Insert the disc that came with your Multifunction Device.

The MT9234ZPX-PCI product CD is still in the CDROM drive. Click Next.

11. At the Windows couldn’t find driver software for your device, click on

Browse my computer for driver software (advanced). Locate and

install driver software manually.

12. At the Browse for driver software on your computer screen, click the

Browse button and select the Drivers folder, then the Vista folder on the

product CD.

13. Click Next.

14. Installing driver software… activity screen appears.

15. Windows can’t verify the publisher of this driver software screen

appears.

MultiModem Quick Start Guide

Multi-Tech Systems, Inc. 9

Select Install this driver software anyway.

16. Installing driver software progress screen appears.

17. The software for this device has ben successfully installed screen

appears with Windows has finished installing the driver software for this

device: Multi-Tech Communications Port.

Click Close.

Installation of the Modem

18. The Found New Hardware – MultiTech Systems MT9234ZPX-PCIE

screen appears with Insert the disc that came with your MultiTech

Systems MT9234ZPX-PCIE.

The MT9234ZPX-PCI product CD is still in the CDROM drive. Click Next.

MultiModem Quick Start Guide

10 Multi-Tech Systems, Inc.

19. At the Windows couldn’t find driver software for your device, click on

Browse my computer for driver software (advanced). Locate and

install driver software manually.

20. At the Browse for driver software on your computer screen, click the

Browse button and select the Drivers folder, then the Vista folder on the

product CD.

21. Click Next.

22. Windows can’t verify the publisher of this driver software screen

appears.

Select Install this driver software anyway.

23. Installing driver software progress screen appears.

24. The software for this device has ben successfully installed screen

appears with Windows has finished installing the driver software for this

device: Multi-Tech Systems MT9234ZPX-PCIE.

25. Click Close. The installation of drivers is now complete.

Autres manuels pour MultiModem MT9234ZPX-PCIE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Multitech Modem

Multitech

Multitech MultiModem MT5634ZPW-PCI Manuel utilisateur

Multitech

Multitech MultiModem ZBA Manuel utilisateur

Multitech

Multitech MultiConnect MTC-LAT1-B02 Manuel utilisateur

Multitech

Multitech MultiModem MTCBA-G-U-F4 Manuel utilisateur

Multitech

Multitech Multimobile MT10100ZL-X/E Manuel utilisateur

Multitech

Multitech MultiModem ISIHP-2S Manuel utilisateur

Multitech

Multitech QuickCarrier USB-D MTD-MNA1 Manuel utilisateur

Multitech

Multitech MTCBA-E Manuel utilisateur

Multitech

Multitech MTC-LAT1 Manuel utilisateur

Multitech

Multitech MultiModem II MT5600BA-V.92 Manuel utilisateur

Multitech

Multitech MultiModem Cell MTCBA-E1-U Manuel utilisateur

Multitech

Multitech MMCModem MTMMC-G-F4 Mode d’emploi

Multitech

Multitech MultiConnect Adapter Manuel utilisateur

Multitech

Multitech MT5600BA Manuel utilisateur

Multitech

Multitech MultiModem MTCBA-G-F4 Manuel utilisateur

Multitech

Multitech MultiModem MT2834MR6 Manuel technique

Multitech

Multitech MULTI MODEM II MT5600BA Manuel utilisateur

Multitech

Multitech MultiModem MT5634ZPX-PCI-U-NV Manuel utilisateur

Multitech

Multitech MTCBA-C-U-N1 Manuel utilisateur

Multitech

Multitech MMCModem MTMMC-G-F4 Manuel utilisateur

Multitech

Multitech MultiVOIP MVP200 Manuel utilisateur

Multitech

Multitech MultiConnect microCell MTCM2-L4G1 Manuel utilisateur

Multitech

Multitech MTSMC-H5 Guide d'application

Multitech

Multitech MultiModem MTCBA-C Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
